Speco O2vld5 Manuel utilisateur

Thank you for purchasing this product. Please read this guide

carefully before operating the unit and retain it for future

reference.

Quick Start Guide

Network Camera

Warning and Caution

■ If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■ Do not allow water or liquid intrusion into the camera.

■ All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■ Do not use camera beyond specified voltage range.

■ Do not drop the camera or subject it to physical shock.

■ Avoid touching the camera lens.

■ If cleaning is necessary, please use a cleaning cloth to wipe it

gently.

■ Do not aim the camera at the sun or extremely bright light

sources.

■ Do not place the camera in extremely hot or cold environments

and dusty and damp locations. Do not expose it to highly

electromagnetic radiation.

■ Do not block any ventilations.

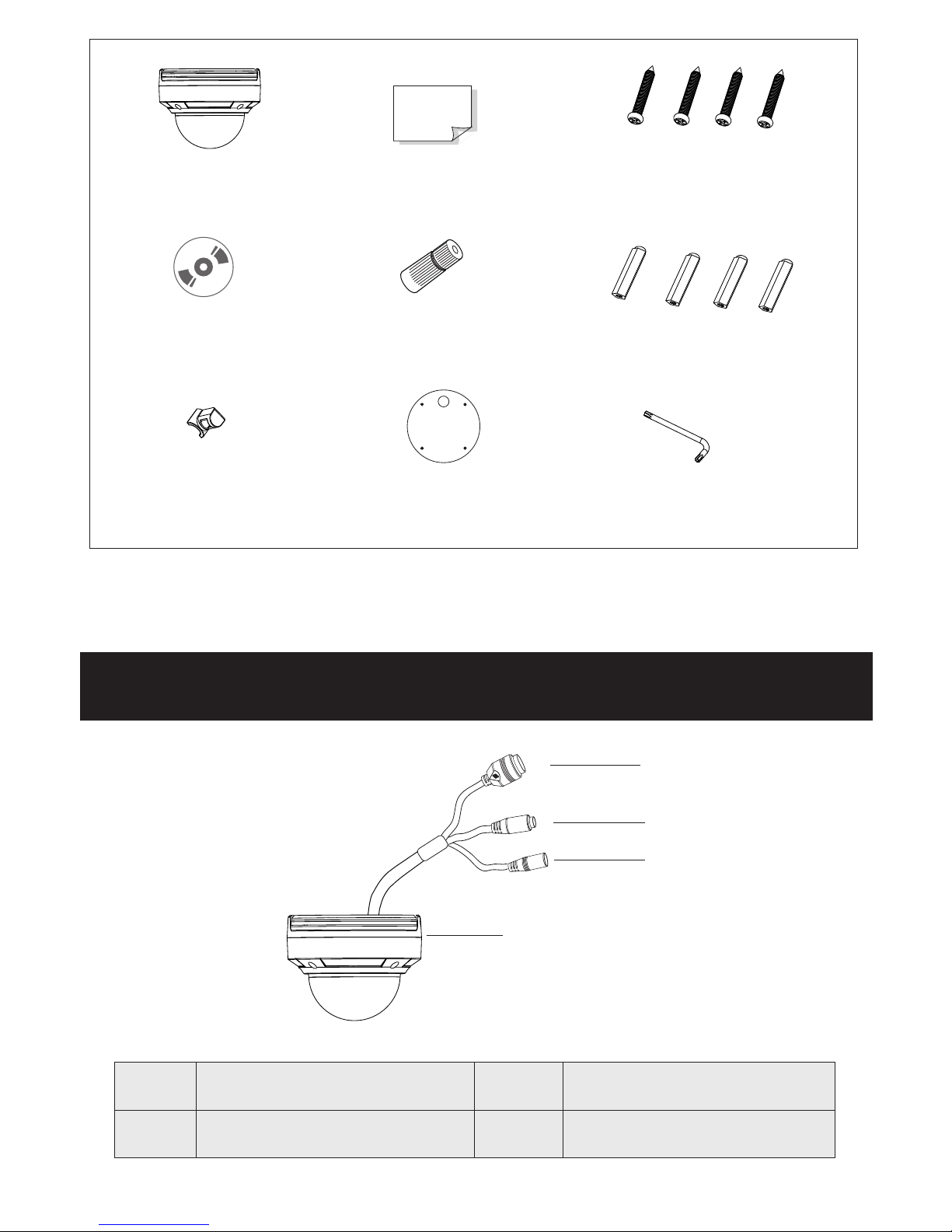

Package

Overview

Camera Quick start guide

CD Water-proof cap

Drill template

Rubber plug Screwdriver

Plastic plug ×4

4 tapping screws PA 4×35

Mounting Base

Ethernet connector DC power connector

Mic in connector

► Connecting Network Cable

* 1 It is recommended to install the water-proof cap for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through

both elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the hermetic connector. Then tighten

the nut and the main cover.

DC12V

Network Cable

Installation

Please make sure that the wall or ceiling is strong enough to

withstand 3 times the weight of the camera. Please install and

use the camera in a dry environment.

① Drill the screw holes and the cable hole on the wall according

to the drill template.

∅4.3

∅107.5

∅100.0

8.9mm

R6.3

90°

70.7mm

② Loosen the screws to remove the lower dome from the camera.

Lower Dome

③ Route and connect the cables.

④ Secure the mounting base with camera to the wall with screws

as shown below.

Rotation 0°~220°

Pan 0°~240°

Tilt 0°~68°

Rubber Plug

⑤ Three-axis adjustment. Before adjustment, preview the image

of the camera on a monitor and then adjust the camera according

to the figure below to get an optimum angle.

⑥ Install the lower dome back to the camera and secure it with

the screws.

③ In the device list, you can view the IP address, model number,

and MAC address of each device. Select the applicable device

and double click to open up the web viewer. You can also manually

enter the IP address in the address bar of the web browser.

① Make sure that the camera and the PC are connected to the

same local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

● Operation

Web Operation

IP Scanner can search for the device on the local network.

450043000576 A0

The login interface is shown above. Default user name is admin

and password is 1234. After logging in, follow directions to

install applicable plugins.
