Speco HT7246H Manuel utilisateur

INSTRUCTION

MANUAL

960H Intensier3™ Series

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation. Rev. 11/01/2012

HT7246H

(Weatherproof Dome Camera with Chameleon™ Cover)

HTINTB8H / HTINTB8HW

(Weatherproof Bullet Camera with mount plate)

HTINTD8H / HTINTD8HW

(Weatherproof Dome Camera)

Contents

◑

Contents...................................................... 1

◑

Precautions ................................................. 2, 3

◑

Safety Instructions ...................................... 4

◑

Package Contents....................................... 5

◑

Camera Installation ..................................... 6 -11

◑

Specications.............................................. 12-14

◑

Camera Dimension ..................................... 15,16

◑

Features...................................................... 17,18

◑

OSD Menu Details ...................................... 19- 33

◑

Trouble Shooting......................................... 34

Precautions

Do not install the camera in

extreme temperature conditions.

Do not touch the front lens of the

camera.

Never keep the camera pointed

directly at strong light.

Do not expose the camera to

radioactivity.

Do not install the camera under

unstable lighting conditions.

Do not drop the camera or subject

it to physical shocks.

Only use the camera under conditions

where temperatures are between

-10°C and +50°C. Be especially careful to

provide ventilation when operating under

high temperatures.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

It can cause malfunctions to occur. If exposed to radioactivity the CCD

will fail.

Severe lighting change or flicker can

cause the camera to work improperly.

Housing damage can compromise

weatherproof ratings.

NOTE

* If the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

* please check that the power satisfies the normal specification before

connecting the camera.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER(OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ISO14001

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

their own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

☞Do NOT use power sources other than those specified.

In USA and Canada, Use Class 2 Power Supply Only

Safety Instructions

Precautions for use

Please handle this camera carefully :

◑ This camera should be installed by qualied personnel only

◑There are no user serviceable parts inside

◑Do not disassemble this camera other than to make initial adjustments

◑Use a UL approved regulated 24 volt AC or 12 volt DC power supply

◑

Use appropriate low voltage power cable to prevent re or electrical shock

◑

Please insure that your installation area can support the weight of the camera

◑Do not use a strong or abrasive detergent when cleaning the camera

◑Do not install near cooling or heating device

Package Contents

Please make sure that the following items are included in the Package:

1) HT7246H

• 1 Video Test Connector, Power Jack

• 1 Chameleon Cover

• 1 Wrench

• Set Screw

- 3 Tapping Screws 4x40

- 3 Plastic Anchor

2) HTINTB8H, HTINTB8HW

• 1 Video Test Connector, Power Jack

• 1 Bracket Base

• 2 Wrenches

• Set Screw

- 4 Tapping Screws 4x25

- 4 Hexagon Socket Screws 5x10

3) HTINTD8H, HTINTD8HW

• 1 Video Test Connector, Power Jack

• 2 Wrenches

• Set Screw

- 3 Tapping Screws 4x25

- 2 Hexagon Socket Screws M6x20

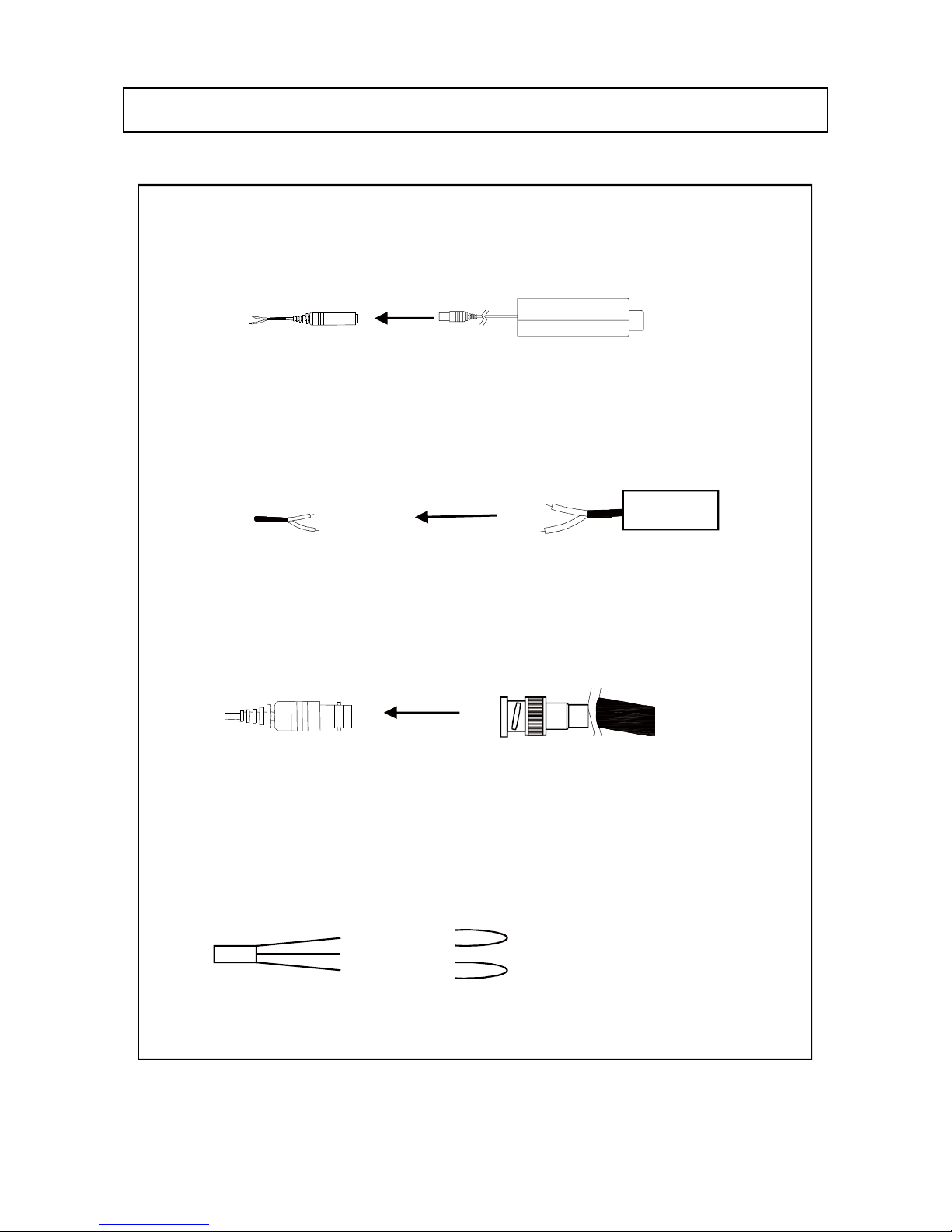

CAMERA INSTALLATION

jvuulj{Gwv~lyGjhislG

XUG~oluG|zpunGXYG}vs{zGkjGOGG\WWGhPG

YUG~oluG|zpunGY[G}vs{zGhjGO[WG}GhP

ZUGjvuulj{G}pklvGjhislG

Tjvuulj{GiujGjhislG{vG{olGiujGqhjrUG

[UGjvuulj{GhGGOyGP

TjGORGSGjvtPGGwGGGOTUGjvtPGG

uGGGlGhGkGGtG

kGG˄vu˅GGGU

kjGXY}GwGz

wGpGaylk

jGaGORP

ishjraOTP

ylkORP

wGz

hjGY[}

jvtG

hGvG

wGhGkG

uGhGk

CAMERA INSTALLATION

Compatibility

1) HT7246H

2) HTINTB8H, HTINTB8HW

INTWM

CVCJBB

INTPM

INTJBS

CVCJBD

INTCM

DFM

CAMERA INSTALLATION

Compatibility

3) HTINTD8H, HTINTD8HW

INTWM INTPM JB03TG

CAMERA INSTALLATION

1. HT7246H

CAUTION : The installation instructions in this manual are for use by qualified service

personnel only. To reduce the risk of electric shock, do not perform any servicing other

than that contained in the operating instructions unless you are qualified to do so.

VANDAL DOME BODY ASSEMBLY

BODY OUTER COVER

TAPPING SCREW 4X40, 3EA

VANDAL DOME BASE ASSEMBLY

PLASTIC ANCHOR 6x30, 3EA
