Speco O4T8 Manuel utilisateur

Quick Start Guide

O4T8

1Warning and Caution

■ If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■ Do not allow water or liquid intrusion into the camera.

■ All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■ Do not use camera beyond specified voltage range.

■ Do not drop the camera or subject it to physical shock.

■ Avoid touching the camera lens.

■ If cleaning is necessary, please use cleaning cloth to wipe it

gently.

■ Do not aim the camera at the sun or extremely bright light

sources.

■ Do not place the camera in extremely hot or cold environments

and dusty and damp locations . Do not expose it to highly

electromagnetic radiation.

■ Do not block any ventilations.

Package

Overview

3 Overview

Camera Quick start guide

Screwdriver

Mounting block Terminal block for power

4 tapping screws

Side Panel Instruction

4 1

Driver -

Driver +

Damp +

Damp -

Focus Adjusting

Iris Lens Plug

Focus Adjusting: When it still fails to realize focusing after having

confirmed the correct installation of lens, the back focus adjustment may

be required .

Iris Lens Plug: The camera provides an iris lens plug in negative

pattern with four square holes and the definition of pins is shown

above. The interface of DC drive auto iris adopts four pins: Damp+,

Drive+, Damp- and Drive-.

511

612

410

Ground

Alarm output

SD card slot

Reset

Audio input

Audio output

Video output

Power indicator

Power interface

Alarm input

Connect to PTZ

Ethernet interface

VIDEO OUT

DC12V/AC24V

SD CARD

AUDIO OUT

AUDIO IN

PWR

NET

D-

COM

GND

IN D+

DEFAU LT

ALAR M RS48 5

Rear Panel Connection

Installation

* Before you start, please make sure that the wall is strong enough to

withstand three times the weight of the camera.

① Rotate the lens clockwise onto the lens mount of the camera.

② Plug the wire of auto iris lens to the auto iris interface of the

camera.

③ Connect the power supply and video output.

④ Attach the mounting block to the bracket which shall be supplied

by yourself and then install the bracket to the wall and tighten the

screws to fix it as shown below.

Mounting Block

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

⑤ Attach the camera to the bracket with the mounting block and

tighten the screws to fix.

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.

04 T8

Table des matières

Autres manuels Speco Appareil photo numérique

Speco

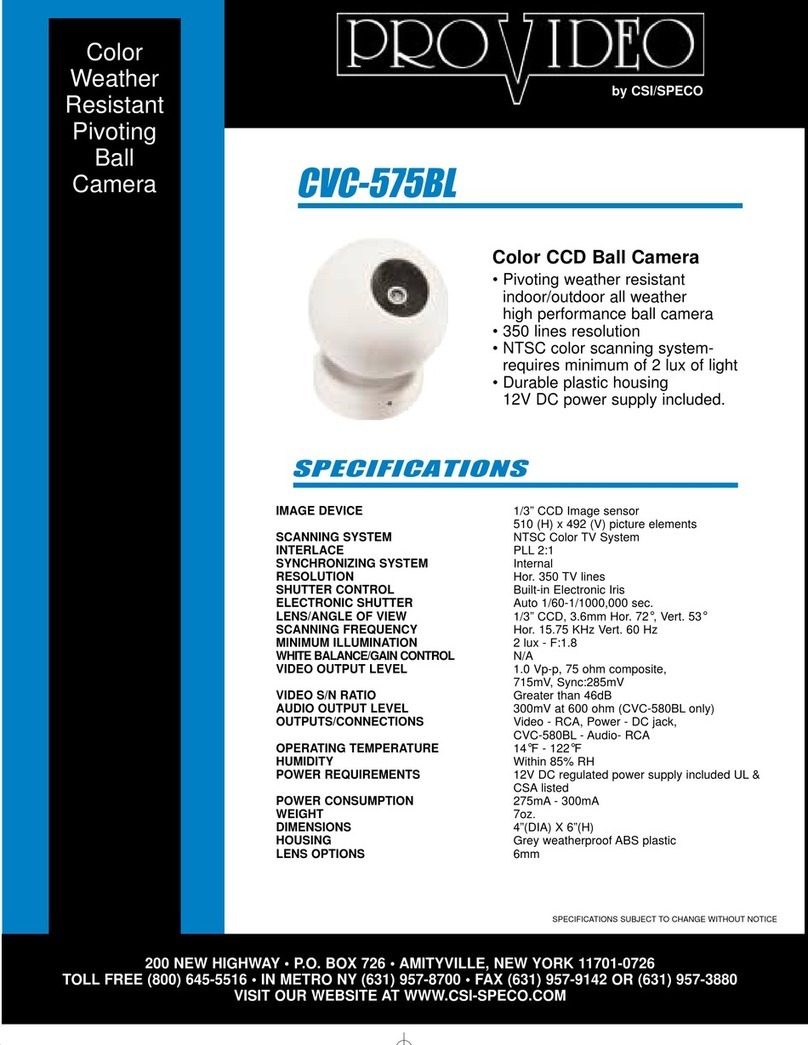

Speco IP-400 Manuel utilisateur
