Speakman SA-2403 Manuel utilisateur

INSTRUCTIONS FOR MODELS

92-SA-2400-02

For additional assistance or service please contact:

SPEAKMAN®Company

400 Anchor Mill Road

New Castle, DE 19720

800-537-2107

customerser[email protected]

www.speakman.com

SA-2403 TOWEL RACK

SA-2404 TOWEL RING

SA-2405 PAPER HOLDER

SA-2406 ROBE HOOK

SA-2407 TOWEL BAR

SA-2408

DOUBLE ROBE HOOK

SA-2410

DOUBLE PAPER HOLDER

TOOLS AND SUPPLIES

Phillips

Screwdriver

Pencil

Drill

Drill Bit

Ø3

/16”

Level

Hex Key

(included)

Phillips

Drive Bit

Additional warranty information can be found at:

www.speakman.com

WARRANTY

MAINTENANCE

• Cover your drain to prevent loss of parts. Be sure to

wear eye protection.

• If mounting to a tile surface, ensure you acquire

appropriate mounting hardware capable of supporting

the accessory in use. Follow the instructions included

with the manufacturer’s mounting hardware.

SAFETY TIPS

Your new Speakman Product is designed for years of

trouble-free performance. Keep it looking new by

cleaning it periodically with a soft cloth. The use of harsh

chemicals and abrasives on any of the Speakman custom

finish products may damage the finish and void the

product warranty. Please be sure to only use approved

cleaners. Please contact Speakman for any clarification

of acceptable cleaners.

IMPORTANT

• Be sure to read instructions thoroughly before

beginning installation.

• Do not over-tighten any connections or damage

may occur.

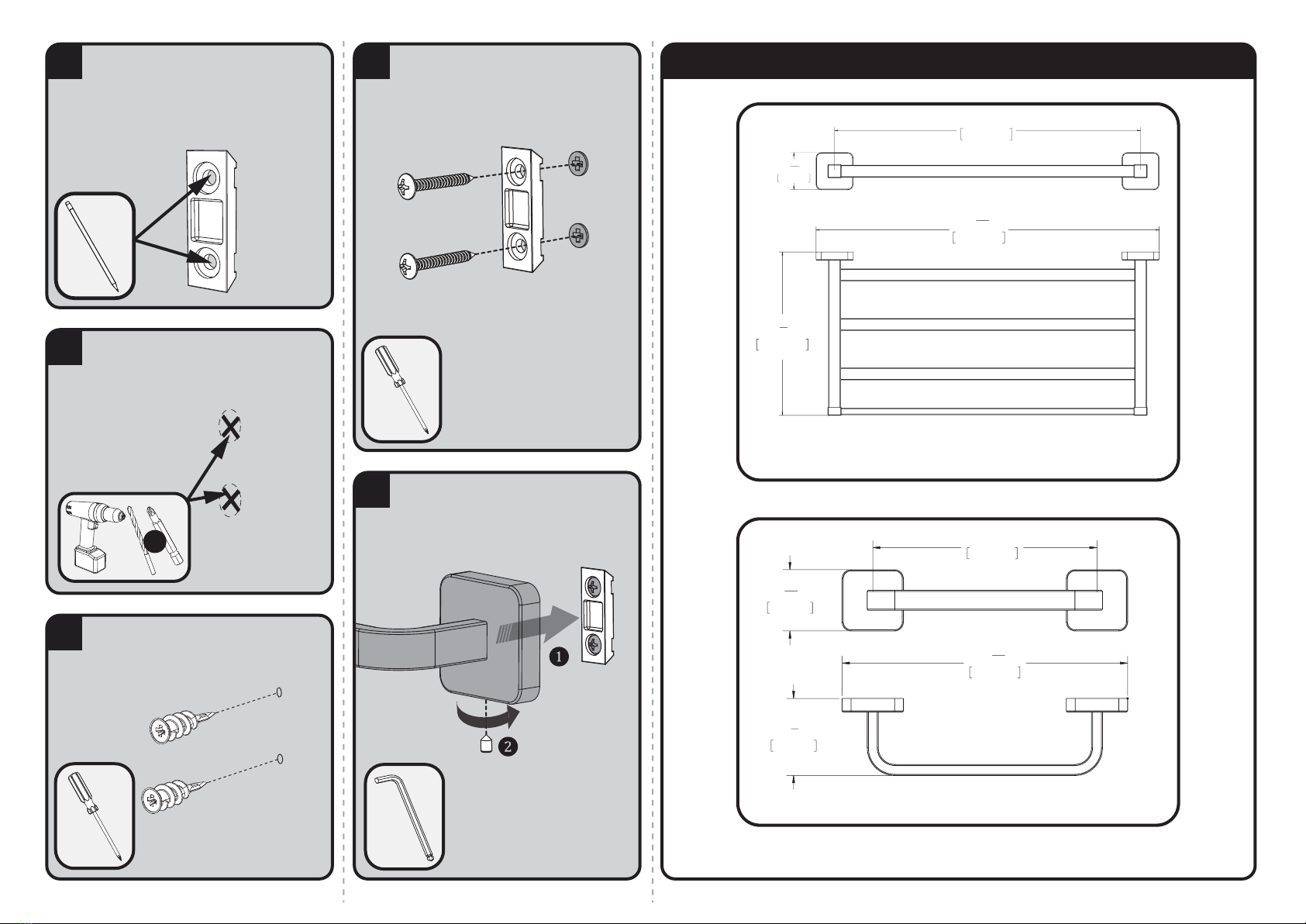

If the Mounting Plate(s) (1) come pre-installed

in the Accessory (2), remove the Mounting

Plate(s) by loosening (but not removing) the

pre-installed set screw at bottom with the

included Hex Key.

2At the selected height, mark center point of

mounting locations onto wall referencing

the rough in diagram.

3Align Mounting Plate over center point

marked in previous step. Mounting Plate

should be vertical as shown below. Mark

Mounting Screw locations onto the wall

surface. Remove items after marking

mounting locations.

4If mounting directly to wood stud, Plastic

Anchors are not required. If mounting

to drywall, drill guide holes at marked

locations using a Drill equipped with

a Ø3/16" bit.

Ø3

/16”

5Insert Plastic Anchors into drilled holes and

screw in the anchor using a Philips Head

screwdriver, or a Drill equipped with

a Phillips Driver Bit until the head is flush

with the wall surface.

6Secure Mounting Plate with the Mounting

Screws provided. Verify that the Mounting

Plate is aligned vertically.

7Place Accessory (1) over Mounting Bracket

and secure the pre-installed set screw (2)

with the included Hex Key.

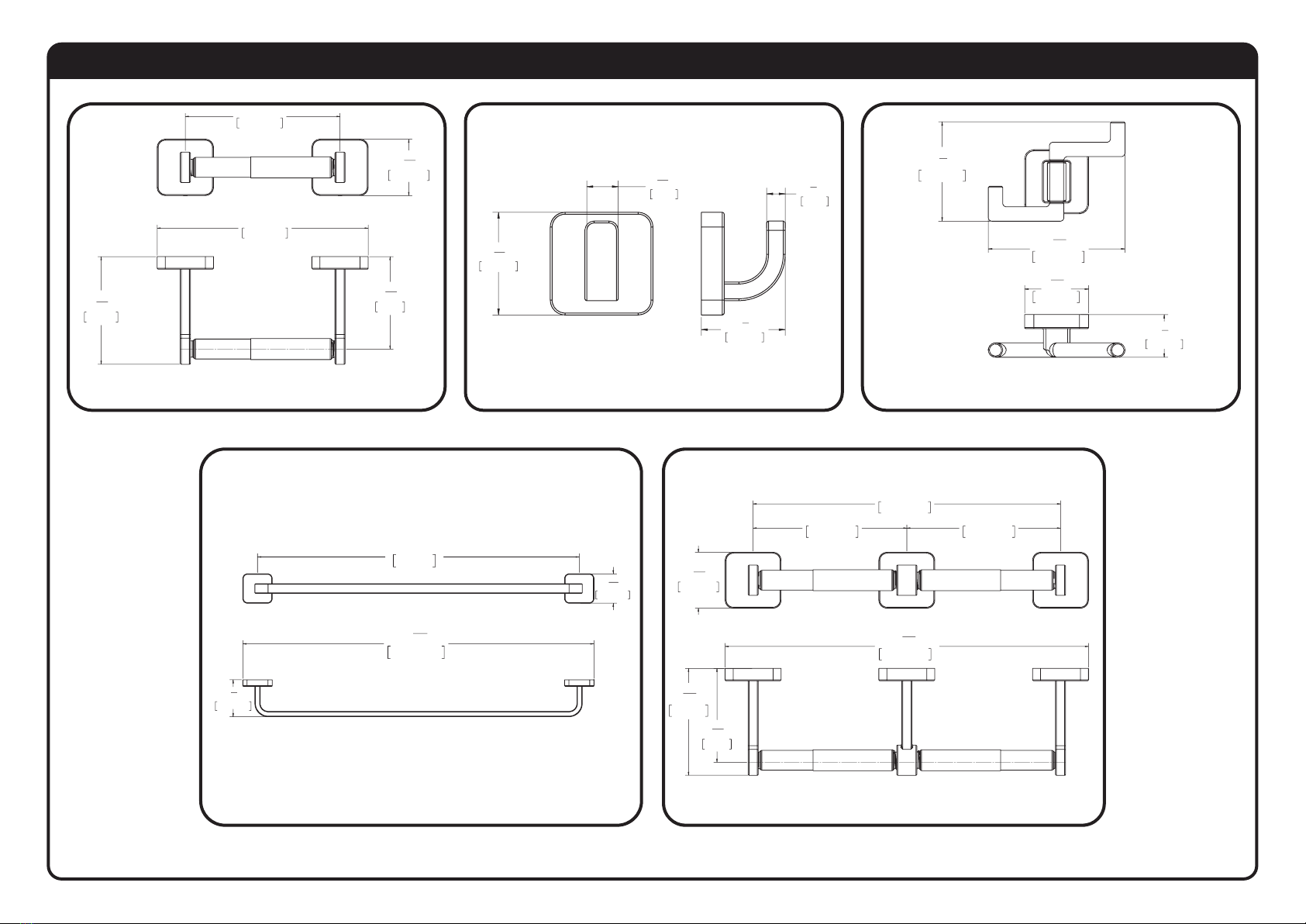

ROUGH-IN DIAGRAMS SPEAKMAN®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

SA-2403

20 3

512.70mm

244.30mm

55.50mm

18"

457.20mm

SA-2404

55.50mm

203.20mm

69.80mm

10 3

258.70mm

ROUGH-IN DIAGRAMS SPEAKMAN®

DIMENSIONS SUBJECT TO CHANGE WITHOUT NOTICE.

SA-2410

55.50mm

152.40mm

12"

304.80mm

106mm

14 3

360.30mm

321

93mm

SA-2408

86.25mm

411

118.50mm

37.05mm

55.50mm

SA-2407

24"

609mm

55.50mm

26 5

664.50mm

69.80mm

SA-2406

17mm

55.50mm

45.30mm

10mm

55.50mm

152.40mm

8.185in

207.90mm

106mm

91mm

SA-2405
