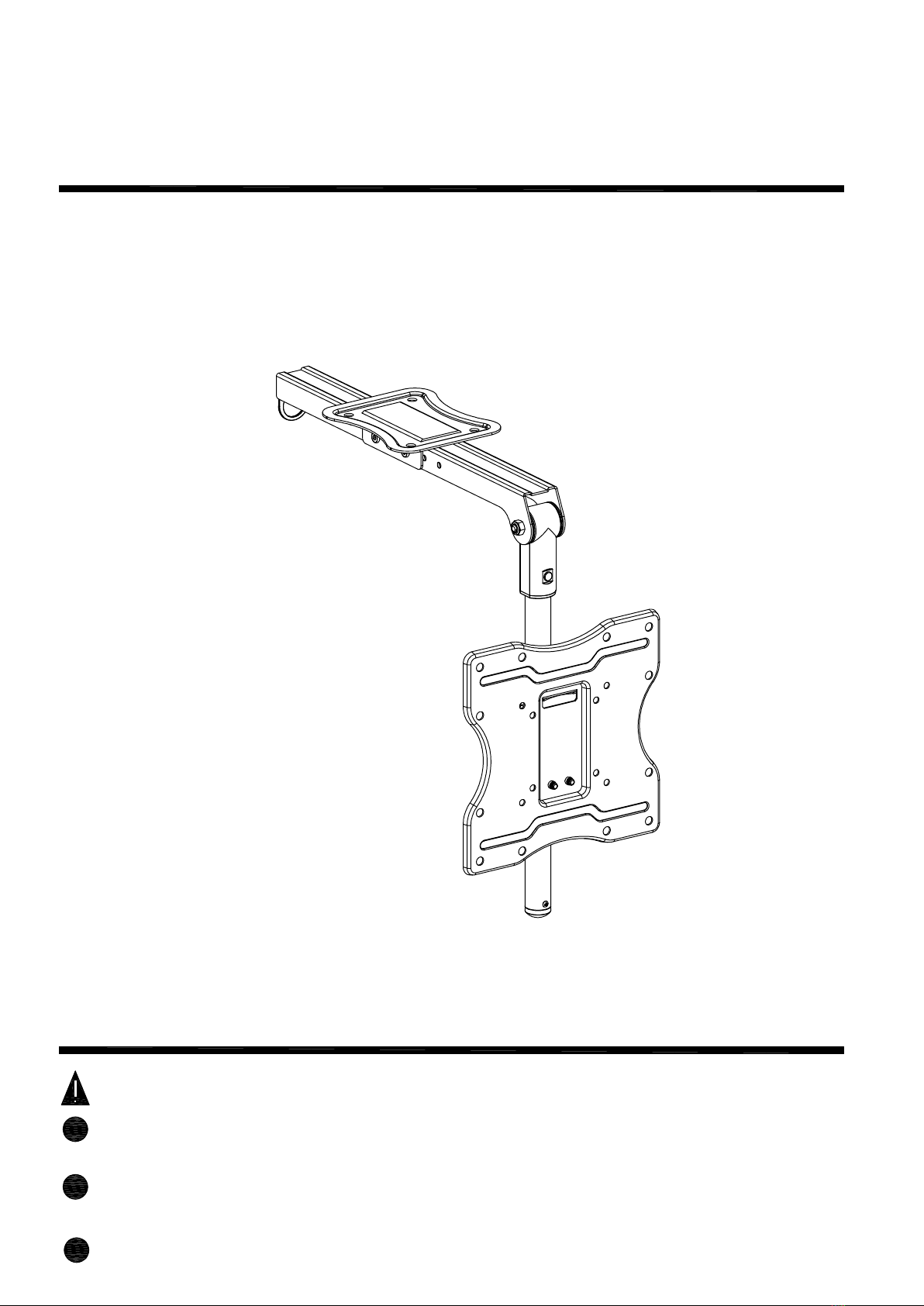

Speaka Professional XD1365 Manuel utilisateur

ASSEMBLY INSTRUCTION

MODEL：XD1365

Please read this instruction carefully before assembly.

Fits for 13～37" plasma and LCD TV.

Weight Capacity :44LBS (20KG).

CAUTION :

HANG CEILING MOUNT

A-Wall plate

1pc

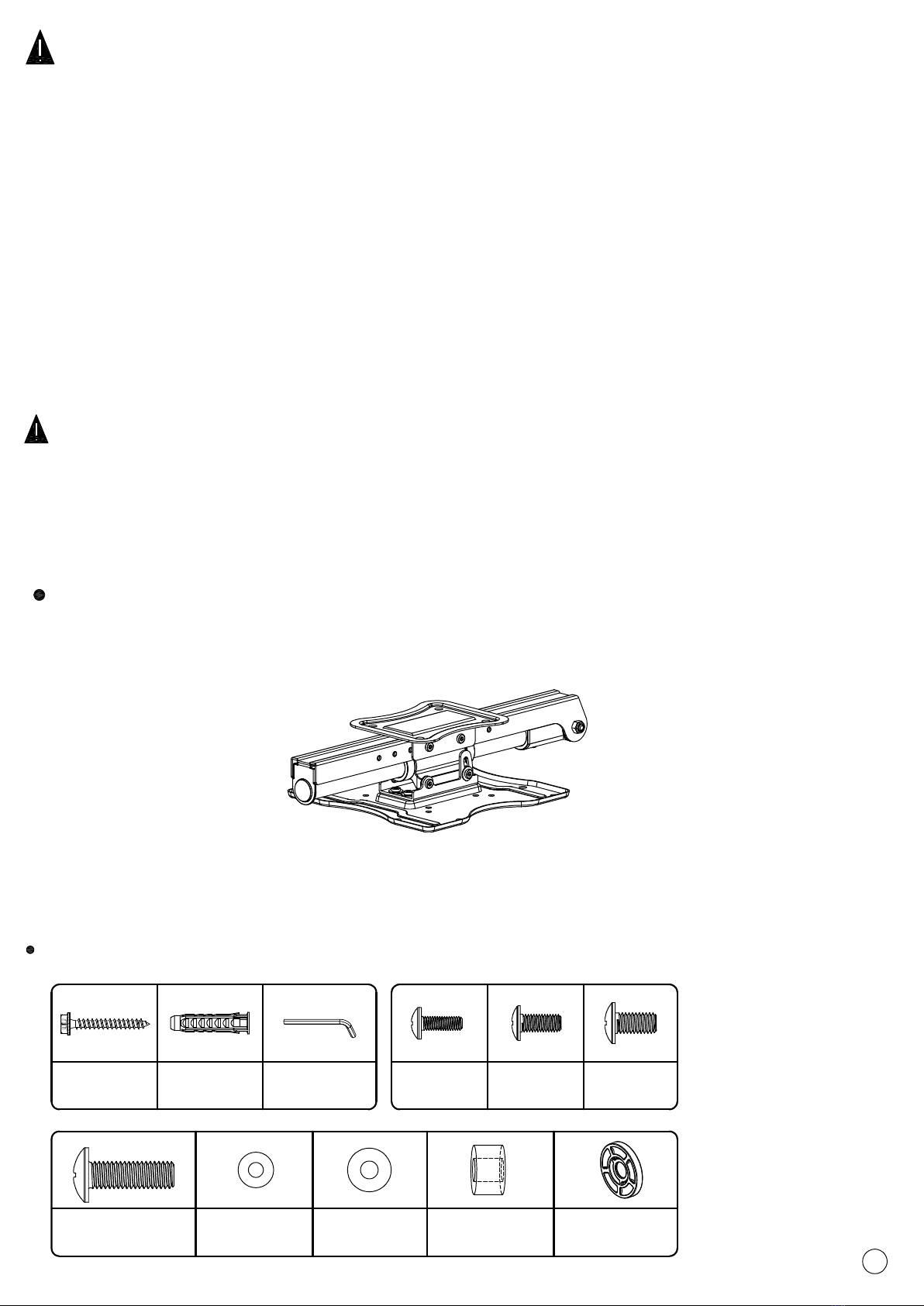

Part list：

SAFETY WARNING:

Never let children climb on product or play with product.

Do not sit or stand on product.

Do not fasten a TV that is heavier than the recommended load rating to the mount.

Using suitable concrete wall or wood stud wall.

Improper installation may cause property damage or personal injury,so the installation

must be done by two qualified contractors. The manufacturer is not liable for damage

or injury caused by incorrect mounting, assembly or use.

Improper handling can result in cuts and lacerations.

Pictures for reference only, subject to our available products.

Keep this instruction for future reference.

CAUTION :

CAUTION : This mount is intended for use with weights not exceeding "maximum

weight capacity 44lbs." The wall itself has to be capable of supporting 4X standard

weight. Pls don't over tighten screws in order to avoid any injury. Use with products

heavier than the maximum weights indicated may result in collapse of the mount

and its accessories causing possible injury.

Hardware list：

H--Lag bolt

4pcs

I--Anchor

4pcs

J--Allen key

1pc

d--M8X25 bolt

4pcs

a--M4X12 bolt

4pcs

b--M5X12 bolt

4pcs

c--M6X12 bolt

4pcs

e--M5/M4

washer 4pcs

f--M6 washer

4pcs

g--10mm

spacer 4pcs

h--2.5mm

spacer 8pcs

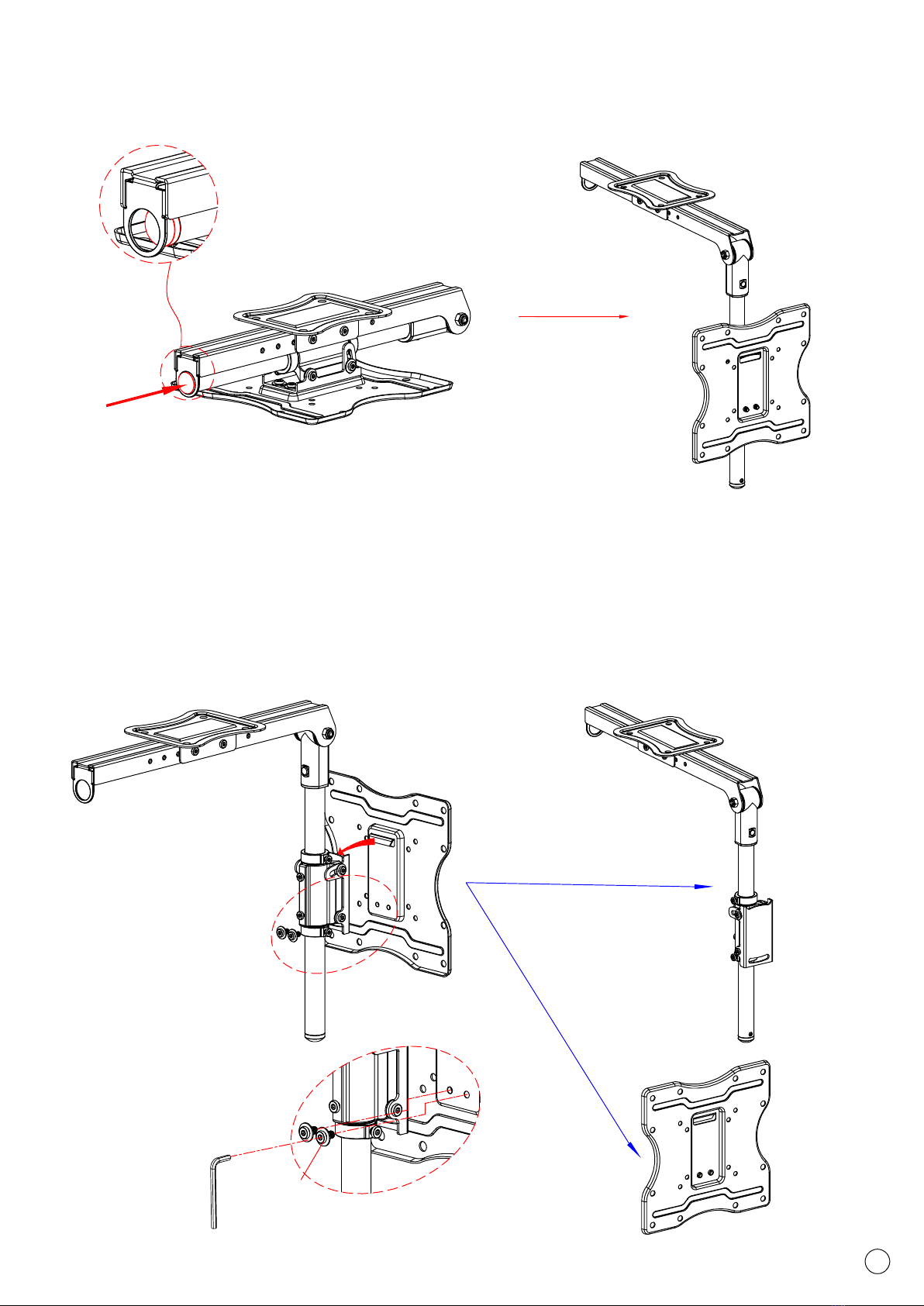

Step 2:Remove the screws ① and Separate this unit into two pieces A1 & A2.

(Figure 2)

①

Figure 2 2

Step 1:The galvanized tube is pushed inside to make the product

open.(Figure 1)

Figure 1

Figure 3

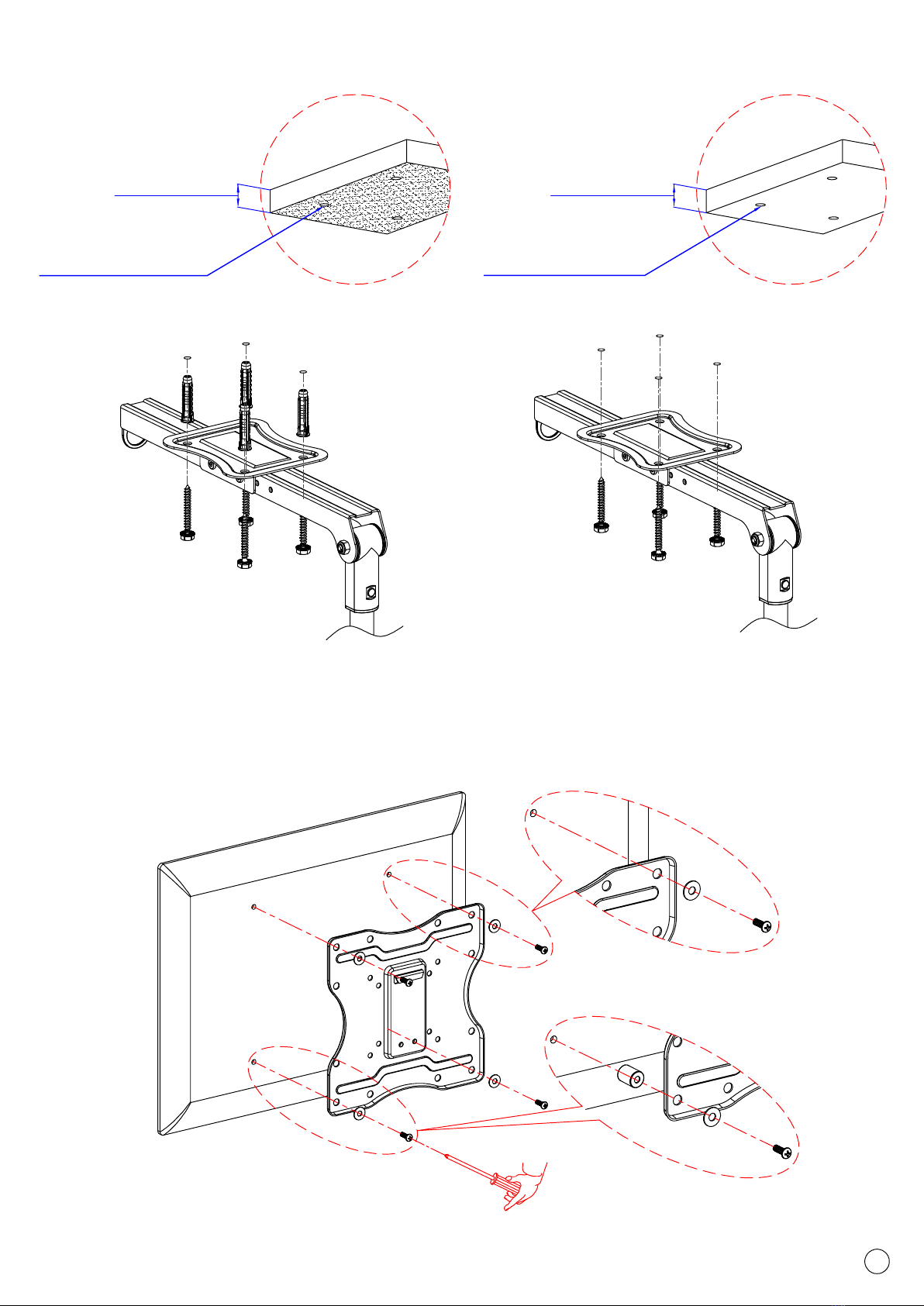

Step 4：Attach TV plate (A2) to the back of TV, choose corresponding bolt, washer and

spacer to fix the holes of TV rear. (Figure 4)

Step 3：Wall plate installation. (Figure3)

Concrete ceiling Wood ceiling

Min:T=4.7" Min:T=5/8"

Aperture:5/32"

Depth:2.36"

Aperture:3/8"

Depth:2.36"

A1 A1

a/b/c

e/f

g/h

Figure 4

Attention

Forbidden

Figure 5

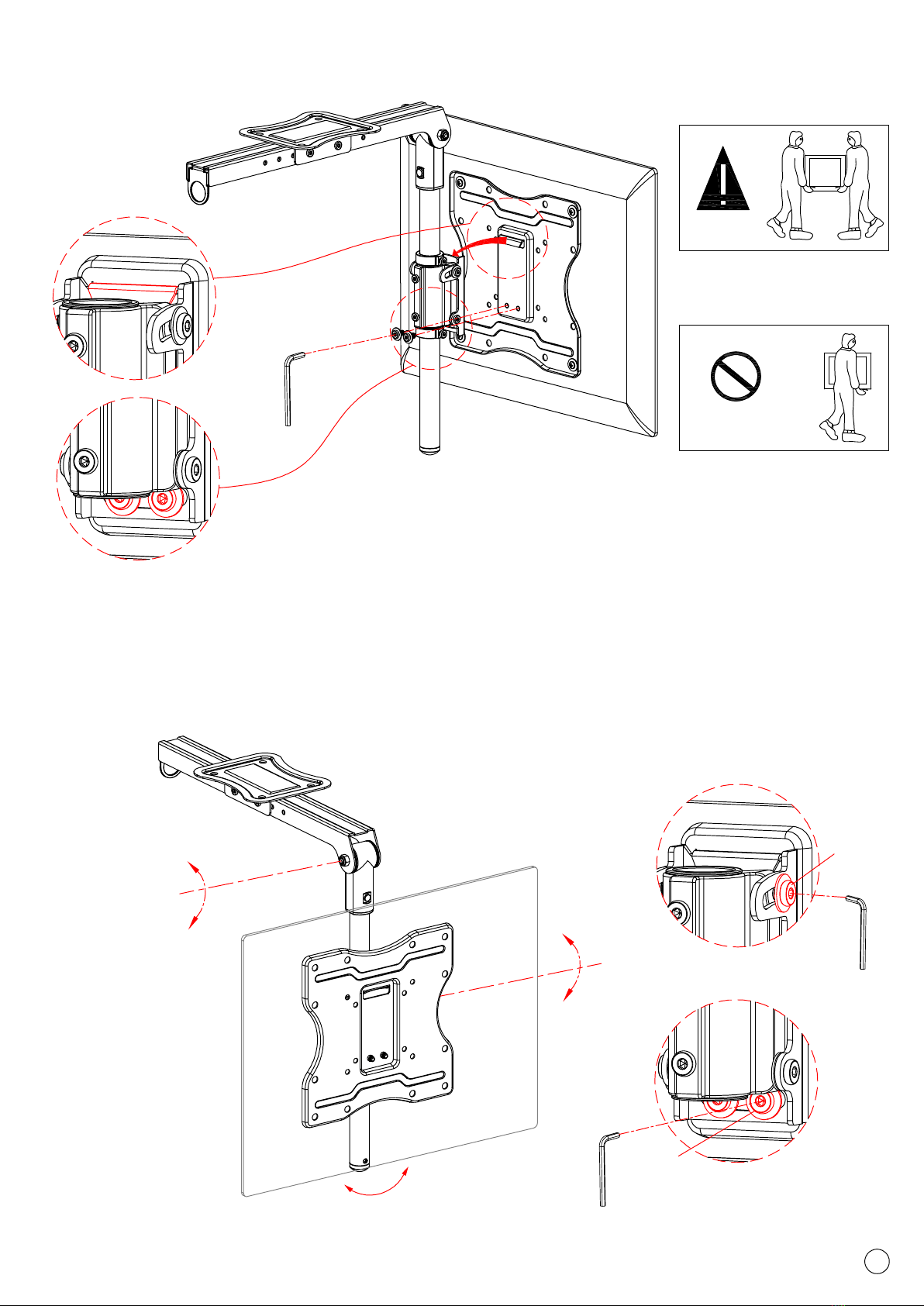

Step 5:Hang pre-assembled TV unit on the wall plate and pull down the strap to

lock it. (Figure 5).

Step 6:Adjusting the TV tilting angle

Use the screws ① to adjust TV's leveling ,use the screws ② to adjust TV's

tilting angle. (Figure 6).

±3°

-15°

+5°

-90°

+90°

①

②

Figure 6

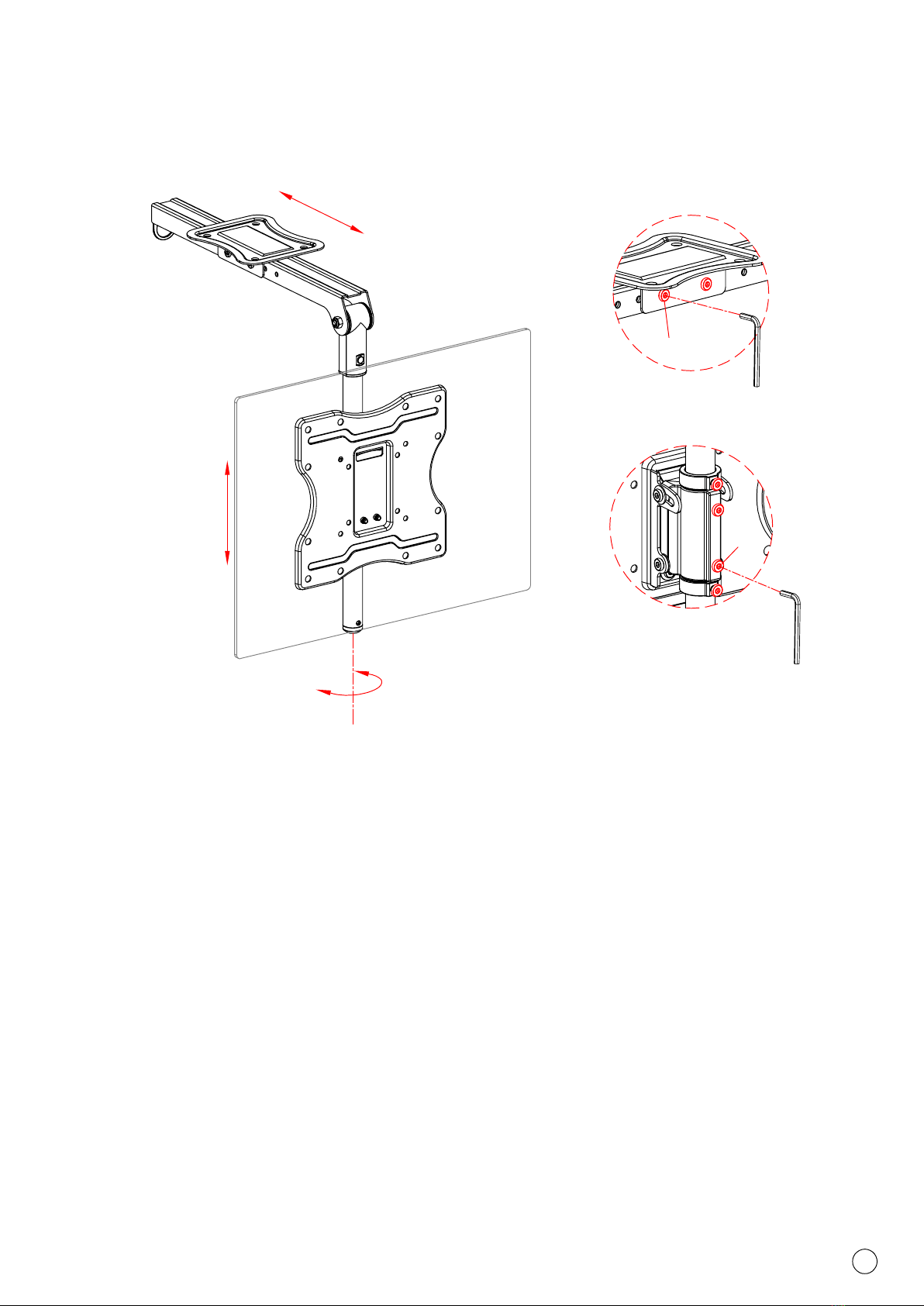

Step 7:Adjusting the TV distance

Use the screws ③ to adjust TV's forward and backward distance,

use the screws ④ to adjust TV's up and down distance. (Figure 7).

0～150mm

0～231mm

③

④

Figure 7

PAY EXTRA CARE AND ATTENTION WHEN YOU FASTEN TWO TV MOUNTS

TO THE BACK PANEL OF TV IN STEP 2 . MAKE SURE THE APPROPRIATE

MOUNT HARDWARE IS BEING USED PROPERLY .

1. Select correct Mounting Hardware according to the screw hole size of your TV,

discard any remaining screws or spacers.

2. Carefully lay your TV on its face on a non-abrasivesurface, making sure to lay

padding underneath it so as not to damage the screen .

3. Place left TV mount and right mount in the approriate position, making sure

CENTERED on the back of the TV and LEVEL with on another .

4.This product only install on the perpendicular wall,not install on the ceiling.

360°
