Sparklike Handheld 3.0 Manuel utilisateur

SPARKLIKE

HANDHELD™3.0

FAST INSTRUCTION MANUAL

Table of Contents

1. FAST INSTRUCTION MANUAL

2. KURZHANDBUCH

3. MANUAL DE INSTRUCCIONES RAPIDO

4. INSTRUKCJA OBSŁUGI

5. 快速操作手册

6. 빠른 사용 설명서

7. 早わかりマニュアル

Sparklike technology since 2000

SPARKLIKE

HANDHELD™3.0

FAST INSTRUCTION MANUAL

Table of Contents

1. Delivered with the device

2. How does it work

3. How to use and starting up for

the ﬁrst time

4. How to use encoder button

5. Factors to consider when

measuring

6. Installing the software

7. Installing the USB drivers

8. How to connect to your

computer

9. Using the screen

10. How to create a log ﬁle

11. How to erase the last logged

ﬁle

12. How to turn off the log mode

13. Enabling the connection with

your computer

14. Information display

15. Inverting the colors of the display

16. Technical speciﬁcation

Sparklike technology since 2000

WARNING

▶ The instrument uses high voltage, therefore

the device should NEVER be used near

computers nor other sensitive electronic

devices.

▶ Persons with heart conditions or who use

pacemakers should not use this device.

▶ The high voltage discharge should never

be directed at humans or at animals either

directly or through a conductive material such

as wires or metal structures.

▶ The Sparkilike Handheld™ should NEVER be

used to measure any ﬂammable substances

nor be used in any ﬂammable environment.

Also make sure that the insulating glass unit

does not contain any ﬂammable substances.

(Such as Isopropanol, Alcohol, Acentone, Xylen,

Thinner)

▶ The device should never be used in wet or in

humid conditions.

▶ Never use the instrument while standing on

unsteady surfaces.

▶ The device is a precision measuring

instrument and should be handled

accordingly. Please, handle the device with

care.

▶ Always turn off the power when instrument is

not in use.

▶ Keep ﬁngers and other body parts clear of

the high voltage area when using the device.

Do not keep the device connected to your

computer nor other electronic devices while

performing measurements.

▶ Do not open the Sparklike Handheld casing.

In such case calibration is void and no safety

guarantee can be granted.

▶ Do not use any other battery charger than

charger provided by the manufacturer.

▶ Do not use any other power source for the

Sparklike Handheld than the battery provided

with the device.

1. . DELIVERED WITH THE DEVICE

1. Sparklike Handheld™ device

2. Neck strap

3. Setup Guide

4. Calibration certiﬁcate

5. Battery

6. USB Cable

7. Battery charger and power cord

8. Protective cap

9. Protective hard case

Software, Drivers and Instruction manuals can be

downloaded at sparklike.com/handheld

Delivered with the device

2. HOW DOES IT WORK

A high voltage spark (1) is ignited

inside the IG unit (A). This high

voltage spark causes the argon atom

to emit light to a spectrometer (2).

A microprocessor (3) interprets the

information of the spectrometer and

calculates the argon concentration

on the display (4).

3. HOW TO USE AND STARTING UP

FOR THE FIRST TIME

1. Open the battery hatch

2. Insert the battery

3. Connect it to the battery socket

4. Turn on the device from the

ON/OFF switch

5. Register your device to activate

the device at

sparklike.com/register

to receive an activation code to

your e-mail

6. Input the activation code

7. Device settings will show on the

screen

8. The device is ready for use

NOTE: Read all the warnings before the

device is taken into use.

1. 2. 3. 4.

5. 6.

4. HOW TO USE ENCODER BUTTON

Press down to:

1. Enter MENU

2. Conﬁrm a selection

Turn to:

3. Scroll in the MENU

4. Name a log ﬁle

5. FACTORS TO CONSIDER WHEN MEASURING

Factors affecting the optics:

▶ Coloured glass

▶ Tinted glass (minimal effect)

▶ Strong background light measurement

(against the sun or other source)

▶ Dirt on the glass (minimal effect)

▶ Dirt on the front optical ﬁbre

▶ Mistreated front optical ﬁbre or electrode

Factors making it easier for the spark to

“jump“:

▶ High argon ﬁlls

▶ Thin glass (6mm or less)

▶ Thin air space (20mm or less)

▶ Metallic or other conductor on surface 3, such

as low-e coating

▶ Metallic spacer bar

Factors affecting the spark:

▶ Thick glass (over 6 mm)

▶ Plastic ﬁlms on glass 1 (laminated glass,

coatings, etc.)

▶ Metallic ﬁlms on glass 1

▶ Metallic components in glass 1

▶ Low Argon ﬁll (less than 90%)

▶ Wide spacer (over 15mm)

▶ Electrode is not in contact with the glass

surface

▶ Sparklike Handheld is not evenly pressed

against the glass

▶ Non-metallic spacers

Correct conditions:

▶ Stable dark background light

▶ The device NOT moved during measurement

6. INSTALLING THE SOFTWARE

Download the software from

sparklike.com/handheld Install wizard start up

Select language for the

installation

Select directory where

software ﬁles are to be

installed

Select the name of the start

up folder

Select additional tasks

Installation completed

NOTE: The appearance

of the Windows will

vary according to your

computer.

7. INSTALLING THE USB DRIVERS

Handheld™ drivers should install automatically in couple of minutes, when you connect

Handheld to a PC with Windows10+ and internet connection. If you have older Windows

version, you can download the driver from Sparklike’s website:

If your PC asks the location of

the driver, give the unpacked

driver folder location

Download the driver

installation folder

Unpack the folder

Connect Handheld to

a PC with USB cable

If your PC doesn’t ask

about the driver, open

the Device Manager, and

select ‘Scan for hardware

changes’

Once you get the new

connection to the Device

Manager’s list, right click

the connection, and select

‘Update Driver Software’

Follow the installer

instructions

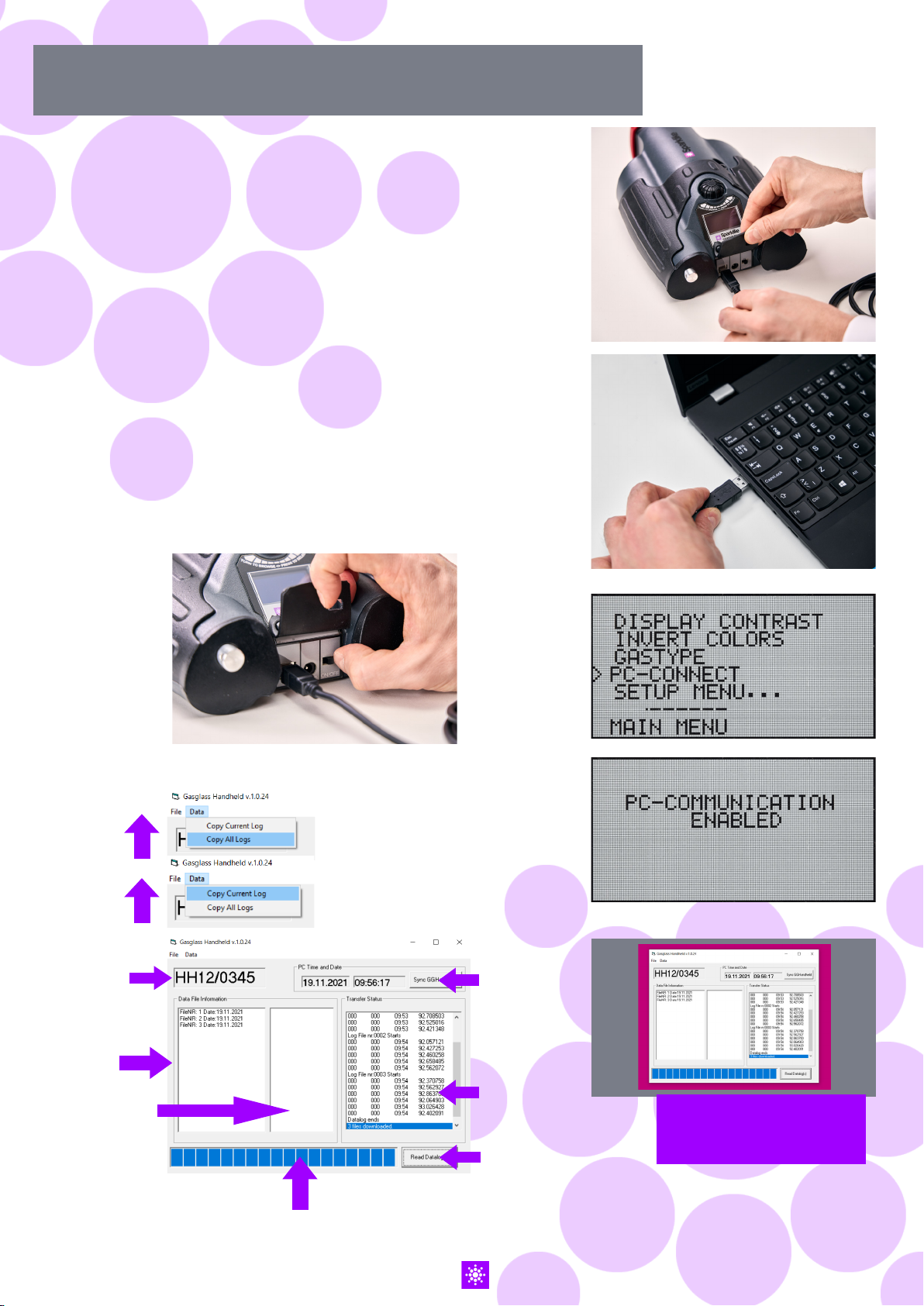

8. HOW TO CONNECT TO YOUR COMPUTER

The software for Sparklike Handheld™ can be

downloaded at sparklike.com/handheld

Please make sure that all needed software and

drivers are installed before attempting to connect

Sparklike Handheld™ with your computer.

1. Connect the provided USB cable to the USB

socket in Sparklike Handheld™. Connect the

provided USB cable to your computer.

2. Start up Sparklike Handheld™.

3. Enable the connection between your

computer and Sparklike Handheld from the

device by selecting “PC connection”.

4. Start the software.

5. Press the “Read Datalogs”

Software window after

a successful download

Copies all log ﬁles to clipboard

Copies selected log ﬁles to

clipboard

Sparklike

Handheld

serial number

Downloaded

log ﬁles

Information

from selected

log ﬁle

Status of transfer

Syncs and

updates time

and date on

Sparklike

Handheld

Shows all

transfered

data

Retrieves all

logs from

Sparklike

Handheld

9. USING THE SCREEN

10. HOW TO CREATE A LOG FILE

1. When the ON/OFF button is switched ON,

Sparklike Handheld™ will perform a self test

where it checks itself for errors.

2. The screen will automatically change when

all is tested OK

3. The ﬁrst ﬁxed screen after start up is a device

information screen.

4. This screen will be important when

communicating with the manufacturer.

5. The information screen shows:

▶ Revision of the device

▶ Last calibration date

▶ Calibration status: “CALIBRATION VALID”,

“CALIBRATION SOON” or “CALIBRATION

EXPIRED”

▶ Current time

▶ Battery charge status

6. Device is now ready to use

7. When the button is pressed for the ﬁrst time

after start up, the measurement result will show.

8. The current time and battery charge status can

be seen on the screen.

9. It will also indicate that the measurement has

not been logged. (see: How to create a log ﬁle)

1. From the main menu, scroll by turning the

encoder button, to the LOG ON/OFF menu.

2. Select this by pressing the encoder button

once.

3. The next screen shows that the logging is to

be started.

4. The device will suggest the following free log

name (number) available. If the suggested

number is OK, simply press the encoder

button to conﬁrm.

5. By turning the encoder button the number

of the log ﬁle can be changed. One click will

increase or decrease the number with one.

6. When measuring a text is displayed showing

that the logging mode is on and it will also

display the log ﬁle number.

11. HOW TO ERASE THE LAST LOGGED FILE

Whenthelogmodeisonandameasurementhasbeen

taken but the operator feels that the measurement

was an error measurement, it is possible to erase this

measurement. This is done to prevent faulty log ﬁles

on your computer.

If the measurement is not satisfying:

1. From the main menu, scroll by turning the

encoder button, to the “CLEAR LOG”menu.

2. The log value will be deleted permanently.

Sparklike Handheld™ log data can be downloaded

to your computer. In order to do this, Sparklike

Handheld™has to open its communication port to

your computer This is performed before enabling the

connection from the computer.

12. HOW TO TURN OFF THE LOG MODE

1. From the main menu scroll, by turning the encoder

button, to the LOG ON/OFF menu.

2. Select this by pressing the encoder button once.

3. A screen will display that the log mode has been

turned off.

4. When measuring, a text is displayed that the

measurements have not been logged.

5. To create a new log ﬁle with a new name, repeat

procedure explained in chapter 10.

NOTE: When Sparklike Handheld™ is connected

to a computer and the log ﬁles have been

retrieved, the log memory will be deleted from

Sparklike Handheld™device. This is the only way

of emptying the memory and should be done

every now and then to prevent the memory from

overﬁlling.

Autres manuels pour Handheld 3.0

Table des matières

Langues :

Autres manuels sparklike Instrument de mesure

sparklike

sparklike Handheld 3.0 Manuel utilisateur

sparklike

sparklike Laser Portable 2.1 Manuel utilisateur

sparklike

sparklike Laser Portable 2.0 Manuel utilisateur

sparklike

sparklike Laser Portable 2.0 Manuel utilisateur

sparklike

sparklike GasGlass Manuel utilisateur

sparklike

sparklike Laser Portable 2.1 Manuel utilisateur

sparklike

sparklike Handheld Manuel utilisateur

sparklike

sparklike Gasglass handheld Manuel utilisateur

sparklike

sparklike GASGLASS HANDHELD V2 Manuel utilisateur

sparklike

sparklike Handheld 3.0 Manuel utilisateur

sparklike

sparklike Handheld 3.0 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
