-The machine is supplied factory lubricated and ready to run. It should be positioned on any solid,
level and non-skid work surface that is non-flammable. Install in a work area with adequate light
and space.
INSTALLATION
-For the SP- 22HI or Smaller Capacity Model, you may place the mixer on a bench which is capable
of supporting a load of mixer’s weight. For safety, the mixer should be BOLTED in position using all
four holes located in the legs.
-DO NOT attempt to lift the mixer alone.
-Clean the mixer before use. It is normal for the factory to apply a
generous amount of grease in and on the machine before initial use.
-During the transportation or fitting, please do not lean over 35 degree
to avoid the gear oil leaking from the gear oil container.

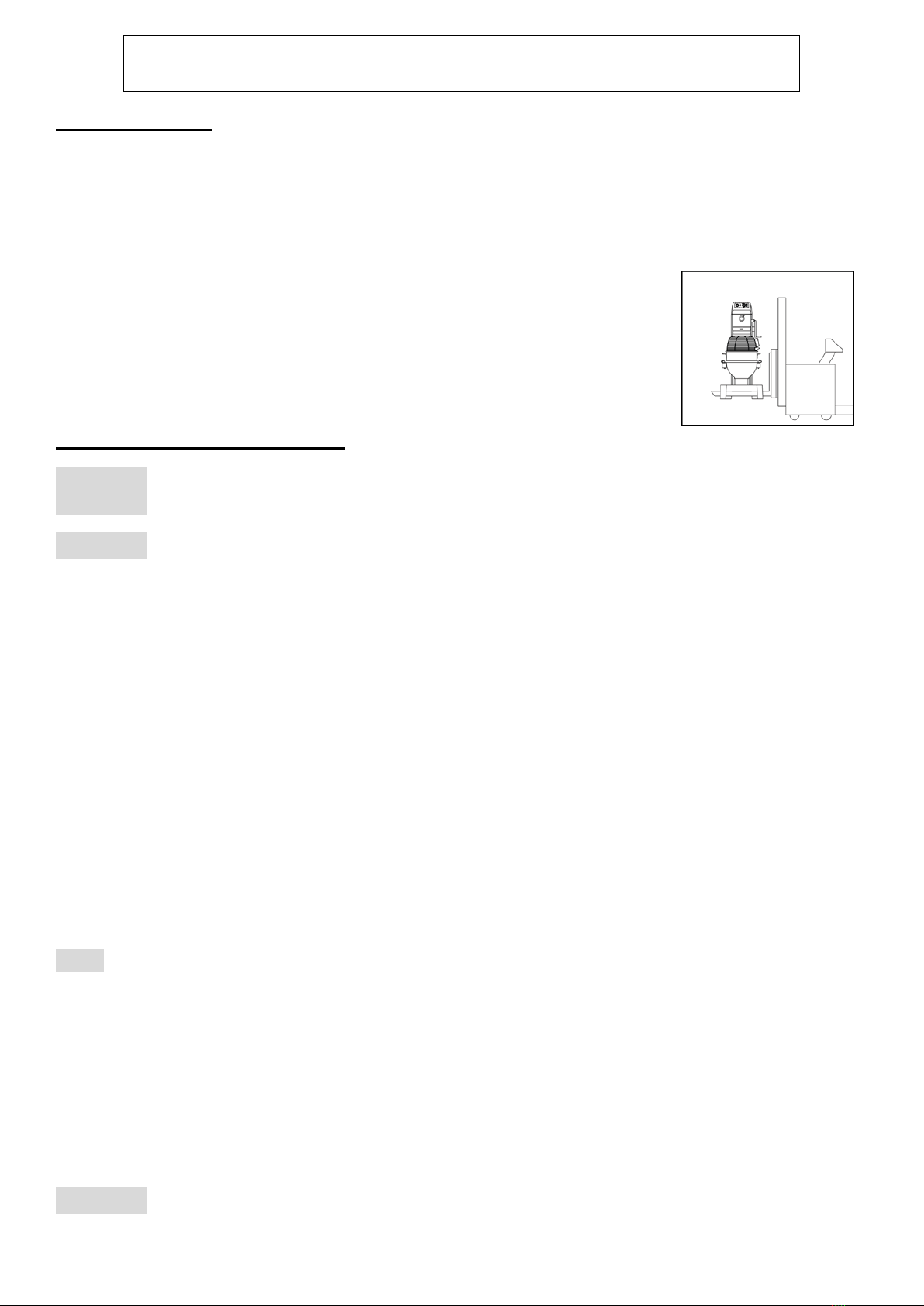

-Please use a forklift to transport. Please refer to Figure 1.
ELECTRICAL CONNECTION
CAUTION: NEVER USE AN EXTENSION CORD. Low amp supply could damage the mixer or cause a fire.
CAUTION: The user should install an over-current protection device (e.g. fuse or NFB) or Residual
Current Device (GFCI) in the machine incoming site power lines to prevent a fault current risk.
CAUTION: The machine is designed for TN power system.
Before connecting this machine to the electrical supply, check that the details on the rating plate (located
on the rear of the machine) correspond to the details of your electrical connection.
The SP-100, SP-22HI and SP-22HA mixer is supplied with a trailing lead fitted with a 13amp moulded plug.
Models SP-30HI, SP-40HI, SP-60HI 230 Volt single Phase Machines are fitted with a colour-coded three-core
cable as follows:
(1) Brown: Live
(2) Blue: Neutral
(3) Green/Yellow: Earth
As the colour of the wires may not correspond to the coloured markings identifying the terminals in your
plug, you should proceed as follows:
-The wire which is coloured blue must be connected to the terminal which is marked with the
letter N or coloured black.
-The wire which is coloured brown must be connected to the terminal which is marked with the
letter L or coloured red.
-The wire which is coloured green/yellow must be connected to the terminal which is marked with
the letter E or coloured green.
NOTE: In terms of the 3-phase, when the mixer is located and connected with the plug, please make sure
that the shaft goes clockwise. (Same direction as the arrow sticker that located on the front of the machine)
If the shaft goes counterclockwise, please replace the wires: R.S.T. (USA) L1, L2, L3, (Europe). To replace the
wires each other until the shaft goes clockwise.
The mixer should be plugged into a switched socket which isolates all poles and has a minimum contact
clearance of 3mm and located close to the mixer for use in an emergency and to facilitate servicing.
The machine must be incorporated into a potential equalization system.
The leakage current for this appliance is no greater than 1 mA/KW.
If the electrical supply cable to the machine becomes damaged, it must be replaced by a specification or
higher and suitable for the Mixer’s motor load.
The ground wire is fixed to the machine and this connection must be kept intact.
CAUTION: The mixer MUST be grounded.
Installation Instructions
