Chapter Ⅰ Preface

Read this chapter, you will have a brief knowledge of SOUTH Company and G5

measurement system.

§1.1 Introduction

Welcome to South Surveying & Mapping Technology CO., LTD, which is China’s leading

manufacturer of surveying equipment including GNSS receivers and Total Stations. To know

more about SOUTH, please visit our official website https://www.southinstrument.com/

This manual takes G5 positioning system for example, to explain how to install, set up and uses

the RTK system as well as the use of the accessories. We recommend that you read these

instructions carefully before using the instrument.

§1.2 Applications

Control Survey: dual-band (dual-frequency) system static measurements can accurately

complete the high-precision deformation observation, photo-control point measurement.

Highway Survey: quickly complete the encryption of the control points, road topographic

mapping, cross-section measurement, profile measurement with K-survey.

CORS Application: provide more stable and convenient data link for field operations. It is

seamlessly compatible with all types of domestic CORS applications.

Data acquisition measurement: perfect match SOUTH various measurement software to do

quick and easy data acquisition.

Stakeout shot:large-scale point, line, plane lofting.

Electric Power Measurement:power line measurement orientation, ranging, angle calculation.

Marine application:oceanographic research, dredging, piling, inserted row, making the marine

operations more convenient and easier.

- 5 -

§1.3 Main Features

All Constellations and More Channels

With 1598 channels, G5 is capable to track signal from 5 satellite constellations , process signal

of up to 16 frequencies and provide stable and reliable accuracy.

More Powerful and More Durable

Thanks to the 3W Farlink radio, when it works as an UHF base station G5 is able to

transmit correction data farther than others, in optimal condition the working range

can be 10 to 15 km.The shock-resistant frame, water-proof frame all have been enhanced, now

the overall proof level is IP68.

Superior Endurance, Up to 25 hours working

The newly developed power management system allows G5 to work for 10 to 25

hours and can be recharged by a type-C connector.

Color Touch Screen, Makes Workflow Simpler

Users can operate G5 by touch screen and key buttons, easy and fast.

RTK-Keep

When G5 loses the RTK correction data source from base station, this function will

help receiver to maintain the precise position for a few minutes.

L-band Correction, 4-10cm PPP

G5 is able to receive B2b signal via L-band, and perform a single point positioning.

It is a great help to surveyors who work in particularly difficult areas. This service is

available in 2022 from Asian-Pacific region.

- 6 -

ChapterⅡHardware Component

Reading this chapter, you can grasp the components, installation and the function of

G5 positioning system

§2.1 Receiver components

UHF antenna port

Key pad

LCD touch screen

NFC

- 7 -

§2.2 Bottom Components

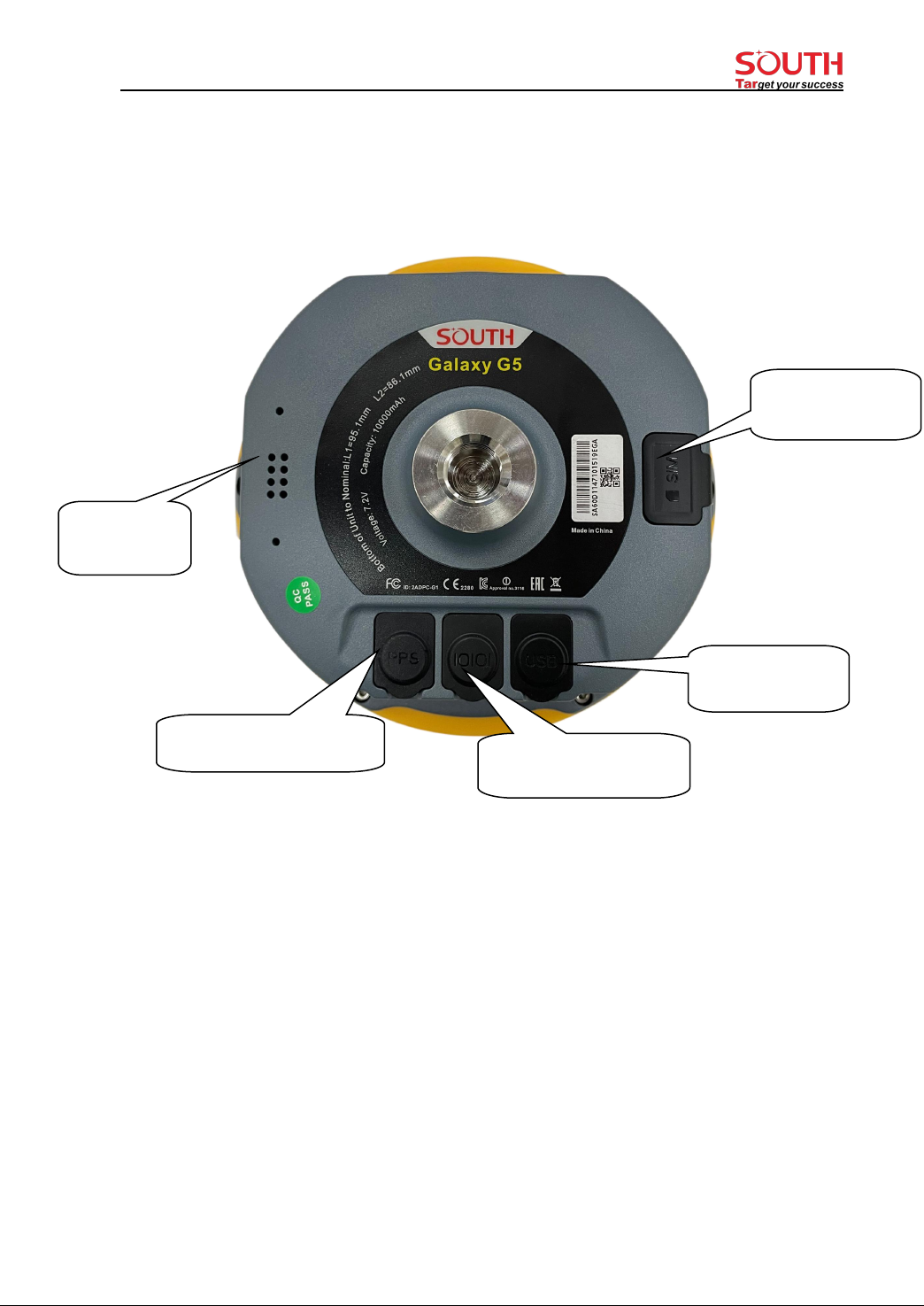

Type-c port: USB port, OTG interface and Ethernet port..

5-Pin port：

1. As a power port connected with an external power supply device.

2. As a differential transmission port connected with an external radio.

3. As a serial port to check data output and debug.

PPS Port：N/A

Speaker：Voice broadcast.

SIM Slot：Insert SIM card.

○

4Speaker

○

2 5 PIN LEMO port

○

3PPS port

○

1Type-C port

○

5SIM slot

- 8 -

§2.3 Indicators and Keypad

Ref

Component

Description

Power Button

1) Power on/off

2) Select menu

3) In lowest menu: short press for select, long press for

confirmation

Bluetooth Indicator

Light on blue when Bluetooth connected

Data Indicator

Flash green when Fixed solution.

Flash red when not Fixed with the correction signal.

No Flash when no correction data.

Function Key

Shift between menus.

Keypad operation:

Fn key: Shift between options

PWR key:

1) Short press: select the option

2) Long press: to Power off (Reset, Set default, Self-check) receiver

3) Long press: to accept the configuration (when at the lowest menu), just like swiping down the

touch screen.

Press any key (or click on touchscreen) will wake up screen if screen sleeps.

- 9 -

§2.4 Touch screen

The receiver can be operated from both keypad and touch screen. By swiping the screen,

receiver can be configured.

1. Swipe right /left: to shift between options (or press Fn key to shift between options)

2. Tap screen: for selection (or short press PWR key for selection)

3. Swipe down:

----To bring up system menu [Power off], [Reset], [Set default], [Self-check] when it is at main

display interface

---- In lowest level menu: swipe screen down to accept the configuration (or long press PWR key

to accept the configuration).

4. Swipe up

Return from sub-menu to previous menu.

§2.5 Receiver Menu

§2.5.1 Main display interface

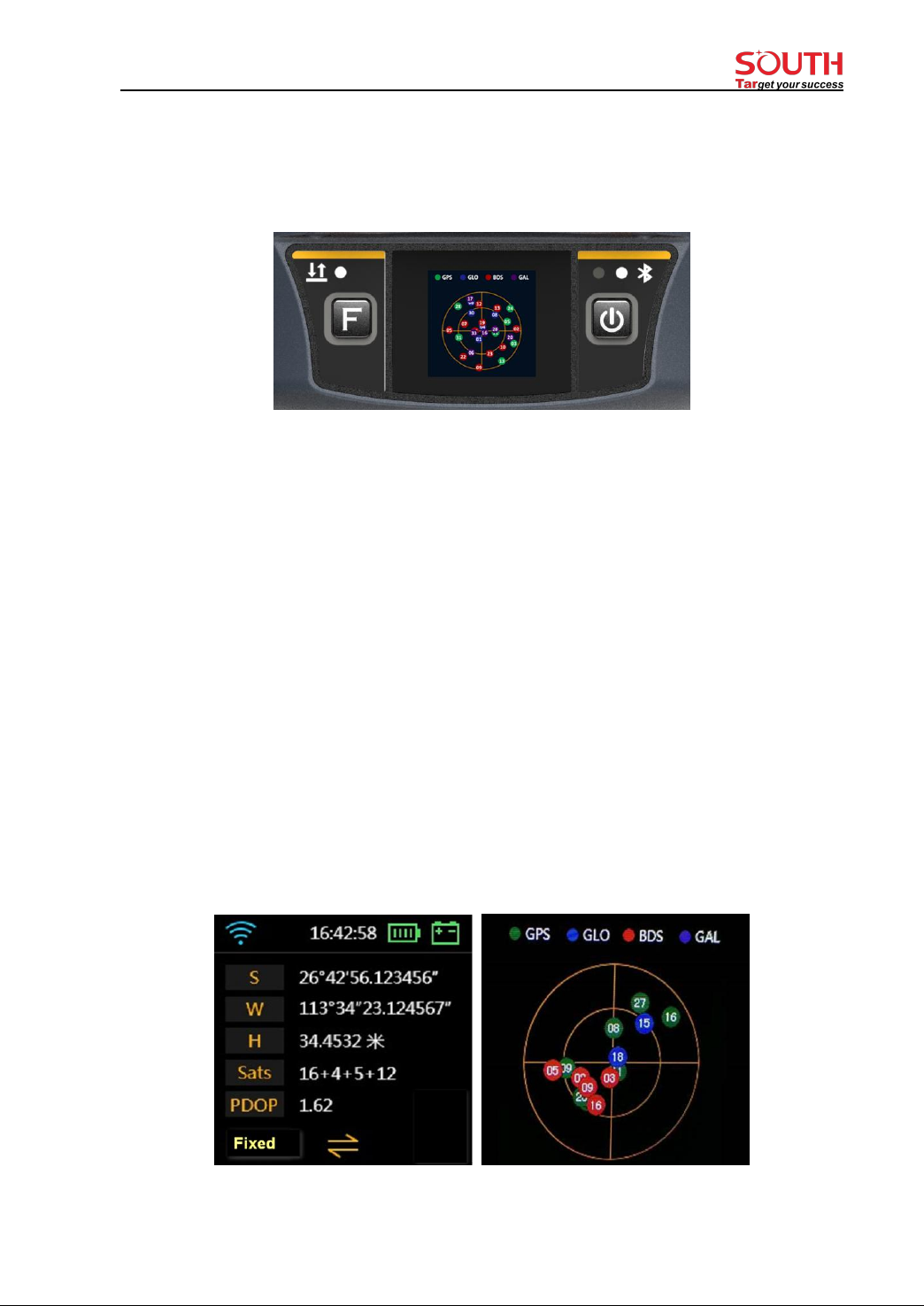

There are 2 main display interfaces: [Coordinates display interface], [Satellite display interface].

- 10 -

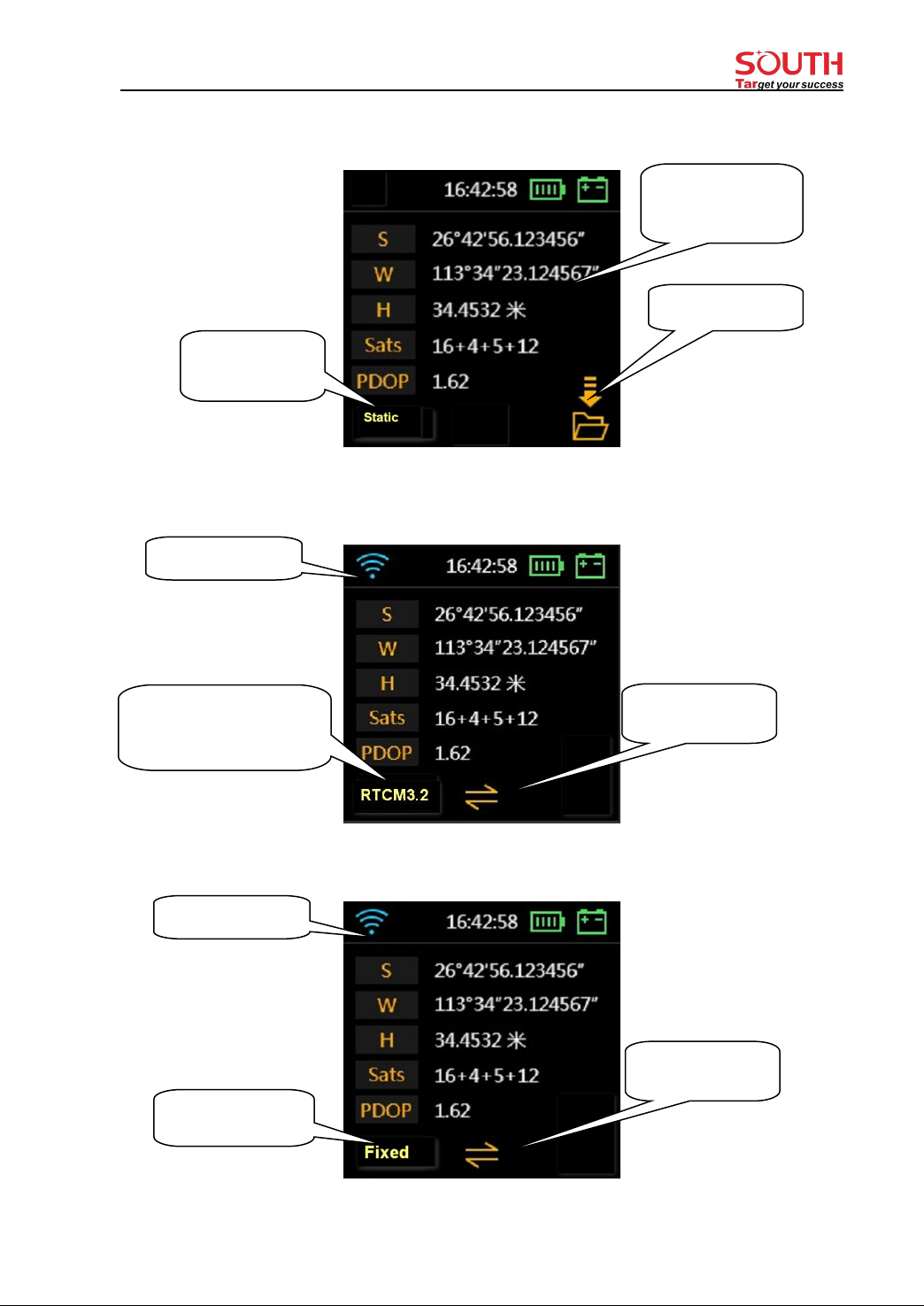

Icons in the Coordinates display interface

1) In static mode:

2) In Base mode:

3) In Rover mode:

Coordinates and

satellites

Static recording

Work in

static mode

Datalink: WIFI

Differential correction

data format

Datalink status

Solution status

Datalink: WIFI

Datalink status
