Source Technologies STm.117w Manuel utilisateur

Rev. 1.0 All specifications are subject to change without notice

MOBILE PRINTER

MODEL : STm.117w

Table of Contents

Unpacking

2. Product overview 4

3. Usage and Installation 5

3-1. Control panel usage

3-2. Battery Installation

3-3. Battery charging

3-4. Battery charger usage

3-5. Usage of Cigar Jack for charging

3-6. Roll paper installation

3-7. Leather case usage

3-8. Self test

Peripherals connection 13

4-1. Wiﬁ(802.11b/g) Connection

4-2. Interface cable connection

Printer cleaning 15

Printer speciﬁcation 16

6-1. Speciﬁcation

CPCL Command Compatibility 18

Certiﬁcation 21

Setting up the software 23

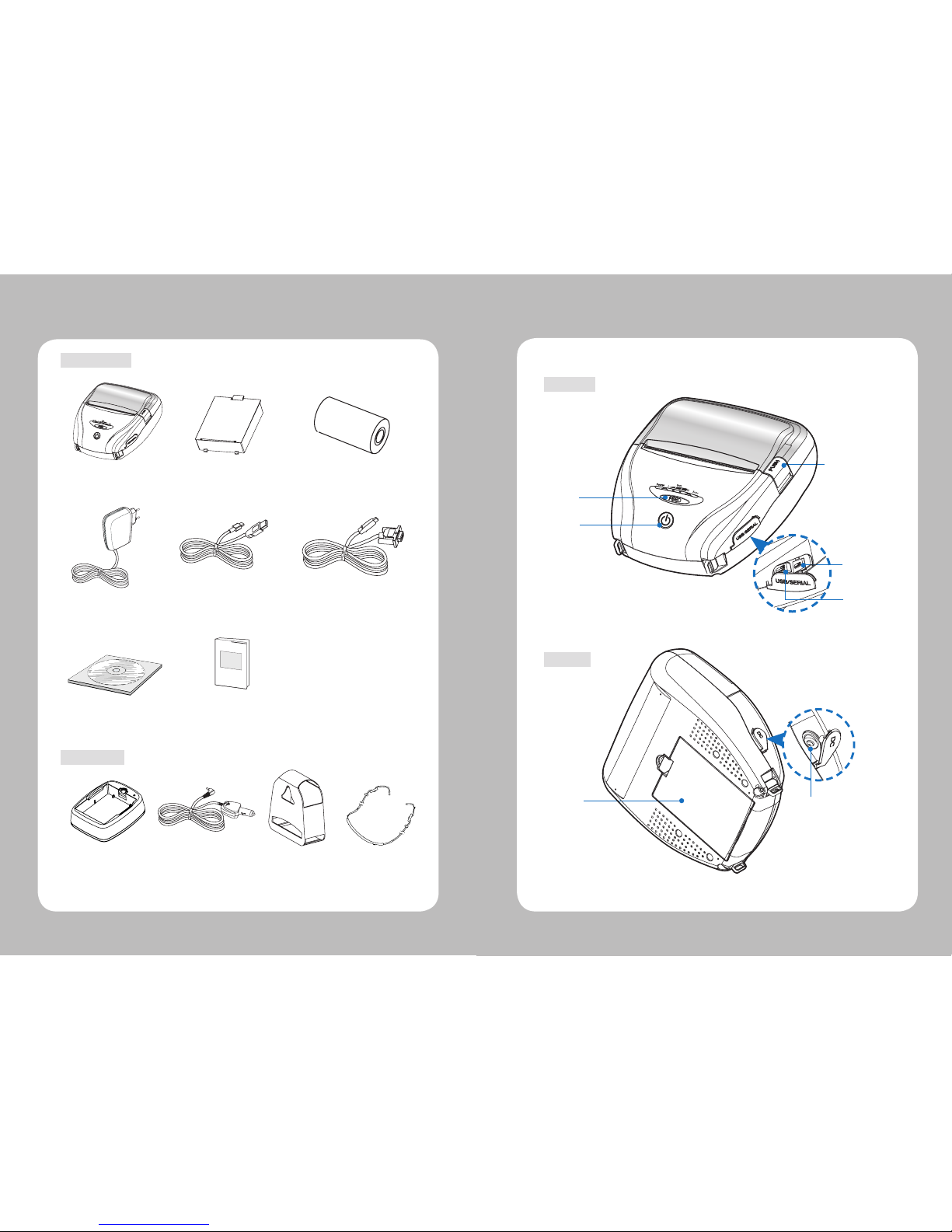

2. Product overview

Paper feed

button

Power

switch

DC Power

Battery

SERIAL

USB

Open Button

Front

Rear

1. Unpacking

Printer Battery

Serial Cable

Roll paper

USB Cable Shielded

Charger

CD Quick Manual

Battery Holder (Cradle) Leather case Shoulder strip

Cigar Jack Charger

Optional

Standard

1. Align battery hook as shown in the picture

2. Push the battery into the printer until it locks in place.

NOTE

As the battery is not charged at the time of your purchase, charge the

battery prior to using the printer

(Battery charger or Cradle can be used to charge)

CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions

Hook

3-2 Battery Installation

Button

Name

function

Power

button

This button is used to turn the printer on and off.

When the printer is off, press this button for approximately 3 seconds

and it will turn on the power.When you press this button in a state

that the printer is on, the printer will turn off.

Paper

Feed

Button

Paper output can be done manually by pressing this button.

Additionally, self-testing and Hexadecimal Dumping can be

processed..

1.Refer to“3-10” for self test information.

2. Refer to the service manual regarding Hexadecimal Dumping.

Battery

Status

Lamp

1.If the Batt,LED are Lit, the battery is fully charged.

2. If you can hear beeping sound and LED light is turned off,it means

that the battery is at the lowest level.

3. If the battery is not charged at all, the printer turns off

automatically.

Error

Lamp

If the red light is turned on, it means there is no paper roll or the

paper cover is open.

3. Usage and Installation

3-1 Control panel usage

3-4-1 The status of lamp in charging

3-3-1 The status of lamp in charging

Status charging charging complete

Charging Lamp

Red

Green

NOTE

In the case the battery is not ﬁxed properly in the holder, the red lamp will be

blinking, Then, extract and reinsert the battery.

3-4 Battery charger usage

DC Jack

1. Insert the battery into the battery holder as shown above

2. Connect the DC JACK to the power electrical outlet.

3. Plug the power code into the electrical outlet.

4. Once the charging is completed, remove the battery from the holder.

Optional

NOTE

1. Unless the exclusive charger is used provided by the manufacturer, the printer

can be damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned off.

3. Printer does not work in the status of being connected with charger only.

4. The battery should be installed to operate printer.

5. While charging, do not turn on the power.

6. Do not operate the print while charging the battery.

7. Do not connect the charger while the printer is operated.

1. Be sure that the printer is turned off

2. After open the DC JACK cover, insert DC JACK into the printer.

3. Plug the power code to electrical outlet.

3-3 Battery charging

Lamp

1 2

Press the PUSH button to open

the paper cover

Pull a short length of paper out of

the printer and close the cover.

Insert the paper in the right

direction

Tear off the additional paper using

tear bar.

3-6 Roll Paper installation

Connect the car cigar JACK charger into the printer or battery holder.

3-5 Usage of Cigar Jack Charger for charging

Printer

Battery holder

Optional

NOTE

Use the Cigar Jack offered by the manufacturer

Input 12 ~ 24V

8.4V 0.8 ~ 1.2A

Output

10 11

1 2

NOTE

Turn off the power pressing the

power button for approximately

3 seconds.

The printout is produced.

While you are pressing the FEED

button, press the power button

3-8 Self Test

1. To print ASCII pattern additionally,

press the Feed button once more

2. After printing ASCII pattern, the

self test will be ﬁnished automatically.

3. If the Feed button is not pressed

to print ASCII pattern, self test will be

ﬁnished automatically after 30 seconds.

1 2

Open the leather case

Close the Velcro and stick the

cover.

Place the printer into the leather

case

3-7 Leather case usage

Optional

12 13

When the printer is installed initially or when you face a problem, you can run the

self test and check the information about

-Control Circuit, Mechanism, Print Quality, ROM Version

After checking with self-test and no issues are found, you can examine other

devices and software. This function is working independent of devices and software.

●

Motor protection from being overheated

The motor should be stopped and cooled about more than 30 seconds after

continuous printing 1.5 meter

The sample of self test printout

4. Peripherals connection

NOTE

Refer to the wiﬁ(802.11b/g) Manual for more details on connection.

This product can communicate with other devices via Wiﬁ(802.11b/g)

communication and cable.

4-1 Wiﬁ(802.11b/g) Connection

1. The Printer can be connected to devices equipped with wiﬁ(802.11b/g)

communication capacity (PDAs, PCs, etc.)

2. Use the wiﬁ(802.11b/g) connection function supported by the device to

connect to the printer.

14 15

4-2 Interface Cable Connection

1. Connect USB or Serial cable into the cable connector on the printer.

2. Connect the interface cable into the USB or Serial port of the device

(PDA, PC, etc.)

NOTE

Use the cable offered by the manufacturer (USB, Serial)

Serial

USB

5. Printer cleaning

If the interior of the printer is dusty, printing quality can lowered.

In such a case, follow the instructions below to clean up the printer.

NOTE

1. Make sure to turn the printer power off prior to cleaning

2. Regarding print head cleaning, as the print head sets very hot during

printing, turn off the printer power and wait approximately 10 minute before

commencement.

3. When cleaning the print head, take care not to touch the heated portion of the

print head. The print head subject to be damaged by static electricity.

4. Take care not to allow the print head to become scratched and /or

damaged in any way.

1. Use an applicator swab moistened with an alcohol solution to clean the print

head and remove any dusts.

2. Once the cleaning is completed, insert paper roll into the printer few minutes

later and close the printer cover.

Preventing Overheating

To prevent the motor from overheating, continuous driving of the printer

should be 1.5 m or less in print length. Set the pause time for 30 seconds

or more after driving the printer.

16 17

6. Pritner Speciﬁcation

6-1 Speciﬁcation

Printing Method Direct Thermal

Printing Speed 80mm/sec

Resolution 203 DPI X 203 DPI

Character CPCL 7 Different Font Size (12~48pt)

ESC/POS Font A (12X24), Font B (9X17)

Character per line Font A : 48pt , Font B : 64pt

Character set ALPHA NUMERIC Character, Extension

Character

Barcode EAN-8, EAN-13, Code39, ITF, UPC-A, UPC-E,

Codabar, Code93, Code128, PDF417(2D),

MAXICode (2D)

Emulation ESC/POS, CPCL, Commanl Compatible

Driver Window CE 4.2&5.0, Window Mobile 5.0

Sensor Paper End Sensor , Gap Sensor , Cover Open

Sensor , Black Mark Sensor

Paper paper type Thermal Paper / Label

width 50mm ~112mm

thickness 0.06mm ~ 0.09mm

External Diameter Max. Φ56mm

Internal Diameter 12.5mm +/-0.5mm

Reliability TPH 50km

Battery Continuous printing: 48min

Standby: 12hours

Printing length: 160m

Communications Serial(RS-232C), USB, Wireless Lan *802.11b/g

Battery Charger input AC100~240V, 50/60 Hz

output 8.4V , 800~1400mA

Battery Battery type Li-ion

output 7.4V, 2200mAh

Charging time 3hours 40min

Size W X D X H(mm) 149 X 161 X 69

W X D X H” 5.8 X 6.3 X 2.7

Weight 0.53kg (With Battery)

Temperature operation -10 ~ 50℃

storage -20 ~ 60℃

Humidity operation 35 ~ 95%

storage 10 ~ 95%
