Soundstream Tarantula Amplifier Series Manuel utilisateur

Model TX4.440 TX4.560 TX2.350 TX2.500 TX2.1500 TX1.1300D TX1.2000D TX1.2600D

0.5Ohm Load N/A N/A N/A N/A N/A N/A N/A 2600W x 1

1Ohm Load N/A N/A N/A N/A N/A 1300W x 1 2000W x 1 2000W x 1

2Ohm Load 110W x 4 140W x 4 175W x 2 250W x 2 750W x 2 900W x 1 1300W x 1 1200W x 1

4Ohm Load 70W x 4 100W x 4 110W x 2 180W x 2 550W x 2 520W x 1 750W x 1 600W x 1

Bri dged 4Ohm Load 220W x 2 280W x 2 350W x 1 500W x 1 1500W x 1 N/A N/A N/A

Input Level

High level i nput

Frequency Response

X-over Type

LPF

Subs oni c / HPF

Bas s Boost Frequency

Bas s Boost Level

THD

Damping Factor

S/N Ratio

Minimum Load 2 Ohm 0.5 Ohm

Voltage Protection <8.4V & >16V

Components & PCB

Bas s Remote

Height

Wi dth

Length 411.5mm / 16.2" 471.5mm / 18.56" 371.5mm /14.63" 471.5mm / 18.56" 516.0mm/20.3" 441.5mm / 17.38" 491.5mm / 19.35" 591.5mm / 23.29"

15Hz - 25KHz

LPF/Full/HPF

15Hz - 25KHz

LPF/Full/HPF

50Hz - 200Hz

0.2~5V

Yes

Front 50Hz - 4kHz, Rear 50Hz -

800Hz or 250Hz - 4kHz

0.2~5V

Yes

50Hz

0dB, 6dB, 12dB

50Hz

0dB - 6dB - 12dB

Front 50Hz - 4kHz, Rear 15Hz -

500Hz 10Hz - 50Hz15Hz - 200Hz

30Hz - 90Hz

0dB - 12dB

<0.05%

>200

<0.5%

>200

<0.05%

>200

DIMENSION

67mm / 2.64"

SMD Parts / Double-Sided FR-4 PCB

N/A

>100dB >85dB>100dB

251mm / 9.88"

RMS power at 14.4V

Features

0.2~5V

Yes

10Hz - 220Hz

LPF/Subs oni c

40Hz - 220Hz

N/A Yes

2 Ohm 2 Ohm 1 Ohm

<8.4V <8.4V <8.4V & >16V

Symptom Possible Remedy

Amplifier

will not

power up

Check to make sure you have a good ground connection.

Check that there is battery power on the (+)terminal .

Check all fuses, replace if necessary .

Make sure that the Protection LED is not illuminated.

Protection

LED Comes on

Check for short circuits on speaker leads.

Check the speaker load not beyond the minimum load.

Remove speaker lead, and reset the amplifier. If the protection LED still

Comes on, then the amplifier is faulty and needs servicing .

No output Check that the RCA audio cables are plugged into the proper inputs.

Check all speakers wiring.

Check the headunit output and the amplifier level setting.

Low output Reset the level Control.

Check the Crossover Control settings.

High hiss in

The speakers

Check the RCA cable is not shorted to power ground at amplifier side.

Check the amplifier grounding.

Distorted sound

Check that the Input level control is set to match the signal level of the head

unit. Always try to set the Input level as low as possible.

Check that all crossover frequencies are properly set.

Check for short circuits on the speaker leads.

Amplifier gets

Very ho t

Check that the minimum load impedance for the amplifier model is correct.

Check that there is good air circulation around the amplifier. In some

applications, It may be necessary to add an external cooling fan.

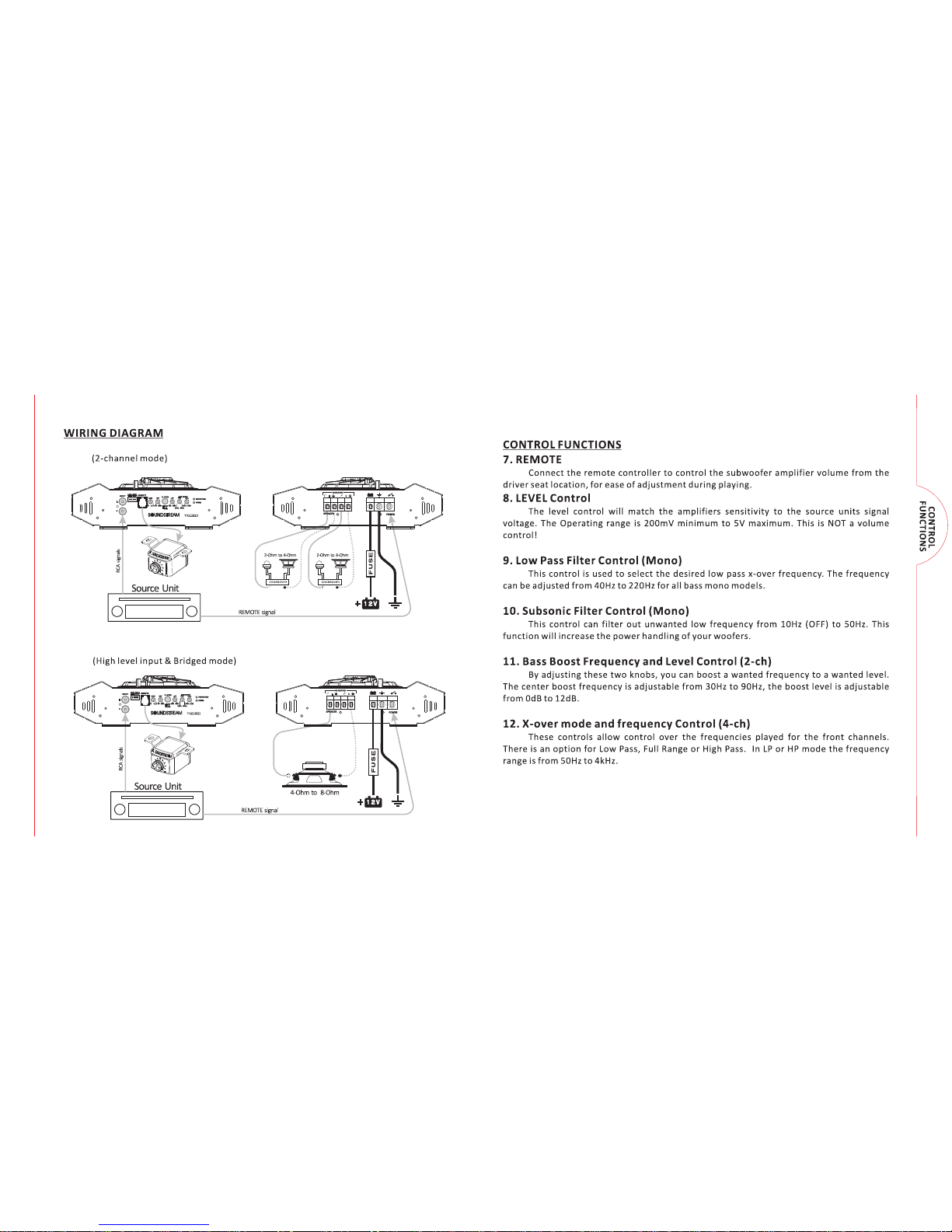

Fig 13. TX2.350/TX2.500/TX2.1500 wiring

Fig 14. TX2.350/TX2.500/TX2.1500 wiring

MODEL TX1.1300D TX1.2000D T X1.2600D TX2.350 TX2.500 TX2.1500 TX4.440 TX4.560

CABLE 4# 2-4# 0-2# 6# 4-6# 0-2# 6# 4-6#

FUSE 120A 200A 250A 30A 60A 150A 40A 60A

Fig 3. TX2.350/TX2.500/TX2.1500 panel layout
