SOUNDBOKS GEN. 4 Manuel utilisateur

SOUNDBOKS (GEN. 4)

USER MANUAL

Manuel de l’Utilisateur | Manual De Uso | Benutzerhandbuch

| 用户手册 | 

THE NEXT GENERATION OF

SOUNDBOKS

Harness the full power of a

new level of sound, design and

Bluetooth Performance. This is

SOUNDBOKS (Gen. 4).

Questions?

Get quick answers

here.

01 Charge your BATTERYBOKS fully for ~3.5

hours for optimal performance.

02 Once charged, slide (don’t force) your

BATTERYBOKS into the battery slot

until it ﬁts snugly. Then plug in the DC

connector.

Never plug the charger directly into

your speaker without the battery.

Your charger is not a power supply.

04 Power up your speaker by pressing the

Power Button. When the LEDs around

the volume knob light up, you’re ready to

connect.

05 To connect, go to your device’s Bluetooth

settings, ﬁnd and select SOUNDBOKS

#YourTeamID. Your unique Team ID is

located on the back of your speaker.

06 Choose your favorite song, turn up, go out

and Break Through the Noise.

03 The charger is not a power supply. The

SOUNDBOKS is designed to operate

on battery only. The charger T-jack was

designed to be used together with your

battery only while playing at moderate

volumes. Keep your SOUNDBOKS under

half volume—12 o’clock on the dial with

5 lights illuminated—when playing and

charging simultaneously.

3EN

SOUNDBOKS GEN. 

. 



















WARRANTYAND SERVICE

LIMITATION OF LIABILITY

DISCLAIMER

COMPLIANCE

WARNING, CAUTION & NOTICE

INTENDED USE

DISPOSALINFORMATION

MARKINGS

FINALREMARKS

.

.

.

.

.

.

.

.

.

Overview

Speciﬁcations

LED behavior

Customization

SKAA & Bond Button

1.1

1.2

1.3

1.4

1.5



BATTERYBOKS & CHARGER.

Overview

Charging the BATTERYBOKS

2.1

2.2

SOUNDBOKS GEN. 

.

06 UI Panel

07 POWER Button

08 TeamUP Button (SOLO/HOST/JOIN)

09 VOLUME Knob

10 Bluetooth LED Indicator

11 Pulse Reﬂex Port

12 Powder-Coated Steel Handle

01 Bass Drivers

02 Tweeter

03 Lock-In Grill

04 Powder-Coated Aluminum Angles

05 Silicone Rubber Ball Corners

07 08

Overview

Speciﬁcations

LED behavior

Customization

SKAA & Bond Button

1.1

1.2

1.3

1.4

1.5

5EN

21 SKAA Bond Button and Indicator LED

22 3.5mm (1/8“) Stereo Input

23 3.5mm (1/8”) Stereo Output

24 Combo Microphone/Instrument (XLR,

1/4“) Inputs

25 Pole Mount

19 Unique SOUNDBOKS (Gen. 4) Team ID

20 Pro-Panel

13 Battery Port

14 DC Input

15 BATTERYBOKS

16 Strap

17 LED Battery Life Indicator

18 Battery Level Status Button

22 23

24 24

SOUND

Ampliﬁer

Merus Audio eximo® amp switching

3 × 72W RMS class D ampliﬁers

Advanced Bass DSP

Driver Units

2 × 10” woofers

1 × 1” compression driver tweeter

Acoustics

Effective frequency range: 40Hz - 20kHz

Custom sound proﬁle with bass enhancer

Custom Pulse Reﬂex Port

Connectivity

Bluetooth 5.0

TeamUp wireless connection with up to 5

SKAA compatible SOUNDBOKS products

Compatibility

Compatible with iPhone® and Android™

Pro Panel

2 × Combo Microphone/Instrument (XLR, 1/4”)

Inputs

1 × 3.5mm (1/8”) Stereo Input

1 × 3.5mm (1/8”) Stereo Output

SKAA Bond Button [SKAA PRO ICON]

BUILD

Dimensions

66 × 43 × 32 cm ( 25.6 × 17 × 13 inches (H ×

W × D))

Weight

16.1 kg / 35.5 lb

.

Overview

Speciﬁcations

LED behavior

1.1

1.2

1.3

SOUNDBOKS GEN. 

Customization

SKAA & Bond Button

1.4

1.5

7EN

Materials

Poplar cabinet

Powder-coated aluminum frame

Powder coated steel handles

Powder coated or liquid coated (color variant

dependent) steel grill

Silicone ball corners

Features

Swappable grill and batteries

Pulse Reﬂex Port

1 × Ø35mm Pole mount

UI Panel:

Volume control

HOST/JOIN mode for wireless TeamUP

Temperature

General use: -20°C to 55°C

Recommended storage: 5°C to 20°C for an

optimal product lifetime

BATTERY

Design

5-Step LED battery-life indicator

Reinforced DC-connector

Cell Type

Li-Ion Rechargeable Battery

Lithium Iron Phosphate (LiFePO4)

Battery Performance

Output: 12.8V

Discharge Temperature - 20°C to 55°C (-4°F

to 131°F)

Charge Temperature 0°C to 40°C (32°F to

104°F)

Capacity: 99.84Wh or 7.8Ah

Battery Life

40 hours at mid-volume

5 hours at full volume

3.5 hours for full recharge

Battery Management System (BMS)

Over and under-discharge protection

Short circuit protection

Overheat protection

Cell voltage management

Sleep mode starts after 14 days of inactivity.

Press the [icon_lightning_carcoal, size to ﬁt

inline] button to wake up.

Transport

Battery is safety certiﬁed for safe transport

according to UN38.3

CHARGER

Charger Performance

Input: 100-240V ~ 50-60Hz, 1.2A MAX

Output: 14.0V 3.3A

Your SOUNDBOKS (Gen. 4) will preserve

power by deactivating trailing LEDs after 10

seconds of constant volume level.

.

Current level

Overview

Speciﬁcations

LED behavior

SOUNDBOKS GEN. 

Customization

SKAA & Bond Button

1.3

1.2

1.1

1.4

1.5

9EN

The latest SOUNDBOKS grill is built for easy

customization—all you need to do is pop

off the grill, remove the logo, believe in your

creative self, and you can transform your new

SOUNDBOKS into a work of art.

Here’s a step-by-step guide to start

customizing.

.

Overview

Speciﬁcations

LED behavior

SOUNDBOKS GEN. 

Customization

SKAA & Bond Button

1.3

1.2

1.1

1.4

1.5

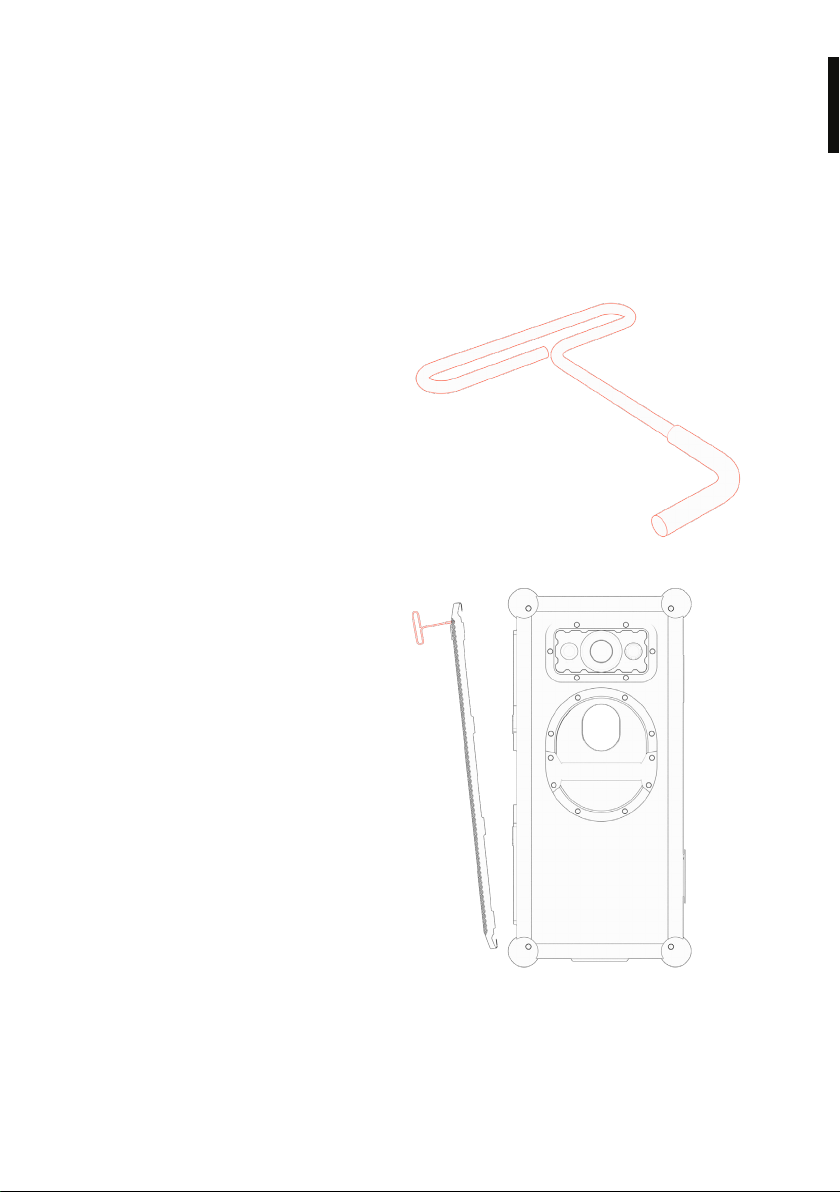

Remove Grill

The SOUNDBOKS (Gen. 4) grill is attached to

the speaker using a snap-ﬁt fastener, and can

be removed with the included Grill Removal

Tool. This tool consists of a handle and a

rubberized tip.

To remove the grill, use the rubberized tip

to hook into the holes of the grill. Pulling by

the corners of the grill will be the easiest.

Carefully start to pull the grill off of the

speaker. Loosen the grill evenly in multiple

points along the edges until it comes off and

can be removed by hand.

Remove SOUNDBOKS Logo

Keep that logo clean. Unscrew the logo and

put it somewhere safe.

Express Yourself

Make the SOUNDBOKS your own. The grill

can handle most types of paint—just be sure

to apply a layer of primer before and sealer

after to make it last.

Party On

Replace the logo and pop the grill back on.

Connect your music, crank it up and take your

custom SOUNDBOKS out into the world.
