Sound Devices 633 Manuel

633

Portable Production Mixer and Recorder

User Guide and Technical Information

Firmware Version 1.02

Sound Devices, LLC

E7556 State Highway 23 and 33 • Reedsburg, WI • USA • 53959

+1 (608) 524-0625 • fax: +1 (608) 524-0655

Toll-Free: (800) 505-0625

www.sounddevices.com

[email protected]

UDMA

interstage

Phistersvej 31, 2900 Hellerup, Danmark

Telefon 3946 0000, fax 3946 0040

www.interstage.dk

-pro audio with a smile

Table of Contents

Panel Descriptions 1

Front Panel ................................1

Left (Input) Panel ...........................3

Right (Output) Panel ........................3

Rear Panel ................................4

Quick Start Guide 5

Screen Overview 10

Primary Screen Elements ....................10

Meter Views ........................................10

L, R, X1, X2, 1-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

L, R, 1-3 ............................................10

Input Settings Screen .......................11

L, R, 1-6 ............................................11

L, R, X1-X4, RTN .....................................11

Routing Screens ...........................13

LCD Daylight Mode.........................13

Inputs 14

Input Types ...............................14

Input Routing .............................14

Pan Control ...............................15

Trim and Fader Relationship .................15

Input/Trim (Analog) ..................................15

Input Trim (Digital) ...................................15

Input Fader .........................................16

Phantom Power ...........................16

Digital Inputs .............................16

High-pass Filter ...........................17

Polarity ..................................17

Input Linking .............................18

M/S Matrixing ......................................18

Limiters 19

Limiter Knee ..............................19 Linking Limiters ...........................19

Metering 20

Meter Ballistics ............................20

VU .................................................20

Peak + VU ..........................................20

Peak Only ..........................................20

Peak Hold ..........................................21

Input Activity LED ..........................21

Headphone Clipping LED....................21

Headphone Monitoring 22

Headphone Gain ..........................22

Headphone Source Selection.................22

Headphone Encoder Mode ...........................23

Custom Headphone Presets ...........................23

Favorite Headphone Source ..........................24

PFL (Input Solo)............................24

Headphone Bells ..........................25

PFL Toggle Mode ....................................25

RTN Monitoring ...........................25

Output Setup and Control 26

Table of Contents

633 User Guide and Technical Information

Master Outputs (XLR-3M). . . . . . . . . . . . . . . . . . . . 26

AUX 1/2 Outputs (TA3)......................26

AUX 3/4 Outputs (TRS) ......................26

AES3 Digital Outputs (XLR-3M) ...............27

Adjusting Output Levels.....................27

Slate Mic and Tone Oscillator 29

Slate Microphone ..........................29

Tone Oscillator ............................29

Routing Slate and Tone Signals...............29

Recorder Setup and Control 31

Transport Control (Recording and Playback) ....31

Recording Tracks ..........................31

Track Arming .......................................31

Track-to-Media Routing ...............................32

Track Naming .......................................32

Digital Audio Format & File Format ...........34

WAV (Broadcast WAV) File Format ....................34

MP3 File Format .....................................34

MP3 Bit Rate ........................................34

Sample Rate ..............................35

Bit Depth .................................35

Recording Media ..........................35

Formatting Media ...................................35

Pre-Roll ..................................36

“F Mode” Sample Rates.....................36

48.048k and 48.048kF ...............................36

Fostex DV40 ........................................36

47.952k and 47.952kF ...............................36

Playback .................................37

File Management 38

File List ..................................38

File Format ...............................39

File Structure..............................39

Folder Options ............................40

Automatic File splitting .....................41

Metadata Fields ...........................41

Metadata in MP3 Files ...............................42

Sound Reports ............................42

Sound Report Setup .................................43

Overview Section ....................................43

Take List Section .....................................43

Generating Sound Reports ...........................44

Take Management .........................44

Take List ............................................44

Take Number .......................................45

False Take ..........................................45

Scene Name ........................................45

Scene Increment .....................................46

Take Notes and Phrases ..............................46

Phrases ............................................46

Timecode 47

Timecode Modes...........................47

Record Run .........................................48

Free Run ............................................48

Free Run Auto Mute ..................................48

24h Run (24 hour Run) ...............................48

24h Run Auto Mute ..................................48

External Timecode ...................................48

External Timecode Auto-Record .......................48

External Timecode Continuous ........................48

External Timecode Auto-Record Continuous .............48

Timecode Frame Rate ......................49

Jam Menu ................................49

Timecode Hold Off .........................50

Time Zone and Daylight Savings .............51

Time and Date Format......................51

Powering 52

External DC Powering ......................52

L-Mount Battery Powering...................52

AA Battery Powering .......................52

Voltage Metering ..........................52

Power Screen .......................................53

Voltage Range ......................................53

PowerSafe................................54

QuickBoot ................................54

Power Consumption ........................55

633 User Guide and Technical Information

v. 1.02 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

Table of Contents

Using a USB Keyboard 56

Storing and Recalling Settings 57

Setup Menu 58

Power ...................................58

Inputs ...................................58

Outputs ..................................58

Limiters ..................................59

Recorder .................................59

Timecode.................................60

File Storage...............................61

System...................................62

Quick Setup ..............................63

Front Panel Button Shortcuts 65

Connector Pin Assignments 66

Speciﬁcations 67

Analog Inputs ............................67

Digital Inputs .............................67

Analog Outputs ...........................68

Digital Outputs/Recorder ...................68

Timecode and Sync.........................69

Power ...................................69

Environmental ............................69

Dimensions and Weight ....................69

Accessories 70

Wave Agent 71

Index 72

Declaration of Conformity 74

Warranty and Technical Support 75

Table of Contents

633 User Guide and Technical Information

iii

means, electronic, mechanical, photocopying, recording, or otherwise, without the expressed written permission of SOUND DEVICES,

LLC. SOUND DEVICES is not responsible for any use of this information.

SOUND DEVICES, LLC shall not be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses

incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modiﬁcations, repairs, or

alterations to this product, or failure to strictly comply with SOUND DEVICES, LLC’s operating and installation instructions.

Microsoft Windows is a registered trademark of Microsoft Corporation. Macintosh is a registered trademark of Apple, Inc. Other product

and company names mentioned herein may be the trademarks of their respective owners.

The sound waves logo is a registered trademark of Sound Devices, LLC.

Limitation of Liability

LIMITATION ON SOUND DEVICES’ LIABILITY. SOUND DEVICES, LLC SHALL NOT BE LIABLE TO THE PURCHASER OF THIS

PRODUCT OR THIRD PARTIES FOR DAMAGES, LOSSES, COSTS, OR EXPENSES INCURRED BY PURCHASER OR THIRD PAR-

TIES AS A RESULT OF: ACCIDENT, MISUSE, OR ABUSE OF THIS PRODUCT OR UNAUTHORIZED MODIFICATIONS, REPAIRS,

OR ALTERATIONS TO THIS PRODUCT, OR FAILURE TO STRICTLY COMPLY WITH SOUND DEVICES, LLC’S OPERATING AND

INSTALLATION INSTRUCTIONS. TO THE FULLEST EXTENT PERMITTED BY LAW, SOUND DEVICES SHALL HAVE NO LIABILITY

TO THE END USER OR ANY OTHER PERSON FOR COSTS, EXPENSES, DIRECT DAMAGES, INCIDENTAL DAMAGES, PUNITIVE

DAMAGES, SPECIAL DAMAGES, CONSEQUENTIAL DAMAGES OR OTHER DAMAGES OF ANY KIND OR NATURE WHATSOEVER

ARISING OUT OF OR RELATING TO THE PRODUCTS, THESE TERM/S AND CONDITIONS OR THE PARTIES’ RELATIONSHIP,

INCLUDING, WITHOUT LIMITATION, DAMAGES RESULTING FROM OR RELATED TO THE DELETION OR OTHER LOSS OF AUDIO

OR VIDEO RECORDINGS OR DATA, REDUCED OR DIMINISHED AUDIO OR VIDEO QUALITY OR OTHER SIMILAR AUDIO OR

VIDEO DEFECTS ARISING FROM, RELATED TO OR OTHERWISE ATTRIBUTABLE TO THE PRODUCTS OR THE END USER’S USE

OR OPERATION THEREOF, REGARDLESS OF WHETHER SUCH DAMAGES ARE CLAIMED UNDER CONTRACT, TORT OR ANY

OTHER THEORY. “CONSEQUENTIAL DAMAGES” FOR WHICH SOUND DEVICES SHALL NOT BE LIABLE SHALL INCLUDE, WITH-

OUT LIMITATION, LOST PROFITS, PENALTIES, DELAY DAMAGES, LIQUIDATED DAMAGES AND OTHER DAMAGES AND LIABILI-

TIES WHICH END USER SHALL BE OBLIGATED TO PAY OR WHICH END USER OR ANY OTHER PARTY MAY INCUR RELATED TO

OR ARISING OUT OF ITS CONTRACTS WITH ITS CUSTOMERS OR OTHER THIRD PARTIES. NOTWITHSTANDING AND WITHOUT

LIMITING THE FOREGOING, IN NO EVENT SHALL SOUND DEVICES BE LIABLE FOR ANY AMOUNT OF DAMAGES IN EXCESS

OF AMOUNTS PAID BY THE END USER FOR THE PRODUCTS AS TO WHICH ANY LIABILITY HAS BEEN DETERMINED TO EXIST.

SOUND DEVICES AND END USER EXPRESSLY AGREE THAT THE PRICE FOR THE PRODUCTS WAS DETERMINED IN CONSID-

ERATION OF THE LIMITATION ON LIABILITY AND DAMAGES SET FORTH HEREIN AND SUCH LIMITATION HAS BEEN SPECIFI-

CALLY BARGAINED FOR AND CONSTITUTES AN AGREED ALLOCATION OF RISK WHICH SHALL SURVIVE THE DETERMINATION

OF ANY COURT OF COMPETENT JURISDICTION THAT ANY REMEDY HEREIN FAILS OF ITS ESSENTIAL PURPOSE.

633 User Guide and Technical Information

v. 1.02 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

Table of Contents

Panel Descriptions

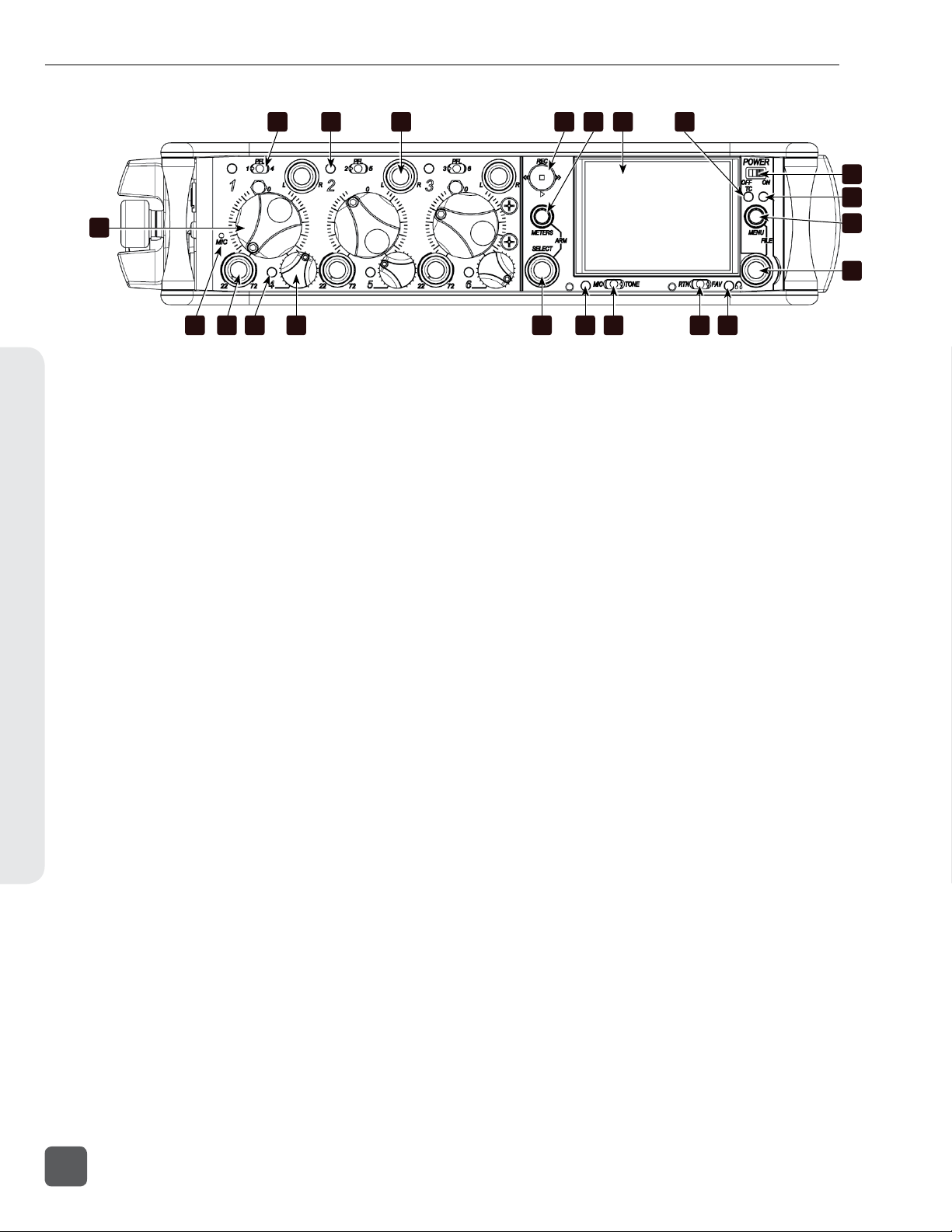

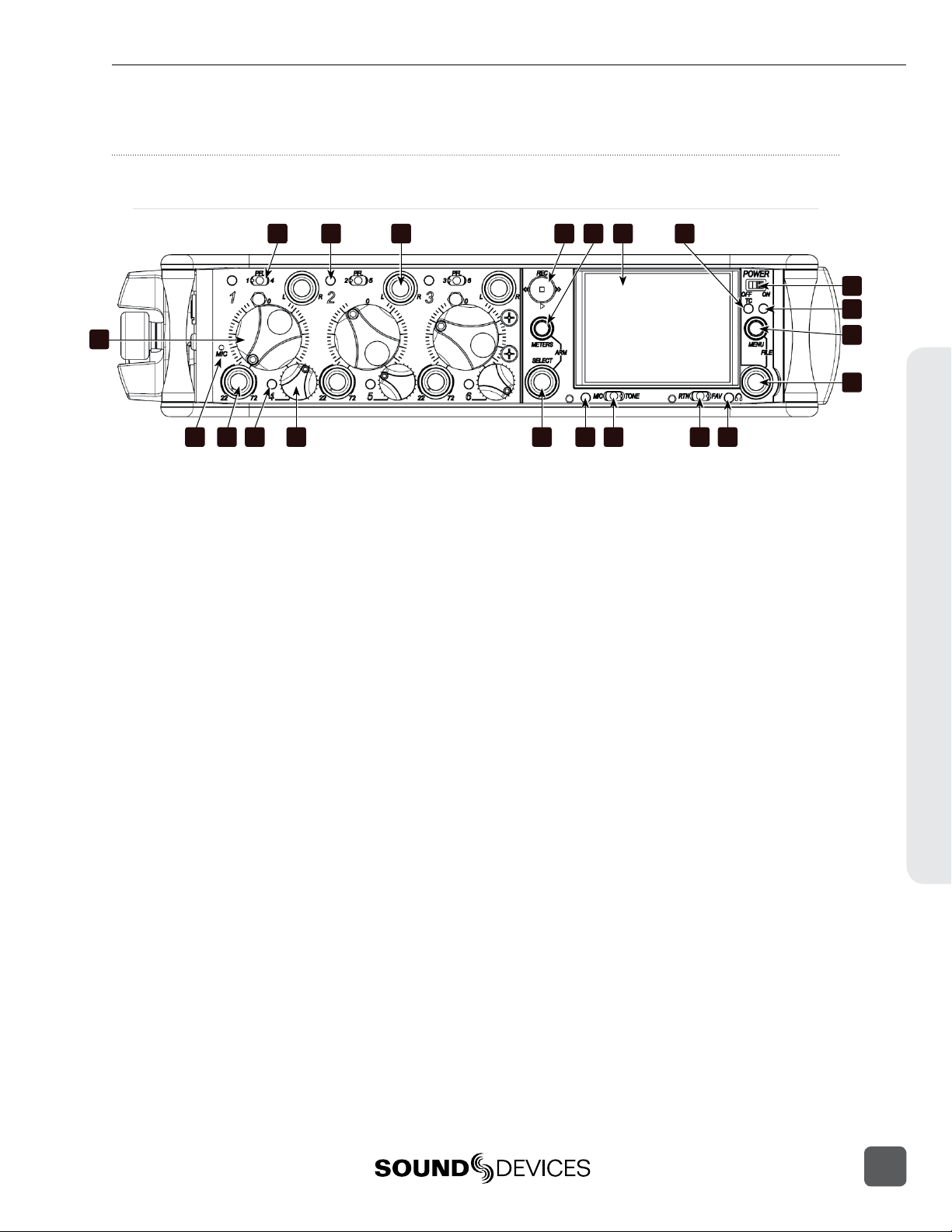

Front Panel

3 4 5

8 96 7

14 1415171819 16

1) Input Fader

Primary control for adjusting the level of

Inputs during operation. Ranges from off

to +16 dB. Nominal setting is in the mid-

dle (0 dB). The three large knobs control

Inputs 1, 2, and 3. The three smaller knobs

along the bottom control Inputs 4, 5, and

6 (Push to recess; Push again to extend).

2) Gain / Trim (Ch. 1 to Ch. 3)

Coarse input gain control for Inputs 1,

2, and 3. Sets the initial input sensitivity

level so that the Input Fader can be used

for ﬁne gain adjustments. Range is from

+22 dB to +72 dB. Trim level for Inputs 4,

5, and 6 are controlled from the respective

input Settings Screen. (See “Inputs”, page

14)

3) PFL / Input Select Switch

Slide the switch toward the indicated

number to display that input’s Input Set-

tings Screen and PFL (“solo”) the input.

Does not affect Master Output signal.

Slide the switch the same direction again

to deactivate the PFL and return to the

previous screen. To momentarily PFL

an input, slide the switch toward the

input’s number and hold for 1 second or

more. This functionality is altered when

INPUTS > PFL Toggle Mode is set to 3ch.

(See “Inputs”, page 14)

4) Input Activity LED

Indicates input signal activity. Illuminates

in various colors and intensities to show

signal level and activity. Green = signal

presence (pre-fader), yellow = limiter

activity (pre- and post-fader), red = signal

overload/clipping (pre- and post-fader),

ﬂashing yellow = input PFL. Input LED’s

for Inputs 1, 2, and 3 are located above

the Input’s Fader knob. Input LED’s for

Inputs 4, 5, and 6 are located directly left

of the Input’s fader knob.

5) Input Pan (Ch. 1 to Ch. 3)

Controls the Left/Right balance of the in-

put signal to the Stereo Master Bus (Push

to recess; Push again to extend). Inputs 4,

5, and 6 are routed to the Left and Right

mix via the respective Input Settings

Screen. (See “Inputs”, page 14)

6) Transport Control

Controls the Integrated Digital Recorder.

Slide up to Record, press in to Pause/

Stop, slide down to Play, slide left to

Rewind, slide right to Fast Forward. (See

“Recorder Setup and Control”, page 31)

7) Meters Button

Displays the Main Screen which includes

metering, ﬁlename, timecode and other

important information. Cycles between

set meter presentations when pressed

from Main Screen ((See “Meter Views”,

page 10)). Returns to Main Screen from

any other Screen.

Panel Descriptions

633 User Guide and Technical Information

3 4 5

8 96 7

14 1415171819 16

8) LCD

Displays contextual operating informa-

tion and user interface.

9) Internal Timecode LED

When the 633 is powered down and

timecode Mode is Freerun or 24-Hour

Run, the Internal Timecode LED will ﬂash

blue to indicate that timecode is being

maintained. The 633 will hold accurate

timecode for 2 hours after being powered

down.

10) Power Switch

Two-position slide switch, slides left

to power the 633 off and slides right to

power the 633 on.

11) Power LED

Illuminates green to indicate the 633 is

powered on.

12) Menu Button

Displays the Setup Menu.

13) Headphone Encoder

Main and Input Settings Screen: Turn to

adjust headphone gain. In Main Screen:

Press to select Headphone Source. In

Menus: Turn to navigate; Press to make

selection. In Input Settings Screen: press

to select input source. Headphone gain

and preset selection functions can be

reversed: (See “Headphone Monitoring”,

page 22)

14) Headphone Clipping LED

Illuminates red to indicate headphone

output is approaching clipping level.

15) RTN / FAV Switch

Slide Left to monitor RTN signal in

headphones. Slide right to activate the

headphone preset that has been marked

as “favorite”. (See “Favorite Headphone

Source”, page 24)

16) Mic / Tone Switch

Slide left to activate the Slate Microphone,

slide again to deactivate. For momentary

action hold for one second or longer. Slide

right to activate the Tone Oscillator. Tone

will latch if held for one second or longer;

slide again to deactivate.

17) Slate Mic / Tone LED

Illuminates green when Slate Mic or tone

is active.

18) Select Encoder

Multi-function encoder. Selects Tracks,

RTN’s, and AUX buses on the Main

Screen. On the Main Screen, press and

hold the Select Encoder and then press

the Meters Button to arm/disarm the

currently highlighted track. With L, R, X1,

X2, X3, X4, or RTN selected, press then

turn to adjust level. Vertical Scroll in ma-

trix windows. Turn to adjust trim level in

Input Settings Screens 4-6 and inputs with

AES selected. Turn to scroll cursor and

press to insert a space character during

text entry. Acts as shift button to access

secondary functions. (See “Front Panel

Button Shortcuts”, page 65)

19) Slate Microphone

The slate mic transducer. (See “Slate Mic

and Tone Oscillator”, page 29)

633 User Guide and Technical Information

v. 1.02 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

Panel Descriptions

Left (Input) Panel

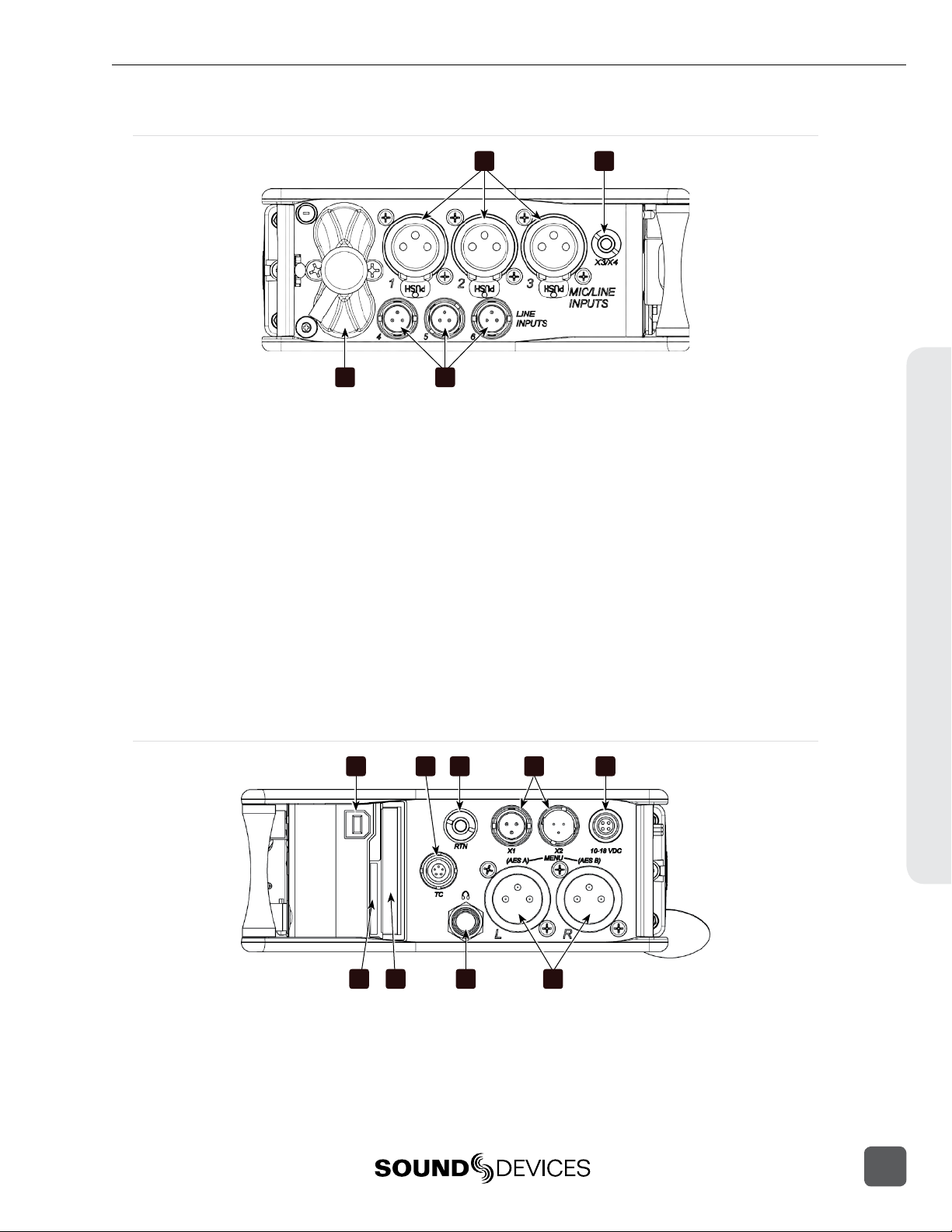

1) XLR-3F Inputs 1-3

Active-balanced analog microphone- or

line-level input for inputs 1-3 on XLR-3F

connector. Input type is set within the

Input Settings Screen. Can supply 12V

or 48V phantom power. Input 1 can also

accept AES3 or AES42 (Mode 1) signal.

Pin-1 ground, pin-2 (+), pin-3 (-).

2) AUX 3/4 Output

Multi-purpose auxiliary analog output.

Two channels on unbalanced 3.5 mm TRS

connection. Level can be adjusted from

-30 dB (mic level) up to 0 dB (sufﬁcient

for driving headphones). (See “AUX 3/4

Outputs (TRS)”, page 26)

3) Battery Compartment

Holds 6 AA batteries; Three batteries in

two rows held by screw cap. Top row

batteries inserted with negative (-) end

facing out; Bottom row batteries inserted

with positive (+) end facing out.

4) TA3 Analog Line Inputs 4-6

Analog line inputs 4-6. Pin-1 ground, pin-

2 (+), pin-3 (-). Float pin 3 to unbalance.

Right (Output) Panel

789

5321 4

1) USB B Connector

USB connection for keyboard or factory

use.

2) Timecode I/O

Timecode input and output on 5-pin

LEMO® connector.

Panel Descriptions

633 User Guide and Technical Information

3) RTN Input

Unbalanced stereo 3.5 mm female con-

nector for Return audio input. Sleeve =

Ground, Tip = Left, Ring = Right.

4) X1 and X2 Outputs

Line, -10, or Mic level selected in the

Setup Menu section OUTPUTS. Pin-1

ground, pin-2 (+), pin-3 (-). Float pin 3 to

unbalance.

5) DC Input

Accepts DC voltages from 10–18 V for

powering. Pin 1 = Negative (–), pin 4 =

Positive (+).

6) XLR-3M Master Outputs

Balanced analog outputs on standard

3-pin XLR-3M connectors. Mic, Line, -10,

or AES (1,2 and 3,4 on L and R respective-

ly) selectable from Setup Menu section

OUTPUTS. Pin-1 ground, pin-2 (+), pin-3

(-). Unbalance by grounding pin 3 to pin

7) Headphone Output

1/4-inch TRS stereo headphone connec-

tor. Can drive headphones from 8 to 1000

ohm impedances to very high levels. Tip

= left, ring = right, sleeve = ground.

8) CompactFlash Slot

Accepts approved CompactFlash cards

with the label-side toward the rear of the

633. Compatible with Type I and Type

II cards. High-speed UDMA cards are

recommended for higher track count re-

cording. See http://www.sounddevices.com/

approved for a list of approved media.

9) SD Card Slot

Accepts approved SD/SDHC/SDXC

cards with the notched corner oriented

toward the top of the 633. Insert until it

clicks securely in the slot. The card should

glide smoothly into the slot. Press to eject.

See http://www.sounddevices.com/approved

for a list of approved media.

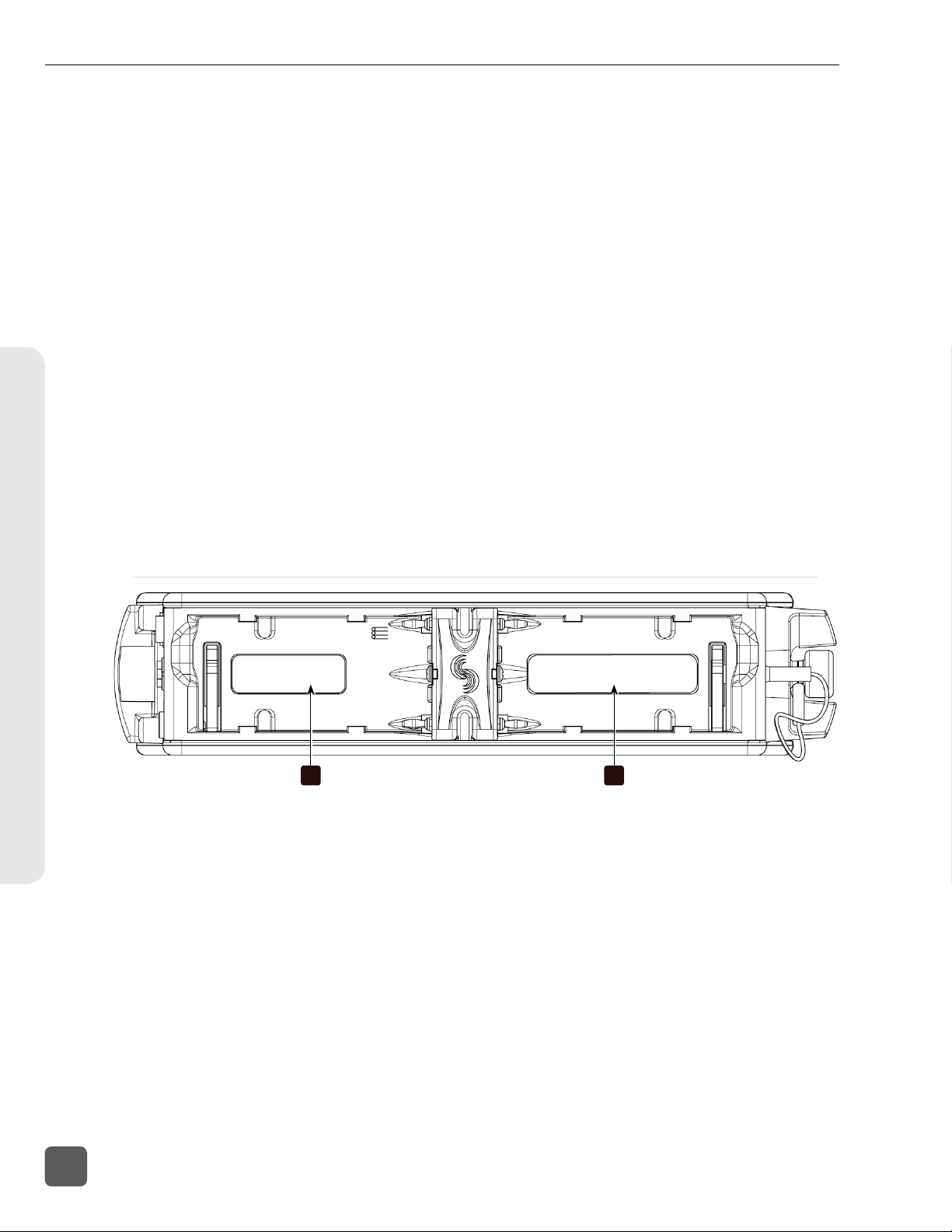

Rear Panel

B2 B1

ity supported. Battery slots labeled B1 and B2 in the diagram above correspond to the labels in the

Setup Menu section POWER. (See “Powering”, page 52)

633 User Guide and Technical Information

v. 1.02 Features and specifications are subject to change. Visit www.sounddevices.com for the latest documentation.

Panel Descriptions

Autres manuels pour 633

Table des matières

Autres manuels Sound Devices Mixeur musical

Sound Devices

Sound Devices 664 Manuel utilisateur

Sound Devices

Sound Devices 688 Manuel utilisateur

Sound Devices

Sound Devices 633 Manuel utilisateur

Sound Devices

Sound Devices 633 Manuel utilisateur

Sound Devices

Sound Devices 664 Manuel utilisateur

Sound Devices

Sound Devices 664 Manuel

Sound Devices

Sound Devices 552 Manuel utilisateur

Sound Devices

Sound Devices 664 Manuel utilisateur

Sound Devices

Sound Devices MixPre-10M Manuel utilisateur

Sound Devices

Sound Devices 664 Manuel

Sound Devices

Sound Devices MixPre Manuel

Sound Devices

Sound Devices 552 Manuel

Sound Devices

Sound Devices 664 Manuel

Sound Devices

Sound Devices 664 Manuel utilisateur

Manuels Mixeur musical populaires d'autres marques

Neve

Neve 8816 Manuel utilisateur

Mackie

Mackie Onyx Analogue Mixer Manuel utilisateur

Behringer

Behringer EUROPOWER PMP518M Manuel utilisateur

Peavey

Peavey S-32 Sanctuary Series Manuel utilisateur

Rane

Rane MP 4 Manuel utilisateur

True

True T9 Touchscreen Console Manuel utilisateur

Studiomaster

Studiomaster Air Pro 24 Manuel utilisateur

Pioneer

Pioneer SVM 1000 - Audio/Video Mixer Manuel utilisateur

Roland

Roland M-160 Manuel utilisateur

Yamaha

Yamaha MR1642 Manuel utilisateur

Ecler

Ecler MAC40v Manuel utilisateur

Pioneer

Pioneer DJM 909 - Battle Mixer W/Effects Manuel utilisateur

Veeder-Root

Veeder-Root TLS-350 Series Manuel utilisateur

Alto

Alto APM80.QUAD Manuel utilisateur

Omnitronic

Omnitronic PM-211 Manuel utilisateur

SoundCraft

SoundCraft B400 Manuel utilisateur

Roland

Roland SoundCanvas SC-8820 Manuel utilisateur

CARVIN

CARVIN RX 1200 Manuel utilisateur
