Sony WEGA KV-LS212 Manuel utilisateur

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

Tr initron Color TV

KV-LS212

3-269-697-11 (1)

Operating Instructions

•Before operating the unit, please read this manual thoroughly and retain

it for future reference.

M90

01GB01COV-STTMix.p65 17/5/07, 9:24 am1

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

110-240 V AC, 50/60 Hz

Indicated on the rear of the TV

B/G, I, D/K, M

PAL, PAL 60, SECAM, NTSC3.58, NTSC4.43

NICAM Stereo/Bilingual B/G, I, D/K;

A2 Stereo/Bilingual B/G

VHF : E2 to E12 /UHF : E21 to E69 /

CATV : S01 to S03, S1 to S41

UHF : B21 to B68 /CATV : S01 to S03, S1 to S41

VHF : C1 to C12, R1 to R12 /

UHF : C13 to C57, R21 to R60 /

CATV : S01 to S03, S1 to S41, Z1 to Z39

VHF : A2 to A13 /UHF : A14 to A79 /

CATV : A-8 to A-2, A to W+4, W+6 to W+84

75-ohm external terminal

10 W + 10 W

Input: 2 Output: 1 Phono jacks; 1 Vp-p, 75 ohms

Input: 3 Output: 1 Phono jacks; 500 mVrms

Input: 1 Y: 1 Vp-p, 75 ohms,

unbalanced, sync negative

C: 0.286 Vp-p, 75 ohms

Input: 1 Phono jacks;

Y: 1 Vp-p, 75 ohms,

sync negative

CB: 0.7 Vp-p, 75 ohms

CR: 0.7 Vp-p, 75 ohms

Output: 1 Stereo minijack

FM Stereo / Mono

87.5 - 108.0 MHz

10.7 MHz

21 in.

Measured diagonally

646 ×485 ×484

ASpecifications

NoteKV- LS212M90

Design and specifications are subject to change without notice.

Power requirements

Power consumption (W)

Television system

Color system

Stereo/Bilingual system

Channel coverage

B/G

D/K

8 (Antenna)

Audio output (Speaker)

Number of terminal

(Video)

(Audio)

(S Video)

(Component

Video)

i(Headphone)

FM Radio

Tuning Range

Intermediate

Frequency

Picture tube

Tube size (cm)

Screen size (cm)

Dimensions (w/h/d, mm)

Mass (kg)

01GB02WAR-STTMix.p65 17/5/07, 2:18 pm2

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

Clean the TV with a dry and soft

cloth. Do not use benzine, thinner,

or any other chemicals to clean the

TV. Do not attach anything (e.g.,

adhesive tape, cellophane tape,

glue) on the painted cabinet of the

TV. Do not scratch the picture

tube.

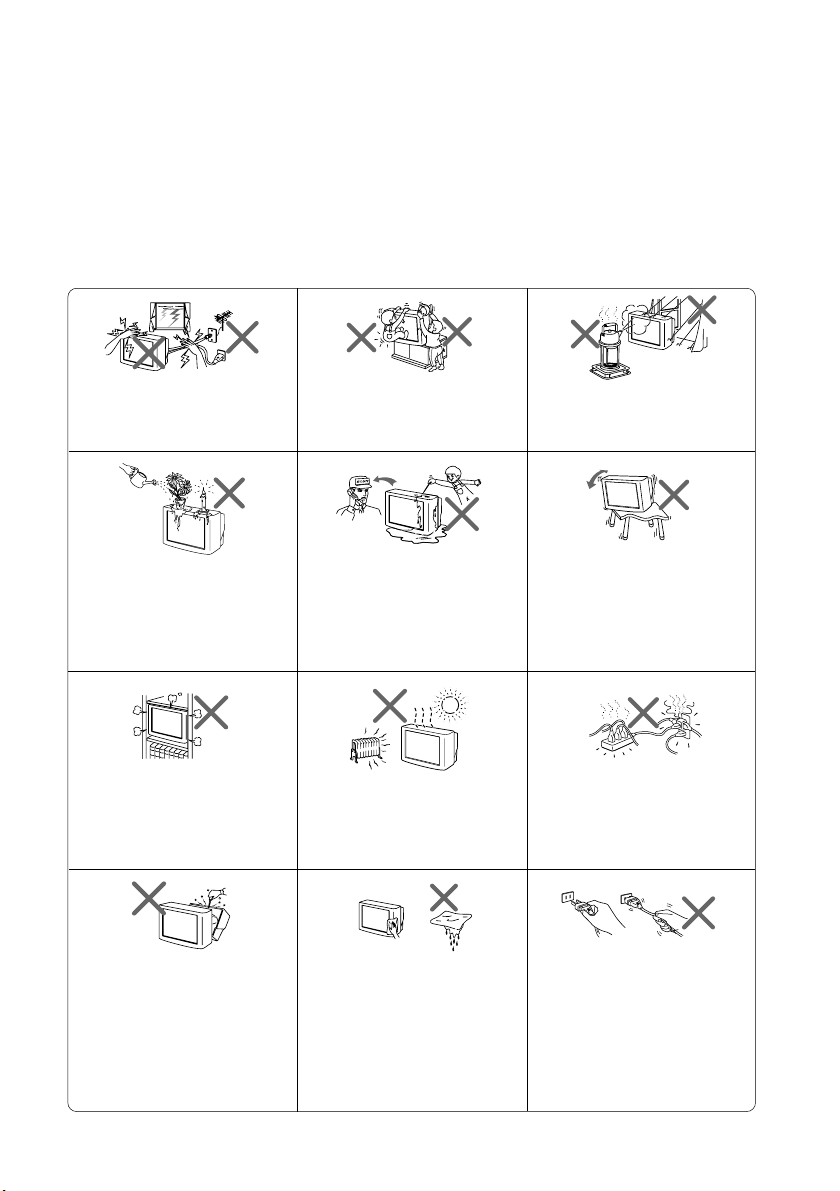

BWARNING

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 110 – 240 V AC.

•Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

•To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Install the TV on a stable TV stand

and floor which can support the

TV set weight. Ensure that the TV

stand surface is flat and its area is

larger than the bottom area of the

TV.

Do not plug in too many

appliances to the same power

socket. Do not damage the power

cord.

For children’s safety, do not leave

children alone with the TV. Do not

allow children to climb onto it.

For your own safety, do not touch

any part of the TV, the power cord

and the antenna cable during

lightning storms.

Do not place any objects on the TV.

The apparatus shall not be

exposed to dripping or splashing

and that no objects filled with

liquids, such as vases, shall be

placed on the apparatus.

Do not operate the TV if any liquid

or solid object falls into it. Have it

checked immediately by qualified

personnel only.

Do not block the ventilation

openings of the TV. Do not install

the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not open the cabinet and the

rear cover of the TV as high

voltages and other hazards are

present inside the TV. Refer

servicing and disposal of the TV

to qualified personnel.

Pull the power cord out by the

plug. Do not pull the power cord

itself. Even if your TV is turned

off, it is still connected to the AC

power source (mains) as long as

the power cord is plugged in.

Unplug the TV before moving it

or if you are not going to use it for

several days.

To prevent fire or shock hazard, do

not expose the TV to rain or

moisture.

Your TV is recommended for

home use only. Do not use the TV

in any vehicle or where it may be

subject to excessive dust, heat,

moisture or vibrations.

01GB02WAR-STTMix.p65 17/5/07, 9:24 am3

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

End

Select Confirm

Initial Setup

Language:

English

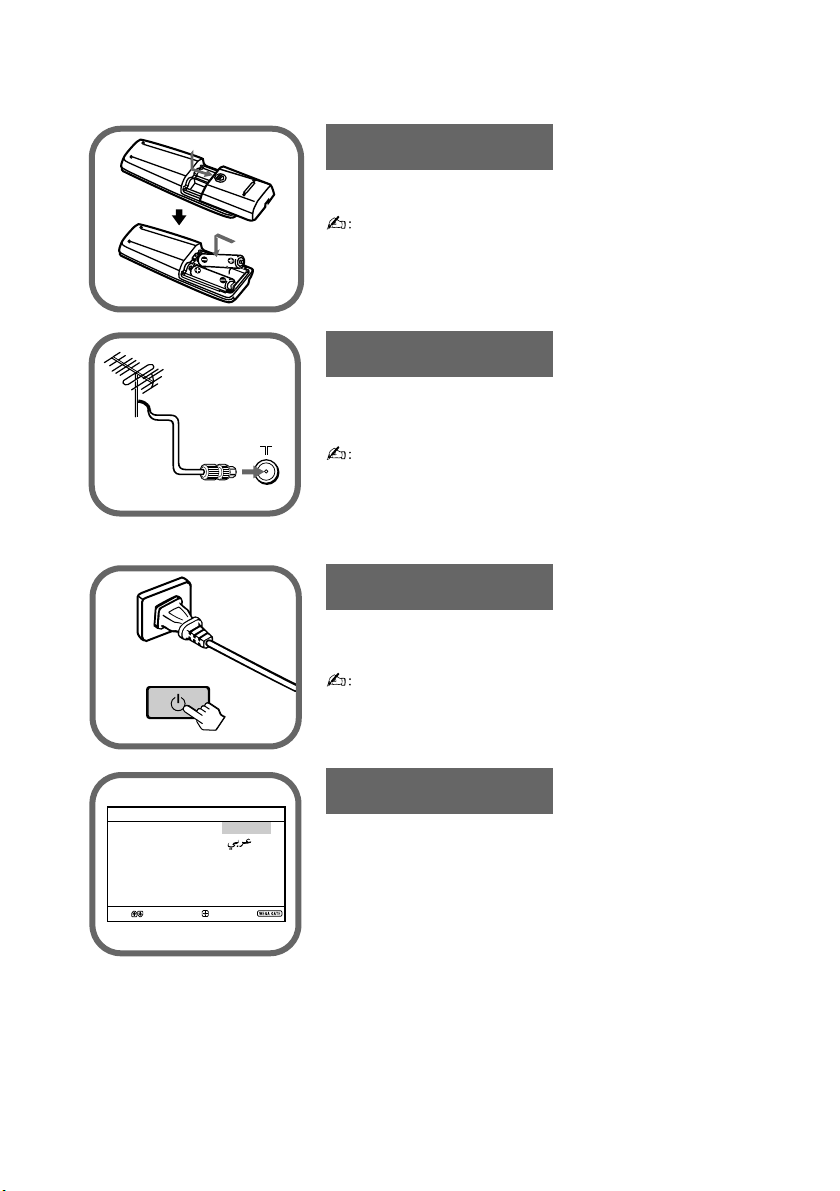

CGetting Started

Insert the batteries (supplied) into the remote.

• Do not use old or different types of batteries together.

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

• Your TV can receive both TV and FM radio signals from

the appropriate connections through the 8 (antenna

input) terminal (see E).

•You can also connect your TV to other optional

components (see E).

Plug in the power cord, then press 1on the TV to

turn it on.

• The 1(standby) indicator flashes green for a few seconds

when turning on the TV. This does not indicate a malfunction.

Set up the TV by following the instructions of the

“Initial Setup” menu (see D).

Step 1

Step 2

Step 3

Step 4

01GB02WAR-STTMix.p65 17/5/07, 9:24 am4

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

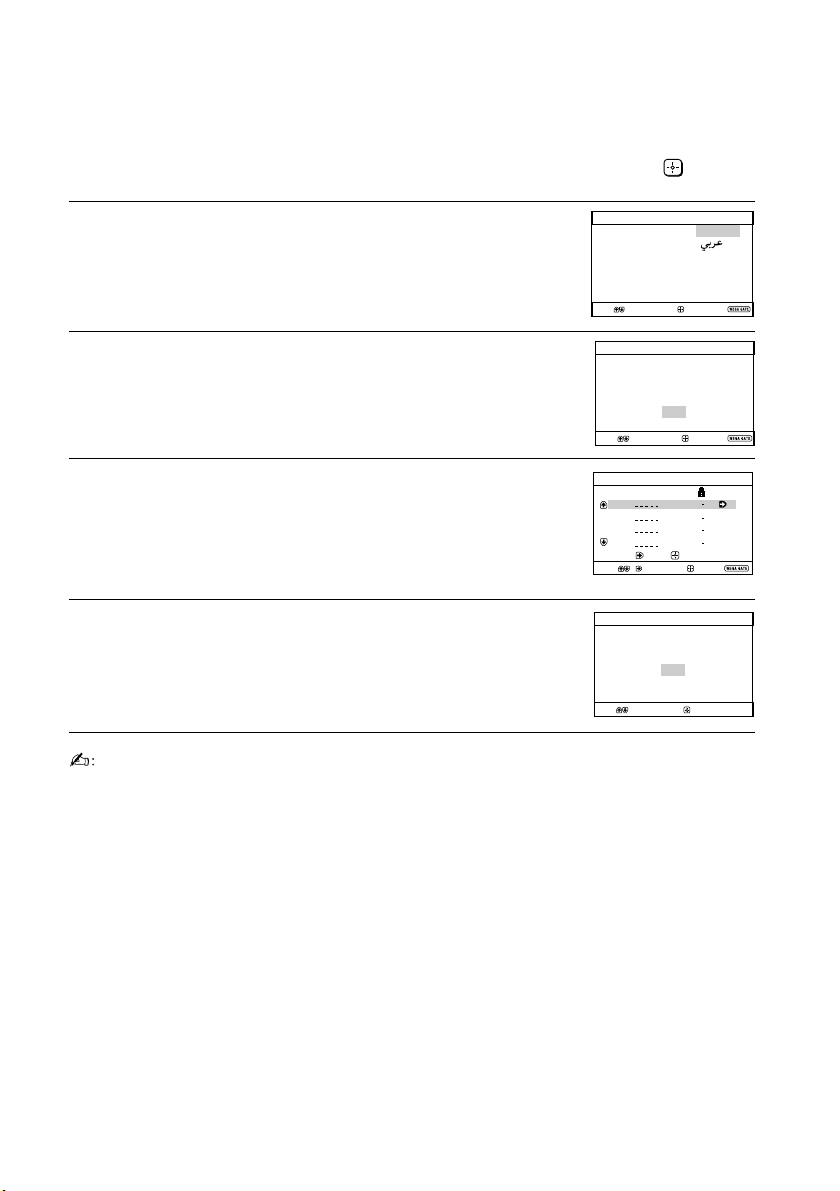

Setting up your TV (“Initial Setup”)

When you turn on your TV for the first time, the “Initial Setup” menu will

appear. You can adjust settings below using the buttons on the remote control or

TV front panel. Press V, v, B or b to select or adjust items, then press .

1Select the desired menu language.

2Select “Yes” to preset the channels automatically.

To skip automatic channel presetting, select “No”.

3The “Program Sorting/Edit” menu enables

you to sort and edit the channels (see L).

4To prevent this “Initial Setup” menu from appearing

again when you turn on the TV by pressing 1,

select “No”.

To allow this menu to appear again, select “Yes”.

•You can immediately go to the end of the “Initial Setup” menu by pressing WEGA

GATE.

Program Sorting/Edit

001

002

003

004

Off

Sorting: Edit:

PROG

SkipLabel

Exit

Select Confirm

End

Select Confirm

Initial Setup

Language:

English

Start Auto Program now?

Yes

First please connect

cable/antenna

Initial Setup

End

Select Confirm

Initial Setup

Display this menu next time?

Yes

01GB02WAR-STTMix.p65 17/5/07, 9:24 am5

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

L(MONO) R

PROG

SOUND

MODE

(MONO)

(

EConnecting optional components

You can connect a wide range of optional components to your TV. Connecting

cables are not supplied.

Connecting to the TV (front)

Connecting to the TV (rear)

•If you connect a VCR to 8(antenna input), preset the signal output from the VCR

to the program number 0 on the TV (see L).

• When both (S video) and (video) for t1 are connected at the same time,

(S video) is automatically selected. To view (video), disconnect the S video

cable.

•If your DVD player can output interlace and progressive mode signals, select the

interlace output when connecting to (component video input) on your TV. Your TV

can receive either 525i/60Hz or 625i/50Hz interlace signals.

• The component video terminals on your DVD player are sometimes labeled Y/CB/CR,

Y/PB/PR, Y/Cb/Cr or Y/B-Y/R-Y.

• If you select “DVD” on your TV screen, the signal from the T(monitor output)

terminals will not be output properly. This does not indicate a malfunction.

Audio/Video

cable Camcorder

Headphones

If cannot receive

FM signal

Audio/

Video cable

Component

Video cable

Audio

cable

Audio/

Video cable

Antenna

cable

Video

cable

VCR DVD Player DVD Player

Antenna

selector FM

signal

TV signal

Audio System VCR

Antenna

cable

TV, CATV, Satellite

01GB03INS-STTMix.p65 17/5/07, 9:25 am6

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

L(MONO) R

PROG

SOUND

MODE

3 2678 1

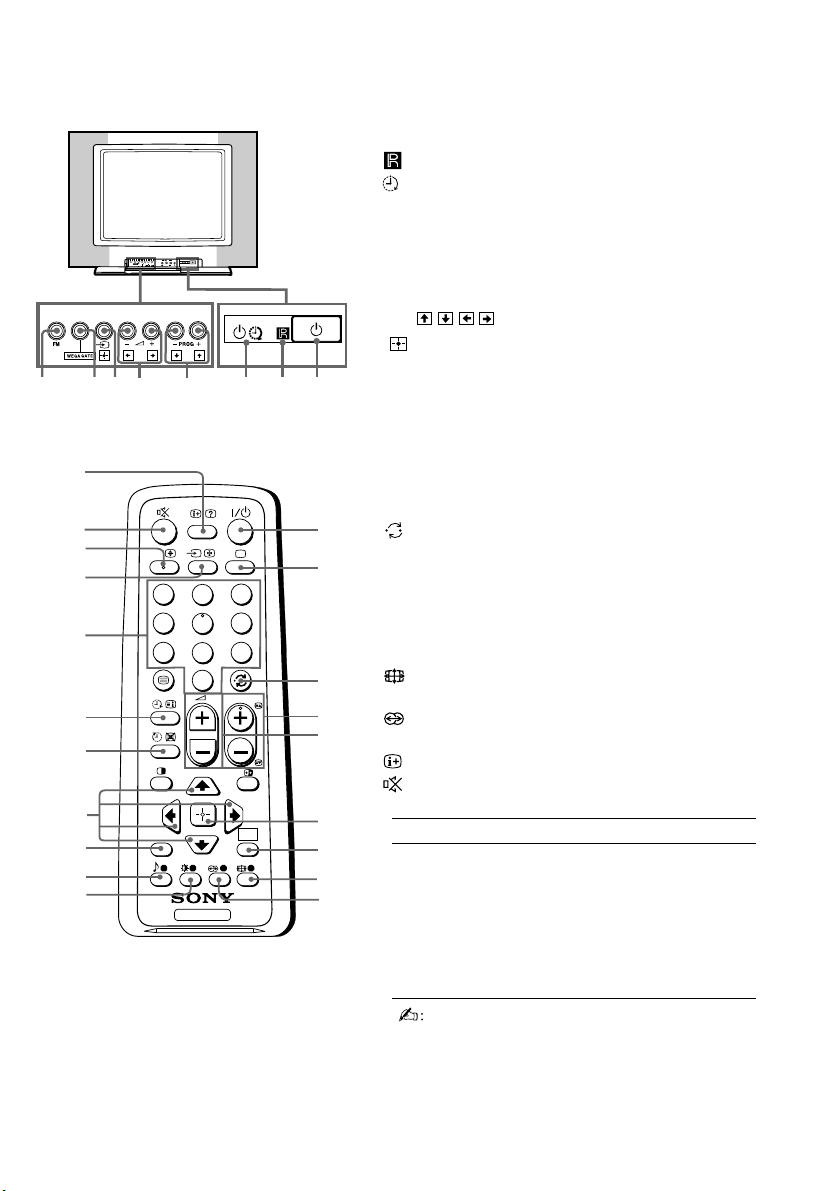

FTV buttons and remote control

11Turn off or turn on the TV.

2Remote control sensor.

3Wake Up indicator.

31Standby indicator.

4PROG +/– Select program number.

52+/– Adjust volume.

6tSelect TV or video input.

WEGA GATE menu operations (see I)

4,5

, , ,

Select or adjust items.

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

8FM Listen to FM Radio (see G).

123

789

PROG

A/B

RETURN

WEGA

GATE

1?/1Turn off temporarily or turn on the

TV.

2aDisplay the TV program.

3Jump to last program number that

has been watched for at least five

seconds.

4PROG +/– Select program number. To select

quickly, press and hold until the

desired program number appears.

52+/– Adjust volume.

8Change the picture size:

“On” (16:9 wide-mode), “Off”.

9Select surround mode options

(see K).

0Display on-screen information.

qa Mute the sound.

qs A/B Select stereo/bilingual mode:

Broadcasting Display (selected sound)

NICAM stereo NICAM (stereo), Mono (regular)

NICAM bilingual NICAM Main (main), NICAM

Sub (sub), Mono (regular)

NICAM monaural NICAM Main (main), Mono

(regular)

A2 stereo Stereo (stereo), Mono (regular)

A2 bilingual Main (main), Sub (sub)

• If the stereo sound is noisy when receiving a

stereo program, select “Mono”. The sound

becomes monaural, but the noise is reduced.

01GB03INS-STTMix.p65 17/5/07, 9:25 am7

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

TV buttons and remote control (continued)

qd tSelect TV or video input.

qf 0-9 Input numbers. For program numbers 10 and above, enter the next digit

within two seconds.

ql Select sound mode options with a 5-Band Graphic Equalizer display:

“Dynamic”, “Standard”, “Custom”* (see K).

*When the “Custom” mode is selected, you can receive the last adjusted

sound settings from the “Sound Adjustment” option in the menu.

w; Select picture mode options: “Vivid”, “Standard”, “Custom”* (see J).

* When the “Custom” mode is selected, you can receive the last adjusted

picture settings from the “Picture Adjustment” option in the menu.

WEGA GATE menu operations (see I)

6Confirm selected items.

7WEGA GATE Display or cancel WEGA GATE menu.

qj V, v,B,b Select or adjust items.

qk RETURN Return to the previous level.

Timer operations

qg Set TV to turn on automatically according to the desired period of time

(Wake Up Timer) (max. of 12 hours). The indicator on TV lights up amber once you set

the wake up timer. If no buttons or controls are pressed for more than

three hours after the TV is turned on using the wake up timer, the TV

automatically goes into standby mode.

qh Set TV to turn off automatically according to the desired period of time

(Sleep Timer) (max. of one hour and 30 min.).

Teletext operations (green icon)

, , , ,

Not function for your TV.

(red, green,

yellow, blue)

PIP operations

, , V, v,B, bNot function for your TV.

Dynamic

100 300 1k 3k 8k 100 300 1k 3k 8k

Custom

100 300 1k 3k 8k

Standard

, , , ,

TruSurround, SRS and symbol are trademarks of SRS Labs, Inc.

TruSurround technology is incorporated under license from SRS Labs, Inc.

Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under one or more of the following US patents: 5510752,

5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

01GB03INS-STTMix.p65 17/5/07, 9:25 am8

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

GListening to the FM Radio

You are able to listen to the FM radio stations using your TV by connecting an

antenna (see E).

To access to FM Radio mode:

Press WEGA GATE button and select “FM Radio” (see I).

Press FM button on the front panel (see F).

To exit from FM Radio mode:

Press WEGA GATE button, select the desired items: “TV” or “External Inputs”,

then press . Select the desired TV channel or external inputs and press .

Press FM button on the front panel.

A/B

V, v,

B,b

WEGA

GATE

Listening to preset stations

Access to FM Radio mode.

Press WEGA GATE button and select “Settings”.

Preset the desired FM radio stations in “FM Radio

Setup” from “Channel Setup” menu (see L).

Exit from “Channel Setup” menu by pressing

WEGA GATE button. The selected preset FM radio

station number and label will appear on the screen.

To select the desired preset FM radio station, press

PROG +/–.

• You can also use the 1-9 buttons on the remote control

to directly select the desired preset FM radio station.

Listening to non-preset stations

Access to FM Radio mode.

Press Vor vto search for the desired FM radio station. The preset number

and label will not be displayed.

•

You can only operate V,v,B and b functions using the remote control buttons in FM

Radio mode.

•

The available radio frequency is only for temporary listening pleasure and cannot be

stored in the memory.

•

If the message “Please setup FM Radio” appears, display the “Channel Setup” menu

and select “FM Radio Setup” to preset the desired FM radio stations (see L).

•If the station has a noisy sound, you may be able to improve the sound quality by

pressing B or b.

•When a FM stereo program has static noise, press A/B until “Mono” appears. There will

be no stereo effect, but the noise will be reduced.

123

789

PROG

A/B

WEGA

GATE

RETURN

PROG

+/–

01GB03INS-STTMix.p65 17/5/07, 9:25 am9

Black

Sony KV-LS212M90 Group L4 (GB)_3-269-697-11 (1)

If you find any problem while viewing your TV, you can either use the

“Factory Settings” function (see M) or check the Troubleshooting guide below.

If the problem persists, contact your Sony dealer.

Snowy picture, noisy sound

•Check the antenna setup and other connections.

•Preset the channel manually again (see L).

•Set the “Signal Booster” to “Auto” (see L) or try using an external booster.

Distorted picture, noisy sound

•Set the “Signal Booster” to “Off” (see L), or turn off or disconnect any external booster in use.

Good picture, noisy sound

•Select the appropriate “TV System” (see L).

No picture, no sound

•Check the power cord, antenna setup and other connections.

•Press 4/1 (power) to turn on the TV.

•Press 1 (main power) on the TV to turn off the TV for about five seconds, then turn it on again.

Good picture, no sound

•Press 2 + to increase the volume level or press to cancel the muting.

Dotted lines or stripes

• Do not use a hair dryer or other equipment near the TV.

•Check the antenna setup.

Double images or “ghosts”

•Use the fine tuning (“Fine”) function (see L).

•Check the antenna setup or use a highly directional antenna.

•Turn off or disconnect any external booster in use.

No color

•Adjust the “Color” level from “Picture Adjustment” (see J).

•Select the appropriate “Color System” (see M).

•Check the antenna setup.

Picture slant

•Keep external speakers or other electrical equipment away from the TV.

Abnormal color patches

•Keep external speakers or other equipment away from the TV. Do not move the TV while the

TV is turned on. Press 1 (main power) on the TV to turn off the TV for about 15 minutes,

then turn it on again to demagnetize the TV.

TV cannot receive stereo broadcast sound or stereo broadcast sound switches on and off or is distorted.

•Check the antenna setup and other connections.

TV cannot receive FM radio station.

•Connect a separate FM antenna and the TV channel source through an antenna selector (switch)

to your TV (see E).

The 1 (standby) indicator on your TV flashes red several times after every three seconds.

•Count the number of times the 1 (standby) indicator flashes. Press 1 on the TV to turn it off,

disconnect the AC power cord and inform your dealer or Sony service center of how the indicator

flashes (duration and interval).

The TV screen sometimes goes blank for slightly longer than usual during channel change.

• The “Signal Booster” is functioning to detect a weak signal. This does not indicate a malfunction.

TV cabinet creaks.

•Changes in room temperature sometimes make the TV cabinet expand or contract, causing a noise.

This does not indicate a malfunction.

A small “boom” sound is heard when the TV is turned on.

•The TV’s demagnetizing function is working. This does not indicate a malfunction.

HTroubleshooting

01GB03INS-STTMix.p65 17/5/07, 2:19 pm10

Black

Autres manuels pour WEGA KV-LS212

Table des matières

Autres manuels Sony TV

Sony

Sony SXRD KDS50A2000 Manuel utilisateur

Sony

Sony kv-da29 Trinitron Manuel utilisateur

Sony

Sony KD-70X690E Manuel utilisateur

Sony

Sony Bravia XBR-84X900 Manuel utilisateur

Sony

Sony KV-32HQ100B Manuel utilisateur

Sony

Sony KV-XF25M50 Manuel utilisateur

Sony

Sony BRAVIA XR XR-50X90S Manuel utilisateur

Sony

Sony Bravia KDL-49W750E Manuel utilisateur

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manuel utilisateur

Sony

Sony KV-DR29N93 Manuel utilisateur

Sony

Sony TRINITRON KV-XF25M21 Manuel utilisateur

Sony

Sony Bravia XBR-60X830F Manuel utilisateur

Sony

Sony TRINITRON KV-21V5A Manuel utilisateur

Sony

Sony BRAVIA 65A9xJ Manuel utilisateur

Sony

Sony KV-27FV310 - 27" Fd Trinitron Wega Manuel utilisateur

Sony

Sony BRAVIA KDL-40XBR5 Mode d’emploi

Sony

Sony KV-2199XFJ Trinitron Manuel utilisateur

Sony

Sony TRINITRON KV-SZ25M61 Manuel utilisateur

Sony

Sony KV-XA21M80 Manuel utilisateur

Sony

Sony Trinitron KV-29FX66E Manuel utilisateur

Sony

Sony WEGA KV 32HV600 Manuel utilisateur

Sony

Sony BRAVIA KD-55X70 Series Manuel utilisateur

Sony

Sony KDP-65WS550 - 65" High Definition Projection... Manuel

Sony

Sony BRAVIA KDL-40R450A Mode d'emploi

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
