Trinitron Colour

Television

Operating Instructions

KV-32HQ100B

KV-36HQ100B

4-095-835-53

Before operating the TV, please read the 'SafetyInformation'section ofthis manual.

Retain this manual for future reference.

B(03) cover.fm Page 1 Monday, October 27, 2003 2:21 PM

NOTICE FOR CUSTOMERS IN THE UNITED KINGDOM AND IRELAND

For KV-32HQ100B models

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 5 AMP fuse approved by ASTA or BSI

to BS 1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it

should be fitted with a 5 AMP fuse, otherwise the circuit should be protected by a 5 AMP fuse at

the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be sure

to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you

should lose the fuse cover, please contact your nearest Sony service centre.

For KV-36HQ100B models

A moulded plug complying with BS1363 is fitted to this equipment for your safety and convenience.

Should the fuse in the plug supplied need to be replaced, a 13 AMP fuse approved by ASTA or BSI

to BS 1362 (i.e. marked with or ) must be used. When an alternative type of plug is used it

should be fitted with a 13 AMP Fuse, otherwise the circuit should be protected by a 13 AMP fuse

at the distribution board. If the plug supplied with this equipment has a detachable fuse cover, be

sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover.

If you should lose the fuse cover, please contact your nearest Sony service centre.

How to replace the Fuse

Open the fuse compartment with a flat blade screwdriver, and replace the fuse.

IMPORTANT

If the plug supplied is not suitable for the socket outlet in your home, it should be cut off and an

appropriate plug fitted in accordance with the following instructions:

The wires in this mains lead are coloured in accordance with the following code:

Blue Neutral

Brown Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the terminal which is marked with the letter

N or coloured black. The wire which is coloured brown must be connected to the terminal which is

marked with the letter L or coloured red. Do not connect either wire to the earth terminal in the plug

which is marked by the letter E or by the safety earth

symbol or coloured green or green and yellow.

WARNING

• To prevent shock hazard, do not insert the plug cut off from the mains lead into a socket outlet.

This plug cannot be used and should be destroyed.

• To prevent fire or shock hazard, do not expose the unit to rain or moisture.

• Dangerously high voltages are present inside the set. Do not open the cabinet. Refer servicing

to qualified personnel only.

ASA

FUSE

B(03) cover.fm Page 2 Monday, October 27, 2003 2:21 PM

GBpages1-8.fm Page 1 Tuesday, October 28, 2003 3:23 PM

Safety information

NOTE: Sony recommend you only use their designated stands- 32HQ1 for KV-32HQ100 and 36HQ1 for KV-36HQ100.

This set is to operate on a 220-240V AC

supply only. Take care not to connect too

many appliances to the same power socket

as this could result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV is not left in

standby when unused. Disconnect from the

mains. However, some TVs may have

features which need the TV to be left in

standby to work correctly. The instructions

in this manual will inform you if this applies.

Never push objects of any kind into the set

as this could result in a fire or electric shock.

Never spill liquid of any kind on the set. If

any liquid or solid object does fall through,

do not operate the TV. Have it checked

immediately by qualified personnel.

Do not open the cabinet and the rear cover

of the TV. Refer to qualified service

personnel only.

To prevent fire or shock hazard, do not

expose the TV to rain or moisture.

For your own safety, do not touch any part

of the TV, power lead or aerial lead during

lightning storms.

Do not cover the ventilation openings of the

TV. For ventilation, leave a space of at least

10cm all around the set.

Never place the TV in hot, humid or

excessively dusty places. Do not install the

TV where it may be exposed to mechanical

vibrations.

Clean the screen and cabinet with a soft,

lightly dampened cloth. Do not use any type

of abrasive pad, alkaline cleaner, scouring

powder or solvent, such as alcohol or

benzine, or antistatic spray. As a safety

precaution, unplug the TV before cleaning it.

Pull out the power lead by the plug. Do not

pull on the power lead itself.

Take care not to place heavy objects on the

power lead as this could result in damage.

We recommend you wind any excess lead

around the holders provided on the rear of

the TV.

Unplug the power lead before moving the

TV. Avoid uneven surfaces, quick steps or

excessive force. If the set has been

dropped or damaged, have it checked

immediately by qualified service personnel.

Do not cover the ventilation openings of the

TV with items such as curtains or

newspapers etc.

Do not place any objects on the TV. To

prevent fire, keep inflammable objects or

naked lights (e.g. candles) away from the TV.

Place the TV on a secure stable stand. Never

attempt to move the TV and stand together -

always move the TV and stand separately.

Do not place the TV on its side or face up. Do

not allow children to climb on to it.

GBpages1-8.fm Page 2 Tuesday, October 28, 2003 3:23 PM

Table of contents

Getting started

Checking the accessories supplied ..............................................................4

Inserting batteries into the remote control ...................................................4

Connecting an aerial and a VCR to the TV ..................................................5

Switching on the TV .....................................................................................5

Automatically tuning the TV..........................................................................6

Finding your video channel ..........................................................................6

Overview

Overview of the TV buttons ..........................................................................7

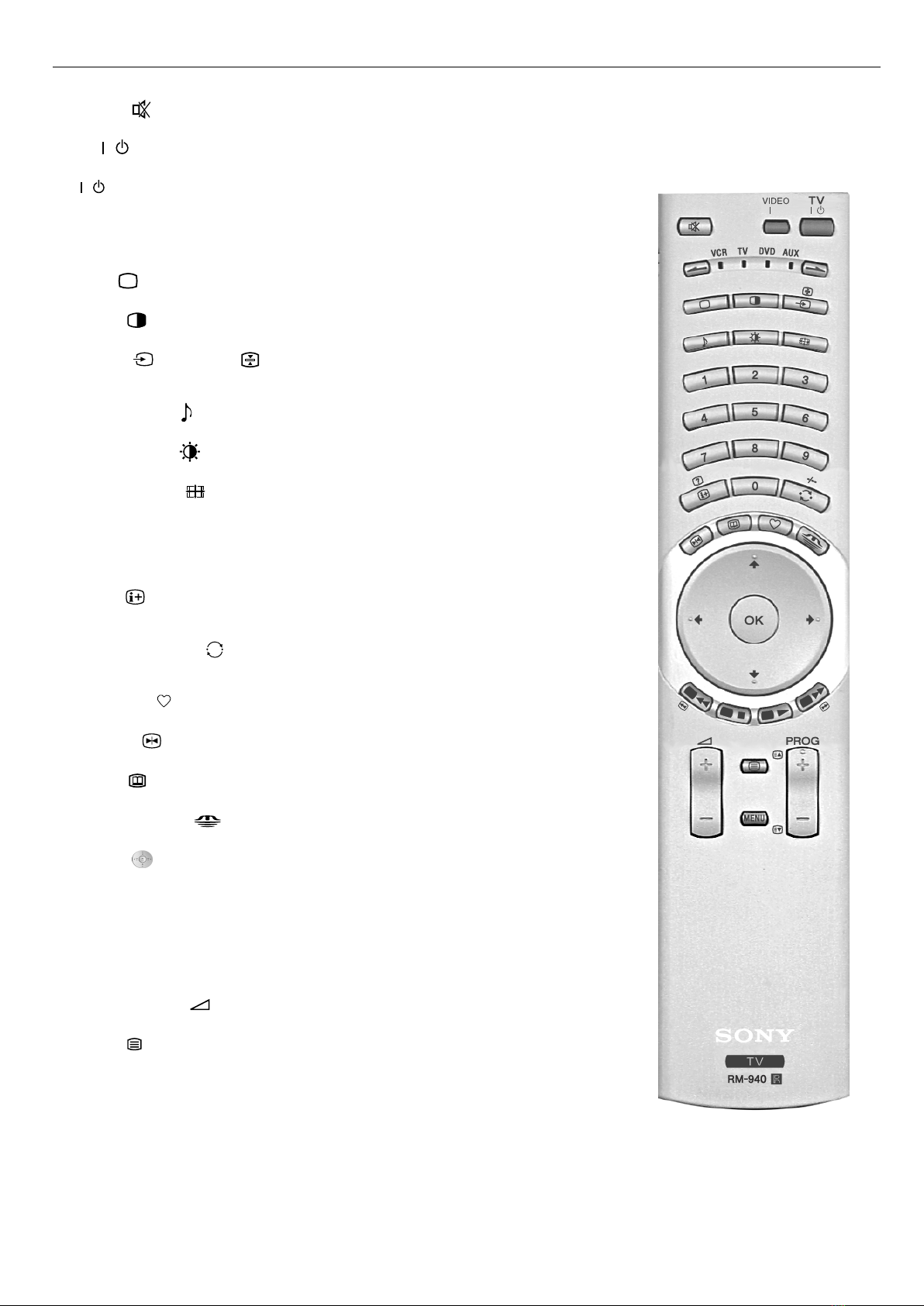

Overview of the remote control buttons........................................................8

Basic Operation

Picture and Picture (PAP).............................................................................9

Screen Mode ...............................................................................................10

Favourite menu

Viewing favourite programmes .................................................................... 11

To enter Favourite Set-up ........................................................................... 11

Adding or deleting a favourite channel ........................................................ 11

To clear all favourite channels ..................................................................... 11

EPG

Selecting a category of programme .............................................................12

Selecting a programme for recording or timed display .................................13

Text

Viewing Text..................................................................................................14

Viewing TopText ...........................................................................................14

Memory Stick

Inserting a Memory Stick.............................................................................. 15

Removing a Memory Stick............................................................................15

The Memory Stick Thumbnail menu.............................................................15

Slideshow ..................................................................................................... 16

Changing directory .......................................................................................16

Memory Stick precautions ............................................................................ 17

Saving a TV picture to the Memory Stick ..................................................... 17

TV menu system

Using the TV menu system ..........................................................................18

Picture Adjustment menu .............................................................................18

Sound Adjustment menu ..............................................................................19

Set Up menu.................................................................................................20

Language/Country ..................................................................................20

Auto Tuning .............................................................................................20

Programme Sorting..................................................................................20

Manual Tuning .........................................................................................20

AV3 Output...............................................................................................21

AV Labels.................................................................................................21

VCR Stabiliser..........................................................................................21

Screen Adjustment ..................................................................................22

Select EPG ..............................................................................................22

Connecting Other Equipment to the TV

Connecting equipment to the rear sockets ...................................................23

Connecting equipment to the front sockets ..................................................24

Using the remote control with DVD/VCR equipment ....................................25

Teaching the remote control .........................................................................26

Additional information

Specifications ...............................................................................................27

Troubleshooting ............................................................................................28

GBpages1-8.fm Page 3 Tuesday, October 28, 2003 3:23 PM

Getting started

Follow steps 1- 6to install your TV and view the

programmes.

1Checking the accessories supplied

2Inserting batteries into the remote control

Always remember to:

• observe the correct polarity when inserting batteries.

(Refer to the markings in the battery case)

•dispose of batteries in an environmentally friendly way

Batteries

Remote control

Coin

GBpages1-8.fm Page 4 Tuesday, October 28, 2003 3:23 PM

Getting started

3Connecting an aerial and a VCR to the TV

Connecting an aerial only

1. Connect your aerial lead to the aerial socket marked on the rear of

the TV.

Connecting an aerial and a VCR

1. Connect your aerial lead to the IN socket on your VCR.

2. Connect a lead from the OUT socket on your VCR to the aerial socket

marked on the rear of the TV.

3. Connect a fully wired scart lead from the socket on the rear of

the TV to the scart socket on your VCR.

4. Connect the VCR to the mains socket and switch on.

5. Insert a pre-recorded tape into the VCR and press the ‘PLAY’button. This

enables the TV to locate and store the video channel during the

‘Automatically tuning the TV’procedure.

Notes:

Socket names may vary depending on make and model of VCR. Refer to your VCR

instruction manual for details.

If your VCR does not have a scart socket follow the connecting instructions above ignoring

the scart lead connection. You will also need to manually tune the VCR to a spare TV

channel.

4Switching on the TV

1. Connect the TV plug to your mains socket (220 - 240 V AC, 50 Hz).

2. Push in the on/off button on the side of the TV.

Note:

If the red indicator on the front of the TV is lit the TV is in standby mode. Press the TV

button on the remote control to switch on the TV. Please be patient as the picture may take

a few moments to appear on screen.

On/Off button

Scart lead

(not

supplied)

RF lead

(not

supplied)

VCR

GBpages1-8.fm Page 5 Tuesday, October 28, 2003 3:23 PM

Getting started

5Automatically tuning the TV

Note:

If you need to re-enter the ‘Automatic Tuning’procedure at any time, you can do so by pressing

the Auto Start up button (refer to page 7)

1. When you switch on the TV for the first time, the Sony logo appears on

the TV screen followed by the ‘Memory Stick’logo, then the Language/

Country menu with the word ‘English’highlighted. Press the Vor v

buttons on the remote control to choose the language you require then

press the OK button to confirm.

2. The word Country is now highlighted. Press the Vor vbuttons to choose

the country in which you are using the TV. It is important to select the

correct country to ensure correct Teletext displays. Press the OK button

to confirm your choice.

The picture rotation prompt appears. Sometimes the Earth’s natural

magnetism can cause the screen to look tilted.

a) If no correction is required, press the OK button.

b) If some correction is required, press the Vor vbutton to rotate the

picture over a range of -5 to +5. Press the OK button to store.

The picture centering prompt appears. This allows you to adjust the

vertical position of the display if it is not centralised.

a) If no correction is required, press the OK button.

b) If some correction is required, press the Vor vbutton to set the new

position. Press the OK button to store.

The autotune prompt screen appears. Press the OK button to select Yes.

The autotune procedure begins, tuning all the available channels. A

display then appears on the TV screen to inform you of the tuning

progress.

If no channels are found, a display appears on screen asking you to

confirm your aerial is connected. Check the aerial is connected correctly

then press the OK button to repeat the tuning process.

Once tuning is complete, the ‘Programme Sorting’prompt appears. If you

wish to change the order of the stored channels, press the OK button

and refer to page 20 for instructions. If you do not wish to sort the

channels at this time, press the MENU button to return to normal

operation.

3. To view programmes, press the PROG+/- button or the numbered

buttons on the remote control.

6Finding your video channel

If you connected a VCR to your TV when following the ‘Connecting an aerial and a

VCR to the TV’instructions, you now need to find your video channel.

1. Press the PROG+/- button on the remote control until the picture from the

pre-recorded tape appears on screen.

Notes:

If you wish to move your video channel to a different programme number, refer to

‘Programme Sorting’on page 20.

If you have connected your VCR using a scart lead, press the /button

repeatedly on the remote control until the picture from the pre-recorded tape

appears on the TV screen.

Autotune prompt

Language/Country menu

GBpages1-8.fm Page 6 Tuesday, October 28, 2003 3:23 PM

Overview of the TV buttons

The TV buttons can be found on the control panel on the side of the TV. An expanded view is shown below.

Note:

For information on the socket connections, refer to page 24 for

details.

Press on the mark,

then release to open

the door.

Programme buttons

Press to display the next (+)

or previous (-) channel. Volume buttons

Press to increase (+) or

decrease (-) the volume.

Video input button

Press to select signals from

equipment connected to the

TV sockets (refer to page 23

for details).

Auto Start up button

Press to start the auto start up

sequence. This is useful if you

move to a different area, and

wish to use the ‘Automatic

Tuning’procedure again.

GBpages1-8.fm Page 7 Tuesday, October 28, 2003 3:23 PM

Overview of the remote control buttons

Mute button

Press to mute the TV sound. Press again to restore the sound.

VIDEO button

Press to switch off your VCR or DVD temporarily. Press again to return to normal operation.

TV button

Press to switch off your TV temporarily. The red indicator on the front of the TV illuminates. Press again

to return to normal operation.

./> buttons

This remote control can also operate other equipment (refer to page 26 for details).

TV button

Press to return to normal TV operation from Text or Video Input mode.

PAP button

Press to switch on PAP mode (refer to page 9 for details).

Input button /Hold button

Press to select signals from equipment connected to the TV sockets (refer to page 23 for details). In text

mode press to keep a page on display. Press again to cancel.

Sound Mode button

Press to repeatedly change the ‘Sound Mode’.

Picture Mode button

Press repeatedly to change the ‘Picture Mode’.

Screen format button

Press repeatedly to change the screen mode. Refer to page 10 for details.

Buttons 0 - 9

Press to input the required channel number. For two digit numbers enter the second digit within 2

seconds. VCRs:- To input numbers 10 and above on your VCR, press the -/-- button on the remote

control then press the 2 digit number eg press -/-- then press 2 and 3 for channel 23.

Info button

Press to reveal on screen information when available. In text mode, press to reveal hidden information

(eg answers to a quiz). Press again to cancel.

Previous channel button

Press this button to return to the previous channel you were watching (provided you watched it for at

least 5 seconds).

Favourite button

Press to display a list of your favourite stored programmes (refer to page 11 for details).

Freeze button

Press to freeze the TV picture (refer to page 17, Saving a TV picture to the ‘Memory Stick’).

EPG button

Press to display the EPG menu.

MEMORY STICK button

Press to display the ‘Memory Stick’menu (refer to page 15 for details).

Control pad

Use these buttons to navigate through the menu system of the TV.

OK button

Press the OK button to store settings made in the menu system.

Coloured buttons

These buttons can be used as Fastext buttons (refer to page 14 for details).

Note: When the remote has been set to operate VCR or DVD, the coloured buttons operate the main

functions of your VCR or DVD.

Volume + and - button

Press to increase (+) or decrease (-) the volume.

Text button

Press to switch Text on or off (refer to page 14 for details).

MENU button

Press to enter the menu system of this TV (refer to page 18 for details).

PROG +/- button

Press to select the next or previous programme.

GBpages1-8.fm Page 8 Tuesday, October 28, 2003 3:23 PM

Autres manuels pour KV-32HQ100B

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony GrandWega KDF-60WF655 Manuel utilisateur

Sony

Sony KV-28FX65B Manuel utilisateur

Sony

Sony BRAVIA KDL-43W6600 Manuel utilisateur

Sony

Sony Bravia KDL-55EX725 Manuel utilisateur

Sony

Sony KV-XA29M31 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-32FV16 Guide d'installation

Sony

Sony kv-sw21 Trinitron Manuel utilisateur

Sony

Sony KD-79X9005B Manuel utilisateur

Sony

Sony NSX-32GT1 Manuel utilisateur

Sony

Sony Trinitron KV-29XL70E Manuel utilisateur

Sony

Sony KDL-26S2010 - 26" LCD TV Manuel utilisateur

Sony

Sony BRAVIA XBR-79X900B Manuel utilisateur

Sony

Sony KDL-40V2500 - Bravia V-series Lcd Hdtv Manuel utilisateur

Sony

Sony BRAVIA KDL-46XBR5 Manuel utilisateur

Sony

Sony TRINITRON KV-XF29N90 Manuel utilisateur

Sony

Sony BRAVIA KDL-65HX729 Manuel utilisateur

Sony

Sony Trinitron WEGA KV-SZ29 Manuel utilisateur

Sony

Sony Bravia KDL-47W802A Manuel utilisateur

Sony

Sony BRAVIA KD-65X7500F Manuel utilisateur

Sony

Sony KP-48PS2 Manuel utilisateur

Sony

Sony KLV-22EX300 Manuel utilisateur

Sony

Sony BRAVIA KDL-52XBR4 Mode d’emploi

Sony

Sony Trinitron KV-XA21 Manuel utilisateur

Sony

Sony KDS-50A2020 - 50" Rear Projection TV Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
