WARNING

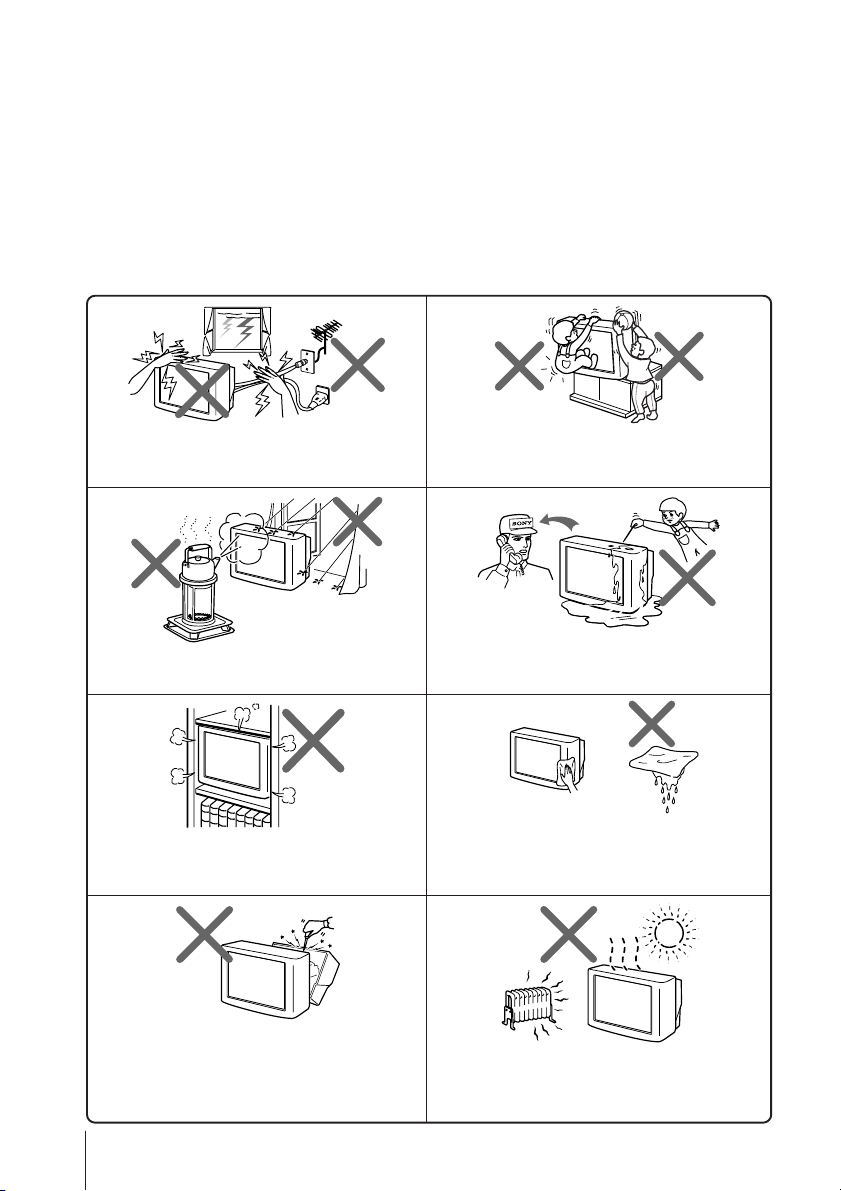

• Dangerously high voltages are present inside the TV.

• TV operating voltage: 220-240 V AC.

• Do not plug in the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

• To avoid battery leakage and damage to the remote, remove the batteries from the

remote if you are not going to use it for several days. If any liquid leaks from the

batteries and touches your skin, immediately wash it away with water.

Do not open the cabinet and the rear cover of the

TV as high voltages and other hazards are present

inside the TV. Refer servicing and disposal of the

TV to qualified personnel.

Your TV is recommended for home use only.

Do not use the TV in any vehicle or where it may

be subject to excessive dust, heat, moisture or

vibrations.

To prevent fire or shock hazard, do not expose the

TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not block the ventilation openings of the TV.

Do not install the TV in a confined space, such as a

bookcase or built-in cabinet.

For children’s safety, do not leave children

alone with the TV. Do not allow children to

climb onto it.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals to

clean the TV. Do not attach anything (e. g., adhesive

tape, cellophane tape, glue) on the painted cabinet of

the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Install the TV on a stable TV stand and floor which

can support the TV set weight. Ensure that the TV

stand surface is flat and its area is larger than the

bottom area of the TV.

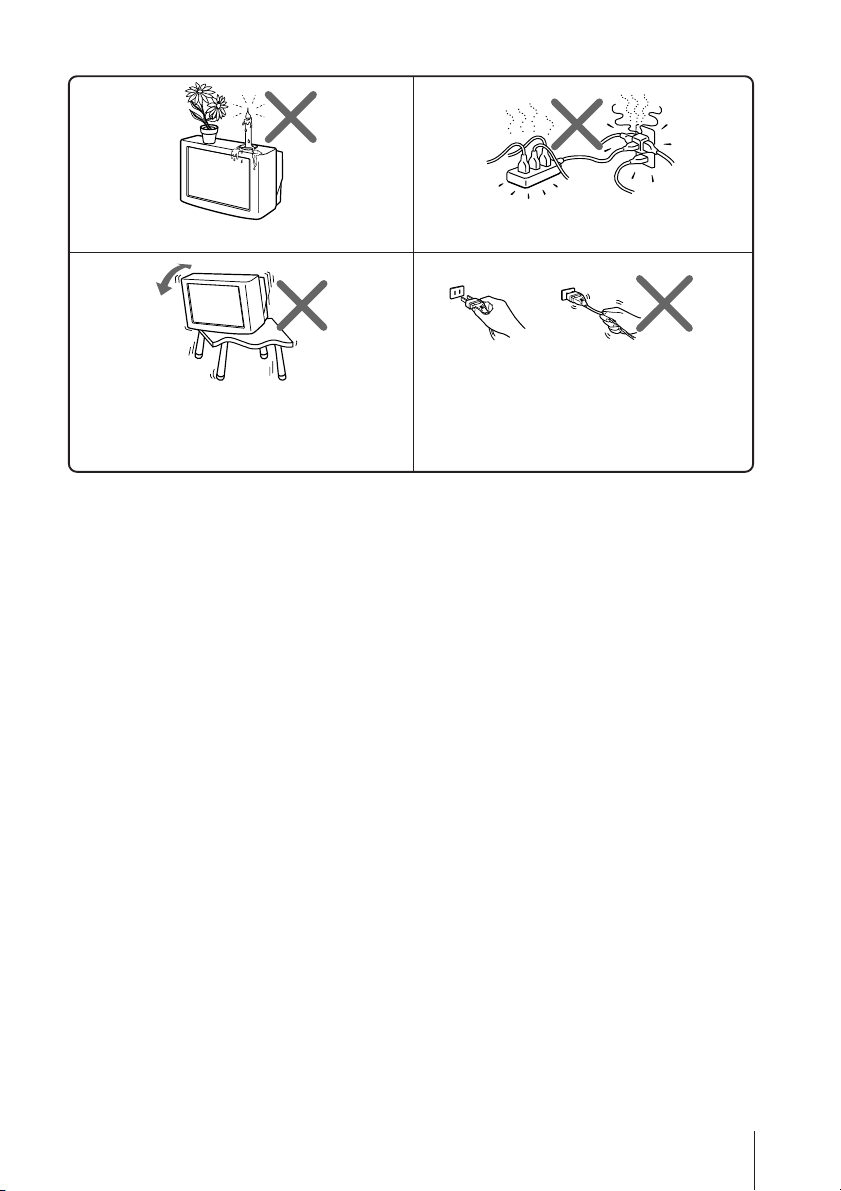

Do not place any objects on the TV.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Pull the power cord out by the plug. Do not pull

the power cord itself. Even if your TV is turned

off, it is still connected to the AC power source

(mains) as long as the power cord is plugged in.

Unplug the TV before moving it or if you are not

going to use it for several days.

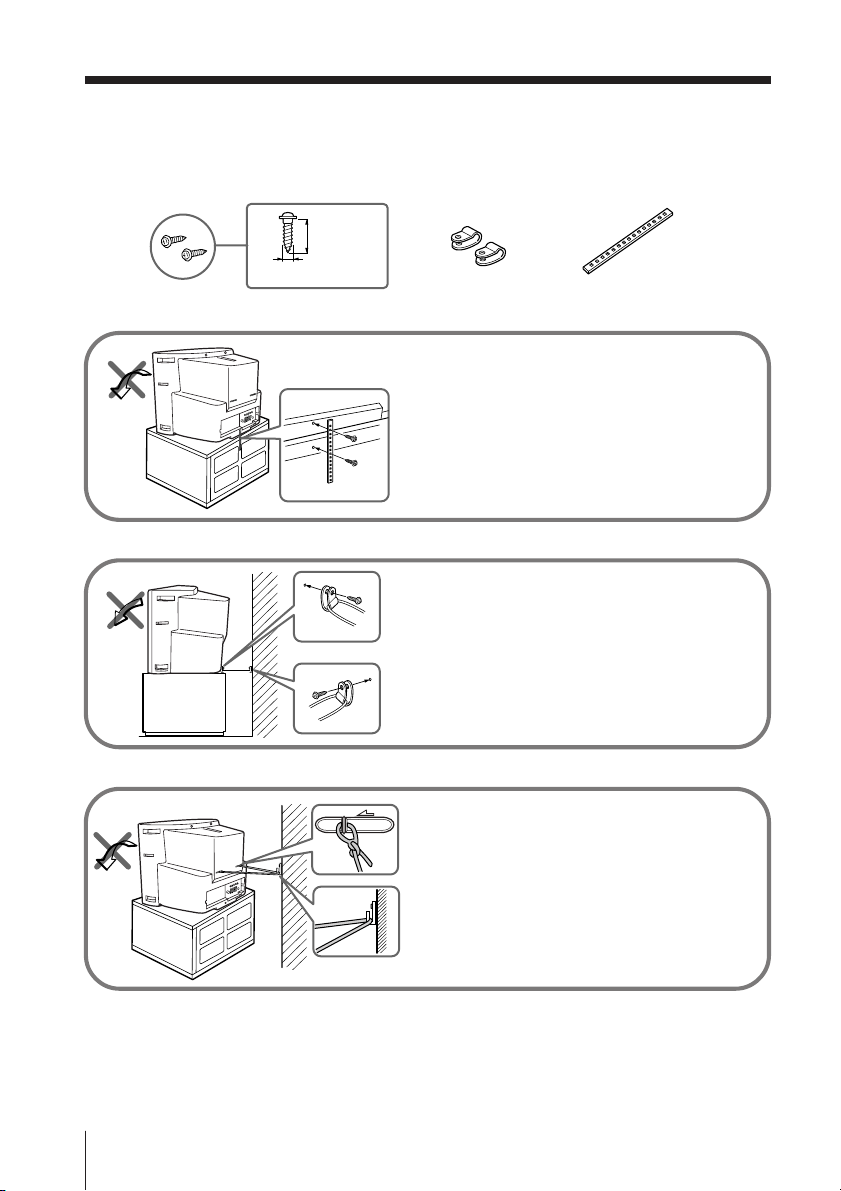

xSecuring the TV

To prevent the TV from falling, use the supplied screws, clamps and band to

secure the TV.

20 mm

3.8 mm

screws clamps band

Screw the band to the TV stand and to the

provided hole at the rear of your TV.

(1) Put a cord or chain through the clamps.

(2) Screw one clamp to a wall or pillar and

the other clamp to the provided hole at

the rear of your TV.

(1) Attach each end of a cord or chain to

the provided holders at the rear of

your TV.

(2) Securely fix the attached cord or chain

to a wall or pillar using an attachment

which can support the TV set weight.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

Table of Contents

Installation

Getting Started ..................................... 6

Setting up your TV

(“INITIAL SETUP”) ............................. 7

Overview of Controls

TV front and rear panels ..................... 8

Remote control ..................................... 9

Advanced Operations

Selecting the picture and sound

modes .................................................. 11

Viewing the picture in wide mode .. 12

Listening with surround sound ....... 12

Setting the timers ............................... 13

Enjoying stereo or bilingual

programs ............................................. 14

Menu Adjustment

Introducing the menu system .......... 15

Changing the “PICTURE” setting ... 18

Changing the “SOUND” setting ..... 20

Changing the “SETUP” setting ........ 22

Changing the Channel Preset

(“CH PRESET”) setting ..................... 24

Additional Information

Connecting optional components ... 27

Troubleshooting ................................. 29

Specifications ...................... Back cover

6Installation

Installation

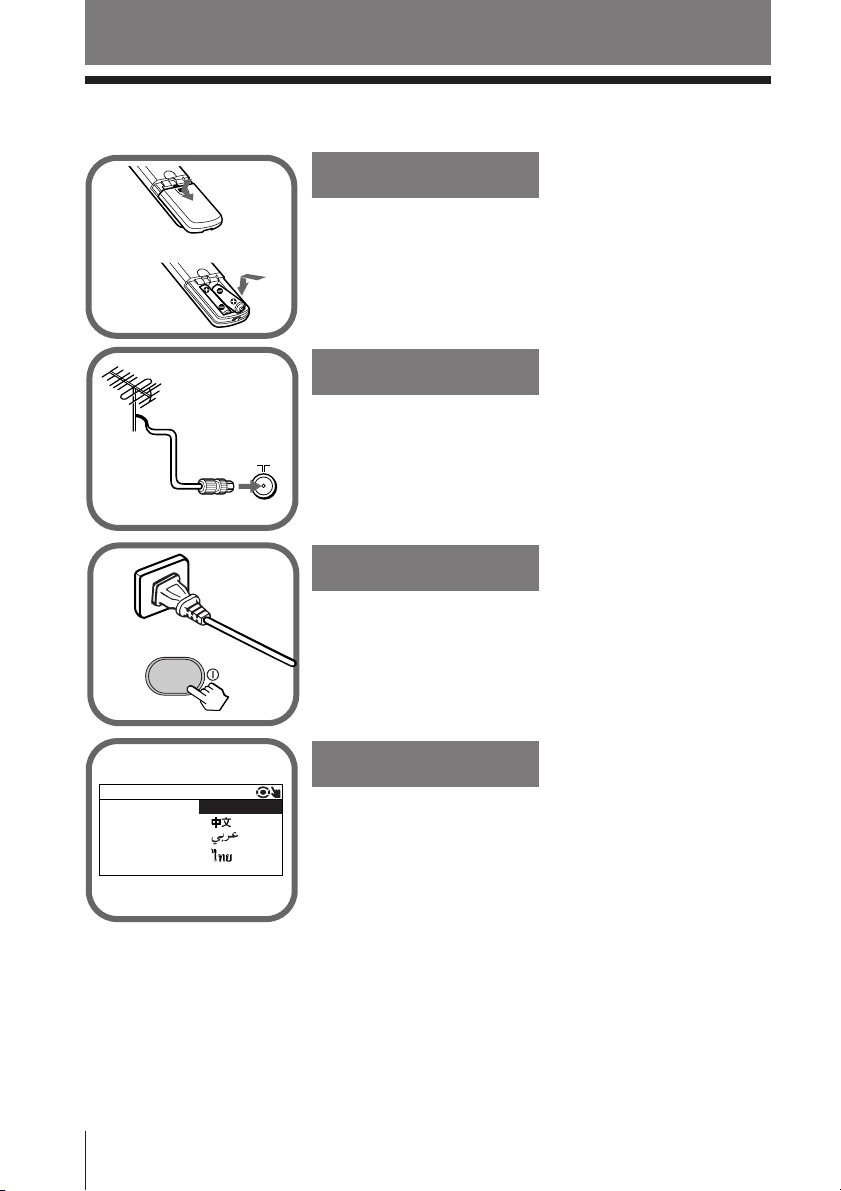

xGetting Started

INITIAL SET

ENG ILSHLAN UGAGE

Step 1

Insert the batteries (supplied) into the remote.

Note

• Do not use old or different types of batteries together.

Step 2

Step 3

Step 4

Connect the antenna cable (not supplied) to 8

(antenna input) at the rear of the TV.

Tip

• You can also connect your TV to other optional components

(see page 27).

Set up the TV by following the instructions of the

“INITIAL SETUP”menu (see page 7).

Plug in the power cord, then press !on the TV to

turn it on.

Installation

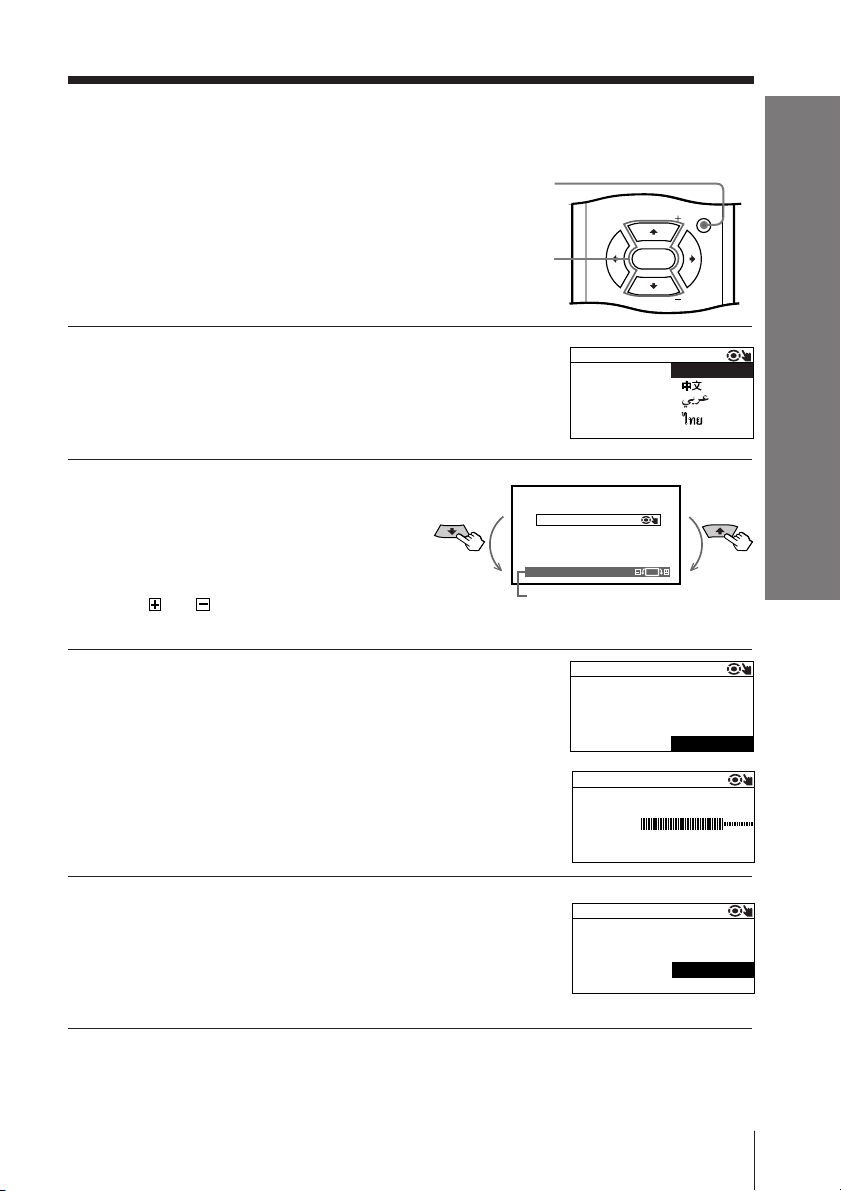

Setting up your TV

(“INITIAL SETUP”)

When you turn on your TV for the first time,

the “INITIAL SETUP” menu will appear.

This menu allows you to change the menu

language, adjust the picture position and

preset the TV channels automatically.

1Press Vor vto select the desired menu

language (e.g.,”ENGLISH”), then press

ENTER.

The selected menu language appears.

2If the “PIC ROTATION” bar is

slanted, press Vor vto adjust it,

then press ENTER.

If no adjustment is necessary,

then press ENTER.

The or icon on the screen

flashes while adjusting.

3Press Vor vto select “YES”, then press

ENTER to preset the channels

automatically (see page 24).

The screen will indicate automatic presetting

is in progress.

To skip automatic channel presetting, select

“NO”, then press ENTER.

4Press Vor vto select “NO”, then press

ENTER. The “INITIAL SETUP” menu will

not appear again the next time you turn

on the TV by pressing !.

To allow this menu to appear again, select

“YES”, then press ENTER.

Tips

• You can immediately go to the end of the ”INITIAL SETUP” menu by pressing MENU.

• You can also set up your TV using the menu system (see page 15).

INITIAL SET

ENG ILSHLAN UGAGE

INITIAL SET

START

NOW?

AUTO PROGRAM

INITIAL SET

DISPAL

NEX TTIME?

Y T EN

INITIAL SET

PR : 09

TV AUTOS

LOWV

PIC

MODE

SOUND

PIP PROGR

ENTER

DTEDTE

V/v/ENTER

INITIAL SET

PIC ROTATI ON

Rotate anti-

clockwise

Rotate

clockwise

Refer to this bar when

adjusting.

8Overview of Controls

Overview of Controls

L(MONO) R

PROGRMENU AUTO

PROGR

ENTER SELECT

PROGRMENU AUTO

PROGR

ENTER SELECT

8756

123

RLY

qf qd

L(MONO) R

Button/Terminal Function Page

1!Turn off or turn on the TV. 6

21Standby indicator. –

2Wake Up indicator. 13

2Stereo/bilingual indicator. 14

3Remote control sensor. –

4PROGR +/– Select program number. –

52+/– Adjust volume. –

6tSelect TV or video input. –

7AUTO PROGR Preset channels automatically. –

Menu operations

5SELECT V/v Select and adjust items. 17

6ENTER Confirm selected items. 17

8MENU Display or cancel the menu. 17

9t3 Video input terminal 3. 27

0iHeadphone jack. –

qa Component video input terminal. 28

qs 8Antenna input terminal. 27

qd TMonitor output terminal. 27

qf t1, t2, t3 Video input terminal 1, 2, 3. 27

TV front panel

TV rear panel

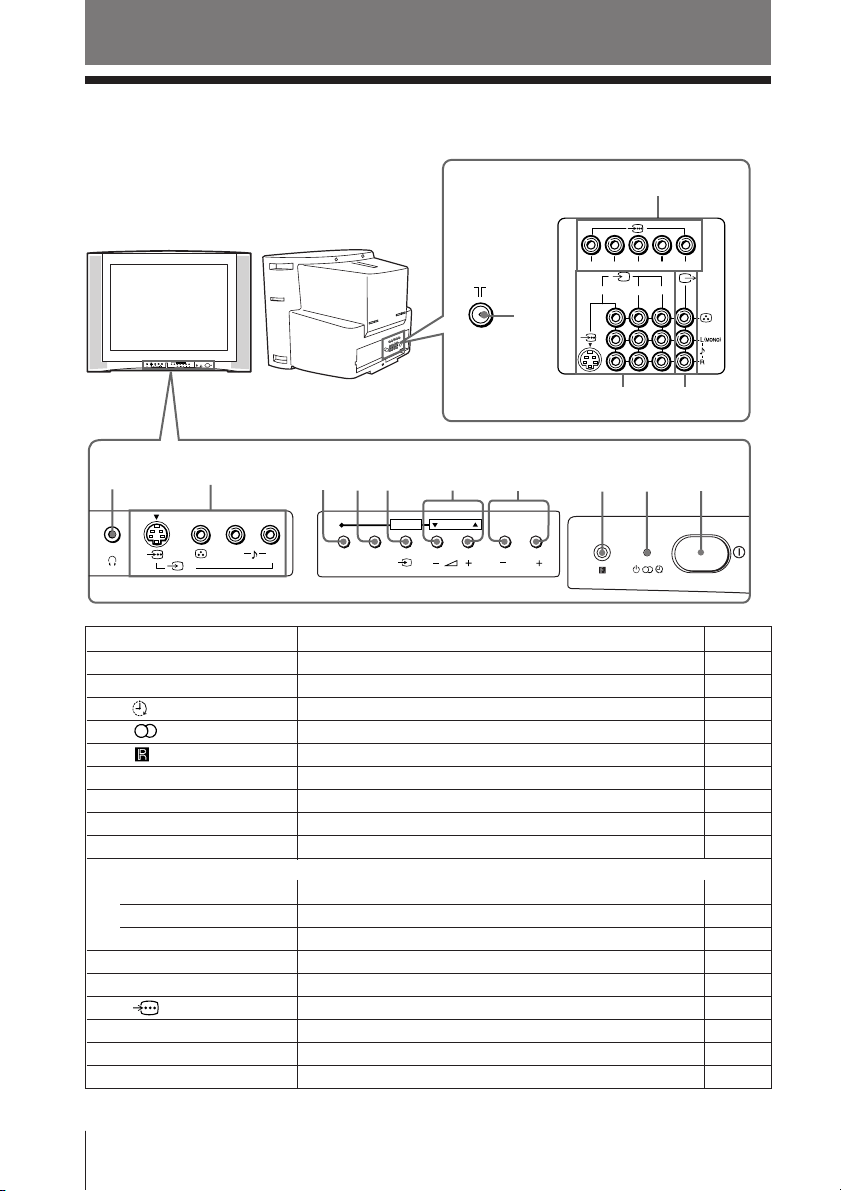

xTV front and rear panels

Overview of Controls

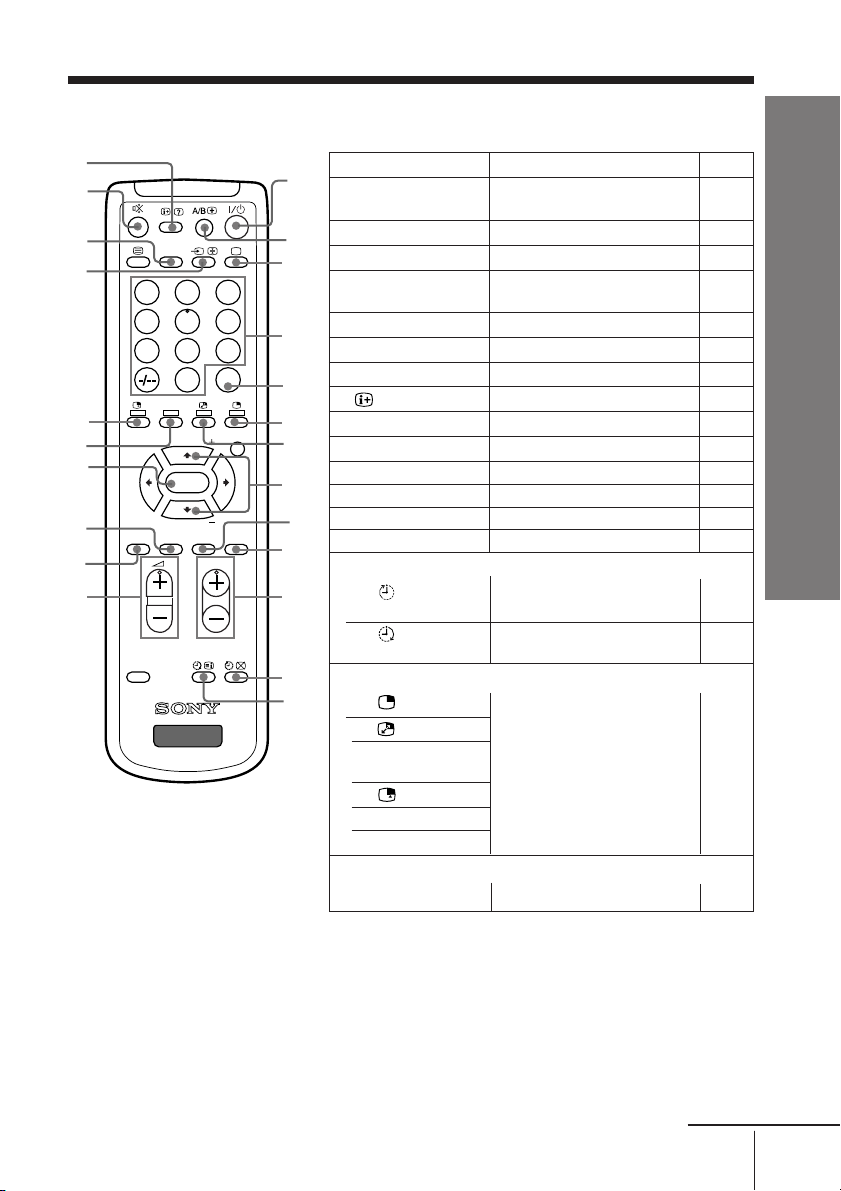

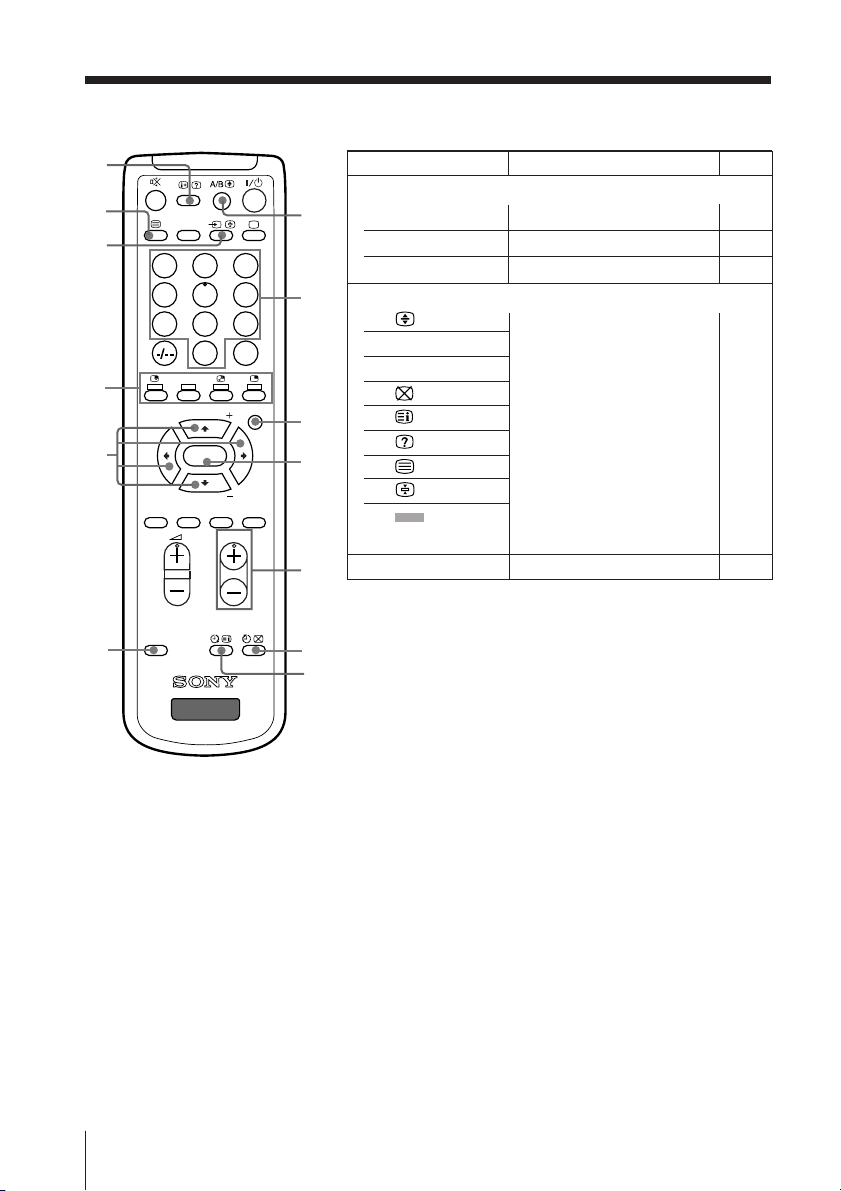

xRemote control

231

564

897

JUMP

PROGR

PIC

MODE

SOUND

MODE

WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

DTE

continue

Button Function Page

1?/1Turn off temporarily or –

turn on the TV.

3aDisplay the TV input. –

40 – 9, -Input numbers. –

5JUMP Jump to previous program –

number.

9SURROUND Select surround mode. 12

0WIDE MODE Select wide-mode (16:9). 12

qa PROGR +/– Select program number. –

Display on-screen information

.–

qg %Mute the sound. –

qh DVD Select DVD input. 28

qj t

Select TV or video input.

wa SOUND MODE Select sound mode. 11

ws PIC MODE Select picture mode. 11

wd 2+/– Adjust volume. –

Timer operations

qs Set TV to turn off 13

automatically.

qd Set TV to turn on 13

automatically.

PIP operations (yellow label)

8PIP PROGR +/

PIP PROGR – Not function for your TV. –

ql SOUND

w; ENTER

Stereo/bilingual operations

2A/B

Select stereo/bilingual mode.

10 Overview of Controls

231

564

897

JUMP

PROGR

PIC

MODE

SOUND

MODE

WIDE

MODE

SURROUND

RESET

SOUND

PIP PROGR

ENTER

DVD

DTE

eh wl

continued

Button Function Page

Menu operations

wh MENU

Display or cancel the menu.

wj ENTER Confirm selected items. 17

eg V, v, B , b Select and adjust items. 17

Teletext operations (green label)

wg 0 – 9

wk PROGR +/–

Not function for your TV. –

ef (red, green,

yellow, blue)

eh RESET Set TV to factory setting. 29
