Sony TV & Home A/V Mode d’emploi

This is a general recommendation based on the information you provided. You can customize

the connections to suit your individual preferences and viewing habits.

Some hookup recommendations have two cable options listed in the cable section. You will only

need the cables listed under the cable option you choose. You can also use a combination of

cables rather than one type throughout.

This hookup guide uses generic

names for connection jacks and input

labels. The table on the right lists

some of the label variations you may

find on your equipment.

If you don’t have a cable box or satellite receiver (AKA set-top box), skip the steps for the set-

top box. Connect the coaxial cable from the wall into the RF in connection on the next device. If

you’re not connecting a broadcast signal source, disregard the steps involving the set-top box

and begin with the steps for the equipment you are connecting.

This guide provides basic instructions for operating your equipment. The steps can vary by

brand and model. Refer to the manual supplied with your equipment for details specific to your

model. Sony product manuals and documentation can found on the Sony eSupport web site. If

you have questions about a non-Sony device, please contact the manufacturer for information.

You can now surf the web with Sony Internet TV products. If you need help connecting to your

wired or wireless network, check out our Network Connection tutorial.

RF IN, RF OUT

UHF/VHF, CABLE, LINE, TV

LINE IN, LINE OUT

VIDEO

AUDIO IN, AUDIO

OUT

FIXED, VARIABLE

MONITOR

TO TV, VIDEO IN, VIDEO OUT

We recommend this hookup to view cable or satellite service on your TV. This connection will

also allow you to listen to your cable or satellite service through your A/V receiver. This

connection provides a higher-quality video image than a coaxial connection.

(1) Composite A/V cable

(2) S-Video cables

(1) Composite video cable

(1) Composite audio cable

Note: If your A/V receiver supports digital audio, you will need a digital audio cable. Choose the

type of cable (digital coaxial or optical audio) that matches jacks on your equipment.

(1) Digital coaxial or optical cable

Note: Instructions and a list of additional cables required to connect audio components to the

A/V receiver can be found in a separate section at the end of this document. Refer to this

section to make sure you have all of the cables you will need before starting to connect your

equipment.

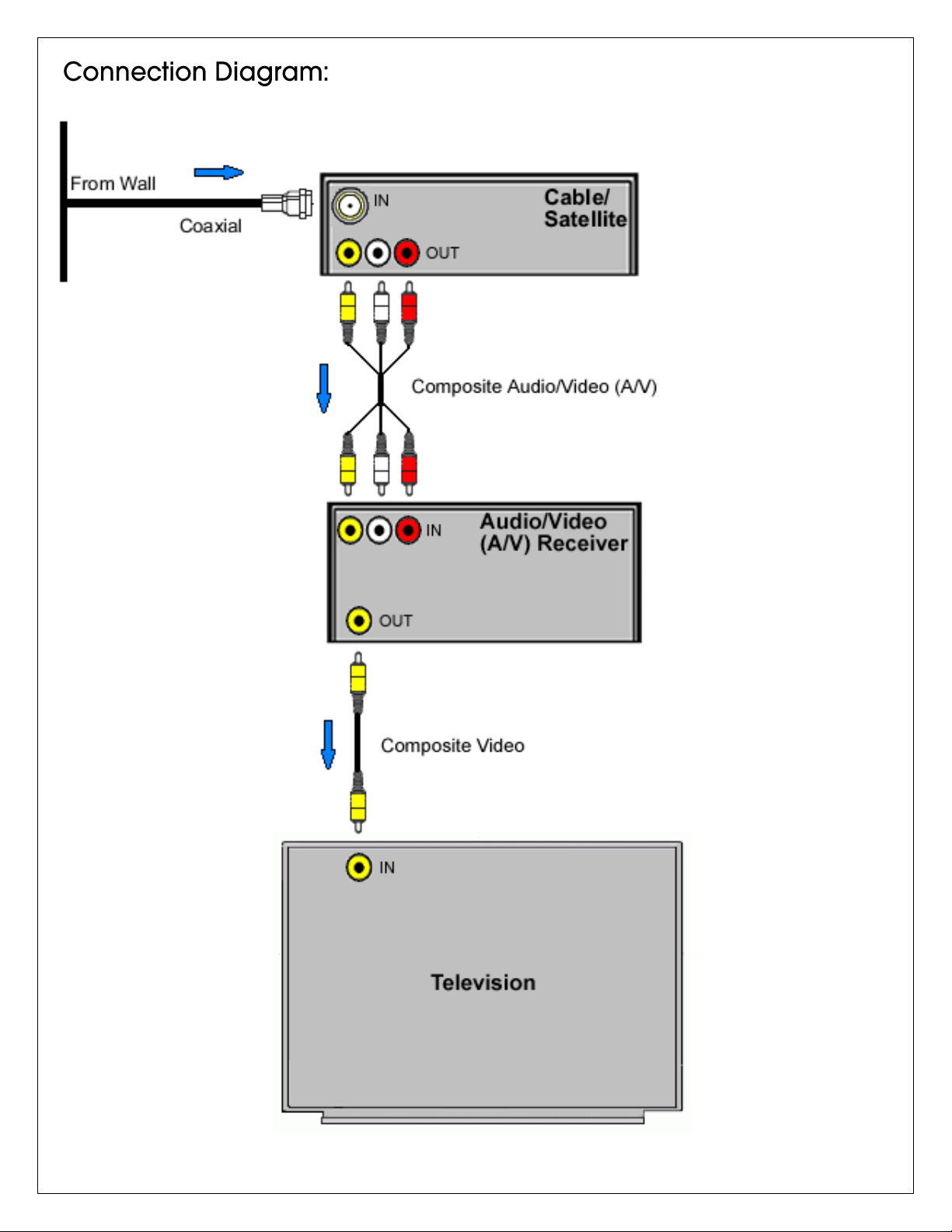

1. Connect the coaxial cable from the wall to the RF IN jack on the set-top box.

Note: If your satellite service does not include local channels, you may want to connect an

antenna to the TV IN jack on your satellite receiver. Refer to the operating instructions for specific

information on switching between satellite and local broadcasts.

2. Connect a composite A/V cable to:

a. LINE OUT jacks on the set-top box

b. LINE IN jacks on the A/V receiver

Notes:

Be sure to match the colors of the cable connectors with the colors of the

jacks.

If your equipment has optical audio or digital coaxial jacks, use this

connection instead of the red and white audio cables. With this connection, you can

receive digital audio from the A/V receiver.

3. Connect a composite video cable to:

a. MONITOR OUT jack on the A/V receiver

b. VIDEO input jack on the TV

Notes:

If your equipment has S-Video jacks, use this connection instead of the yellow

composite cable. The S-Video connection provides a higher-quality video image.

Connect the red and white audio cables or a digital audio cable for the sound.

Follow the instructions supplied with your A/V receiver to connect and test your

speakers.

1. Turn on the TV.

2. Turn on the set-top box.

3. Turn on the A/V receiver.

4. Tune the TV to the video input to which the A/V receiver is connected, for example,

VIDEO 1.

5. Select the line input on the A/V receiver to which the set-top box is connected, for

example, TV/SAT.

If there is picture on the TV and sound from your speakers, you have connected the

equipment correctly.

Watch TV

1. Turn on the TV.

2. Turn on the set-top box.

3. Turn on the A/V receiver.

4. Tune the TV to the video input to which the A/V receiver is connected, for example,

VIDEO 1.

5. Select the line input on the A/V receiver to which the set-top box is connected, for

example, TV/SAT.

6. Tune the set-top box to the desired channel.

The input jacks on an A/V receiver, with the exception of the PHONO IN jack, are

interchangeable, for example, you may connect a CD player into an input marked MiniDisc.

If you are connecting a turntable and the volume is low, the turntable may not have a built in

pre-amplifier. Use the PHONO IN jack on the A/V receiver if one is available. Do not connect

other devices to this jack.

The connection instructions are the same for all audio devices. Repeat the connection

instructions for each of your audio devices.

CD Player

(1) Composite audio cable

(1) Digital coaxial or

optical cable

MiniDisc player

(1) Composite audio cable

(1) Digital coaxial or

optical cable

Tape Deck

(1) Composite audio cable

Turntable

(1) Composite audio cable

1. Connect the composite audio cable to:

a. LINE OUT jacks of the audio component.

b. LINE IN jacks on the back of the A/V receiver.

Note: If your audio device and A/V receiver both have an optical audio or digital

coaxial jack, use this connector instead of the red and white audio cables. With this

connection, you can receive digital audio to the A/V receiver.

Dub

To make a copy.

HDMI Repeater

A device, such as an A/V receiver, that receives an audio/video signal from one HDMI device and passes it

through to another connected HDMI device.

High Definition (HD)

Video signal up to six times the picture and detail resolution of conventional standard definition. As of January

2007 1080p is the highest line resolution available for HD content.

Interlaced scanning

Half a frame of video is drawn on the screen at one time using the odd scan lines, then the second half of the

frame is drawn on the screen using the even scan lines. Because this process happens so quickly the human

eye sees a full image.

Line In/Out

Transfers an audio and/or video signal in or out of one unit for connection into another. (Example Line 1)

Monitor Out

An output jack usually found on an A/V receiver that passes video information from a connected video device

to a television.

Progressive scanning

An entire frame of video is drawn on the screen at one time line by line. This results in crisper images and up

to twice as many frames per second of video compared to interlaced scanning

Set-top Box

Cable box or satellite receiver.

Standard Definition (SD)

Conventional TV broadcasting with the standard 480 active scanning lines and interlaced scanning (480i).

Stereo Audio

Right and left (2) channel audio.

Tuner

An electronic circuit or device used to select signals at a specific radio frequency for amplification and

conversion to video and sound.

Video Input/Output

Transfers an audio and/or video signal in or out of one unit for connection into another. (Example Video 5)
