TrinitronColor TV

KV-XF34

KV-XF29

4-077-621-12 (1)

Operating Instructions

K94

• Before operating the unit, please read this manual thoroughly and retain

it for future reference.

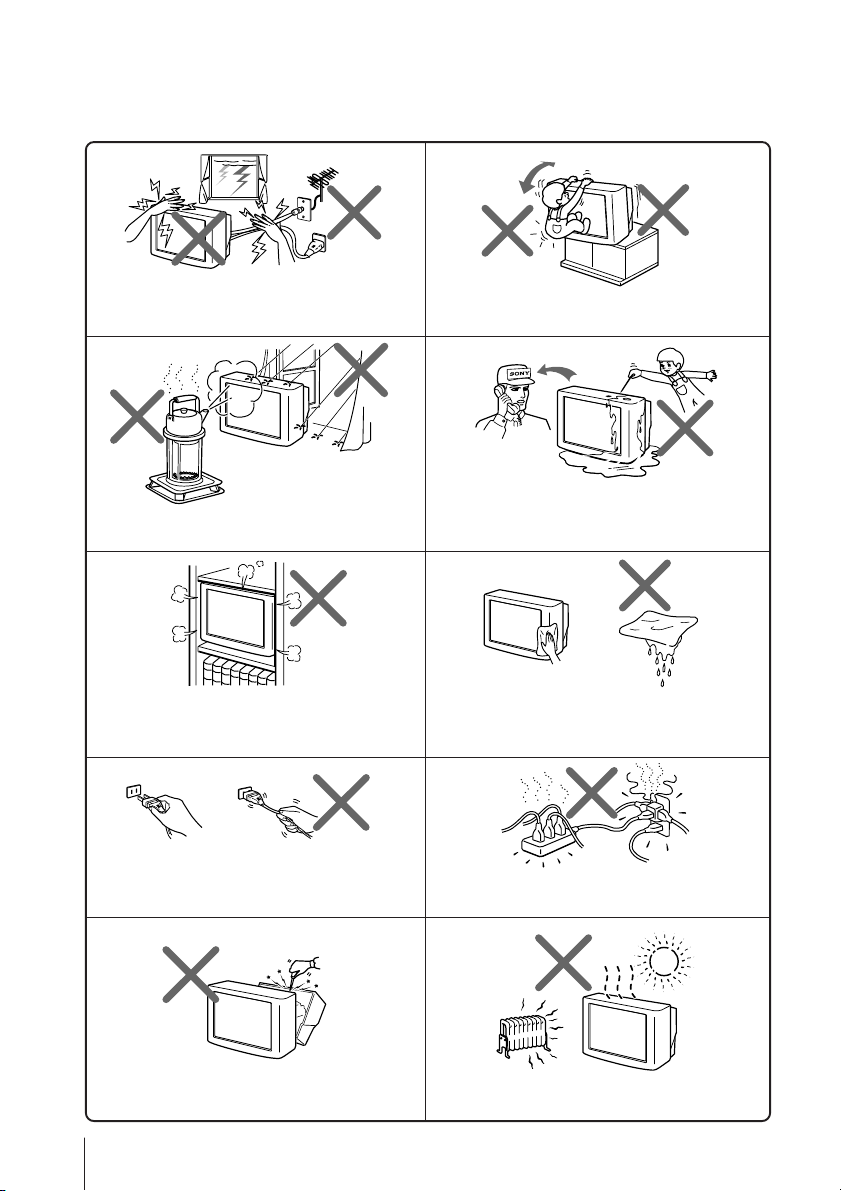

WARNING

• Dangerously high voltages are present inside the TV.

• Operate the TV only between 110 – 220 V AC.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

Do not operate the TV if any liquid or solid object

falls into it. Have it checked immediately by

qualified personnel only.

Do not open the cabinet and the rear cover of the

TV. Refer servicing to qualified personnel.

Do not install the TV in hot, humid or excessively

dusty places.

Do not install the TV in a confined space, such

as a bookcase or built-in cabinet.

Do not block the ventilation openings of the TV.

Install the TV in a stable position. Do not allow

children to climb onto it.

Do not plug in too many appliances to the same

power socket. Do not damage the power cord.

Clean the TV with a dry and soft cloth.

Do not use benzine, thinner, or any other chemicals

to clean the TV. Do not scratch the picture tube.

For your own safety, do not touch any part of the

TV, the power cord and the antenna cable during

lightning storms.

Pull the power cord out by the plug. Do not pull

the power cord itself. Disconnect the TV if you

are not going to use it for several days.

Advanced Operations

Selecting the picture and sound

modes .................................................. 12

Viewing your favorite channels ....... 13

Watching two programs at the same

time ...................................................... 14

Listening with surround sound ....... 16

Enjoying a stereo or bilingual

programs ............................................. 17

Adjusting Your Setup (MENU)

Introducing the menu system .......... 18

How to use the menu ........................ 19

Changing the “A/V CONTROL”

setting ............................................ 20

Changing the “PIP” setting ........ 22

Changing the “SET UP”

setting ............................................ 23

Changing the Channel Preset

(“CH PRESET”) setting .............. 26

Additional Information

Self-diagnosis function...................... 29

Troubleshooting ................................. 30

Identifying parts and controls ......... 33

Specifications ...................... Back cover

Table of Contents

WARNING

Using Your New TV

Getting Started ............................................................................................. 4

Step 1: Connect the antenna .................................................................. 4

Step 2: Insert the batteries into the remote .......................................... 5

Step 3: Preset the channels automatically ........................................... 5

Connecting optional components ............................................................. 6

Securing the TV ............................................................................................ 7

Presetting the channels manually ............................................................. 8

Watching the TV .......................................................................................... 9

The features you will enjoy include:

• “FAVORITE CH” for quick and easy channel selection (page 13)

•

“PICTURE MODE”/“SOUND MODE”/“SURROUND” for customizing your TV (pages 12, 16)

• “PIP” for watching two programs at the same time (page 14)

Your TV also offers the following setup features:

• Menu language options – English/Korean (page 10)

• “CHILD LOCK” for preventing children from watching certain programs (page 24)

• “PIC ROTATION” for picture position adjustment (page 25)

Using Your New TV

4Using Your New TV

VIDEO

VIDEO IN

VIDEO OUT

AUDIO

R L

WOOFER

(8 )

VIDEO

1 2 3

MONITOR

OUT

S VIDEO

AUDIO

L(MONO)

VIDEO

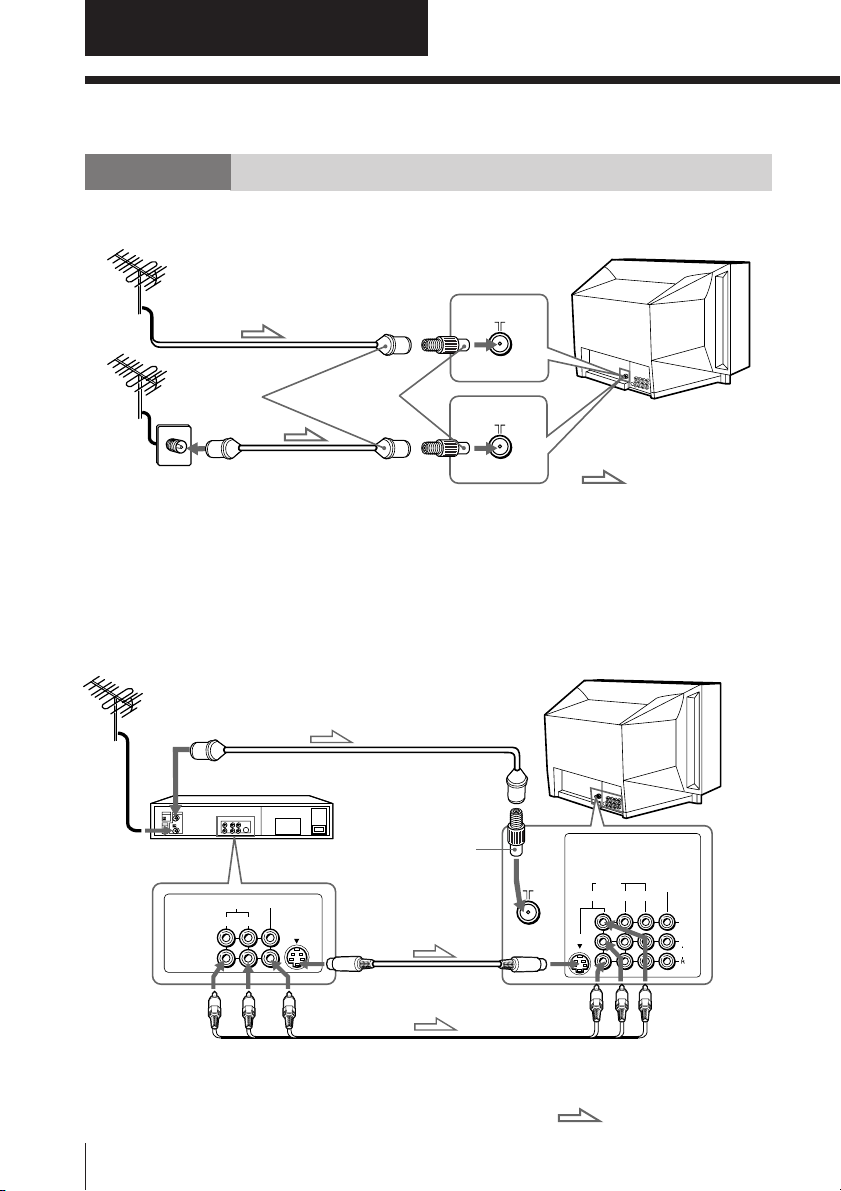

Getting Started

Step 1

Connect the antenna

If you wish to connect a VCR, see the “Connecting a VCR” diagram below.

CAUTION

Do not connect the power cord until you have completed making all other

connections; otherwise a minimum leakage current might flow through the antenna

and other terminals to ground.

Connecting a VCR

To play a video tape, press VIDEO (see page 10).

Using Your New TV

F connector

(not supplied)

To video and

audio outputs

VCR

VIDEO (yellow)

AUDIO-L (MONO) (white)

AUDIO-R (red)

To S video

output

Antenna cable (not supplied)

To VIDEO IN

1, 2 or 3

Audio/Video cable

(not supplied)

S video cable

(not supplied)

: Signal flow

To S video

input

To antenna

output

To antenna

: Signal flow

Antenna cable (not supplied)

Antenna cable

(not supplied)

Antenna adapter

(supplied)

Rear of TV

Antenna

adapter

(supplied)

Using Your New TV

Front of TV

Notes

• If you connect a monaural VCR, connect the yellow plug to VIDEO

(the yellow jack) and the black plug to AUDIO-L (MONO) (the white jack).

• If you connect a VCR to the 8(antenna) terminal, preset the signal

output from the VCR to the program number 0 on the TV.

• When both S VIDEO and VIDEO IN 1 input are connected, the

S VIDEO input is automatically selected. To view the video input to

VIDEO IN 1, disconnect the S video cable.

• When no signal is input to the connected video equipment, the TV screen

becomes blue.

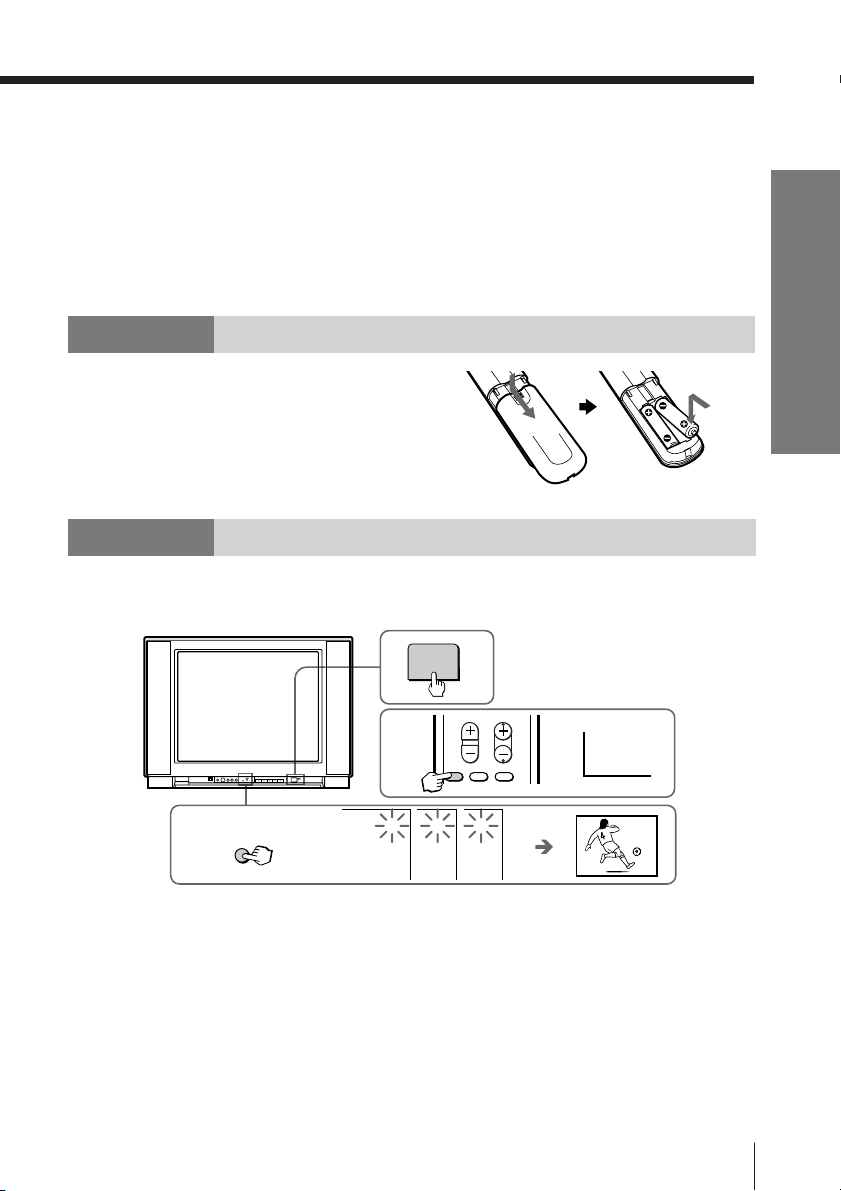

Step 2

Insert the batteries

into the remote

Note

• Do not use old batteries nor use different types of batteries together.

Step 3

Preset the channels automatically

Notes

• To stop the automatic channel presetting, press MENU.

• If your TV has preset an unwanted channel or cannot preset a particular

channel, then preset your TV manually (see page 8).

• The AUTO PROGR button on the remote works as the AUTO PROGR

button on the TV.

POWER

AUTO

PROGR

AUTO PROGRAM

CABLE: ON

1 2 3

CHVOL

AUTO PROGR ADD/ERASECABLE

6Using Your New TV

(MONO)

VIDEO AUDIO

S VIDEO

VIDEO 3 INPUT

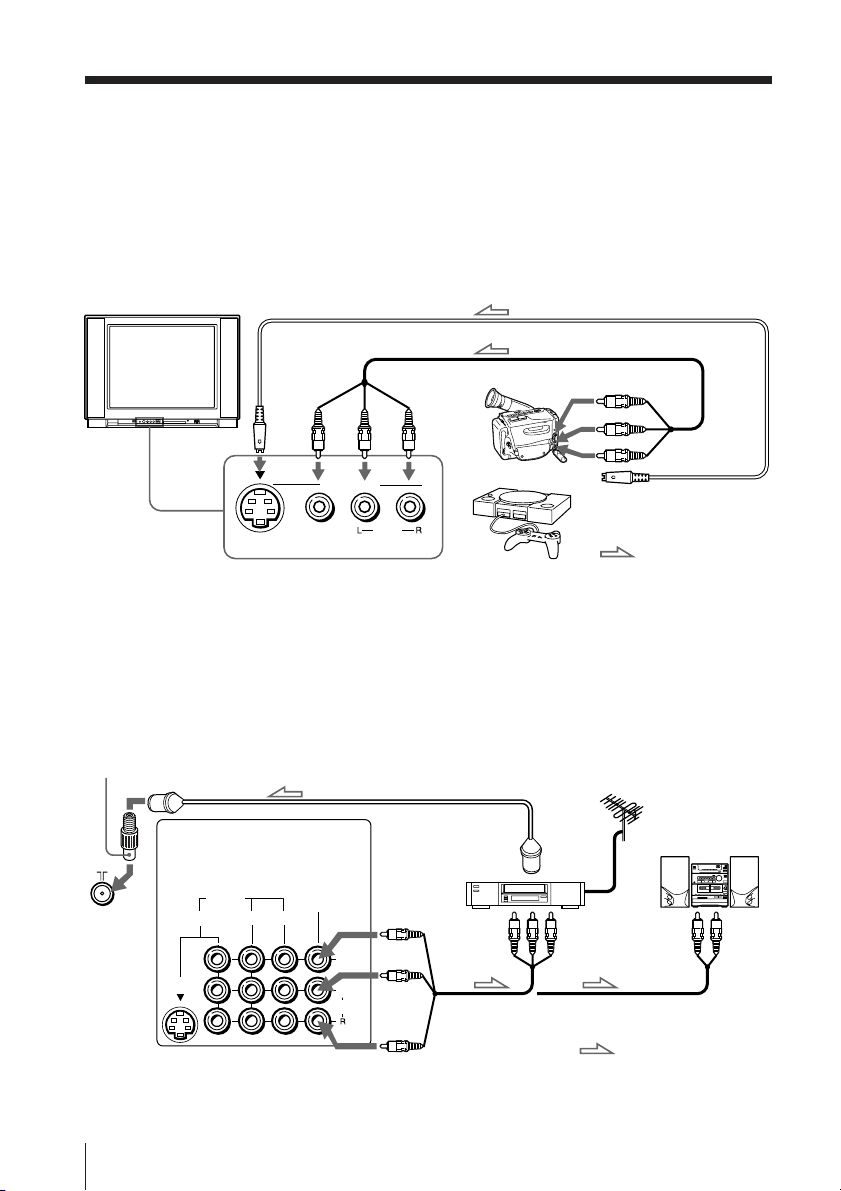

Connecting optional components

You can connect optional audio/video components, such as a VCR, multi disc player,

camcorder, video game or stereo system.

To watch the picture of the connected equipment, see page 10.

Connecting a camcorder/video game equipment using the

VIDEO IN input jacks

Note

• When both S VIDEO input and VIDEO 3 INPUT input are connected, the

S VIDEO input is automatically selected. To view the video input to

VIDEO 3 INPUT, disconnect the S video cable.

Connecting audio/video equipment using the

MONITOR OUT output jacks

Note

• If you connect a monaural VCR, connect the yellow plug to VIDEO (the

yellow jack) and the black plug to AUDIO-L (MONO) (the white jack).

To S video output

Front of TV

Camcorder

Video game

equipment

To video and

audio outputs

: Signal flow

To S VIDEO

input To VIDEO 3 INPUT

Audio/Video cable (not supplied)

S video cable (not supplied)

VIDEO (yellow)

AUDIO-L (MONO)

(white)

AUDIO-R (red)

Rear of TV

antenna

output

To video and

audio inputs

Audio system

audio

inputs

VCR

: Signal flow

MONITOR

OUT output

Antenna cable (not supplied)

Audio/Video cable

(not supplied)

WOOFER

(8 )

VIDEO

1 2 3

MONITOR

OUT

S VIDEO

AUDIO

L(MONO)

VIDEO

Antenna adapter (supplied)

Using Your New TV

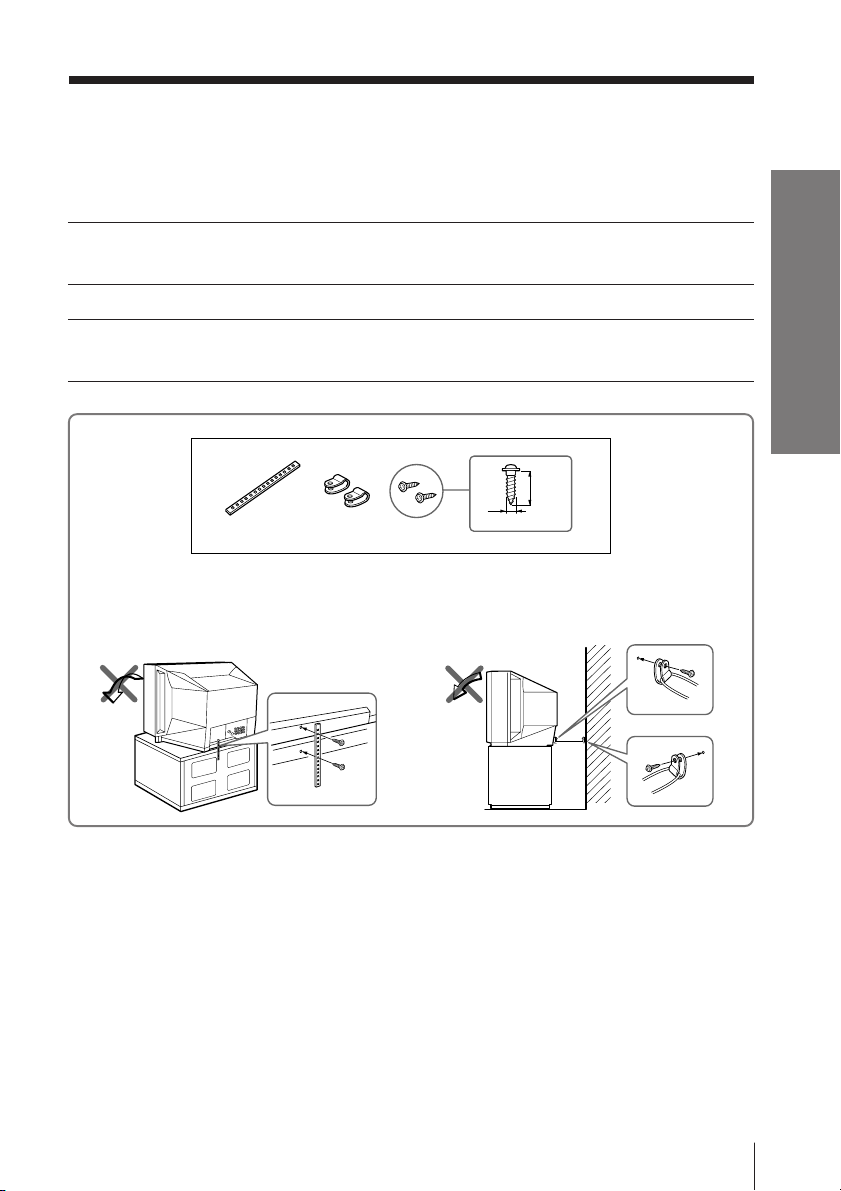

Securing the TV

To prevent the TV from falling, secure the TV using one of the following methods:

AWith the supplied screws, attach the stabilizer band to the TV stand and to

the rear of the TV using the provided hole.

BPass a cord or chain through the clamps to secure the TV against a wall or

pillar.

Note

• Use only the supplied screws. Use of other screws may damage the TV.

3.8 mm

8Using Your New TV

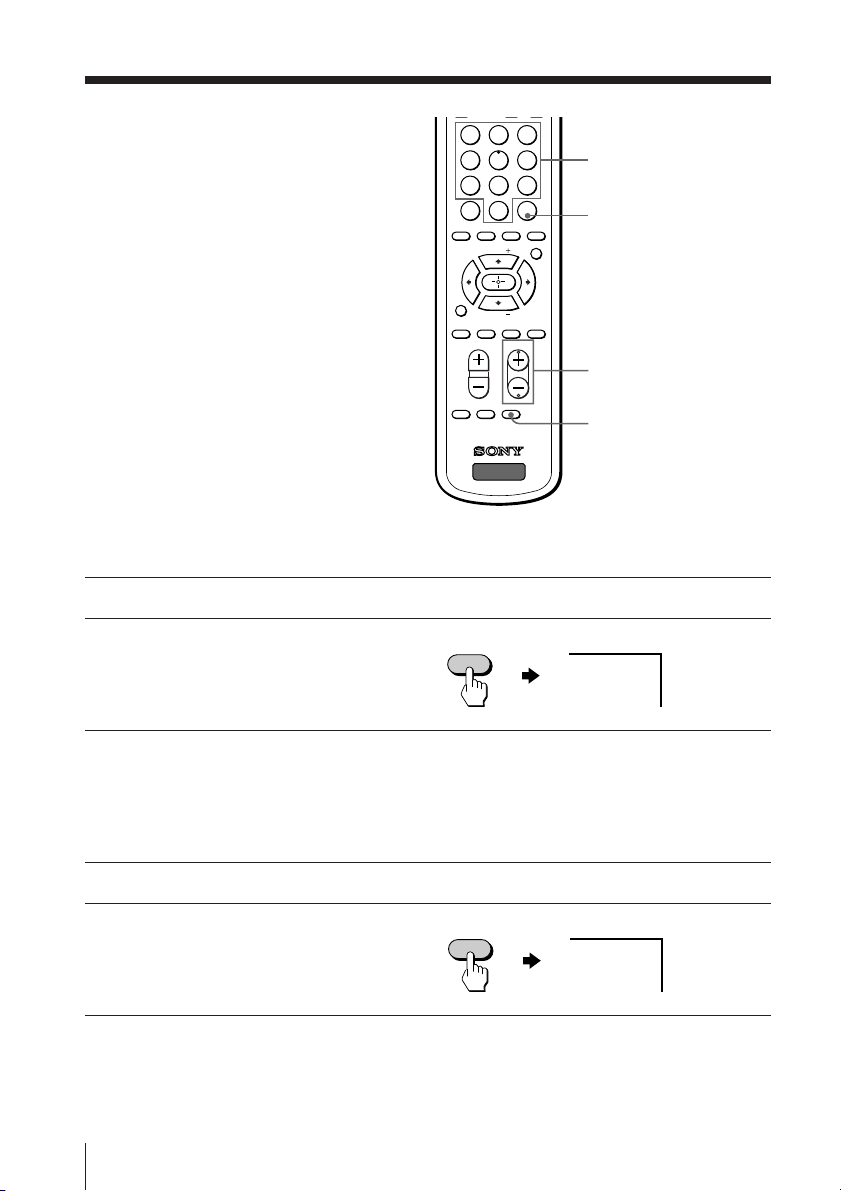

Presetting the

channels

manually

To receive a new channel or a channel with a weak signal, preset the channel

manually.

1Press number buttons to select the desired channel, then press ENTER.

2Press ADD/ERASE.

“+” appears beside the

channel number, indicating

that presetting is complete.

Disabling channels

By disabling unused or unwanted channels, you can skip those channels when you

press CH +/–.

1Press CH +/– until the unused or unwanted channel appears on the screen.

2Press ADD/ERASE.

“–” appears beside the

channel number, indicating

that disabling is complete.

To cancel the skip setting

Preset the channel automatically again.

ADD/ERASE

ENTER

CH +/–

ADD/ERASE

+25

–25

ADD/ERASE

231

564

897

ENTER

JUMP

TV/VIDEO FREEZE SWAP PIP

CHVOL

FAVORITE

SURROUND

AUTO PROGR ADD/ERASECABLE

WAKE UP

SOUND

MODE

PIP CH

SLEEP

Number

buttons

Using Your New TV

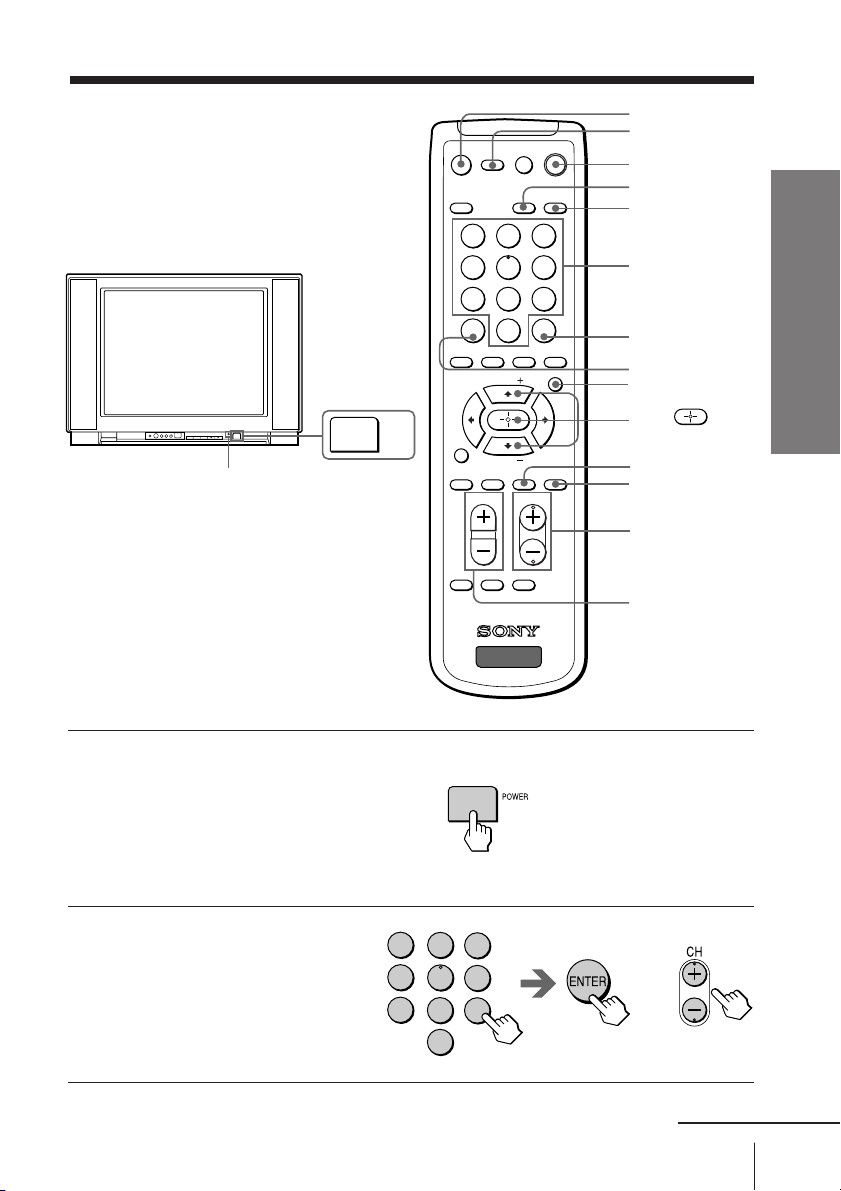

Watching the TV

This section explains functions and

operations used while watching TV.

Most operations can be done using the

remote.

1Press POWER on the TV to

turn on the TV.

When the TV is in the standby

mode (the STANDBY indicator

on the TV is lit red), press

POWER on the remote or

CHANNEL +/– on the TV.

2To select the TV program,

press the number buttons

and then press ENTER, or

press CH +/–.

MUTING

DISPLAY

STANDBY indicator

POWER

Number

buttons

231

564

897

ENTER

JUMP

MUTING

MTS VIDEO

PIC

MODE

TV/VIDEO FREEZE SWAP PIP

DISPLAY POWER

CHVOL

FAVORITE

SURROUND

AUTO PROGR ADD/ERASECABLE

WAKE UP

SOUND

MODE

PIP CH

SLEEP

POWER

VIDEO

JUMP

SLEEP

CH +/–

V/v/

WAKE UP

VOL +/–

ENTER

continued

10 Using Your New TV

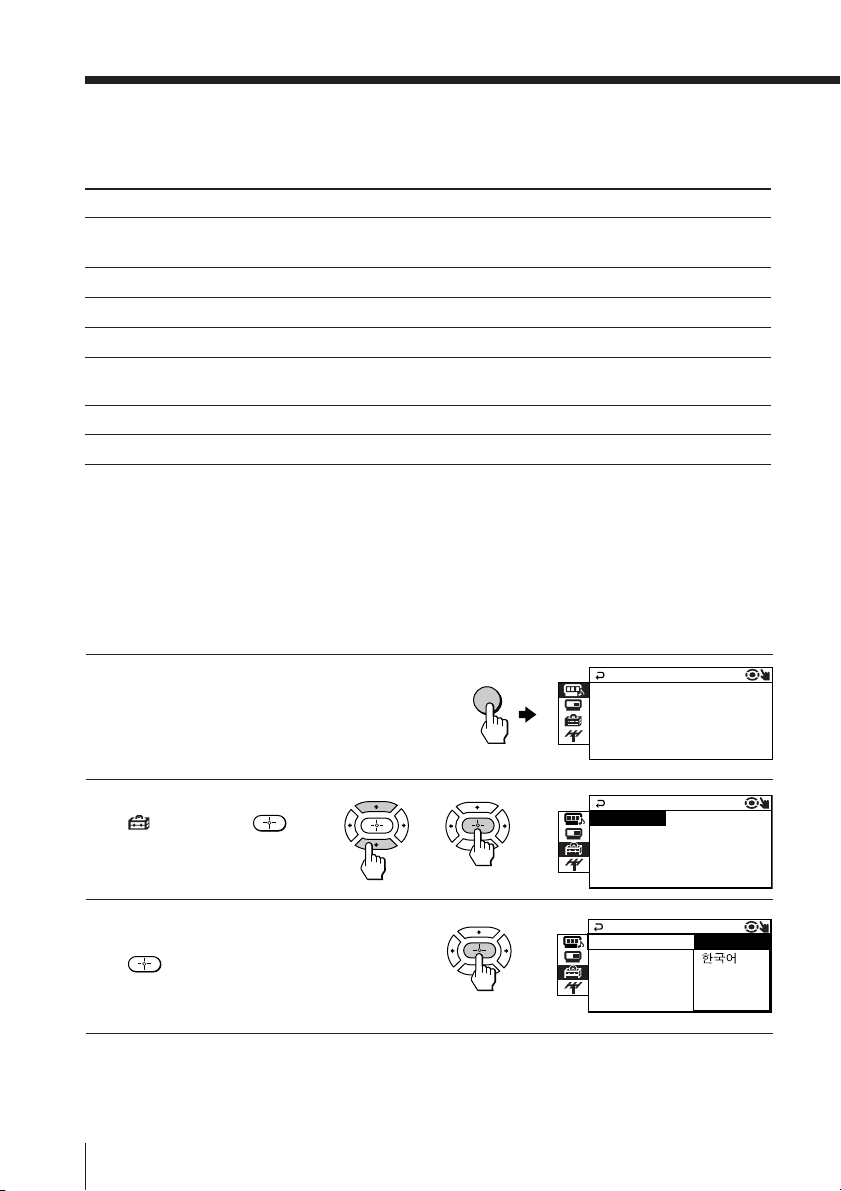

Watching the TV (continued)

Turn off temporarily

Turn off completely

Adjust the volume

Mute the sound

Watch the video input

(VCR, camcorder, etc.)

Jump back to the previous channel

Display the on-screen information*

Do this

Press POWER on the remote. The STANDBY indicator on the

TV lights up red.

Press POWER on the TV.

Press VOL +/–.

Press MUTING.

Press VIDEO to select “VIDEO 1”, “VIDEO 2” or “VIDEO 3”.

To return to the TV program, press TV.

Press JUMP.

Press DISPLAY.

Additional tasks

1Press MENU.

2Press Vor vto select

, then press .

3Make sure “LANGUAGE”

is selected, then press

* Some picture/sound settings, and either the program number or video

mode are displayed. The on-screen display for the picture/sound settings

disappears after about 3 seconds.

Changing the menu language

You can change the menu language as well as the on-screen language.

For details on how to use the menu, see “How to use the menu” on page 19.

A/V CONTROL

SOUND MODE : DYNAMIC

SURROUND : OFF

: DYNAMIC

PICTURE MODE

SET UP

CHILD LOCK: CH001 OFF

PIC ROTATION

FAVORITE CH

LANGUAGE: ENGLISH

SET UP

CHILD LOCK

PIC ROTATION

FAVORITE CH

LANGUAGE: ENGLISH

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony TV

Sony

Sony KV-29FX60A Manuel utilisateur

Sony

Sony KV-14LT1U Manuel utilisateur

Sony

Sony TrinitronKV-28FX66B Manuel utilisateur

Sony

Sony FD Trinitron Wega KV-27HS420 Manuel utilisateur

Sony

Sony Bravia KDL-32EX727 Manuel utilisateur

Sony

Sony FD Trinitron WEGA KV-36HS510 Manuel utilisateur

Sony

Sony Trinitron Manuel utilisateur

Sony

Sony TRINITRON KV-2725R Manuel utilisateur

Sony

Sony bravia KD-65S9000B Manuel utilisateur

Sony

Sony Trinitron KV-XF34M97 Manuel utilisateur

Sony

Sony KDL-32S20L1 - 32" Bravia Lcd Digital Color... Manuel utilisateur

Sony

Sony BRAVIA KD-85XH80 Series Manuel utilisateur

Sony

Sony KD-32NX100AEP Manuel utilisateur

Sony

Sony TRINITRON KV-J25MF8J Manuel utilisateur

Sony

Sony Trinitron KV-PF14DK7 Manuel utilisateur

Sony

Sony KD30XS955 Trinitron Manuel utilisateur

Sony

Sony KV-HR32M90 Manuel utilisateur

Sony

Sony KV-AW212M50 Manuel utilisateur

Sony

Sony XR85X90CK Guide de référence

Sony

Sony KV-40XBR700 - 40" Fd Trinitron Wega Xbr Manuel utilisateur

Sony

Sony Bravia KDL-40HX75A Manuel utilisateur

Sony

Sony BRAVIA KDL-55W800C Manuel utilisateur

Sony

Sony BRAVIA KD-85Z8H Manuel utilisateur

Sony

Sony KDL-26S3000 - 26" LCD TV Manuel utilisateur

Manuels TV populaires d'autres marques

Philips

Philips Colour Television Manuel utilisateur

Toshiba

Toshiba 27A10 Manuel utilisateur

Philips

Philips 42PF9630A/37 Manuel utilisateur

Hitachi

Hitachi 32FX48B Manuel utilisateur

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Manuel utilisateur

Changhong Electric

Changhong Electric uhd55b6000is Manuel utilisateur

Philips

Philips Matchline 21CE7551 Manuel utilisateur

Panasonic

Panasonic Genus TX-G10 Manuel utilisateur

Toshiba

Toshiba 19A20 Manuel utilisateur

Philips

Philips 25PT4523-16 Manuel utilisateur

Philips

Philips PR0930X3 Manuel utilisateur

Philips

Philips Brilliance 231P4QPY Manuel utilisateur

Samsung

Samsung 55S9 B Series Manuel utilisateur

Philips

Philips 32HF9385D Guide de dépannage

Sharp

Sharp LC-40FI5012E Manuel utilisateur

Loewe

Loewe Table Stand Reference 55 Manuel utilisateur

Philips

Philips 32PFH5300 Manuel utilisateur

Sylvania

Sylvania 6427FB Manuel utilisateur
