CONTROL DOOR

INSTALLATION AND DISASSEMBLY INSTRUCTIONS

FOR MODELS:

KV-32HS510

KV-34DRC510

KV-36HS510

KV-38DRC510

Page I of 8

INSTALLATION OF

STEP (_

HS DOOR

(

Ii.-B

2..o,.o..o.r

'_'-B

IOIi_'Y

.OOo°ooooooo _--oQ

_A___PIVOT AREAS

BEZNET

DOOR DAMPER FOOT

DOOR DAMPER

A-A

_ 3Xt2 SCREW(_)

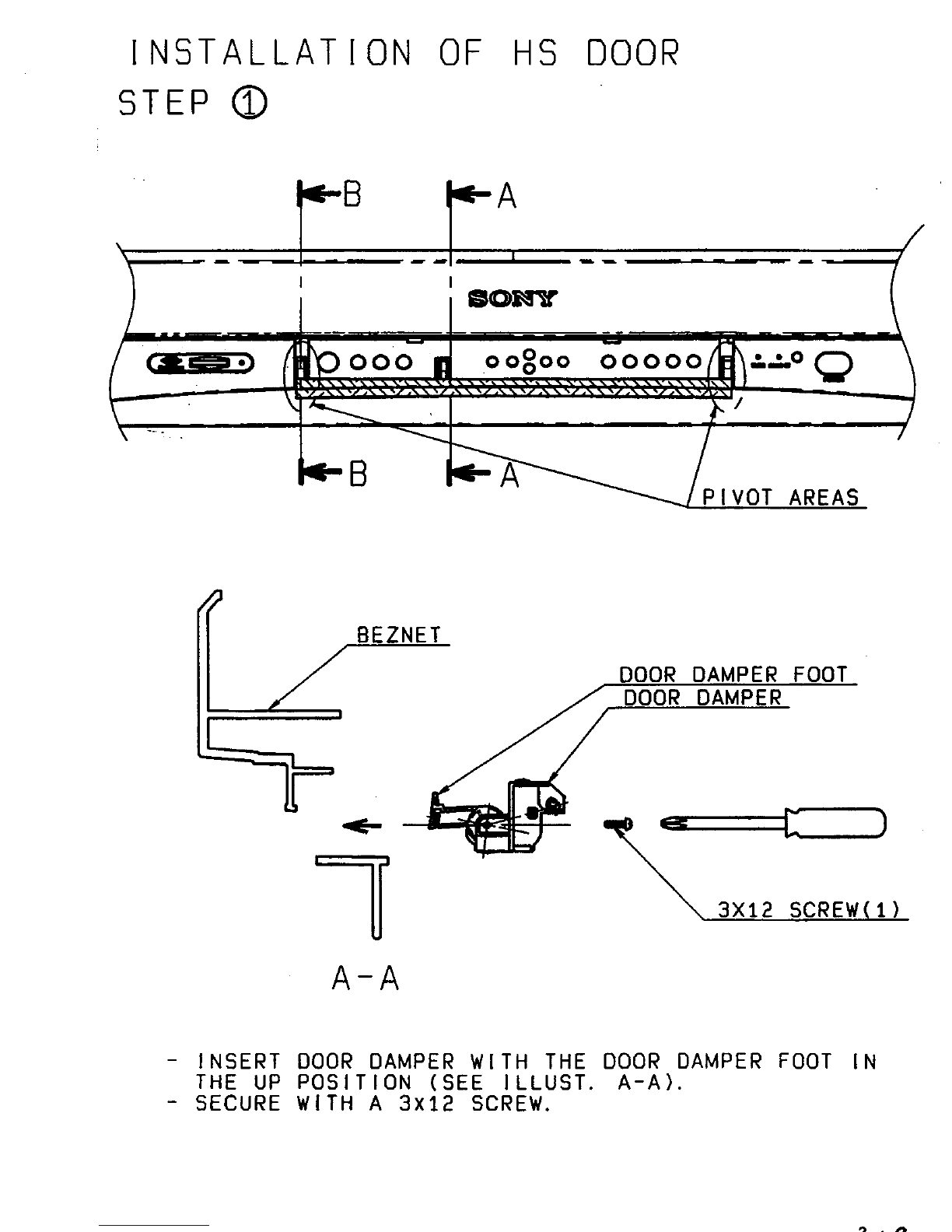

- INSERT DOOR DAMPER WITH THE DOOR DAMPER FOOT IN

THE UP POSITION (SEE ILLUST. A-A).

- SECURE WITH A 3x12 SCREW.

INSTALLATION

STEP OF HS DOOR

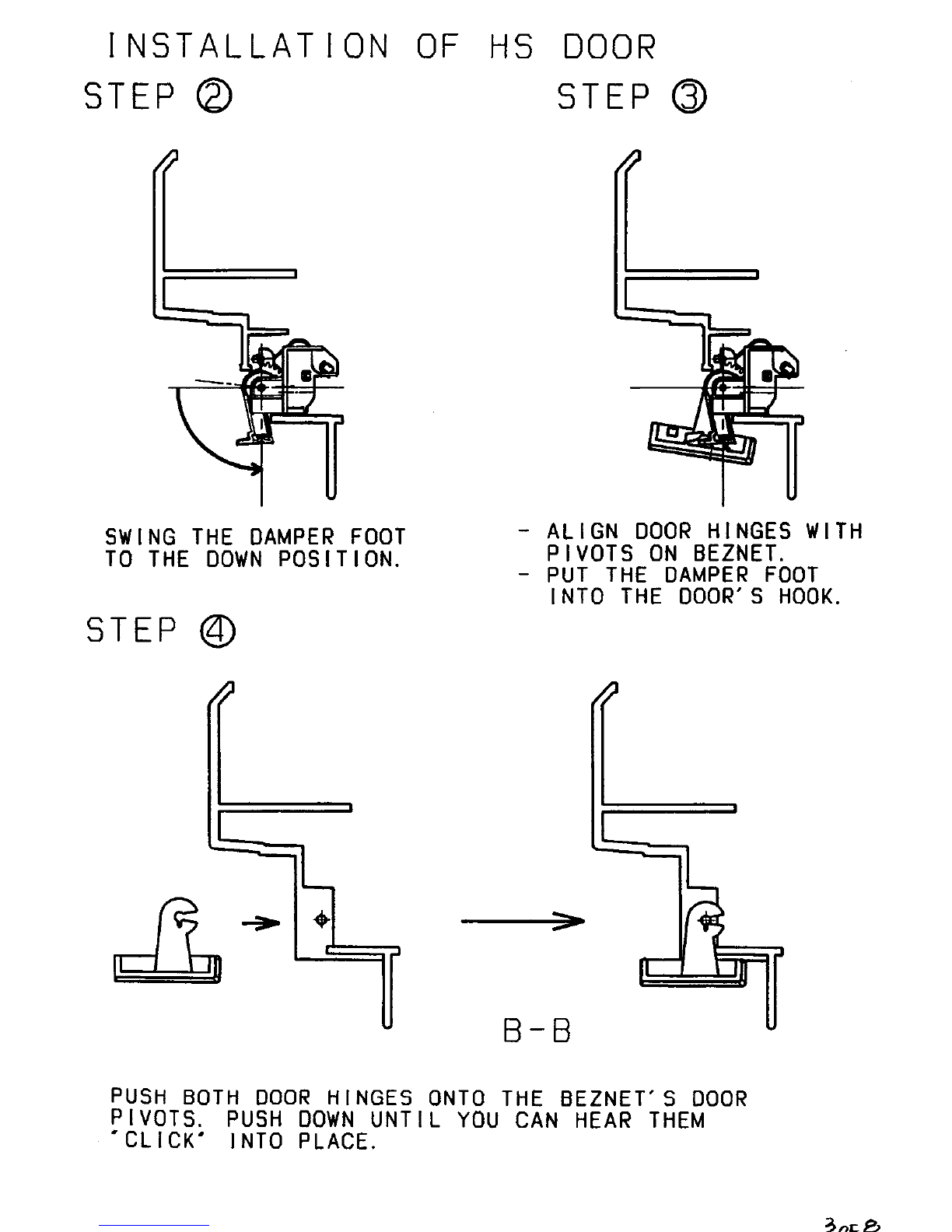

STEP (3)

SWING THE DAMPER FOOT

TO THE DOWN POSITION.

STEP @

- ALIGN DOOR HINGES WITH

PIVOTS ON BEZNET.

- PUT THE DAMPER FOOT

INTO THE DOOR'S HOOK.

B-B

PUSH BOTH DOOR HINGES ONTO THE BEZNET'S DOOR

PIVOTS. PUSH DOWN UNTIL YOU CAN HEAR THEM

"CLICK" INTO PLACE.

I NSTALLAT ION

STEP

OF HS DOOR

SOI_Y

oe_eo 00000

DOOR IN OPEN

POSITION

APPLY PRESSURE ALONG EDGE

OF OPEN DOOR

PUSH ON THIS

EDGE

TO ENGAGE THE DOOR DAMPER INTO THE DOOR,! PUSH FORWARD

WHILE PUSHING UP AT THE SAME TIME. DO THIS UNTIL THERE

IS A"CLICK" HEARD FROM THE DAMPER FOOT BEING SEATED

INTO THE DOOR.

44r-_

DISASSEMBLY OF HS DOOR

STEP (_)

NOTE C

PULL OUTWARD FROM

BOTTOM EDGE OF DOOR

D-D

NOTE C :

WHEN DOOR IS IN THE CLOSED POSITION, PULL AT HATCHED

(SEE ABOVE ILLUSTRATION)AREA FORWARD. PULL LIGHTLY

UNTIL A "CLICK" SOUND IS HEARD. THIS WILL MEAN THAT

THE DOOR HAS BEEN SEPARATED FROM THE DOOR DAMPER.

DISASSEMBLY OF HS DOOR

STEP @

0oop,,o_o._,oepe

I VOT AREAS

E-E

- OPEN DOOR.

-PULL DOOR HINGE AREAS FORWARD

(AWAY FROM BEZNET) TO RELEASE DOOR.

Overview

This chapter includes illustrated instructions for setting up your TV.

TV ContTols and Connectors 10-13

Basic Connections: Connecting a Cable or Antenna 14-20

Connecting Optional Equipment

VCR and Cable 22

VCR and Cable Box 24

Two VCRs for Tape Editing 26

Satellite Receiver 28

Satellite Receiver and VCR 30

DVD Player with Component Video Connectors 32

DVD Player with S VIDEO and Audio Connectors 34

Camcorder 35

Audio Receiver 36

Us_g the coNTROL SFea_re 37 .....

Setting Up the Channel List 38

About the AC

Power Cord The AC power cord is attached to the rear of the TV with a hook. Use

caution when removing the AC plug from its holder. Gently slide the

plug upward to remove it from the hook. Once removed, the AC

power plug should automatically disengage from its stored location.

ACpower cord

You can detach

the cord from

this hook

Do not plug in the ACpower cord until you have made all other

connections.

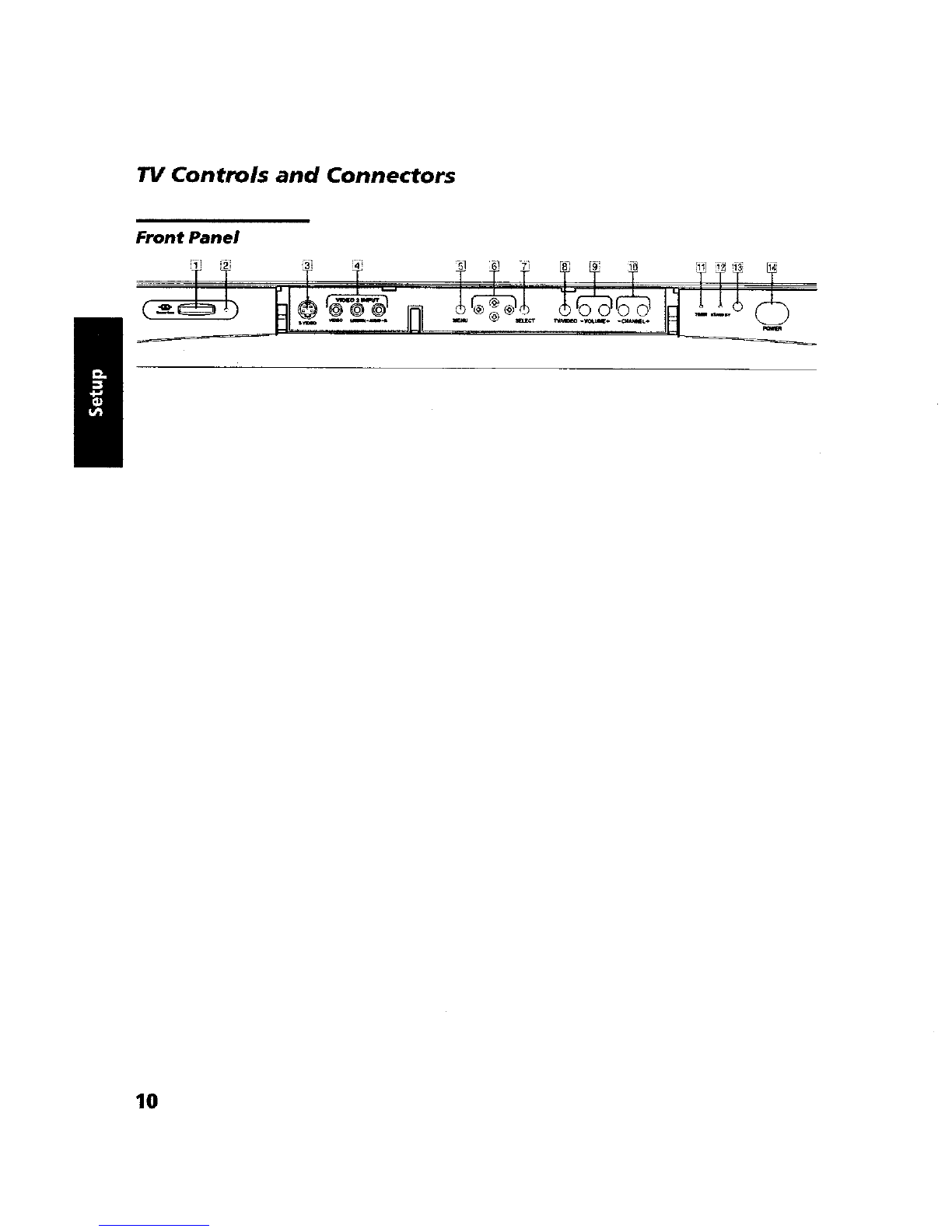

TV Controls and Connectors

Front Panel
