Sony BRAVIA KDL-26S2000 Manuel utilisateur

KDL-26S2000

KDL-26S2010

KDL-26S2020

KDL-32S2000

KDL-32S2010

KDL-32S2020

KDL-32V2000

2-684-954-11(1)

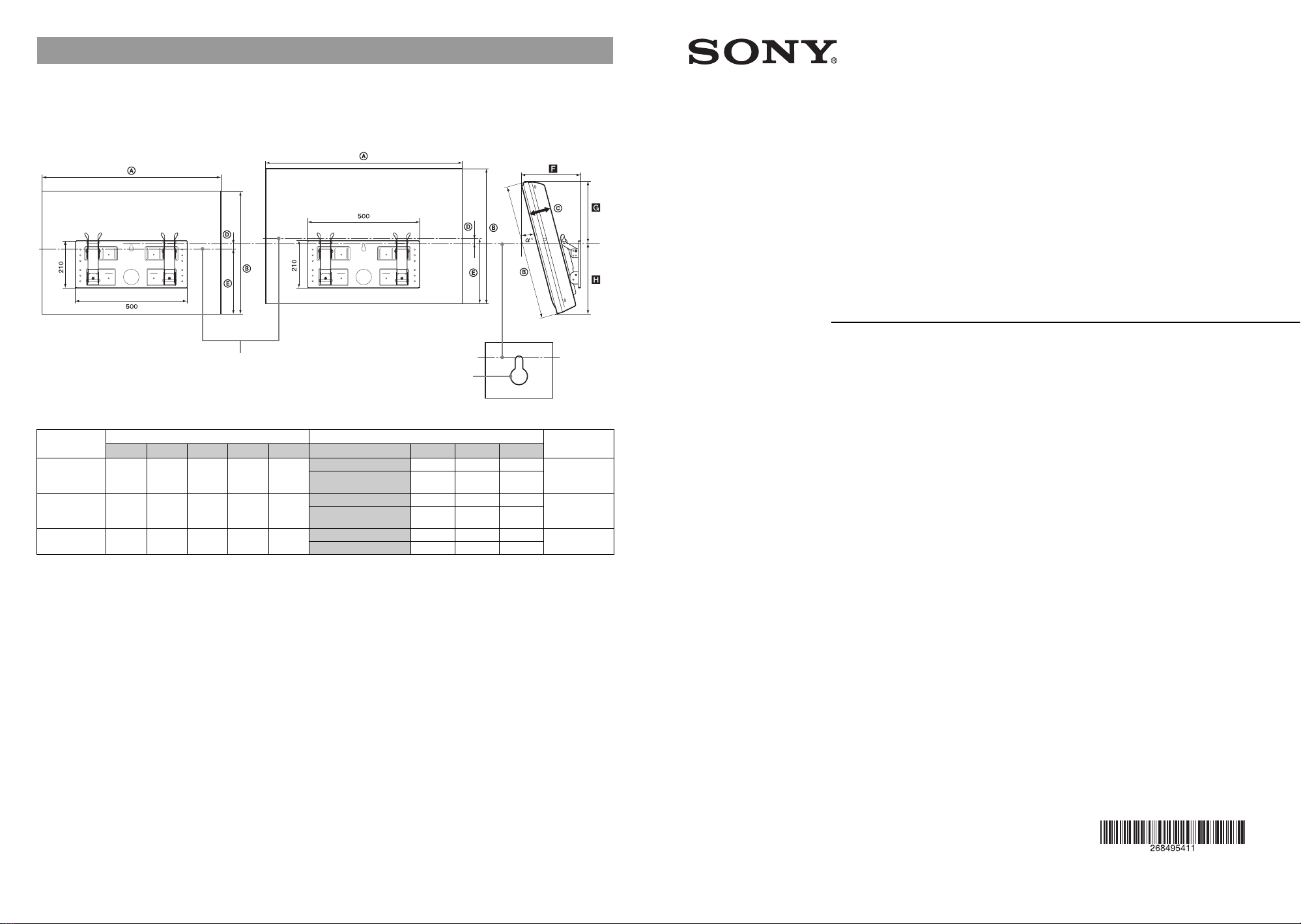

*1 Installation dimensions may differ according to how the TV is installed.

*2 The wall must be strong enough to support at least four times the weight of the TV that you are installing.

TV Model TV Dimensions Unit: mm Length for each mounting angle Unit: mm Weight (× 4)*2

ABCDEMounting angle (α°) F G H

KDL-26S2000

KDL-26S2010

KDL-26S2020

658 470 94 22 265

0° 150 183 287 11 kg

(44 kg)

20° 257 140 316

KDL-32S2000

KDL-32S2010

KDL-32S2020

792 546 99 19 304

0° 155 262 284 15 kg

(60 kg)

20° 288 213 316

KDL-32V2000 792 546 99 19 304 0° 155 262 284 15 kg

(60 kg)

20° 291 213 310

Installation dimensions table*1

KDL-26S2000

KDL-26S2010

KDL-26S2020

KDL-32S2000

KDL-32S2010

KDL-32S2020

KDL-32V2000

Center line of the screen when installed on the wall

Hole to secure the bracket screw temporarily

Installing the Wall-Mount Bracket

To Customers:

For product protection and safety reasons, Sony strongly recommends that wall-mounting

of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install

it yourself.

Your KDL-26S2000/KDL-26S2010/KDL-26S2020/KDL-32S2000/KDL-32S2010/

KDL-32S2020/KDL-32V2000 can be wall-mounted using SU-WL31 Wall-Mount

Bracket (sold separately). Please provide your licensed contractor with this installation

supplement as well as the Instructions (supplied with the SU-WL31 Wall-Mount

Bracket). Read these documents carefully for safety and proper installation.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and

examination of this product.

– 4 –

Installing the TV

on a wall

The TV can be installed on a wall by attaching a Wall-

Mount Bracket (sold separately).

Verify your TV’s model number and be sure to use the

bracket specified for your model only. Refer to the

Steps on this manual along with the Instructions

supplied with the SU-WL31 Wall-Mount Bracket, to

properly carry out the installation.

Open the Wall-Mount Bracket package and check the

contents for all required parts along with the

Instructions.

Refer to the Instructions for the SU-WL31.

Decide where you want to install your TV. Turn to the

back cover of this manual for the TV installation

dimensions and determine the location.

Refer to the Instructions for the SU-WL31.

Sufficient expertise is required for installing this

product, especially to determine the strength of the

wall for withstanding the TV’s weight. Be sure to

entrust the attachment of this product to the wall to

Sony dealers or licensed contractors and pay

adequate attention to safety during the installation.

Sony is not liable for any damage or injury caused

by mishandling or improper installation.

Step 1: Checking the parts

required for the

installation

Step 2: Changing the position

of the arm bases

Step 3: Deciding on the

installation location

Step 4: Installing the Plate

Unit on the wall

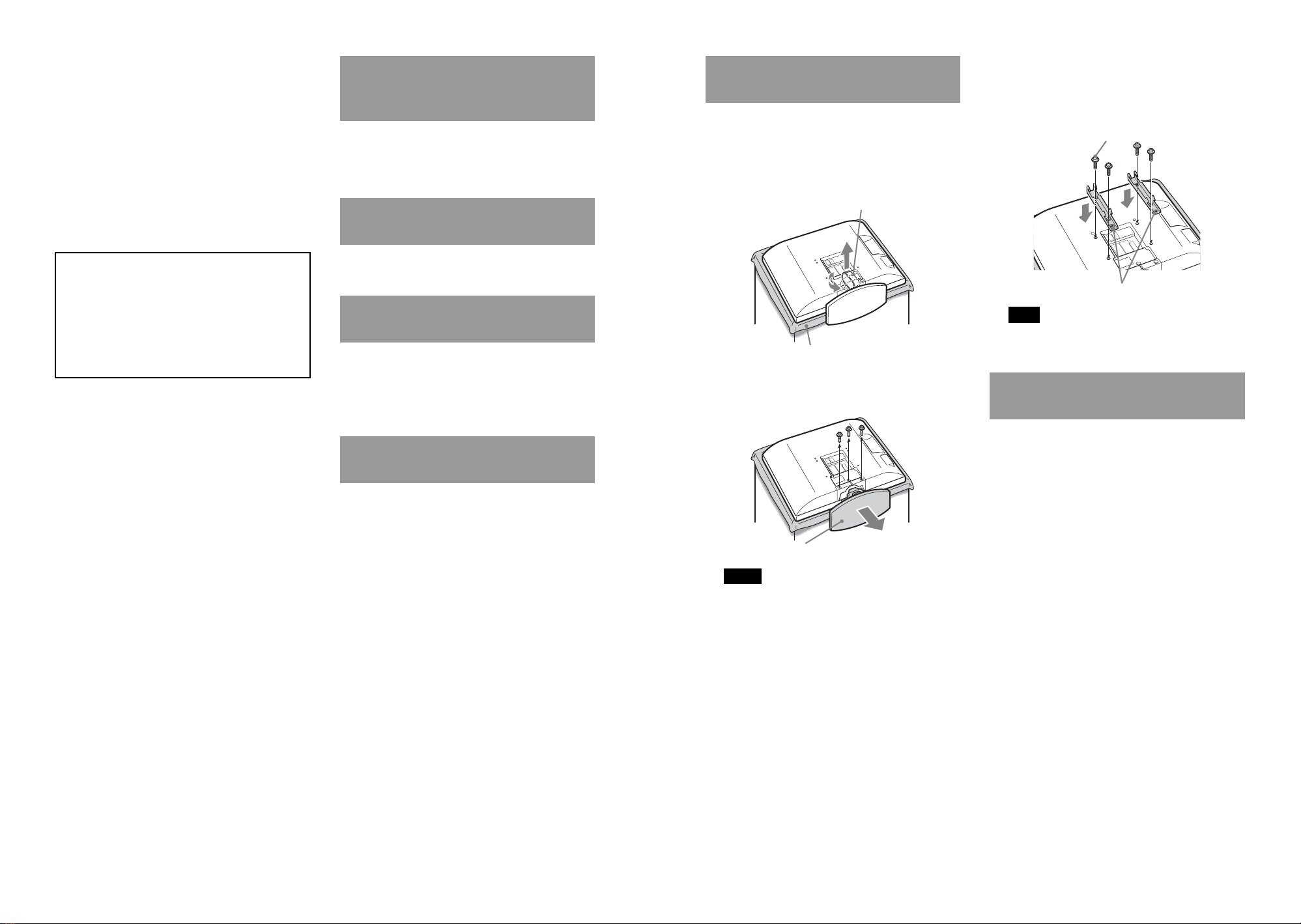

Before detaching the Table-Top Stand, disconnect all

the cables from the TV.

1Rotate the cable holder by 90 degrees, and

pull it out.

2Remove the screws and detach the Table-

Top Stand from the TV.

Notes

•Lay the display face down on a stable and level surface

with the Table-Top Stand hanging over the edge of the

surface. Having the display face and the base of the

Stand on the same level surface will create an unstable

working condition and can damage the TV.

•To prevent damaging the surface of the LCD display,

place the TV on a soft cloth.

3Align the holes on the Mounting Hook Units

with the corresponding holes on the rear of

the TV. Then secure them to the TV using

four screws (supplied with SU-WL31).

Note

When using an electric screwdriver to tighten the screws,

the torque must be approx. 2 N•m (20 kgf•cm).

Refer to the Instructions for the SU-WL31.

1Connect the mains lead and cables to the

corresponding sockets on the rear of the

TV. For details on the cable connection,

refer to the Operating Instructions for your

TV.

2Install the TV onto the Plate Unit.

Step 5: Preparing for the

installation of the TV

Cable holder

Soft cloth

Table-Top Stand

Step 6: Installing the TV on

the Plate Unit

Mounting Hook Units

The supplied screws (+PSW5 × L16)

– 2 – – 3 –
