Sony MHC-WX7AV Manuel utilisateur

Mini Hi-Fi

Component

System

Operating Instructions

3-867-706-11(1)

MHC-WX7AV

MHC-WX5

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

CAUTION

Do not, under any circumstances, place the CD

player/stereo cassette deck on top of the A/V

control amplifier.

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This stereo sytem is equipped with the Dolby* B-

type noise reduction system.

* Dolby noise reduction manufactured under license

from Dolby Laboratories Licensing Corporation.

“DOLBY”, the double-D symbol aand “PRO

LOGIC” are trademarks of the Dolby Laboratories

Licensing Corporation.

The MHC-WX7AV consist of the following

components:

– A/V control amplifier STR-WX7

– CD player/Stereo cassette deck HTC-WX5

– Speaker system

• Front speaker SS-WX7

• Center speaker SS-CN50G

• Rear speaker SS-SR50G

The MHC-WX5 consist of the following

components:

– A/V control amplifier STR-WX5

– CD player/Stereo cassette deck HTC-WX5

– Speaker system

• Front speaker SS-WX7

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

About this manual

The instructions in this manual are for

MHC-WX7AV/WX5. MHC-WX7AV is the

model used for illustration purposes. The

location of some buttons on MHC-WX5 is

different from that of MHC-WX7AV, but the

name of the buttons are the same.

Table of Contents

Getting Started

Step 1: Hooking up the main unit....... 4

Step 2: Setting up your speakers .......... 6

Step 3: Setting the time ....................... 10

Step 4: Presetting radio stations ........ 11

Connecting optional AV components

.......................................................... 12

Basic Operations

Playing a CD ......................................... 14

Recording a CD .................................... 15

Listening to the radio........................... 16

Recording from the radio .................... 18

Playing a tape........................................ 19

Recording from a tape ......................... 21

The CD Player

Using the CD display........................... 22

Playing the CD tracks repeatedly ...... 22

Playing the CD tracks in random order

.......................................................... 23

Programming the CD tracks ............... 24

Playing CDs without interruption ..... 25

The Tape Deck

Recording on a tape manually ........... 26

Recording a CD by specifying track

order ................................................ 27

DJ Effects

Looping part of a CD ........................... 29

Flashing part of a CD ........................... 29

Sound Adjustment

Adjusting the sound ............................ 30

Selecting the audio emphasis ............. 31

Selecting the surround effects ............ 32

Enjoying the Dolby Pro Logic Surround

sound ............................................... 33

Making a personal audio emphasis file

.......................................................... 34

Other Features

Singing along: Karaoke ...................... 36

Falling asleep to music ........................ 37

Waking up to music ............................. 38

Timer-recording radio programs ....... 39

Additional Information

Precautions ............................................ 40

Troubleshooting ................................... 41

Specifications ........................................ 44

Remote identification........................... 46

Index....................................... Back Cover

FM 75Ω

Step 1: Hooking up the main unit

Getting Started

Do the following procedure 1to 2to hook up your system using the supplied cords and

accessories.

If you set up the stereo system vertically

Be sure to place the A/V control amplifier on top of the CD player/stereo cassette deck.

2Connect the FM/AM antennas.

Set up the AM loop antenna, then

connect it.

Extend the FM lead

antenna horizontally.

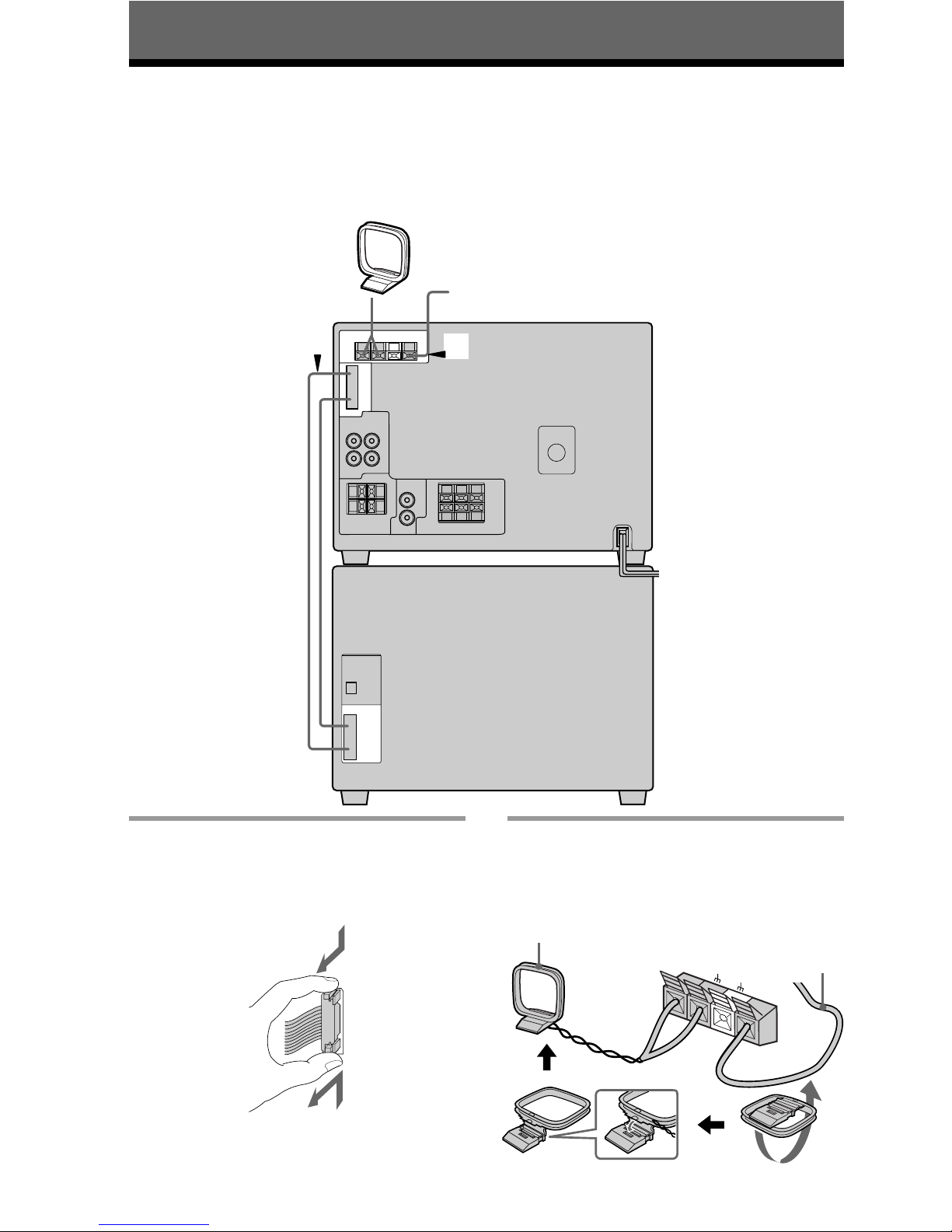

1Connect the flat cord to the SYSTEM

CONTROL connectors until it clicks.

To disconnect AM loop antenna

FM antenna

AM loop antenna

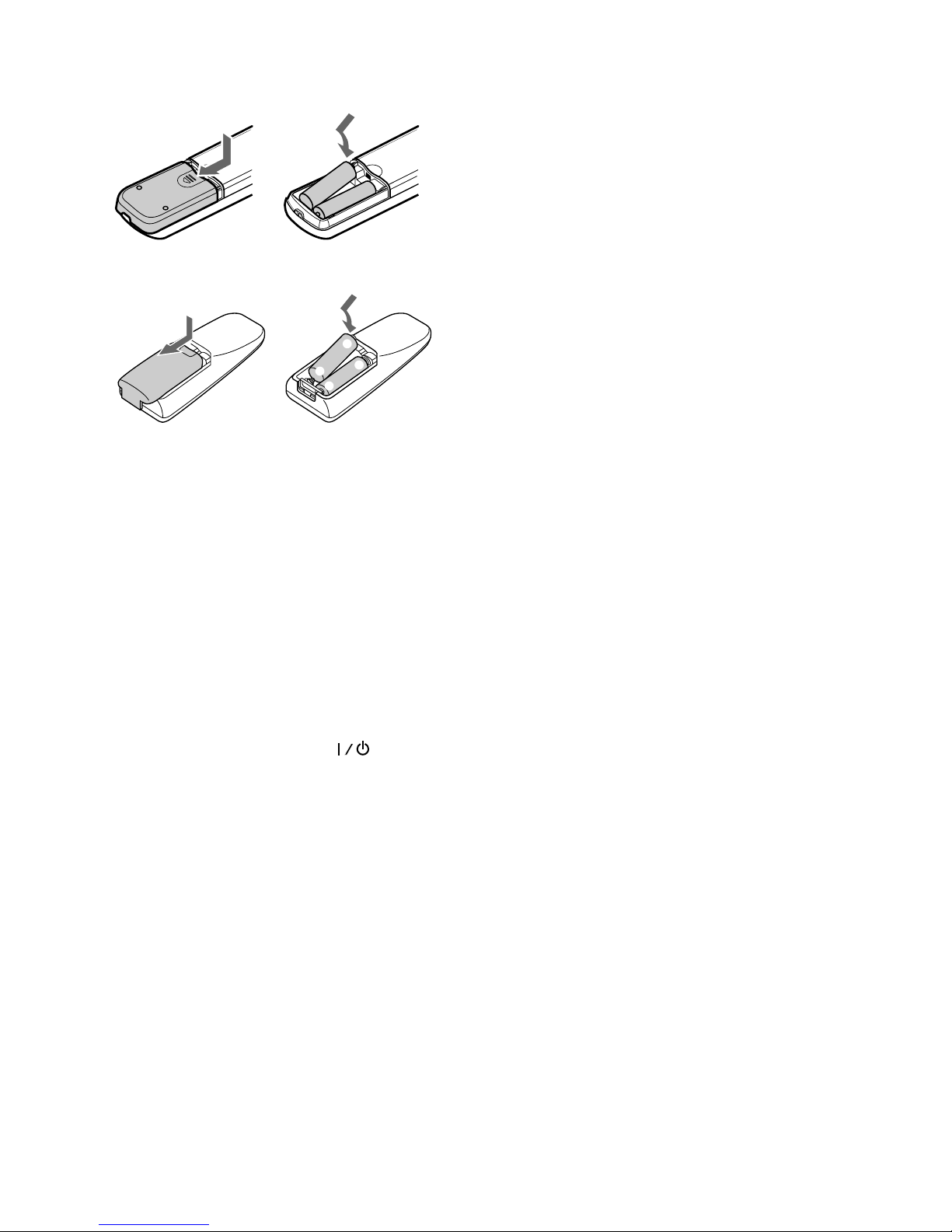

Inserting two size AA (R6)

batteries into the remote

For MHC-WX7AV

For MHC-WX5

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates the

system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down LOOP and press (power)

so that “LOCK” appears in the display.

3Unplug the power cord.

]

}

]

}

}}

]

2Place the center speaker so it is

placed at about the same height as

the front speakers (A). Align the

center speaker with the front

speakers or place it slightly back

from the position of the front

speakers (B).

3Place the rear speakers facing each

other at about 60 to 90 cm above

your listening position.

BCenter speaker

Rear speaker

60 to 90cm

Step 2: Setting up

your speakers

(MHC-WX7AV only)

Connecting the supplied rear and center

speakers enables you to fully enjoy Dolby Pro

Logic Surround sound. Dolby Pro Logic

Surround is a decoding system standardized

in TV programs and movies. Dolby Pro Logic

Surround improves sound image by using

four separate channels. These channels

manipulate the sound to be heard and

enhance the action as it happens on the

screen.

Positioning the speakers

Before you connect them, determine the best

location for your speakers.

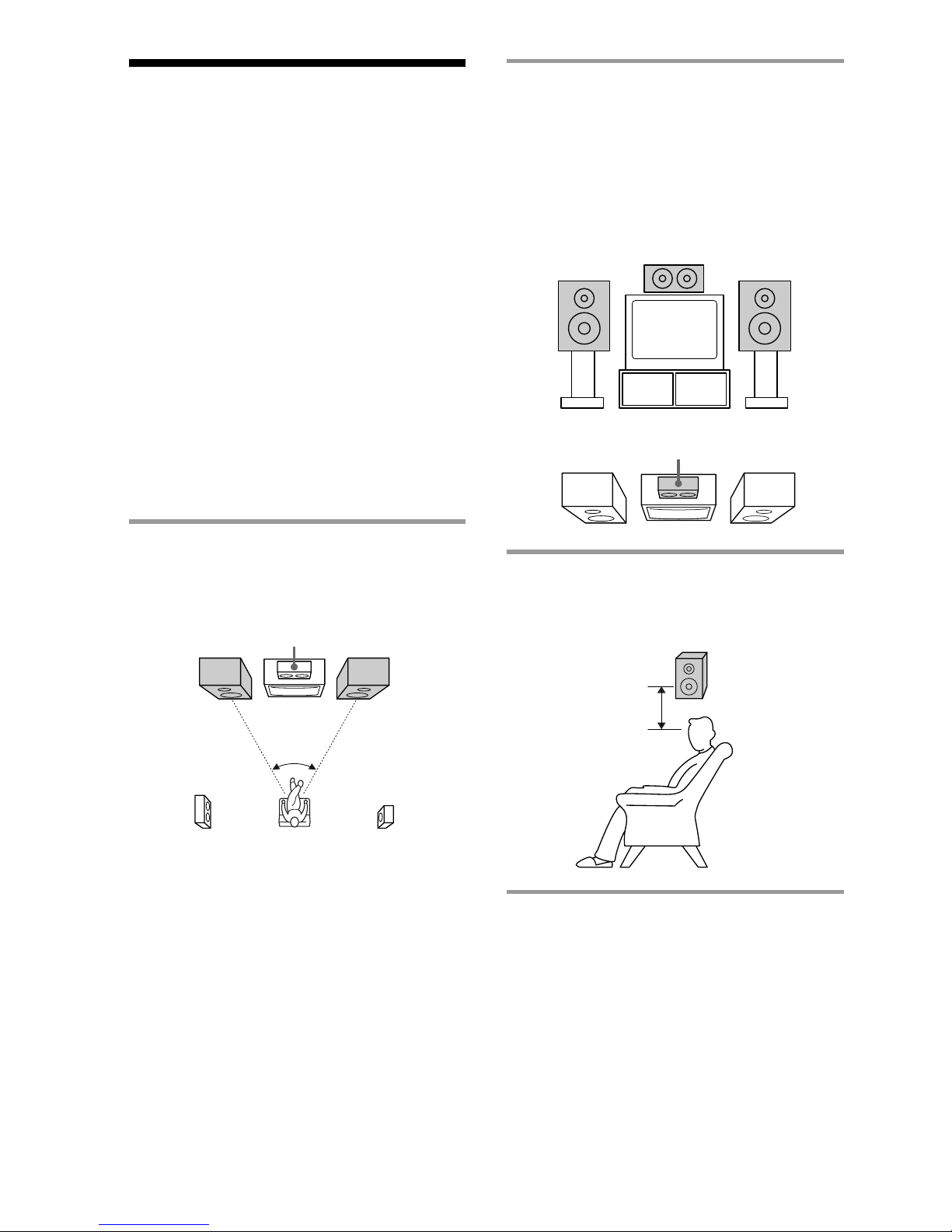

1Place the front speakers at an angle

of 45 degrees from your listening

position.

Center speaker

45°

Front

speaker

(L)

Rear

speaker

(L)

Front

speaker

(R)

Rear

speaker

(R)

Connecting the speakers

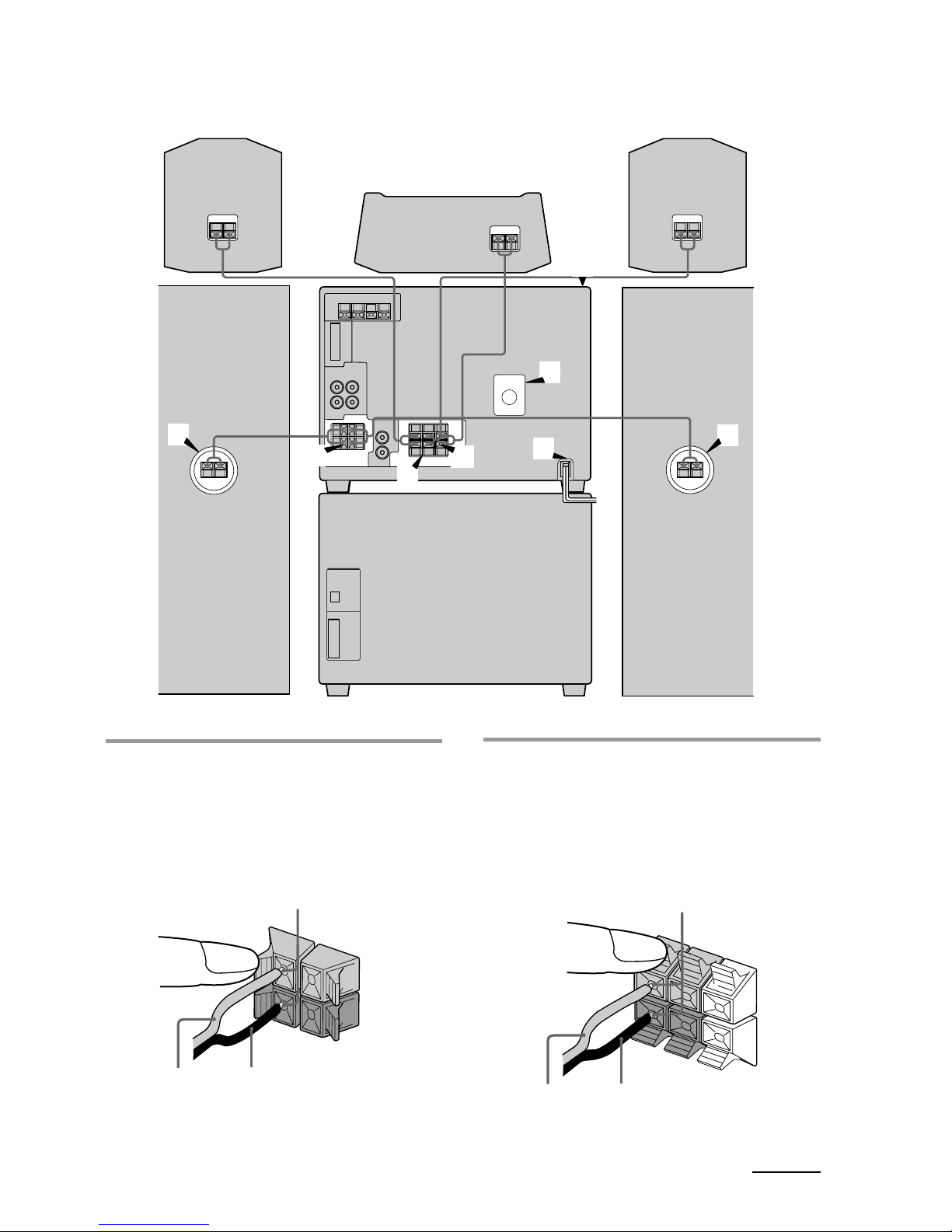

1Connect the front speakers.

Connect the speaker cords to the FRONT

SPEAKER jacks of the same color.

Keep the speaker cords away from the

aerials to prevent noise.

* The color of your speaker cords might be different.

See the speakers’ manual for details if supplied.

continued

Left front speaker

Insert only the stripped portion. Insert only the stripped portion.

Black (’)Red (‘)

2Connect the rear speakers (supplied

for MHC-WX7AV only).

Connect the speaker cords to the REAR

SPEAKER jacks of the same color.

Keep the speaker cords away from the

aerials to prevent noise.

* The color of your speaker cords might be different.

See the speakers’ manual for details if supplied.

Right front speaker

Black* (’)

Grey* (‘)

Right rear speaker Left rear speaker

Center speaker

‘

’

‘

’

Step 2: Setting up your speakers

(continued)

3Connect the center speaker

(MHC-WX7AV only).

Connect the speaker cords to the

CENTER SPEAKER jacks of the same

color.

Keep the speaker cords away from the

aerials to prevent noise.

* The color of your speaker cords might be different.

See the speakers’ manual for details if supplied.

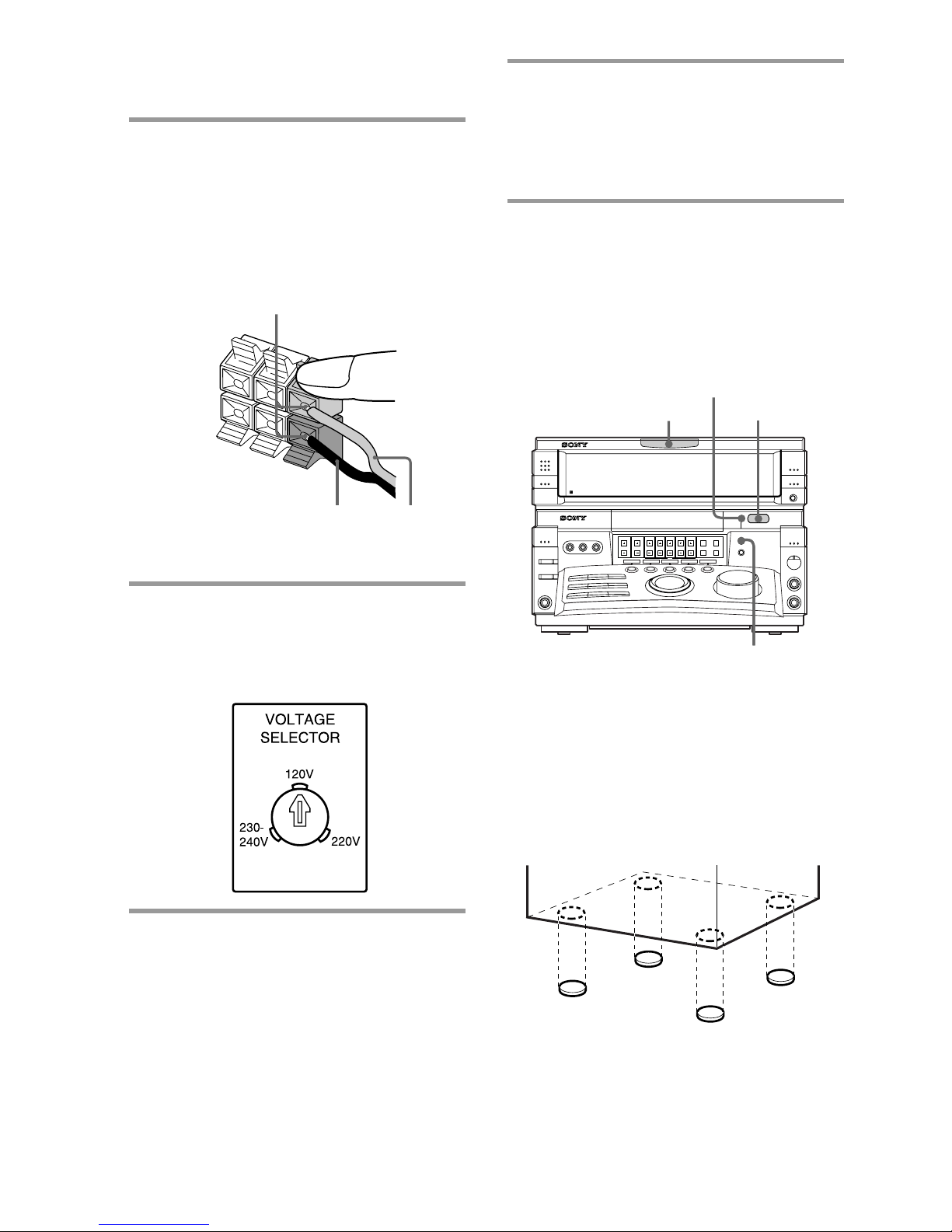

4Set VOLTAGE SELECTOR to

position of your local power line

voltage (except for China, Thailand,

Korea, and Australian models).

5Connect the power cord to a wall

outlet.

Demo mode appears in the display.

If the plug on this unit does not fit

your wall outlet, detach the supplied

adapter from the plug (except for

Australia and Malaysia).

6Deactivate the demo mode by

pressing DISPLAY/DEMO when

the system is turned off.

The demo mode is also deactivated

when you set the time.

To activate the automatic sliding

panel

Press OPEN/CLOSE to slide the panel. Press

OPEN SENSOR ON/OFF button, so that

AUTO indicator lights up. When you stand

within 30 cm from the panel, the panel slides

down automatically.

The panel closes automatically if you do not

operate on or in the panel for about 30

seconds.

To attach the front speaker pads

Attach the supplied front speaker pads to the

bottom of the speakers to stabilize the

speakers and prevent them from slipping.

SLIDING SENSOR OPEN/CLOSE

OPEN SENSOR ON/OFF

AUTO indicator

‘

’

–

Grey* (‘)

Black* (’)

Insert only the stripped portion.

Adjusting the speaker

volume (MHC-WX7AV

only)

To enjoy Dolby Pro Logic Surround sound,

adjust the volume of each speaker.

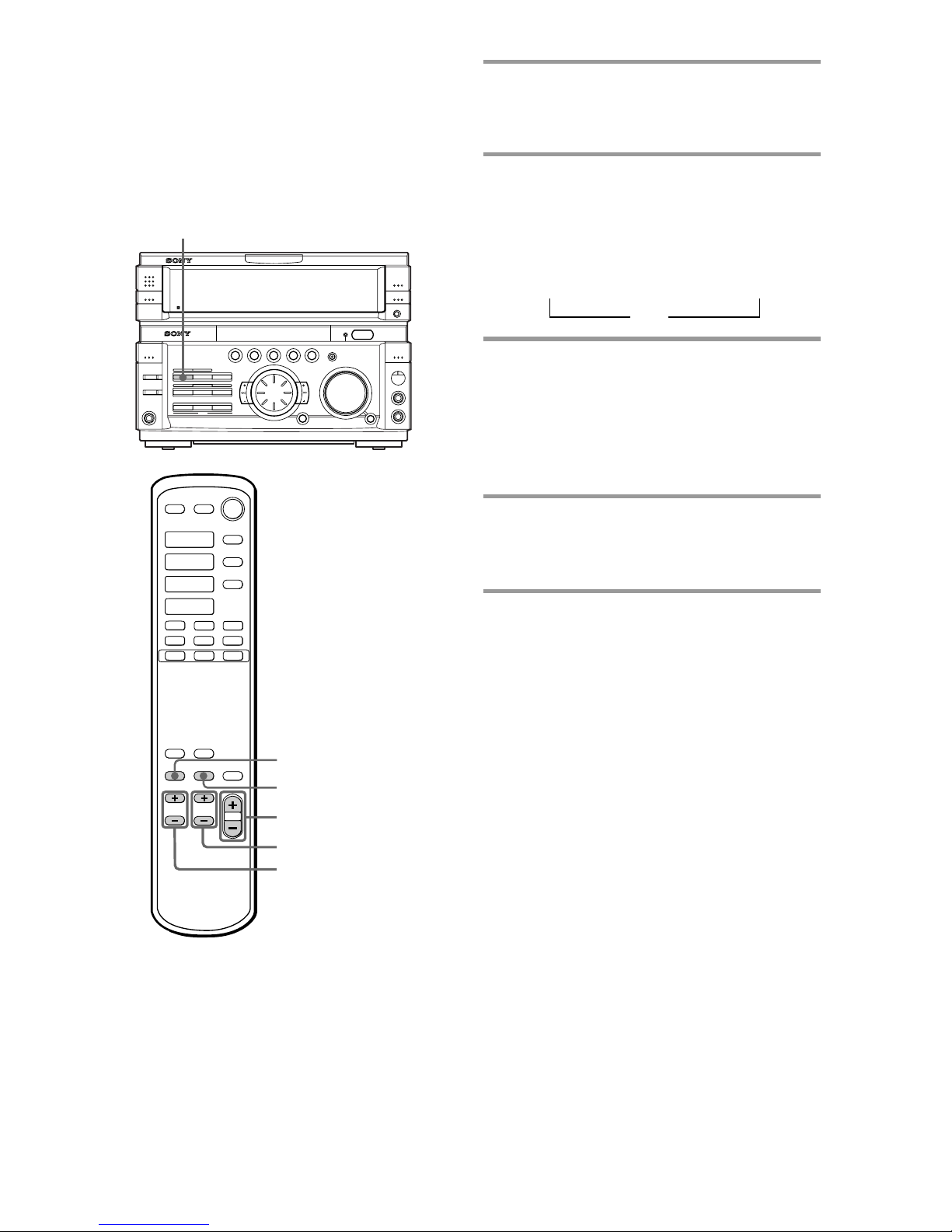

1Press PROLOGIC (or PROLOGIC

ON/OFF on the remote)

“PROLOGIC ON” appears.

2Press T. TONE ON/OFF on the

remote.

The test tone is heard from the speakers

in the following order. Adjust the

volume of the test tone.

Front (left) nCenter nFront (right)

Rear

3From your listening position, press

CENTER LEVEL (+/–) and REAR

LEVEL (+/–) on the remote to

adjust the volume.

The volume levels from each speaker

must become the same.

4Press T. TONE ON/OFF when you

are done adjusting.

The test tone is turned off.

Tips

• If you turn VOLUME (or press VOLUME +/– on

the remote) all the speaker volumes change.

• If Test Tone turns-off automatically, press TEST

TONE ON/OFF to continue.

Note

The test tone feature works only for Dolby Pro Logic

Surround sound.

PROLOGIC



VOLUME +/–

T. TONE ON/OFF

PROLOGIC ON/OFF

REAR LEVEL +/–

CENTER LEVEL +/–

)0P

+=p

·ª

You must set the time before using the timer

functions.

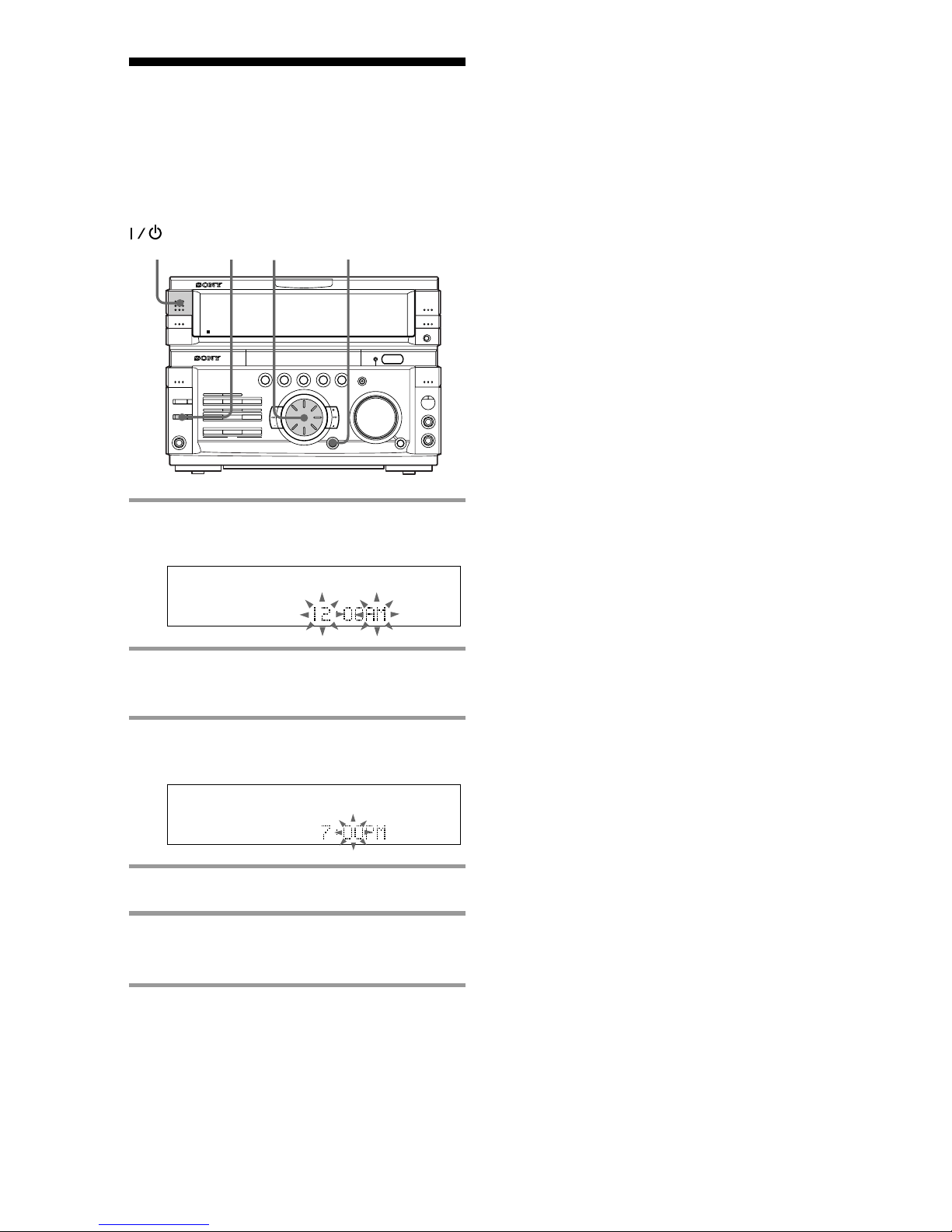

1Press CLOCK/TIMER SET.

The hour indication flashes.

2Turn the jog dial to set the hour.

The clock is on a 12-hour system.

3Press ENTER/NEXT.

The minute indication flashes.

4Turn the jog dial to set the minute.

5Press ENTER/NEXT.

The clock starts working.

Tips

• If you’ve made a mistake, start over from step 1.

• Setting the time deactivates the demo mode.

If you want to display the demo mode, press

DISPLAY/DEMO when the power is off.

Step 3: Setting the

time

RELAY

DAILY 1 2 REC SLEEP

DOLBY NR

PROGRAM

REPEAT1

SHUFFLE

ALL DISCS1

TUNED

MONO

STEREO

SYNC

STEP

MHz

kHz

VOLUME

SUR

RELAY

DAILY 1 2 REC SLEEPDAILY 1 2 REC SLEEP

DOLBY NRDOLBY NR

PROGRAM

REPEAT1

SHUFFLE

TUNED

MONO

STEREO

SYNC

STEP

MHz

kHz

REC

VOLUME

DBFB

SUR

Note

The previous explanation shows you how to set the

time while the power is off. To change the time

while the power is on, do the following:

1 Press CLOCK/TIMER SET.

2 Turn the jog dial to select the SET CLOCK.

3 Press ENTER/NEXT.

4 Perform steps 2 through 5 above.



3,52,41

(Power)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony CMT-EP707 (CMTEP707) Manuel utilisateur

Sony

Sony LBT-D570 - Compact Hifi Stereo System Manuel utilisateur

Sony

Sony MHC-BX6AV Manuel utilisateur

Sony

Sony MHC-V77DW Manuel utilisateur

Sony

Sony MHC-GN900 Manuel utilisateur

Sony

Sony ZS-SN10 Manuel utilisateur

Sony

Sony CMT-LX50WMR Manuel utilisateur

Sony

Sony HCD-EC68 Manuel utilisateur

Sony

Sony FH-411R Manuel utilisateur

Sony

Sony HCD-HP8V Manuel utilisateur

Sony

Sony ZS-D10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony MHC-1750 - Hifi Bookshelf System Manuel utilisateur

Sony

Sony MHC-RV20 Manuel utilisateur

Sony

Sony HCD-CP300 Manuel utilisateur

Sony

Sony LBT-XG500 - Compact Hi-fi Stereo System Manuel utilisateur

Sony

Sony HCD-CX4iP Manuel utilisateur

Sony

Sony MXD-D5C Manuel utilisateur

Sony

Sony DHC-MD555 - Mini Hi Fi Component System Manuel utilisateur

Sony

Sony MHC-RXD2 - 3 Cd Mini System Manuel utilisateur

Sony

Sony CMT-FX300i Marketing Manuel utilisateur

Sony

Sony DHC-MD333 - Mini Hi Fi Component System Manuel utilisateur

Sony

Sony HCD-GZR888D Manuel utilisateur

Sony

Sony SRS-BTS50 Manuel utilisateur

Sony

Sony HCD-VX88 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
