3-106-355-12(2)

Mini Hi-Fi

Component

System

Operating Instructions

MHC-GTX88

MHC-GTX77

MHC-GTX66

2GB

To reduce the risk of fire or

electric shock, do not expose

this apparatus to rain or

moisture.

To prevent fire, do not cover the ventilation

of the apparatus with newspapers, table-

cloths, curtains, etc. And don’t place lighted

candles on the apparatus.

To prevent fire or shock hazard, do not place

objects filled with liquids, such as vases, on

the apparatus.

To avoid electrical shock, do not open the

cabinet. Refer servicing to qualified

personnel only.

Batteries or batteries installed apparatus

shall not be exposed to excessive heat such

as sunshine, fire or the like.

Do not install the appliance in a confined

space, such as a bookcase or built-in cabinet.

Install this system so that the power cord can

be unplugged from the wall socket

immediately in the event of trouble.

This appliance is classified as a CLASS 1

LASER product. This label is located on the

rear exterior.

Don’t throw away the

battery with general

house waste, dispose of it

correctly as chemical

waste.

About this manual

The instructions in this manual are for

models MHC-GTX88, MHC-GTX77 and

MHC-GTX66. In this manual, the

MHC-GTX88 is used for illustration

purposes unless stated otherwise.

The MHC-GTX88 consists of:

–Unit HCD-GTX88

– Speaker System

• Front speakers SS-GTX88

• Surround speakers SS-RSX88

• Subwoofer A SS-WG88A

• Subwoofer B SS-WG88B

The MHC-GTX77 consists of:

–Unit HCD-GTX77

– Speaker System

• Front speakers SS-GTX77

The MHC-GTX66 consists of:

–Unit HCD-GTX66

– Speaker System

• Front speakers SS-GTX66

“WALKMAN” and “WALKMAN” logo are

registered trademarks of Sony Corporation.

MICROVAULT is a trademark of Sony

Corporation.

MPEGLayer-3 audiocoding technologyand

patents licensed from Fraunhofer IIS and

Thomson.

WARNING

3GB

Table of Contents

About this manual........................2

Playable discs...............................4

Playable/Recordable USB

devices.....................................5

Guide to parts and controls ..........6

Hooking up the system...............12

Positioning the speakers.............15

Setting the clock.........................16

Playing a CD/MP3 disc..............17

Using play mode ........................19

Recording from a disc onto an

USB device ...........................22

Listening to music of an USB

device....................................24

Using play mode ........................26

Listening to the radio .................28

Playing a tape.............................30

Recording onto a tape ................31

Adjusting the sound .................. 33

Creating a party atmosphere .... 35

— X-TRANCE

Singing along ............................ 36

Using the timer.......................... 37

Changing the display................. 38

Viewing information in the

display.................................. 39

Hooking up the optional

components .......................... 41

Troubleshooting ........................ 42

Precautions................................ 50

Specifications............................ 52

Index............................ Back cover

Getting Started

Disc

USB Device

Tuner

Tape

Sound Adjustment

Other Operations

Additional Information

4GB

Playable discs

1)MP3 (MPEG 1 Audio Layer 3) is a standard

format defined by ISO/MPEG which

compresses audio data. MP3 audio tracks

must be in MPEG 1 Audio Layer 3 format.

2)A logical format of files and folders on

CD-ROMs, defined by ISO (International

Organization for Standardization).

3)This is a recording method that enables

adding of data using the Track-At-Once

method. Conventional discs begin at a disc

control area called the Lead-in and end at an

area called Lead-out. A Multi Session disc is

a disc having multiple sessions, with each

segmentfrom Lead-in toLead-out regardedas

a single session.

• Data part of CD-Extras1)

• Data part of Mixed CDs2)

• CD-R/-RW discs that have not been

correctly finalized (processing to allow

played back by a normal CD player).

• CD-R/-RW discs recorded in Multi

Session that have not ended by “closing

the session”.

• A disc recorded in packet write format.

• Audio side of a DualDisc.

• A disc that has a non-standard shape

(e.g., heart, square, star).

• A disc that has the adhesive cellophane

tape or a sticker still left on it.

1)CD-Extra: This format records audio

(AUDIO CD data) on the tracks in session 1

and data on the tracks in session 2.

2)Mixed CD: This format records data on the

first track and audio (AUDIO CD data) on the

second and subsequent tracks of a session.

A DualDisc is a two sided disc product

which mates DVD recorded material on

one side with digital audio material on the

other side. However, since the audio

material side does not conform to the

Compact Disc (CD) standard, playback

on this product is not guaranteed.

In some cases, CD-Rs/-RWs cannot be

played back on this system due to the

recording quality or physical condition of

the disc, or the characteristics of the

recording device and authoring software.

The disc will not be played back if it has

not been correctly finalized. For more

information, see the operating

instructions of the recording device.

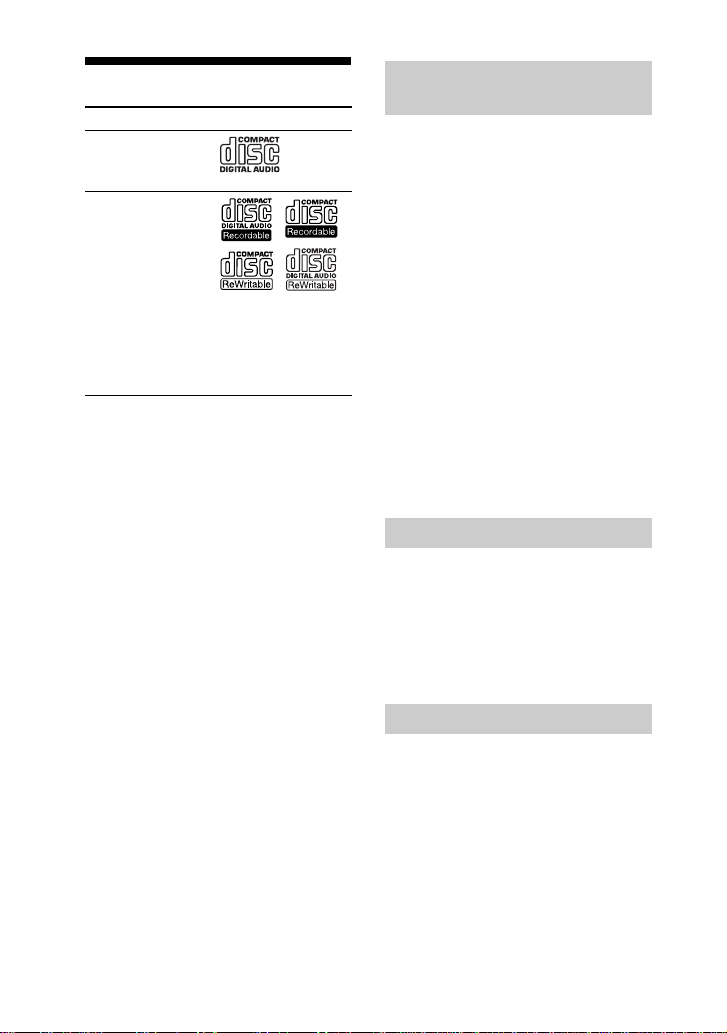

Format of discs Logo

• AUDIO CD

• CD-R/-RW in

AUDIO CD format

• CD-R/-RW in

DATA CD format,

containing MP3

audio tracks1) that

conforms to ISO

96602) Level 1/

Level 2, Joliet (in

expansion format),

or Multi Session3)

Discs that cannot be played

back

Note on DualDiscs

Note on CD-R/-RW

5GB

This product is designed to play back

discs that conform to the Compact Disc

(CD) standard. Recently, various music

discs encoded with copyright protection

technologiesaremarketedbysomerecord

companies. Please be aware that among

those discs, there are some that do not

conform to the CD standard and may not

be playable by this product.

When you play back Multi Session discs

with different formats for each session,

the format of the first session is

recognized as the disc type. Tracks in the

second and subsequent sessions are

played back if they are the same formats

as the first session.

Playable/Recordable

USB devices

You can use the following Sony USB

devices on this system.

Verified Sony digital music player

(as of April 2007)

Verified Sony IC Recorder

(as of April 2007)

Verified Sony USB storage media

(as of April 2007)

Notes

• Do not use USB devices other than these USB

devices.Operation of models not listed here is

not guaranteed.

• Operation may not always be ensured even

when using these USB devices.

• Some of these USB devices may not be

available for purchase in certain areas.

• See the operating instructions supplied with

the USB device for details on the operation

method.

• If you want to format the above USB devices,

be sure to use the models or formatter

software supplied with the USB device.

However, if the formatting process is

performed using other method, the recording

may not be properly done.

Music discs encoded with

technologies

Note on Multi Session disc

Product name Model name

WalkmanNWD-B103/ B105/

B103F/ B105F

Product name Model name

IC Recorder ICD-U50/ U60/ U70

Product name Model name

MICROVAULT USM256J/ 512J/ 1GJ/

2GJ/ 4GJ

USM512JX/ 1GJX/

2GJX/ 4GJX

USM256H/ 512H/ 1GH/

2GH/ 4GH

6GB

Guide to parts and controls

This manual mainly explains operations using the buttons on the unit, but the same

operations can also be performed using the buttons on the remote having the same or

similar names.

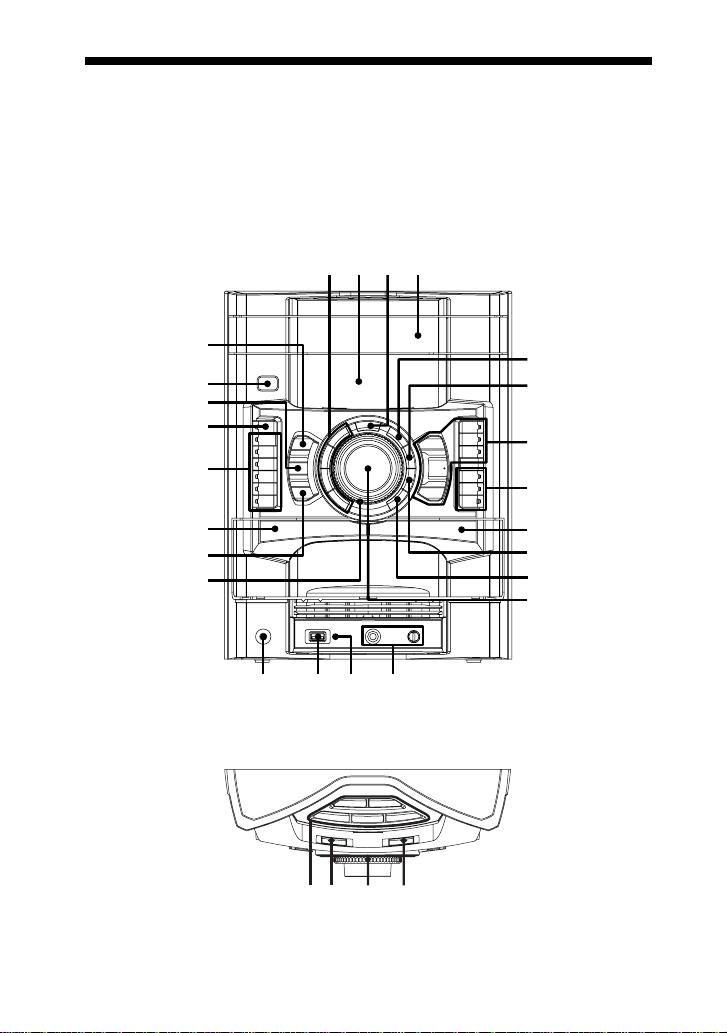

Unit

–Front view

–Top view

qdqfqgqh

1234

7GB

Guide to parts and controls

1FLANGER (pages 35, 43, 48)

DELAY (pages 35, 43, 48)

CHORUS (pages 36, 43, 48)

SOUND FLASH (page 35)

Press to create a party atmosphere.

BDisplay (pages 9, 38, 39, 49)

CSURROUND SPEAKER MODE

(MHC-GTX88 only) (page 34)

Press to select the sound system.

SURROUND

(MHC-GTX77/MHC-GTX66only)

(page 34)

Press to select the surround effect.

DDisc tray (pages 9, 17, 44, 49)

EAMP MENU (page 38)

Press to change the spectrum

analyser display or to adjust the

brightness of the display.

FRETURN (pages 17, 25)

Press to return to the parent folder.

GNX (play/pause)(pages 17,22,

24, 30, 44)

Press to start or pause playback.

x(stop) (pages 17, 23, 25, 28,

29, 30, 32, 44)

Press to stop playback or recording.

./> (go forward/go

backward) (pages 17, 20, 23, 25,

27, 31, 48)

Press to select a track.

TUNING +/– (pages 28, 29)

Press to tune in a radio station.

+/– (pages 17, 20, 23, 25, 27,

31)

Press to select a folder.

m/M (rewind/fast forward)

(page 30)

Press to fast forward or rewind.

HCD- SYNC/REC 1 (page 22)

Press to record from a disc onto the

connected optional USB device

(Digitalmusic player or USB storage

media).

CD-TAPE SYNC (page 31)

TAPE REC PAUSE/START

(page 31)

Press to record onto a tape.

IPUSH OPEN/CLOSE Z (Deck B)

(page 30)

Press to insert or eject a tape.

Deck B (pages 30, 31, 37, 48)

JENTER (pages 23, 29, 33, 48)

Press to enter the selection.

KERASE (page 23)

Press to erase MP3 audio tracks or

folders on the connected optional

USB device (Digital music player or

USB storage media).

LMASTER VOLUME (pages 17,

24, 39, 43)

Turn to adjust the volume.

MMIC (jack) (pages 36, 43, 53)

Connect an optional microphone.

MIC LEVEL (pages 32, 36, 43)

Turn to adjust the microphone

volume.

USB

Continued

8GB

NREC/ERASE (indicator)

(pages 23, 25)

Lightsupwhenrecordingfromadisc

onto the connected optional USB

device (Digital music player or USB

storage media).

Lights up when erasing MP3 audio

tracks from the connected optional

USB device (Digital music player or

USB storage media).

O(USB) port (pages 22, 23,

24, 41, 53)

Connect an optional USB device

(Digitalmusic playeror USB storage

media).

PPHONES (jack) (pages 43, 53)

Connect the headphones.

QPower illuminator (pages 35, 39)

RPRESET EQ (page 33)

Press to select a preset sound effect.

SZPUSH OPEN/CLOSE (Deck A)

(page 30)

Press to insert or eject a tape.

Deck A (pages 30, 48)

TFunction buttons:

CD (pages 14, 17, 22, 29, 31, 38)

TUNER/BAND (pages 29, 38)

TAPE A/B (pages 30, 38)

AUDIO (pages 38, 41)

VIDEO (pages 38, 41)

(pages 23, 24, 26, 38)

Press to select a function.

U"/1 (on/standby) (pages 13, 14,

29, 43, 48)

Press to turn the system on or off.

VGROOVE (page 33)

Press to reinforce the bass.

WIR Receptor (page 43)

XEQ BAND/MEMORY (page 33)

Press to select a frequency band

when adjusting the graphic

equalizer.

YDISPLAY (pages 38, 39, 40)

Press to change the information in

the display.

ZOPERATION DIAL (pages 17,

25, 33, 35, 38)

Turn to select a track or folder.

Turn to select a setting.

wj ILLUMINATION (page 39)

Press to change the power

illuminator pattern.

wk DISC SKIP/EX-CHANGE

(pages 14, 17, 18, 20)

Press to skip a disc.

Press to exchange other discs during

playback.

ZOPEN/CLOSE (pages 14, 17,

44)

Press to load or eject a disc.

DISC 1 ~ 3 (pages 18, 20)

Press to select a disc.

Press to switch to CD function from

other function.

USB

9GB

Guide to parts and controls

–Display

ALights up when the USB function is

selected (page 24).

B“MP3” lights up when an MP3 audio

track is recognized. “CD” lights up

when a disc is recognized.

CIndicates the type of MP3 audio track

information that displayed (page 39).

“ ” lights up when a track name is

displayed. “ ” lights up when an

artist name is displayed. “ ” lights

up when a folder name is displayed.

DIndicates the tuner band (page 28).

ELights up when the MP3 audio track

contains ID3 tag information.

FDisplays the current status and

information (page 39).

GIndicators for the TUNER function

(page 28).

HLights up when the Play Timer or

Recording Timer is set (page 37).

ILights up when the Sleep Timer is

activated (page 37).

JLights up during recording (pages 22,

31).

KIndicators for the TAPE function

(page 30).

“ ” and “ ” lights up when the

system is turned on.

“ ” lights up when there is a tape in

the deck.

LLights up when an optional USB

device (Digital music player or USB

storage media) is recognized

(page 22).

MIndicates the selected play mode

(pages 19, 26).

NIndicators for the disc tray (page 17).

“ ” lights up when the disc is

selected. “ ” lights up when there is

a disc on the disc tray. “1”, “2” and

“3” light up when the system is turned

on.

OIndicates the activated sound effect

(pages 33, 35).

Note

“LINK”, “MATRIX SUR 1” and

“MATRIX SUR 2” light up for

MHC-GTX88 only.

FM AM ID3 AUTO

PRESET

MONO

MHz

kHz

TUNED

REC

PLAY

SLEEP

USB

MP3

BOOSTER

SUR

FLANGER

CHORUS

DELAY

MATRIX

SUR

LINK

GROOVE

SHUF

TAPE

USB

MEMORY

PGM

ALL

1 DISCS

REP 1

SYNC

;

432 5 6 7 81

MP3

REC

A B

Continued

10GB

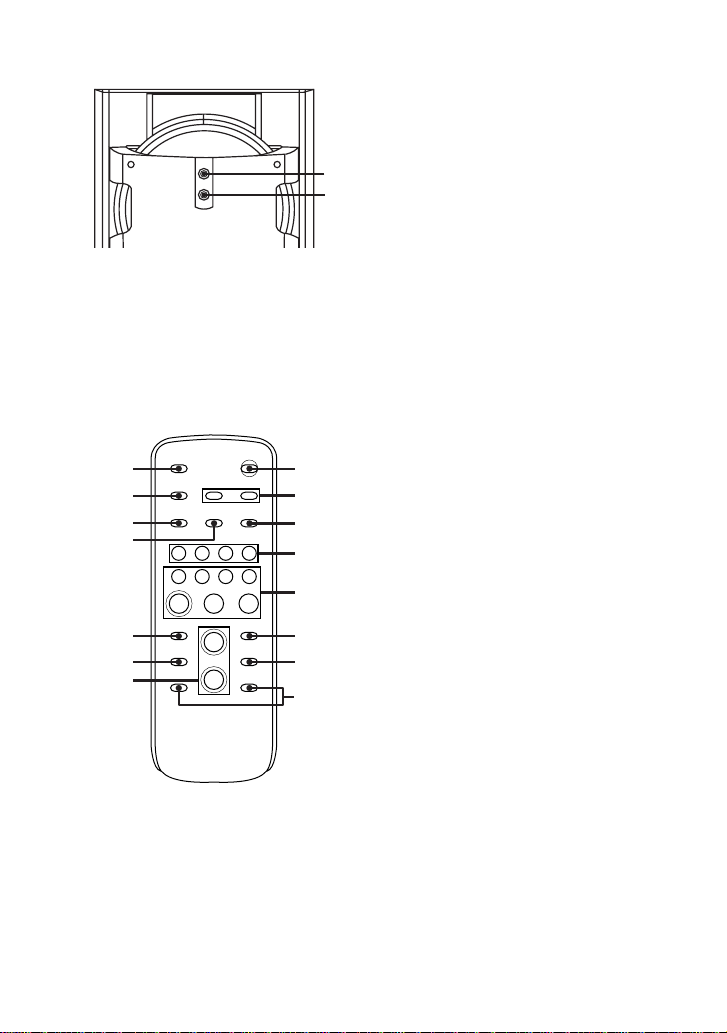

Subwoofer A (SS-WG88A)

1SUBWOOFER ON/OFF

(page 13)

Press to turn the subwoofer on or off.

2SUBWOOFER LEVEL (page 13)

Turn to adjust the subwoofer level.

Remote

1"/1 (on/standby) (pages 13, 16,

43)

Press to turn the system on or off.

BCLOCK/TIMER SELECT

(page 38)

CLOCK/TIMER SET (pages 16,

37)

Press to set the clock and the timers.

CREPEAT/FM MODE (pages 21,

27, 29, 47)

Press to change the Repeat Play

setting.

Press to select the FM monaural or

stereo reception.

DUSB (page 24)

Press to select the USB function.

CD (page 17)

Press to select the CD function.

TUNER/BAND (page 28)

Press to select the TUNER function.

Press to select FM or AM band.

FUNCTION (pages 30, 41)

Press to select a function.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony MHC-GX470 - Mini Hi Fi Stereo System Manuel utilisateur

Sony

Sony CMT-BX20i Marketing Manuel utilisateur

Sony

Sony HCD-VX550 Manuel utilisateur

Sony

Sony ZS-SN10 Manuel utilisateur

Sony

Sony CMTBX5BT - CMT Micro System Manuel utilisateur

Sony

Sony HCD-H1200 Manuel utilisateur

Sony

Sony SRS-X33 Guide de l'utilisateur

Sony

Sony GTK-XB60 Manuel utilisateur

Sony

Sony HCD-MD333 - Hi Fi Cd/minidisc Component Manuel utilisateur

Sony

Sony HCD-EP303 Manuel utilisateur

Sony

Sony CMT-SX2D Manuel utilisateur

Sony

Sony CMT-CP333 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony HCD-GX25 - System Components Manuel utilisateur

Sony

Sony LBT-DR7AV Manuel utilisateur

Sony

Sony CMT-X3CD Manuel utilisateur

Sony

Sony MHC-RX55 Manuel utilisateur

Sony

Sony NAS-CZ1 M-Crew Manuel utilisateur

Sony

Sony CMT-LX40I Manuel utilisateur

Sony

Sony RDP-XA900iPN Manuel utilisateur

Sony

Sony MEX-N4280BT Manuel utilisateur

Sony

Sony HCD-MD515 - Component For Dhcmd515 Manuel utilisateur

Sony

Sony HCD-GNX600 Manuel utilisateur

Sony

Sony XES-Z50 Manuel utilisateur

Sony

Sony SHAKE-X30 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
