Sony MHC-RX70 Manuel utilisateur

3-859-543-11(1)

Mini Hi-Fi

Component

System

Operating Instructions

MHC-RX70

MHC-RX80

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

Laser component in this product is capable of

emitting radiation exceeding the limit for Class 1.

This caution label is located inside the unit.

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

This stereo sytem is equipped with the Dolby* B-

type noise reduction system.

* Dolby noise reduction manufactured under licence

from Dolby Laborotories Licencing Corporation.

“DOLBY” and the double-D symbol aare

trademarks of the Dolby Laborotories Licencing

Corporation.

TableofContents

Getting Started

Step 1: Hooking up the system ............ 4

Step 2: Setting the time ......................... 6

Step 3: Presetting radio stations .......... 6

Connecting optional AV components . 7

Basic Operations

Playing a CD ......................................... 10

Recording a CD .................................... 12

Listening to the radio ........................... 13

Recording from the radio .................... 15

Playing a tape ........................................ 16

Recording from a tape ......................... 17

The CD Player

Using the CD display........................... 19

Playing the CD tracks repeatedly ...... 19

Playing the CD tracks in random

order ................................................ 20

Programming the CD tracks ............... 21

Playing CDs without interruption ..... 22

The Tape Deck

Recording on a tape manually ........... 23

Recording a CD by specifying track

order ................................................ 24

DJ Effects

Looping part of a CD ........................... 26

Flashing part of a CD ........................... 26

Waving the equalizer ........................... 27

Sound Adjustment

Adjusting the sound ............................ 28

Selecting the audio emphasis ............. 29

Adjusting the audio emphasis ............ 30

Making a personal audio emphasis

file .................................................... 32

Other Features

Singing along: Karaoke ...................... 33

Falling asleep to music ........................ 34

Waking up to music ............................. 35

Timer-recording radio programs ....... 36

Additional Information

Precautions ............................................ 38

Troubleshooting ................................... 39

Specifications ........................................ 42

Index........................................ Back cover

Connect the surround speakers.

(For MHC-RX80 only)

Connect the speaker cords to the

SPEAKER jacks of the same colour.

* The colour of your speaker cords might be

different. See the speakers’ manual for details if

supplied.

Step 1: Hooking up the system

Connect the front speakers.

Connect the speaker cords to the

SPEAKER jacks of the same colour.

Keep the speaker cords away from the

aerials to prevent noise.

* The colour of your speaker cords might be

different. See the speakers’ manual for details if

supplied.

Getting Started

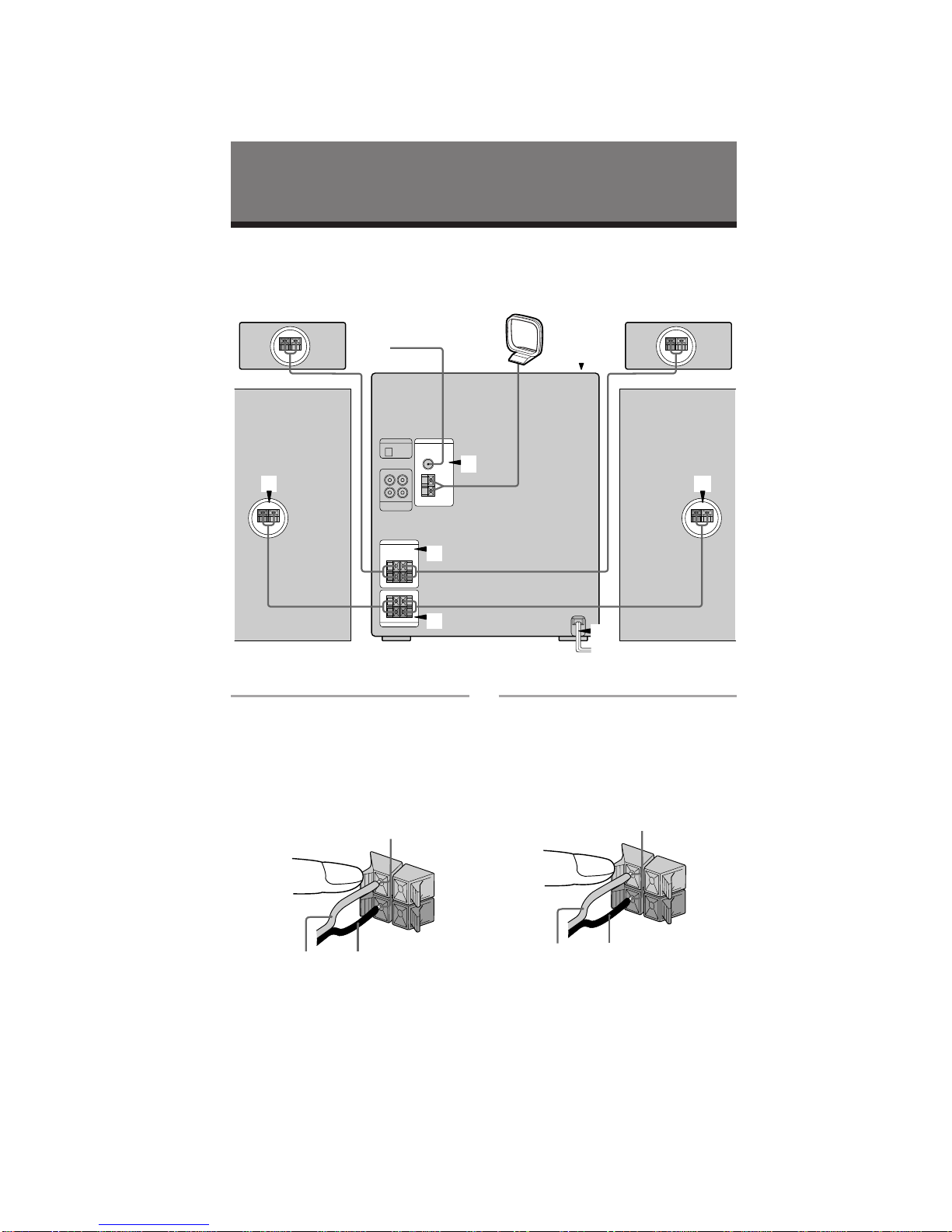

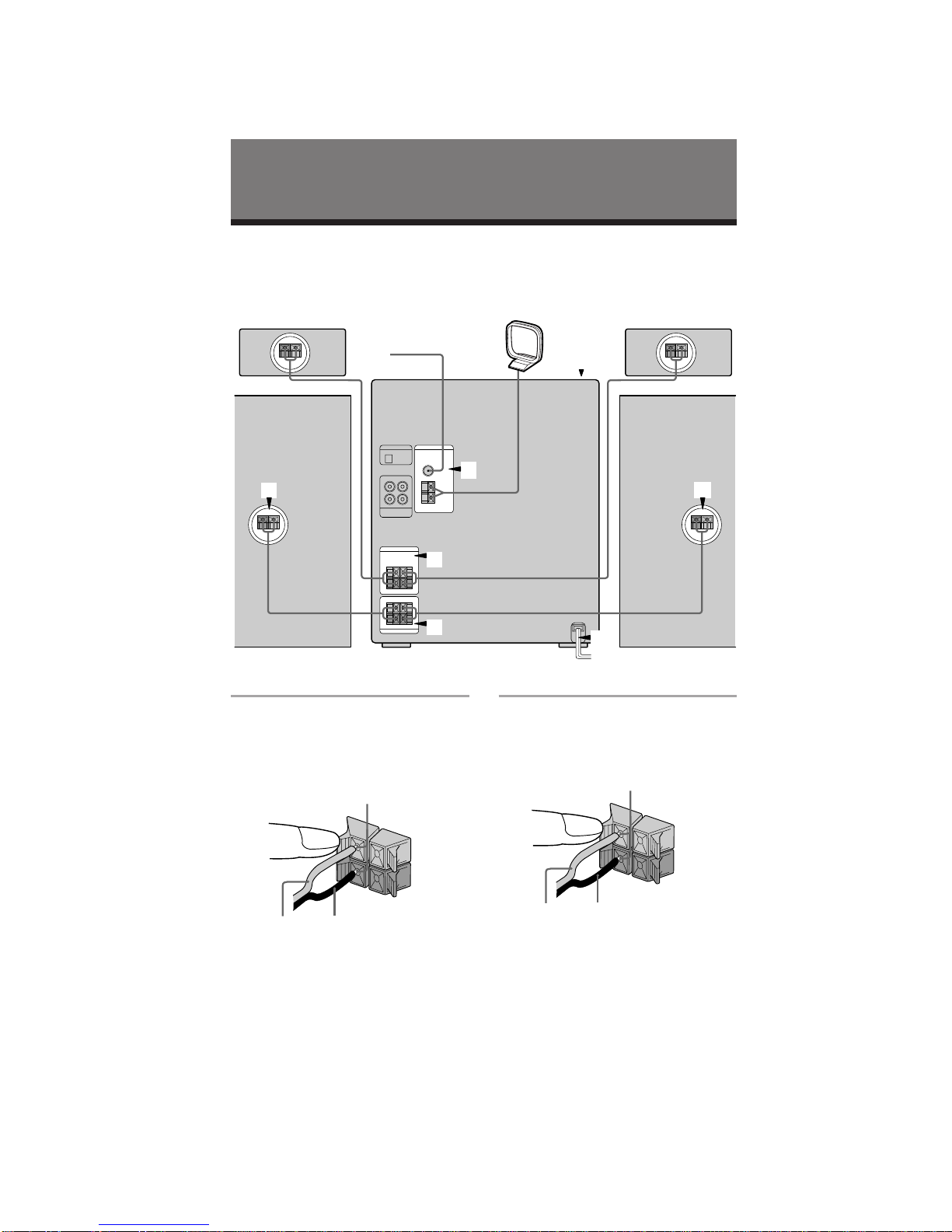

Do the following procedure 1to 5to hook up your system using the supplied cords and

accessories.

AM loop aerial

FM lead aerial

Left front speaker

Right front speaker

Right surround speaker Left surround speaker

–

Black* (’)Red* (‘)

Insert only the stripped portion.

–

Black* (’)Red* (‘)

Insert only the stripped portion.

3Connect the FM/AM aerials.

Set up the AM loop aerial, then

connect it.

4Connect the mains lead to a wall

outlet.

Demo mode appears in the display.

5Deactivate the demo mode by

pressing DISPLAY/DEMO when

the system power is turned off.

The demo mode is also deactivated

when you set the time.

Extend the FM lead

aerial horizontally.

FM75

COAXIAL

AM loop aerial

(supplied)

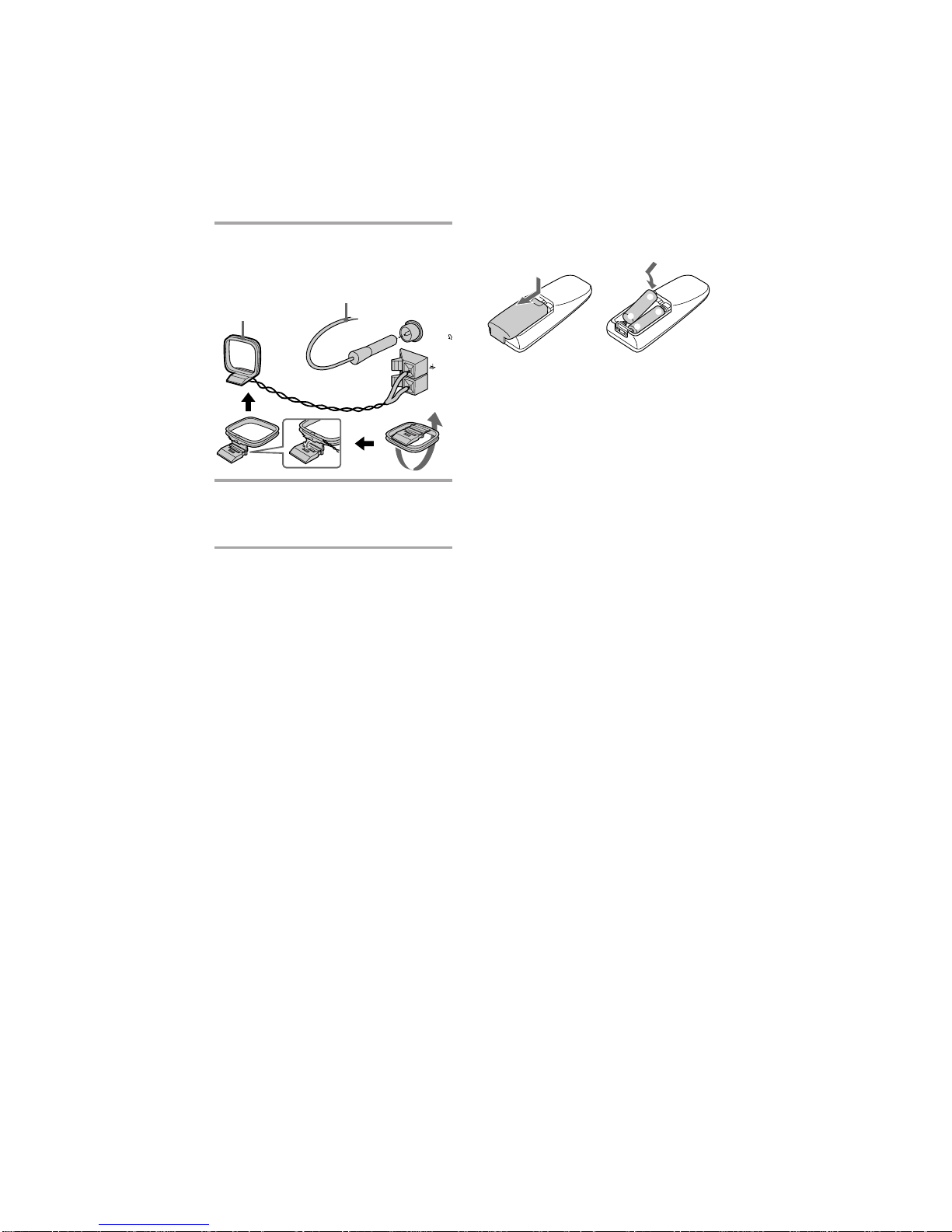

Inserting two size AA (R6)

batteries into the remote

Tip

With normal use, the batteries should last for about

six months. When the remote no longer operates

the system, replace both batteries with new ones.

Note

If you do not use the remote for a long period of

time, remove the batteries to avoid possible damage

from battery leakage.

When carrying this system

Do the following to protect the CD

mechanism.

1Press FUNCTION repeatedly until “CD”

appears in the display.

2Hold down PLAY MODE and press

POWER to turn off the power.

}}

]

Step 2: Setting the

time

You must set the time before using the timer

functions.

1Press CLOCK TIMER SET.

The hour indication flashes.

2Turn the jog dial to set the hour.

The clock is on a 12-hour system.

3Press ENTER/NEXT.

The minute indication flashes.

4Turn the jog dial to set the minute.

5Press ENTER/NEXT.

The clock starts working.

Tips

• If you’ve made a mistake, start over from step 1.

• Setting the time deactivates the demo mode .

If you want to display the demo mode, press

DISPLAY/DEMO when the power is off.

Note

When setting the time, set the equalizer display to

anything other than Spectrum analyzer pattern 3.

(See “To change the equalizer display” on page 30.)

·∏

1 3,52,4

43,5 6 2 1

·∏

POWER

Step 3: Presetting

radiostations

The 3 band model lets you preset up to 40

stations, 20 for FM, 10 for MW and 10 for LW.

The 4band model lets you preset up to 45

stations, 20 for FM, 10 for MW and 5 for

UKV.

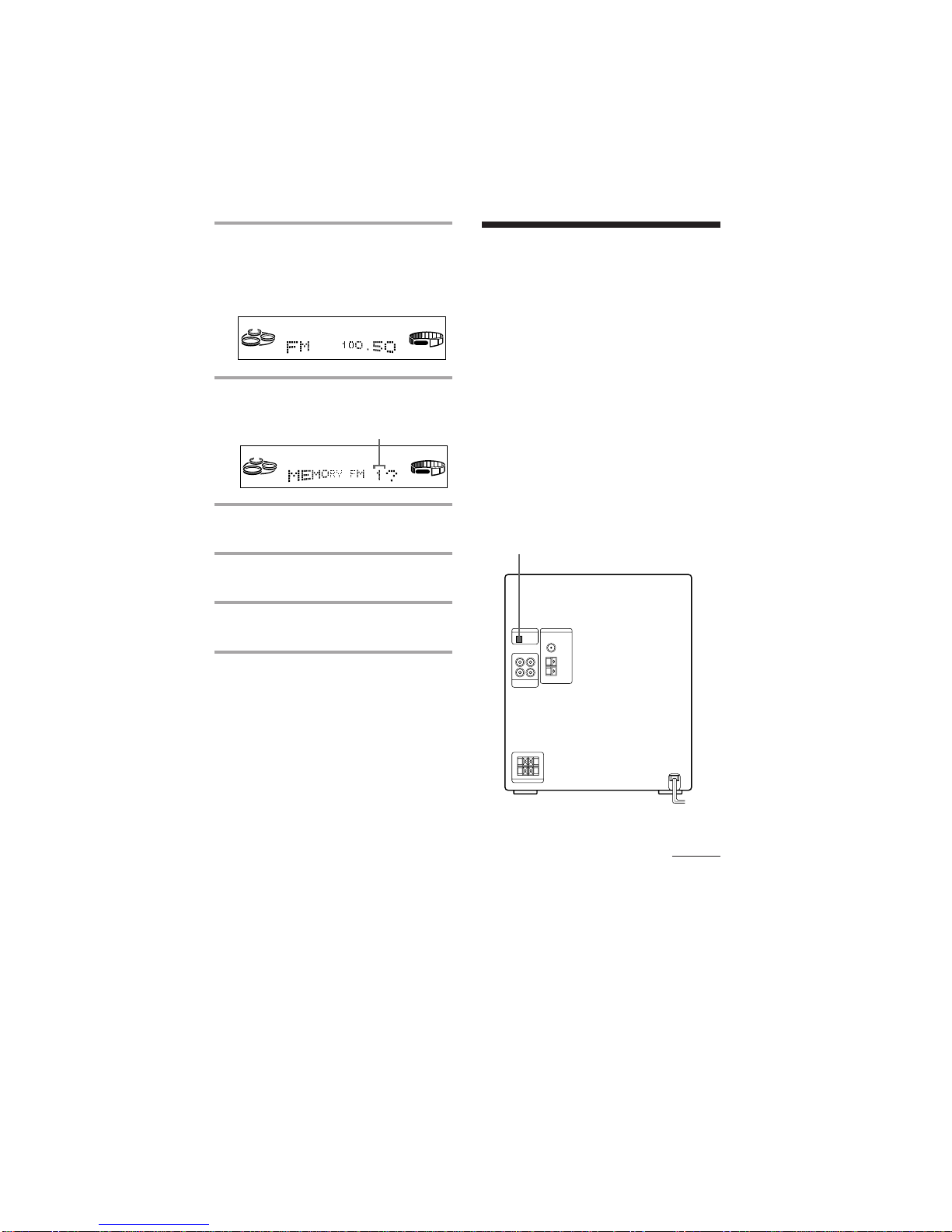

1Press TUNER/BAND repeatedly

until the band you want appears in

the display.

the bands you can recieve vary

depending on the model you purchased.

Be sure to check which bands you can

recieve.

Every time you press this button, the

band changes as follows:

3 band models:

FM nMW nLW

4 band model:

FM nMW nLW nUKV*

* “STEREO PLUS” is displayed when you select

UKV.

2Press TUNING MODE repeatedly to

select “AUTO”.

3Turn the jog dial.

The frequency indication changes and

scanning stops when the system tunes in

a station. “TUNED” and “STEREO” (for

a stereo programme) appear.

4Press TUNER MEMORY.

A preset number appears in the display.

5Turn the jog dial to select the preset

number you want.

6Press ENTER/NEXT.

The station is stored.

7Repeat steps 1 to 6 to store other

stations.

To tune in a station with a weak

signal

Press TUNING MODE repeatedly to select

“MANUAL” in step 2, then turn the jog dial

to tune in the station.

To change the preset number

Start over from step 1.

Tip

The preset stations are retained for half a day even if

you unplug the power cord or if a power failure

occurs.

TUNED

STEREO

MHz

VOLUME

AUTO

Preset number

TUNED

STEREO

VOLUME

AUTO

Connectingoptional

AVcomponents

To enhance your system, you can connect

optional components. Refer to the

instructions of each component.

Connecting audio

components

Select one of the following two connections,

depending on the equipment to be connected

and method of connecting.

Connecting an MD deck for digital

recording

You can record from CD into the MD deck

digitally by connecting an optical cable.

To the DIGITAL IN jack of the MD deck

continued

Connecting optional AV

components (continued)

Connecting an MD deck for analog

recording

Make sure to match the colour of the plugs

and the connectors. To listen to the sound of

the connected MD deck, press FUNCTION

repeatedly until “MD” appears.

Tip

If you connect a turntable with MM cartridge,

connect it to VIDEO/MD IN using the optional MM

cartridge equalizer EQ-2 and an audio connecting

cord. To listen to the sound, press FUNCTION

repeatedly until “VIDEO” appears.

Notes

• You need to connect both left and right surround

speakers. Otherwise, the sound will not be heard

(MHC-RX80 only).

• If you cannot select “MD” even when you have

pressed FUNCTION, press POWER while

pressing FUNCTION when the power is turned

off. “VIDEO” will be switched to “MD”. To return

to “VIDEO” do the same procedure.

To the audio input

of the MD deck

To the audio output

of the MD deck

Connecting a VCR

Make sure to match the color of the plugs and

the connectors. To listen to the sound of the

connected VCR, press FUNCTION repeatedly

until “VIDEO” appears.

Note

If the sound is distorted when selecting “VIDEO”,

switch to “MD” (see previous “Notes).

To the audio output of the VCR

Connecting outdoor

aerials

Connect the outdoor aerial to improve the

reception.

FM aerial

Connect the optional FM outdoor aerial. You

can also use the TV aerial instead.

AM aerial

Connect a 6- to 15- meter (20- to 50- feet)

insulated wire to the AM aerial terminal.

Leave the supplied AM loop aerial connected.

Important

If you connect an outdoor aerial, ground from

yterminal with the screw clamp. To prevent

a gas explosion, do not connect the ground

wire to a gas pipe.

FM75

COAXIAL

Screw clamp

Ground wire (not supplied)

IEC standard socket

connector

(not supplied)

FM75

COAXIAL

Screw clamp

Ground wire (not supplied)

Insulated wire

(not supplied)

Raccordez les enceintes.

Raccordez les cordons d’enceintes aux

prises SPEAKER de la même couleur.

Eloignez les cordons d’enceintes des

antennes pour éviter que les antennes ne

captent du bruit.

–

Raccordez les enceintes surround.

(MHC-RX80 seulement)

Raccordez les cordons d’enceinte

surround aux prises SPEAKER de même

couleur.

Insérez seulement la partie dénudée du

cordon.

Antenne cadre AM

Effectuez les opérations 1à 5pour relier les différents éléments de la chaîne avec les cordons

et les accessoires fournis.

Etape 1: Raccordement de la chaîne

Préparatifs

Insérez seulement la partie

dénudée du cordon.

Noir*(’)

Antenne FM

Enceinte surround droite Enceinte surround gauche

Enceinte avant droite Enceinte avant gauche

* La couleur de vos cordons d’enceintes peut être

différente. Reportez-vous au mode d’emploi des

enceintes pour les détails.

–

Insérez seulement la partie

dénudée du cordon.

Noir* (’)

* La couleur de vos cordons d’enceintes peut être

différente. Reportez-vous au mode d’emploi des

enceintes pour les détails.

Rouge* (‘)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony MHC-2600 Manuel utilisateur

Sony

Sony SRS-BTS50 Manuel utilisateur

Sony

Sony HCD-XGR66 Manuel utilisateur

Sony

Sony HCD-DR8AV Manuel utilisateur

Sony

Sony MHC-GZX88D Manuel utilisateur

Sony

Sony CMT-EP505 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony CMT-SX7 Manuel utilisateur

Sony

Sony CMT-HP7 - Executive Microsystem Manuel utilisateur

Sony

Sony MHC-V21 Manuel utilisateur

Sony

Sony HCD-NXM4D Manuel utilisateur

Sony

Sony MHC-GZR999D Manuel utilisateur

Sony

Sony LBT-LV100AV Manuel utilisateur

Sony

Sony HCD-BX9 Manuel utilisateur

Sony

Sony MHC-GX25 - Stereo Mini System Manuel utilisateur

Sony

Sony ICF-DS15iPN Manuel utilisateur

Sony

Sony SRS-X11 Manuel utilisateur

Sony

Sony Muteki XROSSFADE LBT-DJ2i Manuel utilisateur

Sony

Sony HCD-101 Manuel utilisateur

Sony

Sony CMT-HX3 Manuel utilisateur

Sony

Sony MHC-GNX60 Manuel utilisateur

Sony

Sony HCD-DV2D - Dvd / Reciever Component Manuel utilisateur

Sony

Sony CX-JN44 Manuel utilisateur

Sony

Sony MHC-F150 - Mini Hi Fi System Manuel utilisateur

Sony

Sony HCD-GP5 Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
