Sony CMT-VP100 Manuel utilisateur

Micro Hi-Fi

Component

System

Operating Instructions

4-233-762-13 (1)

CMT-VP100

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

This appliance is classified

as a CLASS 1 LASER

product. The CLASS 1

LASER PRODUCT

MARKING is located on

the rear exterior.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains,

etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place vases on

the apparatus.

Don’t throw a battery, dispose it as

the injurious wastes.

This system can play the

following discs

Disc logo

Contents

Disc size

Play time

Note on VIDEO CDs

This system conforms to VIDEO CDs without PBC

functions (Ver. 1.1) and VIDEO CDs with PBC

functions (Ver. 2.0) of VIDEO CD standards. You

can enjoy two kinds of playback according to the disc

type.

Disc type

VIDEO CDs without

PBC functions

(Ver. 1.1 discs)

VIDEO CDs with

PBC functions

(Ver. 2.0 discs)

* PBC = Play Back Control

VIDEO CDs

Audio + Video

(moving pictures)

12 cm/8 cm

74 min./20 min.

Audio CDs

Audio

12 cm/8 cm

74 min./20 min.

You can

Enjoy video playback

(moving pictures) as well as

audio CDs.

Play interactive software

using menu screens displayed

on the TV screen (menu

playback), in addition to the

video playback function of

VIDEO CDs without PBC

functions.

Moreover, you can play high

or standard quality still

picture.

Parts Identification

Main unit ............................................... 4

Remote Control ..................................... 5

Getting Started

Hooking up the system .......................... 6

Inseting two size-AA (R6) batteries into

the remote control ........................... 7

Setting the time...................................... 8

VIDEO CD/CD

Loading the disc .................................... 9

Playing the VIDEO CD

–– Normal Play/Shuffle Play/

Repeat Play ..................................... 9

Playing a VIDEO CD with PBC

functions (Ver. 2.0)

–– PBC Play .................................. 10

Playing the CD

–– Normal Play/Shuffle Play/

Repeat Play ................................... 11

Programming the CD/VIDEO CD tracks

–– Program Play ............................ 11

Using the VIDEO CD/CD display ...... 12

Using the on-screen display ................ 13

Resuming VIDEO CD playback from the

point last stopped at

–– Resume Play............................. 13

Tuner

Presetting radio stations.......................14

Listening to the radio

–– Preset Tuning ........................... 14

Tape

Loading a tape ..................................... 16

Playing a tape ...................................... 16

Recording to a tape

–– CD Synchro Recording/

Recording Manually/Program Edit .....

Timer-recording radio programs ......... 18

Sound Adjustment

Adjusting the sound ............................. 20

Other Features

Singing along: Karaoke ...................... 20

Falling asleep to music

— Sleep Timer .............................. 21

Waking up to music

— Daily Timer .............................. 21

Optional Components

Hooking up the optional components....

Additional Information

Precautions .......................................... 24

Troubleshooting................................... 25

Specifications ...................................... 27

Glossary ................................. Back cover

Table of Contents

Parts Identification

The items are arranged in alphabetical order.

Refer to the pages indicated in parentheses () for details.

Main unit

BASS 3(20)

CD EJECT Zqj (9~11)

CD SYNC qs (17, 18)

CD uws (9~13, 28)

CD xqk (9~13, 26)

CD ./>ql (10~12)

CD m/Mql (10, 11)

DSG 5(20, 23)

FUNCTION wj (9, 11, 12, 14, 16,

17, 23)

MIC IN jack wg (20)

MIC VOL wf (20)

PBC indicator wd (10, 28)

PHONES jack wh

PLAY MODE wa (9, 11, 12, 18)

Remote sensor 2

REPEAT w; (10, 11)

TAPE EJECT Z8(16)

TAPE REC z6(17)

TAPE Y7(16~18)

TAPE Xqa (16~18)

TAPE x9(16~18, 26)

TAPE m/M0(16)

TREBLE 4(20)

TUNER BAND qd (14, 26)

TUNING MODE qg (14, 15)

TUNING +/– qf (14, 15)

VOLUME qh (21)

BUTTON DESCRIPTIONS

@/1 (power) 1(7, 14, 18, 21, 23)

?/1

1 2 5 8

63 4 7

w;wawdwfwgwh ws

Parts Identification

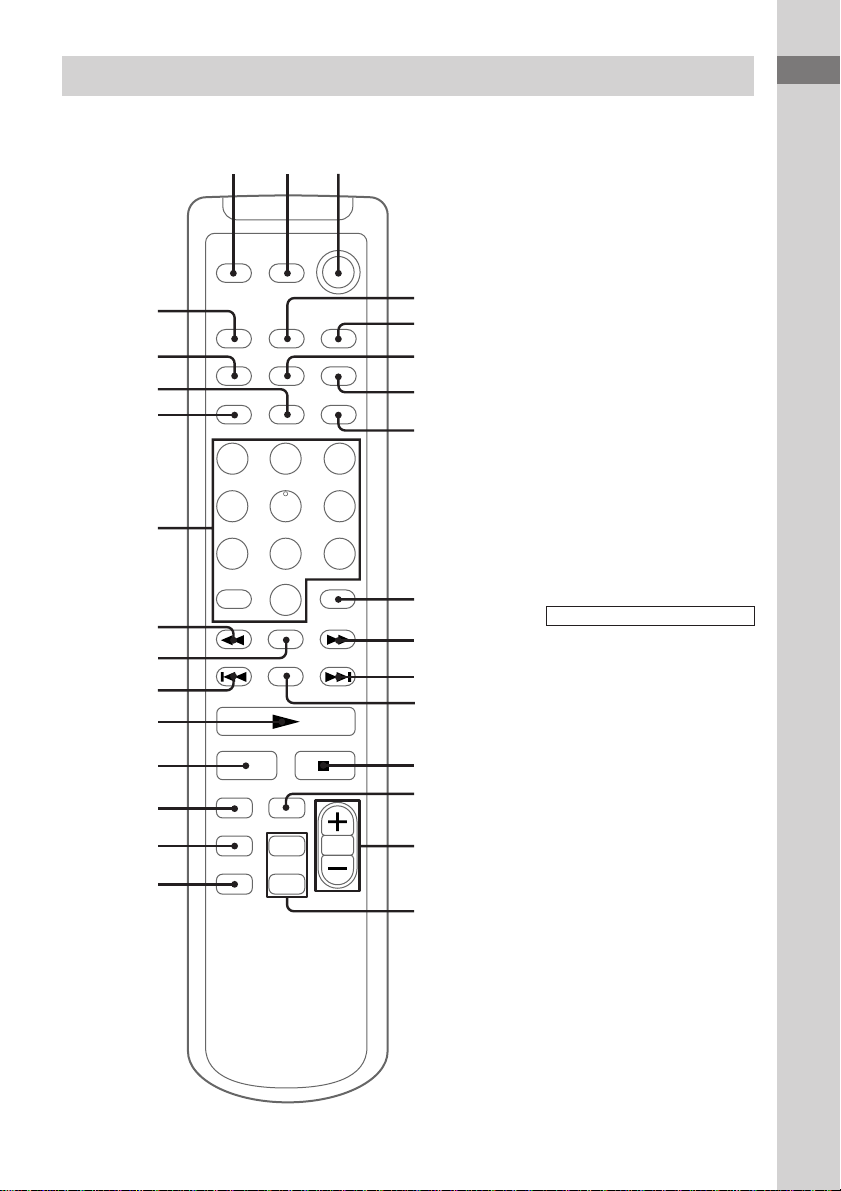

Remote Control

`/1

123

CD ql (9, 11)

CLOCK/TIMER SELECT 4

(19, 22)

CLOCK/TIMER SET 5(8, 18,

21)

DIR MODE wh (16~18)

DISPLAY wj (12)

ENTER 8(8, 14, 18, 21)

FUNCTION qj (9, 11, 12, 14, 16,

17, 23)

KEY CONTROL #/2qh (20)

K.PON/MPX 9(20)

MEMORY wk (14)

NEXT qa (10)

Numeric buttons wg (10, 11)

ON SCREEN 7(13)

PREV ws (10)

RETURN Oqs (10)

SLEEP wl (21)

SLOW ywd (9)

STEREO/MONO 6(15)

TAPE qk (16)

TUNER BAND qf (14)

TV/VIDEO 1(7)

TV @/12(7)

VOLUME +/– qg (21)

BUTTON DESCRIPTIONS

Nwa (9~13, 16~18, 28)

Xw; (9, 11, 16~18)

xqd (9~13, 16~18)

.ws (10~12)

>qa (10~12)

mwf (10, 11, 14~16)

Mq; (10, 11, 14~16)

@/1 (power) 3(7, 14, 18, 21)

+ qa (8, 14, 18, 21)

– ws (8, 14, 18, 21)

2Connect the FM and AM antennas.

Set the AM loop antenna up before

connecting it.

FM75Ω

ANTENNA

Getting Started

Hooking up the system

Follow steps 1through 6of the procedure below to hook up your system using the supplied cords

and accessories.

1Connect the speakers.

Connect the right and left speaker cords to

the SPEAKER terminals as shown below.

AM loop

antenna

Extend the FM

wire antenna

horizontally

Insert this portion

Black (#)

Red (3)

AM loop antenna

Left speaker

Right speaker

FM antenna

Getting Started

3Connect the VIDEO OUT jack to the

video input jack on your TV with the

supplied video connecting cord.

VIDEO OUT

When using a TV

Turn on your TV and set the input selector to

video input so you can view the pictures from the

system.

4Set SYSTEM SELECT (color system) to

PAL or NTSC depending on the color

system of your TV.

AUTO

SYSTEM

SELECT

NTSC PAL

The color system

of your TV

AUTO (if your TV

automatically

changes the color

system according

to the input signal)

NTSC

PAL (the factory

setting)

5For models with a voltage selector, set

VOLTAGE SELECTOR to the local

power line voltage.

110V-120V

220V-240V

VOLTAGE

SELECTOR

6Connect the power cord to a wall outlet.

If the plug does not fit the wall socket,

detach the supplied plug adaptor (only for

models equipped with an adaptor).

To turn on the system, press @/1.

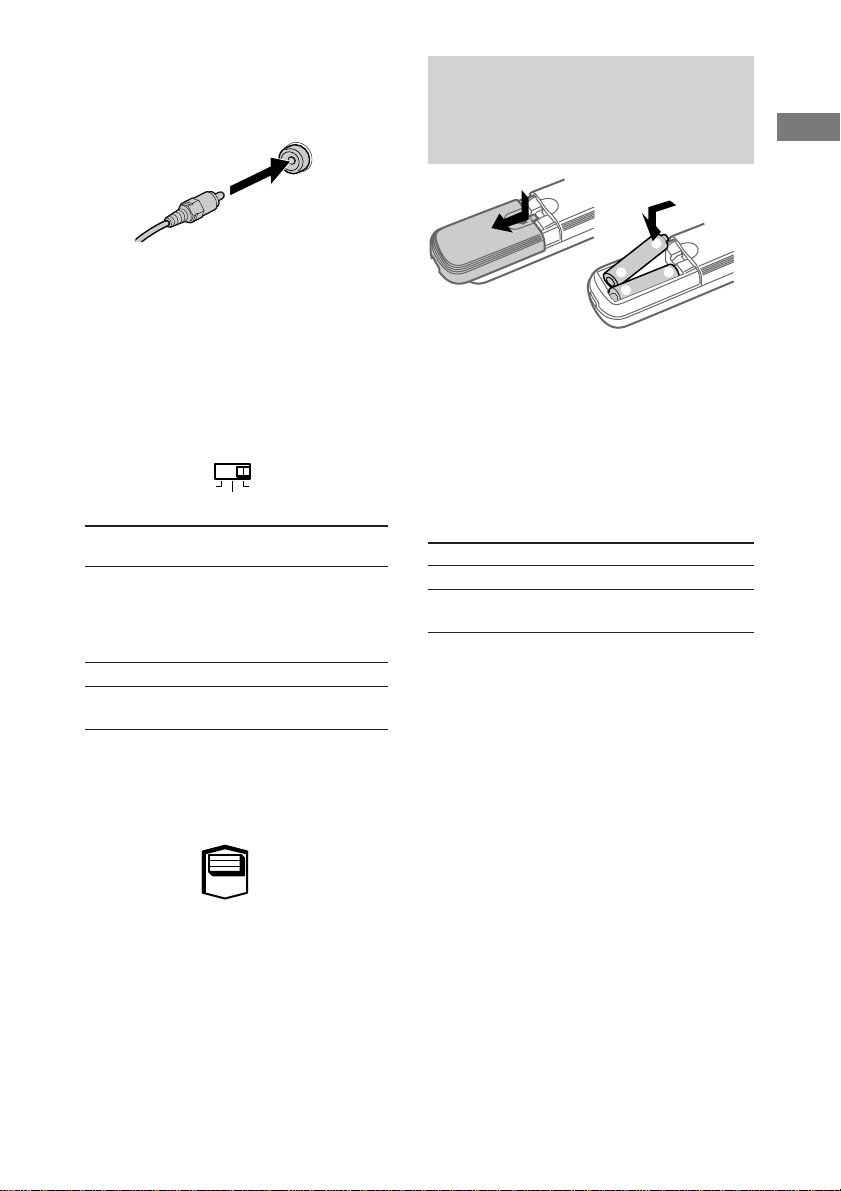

Inseting two size-AA (R6)

batteries into the remote

control

Tip

When the remote no longer operates the system,

replace both batteries with new ones.

Note

If you do not use the remote for a long period of time,

remove the batteries to prevent possible damage from

battery leakage and corrosion.

Using the remote

You can operate a Sony TV set.

Turn the TV on or off

Switch the TV’s video

input

Press

TV @/1.

TV/VIDEO.

Set SYSTEM SELECT

AUTO.

NTSC.

PAL.

Setting the time

1Turn on the system.

2Press CLOCK/TIMER SET on the

remote.

If you are setting the clock for the first time,

go to step 5.

3Press +/– on the remote repeatedly

until “SET CLOCK” appears in the

display.

4Press ENTER on the remote.

The hour indication flashes.

5Press +/– on the remote repeatedly to

set the hour.

6Press ENTER on the remote.

The minute indication flashes.

7Press +/– on the remote repeatedly to

set the minute.

8Press ENTER on the remote.

The clock will begin operating.

To reset the system clock

Start over from step 1.

VIDEO CD/CD

Loading the disc

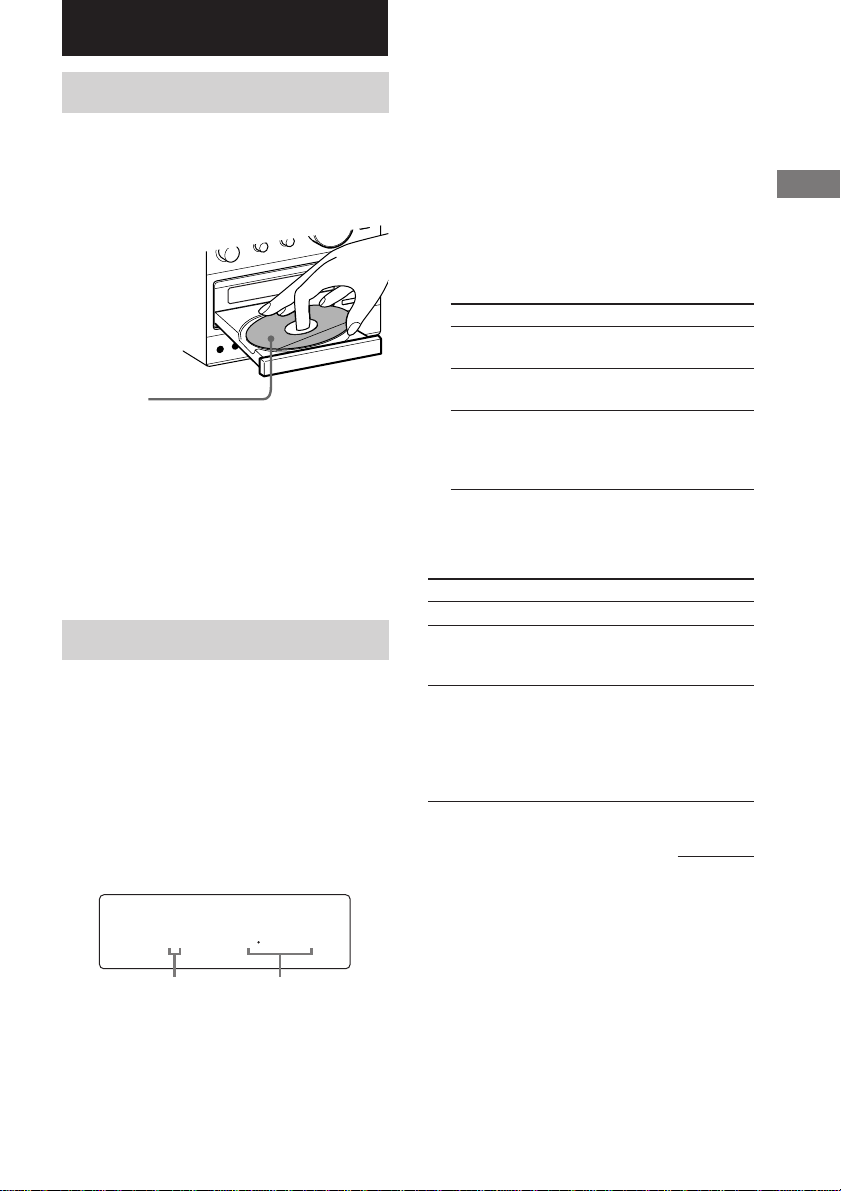

1Press CD EJECT Z.

The disc tray slides out.

2Load a disc onto the disc tray.

?/1

3Press CD EJECT Zagain to close the

disc tray.

Notes

• The disc cannot be viewed through the front

window when a CD/VIDEO CD single (8 cm CD/

VIDEO CD) is loaded.

• The characters printed on the disc appear upside

down when viewed through the front window.

Playing the VIDEO CD

–– Normal Play/Shuffle Play/Repeat

Play

You can play both VIDEO CDs without PBC

functions (Ver. 1.1) and VIDEO CDs with PBC

functions (Ver. 2.0).

You can enjoy two kinds of playback according

to the disc type. The PBC functions of VIDEO

CD (Ver. 2.0) are disabled during Shuffle and

Repeat Play.

1 105

Load with the

label side up.

When you play

a CD/VIDEO

CD single (8 cm

CD/VIDEO

CD), load it

onto the inner

circle of the

tray.

Track number Playing time

1Turn on your TV and select the video

input.

2Turn FUNCTION (or press FUNCTION

on the remote repeatedly) until “CD”

appears in the display.

The indicator surrounding the CD uand

CD xbuttons lights up.

You can switch the function to CD by

pressing the CD button on the remote.

3Press PLAY MODE repeatedly until the

mode you want appears in the display.

Select

No display

SHUFFLE

PGM

4Press CD u(or Non the remote).

Other Operations

Stop playback

Pause

Slow playback

To play

The VIDEO CD in original

order.

The tracks on the VIDEO CD in

random order.

The tracks on the VIDEO CD in

any order that you want (see

“Programming the CD/VIDEO

CD tracks” on page 11).

Do this

Press CD x.

Press CD u (or Xon the

remote).*1 Press again to

resume playback.

Press SLOW yon the

remote repeatedly.

The playback speed

changes as follows:

1/2t1/4t1/8t1/2 t

......

continued

Select a track or

scene*2

Find a point in a track

or scene (Lock Search

Function)

Remove the

VIDEO CD

Play repeatedly

(Repeat Play)

*1The video image may be somewhat unstable.

*2Except during PBC playback of a VIDEO CD with

PBC functions (Ver. 2.0). See this page for details

on PBC playback.

Playing a VIDEO CD with

PBC functions (Ver. 2.0)

–– PBC Play

You can use menus on your TV screen to enjoy

the disc’s interactive software. The menu

format and structure will differ with each disc.

1Start playing a VIDEO CD with PBC

functions (Ver. 2.0).

The PBC indicator lights up and a PBC

menu appears on your TV.

The indicator lights up during PBC

playback of a VIDEO CD with PBC

functions (Ver. 2.0). When the PBC

functions are not used (see below), the

indicator goes off.

2Press the numeric button(s) on the

remote to select the number that you

want from the menu.

3Follow the menu instructions to enjoy

interactive playback.

Stop playback

Go to the next scene or

track

Go back to the

preceding scene or

track

Go back to a previous

To cancel PBC

Playback of a VIDEO

CD with PBC

functions (Ver. 2.0)

Do this

Press CD ./>

repeatedly until you find the

desired track or scene.

During playback, press and

hold down CD m/M

until the system starts

searching.

1Press once to start

searching.

2Press again to increase the

search speed. Each time

you press the button, the

search speed changes as

follows:

1 (slow) t2 (normal)

t3 (high) t1 (slow)

t...

3Press CD u(or Non

the remote) to stop

searching at the desired

point.

Press CD EJECT Z.

Press REPEAT repeatedly

during playback until

“REPEAT” or “REPEAT 1”

appears in the display.

REPEAT: For all the tracks

on the VIDEO CD.

REPEAT 1: For only the

currently playing track.

To cancel playing

repeatedly, press REPEAT

repeatedly until “REPEAT”

and “REPEAT 1” disappear

from the display.

Do this

Press CD x.

Press NEXT on the remote.

Press PREV on the remote.

Press RETURN Oon the

remote.

• Before you start playing,

select the track you want

using CD ./>, then

press CD u(or Non

the remote).

• Before you start playing,

select the track number

using the numeric buttons

on the remote.

The PBC indicator goes off

and playback begins from

the selected track. Still

images, such as the menu

screens, will not be shown.

Playing the VIDEO CD (continued)

Table des matières

Autres manuels Sony Système stéréo

Sony

Sony CMT-EP313 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony HCD-GRX9000 Manuel utilisateur

Sony

Sony HCD-VR50 Manuel utilisateur

Sony

Sony LBT-N500 Manuel utilisateur

Sony

Sony HCD-GN600 Manuel utilisateur

Sony

Sony HCD-CPZ1DAB Manuel utilisateur

Sony

Sony MHC-RXD3 - 3 Ch Mini System Manuel utilisateur

Sony

Sony CMT-EX5 - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony AIR-SW10TI - Wireless Audio Transmitter... Manuel utilisateur

Sony

Sony CMT EH15 - Micro HI-FI Stereo Music System Manuel utilisateur

Sony

Sony TDM-BT1 - Digital Media Port Bluetooth... Manuel utilisateur

Sony

Sony SRS-XB2 Manuel utilisateur

Sony

Sony MHC-V50D Manuel utilisateur

Sony

Sony HCD-GX470 Manuel utilisateur

Sony

Sony HCD-RG490; HCD-RG590 Manuel utilisateur

Sony

Sony HCD-RG121 Manuel utilisateur

Sony

Sony CMT-CP33MD - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony LBT-XGR99AV Manuel utilisateur

Sony

Sony CMT-HPR99XM Manuel utilisateur

Sony

Sony HCD-441 Manuel utilisateur

Sony

Sony GTK-XB72 Guide de référence

Sony

Sony RDP-X200iPN Manuel utilisateur

Sony

Sony ZS-2000 Primary Manuel utilisateur

Sony

Sony DHC-FLX7D Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
