WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

Do not install the appliance in a confined space,

such as a bookcase or built-in cabinet.

This appliance is classified as

a CLASS 1 LASER product.

This label is located on the

rear exterior.

To prevent fire, do not cover the ventilation of the

apparatus with news papers, table-cloths, curtains,

etc. And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away the battery with

general house waste, dispose of it

correctly as chemical waste.

NOTICE FOR THE CUSTOMERS IN EUROPE

The following caution label is located inside the

apparatus.

For all customers (except those in

Europe) ENERGY STAR®is a U.S.

registered mark.

As an ENERGY STAR®partner,

Sony Corporation has determined

that this product meets the

ENERGY STAR®guidelines for

energy efficiency.

* European model only

Table of Contents

List of Button Locations and

Reference Pages

Main unit ............................................... 4

Remote control ...................................... 5

Getting Started

Hooking up the system .......................... 6

Preparing the remote ............................. 9

Using the wall hanging bracket ............. 9

Replacing the battery in the remote..... 10

Setting the clock .................................. 10

Loading the CD ...................................11

Playing the CD

— Normal Play/Shuffle Play/

Repeat Play ................................... 11

Programing the CD tracks

— Program Play ............................ 12

Labelling a CD

— Disc Memo ...............................13

Tuner

Presetting radio stations.......................15

Listening to the radio

—

Preset Tuning/Manual Tuning ...

Labelling the preset stations

— Station Name ............................ 17

Using the Radio Data System (RDS)

* ... 17

Sound Adjustment

Adjusting the sound

— DSG .......................................... 18

Timer

Falling asleep to music

— Sleep Timer .............................. 18

Waking up to music

— Daily Timer .............................. 19

Display

Turning off the display

— Power Saving Mode ................. 20

Changing the illumination level .......... 20

Using the display ................................. 20

Optional Components

Hooking up optional components........ 22

Listening to audio from a connected

component ..................................... 23

Recording on a connected component ...

Troubleshooting

Problems and remedies........................ 24

Self-diagnosis display.......................... 25

Additional Information

Precautions .......................................... 26

Specifications ...................................... 27

List of Button Locations and Reference Pages

How to use this page

Use this page to find the location of buttons and other

parts of the system that are mentioned in the text.

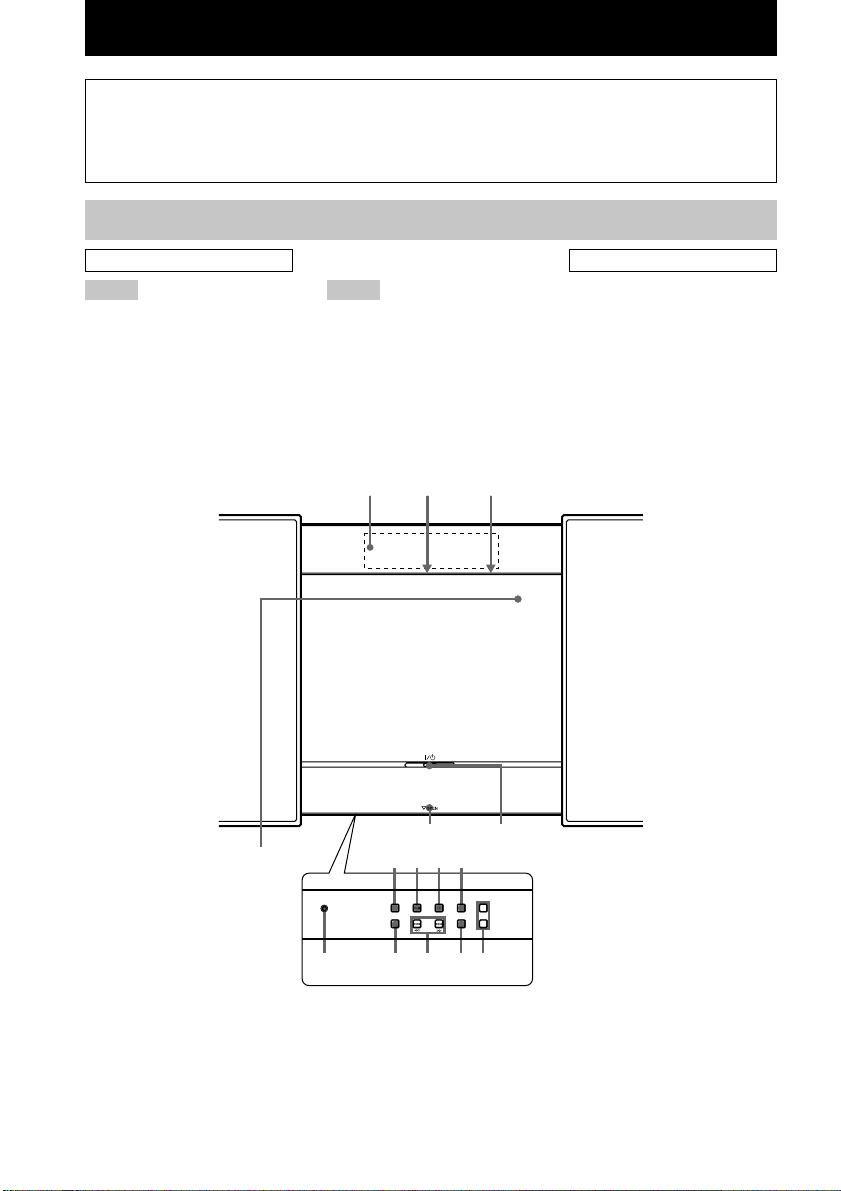

Main unit

ALPHABETICAL ORDER

A – F

CD cover 2(11)

CD u7(11 - 13)

CD x8(11, 12)

DISPLAY 6(17, 20, 21)

Display 1(20, 21)

FUNCTION qa (11 - 14, 16, 23,

25)

P – Z

PHONES jack qf

PLAY MODE/TUNING MODE

qd (11 - 16, 25)

Remote sensor qg

TUNER/BAND 9(15, 16, 25)

TUNING +/– qs (15, 16)

VOL +/– 0(19)

Illustration number

PLAY MODE qg (9, 13, 14)

Name of button/part Reference page

12 3

6789

q;qaqsqd

BUTTON DESCRIPTIONS

@/1(power) 4(8, 19)

./>qs (11 - 13)

m/Mqs (11)

Z3(11)

VOPEN 5

To open the front cover, push

down on VOPEN.

List of Button Locations and Reference Pages

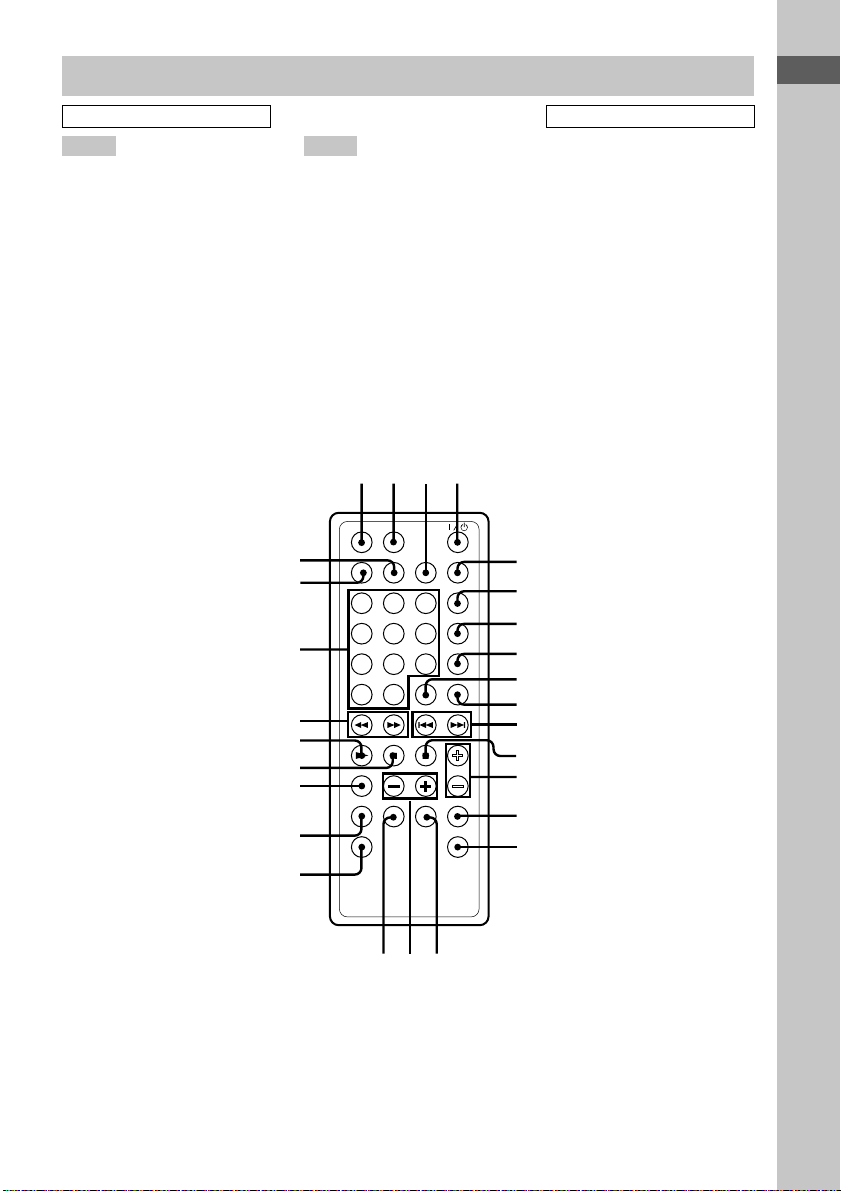

Remote control

ALPHABETICAL ORDER

A – F

CD Nwd (11 - 13)

CD Xws (11)

CD xqs (11, 12)

CLEAR 9(12, 13, 17)

CLOCK/TIMER SELECT 6

(19)

CLOCK/TIMER SET 7(10, 19)

CURSOR T/twf (10, 13)

DIMMER ql (20)

DISPLAY wh (17, 20, 21)

DSG qf (18)

ENTER/YES 8(10, 12 - 15, 17,

19, 23)

FM MODE qh (16)

FUNCTION w; (11 - 14, 16, 23)

L – Z

Letter/Numeric buttons wg (12,

13, 16)

MENU/NO q; (13 - 17, 23)

NAME EDIT/SELECT 3(13,

17)

PLAY MODE/TUNING MODE

qk (11 - 16)

PRESET EQ qg (18)

REPEAT qh (11)

SCROLL 5(14, 21)

SLEEP 2(18)

TIME wj (12, 20, 21)

TUNER BAND wa (15, 16)

TUNING +/– qj (15, 16)

VOL +/– qd (19)

1234

qhqjqk

BUTTON DESCRIPTIONS

@/1(power) 4(8, 19)

./>qa (10 - 14, 19)

m/Mwf (11)

Z1(11)

2Attach the speakers.

Afterwards, push down on the speakers to

make sure they are securely fastened to the

main unit.

Getting Started

Hooking up the system

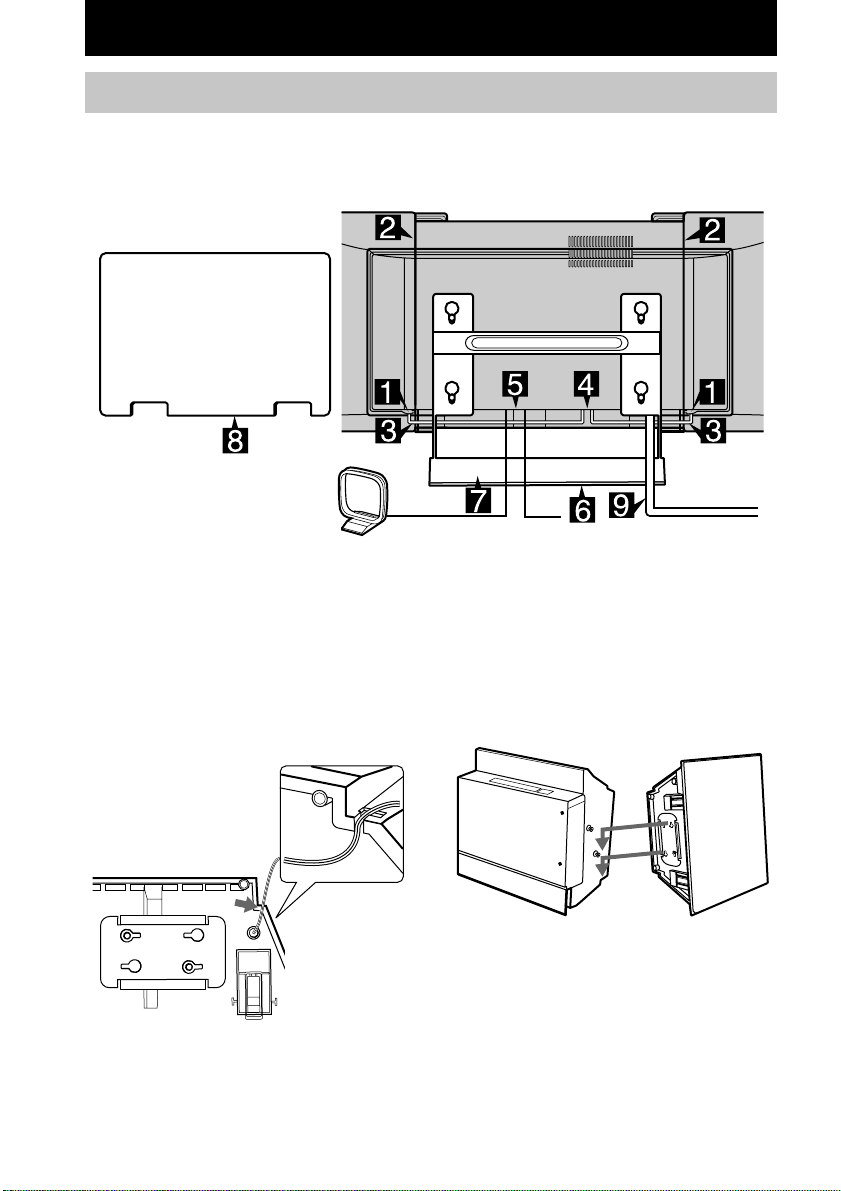

Perform the following procedure 1to 9to hook up your system using the supplied cords and

accessories.

1Set the speaker cord into the speaker

cord groove at the bottom of the

speaker.

Otherwise, the speaker cord could be

damaged.

AM loop antenna

Left speaker

Right speaker

FM antenna

The rear cover

Desktop stand

Before attaching the system to the stand, draw the

wires under the horizontal bar of the stand.

Otherwise, the wires could be damaged.

Getting Started

3Secure the speaker cords with the

speaker cord hooks at the bottom of

the main unit.

Otherwise, the speaker cord could be

damaged.

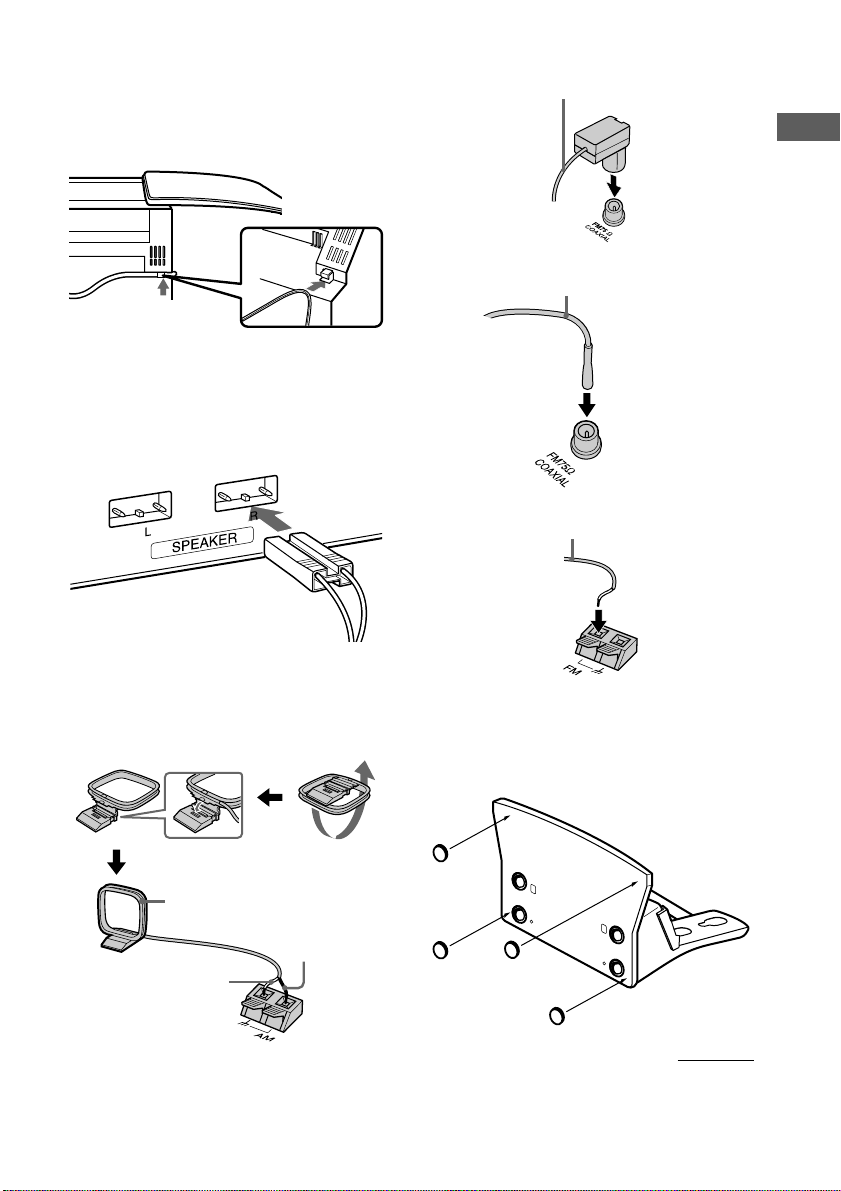

4Connect the speaker cords.

Connect the speaker cords to the SPEAKER

jacks as shown below.

5Connect the FM and AM antennas.

Set the AM loop antenna up before

connecting it.

AM antenna

FM antenna (Jack type A)

FM antenna (Jack type B)

FM antenna (Jack type C)

6Attach the stand pads.

Attach the supplied stand pads to the bottom

of the stand to stabilize the stand and to

prevent it from slipping.

continued

AM loop

antenna

White

Extend the FM wire antenna horizontally

Black

Extend the FM wire antenna horizontally

Bend a speaker cord slightly, insert it

into the hole and secure it with the hook.

Extend the FM wire antenna horizontally

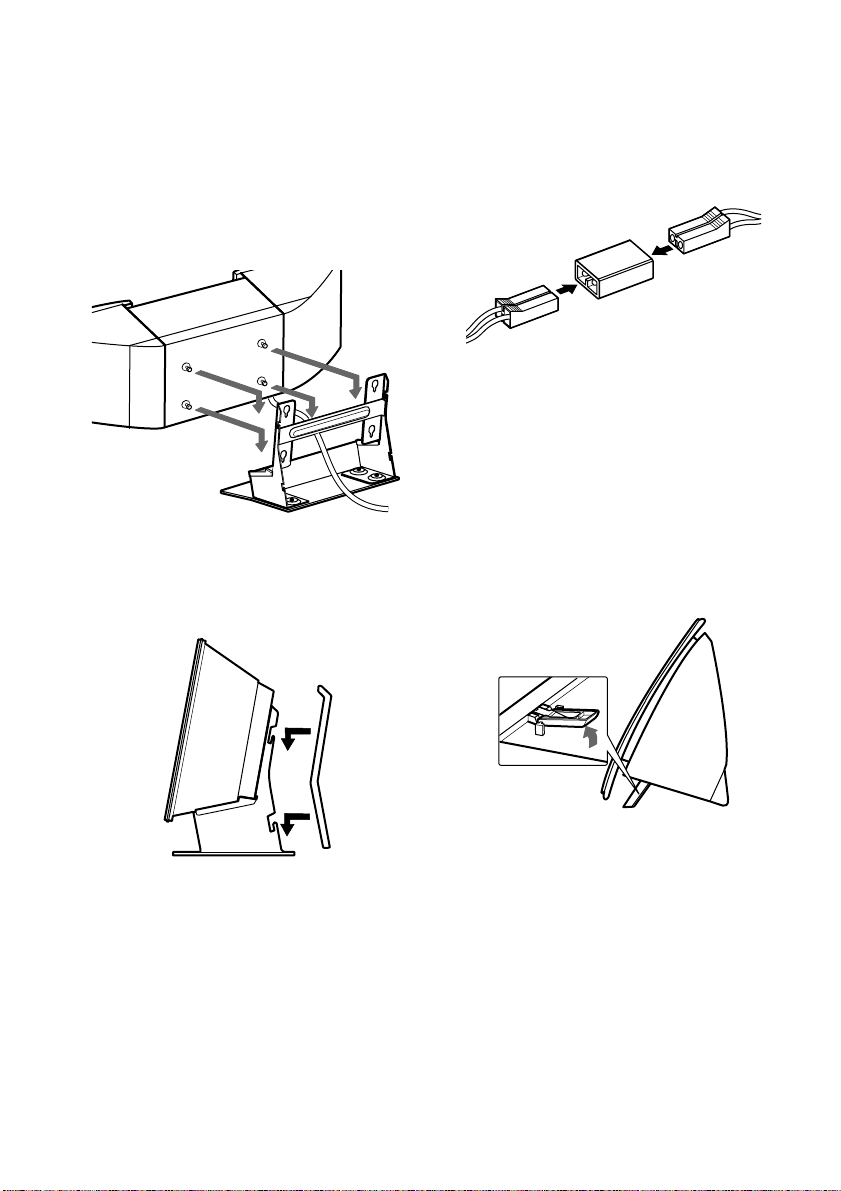

7Attach the system to the supplied

desktop stand.

Make sure to grasp the main unit, and not

the speakers.

After attaching the system to the stand, push

down on the system to make sure they are

securely fastened to the stand.

8Attach the supplied rear cover to the

stand.

Put the wires through the holes at the

bottom of the rear cover.

9Connect the power cord to a wall outlet.

If the plug does not fit the wall outlet, attach

the supplied plug adaptor (only for models

equipped with an adaptor).

To turn on the system, press @/1.

Using the system with the

speakers detached

1Connect one end of the supplied joint

connector to the speaker cord, and then

connect the supplied cord extension to the

other end of the joint connector.

2Connect the cord extensions to the

SPEAKER jacks.

3Secure the cord extensions with the speaker

cord hooks at the bottom of the main unit.

Otherwise, the cord extension could be

damaged.

4Attach the system to the supplied desktop

stand.

5Attach the supplied rear cover to the stand.

6After folding up the speaker legs, set the

speakers at the desired positions.

Notes

• Either mount both speakers or remove both

speakers. Do not use the system with only one

speaker mounted.

• When moving the system, first detach the main unit

from the desktop stand, and then move the system.

If you leave the speakers attached during the move,

make sure to grasp the system by the main unit, and

not by the speakers.

Hooking up the system (continued)

Getting Started

Preparing the remote

Pull out the insulating sheet to allow

power to flow from the battery.

The remote already contains a battery.

Using the wall hanging

bracket

You can hang the system on the wall using the

supplied wall hanging bracket.

The screws for attaching the wall hanging

bracket to the wall are not supplied. When

installing the bracket by yourself, be sure to use

screws appropriate for the type of wall. Sony

cannot take responsibility for any damages or

injury due to installation.

Safety precautions

• The supplied bracket is for use with the Sony

Interior Hi-Fi Component System CMT-L1 only.

Using this item for purposes other than to hang

the system on the wall may result in accidents.

• The component system CMT-L1 (7.1 kg) and the

wall hanging bracket (0.6 kg) have a combined

weight of 7.7 kg. Therefore, for safety reasons,

the bracket should be attached securely to a wall

made from materials capable of supporting a

load of 50 kg or more.

• When you hang the system on the wall, make

sure the left and right speakers are both attached

or both detached. Attaching one speaker without

the other may cause the system to drop and

injure someone.

Preparation

• The screws for attaching the wall hanging

bracket to the wall are not supplied. Be sure

to purchase screws suited to the wall

materials.

• If the wall materials cannot support a load of

50 kg or more, be sure to reinforce the wall.

Hanging the system on the

wall

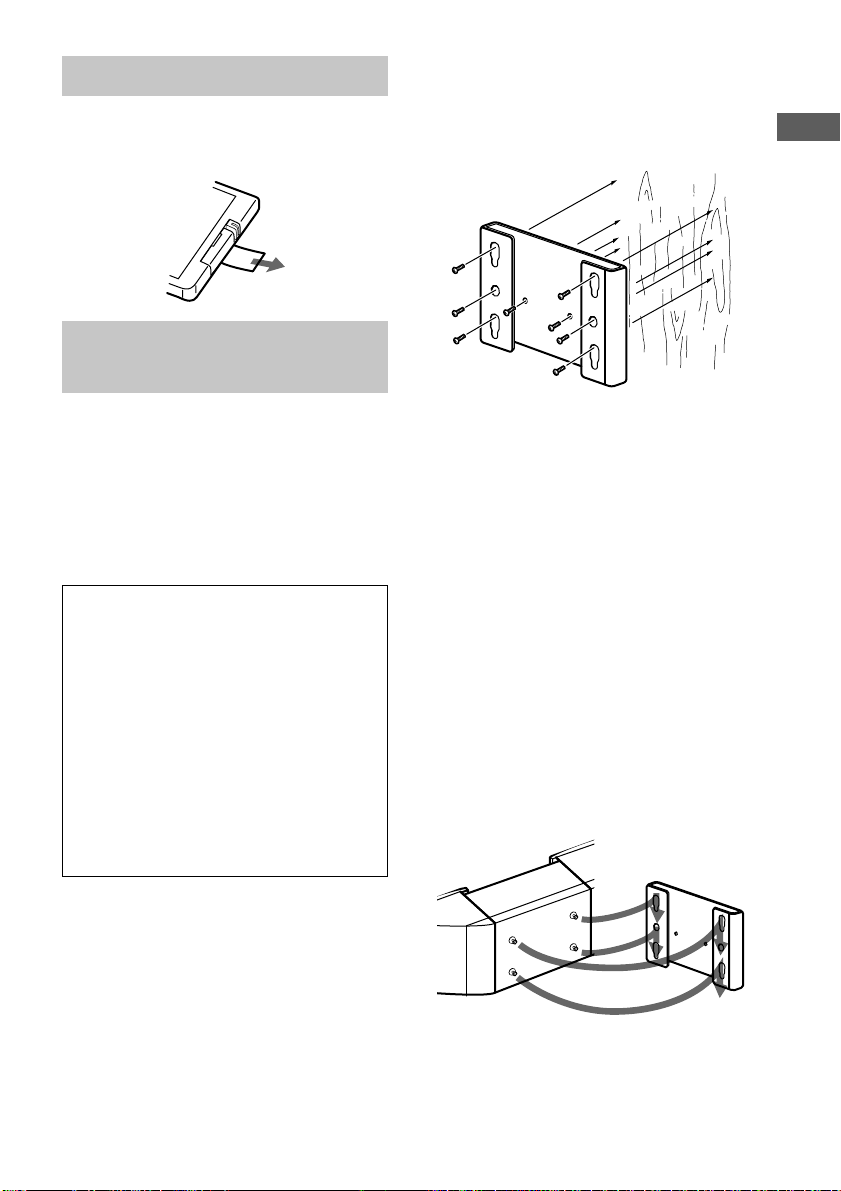

1Fix the wall hanging bracket to the wall

using 8 screws (not supplied).

Note

Be sure to secure the bracket in a level position.

2Set the speaker cord into the speaker cord

groove at the bottom of the speaker.

Otherwise, the speaker cord could be

damaged.

3Attach the speakers.

Afterwards, push down on the speakers to

make sure they are securely fastened to the

main unit.

4Connect the speaker cords to the SPEAKER

jacks.

5Attach the system to the wall hanging

bracket which you have fixed to the wall.

Make sure to grasp the main unit, and not the

speakers.

After attaching the system to the bracket,

push down on the system to make sure they

are securely fastened to the bracket.

Replacing the battery in

the remote

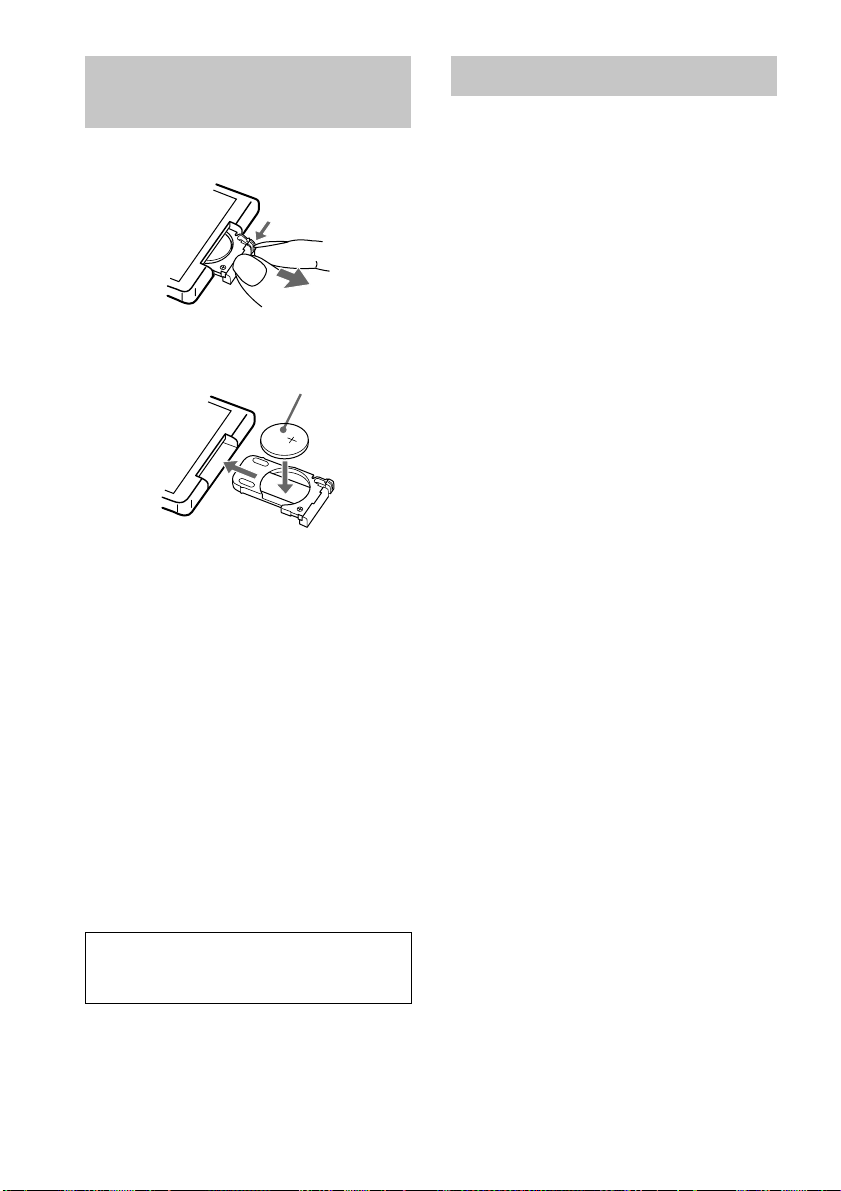

1Slide out and remove the battery case.

2Insert a new lithium battery CR2025

with the + side facing up.

3Slide the battery case back in.

Tip

When the battery no longer operates the remote,

replace the battery with a new one.

Note

If you are not going to use the remote for a long time,

remove the battery to avoid damage caused by

corrosion from battery leakage.

Notes on lithium battery

• Keep the lithium battery out of the reach of

children.

Should the battery be swallowed, immediately

consult a doctor.

• Wipe the battery with a dry cloth to assure a good

contact.

• Be sure to observe the correct polarity when

installing the battery.

• Do not hold the battery with metallic tweezers,

otherwise a short-circuit may occur.

WARNING

Battery may explode if you mistreated.

Do not recharge, disassemble or dispose of in fire.

Setting the clock

1Turn on the system.

2Press CLOCK/TIMER SET on the

remote.

3Press .or >on the remote

repeatedly to set the day, and then

press ENTER/YES or CURSORton

the remote.

The hour indication flashes.

4Press .or >on the remote

repeatedly to set the hour, and then

press ENTER/YES or CURSORton

the remote.

The minute indication flashes.

5Press .or >on the remote

repeatedly to set the minute, and then

press ENTER/YES on the remote.

If you make a mistake

Press TCURSOR or CURSORton the

remote repeatedly until the indication you want

to change (day, hour, minute) flashes, and then

change the setting.

To adjust the clock

1Press CLOCK/TIMER SET on the remote.

2Press .or >on the remote repeatedly

until “CLOCK SET?” appears in the display,

and then press ENTER/YES on the remote.

3Do the same procedures as steps 3 to 5

above.

a lithium battery CR2025

Autres manuels pour CMT-L1 - Micro Hi Fi Component System

Table des matières

Langues :

Autres manuels Sony Système stéréo

Sony

Sony DHC-MD555 - Mini Hi Fi Component System Manuel utilisateur

Sony

Sony LBT-XGR600 - Compact Hi-fi Stereo System Manuel utilisateur

Sony

Sony HCD-V3900 Manuel utilisateur

Sony

Sony MHC-GT55 Manuel utilisateur

Sony

Sony GTK-XB60 Manuel utilisateur

Sony

Sony MHC-RG295 Manuel utilisateur

Sony

Sony LBT-D670AV - Compact Hifi Stereo System Manuel utilisateur

Sony

Sony MHC-GX99 Manuel utilisateur

Sony

Sony MEXBT3800 Manuel utilisateur

Sony

Sony ZS-Y2L Manuel utilisateur

Sony

Sony HCD-FR50 Manuel utilisateur

Sony

Sony MHC-EC78Pi - Mini Hi-fi Component System Manuel utilisateur

Sony

Sony LBT-ZX6 Manuel utilisateur

Sony

Sony LBT-G2500 - Lbt Electronics Manuel utilisateur

Sony

Sony CMT-EH20DAB Manuel utilisateur

Sony

Sony HCD-GN660 Manuel utilisateur

Sony

Sony MHC-RXD3 - 3 Ch Mini System Manuel utilisateur

Sony

Sony SRS-X1 Manuel utilisateur

Sony

Sony CMT-HP8V Manuel utilisateur

Sony

Sony CMT-M90DVD - Micro Hi Fi Component System Manuel utilisateur

Sony

Sony ICF-CS15IPBLKN Guide de l'utilisateur

Sony

Sony CMT-HX7BT Manuel utilisateur

Sony

Sony HCD-MC3AV Manuel utilisateur

Sony

Sony LBT-ZTX7 - Compact Hi-fi Stereo System Manuel utilisateur

Manuels Système stéréo populaires d'autres marques

LG CM3330B Manuel utilisateur

Cetacea Sound

Cetacea Sound CVS-II Manuel utilisateur

Aiwa

Aiwa XR-H66MD Manuel utilisateur

Denon

Denon UCD-250 Manuel utilisateur

Sanyo

Sanyo DC-MX41i Manuel utilisateur

Sharp

Sharp CD-ES600V Manuel utilisateur

Exibel

Exibel BDX600-UK Manuel utilisateur

Sanyo

Sanyo DC-F320 Manuel utilisateur

Philips

Philips FWM583X Manuel utilisateur

Sharp

Sharp CD-C462 Manuel utilisateur

Onkyo

Onkyo CBX 300 - CD / MP3 Clock Radio Manuel utilisateur

Aiwa

Aiwa XR-EM70 Manuel utilisateur

Cyrus

Cyrus Lyric Manuel utilisateur

Philips

Philips MCM159/98 Manuel utilisateur

Philips/Magnavox

Philips/Magnavox Magnavox FW 62C Manuel utilisateur

RCA

RCA RS3965SB Manuel utilisateur

Sharp

Sharp XL-UH240 Manuel utilisateur

Philips

Philips FW 690 Manuel utilisateur
