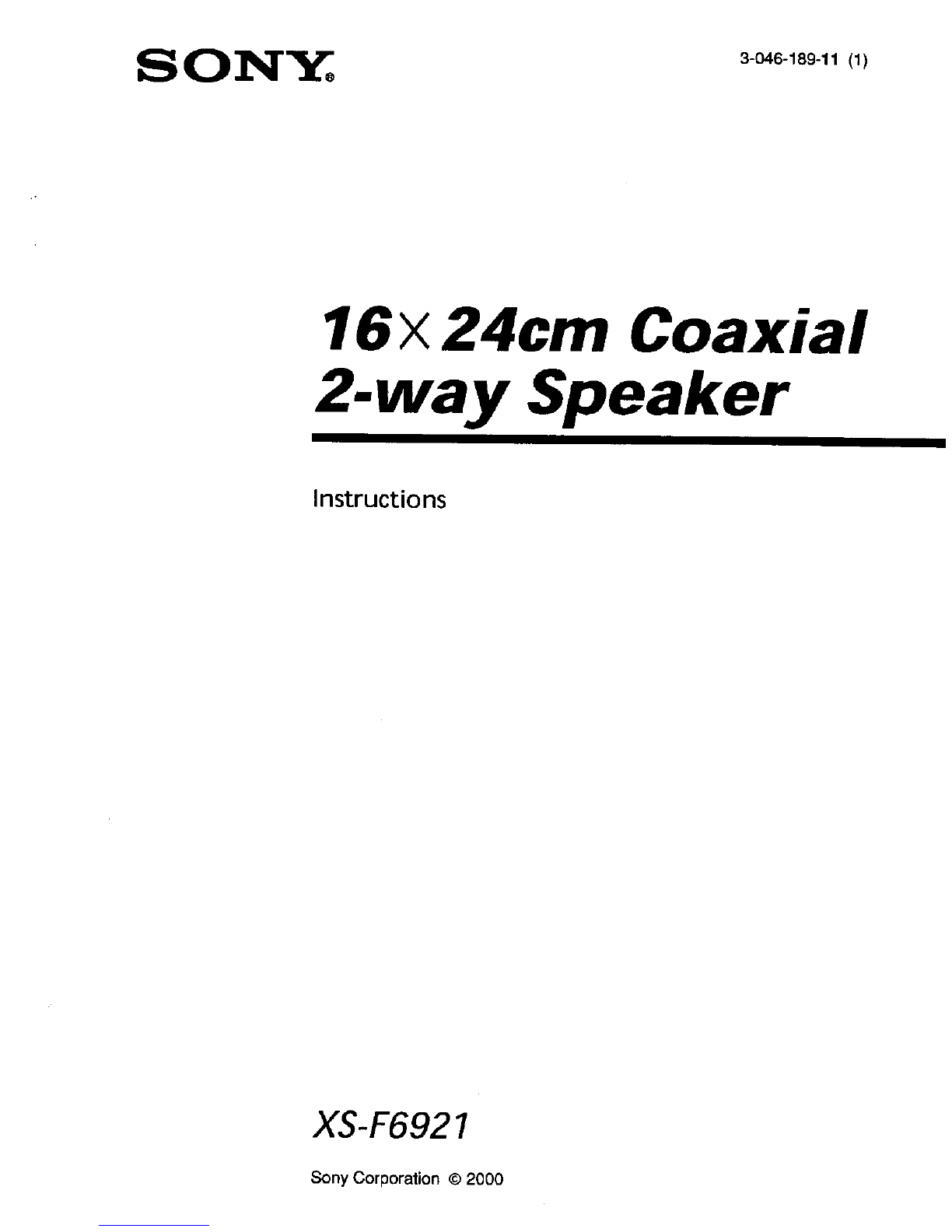

Sony XS-F6921 Manuel utilisateur

16 x24cm Coaxia I

2.way Speaker

Instructions

XS-F6921

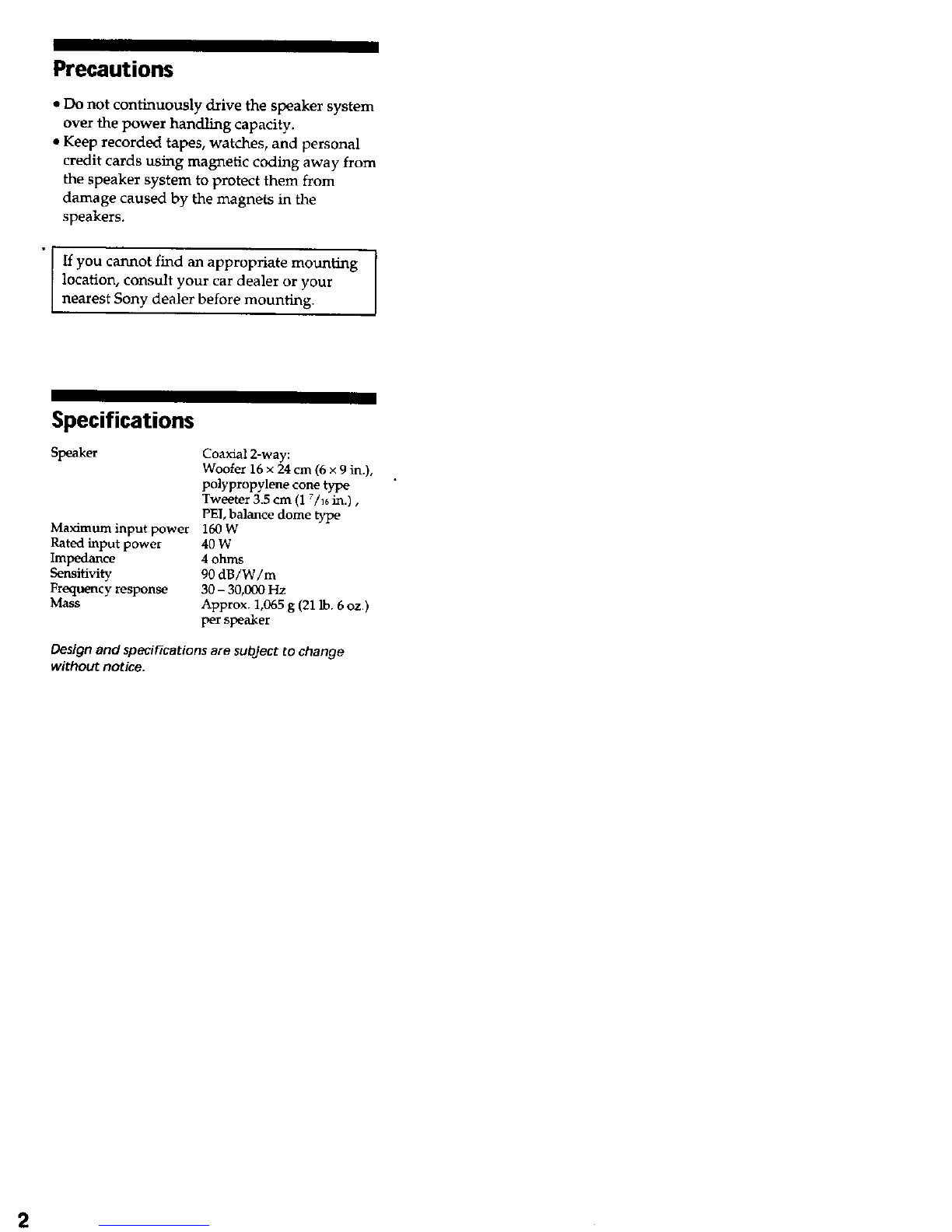

Precautions

•Do not continuously drive the speaker system

over the power handling capacity.

•Keep recorded tapes, watches, and personal

credit cards using magnetic coding away from

the speaker system to protect them from

damage caused by the magnets in the

speakers.

• If you cannot find an appropriate mounting

location, consult your car dealer or your

nearest Sony dealer before mounting.

Specifications

Speaker

Maximum input power

Rated input power

Impedance

Sensitivity

Frequency response

Mass

Coaxial 2-way:

Woofer 16 x24 cm (6 x 9in.),

polypropylene cone type

Tweeter 3.5 cm (1 7/16 in.),

PEI, balance dome type

160 W

4OW

4 ohms

90 dBiW/m

30 - 30,000 Hz

Approx. 1,065 g(21 lb. 6 oz.)

per speaker

Design and specifications are subject to change

without notice.

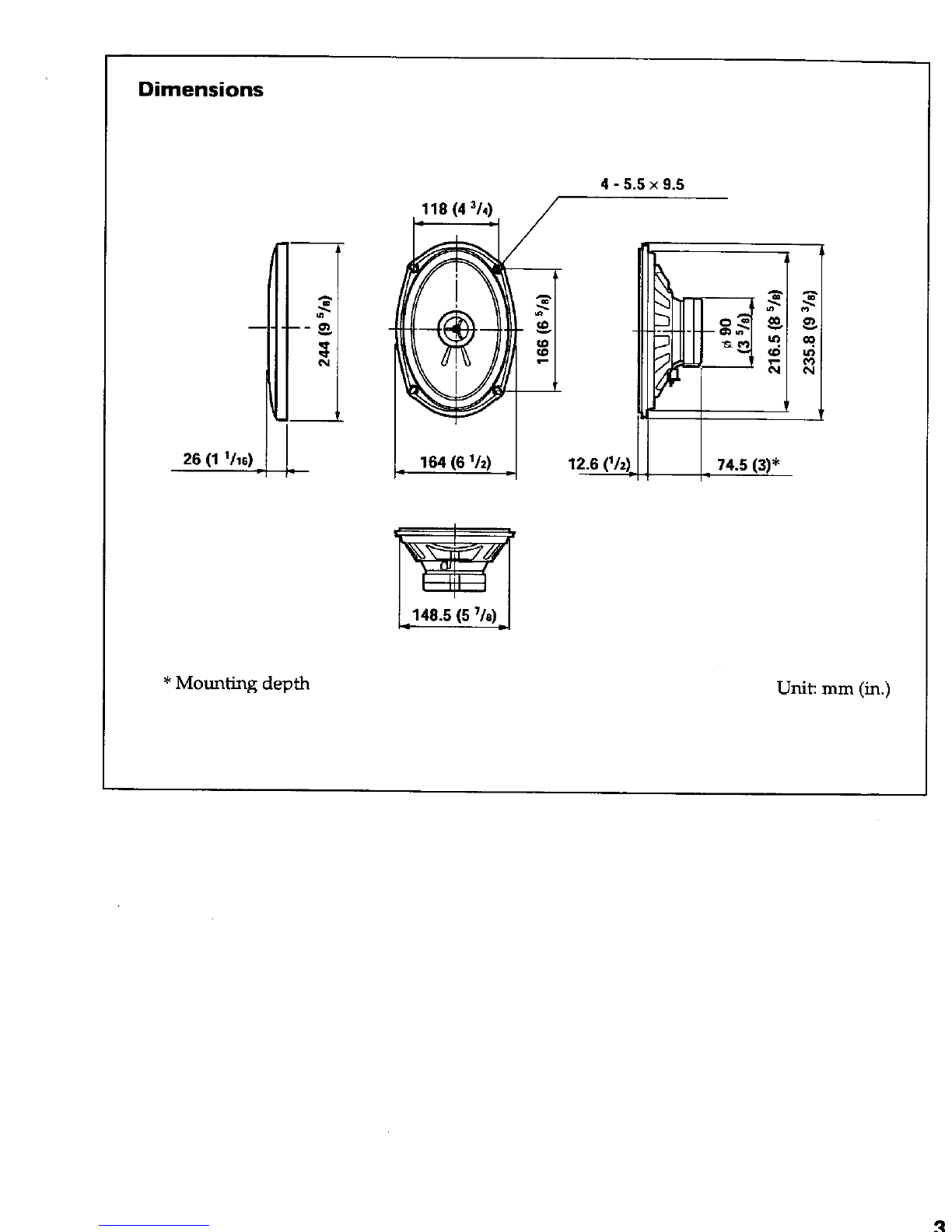

Dimensions

26 (1 1116)

118 (4 31,)

164 (6 1/2)

4-5.5×9.5

12.6 (llz _74.5 (3)*

* Mounting depth Unit: mm (in.)

Mounting

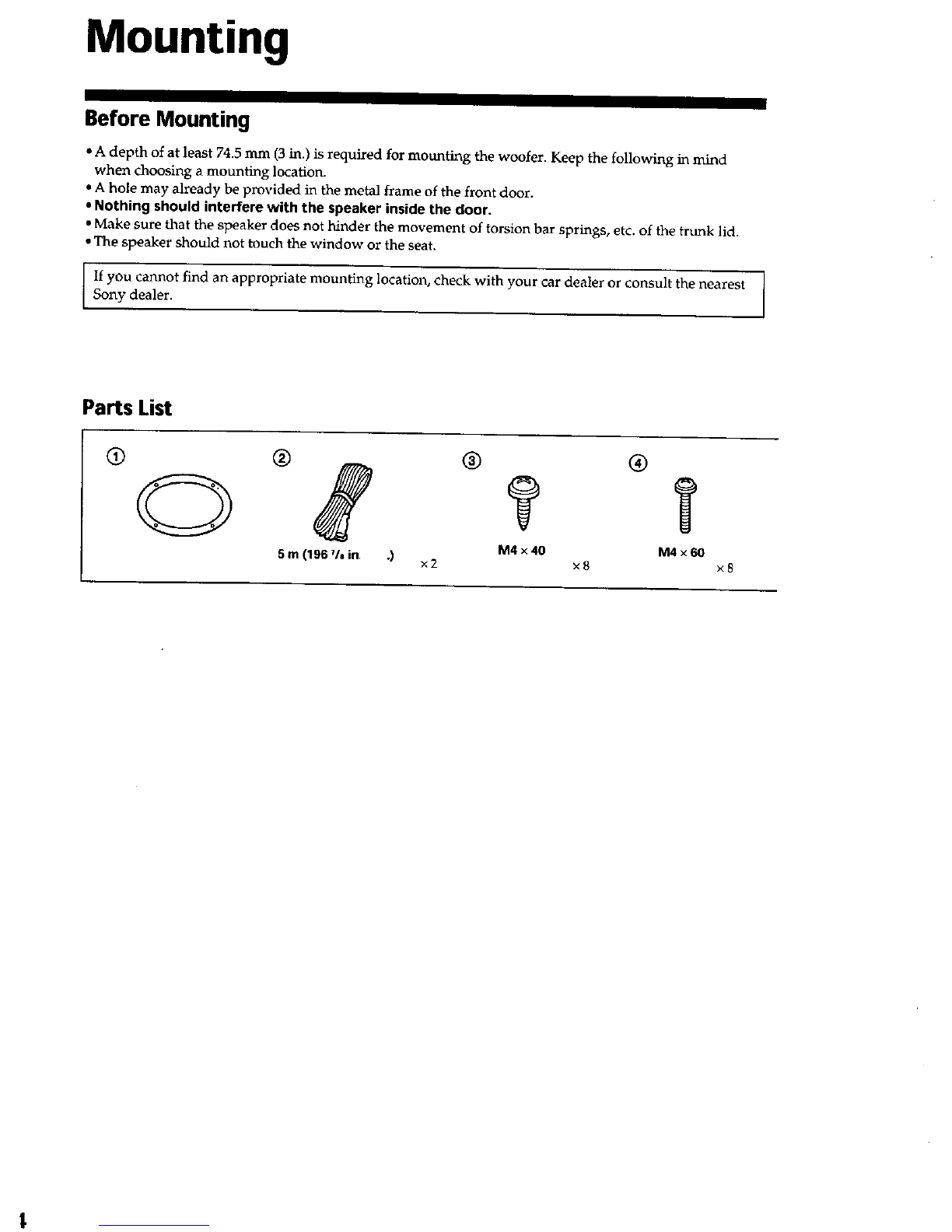

Before Mounting

• A depth of at least 74.5 rnm (3 in.) is required for mounting the woofer. Keep the following in mind

when choosing a mounting location.

• A hole may already be provided in the metal frame of the front door.

•Nothing should interfere with the speaker inside the door.

• Make sure that the speaker does not hinder the movement of torsion bar springs, etc. of the trunk lid.

• The speaker should not touch the window or the seat.

If you cannot find an appropriate mounting location, check with your car dealer or consult the nearest

Sony dealer.

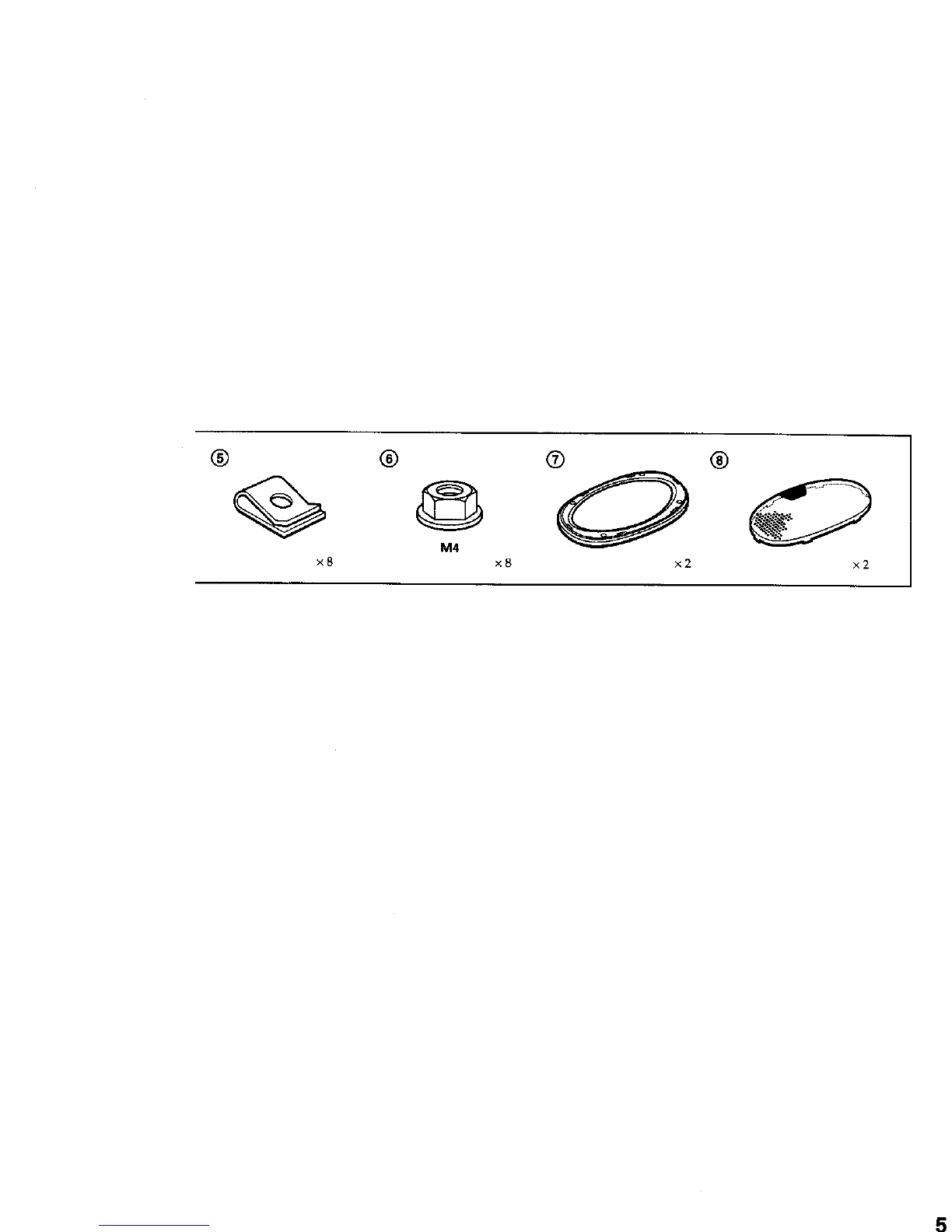

Parts List

@ ® ® ®

M4 x40 M4 x60

5m (196?bin ") ×2 x8 x8

®©

M4 x8

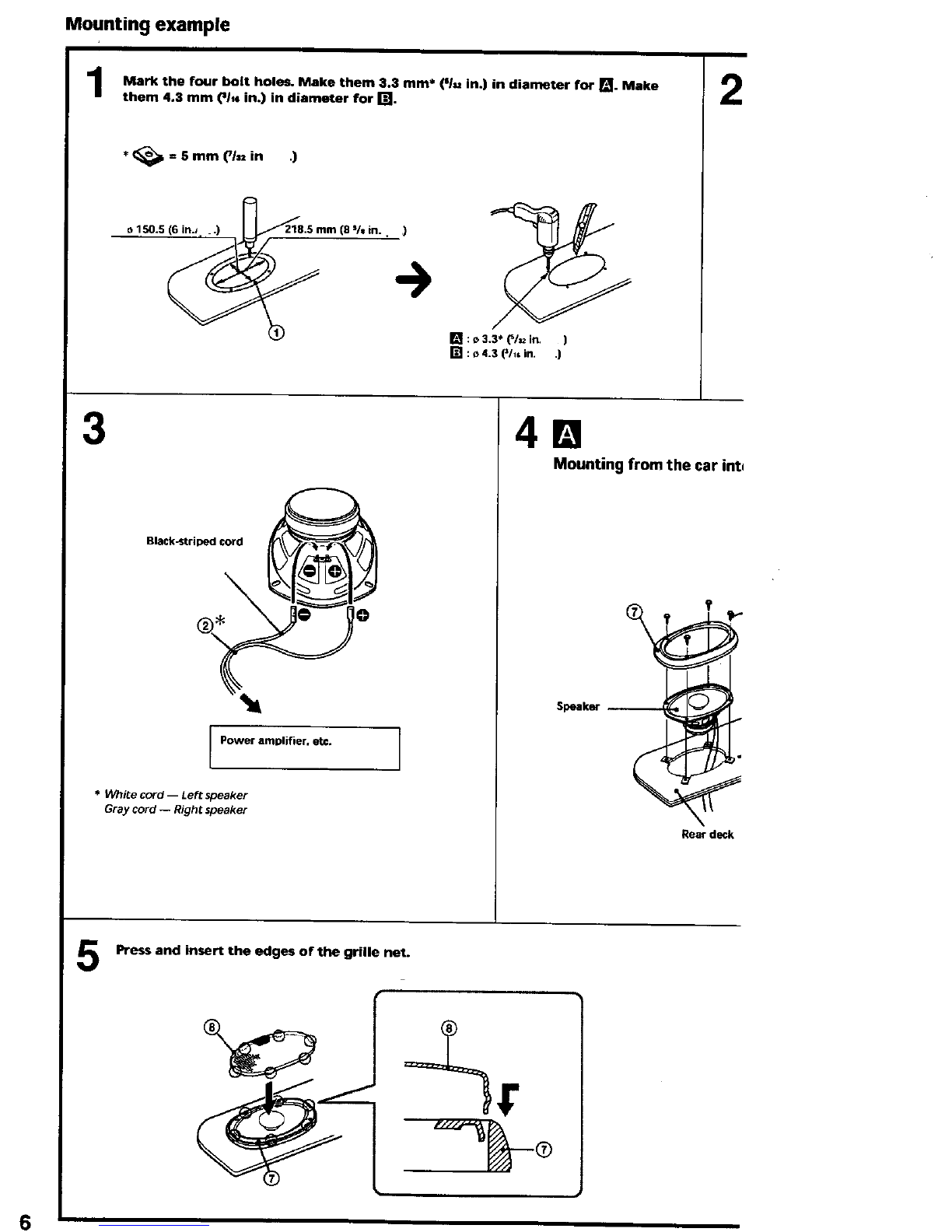

Mounting example

Mark the four bolt holes. Make them 3.3 mm* (sl_ in.) in diameter for I_. Make

them 4.3 mm (:h* in.) in diameter for r_l.

* _ : 5 mm Clazin .)

:e3.3* (s/_ in.

[] :e4.3 (_/_, in. )

Blafk_triped cord

\p@

IPower amplifier, etc.

*White cord -- Left speaker

Gray cord -- Right speaker

Mounting from the car int_

Speaker

Rear deck

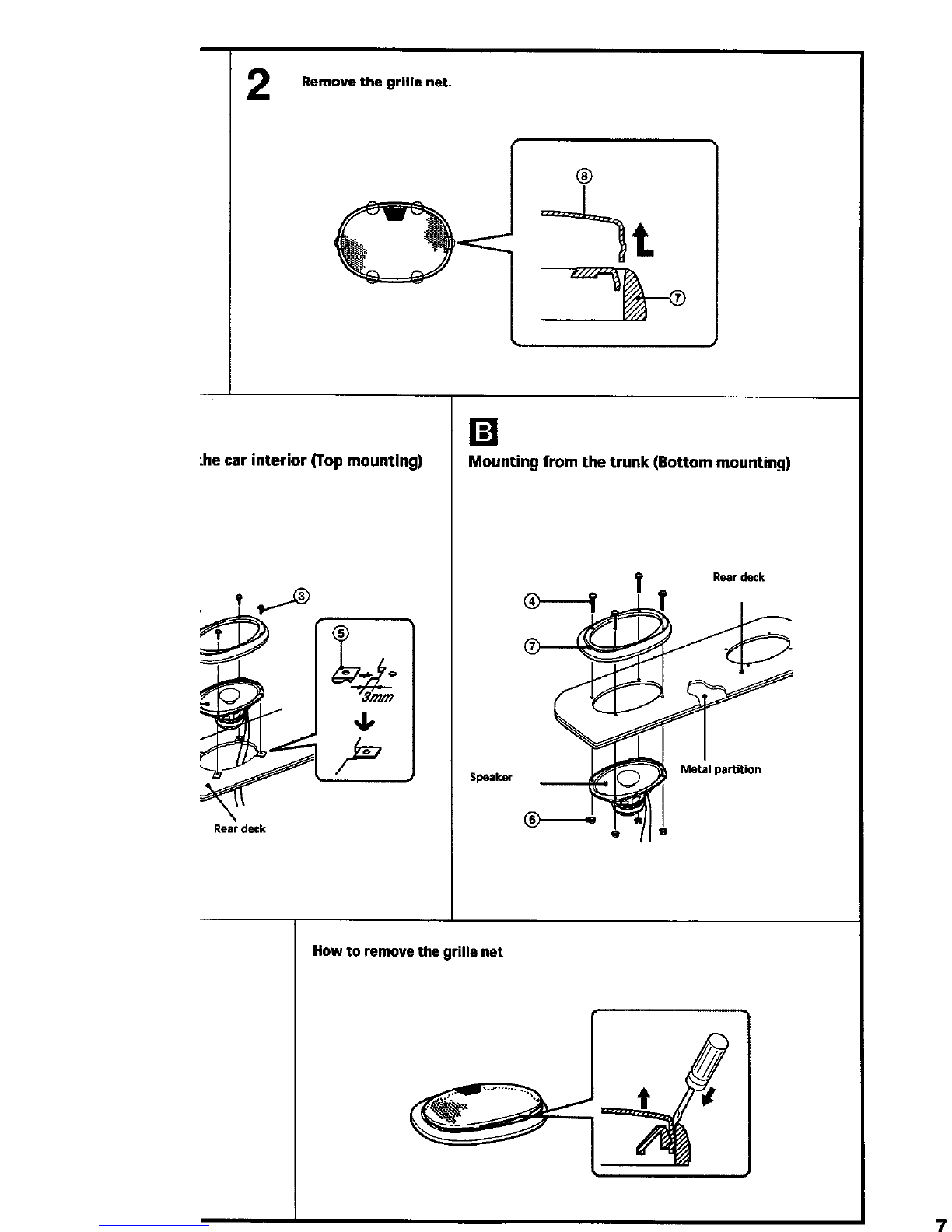

5Press and insert the edges of the grille net.

Remove the grille net.

:hecar interior (Top mounting)

Rear deck

Mounting from the trunk (Bottom mountin_q)

Rear deck

Speaker Metal partition

How to remove the grille net

SonyOline http'.//www.world.sony.com/

Sony Corporation Printed in USA
