Wireless Speaker
System
2-695-065-12(1)
Operating Instructions
SRS-BTM30
©2006 Sony Corporation
2
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of electrical shock, do
not open the cabinet. Refer servicing to
qualified personnel only.
Do not install the appliance in a confined
space, such as a bookcase or built-in cabinet.
To reduce the risk of fire, do not cover the
ventilation of the apparatus with newspapers,
tablecloths, curtains, etc. And do not place
lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do
not place objects filled with liquids, such as
vases, on the apparatus.
Connect the AC power adaptor to an easily
accessible AC outlet. Should you notice an
abnormality in the AC power adaptor, disconnect
it from the AC outlet immediately.
Hereby, Sony Corp., declares that this equipment
is in compliance with the essential requirements
and other relevant provisions of Directive 1999/
5/EC.
For details, please access the following URL:
http://www.compliance.sony.de/
WARNING
Disposal of Old Electrical &
Electronic Equipment
(Applicable in the European
Union and other European
countries with separate
collection systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the
recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve
natural resources. For more detailed information
about recycling of this product, please contact
your local Civic Office, your household waste
disposal service or the shop where you purchased
the product.
The Bluetooth word mark and logos are owned
by the Bluetooth SIG, Inc. and any use of such
marks by Sony Corporation is under license.
Other trademarks and trade names are those of
their respective owners.
MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and
Thomson.
3
Table Of Contents
Features ..................................... 4
Using the BLUETOOTH connection .. 5
Unpacking .................................. 6
Location and Function
of Parts ................................... 7
Power Sources .......................... 8
Using on the mains .............................. 8
Using with batteries ............................. 8
Installing the Speaker ............... 9
Using the BLUETOOTH
Connection ........................... 10
On pairing .......................................... 10
On indicators ..................................... 10
Pairing with a source device .............. 11
Listening to the sound ....................... 12
Using by Connecting with a
Cord ...................................... 14
Hooking up the speaker ..................... 14
Listening to the sound ....................... 15
Precautions.............................. 16
What is BLUETOOTH
technology? ......................... 18
Troubleshooting ...................... 19
Common ............................................ 19
When using the BLUETOOTH
connection ..................................... 19
Initializing This Unit ................ 20
Specifications .......................... 21
4
Features
This unit is a wireless speaker system that uses BLUETOOTH™ wireless technology. You
can enjoy listening to the sound wirelessly with your mobile phone, personal computer,
portable music player or other BLUETOOTH supported device.*
*BLUETOOTH devices to be connected with this unit are required to support A2DP (Advanced Audio
Distribution Profile).
Powerful wireless sound
•Supports BLUETOOTH wireless technology
•Built-in high power (6 W) amplifier
•Super-sensitivity neodymium magnets provide high quality sound
Versatile use in multiple locations
•Two-way power supply: AC power adaptor (supplied) or batteries (not supplied).
•Compact, 1-piece design for easy portability.
•Magnetically-shielded design for use in close proximity to your TV set with no adverse
effects to its screen.
•Equipped with an analogue input for connection to an audio device not supporting
BLUETOOTH wireless technology.
BLUETOOTH connection

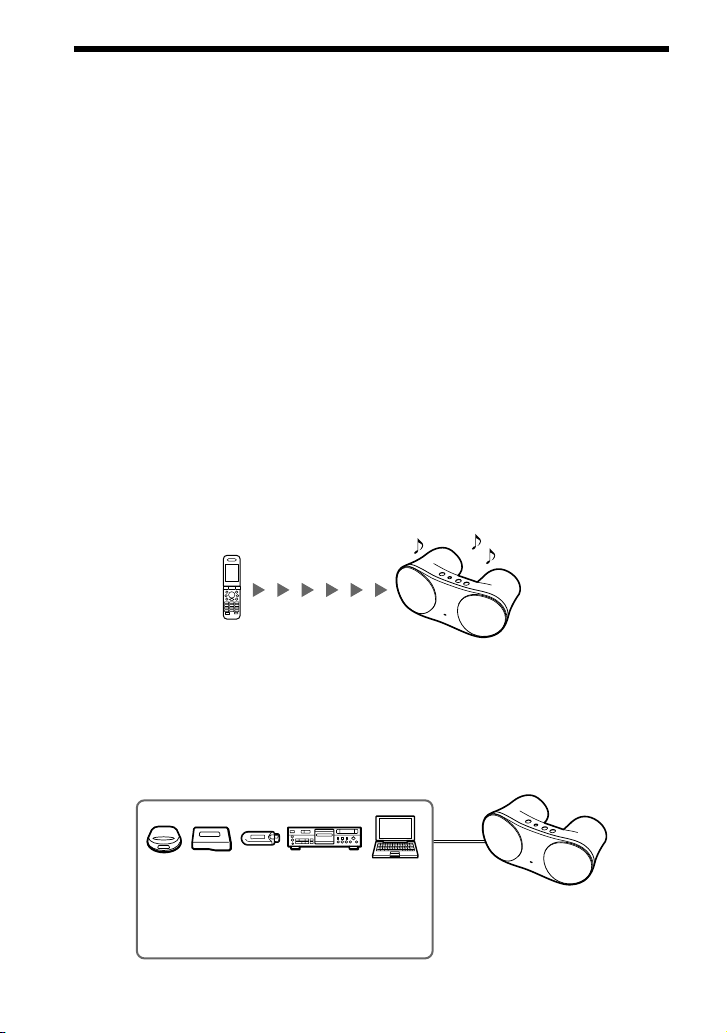

This unit can receive stereo audio signal from a BLUETOOTH stereo audio source device
(mobile phone, digital music player, etc.) supporting A2DP.
By converting the wireless stereo audio signal (digital) to analogue audio signal, you can
enjoy listening to the sound with this unit.
Connection with a cord
You can enjoy listening to the sound from the device connected to the INPUT jack.
This unit
BLUETOOTH stereo
audio source device
Portable audio device, CD/MD player,
computer, etc.
5
v
v
Using the BLUETOOTH connection
In the example below, we explain how to receive the sound played on a BLUETOOTH
mobile phone with the sound playback function and listen to the sound on this unit.
Pairing
Enables a BLUETOOTH mobile phone and this unit to recognize one another.
BLUETOOTH
mobile phone This unit
BLUETOOTH connection
Operate the BLUETOOTH mobile phone to make the BLUETOOTH
connection.
Listening to the sound
Enjoy listening to the sound played on the BLUETOOTH mobile phone through
this unit.
Pairing
Connection
Stereo audio signal
(Streaming)
For more details, see pages 10 and 11.
For more details, see page 12.
6
Unpacking
Check that you have the following items:
•Wireless Speaker System (1)
GETTING STARTED
•AC power adaptor (1)
•Mains lead (1)
•Operating Instructions (1)
7
Location and Function of Parts

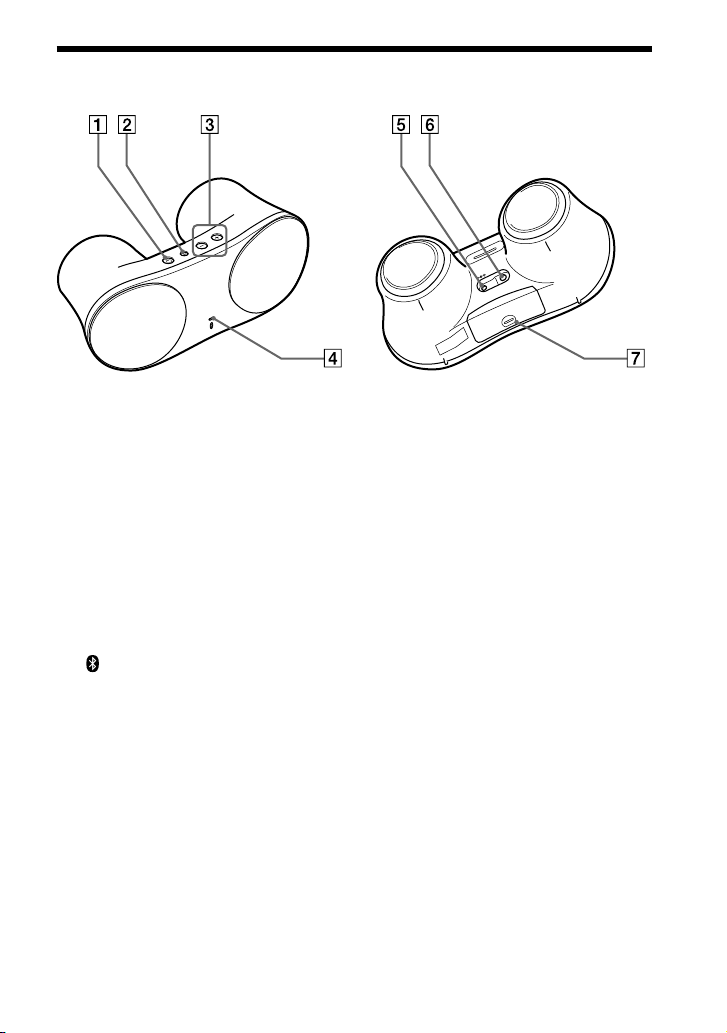

11(power) button/indicator
Press to turn on the unit. Press and
hold to turn off the unit.
The 1icon in the button lights up,
flashes, or goes off. (See page 10.)
2ID SET (pairing) button
For pairing with other BLUETOOTH
device.
3VOLUME +/– buttons
Adjust the volume.
A beep sounds when the volume is set
to minimum or maximum.
4(communication status)
indicator
VOLUME
INPUT
DC IN 5.2V
5DC IN 5.2 V jack
Connects the supplied AC power
adaptor.
6INPUT (audio input) jack
Connects to the LINE OUT or to
headphone jack of a computer,
portable audio device, etc.
7Battery compartment
Insert three R6 (size AA) batteries
(optional).
8
Using on the mains
When the AC power adaptor is connected to the system, internal batteries are automatically
disconnected.
Note
When connecting or disconnecting the AC power adaptor, turn off the system beforehand. Otherwise, it
may cause malfunction.
Note on the AC power adaptor
Use only the supplied AC power adaptor. Do not use any other AC power adaptor to avoid damaging the
speaker.
Polarity of the plug
Using with batteries
Battery installation
1Open the battery compartment lid.
to wall outlet
AC power adaptor
(supplied)
to DC IN 5.2 V jack
(rear)
Power Sources
(rear)
9
2Insert three R6 (size AA) batteries (optional). Be sure to match the + and –
indications on the batteries with the + and – indications on the battery
compartment.
Battery replacement
When the batteries are weak, the 1indicator will start flickering and become faint, or the
playback sound will become distorted or unstable. In such a case, replace all the batteries
with new ones.
Battery life (5 mW + 5 mW output)
Battery type Usage time
Sony alkaline Approx. 15 hours*
battery LR6 (SG)
Sony manganese Approx. 5 hours*
battery R6
*Usage time stated above may vary according to the temperature or conditions of use.
Installing the Speaker
Install this unit on a level surface, as illustrated below.
This unit can be used either laid flat, or in an upright position.
Flat Upright
10
Using the BLUETOOTH Connection
By using the BLUETOOTH connection, you can listen to the sound from a BLUETOOTH
stereo audio source device with this unit wirelessly.
Note
For details on how to operate the device to be connected, refer to the operating instructions supplied with
the device.
On pairing
What is pairing?
BLUETOOTH devices need to be “paired” with each other beforehand.
Once BLUETOOTH devices are paired, there is no need for pairing again, except in the
following cases:
•Pairing information is deleted after repair, etc.
•This unit is paired with 9 or more devices.
This unit can be paired with up to 8 BLUETOOTH stereo audio source devices. If a new
device is paired after 8 devices have been paired, the device whose latest connection time
is the oldest among the 8 paired devices is replaced by the new one.
•This unit is reset.
All pairing information is deleted. (See page 20.)
See page 11 on how to pair devices.

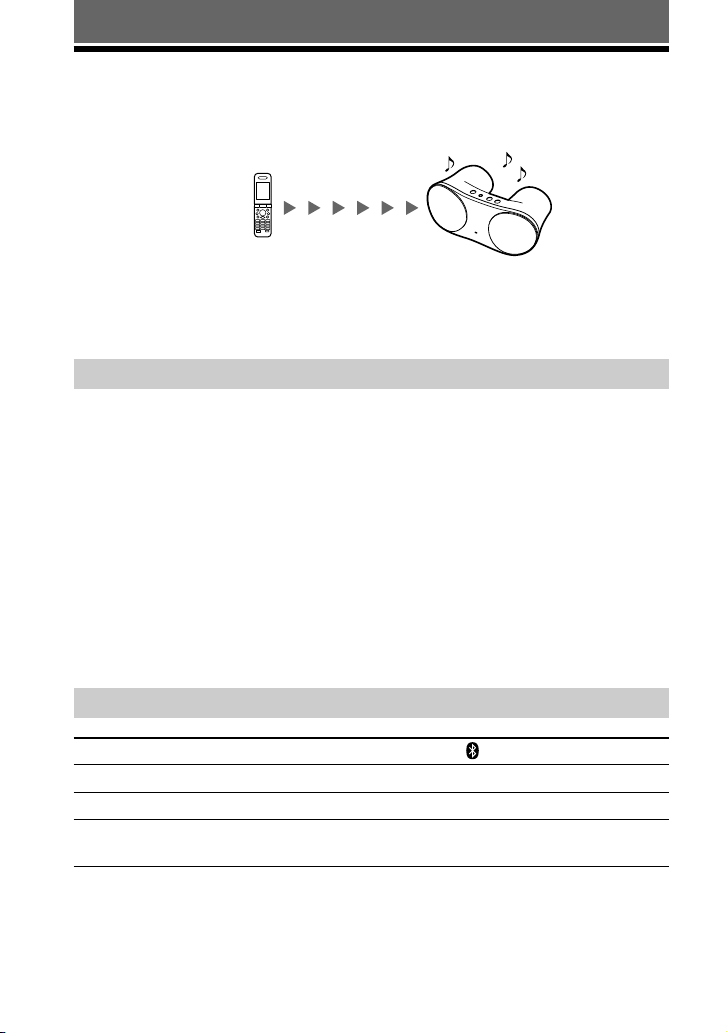

On indicators
Status 1indicator (green) indicator (blue)
Power on Lights up Off
Pairing mode Flashes Flashes
Connecting or Lights up Lights up
communicating
This unit
BLUETOOTH mobile phone or
other BLUETOOTH stereo
audio source device
OPERATING THE UNIT
Example
