MAS SD (USB)
RECORDING SYSTEM
Installation &
Operation Instructions
1
MAS Medical Ltd - Recording Systems
MAS Medical Ltd are principle suppliers of:
Fluoroscopy Video Recording Systems in Medicine
We Technically Advise and Contractually Support:
Hardware, Operation, Video Control and Video System Applications
Technical Support is Conveniently Available:
Telephone / Fax / Email / On-Site Service
OEM Trained, Service Engineer Attendance
High Quality Recordings allow High Quality replay with
PC or Laptop
Recording Media is inexpensive and compact
Unique features of the System are:
Auto control of recording linked X-Ray System
Annotation of patient details to the Recording
System Applications Include:
Speech Therapy, Barium Swallow
Paediatric Urography Study
Cardiac Study
Ultrasound
Principle components of the MAS SD Recording System:

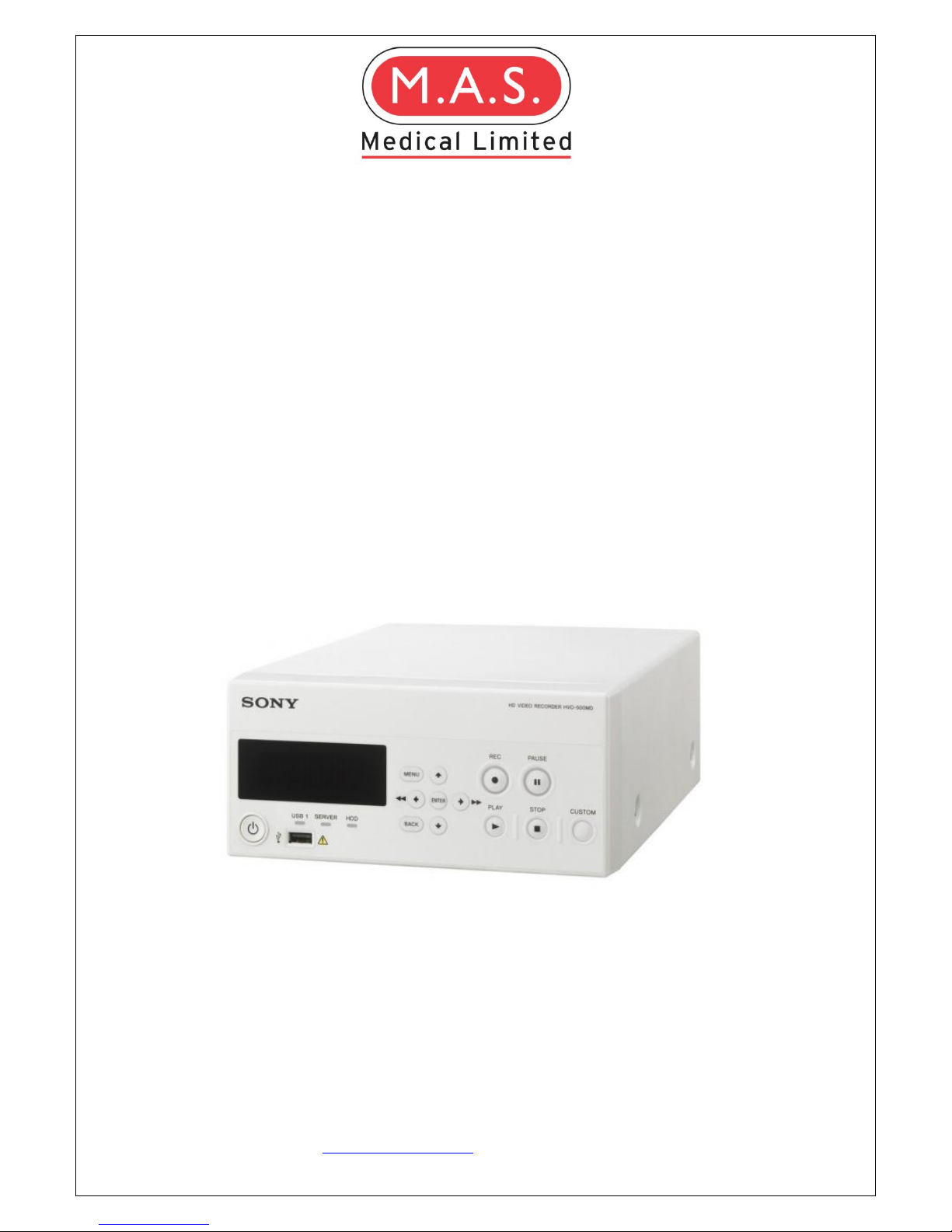

Sony HVO-500MD Medical Grade Recorder
Sony LMD-2110MD Medical Grade Monitor
VCS-2 Lite Video Control System
Options:
Sound System
Opto-Isolation between System and X-Ray
2
Installation
The Sony HVO-500MD and Video Control System (VCS-2 Lite) are supplied with
comprehensive interface cabling. Care should be taken when removing the
equipment from the packaging.
Installation should only be carried out by a competent person and will normally
require an Appropriate X-Ray Engineer for connection of the Video Signal from X-Ray
or Ultrasound.
System Connections
Mains Power:
13 Amp Socket Outlets
Video In:
X-Ray 625 Line 50Hz Video Signal
(Video Input can be Opto-Isolated)
Video Out:
Monitor Line Video Signal
Audio In:
Pre-Amp Line Audio Signal
Audio Out:
Monitor Line Audio Signal
Keyboard:
Recorder USB 2
Control Signal –VCS-2 Lite / Recorder Interface:
VCS-2 Lite Control Cable interfaces Recorder Remote 1
Control Signal - VCS-2 Lite / X-Ray Interface:
VCS-2 Lite Video Control System requires a Fluoroscopic and a Radiographic Signal
from the X-Ray equipment to control Recorder Functions
VCS-2 Lite Passive X-Ray Interface Cable
Passive Interface connection requires isolated, normally open, relay or switch
contact from X-Ray equipment
BS-AP25 Cables are pre-wired to comply with IEC 601 part 1
3
Connection of X-Ray Interface
Passive connection is made between X-Ray unit and the VCS-2 Lite Video Control
System.
Please Note
Passive Connection Cable
Damage to VCS-2 Lite results through improper use
DAMAGE INVALIDATES WARRANTY
Passive Interface (BS-AP25)
Isolated ‘NO’ (Normally Open) Relay or Switch Contact triggers both Fluoroscopic and
Radiographic Acquisition ‘Start’
Cable BS-AP25 provides a passive interface connection
4

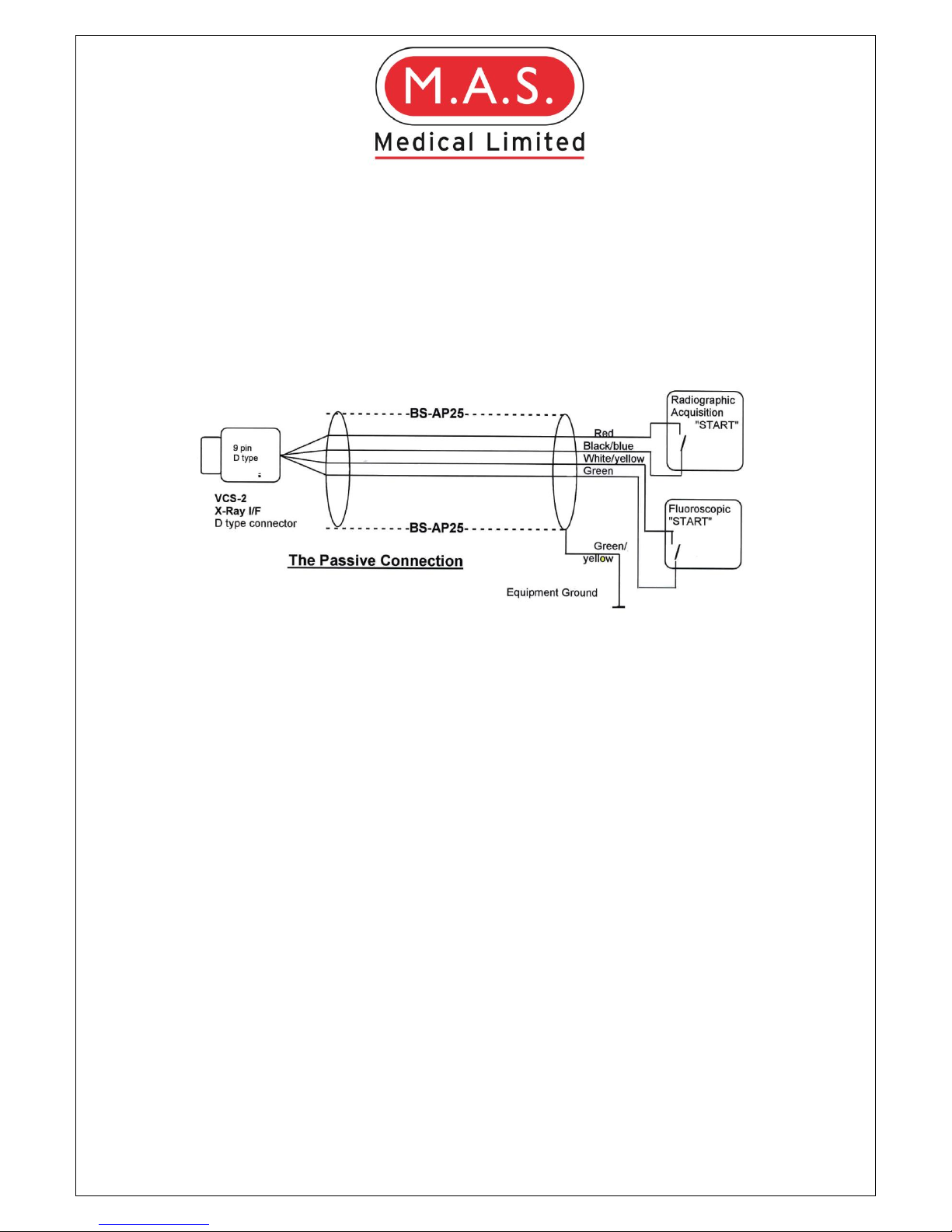

BS-AP25 Passive Interface Cable / 25 Metre
5
Operation / Recording
Please Note:
Sony HVO-500MD is a Multifunctional / Multimedia Recorder. The following is a basic
guide to recording Video / Audio Events, and intended as an introduction to the
M.A.S. Medical SD Recording System
Reference to the HVO-500MD Manual details comprehensive Recorder options.
Quick Start Guide:
Connect mains power and confirm:
Sony Recorder is on
To confirm Format of Video Input Signal, press and hold ‘Enter’key, 5 seconds.
Repeat for other Video Input Signal options
VCS-2 Lite is on
VCS-2 Lite performs a 5 second System Test when power is applied
To disable the audible alert test, initially deselect Fluoro, Acq and Manual Buttons
Sony Monitor is on
Phono Pre Amp on (Sound Systems)
Select VCS-2 Lite ‘Fluoro’ or ‘Acq’ (Default to ‘Fluoro’)
X-Ray Image is displayed
Input Patient Information:
Select HVO-500MD
Menu
Select
Recording Preparation
Input Data either by the ‘On Screen’ or ‘Attached’ Keyboard
Select
Done
Recording Test:
Activation from X-Ray: Recording Start
Deactivation from X-Ray: Recording Pause
Select HVO-500MD
Stop
: Recording End
6
Save Recording to Optical Flash Disk
Select
Menu
Navigate to
Recording List
Enter
Navigate to
Play
Enter
Navigate to
Save To
Check Recordings for Save
Navigate to
Execute
Enter
Select Relevant Recording Media
Insert Relevant Media
Select
Execute
Select
Close
Playback from HDD:
Navigate to
Recording List
Enter
Highlight recording to
Playback
Select
Play
Playback from Multimedia:
Recordings are replayed from PC or Laptop
Note - HVO-500MD does not have the functionality to replay from Multimedia
7
Specification
Video Recorder
Model: Sony HVO-500MD
Recording Media: USB Flash Drive
Recording File Save Format: MP4
Video Monitor
Model: Sony LMD-2110MD
Video Control System
Model: VCS-2 Lite
X-Ray Interface: Fluoroscopy / Acquisition
‘’NO’Contact Passive Interface
Power Supplies 230 V AC / 50 Hz
Mains Plug Fuse Rating
Recorder 3 A
Monitor 3 A
VCS-2 Lite 3 A
Opto-Isolator 5 A
8
Frequently Asked Questions
Sound Recording?
Sound can be Recorded with a Microphone and Pre-amp
Sound Systems are available from MAS Medical Ltd
Delete Recordings?
Recordings can be deleted from the Internal HDD
Edit Recordings?
Use of Video Editing Software enables Edit of Recording
Power Point Presentation?
Use of Power Point Software, enables addition of Video Clips to Presentation
Recording Media?
The SONY HVO-500MD records to USB Flash Drive
We recommend that good quality media from a reputable manufacturer are used
Video Play Back?
HVO-500MD (From Internal HDD Only)
PC with compatible Play Back Software
For further information, please contact MAS Medical Ltd
01484 721906
