Digital Photo

System

3-206-324-11(1)

UPA-PC110

Operating Instructions Version 1.00

Owner’s Record

The model and serial numbers are located in the rear.

Record these numbers in the spaces provided below. Refer

to them whenever you call upon your Sony dealer regarding

this product.

Model No. Serial No.

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To avoid electrical shock, do not open

the cabinet. Refer servicing to qualified

personnel only.

THIS APPARATUS MUST BE EARTHED.

For the customers in the U.S.A

This equipment has been tested and found to comply with

the limits for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

You are cautioned that any changes or modifications not

expressly approved in this manual could void your authority

to operate this equipment.

The shielded interface cable recommended in this manual

must be used with this equipment in order to comply with the

limits for a digital device pursuant to Subpart B of Part 15 of

FCC Rules.

English

Table of Contents

Overview............................................................................. 4

Important Features ..................................................................4

Operating Instructions.............................................................4

Accessory Check List ....................................................... 5

Parts and Controls ............................................................ 6

Front View ..............................................................................6

Back View...............................................................................7

Connections....................................................................... 8

Connecting the Power Cord ....................................................8

Connecting Peripheral Devices...............................................8

Starting Up and Shutting Down ..................................... 10

Starting Up ............................................................................10

Shutting Down ......................................................................10

Setting Media ................................................................... 11

Using Memory Sticks............................................................11

Using a CompactFlash Card .................................................11

Using a SmartMedia Card.....................................................12

Using PC Cards.....................................................................12

Using a Floppy Disk .............................................................12

Using a CD-ROM or CD-R ..................................................13

Appendix .......................................................................... 15

Precautions ............................................................................15

Troubleshooting ....................................................................18

Specifications ........................................................................23

Accessory Check List

Important Features

Touch Panel Display

The touch-panel display allows you to touch the

display directly for easy operation.

Variety of Media Supported

Image data can be read from a variety of different

media, including those primarily used with digital

cameras: Memory Stick, CompactFlash, and

SmartMedia. Digital images can also be read from

storage media commonly used with computers: floppy

disks, PC cards, and CD-ROMs.

CD-R Drive Provided

The built-in CD-R drive reads CD-ROM data at 24×

speed and writes to CD-Rs at 8×speed, allowing you

to write image data to CD-Rs as well as read from

standard CD-ROMs.

Note

Use a new CD-R. You cannot write to a CD-R that has

been written to, or to a CD-RW.

Multiple Interface Options

The unit is equipped with SCSI and USB interfaces, as

well as parallel, serial, and LAN connectors, allowing

it to be incorporated into a wide variety of system

environments.

Overview

Operating Instructions

This document consists of the following sections:

•Parts Names and Their Functions

•Connections

•Starting Up and Shutting Down

•Setting Media

•Troubleshooting

For more details about how to use the software made

for use with this system, please refer to the User’s

Guide. The following storage media names are

trademarks of their respective owners.

•Memory Stick and MagicGate Memory Stick are

trademarks of Sony Corporation.

•CompactFlash is a trademark of SanDisk

Corporation.

•SmartMedia is a registered trademark of Toshiba

Corporation.

Thank you for purchasing this product. Before you begin, we would like to describe the main features of this

product and give an overview of these Operating Instructions.

Accessory Check List

Make sure that you have everything.

•Power cord 1

•SCSI cable 1

•Operating Instructions 1 (this manual)

•CD eject pin 1

Note

Save the box and packing material. Do not discard

these items. You may need them again to pack the

printer for moving or shipping to another location.

Parts and Controls

Front View

COMPACT FLASH

SMART MEDIA

MEMORY STICKPC CARD

FLOPPY DISK

91 2

87 6 5 4

1Power lamp

Lights green with the power to the operation panel is

switched on.

Note

Does not light when only the main power is switched

on.

2Display

Displays the user interface panel. The screen is a

touch-panel so the user can touch the display directly

to perform selections. The angle of the display can also

be adjusted from 0 (horizontal) to 65 degrees. Hold the

top of the display and then gently adjust the angle.

Note

When you adjust the angle, be careful to avoid

touching the Power switch (page 7) on the back of the

display.

3CompactFlash card slot

Holds a CompactFlash with stored image data.

4SmartMedia slot

Holds a SmartMedia card with stored image data.

5Floppy disk drive

Insert a floppy disk with stored image data into this

drive.

6Memory Stick slot

Holds a Memory Stick with stored image data.

7CD-R drive

Holds a CD-R to read image data stored on a CD-

ROM, or record data on a CD-R.

8PC card (Type II) slot

Holds a Type II PC card with stored image data.

User interface

panel

Operation panel

0o(Level)

65o

Note

To avoid loss of image data or damage to the main

unit, never attempt to mount a Memory Stick,

Compact Flash card, Smart Media card, or SD card by

inserting it in a PC card type adapter setting it into the

PC card slot.

1AC power connector

Connects the provided AC power cord.

2Main power switch

Switch ON/OFF to switch the main power on and off.

Note

Never switch the main power switch off when the

operation panel power lamp is on.

3LAN Connector (RJ-45 Type)

Connects to a LAN cable. Currently not used but

provided for expanded applications in the future.

4RS-232C connector (D-Sub 9-pin)

Connects to a credit card reader or other reader device.

Currently not used but provided for expanded

applications in the future.

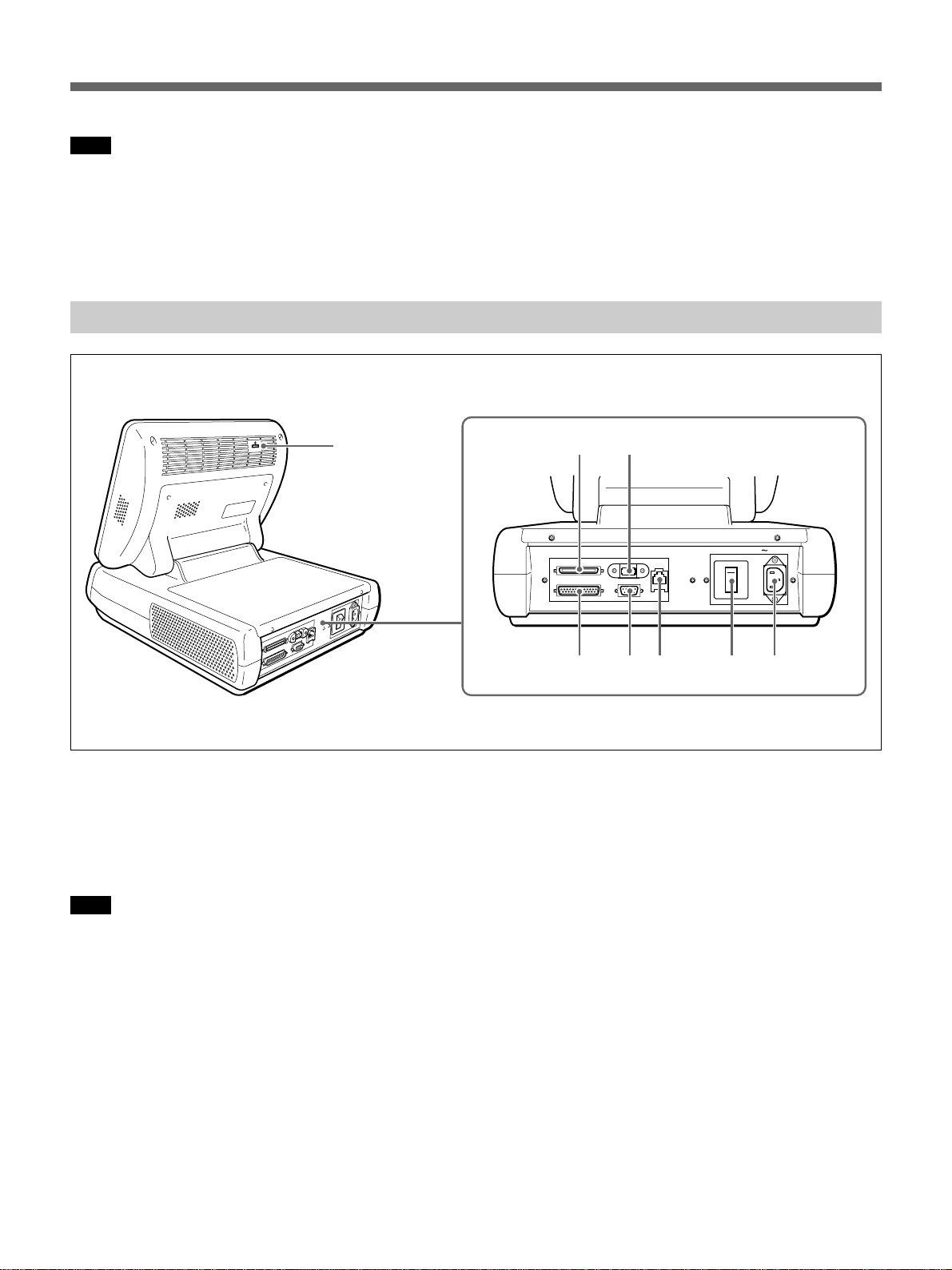

BackView

USB

LAN

RS-232C

SCSI

PARALLEL

AC IN

543 21

5Parallel connector (D-Sub 25-pin)

Connects a printer to receipts.

6SCSI connector (Half-pitch 50-pin)

Connects to a UP-DR100 or UP-D70AP Printer, or a

UY-S90 Film Scanner.

7USB connector

Connects to USB devices. Currently not used but

provided for expanded applications in the future.

8Power switch

After switching the main power switch on, switch this

power switch on to start the unit.

9Speaker

A sound is emitted when you touch the display.

Connections

Connecting the Power Cord

Connect the provided power cord to the AC power

connector on the back of the unit, and then connect the

plug to a power outlet.

USB

LAN

RS-232C

SCSI

PARALLEL

AC IN

Connecting Peripheral Devices

The peripheral devices shown below can be connected

to the unit.

Note

To prevent causing a fire or damage to the system,

never attempt to connect any peripheral device other

than those specified.

UP-DR100

UP-D70AP

UY-S90

COMPACT FLASH

SMART MEDIA

MEMORY STICKPC CARD

FLOPPY DISK

Parallel Devices

A printer for receipts can be connected to the parallel

connector. For details about compatible printers,

contact a Sony Authorized Dealer. For details about

how to connect the printer for receipts, refer to the

instructions provided with the printer.

RS-232C (Serial) Devices

A credit card reader and other read devices can be

connected to the RS-232C connector. Currently not

used but provided for expanded applications in the

future.

SCSI Devices

The devices listed below can be connected to the SCSI

connector. For details about connection, refer

“Connecting a Peripheral Device to the SCSI

Interface”.

•UP-DR100 (printer)

* Up to two units can be connected.

•UP-D70AP (8 ×10 size compatible printer)

•UY-S90 Film Scanner

•Flatbed Scanner

For more details about what devices can be connected,

contact a Sony Authorized Dealer.

Connecting a Peripheral Device to the

SCSI Interface

This section describes how to connect a peripheral

device to the SCSI connector.

For details about the SCSI ID and terminator, refer to

the instructions that you received with the device.

Note

•Before connected the device to the unit, make sure

that the device and the unit are switched off.

•Connect the power cord last.

Power cord

(provided)

Power outlet

RS232C DeviceParallel Device

Parallel

SCSI

Device

RS232C

SCSI

1Follow the procedure below to connect peripheral

device equipped with an SCSI interface to the unit.

USB

LAN

RS-232C

SCSI

PARALLEL

AC IN

Note

•Make sure that the connector of the SCSI cable is

inserted completely into the back of the unit.

•The length of the SCSI cable should not exceed

2.2 meters (7.2 ft.).

•If you are connecting only one SCSI device, use a

standard SCSI cable not longer than 1 meter (3.3

ft.).

•Set the SCSI IDs for peripheral devices as

follows.

-UP-DR100 (first) : 1

-UP-DR100 (second) : 2

-UP-D70AP : 3

-UY-S90 : 4

-Flatbed Scanner : 5

2Connect the power cord to the SCSI device.

Note

Switch on the peripheral devices first, then switch

on the main unit. For details about how to power

on the main unit, see “Starting Up”on page 10.

To the SCSI

connector

SCSI cable (provided)

SCSI device

Starting Up and Shutting Down

Starting Up

1Make sure that the peripheral devices are switched

on, and then switch on the main switch at the user

interface panel on the back of the unit.

USB

LAN

RS-232C

SCSI

PARALLEL

AC IN

2Press the power switch on the back of the display.

The power lamp on the operation panel lights, and

the unit starts.

Starting Up and Shutting Down

Shutting Down

1Terminate software on the main unit as explained

in the instructions provided with the software.

When the software closes, the operation panel

power goes off as well.

2Make sure that the power lamp on the operation

panel is off, and then switch the main power switch

OFF.

3Switch off the peripheral devices.

Table des matières

Autres manuels Sony Imprimante

Sony

Sony FVP-1/1E Manuel utilisateur

Sony

Sony DPP-SV55 Manuel utilisateur

Sony

Sony PICTURE STATION DPP-FP90 Manuel utilisateur

Sony

Sony UPX-C300 Manuel utilisateur

Sony

Sony DPP-SV55 Manuel utilisateur

Sony

Sony UP-D898DC Manuel utilisateur

Sony

Sony DPP-FP50 Fall 2005 Manuel utilisateur

Sony

Sony UP-D897 Manuel utilisateur

Sony

Sony DPP-SV55 Manuel utilisateur

Sony

Sony UP-970AD Manuel utilisateur

Sony

Sony DMP-1000 Manuel utilisateur

Sony

Sony UP55MD Manuel utilisateur

Sony

Sony DPP-EX5 Manuel utilisateur

Sony

Sony DPP-SV55 Guide de démarrage rapide

Sony

Sony DPP-FP50 Fall 2005 Manuel utilisateur

Sony

Sony Professional Monitor Manuel utilisateur

Sony

Sony UP-CX1 series Manuel utilisateur

Sony

Sony UP-D23MD Manuel utilisateur

Sony

Sony DPP--SV77 Manuel utilisateur

Sony

Sony DPP FP70 - Picture Station Photo Printer Manuel utilisateur

Sony

Sony DPP-SV88 Manuel utilisateur

Sony

Sony UPD25MD Manuel utilisateur

Sony

Sony SNAPLAB UP-CR20L Manuel d'instructions

Sony

Sony DPP-MS300 Marketing Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
