Sony SDM-S53 Manuel utilisateur

SDM-S53

US Model

Canadian Model

AEP Model

Chinese Model

TFT LCD COLOR COMPUTER DISPLAY

SERVICE MANUAL

– 2 –

SDM-S53 (E)

There are some different LCD panels are used in the model SDM-S53.

Therefore the repair parts are also different.

Please confirm the serial number before repairing.

MODEL NAME COLOR Dest. SER.NO (LPL) SER.NO (CMO)

SDM-S53 (Korea) GRAY U/C 9,000,001-9,120,000 9,120,001-9,200,000

SDM-S53 (Korea) U/C 9,200,001-9,260,000 9,260,001-9,300,000

SDM-S53 (Chine) GRAY U/C 3,200,001-3,260,000 3,260,001-3,350,000

SDM-S53 (Chine)

BLACK

U/C 3,500,001-3,580,000 3,580,001-3,700,000

SDM-S53 (Korea) GRAY AEP 9,300,001-9,420,000 9,420,001-9,500,000

SDM-S53 (Korea)

BLACK

AEP 9,500,001-9,560,000 9,560,001-9,600,000

SDM-S53 (Chine) GRAY AEP 3,350,001-3,410,000 3,410,001-3,500,000

SDM-S53 (Chine)

BLACK

AEP 3,700,001-3,780,000 3,780,001-3,900,000

SDM-S53 (Chine) GRAY CH 6,630,001-6,655,000 6,655,001-6,660,000

SDM-S53 (Chine)

BLACK

CH 6,850,001-6,865,000 6,865,001-6,870,000BLACK

– 3 –

SDM-S53 (E)

CONTENTS

SPECIFICATIONS ................................................... 2

PRECAUTION ......................................................... 3

TIMING CHART ....................................................... 4

OPERATING INSTRUCTIONS ................................ 5

WIRING DIAGRAM ................................................. 6

BLOCK DIAGRAM ....................................................7

ADJUSTMENT ........................................................ 9

EXPLODED VIEW .................................................. 10

............................ 11

EXPLODED VIEW PARTS LIST

1. LCD CHARACTERISTICS

Type : TFT Color LCD Module

Size : 15 inch

Pixel Pitch :

0.297 (H) x 0.297 (V)

Color Depth : 16M colors

Electrical Interface : LVDS

Surface Treatment : Hard-coating(3H)

Operating Mode : Normally White

Backlight Unit : Top/Bottom edge side 2-CCFL

(Cold Cathode Fluorescent Lamp)

2. OPTICAL CHARACTERISTICS

2-1. Viewing Angle by Contrast Ratio ≥

Left : -55°min., -65°(Typ) Right : +55°min., +65°(Typ)

Top :+40°min., +45°(Typ) Bottom : -50°min., -55°(Typ)

2-2. Luminance : 200(min), 250(Typ)

2-3. Contrast Ratio : 300(min), 400(Typ)

3. SIGNAL (Refer to the Timing Chart)

3-1. Sync Signal

• Type : Separate Sync,

SOG (Sync On Green)

Composite Sync

3-2. Video Input Signal

1) Type : R, G, B Analog

2) Voltage Level : 0~0.71 V

a) Color 0, 0 : 0 Vp-p

b) Color 7, 0 : 0.467 Vp-p

c) Color 15, 0 : 0.714 Vp-p

3) Input Impedance : 75

3-3. Operating Frequency

Horizontal : 28 ~ 61kHz

Vertical : 48 ~ 75Hz

. Max. Resolution

Analog : 1024 x 768 / 75Hz

5. POWER SUPPLY

5-1. Power

: AC 100~240V, 50/60Hz , 1.0A

5-2. Power Consumption

6. ENVIRONMENT

6-1. Operating Temperature: 5°C~35°C (41°F~95°F)

6-2. Relative Humidity : 10%~80%

(Non-condensing)

6-3. MTBF : 50,000 Hours(Min)

7. DIMENSIONS (with TILT/SWIVEL)

Width : 339 mm (13.35'')

Depth : 370 mm (14.57')

Height : 186 mm (7.32'')

8. WEIGHT (with TILT/SWIVEL)

Net. Weight : 3.2kg (7.70 lbs)

Gross Weight : 4.2kg (9.26 lbs)

SPECIFICATIONS

MODE

POWER ON (NORMAL)

DPMS OFF

POWER S/W OFF

AC POWER S/W OFF

H/V SYNC

ON/ON

OFF/OFF

POWER CONSUMPTION

less than 25 W

less than 1 W

less than 1W

LED COLOR

GREEN

AMBER

RED

VIDEO

ACTIVE

OFF

– 4 –

SDM-S53 (E)

WARNING FOR THE SAFETY-RELATED COMPONENT.

•There are some special components used in LCD

monitor that are important for safety.

These parts are

marked on the schematic diagram and the

replacement parts list.

It is essential that these critical

parts should be replaced with the manufacturer’s

specified parts to prevent electric shock, fire or other

hazard.

•Do not modify original design without obtaining written

permission from manufacturer or you will void the

original parts and labor guarantee.

TAKE CARE DURING HANDLING THE LCD MODULE

WITH BACKLIGHT UNIT.

•Must mount the module using mounting holes arranged

in four corners.

•Do not press on the panel, edge of the frame strongly

or electric shock as this will result in damage to the

screen.

•Do not scratch or press on the panel with any sharp

objects, such as pencil or pen as this may result in

damage to the panel.

•Protect the module from the ESD as it may damage the

electronic circuit (C-MOS).

•Make certain that treatment person’s body are

grounded through wrist band.

•Do not leave the module in high temperature and in

areas of high humidity for a long time.

•The module not be exposed to the direct sunlight.

•Avoid contact with water as it may a short circuit within

the module.

•If the surface of panel become dirty, please wipe it off

with a softmaterial. (Cleaning with a dirty or rough cloth

may damage the panel.)

WARNING

BE CAREFUL ELECTRIC SHOCK !

•If you want to replace with the new backlight (CCFL) or

inverter circuit, must disconnect the AC adapter

because high voltage appears at inverter circuit about

650Vrms.

•Handle with care wires or connectors of the inverter

circuit. If the wires are pressed cause short and may

burn or take fire.

PRECAUTION

CAUTION

Please use only a plastic screwdriver to protect yourself

from shock hazard during service operation.

– 5 –

SDM-S53 (E)

TIMING CHART

VIDEO

SYNC

Mode

H/V

Sort

720x400

70Hz

H– 35.00 864 640 64 64 96 224

V– 66.667Hz 525 480 3 3 39 45

640x480

60Hz

H– 37.50 840 640 16 64 120 200

V– 75.0Hz 500 480 1 3 16 20

640x480

65Hz

H– 31.500 900 720 18 108 54 180

V+ 70.156Hz 449 400 12 3 34 49

640x480

75Hz

H– 35.162 896 720 34 40 102 176

V– 59.901Hz 587 480 12 2 93 107

720x480

60Hz

H+- 35.156 1024 800 24 72 128 224

V+ 56.250Hz 625 600 1 2 22 25

800x600

56Hz

H+ 37.879 1056 800 40 128 88 256

V+ 60.317Hz 628 600 1 4 23 28

800x600

60Hz

H+ 48.077 1040 800 56 120 64 240

V+ 72.188Hz 666 600 37 6 23 66

800x600

72Hz

H+ 46.875 1056 800 16 80 160 256

V+ 75.0Hz 625 600 1 3 21 25

800x600

75Hz

H– 49.727 1152 832 32 64 224 320

V– 74.553Hz 667 624 3 3 37 43

832x624

(MAC16”)

75Hz

H– 48.363 1328 1024 16 176 112 304

V– 60.004Hz 816 768 8 4 36 48

1024x768

66Hz

1024x768

60Hz

H– 56.476 1328 1024 24 136 144 304

V– 70.069Hz 806 768 3 6 29 38

H– 53.946 1328 1024 24 136 144 304

V– 66.110Hz 806 768 3 6 29 38

1024x768

70Hz

H+ 60.023 1312 1024 16 96 176 288

V+ 75.029Hz 800 768 1 3 28 32

1024x768

75Hz

H– 60.241 1328 1024 32 96 176 304

V– 74.927Hz 804 768 3 3 30 36

1024x768

(MAC19”)

75Hz

Sync

Polarity Frequency

Dot

Clock

Back Porch

(F)

Blanking time

(B)

Resolution

28.350

25.175

30.240

31.500

31.505

36.000

40.000

50.000

49.500

57.285

65.000

71.640

75.000

78.750

80.000

<< Dot Clock (MHz), Horizontal Frequency (kHz), Vertical Frequency (Hz), Horizontal etc... (µs), Vertical etc... (ms) >>

H– 31.469 800 640 16 96 48 160

V– 59.940Hz 525 480 10 2 33 45

Sync Duration

(D)

Front Porch

(C)

Video Active Time

(A)

Total Period

(E)

– 6 –

SDM-S53 (E)

REAR VIEW

OPERATING INSTRUCTIONS

HD15(RGB) input

connector

AC IN connector

Main Power Switch

1. (Power) switch and (power) indicator

This switch turns the monitor on when the power

indicator lights up in red. To turn the monitor off, press

this switch again.

If the power indicator does not light up, press the MAIN

POWER switch.

2. MENU Button

This button turns the menu screen on and off.

3. Buttons

These buttons are used to select the menu items and

make adjustments.

4. OK Button

This button actives tge selected menu item and

adjustments made using the buttons(

5. ECO Button

This button is used to reduce the power consumption.

Front Control Panel

ECO

– 7 –

SDM-S53 (E)

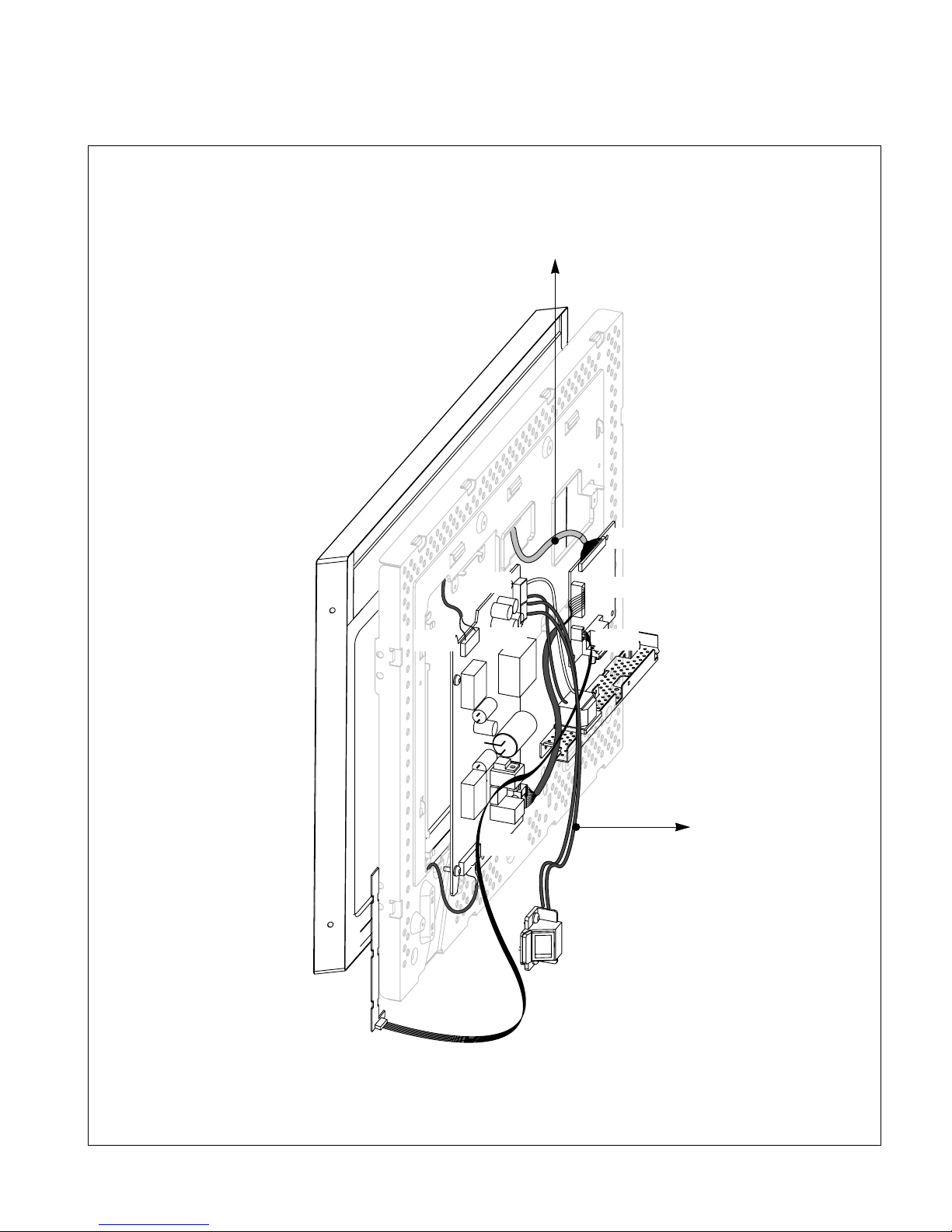

J704

J707

J706

CN4

CN3

CN2

CN5

WIRING DIAGRAM

AC switch with connector P/N

1-786-624-11

Connector Ass’y P/N:

1-900-280-95

– 8 –

SDM-S53 (E)

ADC

Analog(R/G/B)

Inverter

Output

(2Lamp)

EEPROM

24C16

(System)

LVDS

Panel

Vcc

Regulator

KEY

D-Sub

Filter

EEPROM

(EDID)

MST9011A

3.3V

2.5V

MTV412PLCC

12V

LAMP Connector

LIPS

OSD

Scaling

Pre-Amp PLL

LVDS

BLOCK DIAGRAM

– 9 –

SDM-S53 (E)

EMI

COMPONENTS

LINE

100 ~ 240V

INPUT RECTIFIER

AND FILTER

ENERGY

TRANSFER

OUTPUT RECTIFIER

AND FILTER

12V

GND

SIGNAL

COLLECTI

PHOTO-

COUPLER

ISOLATION

PWM

CONTROL

CIRCUIT

HVDC 100KHz

PRIMARY SECONDARY

50 ~ 60Hz

LIPS Board Block Diagram

– 10 –

SDM-S53 (E)

1. Procedures of how to go to service mode.

1) Enter the service mode of this unit by turning on

the power while pressing and holding the “r” key

simultaneously.

2) Press “MENU” key——MAINTAIN.

3) Press “OK” key to enter the service menu.

4) Select the desired function.

5) Press the “MENU” key to exit OSD.

6) Turn off the power and then turn on it again. The

monitor then enters the normal mode.

To enter the service again, repeat the procedure

described above.

Note

W/B readjustment is required after the panel, board

and microcomputer are replaced. However, be sure to

perform aging for more than 30 minutes for RGB reset

before W/B adjustment.

2. Setup

1) Prepare timing and pattern data for a signal

generator according to the Sony timing

specifications.

2) Connect a monitor video cable to the signal

generator.

3) Put Color Analyzer(ex. CA-110) 50cm away from

the monitor, specify it vertically in the center of

the display, and adjust the focus to the optimum

level using an eyepiece.

4) Put the monitor and Color Analyzer(ex. CA-110)

in a light-shielded room.

5) Set up [SERVICE MODE] of the monitor.

ADJUSTMENT

3. Operation

Data is manually set to improve the productivity. The

brightness, contrast, and backlight are set to 50, 70

and 100 respectively. After that, the default data of

the color temperature to be adjusted is set.

4. Warm up time

Warm up for 30 minutes before performing any

adjustment.

5. Adjustment for White Balance

a. Display SMPTE at SXGA/60Hz(Input level

0.73V).

b. Set up [SERVICE MODE].

c. Click “INITIAL EEPROM” and again setup Service

Mode.

d. Click “WHITE BALANCE” and then select “AUTO”.

6. 9300K color adjustment

a. Select “9300K” in “COLOR TEMP” and enter.

b. Use a 35%(89Gray) IRE white video field in the

primary mode.

c. Adjust “SUB CONTRAST “ to secure the color

temperature.

d. Press “MENU” key to exit adjust mode.

7. 6500K color adjustment

a. Select “6500K” in “COLOR TEMP” and enter.

b. Repeat the adjustment procedure as steps b to d

at 9300K.

Autres manuels pour SDM-S53

Table des matières

Autres manuels Sony Moniteur

Sony

Sony SDM-P82 Manuel utilisateur

Sony

Sony GDM-C520K Operating Instructions for MACINTOSH... Manuel utilisateur

Sony

Sony HR Trinitron PVM-20M7MDE Manuel utilisateur

Sony

Sony FD Trinitron Wega KV-32HS420 Manuel utilisateur

Sony

Sony LUMA LMD-1420 Manuel utilisateur

Sony

Sony Trinitron CPD-1302 Manuel utilisateur

Sony

Sony SDM-X202 Manuel utilisateur

Sony

Sony LMD-X310S Manuel utilisateur

Sony

Sony Trinitron CPD-G420 Manuel utilisateur

Sony

Sony FWDS42H1 - 42" LCD Flat Panel Display Manuel utilisateur

Sony

Sony Multiscan SDM-M81 Manuel utilisateur

Sony

Sony PVM-136 Manuel utilisateur

Sony

Sony Trinitron CPD-200SX Manuel utilisateur

Sony

Sony Multiscan CPD-G520 Manuel utilisateur

Sony

Sony FD Trinitron HMD-A420 Manuel utilisateur

Sony

Sony Multiscan HMD-V200/L Manuel utilisateur

Sony

Sony Trinitron CPD-E400 Manuel utilisateur

Sony

Sony KL-X9200U Manuel utilisateur

Sony

Sony FD Trinitron Multiscan CPD-E200/L Manuel utilisateur

Sony

Sony XQZ-IV01 Guide de référence

Sony

Sony LMD-A240 Manuel utilisateur

Sony

Sony CPD-1425 Manuel de référence

Sony

Sony SDM-HS95P - XBrite 19" LCD Monitor Manuel utilisateur

Sony

Sony Trimaster BVM-L231 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
