Sony SDM-P82 Manuel

PLEASE READ ME FIRST FOR SETUP INSTRUCTIONS

For Optimal Performance the video settings should be configured to 1280 ×1024 resolution at 60 Hz for

Windows® 95, 98, NT, Me, 2000, XP.

Windows is a registered trademark of the Microsoft®Corporation.

Step 1:

Connect your display to your computer and then turn on the

computer.Turn on your Display power switch located on the bottom

left side of the panel (Fig.1), then press the power button on the front

panel until the green light is on (Fig.2). If no image appears, press

the “INPUT” selector button slowly and toggle through the 3 inputs

positions:

INPUT1: DVI-D

INPUT1: HD15

INPUT2: HD15

until the desired input is selected.

This monitor complies with the “DDC” Plug & Play standard and

should be recognized by the computer.

Fig. 1 Fig. 2

Note

If the computer does not recognize the monitor, install the information file for this monitor

using the supplied Windows Monitor Information/Windows Utility/Macintosh Utility Disk.

For details on installing, refer to the ReadMe E (English version) file on the disk.

4-088-537-31(1)

(Continued)

MAIN POWER

Lights in red Lights in green

X/P series

Step 2:

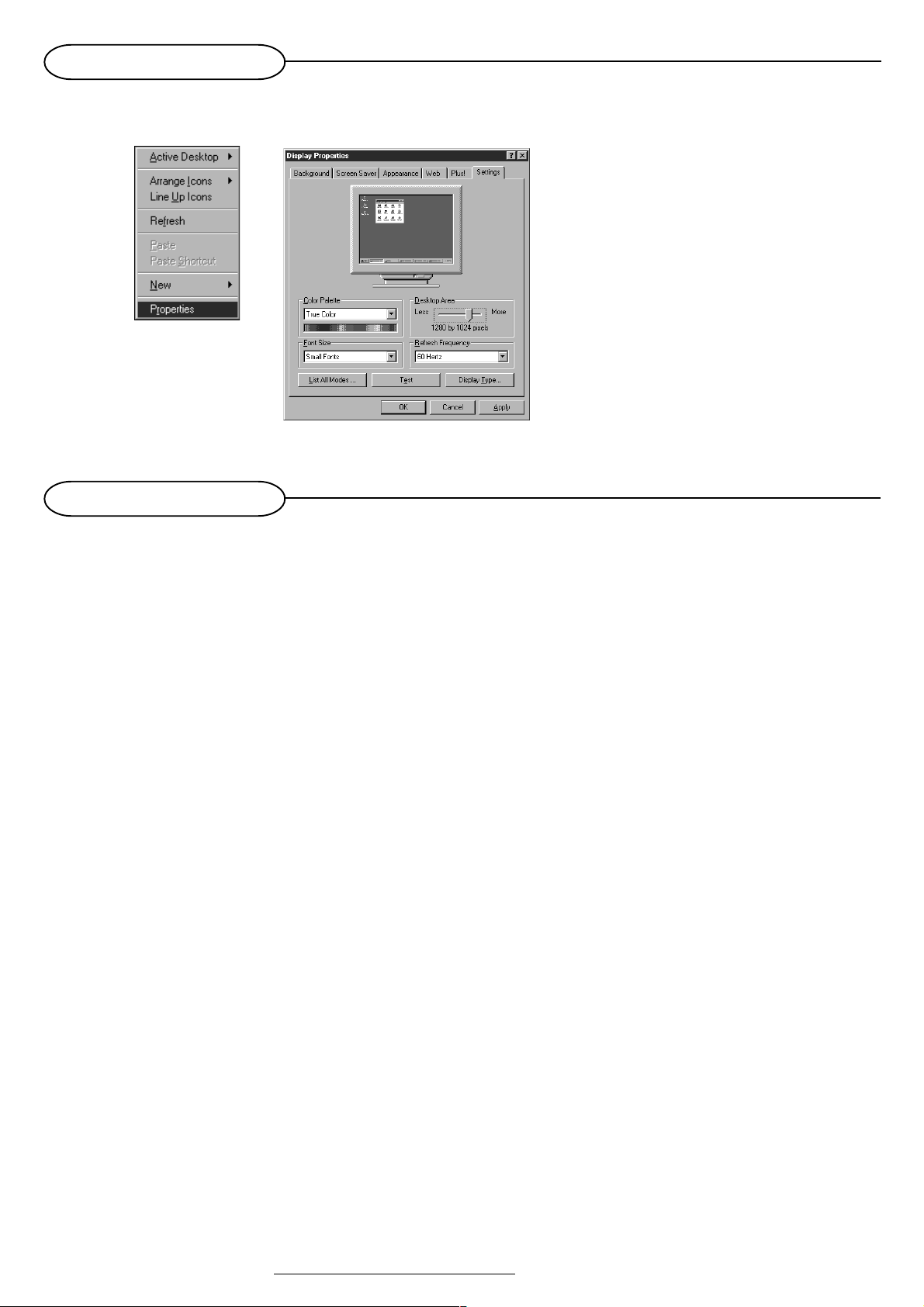

Set the computer to the proper resolution settings by opening the

Display Properties window by following the steps and pictures below:

1) Right-click the mouse over the

desktop and select : Properties.

2) The Display Properties window

opens.

3) Select the “Settings”tab.*

4) Slide the “Screen Area”bar to

display 1280 ×1024.

5) Choose the desired number of

colors.

6) Click OK.

* If the “Settings” tub is not available in NT, 2000 or XP versions, please refer to your operating system User manual or your IS department.

Step 3:

The first time you turn on your monitor, it performs several types of

automatic adjustments to optimize image quality. If the image quality

is not optimum for analog input signal (VGA or HD15), you can manu-

ally adjust PITCH and PHASE to fine tune the monitor by following

the instructions below:

Tip

You do not need manual adjustment for a digital input signal.

To Maximize the Performance of your LCD

1) Pitch and Phase should ONLY be adjusted after a 15 minute warm-up period.

2) There are two ways to optimize the screen performance.

2a) To use the auto adjust:

Press the “MENU”button and using the down arrow toscroll to “Screen”, then

press the “OK”button. Select the “AUTO”button and press “OK”.This will perform

an auto adjust of Pitch and Phase.

(For SDM-X72 and SDM-X82) Once the auto adjust is completed, press the

“MENU”button.

(For SDM-P82) Press the “AUTO”button.This will perform an auto adjust of Pitch

and Phase.

2b) Insert the supplied Utility CD-ROM, open the folder named “/Display_Adjust for

Windows”, then run the file named “Display_Adjust for Windows verx.x.exe”.

Once the file is launched, follow the short step-by-step instruction to maximize

the performance of your display.

For additional support, go to www.sony.com/displays/support or call 866-357-7669 (SONY)
