SERVICE MANUAL

Version Date Subject

1.0 11/2016 Original manual issue.

1.2 11/2016 Updated tuner part number and software version 16,43,45

12/2016 Add LGD panel model power board P/N at slide 16

Add LGD panel P/N at slide 17

Add Select Panel Type at slide 4

LCD Digital Color TV

9-888-721-02

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

ORIGINAL MANUAL ISSUE DATE: 11/2016 Chassis Name :GN2TP

Segment Name : QW

KDL-55W657D 2

MODEL LIST

MODEL COLOR COMMANDER DEST.

KDL-55W657D Black RMT-TX102B CO1

Table of content

Description Page

Caution--Two Panel Source Handling…………………………………. 4

Main Board Replacement Caution Guide[KDL-55W657D]………… 5

Power Board Replacement Caution Guide [KDL-55W657D]……….. 6

WARNINGS AND CAUTIONS………………………………………… 7

USE CAUTION WHEN HANDLING THE LCD PANEL…………… 8

SAFETY CHECK-OUT………………………………………………… 9

SELF DIAGNOSIS FUNCTION……………………………………… 10

SERVICE POSITION…………………………………………………… 12

SEC 1. DISASSEMBLY AND PARTS LIST…………………………… 13

1-1. KDL-55W657D …………………………………………………… 14

1-1-1. BASE STAND……………………………………………… 14

1-1-2. REAR COVER ……………………………………………… 15

1-1-3. POWER BOARD, A BOARD AND SPEAKER ………… 16

1-1-4. LCD PANEL, DECO and COVER, BOTTOM ………… 17

1-1-5. MISCELLANEOUS………………………………………… 18

1-2. How to disassemble rear cover [KDL-55W657D]…………….. 19

1-3. How to disassemble Deco………………………………….…… 20

1-3-1. How to disassemble Deco [KDL-55W657D]……………. 20

1-4. How to disassemble LVDS cable [KDL-55W657D]…………… 21

1-4-1. How to disassemble LVDS cable [KDL-55W657D]……… 21

1-5. How to disassemble IR Board[KDL-55W657D ]………………. 22

1-6. How to ass’y the LED lens [KDL-55W657D]…………………. 23

1-7. How to ass’y the KEY Board[KDL-55W657D]………………… 24

Description Page

1-8. How to disassembly the Front bezel[KDL-55W657D]………….. 25

1-9. How to ass’y the Front bezel[KDL-55W657D]………………...… 28

1-10. How to assy the Himeron Countermeasure on panel

[KDL-55W657D]……………………………………………………… 29

SEC 2. ADJUSTMENT…………………………………………………….. 35

SEC 3. DIAGRAMS AND CHASSIS STRUCTURE………………… 37

3-1. BLOCK DIAGRAM……………………………………………… 37

3-2. CONNECTOR DIAGRAM……………………………………… 38

3-3. CIRCUIT BOARDS LOCATION……………………………… 39

3-4. Tape location……………………………………………………… 40

APPENDIX-1 Trouble analysis flow…………………………………… 42

APPENDIX-2 Software data update…………………………………… 43

APPENDIX-3 Panel Operation Time………………………………….. 47

APPENDIX-4 Edit MODEL NAME and Serial Number…………… 48

APPENDIX-5 Assembly parts…………………………………………… 49

KDL-55W657D

Service Mode

Status Information >>

Self diagnosis history >>

Panel Selection <[ 27_LVB550FHB ]>

STATUS 1st Tu Infor >>

LVDS Spectrum(%) <[ 30 ]>

SERIAL NUMBER EDIT 8150003

MODEL NAME EDIT KDL-55W657D

TEST RESET <[ OFF ]>

UART Selection <[ Factory ]>

Tu Data for serv >>

SDB Service Menu >>

White Balance >>

Aging Mode <[ Off ]>

Default date for HDD recording <[ On ]>

Tuner detection >>

LVDS Driver Strength <[ 4 ]>

ATMOS CEC DISABLE <[ 0 ]>

[</>Set[Home]Exit

Caution--Two Panel Source Handling

KDL-55W657D

Select: Panel Type

1.Entering Service Mode

2.Select “Panel Selection”

Please check TV set s/n and set the panel selection item correctly

If TV s/n is 6,200,001-6,300,000, please ensure the item set to “27_LVB550FHB”.

If TV s/n is 6,300,001-6,400,000, please ensure the item set to “26_ LVG550DUY”.

3. Use the left and right key on RC to select Panel Type.

KDL-55W657D CO1

First Panel(BOE)

Second Panel(LGD)

Panel Type

27_LVB550FHB

26_LVG550DUY

Panel P/N

A-2123-136-A

A-2178-977-A

PSU P/N

1-895-955-11

1-982-362-11

Panel

Model Name

Product Code

Serial number

BOE

KDL-55W657D CO1

18894200

6,200,001-6,300,000

LGD

KDL-55W657D CO1

18894200

6,300,001-6,400,000

Make sure the panel selection is in right

setting after main board replacement.

Caution 1: This adjustment step for panel selection is mandatory check item after main board replacement.

Caution 2 : Please make sure the power board is matched with the panel brand when panel replacement.

Service Mode

Status Information >>

Self diagnosis history >>

Panel Selection <[ 27_LVB550FHB ]>

STATUS 1st Tu Infor >>

LVDS Spectrum(%) <[ 30 ]>

SERIAL NUMBER EDIT 8150003

MODEL NAME EDIT KDL-55W657D

TEST RESET <[ OFF ]>

UART Selection <[ no log ]>

Tu Data for serv >>

SDB Service Menu >>

White Balance >>

Aging Mode <[ Off ]>

Default date for HDD recording <[ On ]>

Tuner Detection >>

LVDS Driver Strength <[ 4 ]>

ATMOS CEC DISABLE <[ 0 ]>

[</>Set[Home]Exit

Caution: This adjustment step for UART is mandatory check item after main board replacement.

Other items should be kept the original setting.

Service mode optional bit check and manual adjustment step [KDL-55W657D]

KDL-55W657D

Main Board Replacement Caution Guide[KDL-55W657D]

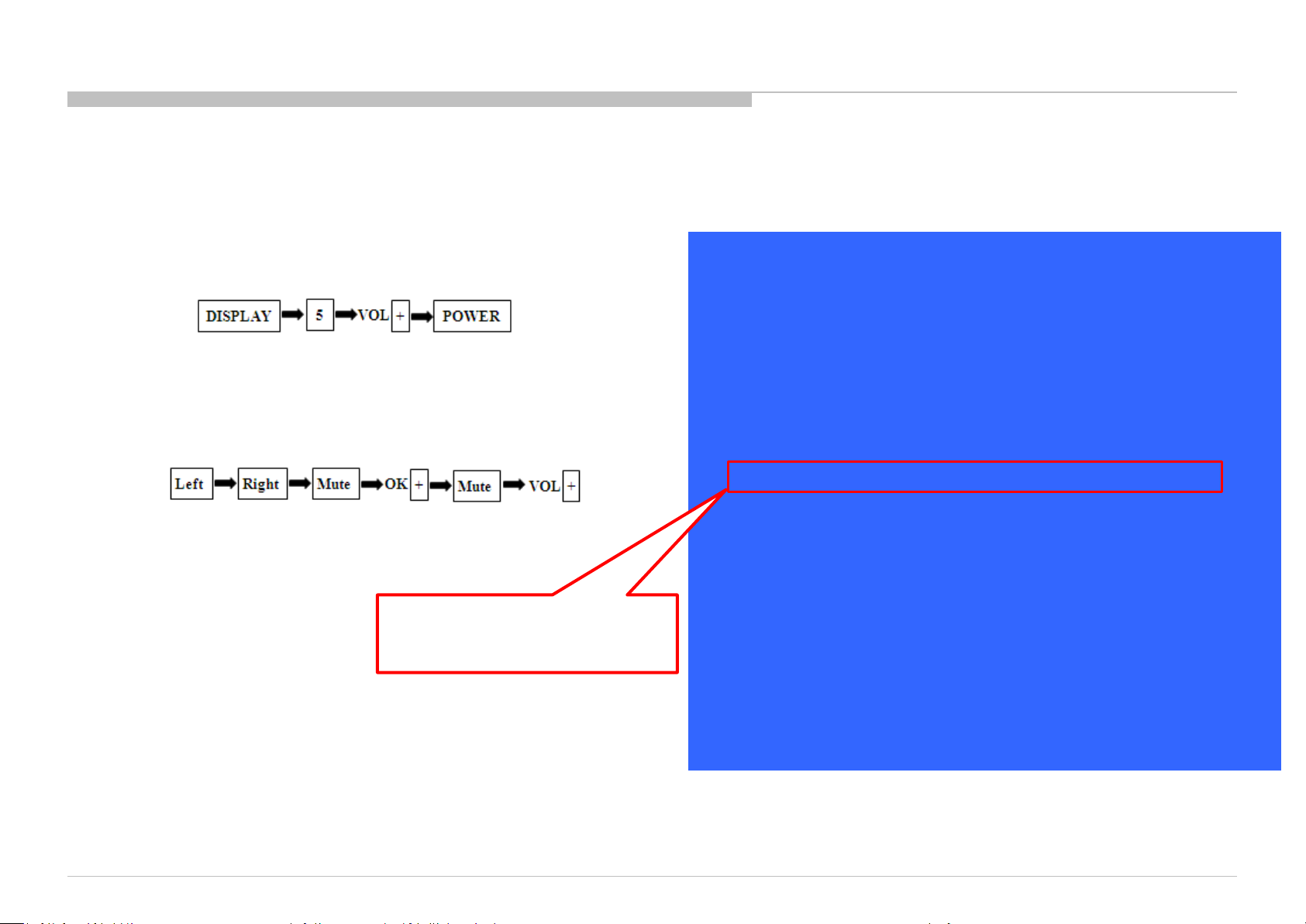

1. HOW TO ENTERING SERVICE MODE

1) standby mode

a.Turn on the main power switch to place this set in standby mode.

b.Press the buttons on the remote commander as follows, and entering

service mode.

2) power on mode

a.Turn on the main power switch to place this set in Power on mode.

b.Press the buttons on the remote commander as follows, and entering

service mode.

2. Check UART Selection:

Please check TV set default setting of UART is “No Log”.

Make sure the default setting of

UART is “No Log” after main

board replacement.

Caution: Please check the support pin after power board replacement.

Assembly the PSU Support pin [KDL-55W657D]

KDL-55W657D

1. Assembly the two support pins into the power board.And then check whether the support pins is locked well on the back side of

the power board.

Check the support pin is

fixed well after power

board replacement.

Not locked well on the

back side of the power

board.

Locked well on the back

side of the power board.

Power Board Replacement Caution Guide [KDL-55W657D]

Item

Sony PN

Description

Qty

4-571-413-01

SUPPORT, PWB

WARNINGS AND CAUTIONS - ENGLISH

CAUTION

These servicing instructions are for use by qualified service personnel only.

To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

WARNING!!

An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis.

The chassis of this receiver is directly connected to the ac power line.

CARRYING THE TV

Be sure to follow these guidelines to protect your property and avoid causing serious injury.

• Carry the TV with an adequate number of people; larger size TVs require two or more people.

• Correct hand placement while carrying the TV is very important for safety and to avoid damages.

SAFETY-RELATED COMPONENT WARNING!!

Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for safe operation. Replace these components with Sony

parts whose part numbers appear as shown in this manual or in supplements published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual.

Follow these procedures whenever critical components are replaced or improper operation is suspected.

KDL-55W657D

WARNINGS AND CAUTIONS

USE CAUTION WHEN HANDLING THE LCD PANEL

When repairing the LCD panel, be sure you are grounded by using a wrist band.

When repairing the LCD panel on the wall, the LCD panel must be secured using the 4 mounting holes on the rear cover.

1) Do not press on the panel or frame edge to avoid the risk of electric shock.

2) Do not scratch or press on the panel with any sharp objects.

3) Do not leave the module in high temperatures or in areas of high humidity for an extended period of time.

4) Do not expose the LCD panel to direct sunlight.

5) Avoid contact with water. It may cause a short circuit within the module.

6) Always clean the LCD panel with a soft cloth material.

7) Use care when handling the wires or connectors of the inverter circuit. Damaging the wires may cause a short.

8) Protect the panel from ESD to avoid damaging the electronic circuit (C-MOS).

9)It is recommended not to exceed 1 hour of Power-On nor Burn-in period with LCD panel face down condition, in repair activity.

10)Disconnect the AC power when replacing the parts.(FFC cable etc.).

KDL-55W657D

SAFETY CHECK-OUT

After correcting the original service problem, perform the following safety checks before releasing the set to the customer:

1. Check the area of your repair for unsoldered or poorly soldered connections. Check the entire board surface for solder splashes and bridges.

2. Check the interboard wiring to ensure that no wires are “pinched” or touching high-wattage resistors.

3. Check that all control knobs, shields, covers, ground straps, and mounting hardware have been replaced. Be absolutely certain that you have replaced all the insulators.

4. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the customer and recommend their replacement.

5. Look for parts which, though functioning, show obvious signs of deterioration. Point them out to the customer and recommend their replacement.

6. Check the line cords for cracks and abrasion. Recommend the replacement of any such line cord to the customer.

7. Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below.

8. For safety reasons, repairing the Power board and/or Inverter board is prohibited.

KDL-55W657D

SAFETY CHECK-OUT

Leakage Test

(To protect electric shock when customer touch the terminal.)

Leakage current can be measured by V: Voltmeter or oscilloscope (r.m.s. or peak reading)

Stabilized power supply instrument and isolated voltage transformer:

Use too much current capacity and isolated voltage transformer does not need to use stabilized power supply equipment

Specification of RMS volt meter: Input resistance > 1 Mohm, Input capacitance < 200 pF,

Frequency range: 15 Hz –1MHz (Refer Figure 1). Isolated type volt -meter (FLUKE 8921A etc *1)

*1 Not use FLUKE 8920A that connected to protective earth by diode

# Leakage current of measurement instrument is less than 10μArms when under test equipment AC plug is

opened

# Set up the following condition and turn on the set.

Applied voltage: Nominal input voltage (Description on Nameplate)

# Measure the leakage current between one phase conductor and neutral for terminal A and terminal B.

Read rms value, and then calculate to peak value PEAK VALUE =√2 RMS VALUE

Comply with the following requirement Class II equipment (2-pin plug): for each terminal, the worst value of measurement must

not exceed AC 350uA peak). Note: including AC adaptor, AC adaptor/DC operated unit combination

How to Find a Good Earth Ground

A cold-water pipe is a guaranteed earth ground; the cover-plate retaining screw on most AC outlet boxes is also at earth ground.

If the retaining screw is to be used as your earth ground, verify that it is at ground by measuring the resistance between it and a

cold-water pipe with an ohmmeter. The reading should be zero ohms.

If a cold-water pipe is not accessible, connect a 60- to 100-watt trouble- light (not a neon lamp) between the hot side of the

receptacle and the retaining screw. Try both slots, if necessary, to locate the hot side on the line; the lamp should light at normal

brilliance if the screw is at ground potential (see Figure B).

KDL-55W657D

Table des matières

Autres manuels Sony Téléviseur LCD

Sony

Sony KDL-32XBR6 Manuel utilisateur

Sony

Sony KDL-32EX500 - Bravia Ex Series Lcd... Guide de l'utilisateur

Sony

Sony Bravia KDL-40S4100 Manuel utilisateur

Sony

Sony BRAVIA KDL-46Z4100 Manuel utilisateur

Sony

Sony BRAVIA KDL-52S5100 Manuel utilisateur

Sony

Sony Bravia KDL-55NX720 Manuel utilisateur

Sony

Sony GRAND WEGA KF-42SX200 Manuel utilisateur

Sony

Sony Bravia KDL-42W670A Manuel utilisateur

Sony

Sony 65X8000C Manuel utilisateur

Sony

Sony BRAVIA KDL-55X4500 Manuel utilisateur

Sony

Sony KDL-46NX711 - 46" Bravia Nx700 Series Hdtv Manuel utilisateur

Sony

Sony GrandWega KDF-46E2000 Manuel utilisateur

Sony

Sony BRAVIA KDL-32L5000 Manuel utilisateur

Sony

Sony KDL-19M4000/S - Bravia M Series Lcd... Manuel utilisateur

Sony

Sony Bravia XBR-46HX929 Guide de l'utilisateur

Sony

Sony KLV-32V2000 Manuel utilisateur

Sony

Sony BRAVIA KD-75X7800F Manuel utilisateur

Sony

Sony BRAVIA KDL-52S5100 Manuel utilisateur

Sony

Sony KDL-32ML130 - 32" Bravia M-series Digital Lcd... Manuel utilisateur

Sony

Sony KDL-19M4000/P - Bravia M Series Lcd... Manuel utilisateur

Sony

Sony BRAVIA KDL-52V5100 Manuel utilisateur

Sony

Sony KDL-40VL130 - 40" Bravia Vl-series Lcd... Manuel utilisateur

Sony

Sony BRAVIA KDL-40W4500 Manuel utilisateur

Sony

Sony KD-43X7 F Series Manuel utilisateur

Manuels Téléviseur LCD populaires d'autres marques

LG 32LC4R* Manuel utilisateur

ViewSonic

ViewSonic N4200w-1 VS10945-1M Manuel utilisateur

Salora

Salora 22LED1600 Manuel utilisateur

Samsung

Samsung LA32E420 Mode d’emploi

Dell

Dell W1900 19 Instructions d'utilisation

Samsung

Samsung LN40C670M1F Manuel utilisateur

Samsung

Samsung Series 4+ Manuel utilisateur

Samsung

Samsung 5 Series Manuel utilisateur

Grundig

Grundig 40 VLE 8230 BP Manuel utilisateur

Philips

Philips 43PFL4901/F7 Manuel utilisateur

LG 32LS350 Manuel utilisateur

VIORE

VIORE LED32VF60 Manuel utilisateur

Toshiba

Toshiba Regza 42HL167 Manuel utilisateur

JVC

JVC LT-32A220 Manuel utilisateur

Philips

Philips 20TA1000/93 Manuel utilisateur

Philips

Philips 32PFL3158T/12 Manuel utilisateur

Vizio

Vizio VP422HDTV10A - 42" Plasma TV Manuel utilisateur

Philips

Philips 40PFL7705D Manuel utilisateur
