SERVICE MANUAL (UNIQUE)

Version Date Subject

1 02/2018 1st Issue

2 04/2108 Add destination HK5, PL1 & TW6 (pg.48, 51, 53, 56)

3 04/2018 Correct model name for TW6 and PL1 (pg.3)

4 05/2018 1. Add destination IN5 for CTTI plant (pg.48, 51, 53, 56)

2. Update board name LKP1 --> LKP2 for 50” (pg.13)

5 05/5/2018 1. Add destination E41 (pg. 3, 48, 51, 53, 56)

2. Correct Sheet Thermal(BM) part number for HK5, TW6, PL1 (pg. 48)

3. Correct ASSY,FALL LOCK,BELT LL part number for HK5, TW6, PL1 (pg. 51)

4. Correct CORD SET, POWER-SUPPLY part number for HK5 (pg. 51)

ORIGINAL MANUAL ISSUE DATE:

GN4 CHASSIS

Segment : CP

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:

LCD TV

9-888-746-P5

For SM - Common , please refer :

9-888-746-0x

SYSSET

2018/06/1909:29:32(GMT+09:00)

SERVICE MANUAL (UNIQUE)

LCD TV

GN4 CHASSIS

Segment : CP

SYSSET

2018/06/1909:29:32(GMT+09:00)

MODEL LIST

MODEL

REMOTE DESTINATION

KLV

-43W662F

KDL

-43W660F

RMT-TX301P

RMT-TX300E

RMT-TX300P

IN5

AZ1

AF1, E51, IA2, MY1,

TH8,HK5,

VN3, E41

RMT-TX300T

TW6

KDL

-43W667F RMT-TX300P

PL1

KLV

-50W662F

KDL

-50W660F

RMT-TX301P

RMT-TX300E

RMT-TX300P

IN5

AZ1

AF1, E51, IA2, MY1,

TH8, VN3, E41

RMT-TX300T

TW6

KDL

-50W667F

RMT-TX300P

PL1

SYSSET

2018/06/1909:29:32(GMT+09:00)

Section Title

Page

SAFETY NOTES

-1.

How to Remove Rear Cover ..………………………...…..

DIAGRAMS

-1.

Circuit Board

Location …..………………...…………….. 13

-2.

Wire

Dressing ………………………………………………. 14

DISASSEMBLY, EXPLODED VIEWS AND OTHER PARTS

-1.

KDL

-43W66*F/KLV-43W66*F………………………………… 47

-2.

KDL

-43W66*F/KLV-43W66*F ……………..………………… 52

TABLE OF CONTENTS

Please refer Service Manual –Common for below information :

General Safety Notes

Self Diagnostic Function

Triage Chart

Troubleshooting, Troubleshooting reference

Adjustments

Diagrams : Block Diagram , Connector Diagram

Panel Handling

Note: Pictures provided in all this manual might have slight difference from

the actual sets

SYSSET

2018/06/1909:29:32(GMT+09:00)

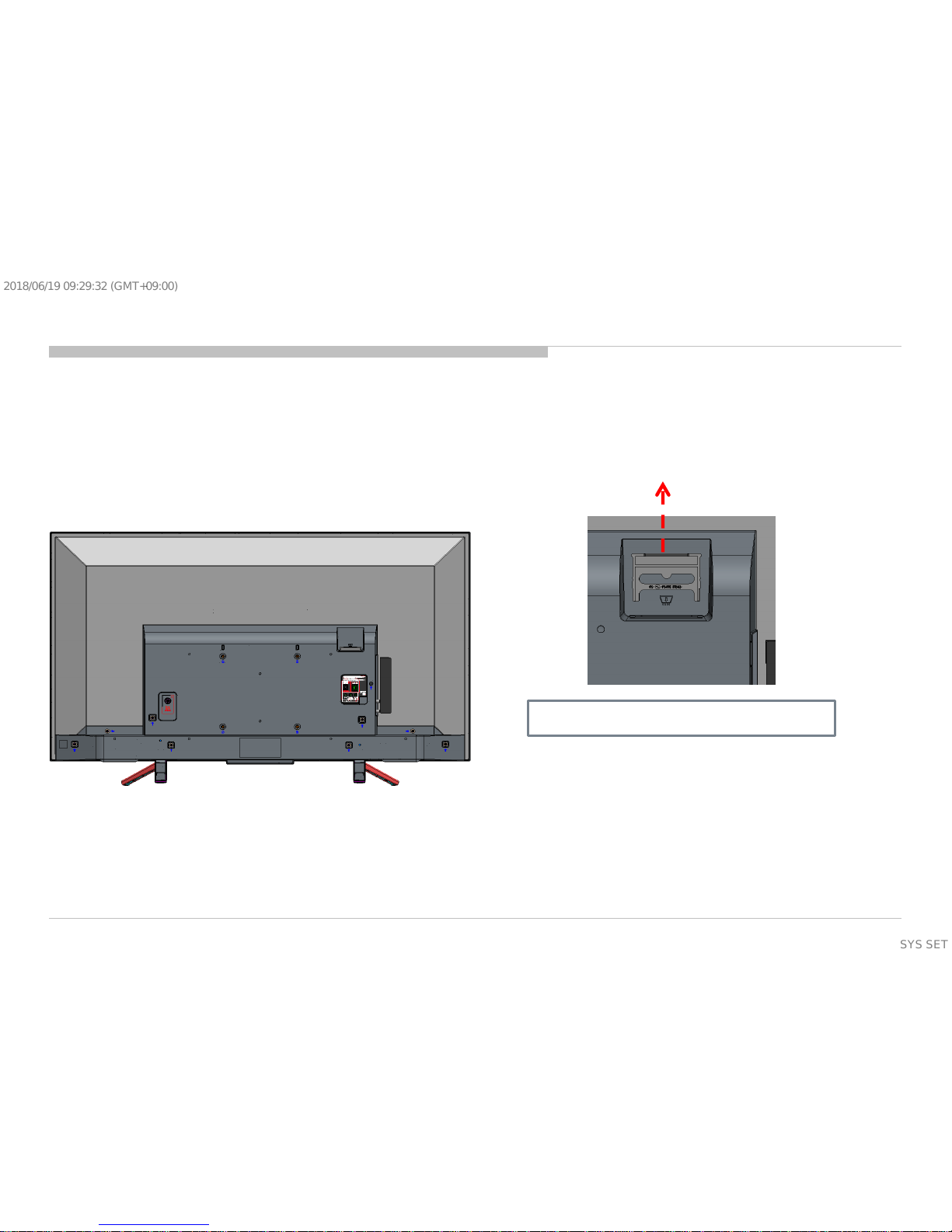

RC Disassembly method and caution

1.Dummy Card PCMCIA dismantle guide (before removing rear cover)

Pull up dummy card PCMCIA

SECTION 1

DISSASSEMBLY AND REMOVAL CAUTION

SYSSET

2018/06/1909:29:32(GMT+09:00)

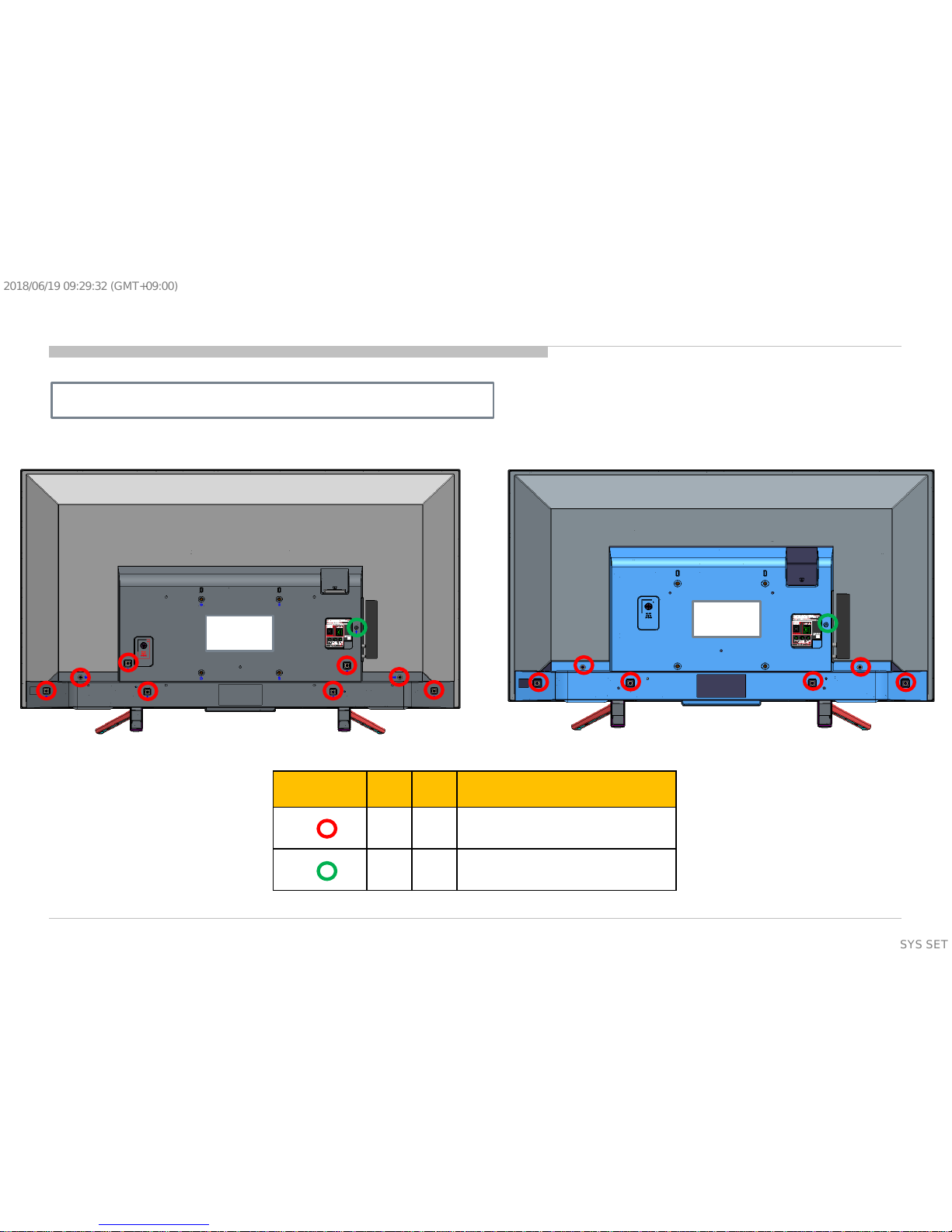

Reference 43” 50” Remarks

6 8 4-167-019-22

Screw, +PSW M3X8

1 1 7-685-647-79

Screw, +BVTP 3X10 Type 2 IT-3

1. Screw type & qty to disassemble RC

50”

43”

RC Disassembly method and caution

SYSSET

2018/06/1909:29:32(GMT+09:00)

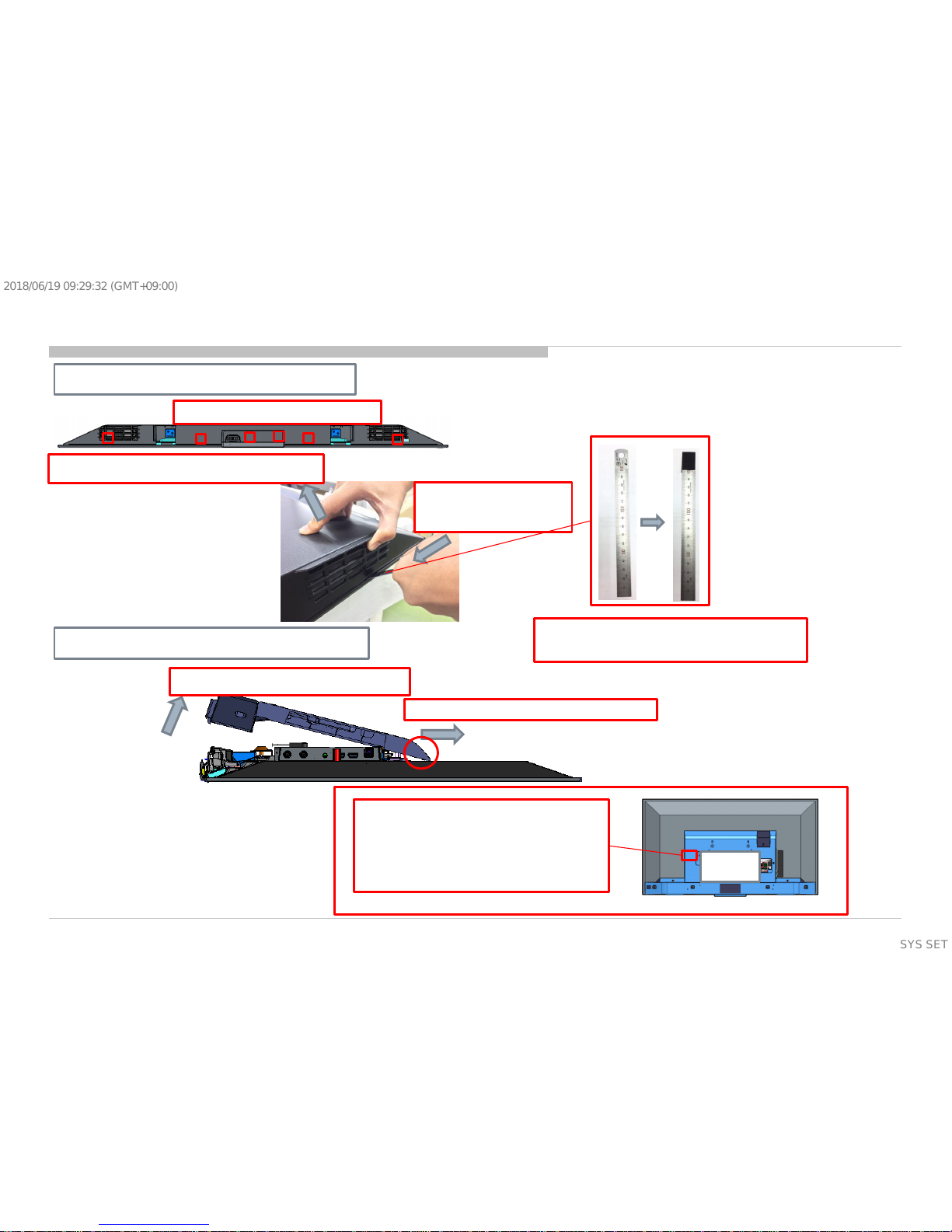

2. Disassemble bottom hook

a. Confirm hook position

b. 1 hand hold top RC to unhook

c. 1 hand push

ruler to insert at

hook area

Note: Please wrap end of ruler with

tape to avoid part scratch/damage

3. Disassemble the rear cover

a. Lift the bottom rear cover up

b. Release the rear cover from set

Note: for 43” only, please

push red area while (a. lifting

the bottom rear cover up).

Purpose is to release 43” side

hook.

43”

RC Disassembly method and caution

SYSSET

2018/06/1909:29:32(GMT+09:00)

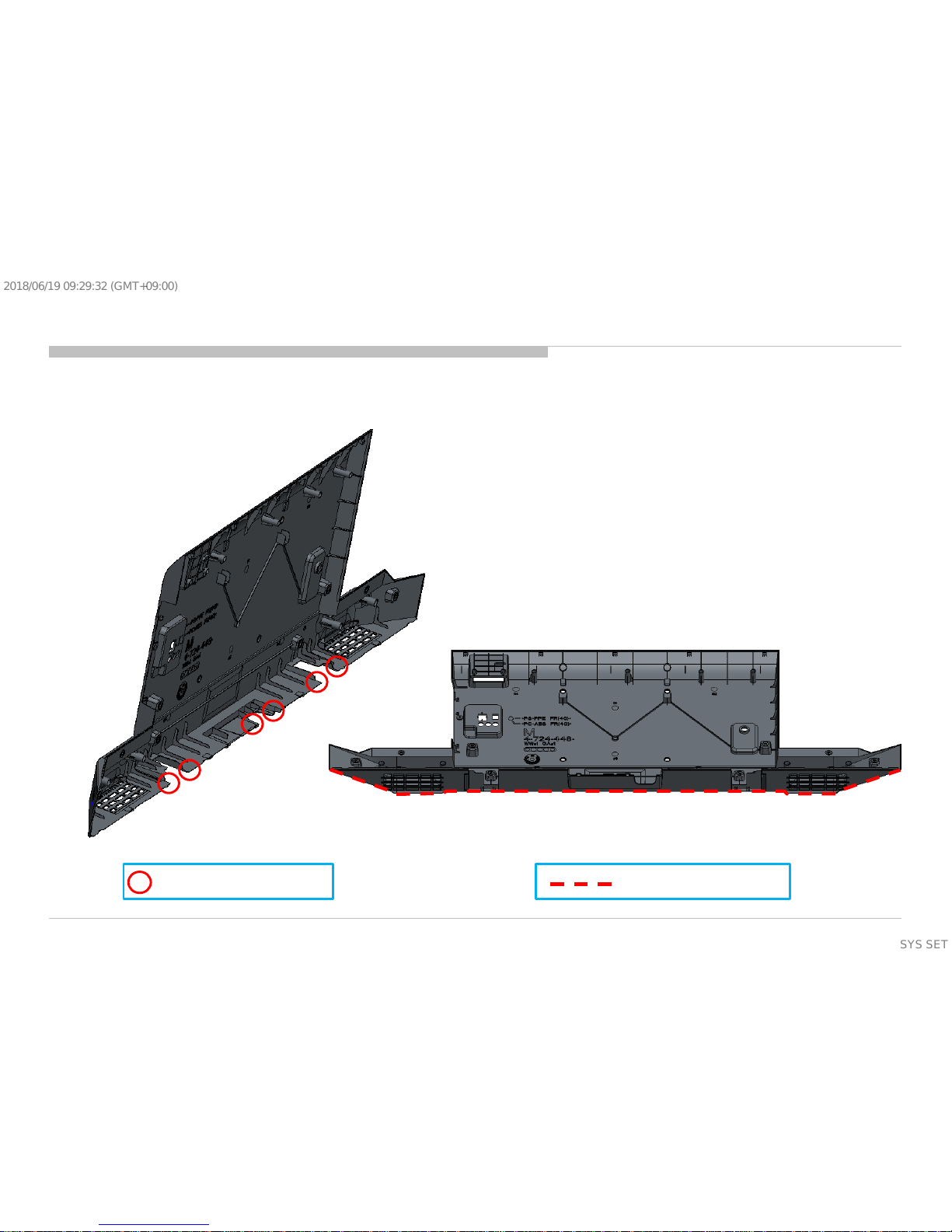

Sharp Edge Information

Caution Point:

Please wear glove while removing rear cover to avoid sharp edge

At bottom area as shown in figure below.

Sharp edge corner Sharp edge corner

SYSSET

2018/06/1909:29:32(GMT+09:00)

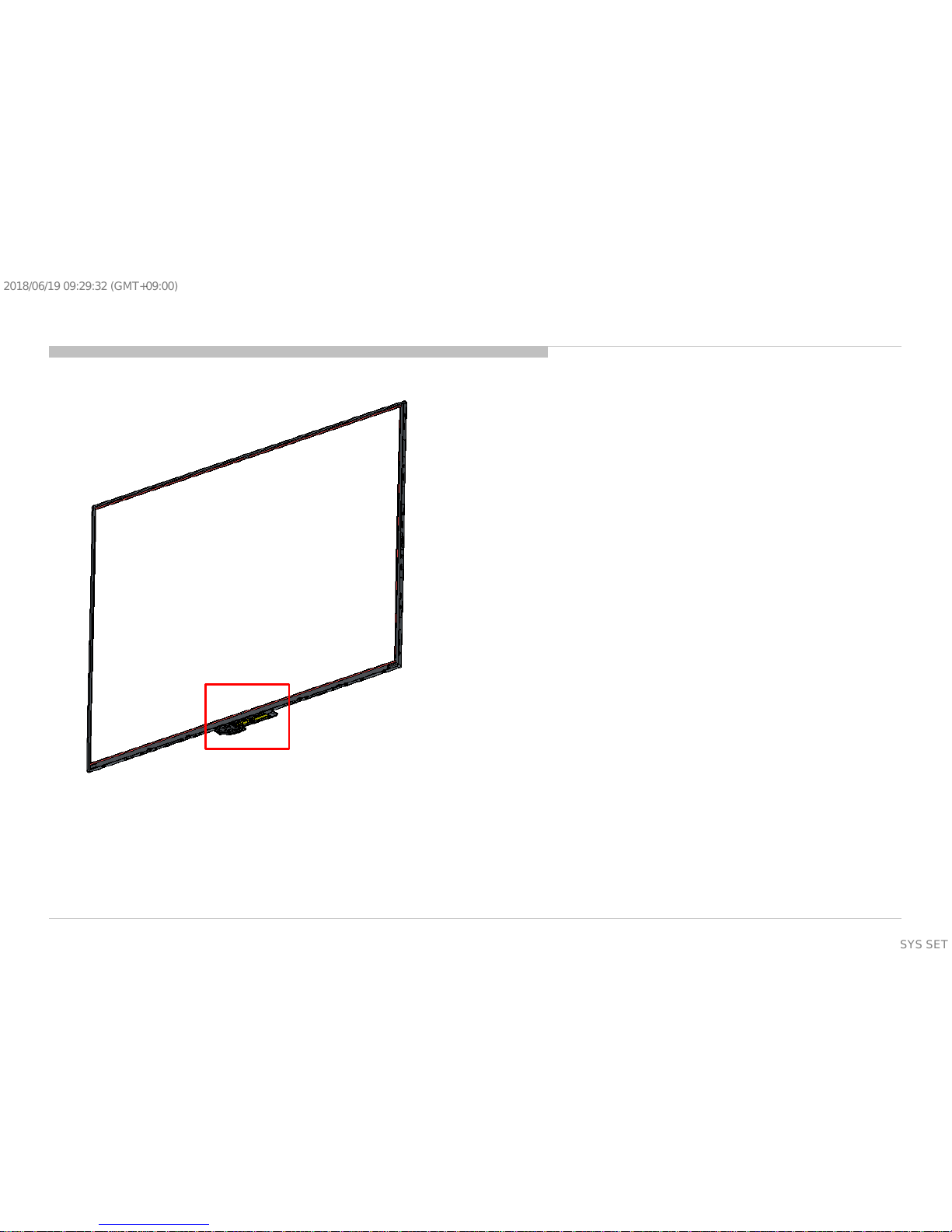

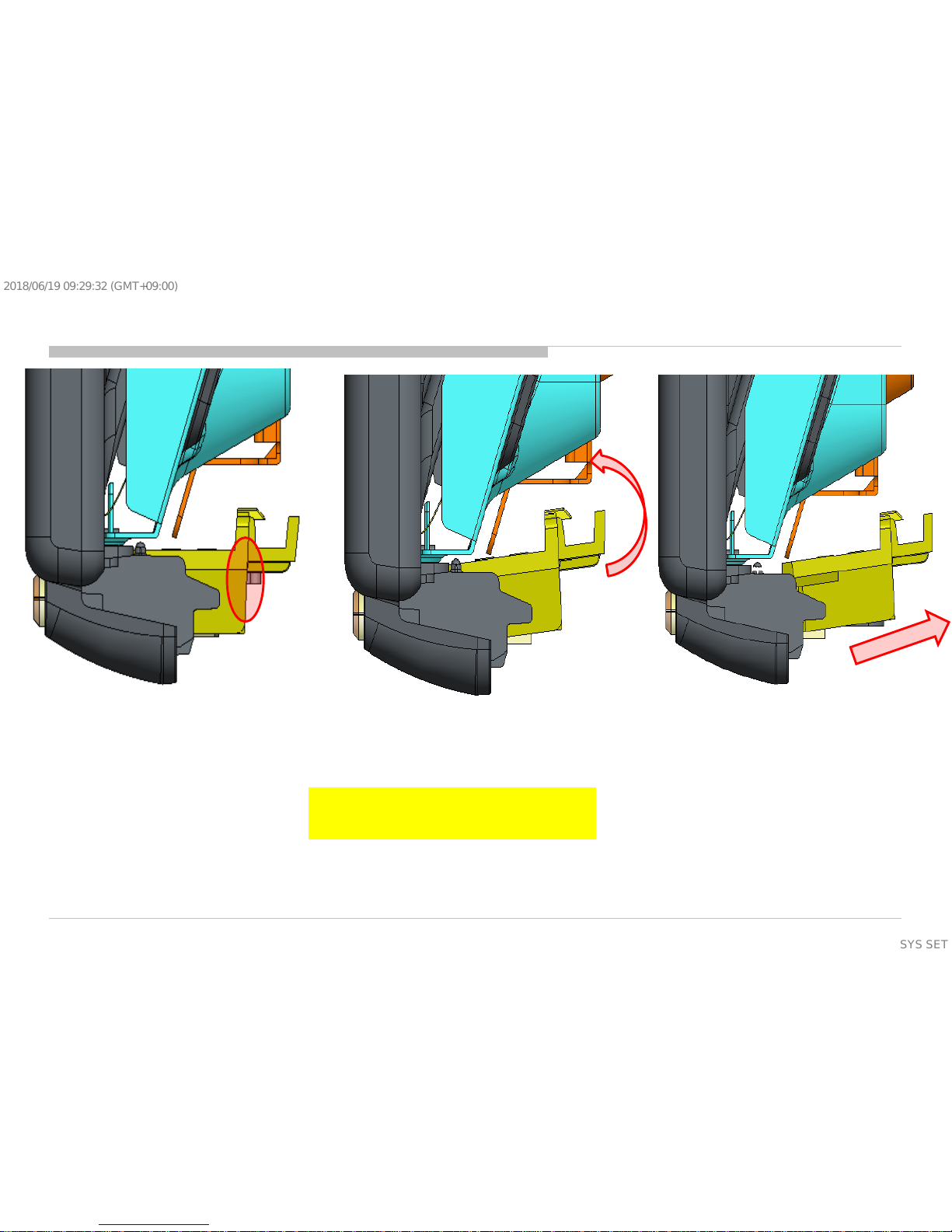

Method 1: Disassemble In Set Condition

1. Hold the end of Guide Light 2. Rotate Guide Light slightly 3. Pull Guide Light out

Note:

1. Ensure Hook is not broken

2. Prepare replaceable new part in case hook broken

Hold here for

both L&R sides

9 SYSSET

2018/06/1909:29:32(GMT+09:00)

Method 2: Disassemble Bezel First

Step 1: Disassemble entire Bezel from P-mod/Set

together with guide light (PTT) A attached.

10 SYSSET
