Features

This unit is a portable GPS unit to receive and record position

information.

Using this unit and the supplied software, you can:

•Check the locations of where you took pictures on a trip, etc.

•Apply position information to the pictures you took.

Record the GPS log using the GPS unit

Turn on the unit, before you start taking pictures with your digital

camera, camcorder or digital single lens reflex camera (hereinafter

collectively called “camera”). The unit records the GPS log (moving

route) during your trip until the power is turned off.

Apply position information to the pictures using “GPS Image

Tracker”

•Launch the supplied software (GPS Image Tracker) and import the

GPS log recorded on the unit to your computer.

•Import the pictures to your computer from your camera, then match

the pictures with the GPS log file and apply the position information

of where you took the pictures.

D:\WORK\GPS_CS1\2688548111_UGGB\01GB-GPSCS1\01GB04BAS.fm

master:Right

GPS-CS1

2-688-548-11(1)

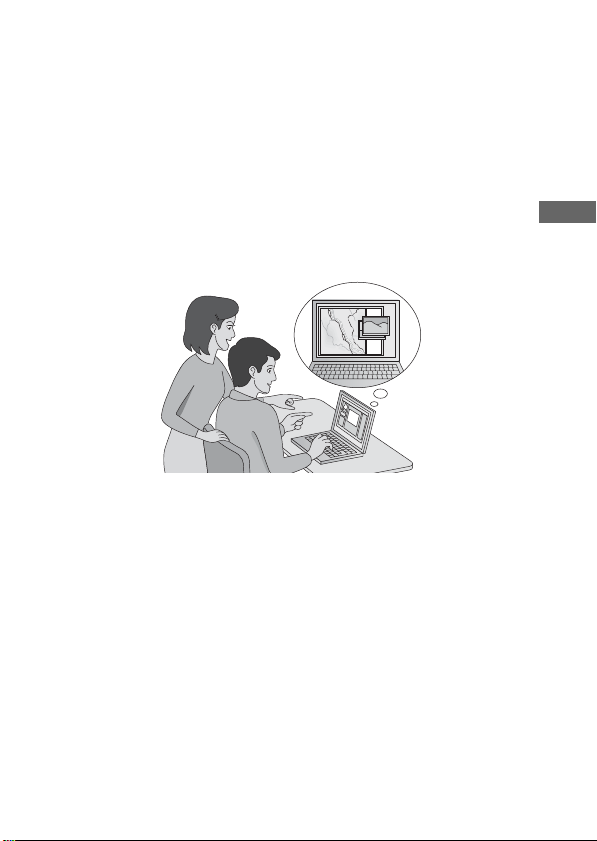

You can check the locations of where you took pictures on the

map

If you purchase a Sony camera that supports “Picture Motion Browser”

(some versions require on-line update to enjoy), you can easily check the

locations of where you took pictures with the software online with your

computer.

As this online map service is provided by the third party, the service may

be changed or ended without notice to the customers.

D:\WORK\GPS_CS1\2688548111_UGGB\01GB-GPSCS1\01GB04BAS.fm

master:Left

GPS-CS1

2-688-548-11(1)

Precautions

When using this unit, please keep the following in mind.

On a battery

A battery is not supplied

An LR6 (size AA) alkaline battery or an HR6 (size AA) Nickel-Metal

Hydride battery is necessary for recording log data in this unit. Purchase a

battery before using the unit.

Notes on a Nickel-Metal Hydride battery

•Charge the Nickel-Metal Hydride battery before using the unit for the

first time. Refer to instructions supplied with the battery on charging.

•The battery can be charged even if it is not completely discharged. Also,

even if the battery is not fully charged, you can use the partially charged

capacity of the battery as is.

•If you do not intend to use the battery for a long time, use up the existing

charge and remove it from the unit, then store it in a cool, dry place.

This is to maintain the battery’s functions.

On recorded data on the unit

If you turn the power off or remove the battery while using the unit, the

log data may be damaged. Be sure to replace the battery with a new one

after you turn the power off.

Compensation for damaged log data will not be made

If position information (GPS log files) is not recorded properly due to

malfunction of the recording memory or the system, compensation for

damaged log data or pictures with position information will not be made.

On use and storage

•Before you use the unit, make sure that the unit works properly by

checking its operation.

•Do not shake or strike this unit hard. In addition to malfunctions and an

inability to record the log, this may cause recorded data breakdown.

•This unit is neither dust-proof, nor splash-proof, nor water-proof.

D:\WORK\GPS_CS1\2688548111_UGGB\01GB-GPSCS1\01GB04BAS.fm

master:Right

GPS-CS1

2-688-548-11(1)

Do not use/store the unit in the following places.

•In an extremely hot, cold or humid place

In places such as in a car parked in the sun, the unit body may become

deformed and this may cause a malfunction.

•Under direct sunlight or near a heater

The unit may become discolored or deformed, and this may cause a

malfunction.

•Near strong magnetic place

•In sandy or dusty places

Be careful not to let sand or dust get into the unit. This may cause the

unit to malfunction, and in some cases this malfunction cannot be

repaired.

On carrying the unit

•Do not sit on a chair etc., with the unit in the back pocket of your pants

or skirt, as this may cause malfunction or damage the unit.

On cleaning the unit

Cleaning the unit surface

Clean the unit surface with a soft cloth slightly moistened with water,

then wipe the surface with a dry cloth. Do not use the following as they

may damage the finish or the casing.

•Chemical products such as thinner, benzine, alcohol, disposable cloths,

insect repellent, sunscreen or insecticide, etc.

•Do not touch the unit with the above on your hand.

•Do not leave the unit in contact with rubber or vinyl for a long time.

D:\WORK\GPS_CS1\2688548111_UGGB\01GB-GPSCS1\01GB04BAS.fm

master:Left

GPS-CS1

2-688-548-11(1)

What is GPS?

The GPS is a navigational system that calculates position from accurate

US aviation satellites. This system allows you to track down your exact

location on the earth. The GPS satellites are located in six orbits, 20,000

km above us. The GPS consists of a total of 24 GPS satellites: Four of the

satellites are placed into each orbit, and at least three satellites are

required to pinpoint your location. A GPS receiver receives radio signals

from the satellites, and calculates the present location based on the orbital

information (almanac data) and travel time of the signals, etc.

Measuring a location is called “tracking”. A GPS receiver can track down

the location’s latitude and longitude by receiving signals from three

satellites.

Autres manuels pour GPS-CS1 - Digital Camera GPS Unit

Table des matières

Langues :

Autres manuels Sony GPS

Sony

Sony XA-NV300T Manuel utilisateur

Sony

Sony NV-U70 - NAV-U Portable GPS Navigator Manuel utilisateur

Sony

Sony nav-u Manuel utilisateur

Sony

Sony NV-U74 Manuel utilisateur

Sony

Sony NV-U70 - NAV-U Portable GPS Navigator Manuel utilisateur

Sony

Sony GPS-CS1 - Digital Camera GPS Unit Manuel utilisateur

Sony

Sony NV-U74 Manuel utilisateur

Sony

Sony nav-u NV-U53 Manuel utilisateur

Sony

Sony NV-U44 - Automotive GPS Receiver Manuel utilisateur

Sony

Sony XA-NV300T Manuel utilisateur

Sony

Sony NV-U94T - Automotive GPS Receiver Manuel utilisateur

Sony

Sony XA-NV100T Manuel utilisateur

Sony

Sony NAV-U NVD-U11E Manuel utilisateur

Sony

Sony NV-U44/R - 3.5" Portable Navigation System Manuel d'utilisation

Sony

Sony NAV-U NV-U81T Manuel utilisateur

Sony

Sony NV-U82B Manuel utilisateur

Sony

Sony VAIO VGP-BGU1 Manuel utilisateur

Sony

Sony NV-U73T Firmware version 3.02 Manuel utilisateur

Sony

Sony NV-U70 - NAV-U Portable GPS Navigator Feuille d'instructions

Sony

Sony NV-U74T - 4.3" Portable Navigation System Manuel utilisateur

Sony

Sony NAV-U NV-U52 Manuel utilisateur

Sony

Sony GPS-CS1KA Manuel utilisateur

Sony

Sony NAV-U NVD-U13E NAV-U NVD-U13R Manuel utilisateur

Sony

Sony GPS-CS1KASP - GPS Unit For Digital Cameras Manuel d'instructions d'installation

Manuels GPS populaires d'autres marques

Raven

Raven Cruizer II Manuel

Hama

Hama 53118 Manuel utilisateur

Garmin

Garmin SOUNDER 125 Manuel utilisateur

Garmin

Garmin DEZL 580 Manuel utilisateur

Jigabot

Jigabot EX Manuel utilisateur

Pointer

Pointer Cellocator CelloTrack XT LTE Guide d'installation

Queclink

Queclink GV55LITE Manuel utilisateur

Voxson

Voxson Voxtrack GPS500 Manuel d'instructions

Garmin

Garmin ECHOMAP PLUS Manuel utilisateur

Starcom Systems

Starcom Systems Kylos Compact Manuel utilisateur

Garmin

Garmin 15 H Series Manuel utilisateur

Cobra

Cobra Marine MC 600Ci Manuel utilisateur

Cellocator

Cellocator CelloTrack T Manuel utilisateur

Enfora

Enfora Mini-MT GSM2228UG001 Manuel utilisateur

Magellan

Magellan eXplorist 100 Manuel utilisateur

LTE

LTE G50B Manuel utilisateur

Garmin

Garmin DEZL OTR500 Manuel utilisateur

SkyGolf

SkyGolf SkyCaddie SG1 Manuel utilisateur
