Sony NVD-U02E Manuel utilisateur
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1) SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
NVD-U02E
NVD-U02N
NVD-U02R
Map Update Disc
Operating Instructions
©2008 Sony Corporation Printed in Japan
4-104-525-11 (1)
Operating Instructions
Bedienungsanleitung
Mode d’emploi
Manual de instrucciones
GB
DE
FR
ES
Sony Corporation Printed in Japan
On copyrights
The map and POI data may contain copyrighted material.
Do not violate the previsions of the copyright law.
On trademarks
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
• “nav-u” and are trademarks of Sony Corporation.
• All other trademarks are trademarks of their respective owners.
V-Trafic Information in France is provided by Mediamobile
company.
Traffic Information in the UK is provided by ITIS Holdings
Plc.
© 1993 – 2007 NAVTEQ. All Rights Reserved.
Customer Support Portal
If you have any questions or for the latest support
information on navigation, visit the website below:
For customers in U.S.A.
http://www.sony.com/nav-u/support
For customers in Canada
http://www.sony.ca/nav-u
For customers in Europe
http://www.navu.sony-europe.com/support
Austria
© Bundesamt für Eich- und
Vermessungswesen
Belgium
Traffic Information is provided
by the Ministerie van de Vlaamse
Gemeenschap and the Ministèrie de
l’Equipement et des Transports.
Croatia, Estonia, Latvia,
Lithuania, Poland, Slovenia
© EuroGeographics
France
source: Géoroute® IGN France & BD
Carto® IGN France
Germany
Die Grundlagendaten wurden mit
Genehmigung der zuständigen
Behörden entnommen
Great Britain
Based upon Crown Copyright
material.
Greece
Copyright Geomatics Ltd.
Hungary
Copyright © 2003; Top-Map Ltd.
Italy
La Banca Dati Italiana è stata prodotta
usando quale riferimento anche
cartografia numerica ed al tratto
prodotta e fornita dalla Regione
Toscana.
Norway
Copyright © 2000; Norwegian
Mapping Authority
Portugal
Source: IgeoE – Portugal
Spain
Información geográfica propiedad
del CNIG
Sweden
Based upon electronic data
© National Land Survey Sweden.
Switzerland
Topografische Grundlage:
© Bundesamt für Landestopographie.
Gebruiksaanwijzing NL
Istruzioni per l’uso IT
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
2
Notes on use
System requirements
• OS: Windows 2000/Windows XP/Windows Vista
• DVD-ROM drive
• USB port
• Internet connection
Before you update/add the maps on the navigation unit
Install the PC connection software on your computer
For Windows 2000/Windows XP users:
If “ActiveSync” is not installed in your computer, install by either of the following
methods:
• Insert the disc supplied with the navigation unit into your computer, select your
language, then click “Install PC connection software” to install the software.
• Download and install “ActiveSync 3.8” or later from the Microsoft support site.
For Windows Vista users:
Download “Windows Mobile Device Center 6.1” or later from the Microsoft support site,
if not already installed.
Notes
• If you update the maps on the navigation unit using this disc, data other than on this
disc cannot be restored.
• Sony cannot be responsible for any loss of personal content, such as “Favorites”
during the update process as certain aspects may not be compatible with the
updated content. Please take a few moments to write down your “Favorites” for
safekeeping, in case they are lost as a result of the update.
3
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
Connecting the navigation unit to your computer
1 Switch off the main power by sliding the POWER switch of the
navigation unit to the OFF position.
POWER
ONOFF
CHG
POWER
OFF ON
2 Connect the navigation unit to the power supply with the
supplied AC adapter.
3 Connect the navigation unit to your computer using the
supplied USB cable.
4 Switch on the main power by sliding the POWER switch of the
navigation unit to the ON position.
Wait until your computer has detected the navigation unit.
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
4
Setting up the PC connection software on your
computer
For Windows 2000/Windows XP users:
“Connecting” appears on the navigation unit display, and “Set Up a Partnership” appears
on your computer display.
1 Select “No.”
2 Click “Next.”
For Windows Vista users:
“Connecting” appears on the navigation unit display, and the setup screen of the “Device”
display appears on your computer.
1 Select “Connect without setting up your device.”
Note
The language on the displays in this step differs depending on your computer.
5
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)

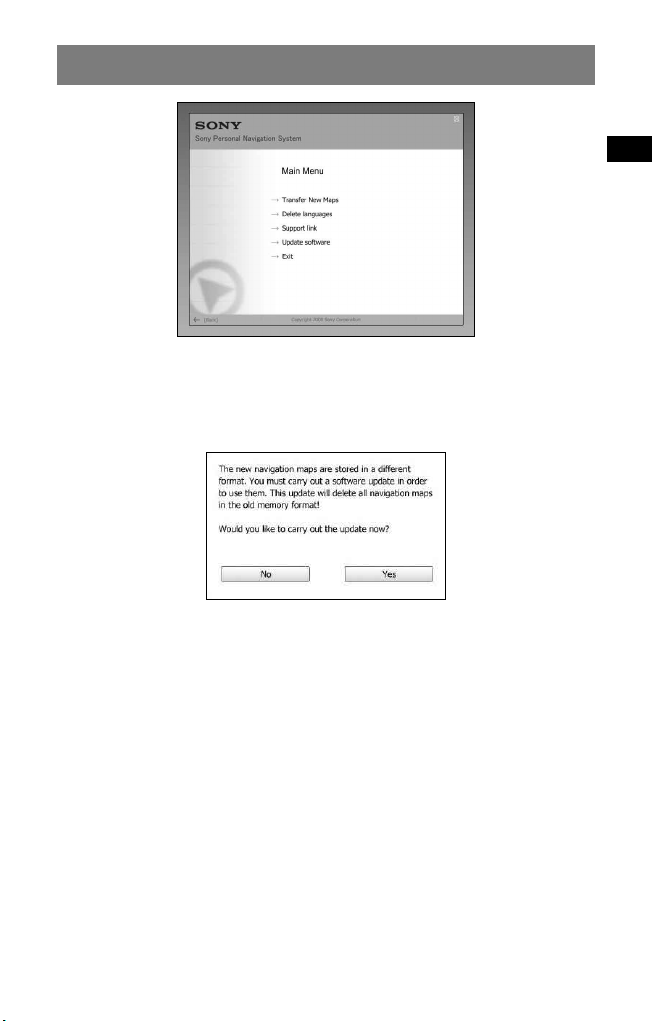

Starting the application
1 Insert the disc into your computer, then select your language.
2 Select “Map Manager.”
If an update is necessary, the following display appears, and follow the procedure of
the display.
Loading new software to your navigation unit will delete all pre-existing maps. In some
cases your “Favorites” will no longer be compatible. (See “Important notice” on page 9.)
Update the software, and the user setting will be reset. Set the data again after updating.
If you agree to these terms, select “Yes.”
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
6
Selecting the maps to add/remove
1 Check the map(s) that you want to add, and uncheck any
map(s) you want to remove.
2 Click “Transmit .”
The confirmation display appears.
3 Click “OK.”
Addition or removal of the map starts.
7
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
Notes
• The display differs depending on the map data.
• Addition/removal time differs depending on the computer performance or map type.
• Due to the nature of the updated, highly-detailed map content, the area may be
different from the map data used now.
Completing the map addition/removal
The addition/removal of the map is completed when the above message is displayed.
1 Click “OK.”
2 Click “Exit” to quit the application.
Turn off the navigation unit by the POWER switch on its bottom, and disconnect the
cables. Turn on the navigation unit again.
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
8
Important Q & A
1 Does your “Favorites” and “Home” data remain after the update?
In many cases this data will remain, however, some data may generate an error
message as a result of the updated map data. In this case, you will need to delete the
particular “Favorites” and re-register it with the revised map data installed. Prior to
updating your navigation unit, please make a note of all “Favorites” for safekeeping.
2 Can previous map data be restored after updating the navigation unit?
Cannot be restored to the factory default map of the navigation unit.
3 Are any functions updated during the update process?
No functions are updated.
4 What should be done if a route number is not displayed correctly?
Turn the unit OFF using the power switch located on the bottom of the unit and then
turn it back ON. The map data will be re-read and the route number should appear
correctly, unless it has recently changed.
5 I cannot set the destination registered in “Favorites.” What should I do?
You may have selected a destination out of the range of the selected map. Confirm
whether the selected destination is within the range of the selected map data.
The destination may not be set even within the range of the selected map, since the
map data was updated. If the selected destination is within the range of the selected
map, register the destination point again.
6 I cannot use a saved route. What should I do?
You may have selected a route out of the range of the selected map. Confirm whether
the selected route is within the range of the selected map data.
The route may no longer be set within the range of the selected map, since the
map data was updated. If the selected route is within the range of the selected map,
register the route again.
7 What should be done if a cable gets disconnected during the update
process?
Cancel the process, reconnect the cable and start over.
9
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
Important notice
About the data on “Favorites”
• Before installation, we recommend that you write down the addresses of important data
on “Favorites.”
The addresses can be checked by the following procedure.
1 From the top menu, touch “New Destination” “Route planning.”
2 Touch “Favorites.”
3 Select the desired item.
4 Touch .
The address appears.
• After installing the new map data, the message below may appear when you select the
destinations on “Favorites,” “Home,” or “Recent destinations” which are registered
prior to the installation.
“The selected destination is not within the range of the selected map. Please select
another map or another destination.”
This is due to the map data format being renewed, and the area being divided as a result
of an increase in data capacity.
Check if the selected destination point is within the range of the selected map.
If so, delete the destination once, then register again to use.
SONY NVD-U02E/U02N/U02R (GB,DE,FR,NL,IT,ES) 4-104-525-11 (1)
2
Hinweise zur Verwendung
Systemvoraussetzungen
• Betriebssystem: Windows 2000/Windows XP/Windows Vista
• DVD-ROM-Laufwerk
• USB-Anschluss
• Internetverbindung
Vorbereitungen zum Aktualisieren/Hinzufügen von Karten auf
dem Navigationsgerät
Installieren der PC-Verbindungs-Software auf dem Computer
Für Benutzer von Windows 2000/Windows XP:
Wenn „ActiveSync“ auf dem Computer nicht installiert ist, installieren Sie es anhand
einer der folgenden Methoden:
• Legen Sie die mit dem Navigationsgerät mitgelieferte Disc in den Computer
ein, wählen Sie die gewünschte Sprache und klicken Sie dann auf „Install PC
connection software“, um die Software zu installieren.
• Laden Sie „ActiveSync 3.8“ oder höher von der Microsoft-Supportsite herunter und
installieren Sie es.
Für Benutzer von Windows Vista:
Laden Sie „Windows Mobile Device Center 6.1“ oder höher von der Microsoft-Support-
Site herunter, falls das Programm noch nicht installiert ist.
Hinweise
• Wenn Sie die Karten auf dem Navigationsgerät mithilfe dieser Disc aktualisieren,
können andere Daten als die auf dieser Disc nicht wiederhergestellt werden.
• Sony übernimmt keine Haftung für den Verlust persönlicher Inhalte während der
Aktualisierung, weil bestimmte Daten, wie z. B. für „Favoriten“, möglicherweise
nicht mit den aktualisierten Inhalten kompatibel sind. Nehmen Sie sich bitte die
Zeit, die Daten für „Favoriten“ für den Fall zu notieren, dass diese Daten bei der
Aktualisierung verloren gehen.
Ce manuel convient aux modèles suivants
2
Table des matières
Langues :
Autres manuels Sony GPS
Sony
Sony NV-U74T - 4.3" Portable Navigation System Manuel d'utilisation et d'entretien
Sony
Sony NVU84 - Widescreen Portable GPS Navigator Manuel utilisateur
Sony
Sony NAV-U NV-U81T Manuel utilisateur
Sony
Sony VAIO VGP-BGU1 Manuel utilisateur
Sony
Sony NAV-U NV-U81T Manuel utilisateur
Sony
Sony NV-U82 Manuel utilisateur
Sony
Sony NV-U82B Manuel utilisateur
Sony
Sony XA-NV300T Manuel utilisateur
Sony
Sony nav-u NV-U53 Manuel utilisateur
Sony
Sony NV-U73T Firmware version 3.02 Manuel utilisateur
Sony
Sony NV-U70 - NAV-U Portable GPS Navigator Manuel utilisateur
Sony
Sony NV-U44/R - 3.5" Portable Navigation System Manuel d'utilisation et d'entretien
Sony
Sony ZS-BT1 - Boombox With Bluetooth Technology Manuel utilisateur
Sony
Sony NV-U70 - NAV-U Portable GPS Navigator Feuille d'instructions
Sony
Sony NV-U70 - NAV-U Portable GPS Navigator Manuel utilisateur
Sony
Sony XA-NV100T Manuel utilisateur
Sony
Sony XA-NV100T Manuel utilisateur
Sony
Sony NV-U51 Manuel utilisateur
Sony
Sony nav-u NV-U50 Guide de démarrage rapide
Sony
Sony HKDW-704 Manuel utilisateur
