VAIO®QuickStart
PCV-J100
2
Contents
Welcome.......................................................3
Features .......................................................................3
Unpacking Your Computer .........................................4
Computer and Supplied Accessories ...................................4
Manuals................................................................................4
Recovery CDs ......................................................................5
Other ....................................................................................5
Setting Up Your Computer .........................................6
Using the Wheel Mouse.....................................................11
Registering Your Computer .....................12
Using the Standby Function ......................................13
Standby Mode Indicators ...................................................14
Shutting Down Your Computer ................................15
Using the Power Button on the Keyboard .........................15
About the Power Switch ....................................................15
About the Software on Your Computer...16
Features
3
Welcome
Congratulations on your purchase of the Sony VAIO®computer! Your new, high-
performance multimedia computer combines state-of-the-art computer
functionality with the latest audio/video and information technology convergence
features.
Features
i.LINK®(IEEE1394) — two built-in i.LINK ports provide you with rear
digital connection capability. The i.LINK name and logo identify a high-
speed communication interface (IEEE1394) with which you can easily
connect digital camcorders.
Digital Media Park™—this suite of Sony original applications includes
PictureGear,™Smart Capture, DVgate,™and Media Bar.™Using the
i.LINK connector, you can capture, view, and share both still and video
images, then catalog everything for fast and easy storage and retrieval.
Exceptional performance —your computer includes an Intel®processor
and a high-speed V.90-compatible data/fax modem.*
CD-RW drive —this drive is the ideal solution for making backups and
archiving data, with the ability to store up to 650 MB†of removable,
rewritable storage on a single rewritable CD. Save your movies to CD-R or
CD-RW media and share videos and images with family and friends.
VA I O S m a r t ™Keyboard —this PS/2®keyboard has programmable
shortcut buttons for launching your favorite programs or accessing the
Internet.
Sony audio and video quality —take advantage of today’s advanced
multimedia applications, games, and entertainment software with Sony’s
high-fidelity audio system (Yamaha®AC-XG), high-powered 3D graphics
(Direct AGP), and “Sony-Tuned”MPEG digital video playback.
Microsoft®Windows®98 Second Edition operating system —your
system includes the consumer operating system from Microsoft.
* Actual upload and download speeds may vary due to line conditions, ISP support, and gov-
ernment regulations.
†530 MB after formatting with Direct CD.™
VAIO PCV-J100 QuickStart
4
Preinstalled software titles —all the software on your computer is
preinstalled, configured, and ready for you to use right out of the box.
Communications —access popular online services, browse the Internet,
send faxes, and more.
Unpacking Your Computer
Computer and Supplied Accessories
Manuals
VAIO QuickStart — information on unpacking and setting up your
computer, last-minute supplementary information and software information.
VAIO User Guide — features and specifications of your computer. It also
includes information on the applications included with your system and how
to contact software vendors, and solve common problems.
Microsoft®Windows®98 Second Edition Getting Started —explains how
to use the basic features of the Windows®operating system.
PCV-J100 computer and accessories
Power cable
Phone cable
Display (sold separately)
Keyboard
Mouse
System unit
Speakers
Unpacking Your Computer
5
Recovery CDs
System Recovery CD(s) —allows you to restore the software titles that
shipped with your computer if they become corrupted or are erased
accidentally. It can be used only to restore the hard disk of the Sony
computer you purchased.
Application Recovery CD(s) —allows you to reinstall individual
applications or device drivers if they are corrupted or accidentally erased.
Other
Setting up your VAIO Computer (poster)
Packet containing special product offers
VAIO PCV-J100 QuickStart
6
Setting Up Your Computer
This section illustrates how to set up and install your computer and peripherals.

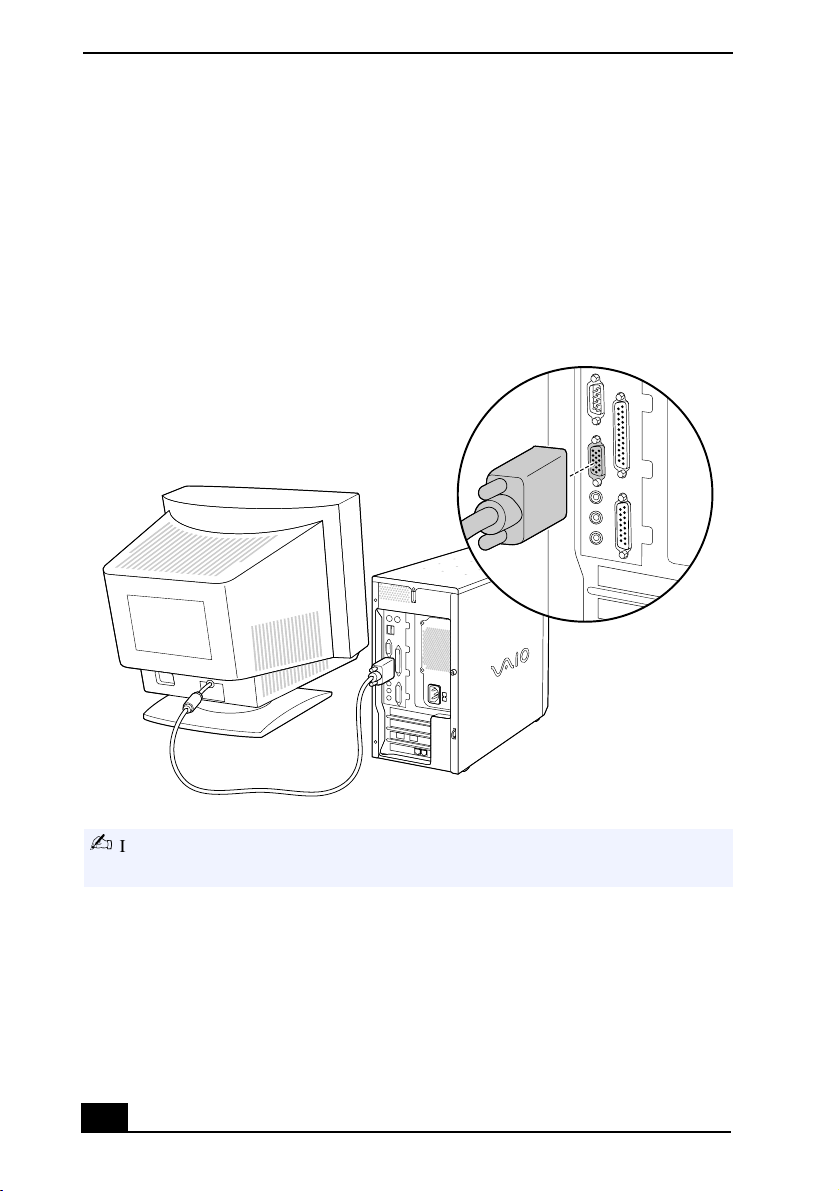

Connecting a Display:
1Plug the display cable into the MONITOR connector.
2If necessary, plug the display cord into the rear of the display.
PCV-J100 connecting a display
Install your equipment so that you can easily reach the outlet in the event of an
emergency.
Setting Up Your Computer
7
Connecting the Speakers:
1Plug the cable attached to the right speaker into the R OUT connector on the
back of the left speaker.
2Plug one end of the speaker cable into the INPUT connector on the back of
the left speaker. Plug the other end into the HEADPHONES connector.
3Plug the power cord into the DC IN connector on the back of the left speaker
and plug the other end into a grounded AC wall outlet or power strip.
PCV-J100 connecting speakers
VAIO PCV-J100 QuickStart
8
Connecting the keyboard and mouse:
1Plug the keyboard cable into the PS/2®KEYBOARD connector on the back
of the computer.
2Plug the mouse cable into the MOUSE connector.
PCV-J100 connecting the keyboard and mouse
Setting Up Your Computer
9
Connecting the phone line and power cords:
1Unplug your phone from the wall jack, and plug it into the TELEPHONE
jack on the computer.
2Plug the phone cable that came with your computer into the LINE jack on
the computer, and then plug the other end of the cable into the wall jack.
3Plug the power cord into the back of the computer.
4Plug both the display and power cords into a grounded AC wall outlet or a
power strip.
PCV-J100 connecting the phone line and power cords
VAIO PCV-J100 QuickStart
10
Turning on your VAIO Computer:
1Press the power switch on the display to turn on the power.
2Press the power switch on the computer to turn on the power.
Turning on your PCV-J100 computer
You may sign up for Internet access with a Sony preferred Internet service provider.
