Sony Ipels PCS-G50 Manuel utilisateur

2005 Sony Corporation

3-872-306-11 (1)

Operating Instructions for Web Control Function

Video

Communication

System

PCS-G50/G50P

Introduction

This document introduces the Web Control Function which is used to operate the PCS-G50/G50P over a LAN.

The Web Control Function helps you control the PCS-G50/G50P, or change its setup configuration, using a Web

browser installed on your PC, such as Internet Explorer. The following is a set of Operating Instructions for the

Web Control Function.

Internet Explorer is a product of the Microsoft Corporation. Please use Version 5.0, or above (Version 6.0

recommended).

Contents

1. Open the Web page .............................................................................................................................................. 3

2. Identify a user....................................................................................................................................................... 3

3. Select a tool .......................................................................................................................................................... 4

4. How to use “Controller”....................................................................................................................................... 5

5. How to use “Dial/Disconnect” ............................................................................................................................. 7

6. How to use “Phone Book” ................................................................................................................................... 8

7. How to use “Setup” ............................................................................................................................................ 11

8. How to use “Info” .............................................................................................................................................. 14

9. Monitor a meeting over the Web ........................................................................................................................ 17

“IPELA” and are trademarks of Sony Corporation.

1. Open the Web page

Enter the IP address assigned to the PCS-G50/G50P in the address line of your browser.

The format of an address is:

http://XXX.XXX.XXX.XXX/

For instance, if the IP address is “192.47.100.117”, enter “http://192.47.100.117/” in the address line.

Note

When a proxy server in an external network segment has been set, the Gateway address in the PCS-G50/

G50P LAN setting must also be set. Or set your Web browser proxy setting to “No Proxy” for the PCS-

G50/G50P.

2. Identify a user

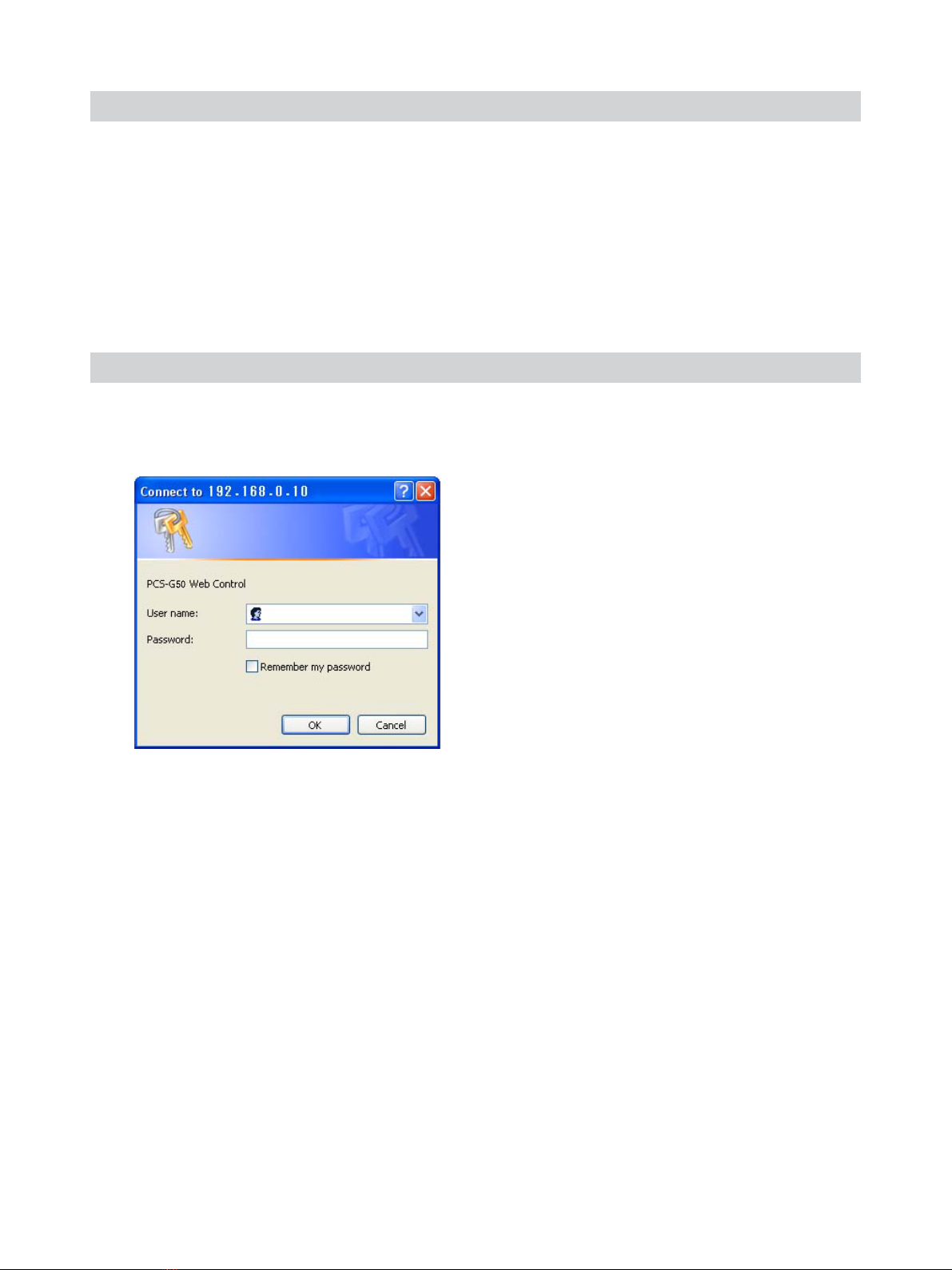

Once you reach the Web page, the following window will be displayed asking you to identify yourself as

the user.

Enter one of the following user names (see below) into the “User Name” box and the corresponding

password into the “Password” box, then click the [OK] button.

Each character of a password is shown as “*” on the screen. When the user name and password are correct,

the “Dial/Disconnect” page will come up. If an incorrect user name or password is entered three times, an

error message appears on the screen.

Notes on the user name and the password

• When you enter “user” in the “User Name” box and then its password (Remote Access Password) in the

“Password” box, you can access and check the “Phone Book” and “Setup” pages.

• When you enter “super” in the “User Name” box and then its password (Phone Book Modification

Password) in the “Password” box, you can access the “Phone Book” page, change the setting of the page,

and register a new entry onto the page. And you can check the “Setup” page.

•When you enter “sonypcs” in the “User Name” box and then its password (Administrator Password) in

the “Password” box, you can access the “Phone Book” page, change the setting of the page, and register a

new entry onto the page. And you can check and modify the “Setup” page.

•If the corresponding password is not assigned, leave the “Password” box blank and click the [OK] button.

•Administrator Setup Password, Phone Book Modification Password and Remote Access Password

settings are in the Administrator Setup menu.

3. Select a tool

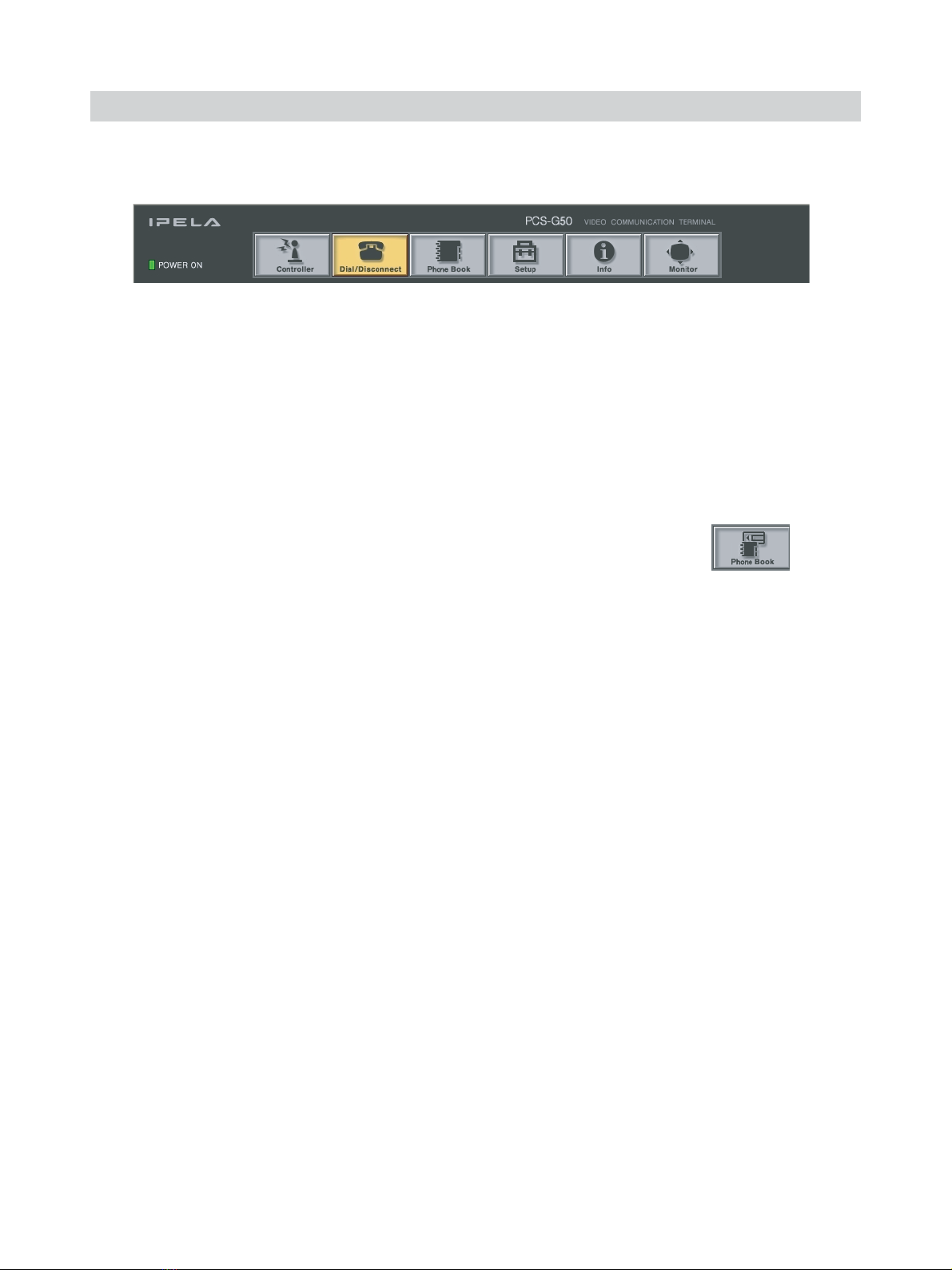

By clicking a tool button on the top part of the page, you can jump to the corresponding tool page. A brief

introduction of each tool is presented below.

•[Controller]

Controls the PCS-G50/G50P using the on-screen controller, or controls using the on-screen Remote

Commander in the same manner as you do with the PCS-RG70 Remote Commander.

•[Dial/Disconnect]

Calls a remote party, or ends a meeting.

•[Phone Book]

Displays the dial list.

Connects from the dial list.

Registers, confirms or edits the dial list.

For a private address book, the “Phone Book” button changes to the “Private

Address Book” button.

• [Setup]

Confirms or modifies the setup.

Sends messages.

Resets the setup functions (only when “sonypcs” has been entered as the user name).

•[Info]

Displays the connection status, line status, or other machine information.

Displays the “Cause Code.”

Displays the “Call Log”(only when “sonypcs” has been entered as the user name).

•[Monitor]

Monitors a meeting being held with the PCS-G50/G50P over the Web.

Note

When Web Monitor is set to Off in the Administrator Setup menu, the “Monitor” page cannot be used.

4. How to use “Controller”

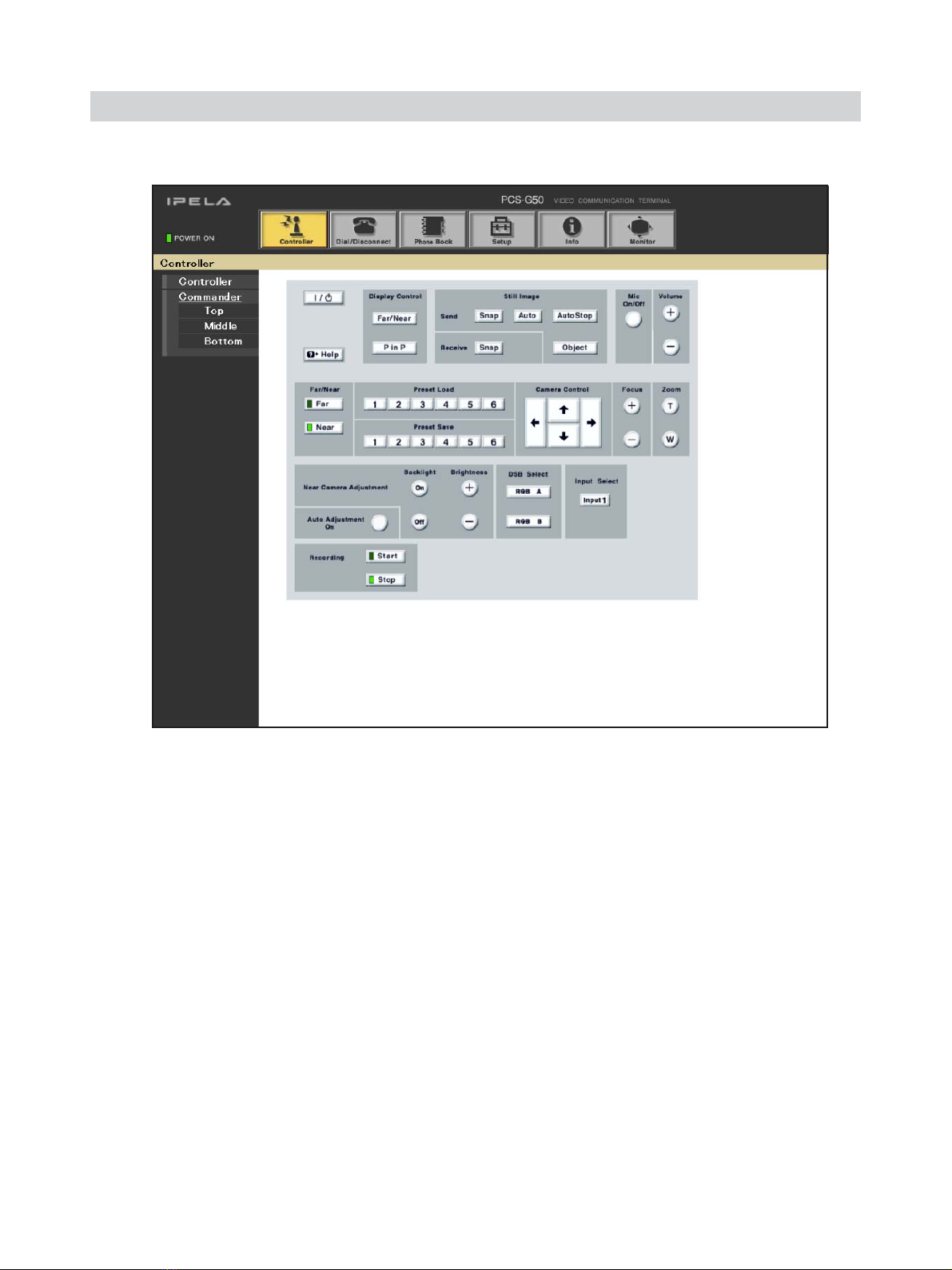

To control the PCS-G50/G50P from the on-screen controller

When you click the [Controller] button, the on-screen control panel appears. By clicking the buttons on this

control panel, you can control the PCS-G50/G50P, sending still images, operating the camera, registering

preset camera settings, and so on.

For example, in order to preset and load a camera setting:

1Set the camera at the desired position using the Camera Control buttons.

2Click one of the “Preset Save” 1 to 6 buttons on the image.

3The preset is done.

4Click one of the “Preset Load” 1 to 6 buttons on the image to load it.

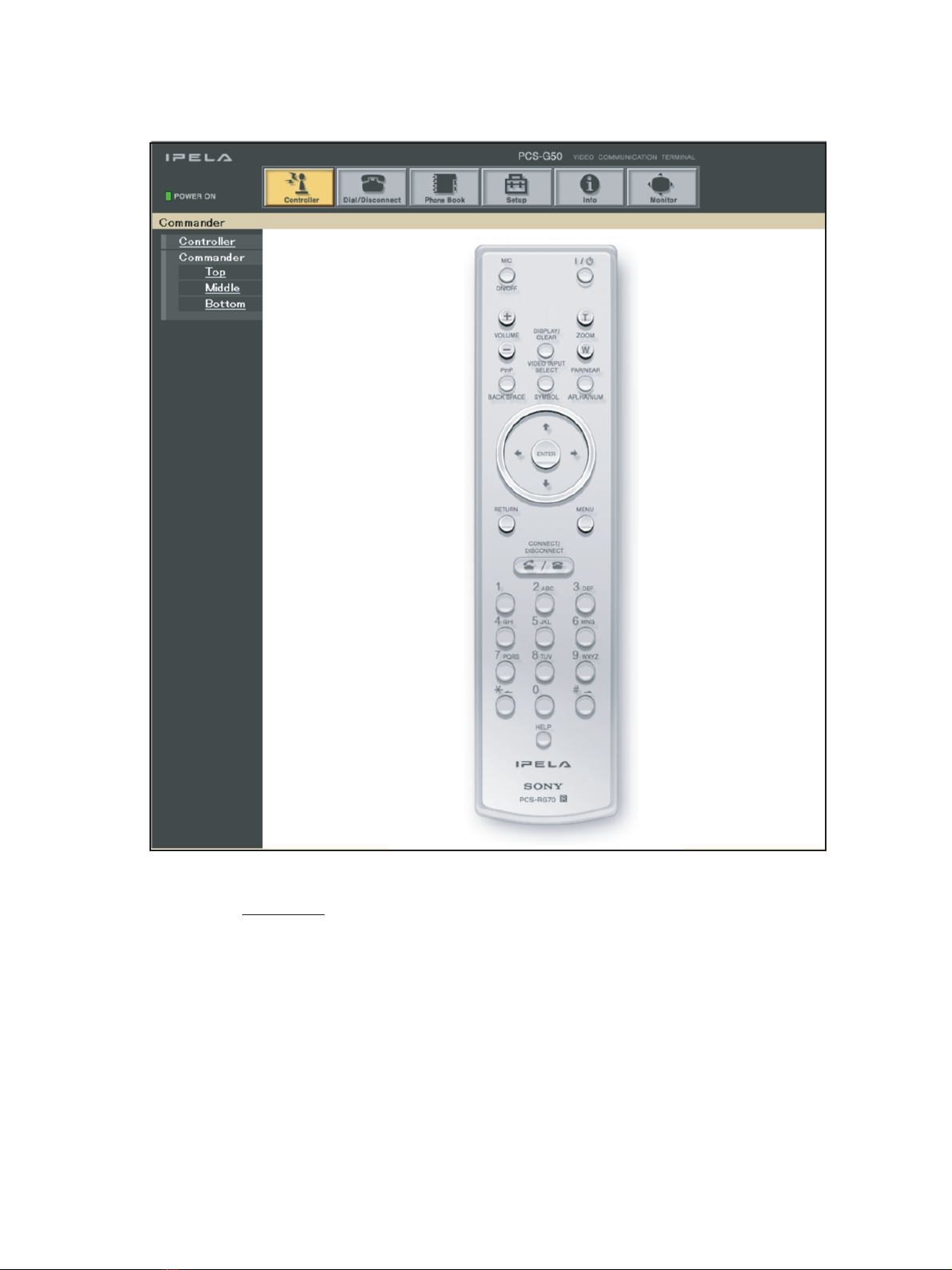

To control the PCS-G50/G50P from the on-screen Remote Commander

When you click Commander on the left part of the screen, the Remote Commander screen appears.

By clicking the various buttons on the Remote Commander image, you can control the unit in the same way

you can when using a real Remote Commander (PCS-RG70), operating the camera, and dialing phone

numbers.

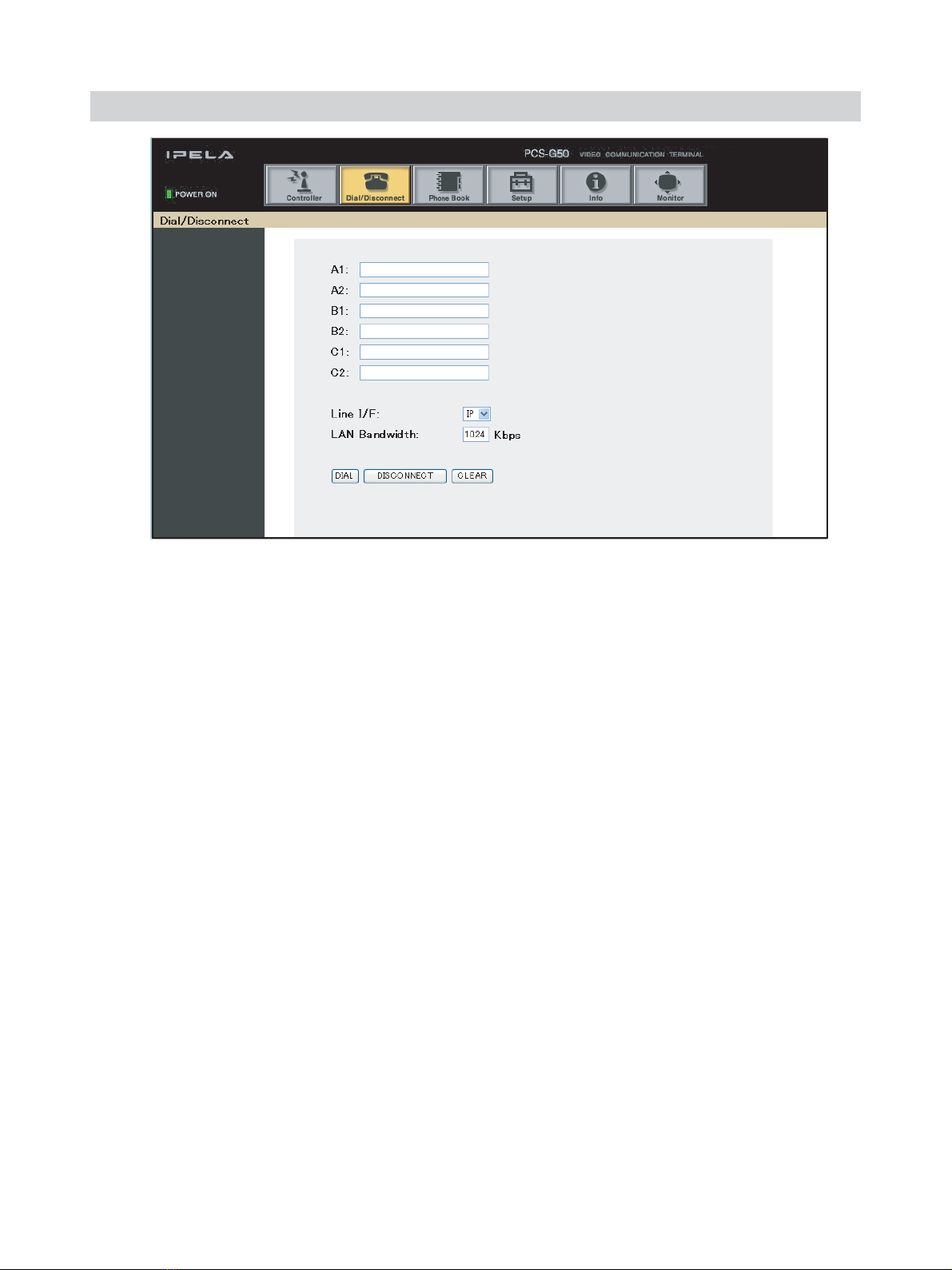

5. How to use “Dial/Disconnect”

By clicking the [Dial/Disconnect] button, you can jump to the “Dial/Disconnect” page.

•To connect:

1Enter the telephone number(s) of a remote party into the box(es): A1( to C2) (When using a LAN,

enter an IP address or a DNS name.)

2Set the communication attribute.

3Click the [DIAL] button.

4The message, “Now dialing...” appears.

5After the connection is made, the message, “Connect OK.” will appear, and the screen will return to

the “Dial/Disconnect” page.

•To disconnect:

1Click the [DISCONNECT] button.

2The message, “Now disconnecting...” appears.

3After the disconnection is completed, the message “Disconnect OK.” will appear, and the screen will

return to the “Dial/Disconnect” page.

•To clear the dial number:

1Click the [CLEAR] button.

2The number(s) entered on this menu will be cleared and the screen will return to the “Dial/

Disconnect” page.

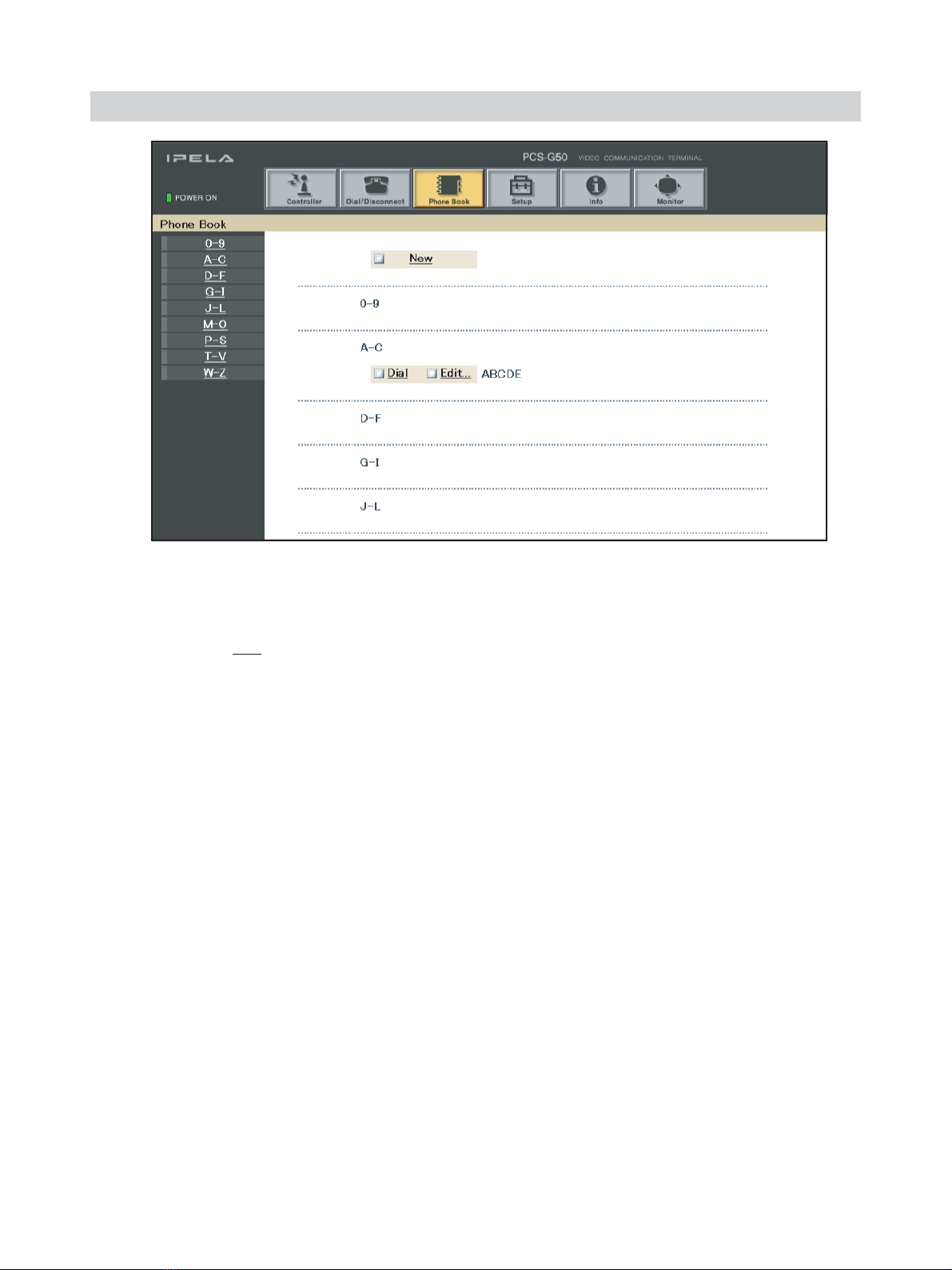

6. How to use “Phone Book”

By clicking the [Phone Book] button, you can jump to the “Phone Book list” page.

•To connect:

1Click sDial next to the index title that you are dialing. Then, the message, “Now dialing...” will

appear.

2After the connection is made, you will see the message, “Connect OK.,” and the screen will return

to the list page.

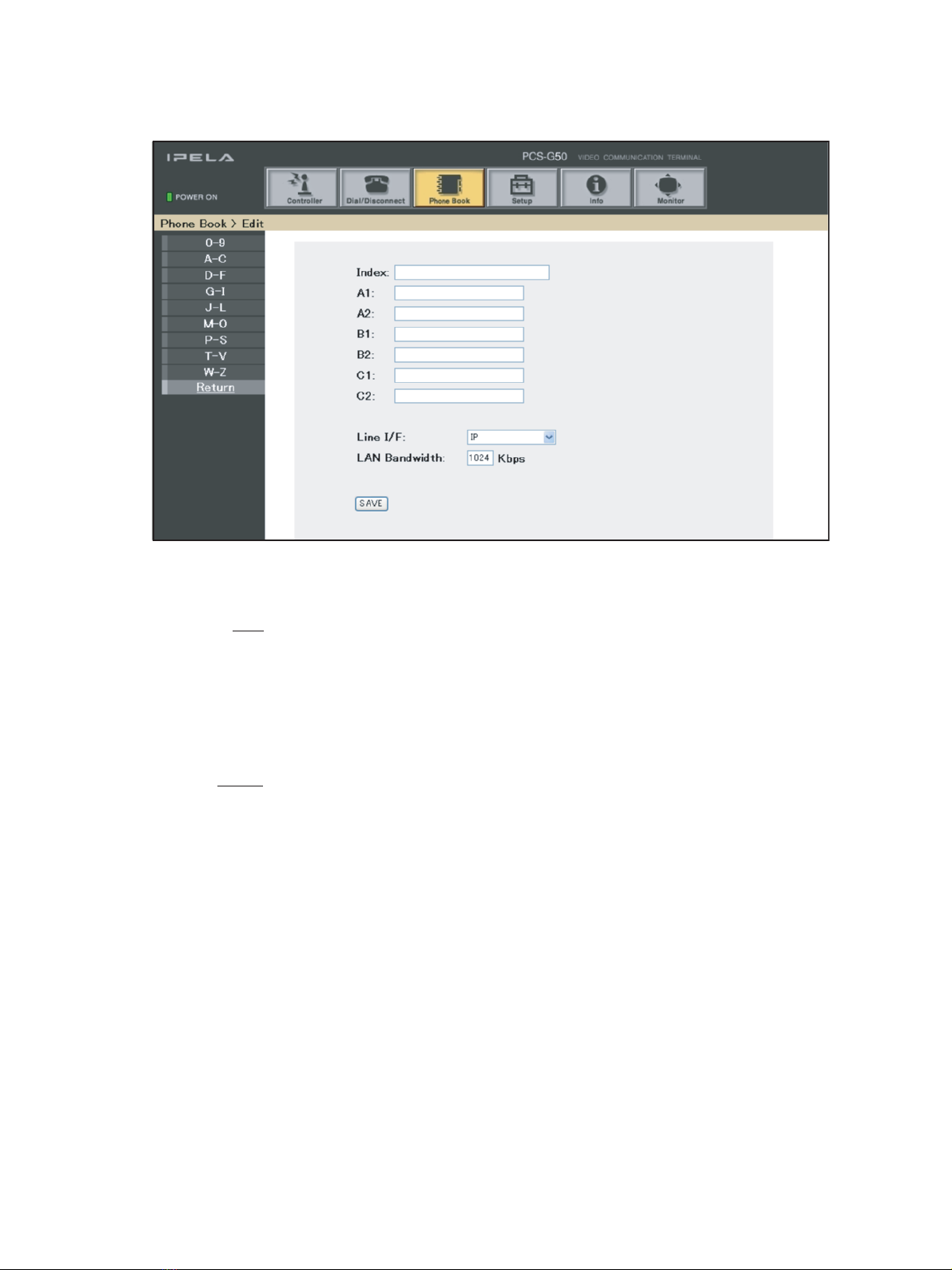

“Phone Book-Edit” page

•To edit the communication attribute (only when “super” or “sonypcs” has been entered

as the user name):

1Click sEdit... next to the index title whose communication attribute you want to edit or modify on

the list page. Then, the “Phone Book-Edit” page will appear.

2Edit or modify the telephone numbers and attributes.

3Click the [SAVE] button. After saving the changes, the screen will return to the list page.

•To delete data from the Phone Book (only when “super” or “sonypcs” has been entered

as the user name):

1Click sEdit... next to the index title whose data you want to delete on the list page. Then, the

“Phone Book-Edit” page will appear.

2Click the [DELETE] button. After the deletion is complete, the list page will appear.

•To return to the list page:

1Click Return on the left part of the page. The list page will appear.

“Phone Book-New” page

•To register a new point (only when “super” or “sonypcs” has been entered as the user

name):

1Click sNew on the list page.

The “Phone Book-New” page will appear.

2Enter an index title into the Index box and telephone numbers into box(es) A1 (to C2).

3Set the communication attributes.

4Click the [SAVE] button. After the registration is complete, the new index will be added, and the

screen will return to the list page.

•To return to the list page:

1Click Return on the left part of the page. The list page will appear.
