Sony CDX-G1080UM Manuel utilisateur

CDX-G1080UM/CDX-G1071U/CDX-G1070U/CDX-G1051U/CDX-G1050U

CXS-G1069U/CXS-G1016U/CXS-G104SU

4-466-656-51(1)

FM/AM

Compact Disc

Player

Operating Instructions GB

Manual de instrucciones ES

To switch the FM/AM tuning step, see page 6.

To cancel the demonstration (DEMO) display, see page 10.

Para cambiar el paso de sintonización de FM/AM, consulta

la página 6.

Para cancelar la pantalla de demostración (DEMO), consulte

la página 11.

2GB

Laser Diode Properties

Emission Duration: Continuous

Laser Output: Less than 53.3 W

(This output is the value measurement at a

distance of 200 mm from the objective lens

surface on the Optical Pick-up Block with 7 mm

aperture.)

Note on the lithium battery

Do not expose the battery to excessive heat

such as direct sunlight, fire or the like.

Be sure to install this unit in the dashboard of

the car for safety.

For installation and connections, see the

supplied installation/connections manual.

Warning if your car’s ignition has no ACC

position

Be sure to set the AUTO OFF function

(page 10). The unit will shut off completely

and automatically in the set time after the

unit is turned off, which prevents battery

drain. If you do not set the AUTO OFF

function, press and hold OFF until the display

disappears each time you turn the ignition

off.

3GB

Table of Contents

Guide to Parts and Controls. . . . . . . . . . . . . . 4

Getting Started

Detaching the Front Panel . . . . . . . . . . . . . . . 5

Switching the FM/AM Tuning Step

(for non-Argentine models) . . . . . . . . . . . 6

Setting the Clock. . . . . . . . . . . . . . . . . . . . . . . 6

Connecting a USB Device. . . . . . . . . . . . . . . . 6

Connecting Other Portable Audio

Device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Listening to the Radio

Listening to the Radio . . . . . . . . . . . . . . . . . . 7

Using Radio Data System (RDS). . . . . . . . . . . 7

Playback

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . 8

Playing a USB Device . . . . . . . . . . . . . . . . . . . 8

Searching and Playing Tracks . . . . . . . . . . . . 9

Settings

Canceling the DEMO Mode . . . . . . . . . . . . . 10

Basic Setting Operation . . . . . . . . . . . . . . . . 10

GENERAL Setup. . . . . . . . . . . . . . . . . . . . . . . 10

SOUND Setup . . . . . . . . . . . . . . . . . . . . . . . . .11

EQ3 PRESET . . . . . . . . . . . . . . . . . . . . . . . .11

EQ3 SETTING . . . . . . . . . . . . . . . . . . . . . . .11

DISPLAY Setup . . . . . . . . . . . . . . . . . . . . . . . .11

Additional Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 13

Specifications . . . . . . . . . . . . . . . . . . . . . . . . 13

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 14

4GB

Guide to Parts and Controls

The number 3/ (repeat) button has a tactile dot.

SRC (source)

Turn on the power.

Change the source.

-OFF

Press and hold for 1 second to turn off

the power.

Press and hold for more than 2 seconds

to turn off the power and the display.

If the unit is turned off and the display

disappears, it is unable you to operate

with the remote.

Front panel release button

SEEK +/–

Tune in radio stations automatically.

Press and hold to tune manually.

/(prev/next) /(reverse/

fast-forward)

Control dial

Rotate to adjust the volume.

ENTER

Enter the selected item.

Open the setup menu.

Receptor for the remote commander

Disc slot

Display window

(disc eject)

(browse) (page 9)

Enter the browse mode during playback.

(back)

Return to the previous display.

MODE (page 7)

PTY (program type)

Select PTY in RDS.

Number buttons (1 to 6)

Receive stored radio stations. Press and

hold to store stations.

ALBUM /

Skip an album for audio device. Press and

hold to skip albums continuously.

(repeat)

SHUF (shuffle)

PAUSE

DSPL (display)

Change display items.

-SCRL (scroll)

Press and hold to scroll a display item.

AUX input jack

USB port

Main unit

5GB

The VOL (volume) + button has a tactile dot.

Remove the insulation film before use.

ATT (attenuate)

Attenuate the sound. Press again to

cancel the attenuated sound.

SOUND

Open the SOUND menu directly.

-MENU

Press and hold to open the setup menu.

()/(+)/(–)/()/ENTER

Setup items, etc. can be operated by /

//.

VOL (volume) +/–

Detaching the Front Panel

You can detach the front panel of this unit to

prevent theft.

1Press and hold OFF .

The unit is turned off.

2Press the front panel release button

, then remove the panel by

pulling it towards you.

Caution alarm

If you turn the ignition switch to the OFF

position without detaching the front panel,

the caution alarm will sound for a few

seconds. The alarm will only sound if the

built-in amplifier is used.

RM-X211 Remote Getting Started

Attaching the front panel

6GB

Switching the FM/AM

Tuning Step (for non-

Argentine models)

Set the FM/AM tuning step of your country.

This setting appears when this unit is turned

off.

1Press MENU, rotate the control dial

to select [GENERAL], then press it.

2Rotate the control dial to select

[TUNER-STP], then press it.

3Rotate the control dial to select

from [50K/9K], [100K/10K] or

[200K/10K], then press it.

Setting the Clock

1Press MENU, rotate the control dial

to select [GENERAL], then press it.

2Rotate the control dial to select

[CLOCK-ADJ], then press it.

The hour indication flashes.

3Rotate the control dial to set the

hour and minute.

To move the digital indication, press SEEK

+/–.

4After setting the minute, press

MENU.

The setup is complete and the clock

starts.

To display the clock, press DSPL.

Connecting a USB Device

1Turn down the volume on the unit.

2Connect the USB device to the unit.

Connecting Other Portable

Audio Device

1Turn off the portable audio device.

2Turn down the volume on the unit.

3Connect the portable audio device

to the AUX input jack (stereo mini

jack) on the unit with a connecting

cord*(not supplied).

* Be sure to use a straight type plug.

4Press SRC to select [AUX].

To match the volume level of the

connected device to other sources

Start playback of the portable audio device

at a moderate volume, and set your usual

listening volume on the unit.

Press MENU and rotate the control dial.

Select [SOUND] [AUX VOL] (page 11).

7GB

Listening to the Radio

Tuning step setting is required (for non-

Argentine models) (page 6).

To listen to the radio, press SRC to select

[TUNER].

1Press MODE to change the band

(FM1, FM2, FM3, AM1 or AM2).

2Press MENU, rotate the control dial

to select [GENERAL], then press it.

3Rotate the control dial to select

[BTM], then press it.

The unit stores stations in order of

frequency on the number buttons.

1Press MODE to change the band

(FM1, FM2, FM3, AM1 or AM2).

2Perform tuning.

To tune manually

Press and hold SEEK +/– to locate the

approximate frequency, then press SEEK

+/– repeatedly to fine adjust to the

desired frequency.

To tune automatically

Press SEEK +/–.

Scanning stops when the unit receives a

station. Repeat this procedure until the

desired station is received.

1While receiving the station that you

want to store, press and hold a

number button (1 to 6) to display

[MEM].

1Select the band, then press a

number button (1 to 6).

Using Radio Data System

(RDS)

Use PTY to display or search for a desired

program type.

1Press PTY during FM reception.

2Rotate the control dial until the

desired program type appears,

then press it.

The unit starts to search for a station

broadcasting the selected program type.

Type of programs

Listening to the Radio

Storing automatically (BTM)

Tuning

Storing manually

Receiving the stored stations

Selecting program types (PTY)

NEWS (News), AFFAIRS (Current Affairs),

INFO (Information), SPORT (Sports),

EDUCATE (Education), DRAMA (Drama),

CULTURE (Culture), SCIENCE (Science),

VARIED (Varied), POP M(Pop Music), ROCK

M(Rock Music), EASY M(M.O.R. Music),

LIGHT M(Light classical), CLASSICS (Serious

classical), OTHER M(Other Music), WEATHER

(Weather), FINANCE (Finance), CHILDREN

(Children’s program), SOCIAL A (Social

Affairs), RELIGION (Religion), PHONE IN

(Phone In), TRAVEL (Travel), LEISURE

(Leisure), JAZZ (Jazz Music), COUNTRY

(Country Music), NATION M(National Music),

OLDIES (Oldies Music), FOLK M(Folk Music),

DOCUMENT (Documentary)

8GB

The CT data from the RDS transmission sets

the clock.

1Set [CT-ON] in GENERAL setup

(page 10).

Playing a Disc

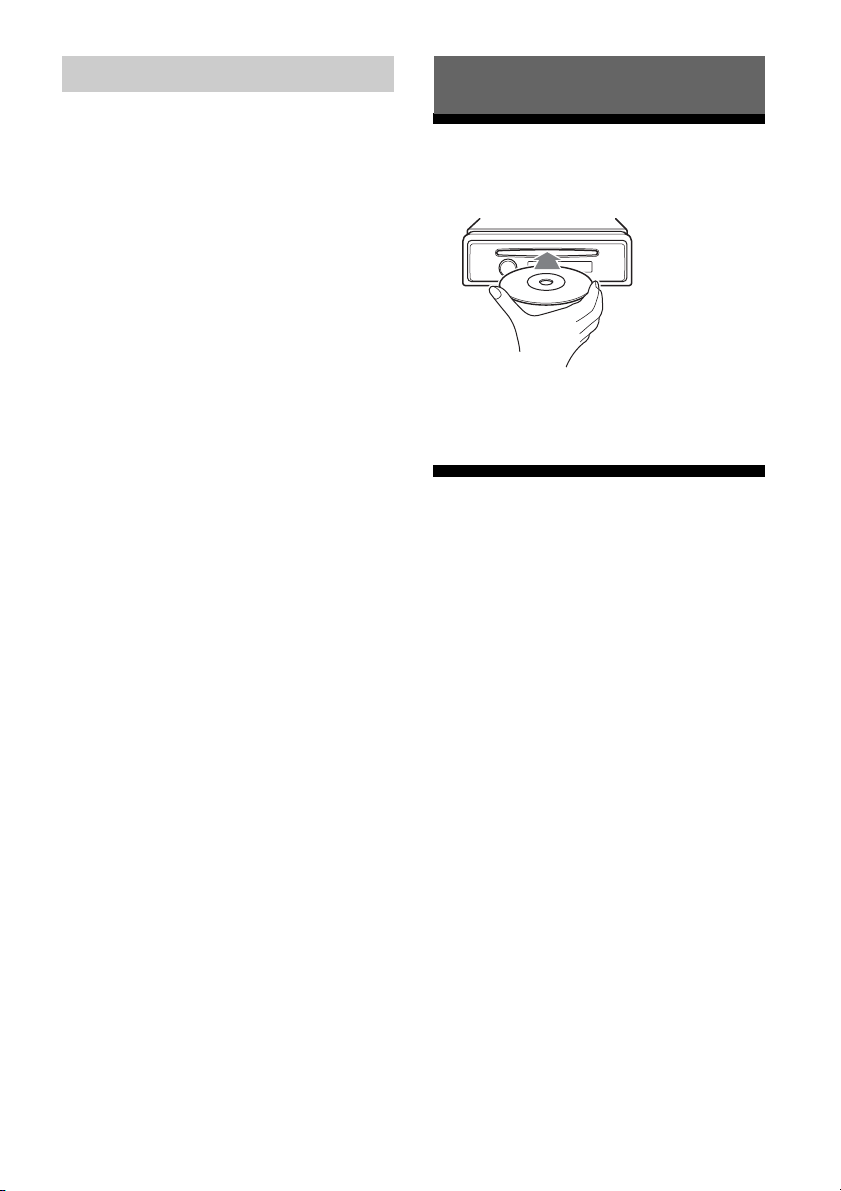

1Insert the disc (label side up).

Playback starts automatically.

Playing a USB Device

MSC (Mass Storage Class)-type USB devices

(such as a USB flash drive, digital media

player, Android™ phone) compliant with the

USB standard can be used.

Depending on the digital media player or

Android phone, setting the USB connection

mode to MSC is required.

Notes

For details on the compatibility of your USB

device, visit the support site on the back cover.

Playback of the following MP3/WMA files is not

supported.

lossless compression files

copyright-protected files

DRM (Digital Rights Management) files

Multi-channel audio files

1Connect a USB device to the USB

port (page 6).

Playback starts.

If a device is already connected, to start

playback, press SRC to select [USB].

2Adjust the volume on this unit.

Setting clock time (CT) Playback

9GB

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Searching and Playing

Tracks

1During playback, press (repeat)

for repeat play, or SHUF for shuffle

play.

2Press (repeat) or SHUF repeatedly

to select the desired repeat or

shuffle play mode.

Playback in selected play mode may take

time to start.

Available play modes differ depending on

the selected sound source.

1During CD or USB playback, press

(browse)*to display the list of

search categories.

When the track list appears, press

(back) repeatedly.

* During playback, press (browse) for more

than 2 seconds to directly return to the

beginning of the category list.

2Rotate the control dial to select the

desired search category, then press

it to confirm.

3Repeat step 2 to search the desired

track.

Playback starts.

To exit the Quick-BrowZer mode

Press (browse).

1Press (browse)

2Press SEEK +.

3Rotate the control dial to select the

item.

The list is jumped in steps of 10% of the

total number of items.

4Press ENTER to return to the Quick-

BrowZer mode.

The selected item appears.

5Rotate the control dial to select the

desired item, then press it.

Playback starts.

Repeat play and shuffle play

Searching a track by name (Quick-

BrowZer™)

Searching by skip items

(Jump mode)

10GB

Canceling the DEMO Mode

You can cancel the demonstration display

which appears while this unit is turned off.

1Press MENU, rotate the control dial

to select [DISPLAY], then press it.

2Rotate the control dial to select

[DEMO], then press it.

3Rotate the control dial to select

[DEMO-OFF], then press it.

The setting is complete.

4Press (back) twice.

The display returns to normal reception/

play mode.

Basic Setting Operation

You can set items in the menu to the

following procedure.

The following items can be set depending on

the source and setting.

1Press MENU.

2Rotate the control dial to select the

setup category, then press it.

Setup categories are follows:

GENERAL setup (page 10)

SOUND setup (page 11)

DISPLAY setup (page 11)

3Rotate the control dial to select the

options, then press it.

To return to the previous display

Press (back).

GENERAL SetupSettings

CLOCK-ADJ (Clock Adjust) (page 6)

TUNER-STP (Tuner Step) (page 6)

(Available only for non-Argentine models

and when the unit is turned off.)

CAUT ALM (Caution Alarm)

Activates the caution alarm: [ON], [OFF]

(page 5). (Available only when the unit is

turned off.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a desired

time when the unit is turned off: [NO],

[30S] (30 seconds), [30M] (30 minutes),

[60M] (60 minutes).

AUX-A (AUX Audio)

Activates the AUX source display: [ON],

[OFF]. (Available only when the unit is

turned off.)

CT (Clock Time)

Activates the CT function: [ON], [OFF].

BTM (page 7)

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Lecteur CD

Sony

Sony CDP-XE200 Manuel utilisateur

Sony

Sony CDX-91 Manuel utilisateur

Sony

Sony Discman D-9 Manuel utilisateur

Sony

Sony CDP-670 - Compact Disc Player Manuel utilisateur

Sony

Sony MDP-500 - Cd Cdv Ld Player Manuel utilisateur

Sony

Sony CDX-GT670U Manuel utilisateur

Sony

Sony CDX-R30M - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony Walkman D-EJ725 Manuel utilisateur

Sony

Sony Discman D-E449CK Manuel utilisateur

Sony

Sony CDX-M8805X Operating Instructions (English, Espanol,... Guide produit

Sony

Sony MZ-R37SP - MD Walkman MiniDisc Recorder Manuel utilisateur

Sony

Sony DVP-NC80V/S Operating Instructions... Manuel utilisateur

Sony

Sony D-231 Manuel utilisateur

Sony

Sony DVP-CX777ES Guide de configuration rapide

Sony

Sony CDP-C9ESD - Es Compact Disc Player Manuel utilisateur

Sony

Sony CDX-GT30RN Manuel utilisateur

Sony

Sony D-NE710 - ATRAC3/MP3 CD Walkman Portable Disc... Manuel utilisateur

Sony

Sony D-NE710 - ATRAC3/MP3 CD Walkman Portable Disc... Manuel utilisateur

Sony

Sony D-NE830 Manuel utilisateur

Sony

Sony Walkman D-EJ119 Manuel utilisateur

Sony

Sony D-303 Manuel utilisateur

Sony

Sony MZ-N505 OpenMG Jukebox NOTES on installing &... Manuel utilisateur

Sony

Sony Walkman D-E225 Manuel utilisateur

Sony

Sony D-NE800 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur
