Sony CDX-4187 Manuel utilisateur

Operating Instructions

3-862-647-11 (1)

1998 by Sony Corporation

FM/AM

Compact Disc

Player

CDX-4187

For installation and connections, see the supplied installation/connections

manual.

Welcome !

Thank you for purchasing the Sony Compact

Disc Player. This unit lets you enjoy a variety

of features. You can use an optional rotary

commander (RM-X4S).

Table of Contents

Location of controls ................................................. 4

Getting Started

Resetting the unit ................................................ 5

Detaching the front panel .................................. 5

Setting the clock .................................................. 6

CD Player

Listening to a CD ................................................ 6

Playing a CD in various modes ........................ 7

Radio

Memorizing stations automatically

— Best Tuning Memory (BTM) ................... 7

Memorizing only the desired stations ............. 8

Receiving the memorized stations .................... 8

Other Functions

Using the rotary commander ............................ 9

Adjusting the sound characteristics ............... 10

Changing the sound and beep tone ............... 10

Turning on the clock display

— POWER SELECT function ..................... 11

Additional Information

Precautions ......................................................... 11

Maintenance ....................................................... 12

Dismounting the unit ....................................... 13

Attaching the label to the rotary

commander ................................................... 13

Specifications ..................................................... 14

Troubleshooting guide ..................................... 15

RELEASE

REPEAT

SEEK/AMS

SOUND

OFF

DSPL SENS

123456

D - BASS

OFF

123

MODE

SHUF

BTM

SOURCE

Location of controls

Refer to the pages for details.

1SEEK/AMS (seek/Automatic Music

Sensor/manual search) control 6, 7, 8

2MODE (band select) button 7, 8

3SOURCE (source select) button 6, 7, 8

4Dial (volume/bass/treble/left-right/

front-rear control) 6, 10

5SOUND button 6, 10, 11

6Display window

7DSPL (display mode change/time set)

button 6, 8

86(eject) button 6

9BTM/SENS (Best Tuning Memory/

sensitivity adjust) button 7, 8

!º RELEASE (front panel release) button

5, 12

!¡ Reset button (located on the front side

of the unit hidden by the front panel) 5

!™ OFF button 5, 6, 11

!£ Frequency Select switch (located on the

bottom of the unit)

See “Frequency Select Switch” in the

Installation/Connections manual.

!¢ During radio reception:

Number buttons 8

During CD playback:

(1) REPEAT button 7

(2) SHUF button 7

!∞D-BASS dial 10

When the positions of switch !£ have been

changed, be sure to press the reset button after

connecting power.

Getting Started

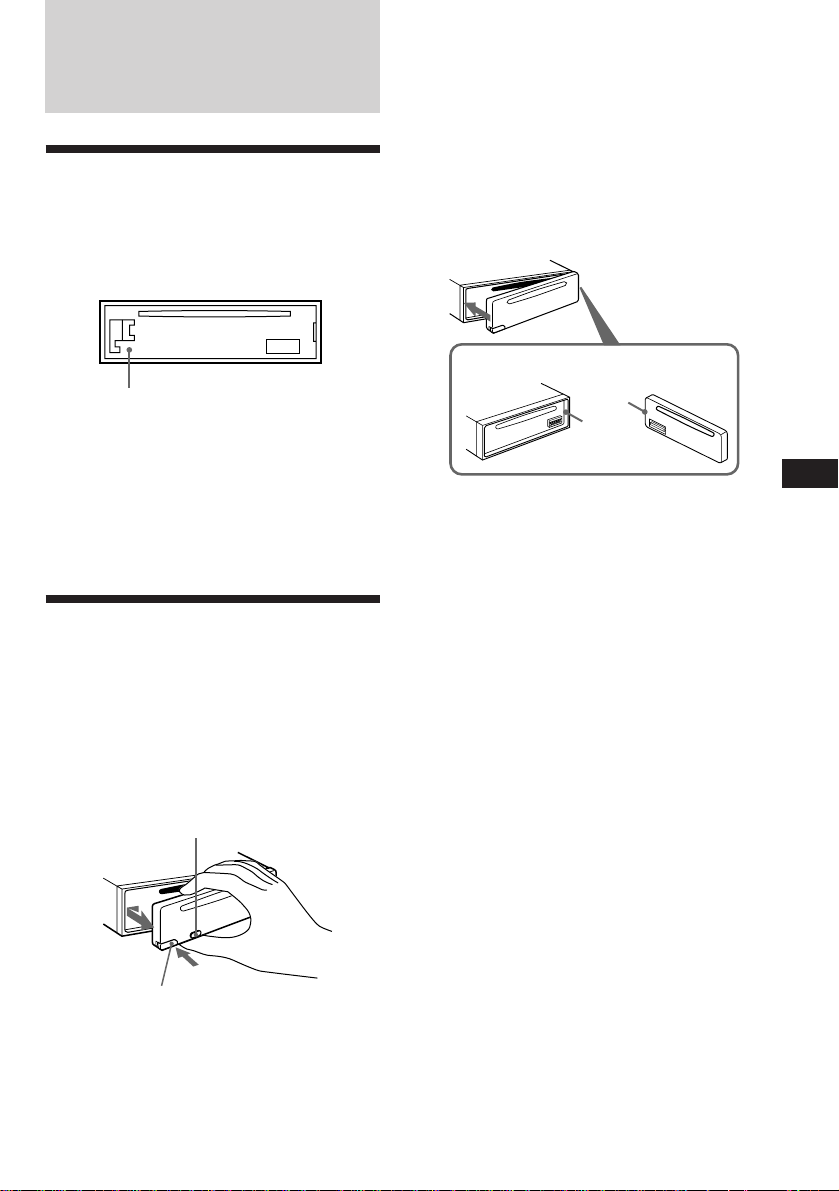

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Press the reset button with a pointed object,

such as a ball-point pen.

Notes

•Pressing the reset button will erase all the

memorized program and memory functions.

•When you connect the power supply cord to the

unit or reset the unit, wait for about 10 seconds

before you insert a disc. Do not insert a disc

within these 10 seconds, otherwise, the unit will

not be reset, and you will have to press the reset

button again.

Detaching the front panel

You can detach the front panel of this unit to

prevent the unit from being stolen.

1Press (OFF).

2Press (RELEASE) to open up the front

panel. Then slide the front panel a little

to the left, and pull it off towards you.

Reset button

Notes

• Be sure not to drop the panel when detaching it

from the unit.

•If you press (RELEASE) to detach the panel while

the unit is still on, the unit will turn off

automatically to prevent the speakers from

being damaged.

•When you carry the front panel with you, put it

in the supplied front panel case.

Attaching the front panel

Align part Aof the front panel to part Bof

the unit as illustrated, and push until it clicks.

Notes

• Be sure not to attach the front panel upside

down.

•Do not press the front panel hard against the

unit when attaching it. Press it lightly against the

unit.

•Do not press hard or put excessive pressure on

the display window of the front panel.

•Do not expose the front panel to direct sunlight,

heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the ignition key switch to the OFF

position without removing the front panel, the

caution alarm will beep for a few seconds. If

you connect an optional power amplifier and

do not use the built-in amplifier, the beep tone

will be disabled.

(OFF)

(RELEASE)

Getting Started

Labelled side up

Elapsed playing time

To go forward

To go back

SOURCE

To go forward

To go back

SOURCE

To locate succeeding

tracks

To locate preceding

tracks

SEEK/AMS

Setting the clock

The clock has a 12-hour digital indication.

Example: Set the clock to 10:08

1Press (OFF) or (DSPL) during operation.

If the POWER SELECT function is set to

“ON”, press (OFF). If it is set to “OFF”,

press (DSPL).

2Press (DSPL) for two seconds.

The hour digit flashes.

1Set the hour digits.

2Press (SOUND) momentarily.

The minute digits flash.

3Set the minute digits.

3Press (DSPL) momentarily.

The clock is activated.

Note

If the car has no accessory position on the ignition

key switch, the clock cannot be set unless the

power is turn on. Set the clock after you have

turned on the radio, or started CD playback.

CD Player

Listening to a CD

Simply insert the CD.

Playback starts automatically.

If a CD is already inserted, press (SOURCE)

repeatedly until “CD” appears.

Note

To play back an 8 cm CD, use the optional Sony

compact disc single adapter (CSA-8).

To Press

Stop playback 6or (OFF)

Eject the CD 6

Changing the displayed items

Each time you press (DSPL), the item changes

as follows:

zElapsed playing time zTrack number

Time Z

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, push the SEEK/AMS

control up or down momentarily.

100

1000

1008

0215

MIN SEC

1008

Getting Started/CD Player/Radio

SEEK/AMS

Locating a specific point in a track

— Manual Search

During playback, push the SEEK/AMS

control up or down and hold.

Release when you have found the

desired point.

Note

If “ ” or “ ” appears in the

display, you have reached the beginning or the

end of the disc and you cannot go any further.

Playing a CD in various

modes

Playing tracks repeatedly

— Repeat Play

Press (1) during playback.

“REP” appears in the display.

When the currently played track is over, it will

be played again from the beginning.

To cancel this mode, press again.

Playing tracks in random order

— Shuffle Play

Press (2) during playback.

“SHUF” appears in the display.

To cancel this mode, press again.

Radio

Memorizing stations

automatically

— Best Tuning Memory (BTM)

This function selects from the currently

received band the stations with the strongest

signals and memorizes them in order of their

frequency.

PREVENTING ACCIDENTS!

When tuning in while driving, use the

automatic tuning instead of manual tuning.

1Press (SOURCE) repeatedly to select the

tuner.

Each time you press (SOURCE), the mode

changes as follows:

CD ˜TUNER

2Press (MODE) repeatedly to select the

band.

Each time you press (MODE), the mode

changes as follows:

3Press (BTM/SENS) for two seconds.

The unit stores stations in the order of their

frequencies on the number buttons.

Notes

• The unit does not store stations with weak

signals. If only a few stations are received, some

number buttons remain empty.

• When a number is indicated in the display, the

unit starts storing stations from the one currently

displayed.

• If a CD is not in the unit, only the tuner band

appears even if you press (SOURCE).

”FM I ” FM II ” FM III ” AM

To search forward

To search backward

Memorizing only the

desired stations

You can store up to 6 stations on each band (18

for FM I, FM II and FM III, 6 for AM) in the

order of your choice.

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band.

3Push the SEEK/AMS control up or down

to tune in the station that you want to

store on the number button.

4Press the desired number button ((1) to

(6)) for two seconds until “MEM”

appears.

The number button indication appears in

the display.

Note

If you try to store another station on the same

number button, the previously stored station will

be erased.

Receiving the memorized

stations

1Press (SOURCE) repeatedly to select the

tuner.

2Press (MODE) repeatedly to select the

band (FM I, FM II, FM III or AM).

3Press the number button ((1) to (6))

momentarily where the desired station is

stored.

If you cannot tune in a preset

station

Push the SEEK/AMS control up or down

momentarily to search for the station

(automatic tuning).

Scanning stops when the unit receives a

station. Push the SEEK/AMS control up or

down repeatedly until the desired station is

received.

Note

If the automatic tuning stops too frequently, press

(BTM/SENS) momentarily until “LCL” appears in

the display (local seek mode). Only the stations

with relatively strong signals will be tuned in.

Tip

If you know the frequency of the station you want

to listen to, push the SEEK/AMS control up or

down for two seconds until the desired frequency

appears (manual tuning).

If FM stereo reception is poor

— Monaural Mode

Press (BTM/SENS) momentarily until

“MONO” appears.

The sound improves, but becomes

monaural (“ST” disappears).

To go back to the normal mode, press again

until “MONO” disappears.

Changing the displayed items

Each time you press (DSPL), the items

alternate between the frequency and time.

Radio/Other Functions

Press (SOUND) to adjust and

select.

Press (DSPL) to change the

displayed items.

Rotate the control momentarily and

release it to:

•Locate a specific track on a disc. Rotate

and hold the control until you locate the

specific point in a track, then release it to

start playback.

•Tune in stations automatically. Rotate and

hold the control to tune in a specific

station.

By pushing in and rotating the

control (the PRESET/DISC control)

Push in and rotate the control to:

•Receive the stations memorised on the

number buttons.

•Change the disc.

Other operations

Other Functions

You can connect an optional rotary

commander (RM-X4S) with this unit.

Using the rotary

commander

The rotary commander works by pressing

buttons and/or rotating controls.

By pressing buttons (the SOURCE

and MODE buttons)

Each time you press (SOURCE), the

source changes as follows:

TUNER ˜CD

Pressing (MODE) changes the operation

in the following ways;

Tuner : FM I nFM II nFM III nAM

By rotating the control (the SEEK/

AMS control)

(SOURCE)

(MODE)

Rotate the VOL control to

adjust the volume. Press (ATT) to

attenuate the

sound.

Press (OFF) to turn

off the unit.

OFF

Changing the sound and

beep tone

Boosting the bass sound — D.bass

You can enjoy clear and powerful bass sound.

The D-bass function boosts the low frequency

signal with a sharper curve than conventional

bass boost.

You can hear the bass line more clearly even if

the vocal sound is the same volume. You can

emphasize and adjust the bass sound easily

with the D-bass control. This effect is similar to

the one you get when you use an optional

subwoofer system.

Moreover, the Digital D-bass*function creates

even sharper and more powerful bass sound

than Analog D-bass.

*Digital D-bass is available during CD playback.

Adjusting the bass curve

Turn the D-BASS dial to adjust the bass

level (1, 2 or 3).

“D-BASS” appears in the display.

During CD playback, “DIGITAL D-BASS”

appears in the display.

To cancel, turn the dial to the OFF position.

Note

If the bass sound becomes distorted, adjust the D-

bass dial or volume control.

Attenuating the beep tone

Press (6) while pressing (SOUND).

To obtain the beep tone again, press these

buttons again.

Note

If you connect an optional power amplifier and do

not use the built-in amplifier, the beep tone will

be disabled.

Digital D-BASS Analog D-BASS

Level

0dB

D-BASS 3

D-BASS 2

D-BASS 1

0dB

D-BASS 3

D-BASS 2

D-BASS 1

Frequency (Hz)Frequency (Hz)

Changing the operative direction

The operative direction of controls is factory-

set as in the illustration below.

If you need to mount the rotary commander on

the right side of the steering column, you can

reverse the operative direction.

Press (SOUND) for two seconds while

pushing the VOL control.

Adjusting the sound

characteristics

You can adjust bass, treble, balance and fader.

Each source can store the bass and treble level

independently.

1Select the item you want to adjust by

pressing (SOUND) repeatedly.

VOL (volume) nBAS (bass) nTRE (treble)

nBAL (left-right) nFAD (front-rear)

2Adjust the selected item by rotating the

dial.

Adjust within three seconds after selecting

the item. (After three seconds, the dial

functions as volume control.)

To increase

To decrease

Table des matières

Autres manuels Sony Lecteur CD

Sony

Sony MegaStorage CDP-CX355 Manuel utilisateur

Sony

Sony Walkman D-CJ506CK Manuel utilisateur

Sony

Sony MEX-DV150UE Manuel utilisateur

Sony

Sony XP-EV500 Manuel utilisateur

Sony

Sony CDX-T65 Manuel utilisateur

Sony

Sony CD Walkman D-E770 Manuel utilisateur

Sony

Sony D-CS901 - Portable Cd Player Manuel utilisateur

Sony

Sony CDX-3103 Guide produit

Sony

Sony Xplod CXS-GT2316F Manuel utilisateur

Sony

Sony CDX-602 - Compact Disc Changer Manuel utilisateur

Sony

Sony D-NE518CK - Portable Cd Player Manuel utilisateur

Sony

Sony CDP-M333ES - Es 400 Disc Cd Changer Manuel utilisateur

Sony

Sony CDP-M333ES - Es 400 Disc Cd Changer Guide de l'utilisateur

Sony

Sony CDP-C225 - Compact Disc Player Manuel utilisateur

Sony

Sony D-V55 Manuel utilisateur

Sony

Sony D-FJ61 D-FJ65 Manuel utilisateur

Sony

Sony CDX-V4800 Guide produit

Sony

Sony CDX-G3200UV Manuel utilisateur

Sony

Sony MZ-R50 - MD Walkman MiniDisc Recorder Manuel utilisateur

Sony

Sony DVP-FX780 Manuel utilisateur

Sony

Sony HCD-H50 Manuel utilisateur

Sony

Sony CFD-W57 - Cd Radio Cassette-corder Manuel utilisateur

Sony

Sony CDX-601 - Compact Disc Changer System Manuel utilisateur

Sony

Sony D-E700 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur

Rotel

Rotel RCD 975 Manuel utilisateur

Pioneer

Pioneer CLD-D790 Manuel utilisateur
