Operating Instructions GB

Mode d’emploi FR

To cancel the demonstration (DEMO) display, see

page 8.

For the connection/installation, see page 13.

Pour annuler l’affichage de démonstration (DEMO),

reportez-vous à la page 7.

Pour le raccordement/l’installation, reportez-vous à

la page 13.

2GB

Warning

The nameplate indicating operating voltage,

etc., is located on the bottom of the chassis.

The validity of the CE marking is restricted to

only those countries where it is legally

enforced, mainly in the countries EEA

(European Economic Area) and Switzerland.

WARNING

For safety, be sure to install this unit in the

dashboard of the car as the left side of the

unit becomes hot during use.

For details, see “Connection/Installation”

(page 13).

FOR THE CUSTOMERS IN THE USA.

NOT APPLICABLE IN CANADA,

INCLUDING IN THE PROVINCE OF

QUEBEC.

POUR LES CLIENTS AUX ÉTATS-UNIS.

NON APPLICABLE AU CANADA, Y

COMPRIS LA PROVINCE DE QUÉBEC.

This equipment has been tested and

found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the

FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instructions, may cause harmful

interference to radio communications.

However, there is no guarantee that

interference will not occur in a particular

installation. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by

turning the equipment off and on, the

user is encouraged to try to correct the

interference by one or more of the

following measures:

– Reorient or relocate the receiving

antenna.

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet

on a circuit different from that to which

the receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

You are cautioned that any changes or

modifications not expressly approved in

this manual could void your authority to

operate this equipment.

3GB

This device complies with part 15 of FCC

Rules and Innovation, Science and Economic

Development Canada’s licence-exempt

RSS(s). Operation is subject to the following

two conditions:

(1) this device may not cause harmful

interference, and

(2) this device must accept any interference

received, including interference that may

cause undesired operation.

This transmitter must not be co-located or

operated in conjunction with any other

antenna or transmitter.

This equipment complies with FCC/ISED

radiation exposure limits set forth for an

uncontrolled environment and meets the

FCC radio frequency (RF) Exposure

Guidelines and RSS-102 of the ISED radio

frequency (RF) Exposure rules as this

equipment has very low levels of RF energy.

If you have any questions about this

product:

Visit: https://www.sony.com/electronics/

support

Contact: Sony Customer Information Service

Center at 1-800-222-7669

Write: Sony Customer Information Service

Center 12451 Gateway Blvd., Fort Myers, FL

33913

Supplier’s Declaration of Conformity

Trade Name: SONY

Model: DSX-GS80

Responsible Party: Sony Electronics Inc.

Address: 16535 Via Esprillo, San Diego, CA

92127 U.S.A.

Telephone Number: 858-942-2230

This device complies with part 15 of the FCC

rules. Operation is subject to the following

two conditions:

(1) This device may not cause harmful

interference, and

(2) this device must accept any interference

received,

including interference that may cause

undesired operation.

For the State of California, USA only

Perchlorate Material – special handling may

apply, See

www.dtsc.ca.gov/hazardouswaste/

perchlorate

WARNING: Do not ingest

battery, Chemical Burn Hazard.

The remote commander contains a

coin/button cell battery. If the coin/button

cell battery is swallowed, it can cause severe

internal burns in just 2 hours and can lead to

death.

Keep new and used batteries away from

children. If the battery compartment does

not close securely, stop using the product

and keep it away from children.

If you think batteries might have been

swallowed or placed inside any part of the

body, seek immediate medical attention.

Note on the lithium battery

Do not expose the battery to excessive heat

such as direct sunlight, fire or the like.

Disclaimer regarding services offered

by third parties

Services offered by third parties may be

changed, suspended, or terminated without

prior notice. Sony does not bear any

responsibility in these sorts of situations.

Warning if your car’s ignition has no

ACC position

Be sure to set the AUTO OFF function. The

unit will shut off completely and

automatically in the set time after the unit

is turned off and the clock is displayed

(i.e. press and hold OFF for 1 second),

which prevents battery drain. If you do

not set the AUTO OFF function, press and

hold OFF until the display disappears each

time you turn the ignition off.

4GB

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR

ANY INCIDENTAL, INDIRECT OR

CONSEQUENTIAL DAMAGES OR OTHER

DAMAGES INCLUDING, WITHOUT

LIMITATION, LOSS OF PROFITS, LOSS OF

REVENUE, LOSS OF DATA, LOSS OF USE OF

THE PRODUCT OR ANY ASSOCIATED

EQUIPMENT, DOWNTIME, AND PURCHASER’S

TIME RELATED TO OR ARISING OUT OF THE

USE OF THIS PRODUCT, ITS HARDWARE

AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio

transmitter.

Please check your vehicle operation manual

or contact the manufacturer of your vehicle

or your vehicle dealer, before you install this

product into your vehicle.

Emergency calls

This BLUETOOTH car handsfree and the

electronic device connected to the

handsfree operate using radio signals,

cellular, and landline networks as well as

user-programmed function, which cannot

guarantee connection under all conditions.

Therefore do not rely solely upon any

electronic device for essential

communications (such as medical

emergencies).

On BLUETOOTH communication

Microwaves emitting from a BLUETOOTH

device may affect the operation of

electronic medical devices. Turn off this

unit and other BLUETOOTH devices in the

following locations, as it may cause an

accident.

– where inflammable gas is present, in a

hospital, train, airplane, or petrol station

– near automatic doors or a fire alarm

This unit supports security capabilities that

comply with the BLUETOOTH standard to

provide a secure connection when the

BLUETOOTH wireless technology is used,

but security may not be enough

depending on the setting. Be careful when

communicating using BLUETOOTH wireless

technology.

We do not take any responsibility for the

leakage of information during BLUETOOTH

communication.

If you have any questions or problems

concerning your unit that are not covered in

this manual, consult your nearest Sony

dealer.

Important notice

5GB

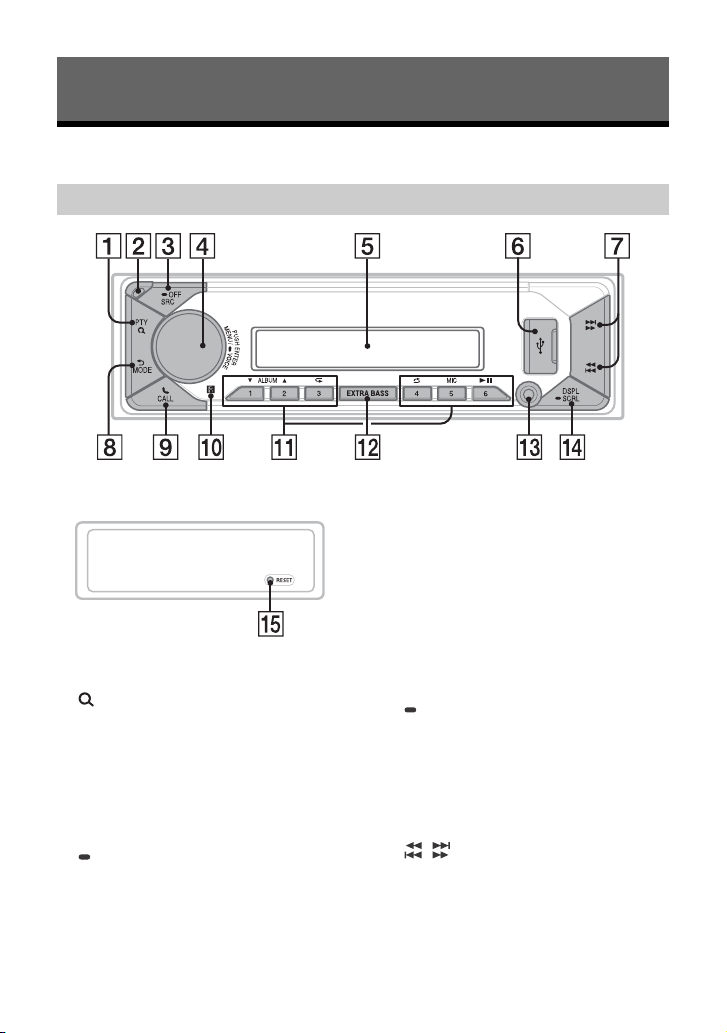

Main Unit and Remote Commander

Front panel removed (inner panel)

PTY (program type)

Selects PTY in RDS.

(browse)

Enters the browse mode during playback.

(Not available when a USB device in

Android™ mode or iPod is connected.)

Front panel release button

SRC (source)

Turns on the power.

Changes the source.

OFF

Press and hold for 1 second to turn the

source off and display the clock.

Press and hold for more than 2 seconds

to turn off the power and the display.

If the unit is turned off and the display

disappears, operation by the remote

commander is not available.

Control dial

Adjusts the volume.

PUSH ENTER

Enters the selected item.

Press SRC, rotate then press to change

the source (timeout in 2 seconds).

Opens the setup menu.

VOICE

Press and hold for more than 2 seconds

to activate voice dial, voice recognition

(Android smartphone only), or the Siri

function (iPhone only).

Display window

USB port

/(SEEK –/+)

Tunes in radio stations automatically.

Press and hold to tune manually.

/(prev/next)

/(fast-reverse/fast-forward)

Guide to Parts and Controls

Main unit

6GB

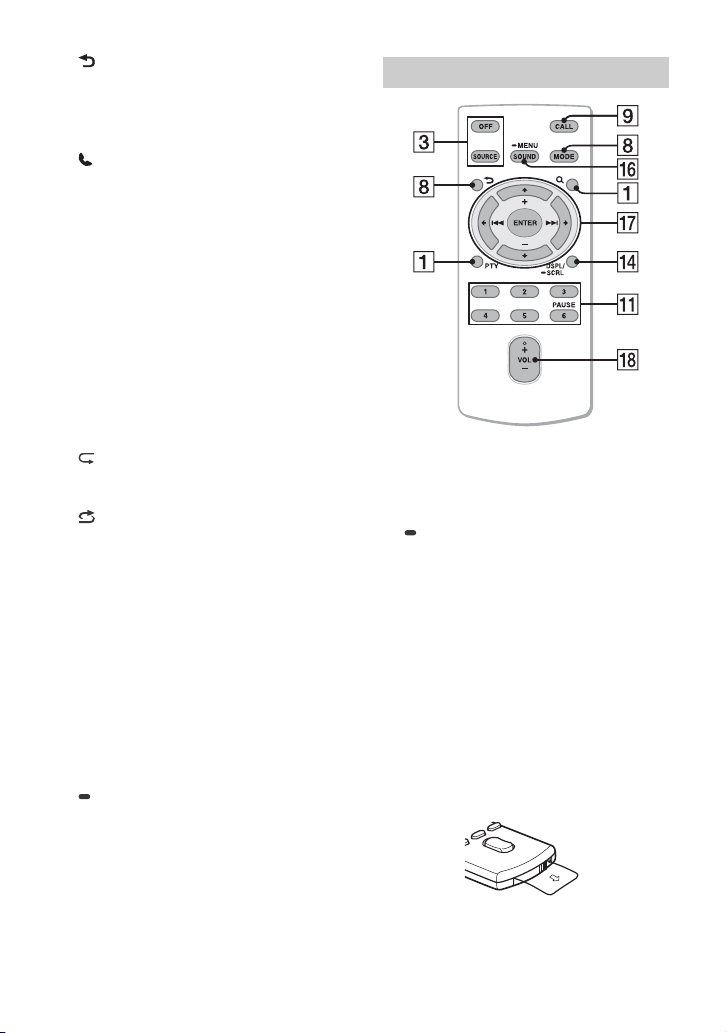

(back)

Returns to the previous display.

MODE

Selects the radio bands or function

modes.

CALL

Enters the call menu. Receive/end a call.

Press and hold for more than 2 seconds

to switch the BLUETOOTH signal.

Receptor for the remote commander

Number buttons (1 to 6)

Receives preset radio stations.

Press and hold to store stations.

ALBUM /

Skips an album for audio device.

Press and hold to skip albums

continuously.

(Not available when a USB device in

Android mode or iPod is connected.)

Press to thumbs up, or to thumbs

down in Pandora®.

(repeat)

(Not available when a USB device in

Android mode is connected.)

(shuffle)

(Not available when a USB device in

Android mode is connected.)

MIC

Adjusts the microphone settings.

(play/pause)

EXTRA BASS

Reinforces bass sound in synchronization

with the volume level.

Press to change the EXTRA BASS setting:

[1], [2], [OFF].

AUX input jack

DSPL (display)

Changes display items.

SCRL (scroll)

Press and hold to scroll a display item.

RESET (inner panel)

Restarts the unit (press with a ballpoint

pen, etc.).

The VOL (volume) + button has a tactile dot.

SOUND

Opens the SOUND menu directly.

Press and hold to open the setup menu.

///

Selects a setup item, etc.

ENTER

Enters the selected item.

Press and hold for more than 2 seconds

to establish or terminate the “Sony |

Music Center” function.

/(prev/next)

+/– (album +/–)

VOL (volume) +/–

Remove the insulation film before use.

RM-X231 Remote commander

7GB

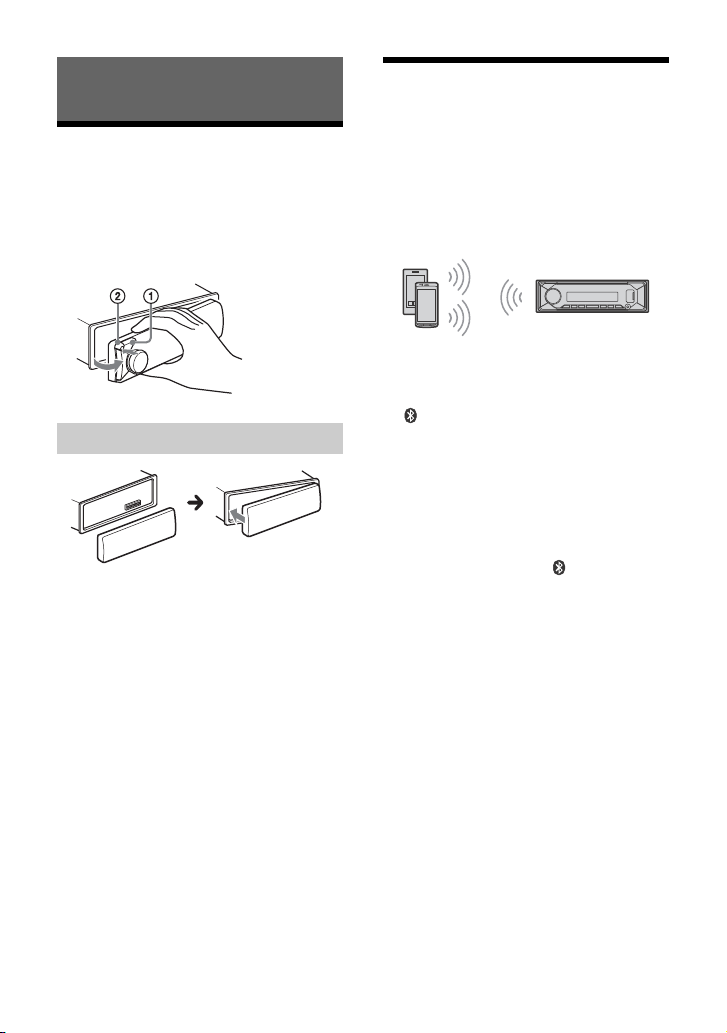

Detaching the Front Panel

You can detach the front panel of this unit to

prevent theft.

1Press and hold OFF until the unit

turns off, press the front panel

release button , then pull the panel

towards you to remove.

Pairing with a BLUETOOTH

Device

When connecting a BLUETOOTH device for

the first time, mutual registration (called

“pairing”) is required. Pairing enables this

unit and other devices to recognize each

other. This unit can connect two BLUETOOTH

devices (two mobile phones, or a mobile

phone and an audio device).

1Press MENU, then rotate and press

the control dial to select [BLUETOOTH]

[PAIRING] [DEVICE 1]/[DEVICE 2]*.

flashes while the unit is in pairing

standby mode.

* [DEVICE 1] or [DEVICE 2] will be changed to the

paired device name after pairing is complete.

2Perform pairing on the BLUETOOTH

device so it detects this unit.

3Select your model name shown in the

display of the BLUETOOTH device*.

When pairing is made, stays lit.

* If passkey input is required on the BLUETOOTH

device, input [0000].

Basic Operations

Attaching the front panel

8GB

Canceling the

Demonstration Mode

You can cancel the demonstration display

which appears when the source is off and

the clock is displayed.

1Press MENU, rotate the control dial to

select [GENERAL], then press it.

2Rotate the control dial to select

[DEMO], then press it.

3Rotate the control dial to select

[DEMO-OFF], then press it.

The setting is complete.

4Press (back) twice.

The display returns to normal reception/

play mode.

Updating the Firmware

To update the firmware, visit the support site

on the back cover, then follow the online

instructions.

Note

During the update, do not remove the USB device.

Initializing the Unit

Initializing the unit will erase the clock

settings and all your settings stored in the

backup memory.

[INITIALIZE] appears only while the source

is off and the clock is displayed.

1Press MENU, rotate the control dial to

select [GENERAL], then press it.

2Rotate the control dial to select

[INITIALIZE], then press it.

3Rotate the control dial to select

[INIT-YES], then press it.

Note

Initialize the unit before discarding the unit to

prevent the leakage of phone information.

Precautions

•Do not leave the front panel or audio

devices on the dashboard.

•When the unit is turned on, the power

antenna (aerial) extends automatically.

• Do not splash liquid onto the unit.

•You can connect to the following iPod

models. Update your iPod devices to the

latest software before use.

Compatible iPhone/iPod models

Additional Information

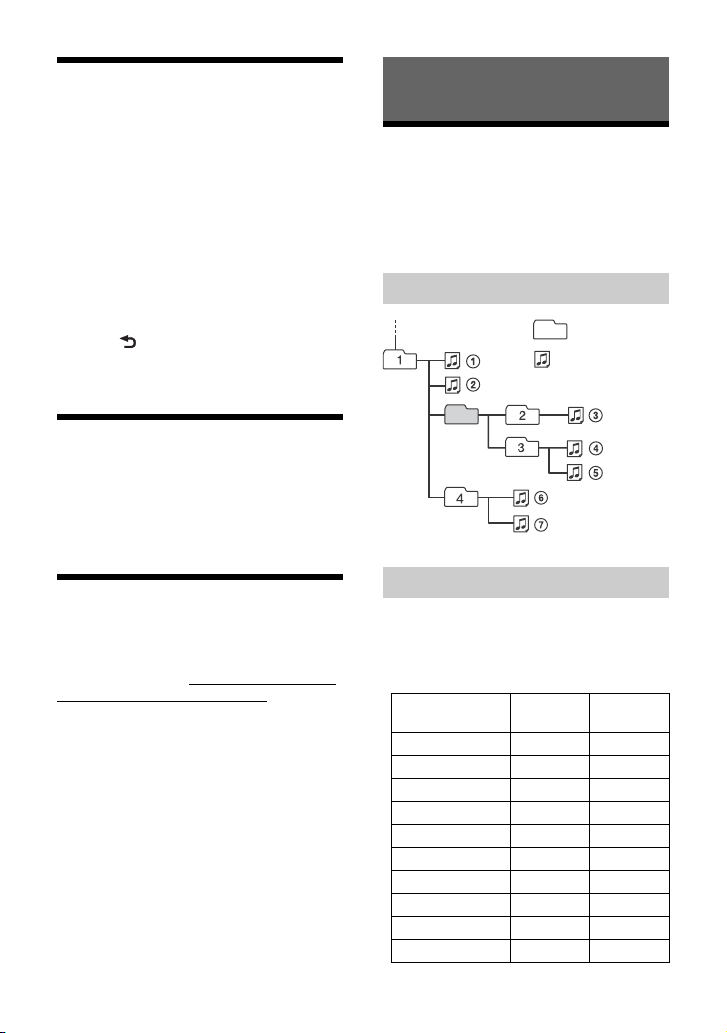

Playback order of audio files

About iPod

Compatible

Model Bluetooth® USB

iPhone XR  

iPhone Xs max  

iPhone Xs  

iPhone X  

iPhone 8  

iPhone 8 Plus  

iPhone 7  

iPhone 7 Plus  

iPhone SE  

iPhone 6s  

Folder (album)

Audio file (track)

9GB

• Use of the Made for Apple badge means

that an accessory has been designed to

connect specifically to the Apple product(s)

identified in the badge, and has been

certified by the developer to meet Apple

performance standards. Apple is not

responsible for the operation of this device

or its compliance with safety and

regulatory standards.

Please note that the use of this accessory

with an Apple product may affect wireless

performance.

If you have any questions or problems

concerning your unit that are not covered in

this manual, consult your nearest Sony

dealer.

Maintenance

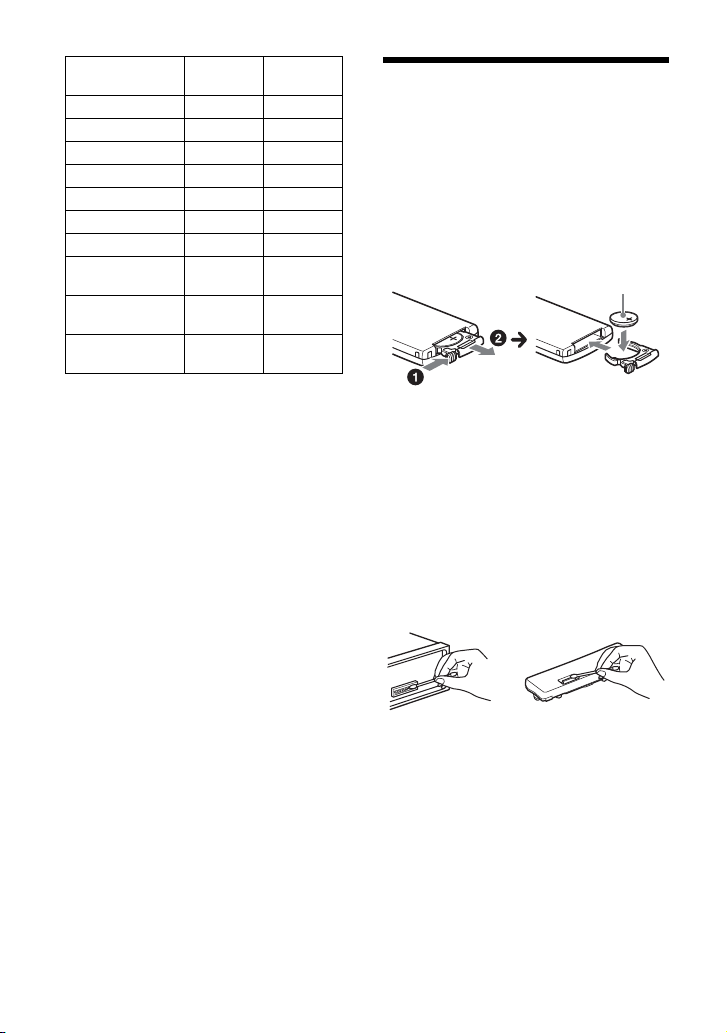

Replacing the lithium battery (CR2025)

of the remote commander

When the battery becomes weak, the range

of the remote commander becomes shorter.

CAUTION

Danger of explosion if battery is incorrectly

replaced. Replace only with the same or

equivalent type.

Note on the lithium battery

Keep the lithium battery out of the reach of

children. Should the battery be swallowed,

immediately consult a doctor.

Cleaning the connectors

Avoid touching the connectors directly. The

unit may not function properly if the

connectors between the unit and the front

panel are not clean. In order to prevent this,

detach the front panel (page 7) and clean

the connectors with a cotton swab. Do not

apply too much force. Otherwise, the

connectors may be damaged.

Note

For safety, do not remove the front panel while

driving.

iPhone 6s Plus  

iPhone 6  

iPhone 6 Plus  

iPhone 5s  

iPhone 5c  

iPhone 5  

iPhone 4s  

iPod touch

(6th generation)  

iPod touch

(5th generation)  

iPod nano

(7th generation) 

Compatible

Model Bluetooth® USB

+ side up

Lithium battery (CR2025)

10GB

Specifications

FOR THE CUSTOMERS IN THE USA. NOT

APPLICABLE IN CANADA, INCLUDING IN

THE PROVINCE OF QUEBEC.

POUR LES CLIENTS AUX ÉTATS-UNIS.

NON APPLICABLE AU CANADA, Y

COMPRIS LA PROVINCE DE QUÉBEC.

AUDIO POWER SPECIFICATIONS

CTA2006 Standard

Power Output: 45 Watts RMS × 4

at 4 Ohms < 1% THD+N

SN Ratio: 80 dBA

(reference: 1 Watt into 4 Ohms)

Radio section

Tuning range: 87.5 MHz – 107.9 MHz

Usable sensitivity: 8 dBf

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Tuning range: 530 kHz – 1,710 kHz

Sensitivity: 26 μV

USB Player section

Interface:

USB1 port (front): USB (Hi-speed)

USB2 port (rear): USB (Hi-speed)

Maximum current:

USB1 port (front): 1 A

USB2 port (rear): 1.5 A

The maximum number of recognizable files

(tracks): 10,000

Compatible Android Open Accessory

protocol (AOA): 2.0

Corresponding codec:

MP3 (.mp3)

Bit rate: 8 kbps – 320 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 16 kHz – 48 kHz

WMA (.wma)

Bit rate: 32 kbps – 192 kbps (Supports VBR

(Variable Bit Rate))

Sampling rate: 32 kHz, 44.1 kHz,

48 kHz

AAC (.m4a, .mp4)

Bit rate: 8 kbps – 320 kbps

Sampling rate: 11.025 kHz – 48 kHz

WAV (.wav)

Bit depth: 16 bit

Sampling rate: 44.1 kHz, 48 kHz

FLAC (.flac)

Bit depth: 16 bit, 24 bit

Sampling rate: 44.1 kHz, 48 kHz

Supported file system: FAT16, FAT32

Wireless Communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. Conducted +1 dBm)

Maximum communication range*1:

Line of sight approx. 10 m (33 ft)

Frequency band:

2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles*2:

A2DP (Advanced Audio Distribution Profile)

1.3

AVRCP (Audio Video Remote Control

Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

Corresponding codec:

SBC (.sbc), AAC (.m4a)

*1 The actual range will vary depending on factors

such as obstacles between devices, magnetic

fields around a microwave oven, static electricity,

reception sensitivity, antenna (aerial)’s

performance, operating system, software

application, etc.

*2 BLUETOOTH standard profiles indicate the

purpose of BLUETOOTH communication between

devices.

Power amplifier section

Output: Speaker outputs

Speaker impedance: 2 Ω/4 Ω – 8 Ω

Maximum power output: 100 W × 4 (at 2 Ω/

4 Ω)

Autres manuels pour DSX-GS80

Table des matières

Langues :

Autres manuels Sony Système stéréo de voiture

Sony

Sony XS-GTR120L Manuel utilisateur

Sony

Sony XAV-70BT Manuel utilisateur

Sony

Sony CDX-GT08 (CDXGT08) Manuel utilisateur

Sony

Sony XM-ZR4A Manuel utilisateur

Sony

Sony EXR-400 Guide produit

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Guide produit

Sony

Sony CDXGT530UI - CD Receiver MP3/WMA/AAC Player Manuel utilisateur

Sony

Sony CDX-GT920U Guide produit

Sony

Sony CDX-M730 (XT-XM1) Manuel utilisateur

Sony

Sony CDX-540RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony DSX-B41D Manuel utilisateur

Sony

Sony XDP-MU110 Manuel utilisateur

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Manuel utilisateur

Sony

Sony CDX-GT22W - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony DSX-GS900 Manuel utilisateur

Sony

Sony XPlod MEX-BT5000 Manuel utilisateur

Sony

Sony DVX-11A - Car Mp3/dvd/cd Single Player Manuel utilisateur

Sony

Sony CDX-444RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-GT264MP Manuel utilisateur

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Manuel utilisateur

Sony

Sony MEX-BT5750U Manuel utilisateur

Sony

Sony MEX-BT5750U Manuel utilisateur

Sony

Sony CDXGT820IP - Xplod GT Series Head Unit Manuel utilisateur

Sony

Sony CDX-GT630UI - Cd Receiver Mp3/wma/aac Player Guide produit

Manuels Système stéréo de voiture populaires d'autres marques

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manuel utilisateur

Clarion

Clarion PU-9836A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric AR0M Manuel utilisateur

Insignia

Insignia NS-HD5113 Manuel utilisateur

Clarion

Clarion BTD3341 Manuel utilisateur

USA SPECS

USA SPECS PA11-VW6 Manuel utilisateur

Kenwood

Kenwood KCD-BT6544U/UY Manuel utilisateur

JVC

JVC KD-DB912BT Manuel utilisateur

Philips

Philips CSQ405/98 Manuel utilisateur

Alpine

Alpine TDM-7544 Manuel utilisateur

Autotek

Autotek TransAm TA 1400 Manuel utilisateur

Clarion

Clarion PN-3124N-A Manuel utilisateur

Denso TEN

Denso TEN FT0108A Manuel utilisateur

Pyle

Pyle PLD57MU Manuel utilisateur

Harman

Harman Chrysler Radio Navigation System RB4 Manuel utilisateur

Clarion

Clarion VS735 Manuel utilisateur

JVC

JVC KW-R910BT Manuel utilisateur

Eclipse

Eclipse CD2000 Manuel utilisateur
