Sony CDX-MP70 Installation/Connection Manuel utilisateur

Operating Instructions

Mode d’emploi

Manual de instrucciones

Owner’s Record

The model and serial numbers are located on the bottom of the unit.

Record these numbers in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. CDX-MP70 Serial No.

CDX-MP70

For installation and connections, see the supplied installation/connections manual.

En ce qui concerne l’installation et les connexions, consulter le manuel

d’installation/connexions fourni.

Para obtener información sobre la instalación y las conexiones, consulte el manual

de instalación/conexiones suministrado.

3-239-019-21 (1)

Compact Disc

Player

Welcome !

Thank you for purchasing this Sony Compact

Disc Player. You can enjoy its various features

even more with:

• MP3 file playback.

• CD-R/CD-RW which can have a session added

can be played (page 7).

• Discs recorded in Multi Session (CD-Extra,

Mixed CD, etc.) can be played, depending on

the recording method (page 8).

• Optional CD/MD units (both changers and

players)*1.

•ID3tag*

2version 1 information (displayed

when an MP3 file is played).

• CD TEXT information (displayed when a CD

TEXT disc*3is played).

• 7 color display (you can select from a range of

7 colors).

• Supplied controller accessory

Card remote commander RM-X112

• Optional controller accessories

Wireless rotary commander RM-X5S

Wired rotary commander RM-X4S

*1 This unit works with Sony products only.

*2 ID3 tag is an MP3 file that contains information

about album name, artist name, track name, etc.

*3 A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,

and track names. This information is recorded on

the disc.

Warning

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This equipment

generates, uses, and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be

determined by turning the equipment off and on,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

–

Reorient or relocate the receiving antenna.

–

Increase the separation between the equipment

and receiver.

–

Connect the equipment into an outlet on a

circuit different from that to which the receiver

is connected.

–

Consult the dealer or an experienced radio/TV

technician for help.

You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate this

equipment.

The use of optical instruments with this product

will increase eye hazard.

CAUTION

The “XM Ready” logo indicates that this product

will control a Sony XM tuner module (sold

separately).

Please see your nearest authorized Sony dealer

for details on the XM tuner module.

For instructions on XM tuner operation, please

refer to the XM tuner module’s included

instruction manual.

Table of Contents

Location of controls. . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Notes on discs . . . . . . . . . . . . . . . . . . . . . . . . 7

About MP3 files . . . . . . . . . . . . . . . . . . . . . . 8

Getting Started

Resetting the unit. . . . . . . . . . . . . . . . . . . . . . 9

Detaching the front panel . . . . . . . . . . . . . . 10

Setting the clock . . . . . . . . . . . . . . . . . . . . . 11

CD Player

CD/MD Unit (optional)

Playing a disc. . . . . . . . . . . . . . . . . . . . . . . . 11

Display items. . . . . . . . . . . . . . . . . . . . . . . . 13

Playing tracks repeatedly

— Repeat Play . . . . . . . . . . . . . . . . . . . . 13

Playing tracks in random order

— Shuffle Play . . . . . . . . . . . . . . . . . . . . 13

Labeling a CD

— Disc Memo*. . . . . . . . . . . . . . . . . . . . 14

Locating a disc by name

— List-up* . . . . . . . . . . . . . . . . . . . . . . . 15

*Functions available with optional CD/MD unit

Radio

Storing stations automatically

— Best Tuning Memory (BTM). . . . . . . 16

Receiving the stored stations. . . . . . . . . . . . 16

Storing only desired stations . . . . . . . . . . . . 17

Storing station names

— Station Memo. . . . . . . . . . . . . . . . . . . 17

Tuning in a station through a list

— List-up . . . . . . . . . . . . . . . . . . . . . . . . 18

Other Functions

Using the rotary commander. . . . . . . . . . . . 19

Adjusting the sound characteristics . . . . . . 21

Quickly attenuating the sound . . . . . . . . . . 21

Changing the sound and display settings

— Menu . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting the Dynamic Soundstage Organizer

(DSO). . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Setting the equalizer . . . . . . . . . . . . . . . . . . 23

Adjusting the front and rear volume. . . . . . 24

Adjusting the volume of the

subwoofer(s). . . . . . . . . . . . . . . . . . . . . . 24

Selecting the spectrum analyzer . . . . . . . . . 25

Labeling a Demo display

— Appearing Characters . . . . . . . . . . . . 25

Connecting auxiliary audio equipment. . . . 26

Additional Information

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 27

Removing the unit. . . . . . . . . . . . . . . . . . . . 28

Specifications . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 30

Error displays/Messages. . . . . . . . . . . . . . . 31

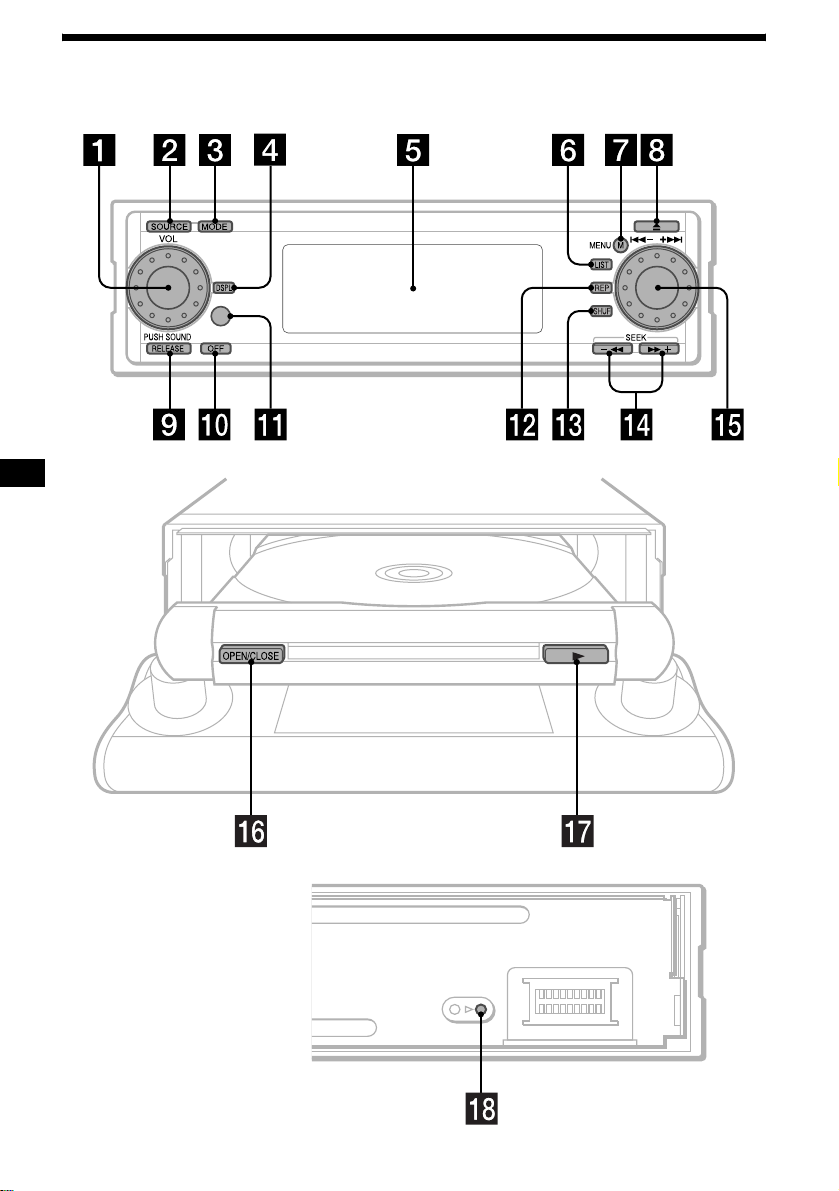

Location of controls

CDX-MP70

Behind the front panel

Refer to the pages listed for details.

aVOL (volume) control dial/SOUND

button

Rotate to:

– Adjust the volume.

– Adjust the sound setting.

Press to:

– Select the sound setting.

bSOURCE button

To select the source.

cMODE button

To change the operation.

dDSPL button 13, 14, 26

eDisplay window

fLIST button 12, 14, 15, 17, 18

gMENU button

To display the menus.

hZ(eject) button 11, 12

iRELEASE button 10

jOFF (Stop/Power off) button*10, 12,

25, 26

kReceptor for the card remote

commander and wireless rotary

commander

lREP button 13

mSHUF button 13

nm/M(SEEK –/+) buttons

To fast-forward, reverse a track,

tune in stations automatically,

find a station manually, and

select a setting.

o./>(–/+) control dial

Rotate to:

– Receive preset stations.

– Skip tracks.

– Select a menu.

Press to:

– Enter a setting.

pOPEN/CLOSE button 10, 11

qN(play) button 11

rRESET button 9

*Warning when installing in a car without

an ACC (accessory) position on the

ignition switch

After turning off the ignition, be sure to press

(OFF) on the unit for 2 seconds to turn off the

clock display.

Otherwise, the clock display does not turn off

and causes battery drain.

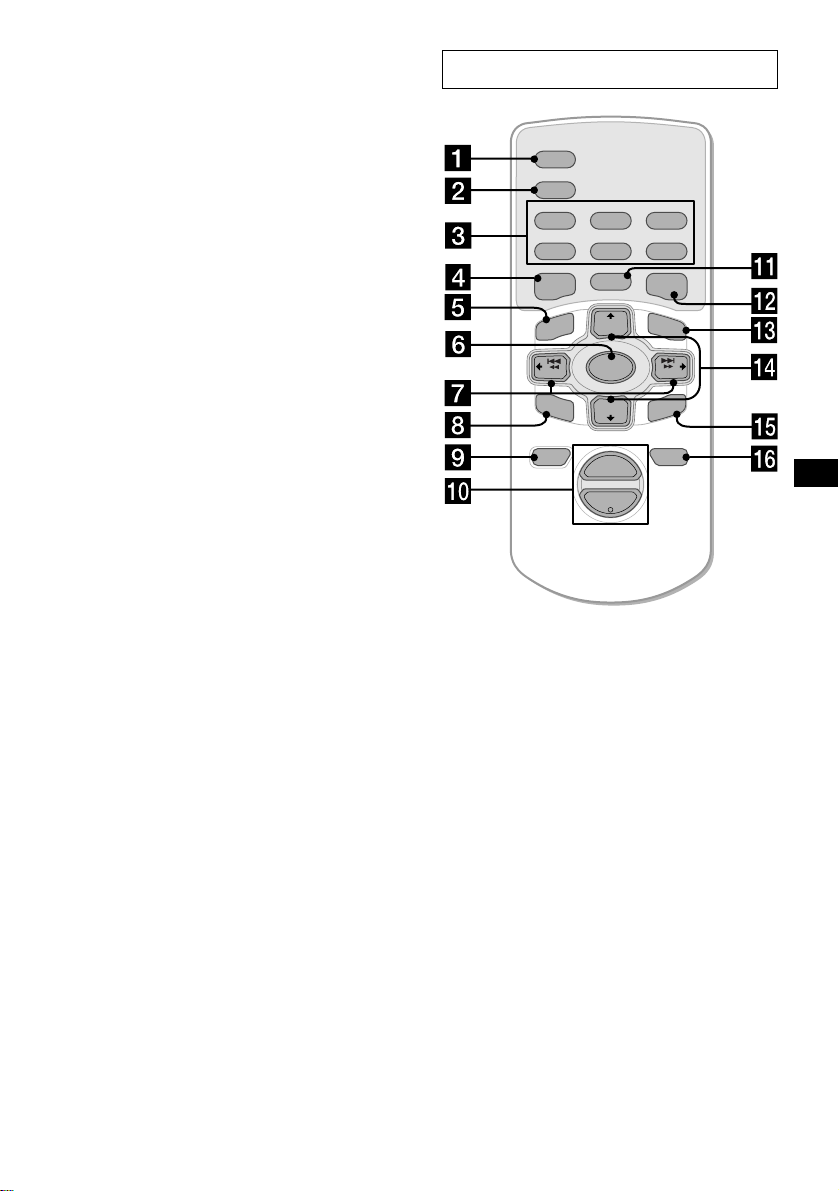

The corresponding buttons of the card

remote commander control the same

functions as those on this unit.

aSCRL button

bDSPL button

cNumber buttons

dDSO button

eMENU button

fSOURCE button

gSEEK (</,) buttons

hSOUND button

iOFF button

jVOL (+/–) buttons

kMODE button

lEQ7 button

mLIST button

nDISC/ALBUM (M/m) buttons

oENTER button

pATT button

Card remote commander RM-X112

continue to next page t

DISC

–

ATTOFF

SCRL

DSPL

MODE

SOURCE

DISC

SEEK

–

SOUND

ENTER

LIST

VOL

–

REP SHUF

EQ7DSO

Note

If the unit is turned off by pressing (OFF) for

2 seconds, it cannot be operated with the card remote

commander unless (SOURCE) on the unit is pressed

to reactivate the unit first.

Tip

See “Replacing the lithium battery” on page 27 for

details on how to replace the batteries.

Selecting a disc and album with the

card remote commander

Disc and album can be skipped using the DISC/

ALBUM (M/m) buttons on the card remote

commander.

(With this unit)

(With optional unit)

*Available only when an MP3 file is played.

Skipping tracks continuously

Press once either SEEK/AMS (<or ,)

button on the card remote commander, then

press again within 1 second and hold.

Precautions

• If your car was parked in direct sunlight, allow

the unit to cool off before operating it.

• Power antennas will extend automatically

while the unit is operating.

• Do not use the CUSTOM FILE feature while

driving, or perform any other function which

could divert your attention from the road.

• Do not drop water or foreign objects on the disc

tray. If they enter the unit, a fire or malfunction

can occur.

If you have any questions or problems

concerning your unit that are not covered in this

manual, please consult your nearest Sony dealer.

Moisture condensation

On a rainy day or in a very damp area, moisture

condensation may occur inside the lenses and

display of the unit. Should this occur, the unit

will not operate properly. In such a case, remove

the disc and wait for about an hour until the

moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks

onto the unit or discs.

Notes on CD lens

• Do not touch the lens in the disc tray.

• Do not use a commercially available lens

cleaner.

To Press

Skip albums*

–Album selection Mor m[once for each

album]

To continuously skip

albums, press and hold

either button.

To Press

Skip discs

–Disc selection Mor m[once for each disc]

To continuously skip discs,

press once and press again

within 1 second (and hold)

either button.

Skip albums*

–Album selection Mor m[hold for a moment]

and release

To continuously skip

albums, press (and hold)

within 1 second of first

releasing the button.

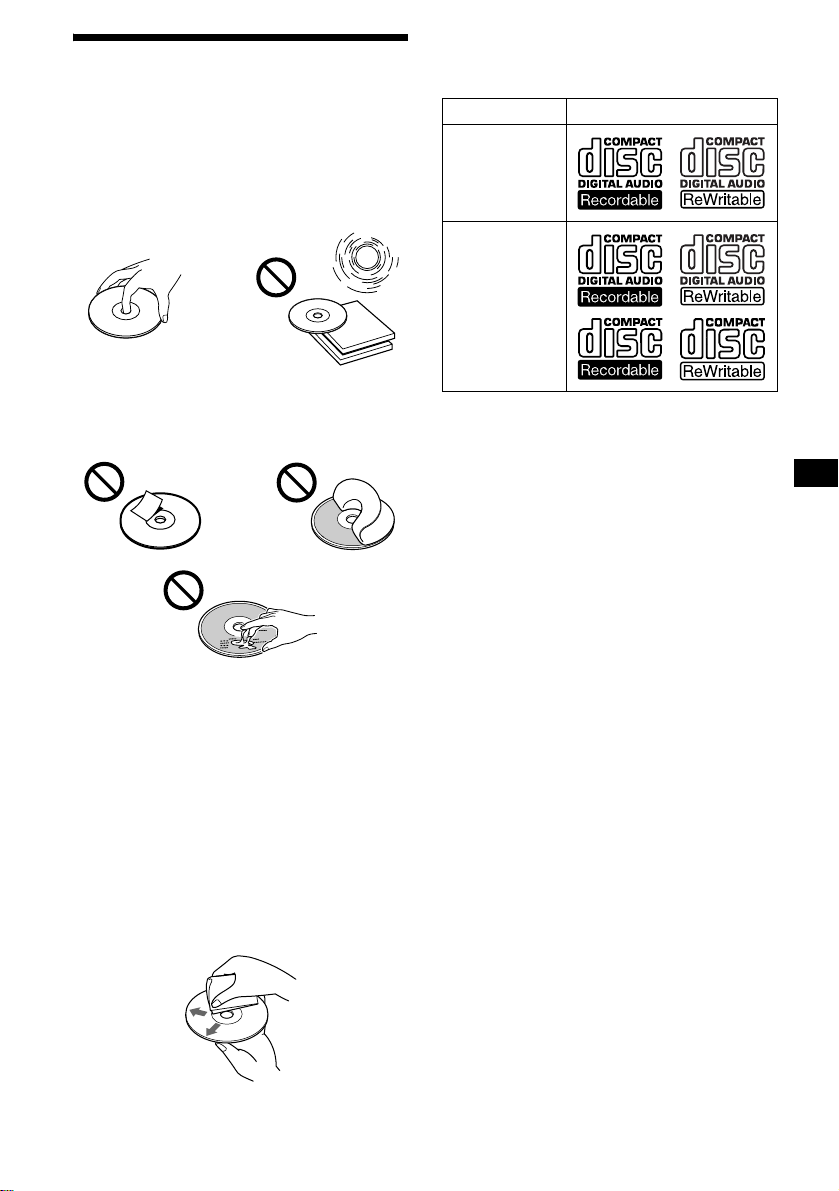

Notes on discs

• To keep the disc clean, do not touch the surface.

Handle the disc by its edge.

• Keep your discs in their cases or disc

magazines when not in use.

Do not subject the discs to heat/high

temperature. Avoid leaving them in parked cars

or on dashboards/rear trays.

• Do not attach labels, or use discs with sticky

ink/residue. Such discs may stop spinning

when used, causing a malfunction, or may ruin

the disc.

• Do not use any discs with labels or stickers

attached as this may cause inability to read

audio data correctly (e.g., playback skipping, or

no playback) due to heat shrinking of a sticker

or label causing a disc to warp.

• Discs with non-standard shapes (e.g., heart,

square, star) cannot be played on this unit.

Attempting to do so may damage the unit. Do

not use such discs.

• Before playing, clean discs with a

commercially available cleaning cloth. Wipe

each disc from the center out. Do not use

solvents such as benzine, thinner, commercially

available cleaners, or antistatic spray intended

for analog discs.

Notes on CD-Rs (recordable CDs)/CD-

RWs (rewritable CDs)

This unit can play the following discs:

• Some CD-Rs/CD-RWs (depending on the

equipment used for its recording or the

condition of the disc) may not play on this unit.

• You cannot play a CD-R/CD-RW that is not

finalized*.

• You can play MP3 files recorded on CD-

ROMs, CD-Rs, and CD-RWs.

• A CD-R/CD-RW to which a session can be

added can be played.

*A process necessary for a recorded CD-R/CD-RW

disc to be played on the audio CD player.

Type of discs Label on the disc

Audio CD

MP3 files

About MP3 files

MP3 (MPEG 1 Audio Layer-3) is a standard

technology and format for compressing a sound

sequence. The file is compressed to about 1/10 of

its original size. Sounds outside the range of

human hearing are compressed while the sounds

we can hear are not compressed.

Notes on discs

You can play MP3 files recorded on CD-ROMs,

CD-Rs, and CD-RWs.

The disc must be in the ISO 9660*1level 1 or

level 2 format, or Joliet or Romeo in the

expansion format.

You can use a disc recorded in Multi Session*2.

*1ISO 9660 Format

The most common international standard for

the logical format of files and folders on a

CD-ROM.

There are several specification levels. In

Level 1, file names must be in the 8.3 format

(no more than 8 characters in the name, no

more than 3 characters in the extension

“.MP3”) and in capital letters. Folder names

can be no longer than 8 characters. There can

be no more than 8 nested folder levels. Level

2 specifications allow file names up to 31

characters long.

Each folder can have up to 8 trees.

For Joliet or Romeo in the expansion format,

make sure of the contents of the writing

software, etc.

*2Multi Session

This is a recording method that enables

adding of data using the Track-At-Once

method. Conventional CDs begin at a CD

control area called the Lead-in and end at an

area called Lead-out. A Multi Session CD is a

CD having multiple sessions, with each

segment from Lead-in to Lead-out regarded

as a single session.

CD-Extra: The format which records audio

(audio CD data) as tracks on session 1, and

records data as tracks on session 2.

Mixed CD: In this format, data is recorded as

track 1, and audio (audio CD data) is recorded

as track 2.

Notes

•With formats other than ISO 9660 level 1 and level 2,

folder names or file names may not be displayed

correctly.

•When naming, be sure to add the file extension

“.MP3” to the file name.

•If you put the extension “.MP3” to a file other than

MP3, the unit cannot recognize the file properly and

will generate random noise that could damage your

speakers.

•The following discs take a longer time to start

playback.

– a disc recorded with complicated tree structure.

– a disc recorded in Multi Session.

– a disc to which data can be added.

Cautions when playing a disc that is recorded in

Multi Session

•When the first track of the first session is audio CD

data:

Only audio CD data is played back.

Non-audio CD data/MP3 file information (track

number, time, etc.) is displayed with no sound.

•When the first track of the first session is not audio

CD data:

– If an MP3 file is in the disc, only MP3 file(s) play

back and other data is skipped. (Audio CD data is

not recognized.)

– If no MP3 file is in the disc, “NO Music” is

displayed and nothing is played back. (Audio CD

data is not recognized.)

The playback order of the MP3 files

The playback order of the folders and files is as

follows:

Notes

•A folder that does not include an MP3 file is skipped.

•Maximum folder number: 255 (including root folder

and empty folders)

•The maximum number of MP3 files and folders that

can be contained in a disc: 512

When a file/folder name contains many characters,

this number may become less than 512.

•The maximum number of trees which can be played

is 8.

Tip

To specify a desired playback order, before the folder

or file name, input the order by number (e.g., “01,”

“02”), then record contents onto a disc. (The order

differs depending on the writing software.)

Getting Started

Resetting the unit

Before operating the unit for the first time, or

after replacing the car battery or changing the

connections, you must reset the unit.

Remove the front panel and press the RESET

button with a pointed object, such as a ball-point

pen.

Note

Pressing the RESET button will erase the clock setting

and some stored contents.

Folder (album)

MP3 file (track)

Tree 1

(root) Tree 2 Tree 4 Tree 5

Tree 3

RESET button

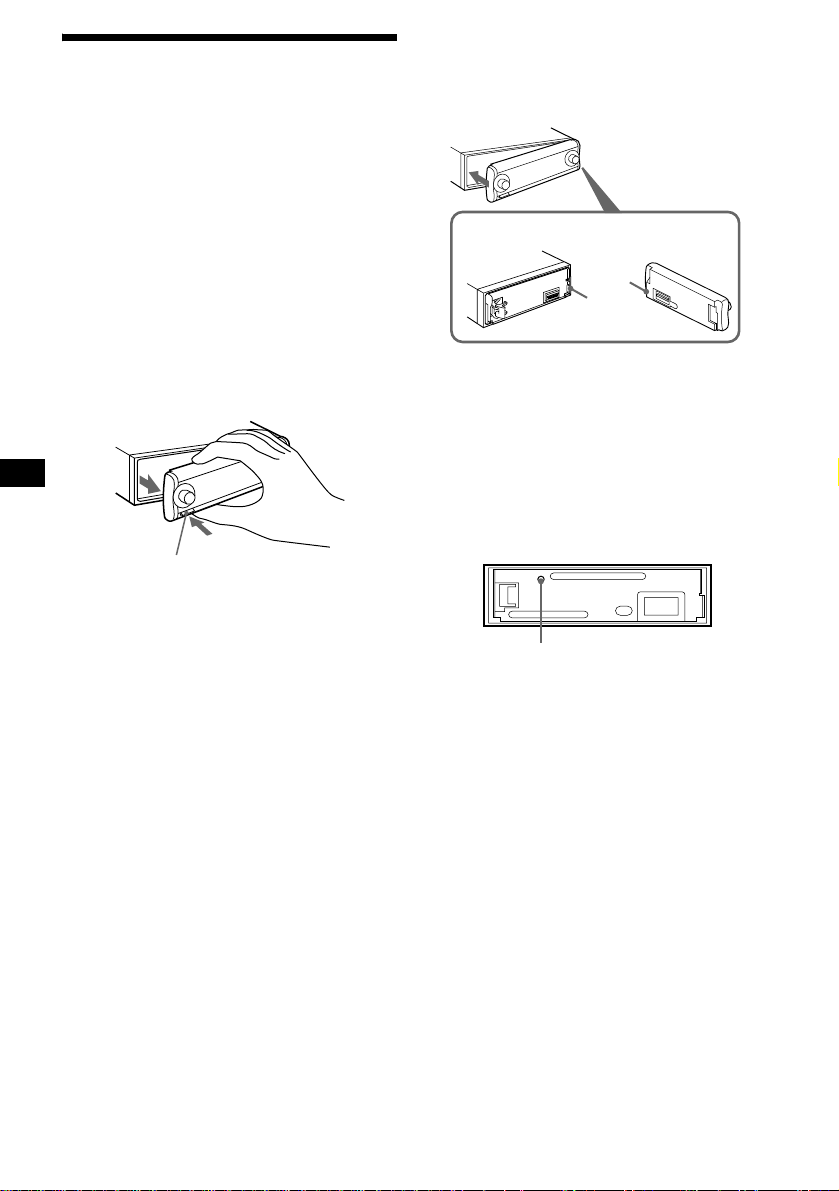

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

Caution alarm

If you turn the ignition switch to the OFF

position without removing the front panel, the

caution alarm will beep for a few seconds.

1Press (OFF)*.

CD/MD playback or radio reception stops

(the key illumination and display remain on).

*If your car has no ACC position on the ignition

switch, be sure to turn the unit off by pressing

(OFF) for 2 seconds to avoid car battery drain.

2Press (RELEASE) to open up the front

panel and pull it off towards you.

Notes

•If you detach the panel while the unit is still turned

on, the power will turn off automatically to prevent

the speakers from being damaged.

•Do not drop or put excessive pressure on the front

panel and its display window.

•Close the front panel before you detach it.

•Do not subject the front panel to heat/high

temperature or moisture. Avoid leaving it in parked

cars or on dashboards/rear trays.

Tip

When carrying the front panel with you, use the

supplied front panel case.

Attaching the front panel

Attach part Aof the front panel to part Bof the

unit as illustrated and push the left side into

position until it clicks.

Notes

•Do not put anything on the inner surface of the front

panel.

•Do not detach the front panel during the eject

operation. If the front panel is detached during eject,

operation will stop.

To eject the disc when you do not have the front

panel attached, press (OPEN/CLOSE) inside the

unit through hole Cwith a pointed object, such

as a ballpoint pen.

(RELEASE)

Autres manuels pour CDX-MP70 Installation/Connection

Table des matières

Langues :

Autres manuels Sony Système stéréo de voiture

Sony

Sony CXS-GT3516F Operating Instructions... Manuel utilisateur

Sony

Sony CDX-505RF - Compact Disc Changer System Mode d’emploi

Sony

Sony CDX-S2010C Manuel utilisateur

Sony

Sony XR-5W497RB Manuel utilisateur

Sony

Sony CDXGT620IP - Radio / CD Manuel utilisateur

Sony

Sony CDX-454RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-444RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony CDX-GT828U Manuel utilisateur

Sony

Sony MEXBT2700 - CD Receiver With Bluetooth... Guide produit

Sony

Sony MEX-BT4700U Manuel utilisateur

Sony

Sony CDX-MP40 Installation/Connection Manuel utilisateur

Sony

Sony XR-CA350X Marketing s & diagrams Manuel utilisateur

Sony

Sony CDX-4180 Instalation Mode d’emploi

Sony

Sony DSX-GS80 Manuel utilisateur

Sony

Sony MEX-N5300BT Manuel utilisateur

Sony

Sony XAV-W1 Manuel utilisateur

Sony

Sony MEX-5DI Manuel utilisateur

Sony

Sony CDX-GT300 Guide produit

Sony

Sony CDX-GT72W - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-L450X Operating Instructions (English,... Guide produit

Sony

Sony CDX-M8800 - Fm/am Compact Disc Player Guide produit

Sony

Sony CDX-525RF - Compact Disc Changer System Manuel utilisateur

Sony

Sony XR-C6090 Manuel utilisateur

Sony

Sony XR-4800 Guide produit

Manuels Système stéréo de voiture populaires d'autres marques

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Manuel utilisateur

Clarion

Clarion PU-9836A Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric AR0M Manuel utilisateur

Insignia

Insignia NS-HD5113 Manuel utilisateur

Clarion

Clarion BTD3341 Manuel utilisateur

USA SPECS

USA SPECS PA11-VW6 Manuel utilisateur

Kenwood

Kenwood KCD-BT6544U/UY Manuel utilisateur

JVC

JVC KD-DB912BT Manuel utilisateur

Philips

Philips CSQ405/98 Manuel utilisateur

Alpine

Alpine TDM-7544 Manuel utilisateur

Autotek

Autotek TransAm TA 1400 Manuel utilisateur

Clarion

Clarion PN-3124N-A Manuel utilisateur

Denso TEN

Denso TEN FT0108A Manuel utilisateur

Pyle

Pyle PLD57MU Manuel utilisateur

Harman

Harman Chrysler Radio Navigation System RB4 Manuel utilisateur

Clarion

Clarion VS735 Manuel utilisateur

JVC

JVC KW-R910BT Manuel utilisateur

Eclipse

Eclipse CD2000 Manuel utilisateur
