Sony XR-C7500RX Manuel utilisateur

2000 Sony Corporation

FM/MW/LW

Cassette

Car Stereo

3-046-400-11 (2)

Operating Instructions

Manual de instrucciones

Bruksanvisning

Manual de instruções

XR-C7500RX

XR-C7500R

For installation and connections, see the supplied installation/connections

manual.

Para obtener información sobre la instalación y las conexiones, consulte el manual

de instalación/conexiones suministrado.

Vi hänvisar till det medföljande häftet angående montering/anslutningar.

Para a instalação e as ligações, consulte o manual de instalação/ligações

fornecido.

FM/MW/LW Cassette Car Stereo

Welcome !

Thank you for purchasing this Sony Cassette

Player. This unit lets you enjoy a variety of

features using the following controller

accessory:

Supplied accessory

Rotary commander RM-X4S

Optional accessory

Card remote commander RM-X91

In addition to the cassette playback and radio

operations, you can expand your system by

connecting an optional CD/MD unit*1.

When you operate this unit or a connected

optional CD unit with the CD TEXT function,

the CD TEXT information will appear in the

display when you play a CD TEXT disc*2.

*1You can connect a CD changer, an MD changer,

a CD player, or an MD player.

*2A CD TEXT disc is an audio CD that includes

information such as the disc name, artist name,

and track names.

This information is recorded on the disc.

Precautions

•If your car was parked in direct sunlight

resulting in a considerable rise in

temperature inside the car, allow the unit to

cool off before operating it.

•If no power is being supplied to the unit,

check the connections first. If everything is in

order, check the fuse.

•If no sound comes from the speakers of a

two-speaker system, set the fader control to

the centre position.

•When a tape is played back for a long period,

the cassette may become warm because of

the built-in power amplifier. However, this is

not a sign of malfunction.

If you have any questions or problems

concerning your unit that are not covered in

this manual, please consult your nearest Sony

dealer.

To maintain high quality sound

If you have drink holders near your audio

equipment, be careful not to splash juice or

other soft drinks onto the car audio. Sugary

residues on this unit or cassette tapes may

contaminate the playback heads, reduce the

sound quality, or prevent sound reproduction

altogether.

Cassette cleaning kits cannot remove sugar

from the tape heads.

Notes on Cassettes

Cassette care

•Do not touch the tape surface of a cassette, as

any dirt or dust will contaminate the heads.

•Keep cassettes away from equipment with

built-in magnets such as speakers and

amplifiers, as erasure or distortion on the

recorded tape could occur.

•Do not expose cassettes to direct sunlight,

extremely cold temperatures, or moisture.

•Slack in the tape may cause the tape to be

caught in the machine. Before you insert the

tape, use a pencil or similar object to turn the

reel and take up any slack.

•Distorted cassettes and loose labels can cause

problems when inserting or ejecting tapes.

Remove or replace loose labels.

•The sound may become distorted while

playing the cassette. The cassette player head

should be cleaned after each 50 hours of use.

Slack

Cassettes longer than 90 minutes

The use of cassettes longer than 90 minutes is

not recommended except for long continuous

play. The tape used for these cassettes is very

thin and tends to stretch easily. Frequent

playing and stopping of these tapes may cause

them to become entangled in the cassette deck

mechanism.

Table of Contents

Location of controls ................................................. 5

Getting Started

Resetting the unit ................................................ 7

Detaching the front panel .................................. 7

Turning the unit on/off ...................................... 8

How to use the menu ......................................... 8

Setting the clock .................................................. 9

Cassette Player

Listening to a tape ............................................. 10

Playing a tape in various modes ......................11

Radio

Memorising stations automatically

— Best Tuning Memory (BTM).................. 12

Memorising only the desired stations............ 12

Receiving the memorised stations .................. 13

RDS

Overview of the RDS function ........................ 14

Displaying the station name............................ 14

Retuning the same programme automatically

— Alternative Frequencies (AF) ................ 15

Listening to traffic announcements ................ 16

Presetting the RDS stations with the AF and

TA data .......................................................... 17

Locating a station by programme type .......... 17

Setting the clock automatically ....................... 18

DAB

Overview of DAB.............................................. 19

Basic operations of DAB .................................. 19

Presetting DAB services automatically

— BTM .......................................................... 20

Presetting DAB services manually

— Manual Preset Memory ......................... 21

Listening to a DAB programme ...................... 22

Settings on the audio reception....................... 23

Locating a DAB service by programme type

(PTY) .............................................................. 23

DSP

Setting the equalizer ......................................... 24

Selecting the listening position ....................... 25

Selecting a soundstage menu

— Dynamic Soundstage Organizer

(DSO) ............................................................. 25

Adjusting the balance (BAL) ........................... 26

Adjusting the front and rear fader.................. 26

Listening to each programme source in its

registered DSO

— Source Sound Memory (SSM) ............... 27

Selecting the spectrum analyzer ..................... 27

Other Functions

Labelling the rotary commander .................... 28

Using the rotary commander .......................... 28

Attenuating the sound ..................................... 29

Changing the sound and display settings ..... 30

CD/MD Unit

Playing a CD or MD ......................................... 31

Playing tracks repeatedly

— Repeat Play .............................................. 32

Playing tracks in random order

— Shuffle Play .............................................. 32

Labelling a CD

— Disc Memo (For a CD unit with the

custom file function).................................... 33

Locating a disc by name

— List-up (For a CD unit with the custom

file function or an MD unit) ....................... 34

Selecting specific tracks for playback

— Bank (For a CD unit with the custom

file function) ................................................. 35

Additional Information

Maintenance....................................................... 36

Dismounting the unit ....................................... 37

Specifications ..................................................... 38

Troubleshooting guide ..................................... 39

Location of controls

1MENU button

9, 11, 12, 13, 15, 17, 18, 20, 21, 23, 24,

26, 27, 30, 31, 33, 34, 35

2Volume control dial

3SOURCE (TUNER/TAPE/CD/MD) button

6, 8, 10, 12, 13, 19, 20, 24, 25, 26, 27, 31,

4PRST/DISC +/– (cursor up/down) buttons

8, 9, 11, 12, 13, 15, 17, 18, 19, 20, 21, 22,

23, 24, 26, 27, 30, 31, 32, 33, 34, 35

During radio reception:

Preset stations select 13

During CD/MD playback:

Disc change 32

5DSPL/PTY (display mode change/

programme type) button

11, 18, 23, 31, 33

6LIST button

Disc memo 33

List-up 22, 34

7Display window

Z(eject) button (located on the front side

of the unit behind the front panel)

9OPEN button 7, 10, 36

q; DSO button 26

qa SOUND button 24, 25, 26

qs OFF button*6, 7, 8, 10

qd Reset button (located on the front side

of the unit behind the front panel) 7

qf SEEK/AMS –/+ (cursor left/right) buttons

8, 9, 10, 11, 12, 13, 15, 17, 18, 19, 21, 23,

24, 25, 26, 27, 30, 31, 32, 33, 35

Seek 13, 15, 19

Automatic Music Sensor 10, 32

Manual search 13, 32

XR-C7500RX/XR-C7500R

–

SOURCE

DSPL

LIST

OFF

PTY

ENTER

SOUND

1 2 3 4 56

SEEK/AMS

REP SHUF

OPEN

MODE

DSO

qg ENTER button

9, 11, 12, 13, 15, 17, 18, 20, 21, 22, 23,

24, 26, 27, 30, 31, 33, 34, 35

qh MODE button 10, 11, 12, 13, 19, 20, 31,

During tape playback:

Playback direction change 10

During radio reception:

BAND select 12, 13

During CD/MD playback:

CD/MD unit select 31

qj Receptor for the card remote

commander

qk Number buttons

During radio reception:

Preset number select

12, 13, 16, 17, 20, 21

During tape playback:

(1) REP 11

During CD/MD playback:

(1) REP 32

(2) SHUF 32

ql AF button 15, 17

w; TA button 16, 17

*Warning when installing in a car

without ACC (accessory) position on

the ignition key switch

Be sure to press (OFF) on the unit for two

seconds to turn off the clock display after

turning off the engine.

When you press (OFF) only momentarily,

the clock display does not turn off and this

causes battery wear.

Refer to the pages listed for details.

Optional

Card remote commander RM-X91

Replacing the lithium battery

When the battery becomes weak, the range of

the card remote commander becomes shorter.

Replace the battery with a new CR2025 lithium

battery.

Notes on lithium battery

•Keep the lithium battery out of the reach of

children. Should the battery be swallowed,

immediately consult a doctor.

•Wipe the battery with a dry cloth to assure a

good contact.

•Be sure to observe the correct polarity when

installing the battery.

•Do not hold the battery with metallic

tweezers, otherwise a short-circuit may

occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of

in fire.

The corresponding buttons of the card

remote commander control the same

functions as those on this unit.

1OFF button

2MENU button

3SOURCE button

4SEEK/AMS (cursor </,) buttons

5SOUND button

6DSPL/PTY button

7ATT button

8LIST button

9DISC/PRST (cursor M/m) buttons

q; ENTER button

qa MODE button

qs VOL buttons

+ side up

OFF

SEEK SEEK

OPEN/CLOSE

MENU LIST

SOUND

ENTER

DISC

SOURCE

DSPL MODE

VOLATT

A unit turned off by pressing (OFF) for two seconds cannot be operated with the card remote

commander unless (SOURCE) on the unit is pressed or a cassette is inserted to activate the unit

first.

Attaching the front panel

Place the hole Aof the front panel onto the

spindle Bon the unit as illustrated, then push

the left side in.

Notes

• Be careful not to attach the front panel upside

down.

•Do not press the front panel too hard against the

unit when attaching it.

•Do not press too hard or put excessive pressure

on the display window of the front panel.

•Do not expose the front panel to direct sunlight

or heat sources such as hot air ducts, and do not

leave it in a humid place. Never leave it on the

dashboard of a car parked in direct sunlight or

where there may be a considerable rise in

temperature.

Caution alarm

If you turn the car ignition off without

removing the front panel, the caution alarm

will beep for a few seconds.

If you connect an optional power amplifier and

do not use the built-in amplifier, the beep

sound will be deactivated.

Getting Started

Resetting the unit

Before operating the unit for the first time or

after replacing the car battery, you must reset

the unit.

Remove the front panel and press the reset

button with a pointed object, such as a

ballpoint pen.

Note

Pressing the reset button will erase the clock

setting and some memorised functions.

Detaching the front panel

You can detach the front panel of this unit to

protect the unit from being stolen.

1Press (OFF).

2Press (OPEN), then slide the front panel

to the right side, and pull out from the

left side.

Notes

• Be sure not to drop the panel when detaching it

from the unit.

•If you detach the panel while the unit is still

turned on, the power will turn off automatically

to prevent the speakers from being damaged.

•When you carry the front panel with you, use the

supplied front panel case.

Reset button

SOURCE

(–) : To select

leftwards (+) : To select

rightwards

Turning the unit on/off

Turning on the unit

Press (SOURCE) or insert a cassette in the

unit. For details on operation, refer to page 10

(cassette player) and page 12 (radio).

Turning off the unit

Press (OFF) to stop tape playback or FM/

MW/LW reception (the key illumination and

display remains on.)

Press (OFF) for two seconds to completely

turn off the unit.

Note

If your car has no ACC position on the ignition key

switch, be sure to turn the unit off by pressing

(OFF) for two seconds to avoid car battery wear.

How to use the menu

This unit is operated by selecting items from a

menu.

To select, first enter the menu mode and

choose up/down (+/– of (PRST/DISC)), or

choose left/right (–/+ of (SEEK/AMS)).

(PRST/DISC)

(+) : To select upwards

(–) : To select downwards

(SEEK/AMS)

SOURCE

2Press (ENTER).

The clock starts.

After the clock setting is complete, the

display returns to normal playback mode.

Tips

• You can use the convenient CT function to set

the clock automatically (page 18).

• When the D.Info mode is set to on, the time is

always displayed (page 30).

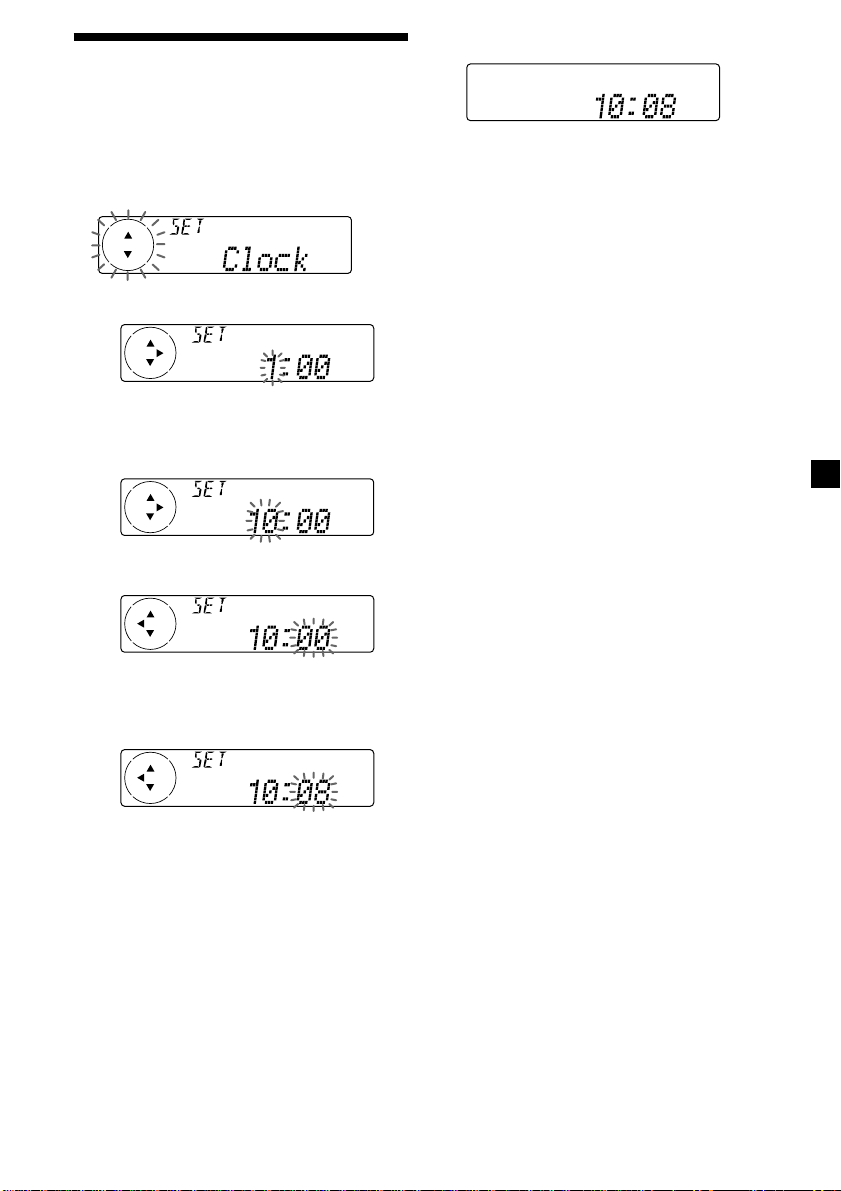

Setting the clock

The clock uses a 24-hour digital indication.

Example: To set the clock to 10:08

1Press (MENU), then press either side of

(PRST/DISC) repeatedly until “Clock”

appears.

1Press (ENTER).

The hour indication flashes.

2Press either side of (PRST/DISC) to set

the hour.

3Press (+) side of (SEEK/AMS).

The minute indication flashes.

4Press either side of (PRST/DISC) to set

the minute.

Cassette Player

Listening to a tape

1Press (OPEN) and insert a cassette.

Playback starts automatically.

2Close the front panel.

If a cassette is already inserted, to start

playback, press (SOURCE) repeatedly until

“FWD” or “REV” appears.

Tip

To change the tape‘s playback direction, press

(MODE) (o).

To Press

Stop playback (OFF)

Eject the cassette (OPEN) then Z

Fast-winding the tape

During playback, press and hold either

side of (SEEK/AMS).

To start playback during fast-forwarding or

rewinding, press (MODE) (o).

Locating a specific track

— Automatic Music Sensor (AMS)

During playback, press either side of

(SEEK/AMS) momentarily for each track

you want to skip.

You can skip up to nine tracks at one time.

Note

The AMS function may not work when:

— the blanks between tracks are shorter than

four seconds

— there is noise between tracks

— there are long sections of low volume or quiet

sections.

In the Motion Display mode, all the items are

scrolled in the display one by one in order.

Tip

The Motion Display mode can be turned off. (See

“Changing the sound and display settings” on

page 30.)

To locate

preceding

tracks

To locate

succeeding

tracks

Rewind Fast-forward

SOURCE

The side facing up is played.

The side facing down is played.

Autres manuels pour XR-C7500RX

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Sony Récepteur de voiture

Sony

Sony CDX-CA730X Manuel utilisateur

Sony

Sony DSX-S200X - Fm/am Digital Media Player Manuel utilisateur

Sony

Sony MEX-N4000BT Manuel utilisateur

Sony

Sony XR-C6100 Manuel utilisateur

Sony

Sony CDX-4270R Manuel utilisateur

Sony

Sony CDX-GT400 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony CDX-S2000S Manuel utilisateur

Sony

Sony CDX-GT540UI Manuel utilisateur

Sony

Sony MEX-N5100BE Manuel utilisateur

Sony

Sony CDX-M8800 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony DSX-S100 Manuel utilisateur

Sony

Sony XR-4950X Manuel utilisateur

Sony

Sony CDX-M7810 - Fm/am Compact Disc Player Manuel utilisateur

Sony

Sony XAV-722 Manuel utilisateur

Sony

Sony XPlod MEX-BT5000 Manuel utilisateur

Sony

Sony Bluetooth 4-158-429-31(1) Manuel utilisateur

Sony

Sony CDX-R505X - Synchro-flip Detachable Face Manuel utilisateur

Sony

Sony CDX-M730 Manuel utilisateur

Sony

Sony MEX 1GP - Giga Panel Radio Feuille d'instructions

Sony

Sony DSX-MS60 Manuel utilisateur

Sony

Sony CDX-C5850R Guide produit

Sony

Sony CDX-C910 - Fm/am Compact Disc Player Guide produit

Sony

Sony CDX-GT550UI (CDX-GT550UI) Manuel utilisateur

Sony

Sony XR-C2600 Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur

Medion

Medion Car Audio Manuel utilisateur

Philips

Philips CEM5000 Manuel utilisateur
