Sony Party-Shot IPT-DS2 Manuel utilisateur

4-274-025-41(1)

IPT-DS2

Intelligent Pantilter / Operating Instructions GB

Интеллектуальное панорамно-наклонное устройство /

Инструкция по эксплуатации

Пристрій для інтелектуального спостереження /

Інструкції з експлуатації

2-GB

Before operating the product, please read this manual thoroughly and retain it for

future reference.

WARNING

To reduce fire or shock hazard, do not expose the unit

to rain or moisture.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN

INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE

INSTRUCTIONS.

For Customers in the U.S.A.

CAUTION

You are cautioned that any changes or modifications not expressly approved in this

manual could void your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

continued

3-GB

For Customers in Europe

Notice for the customers in the countries applying EU

Directives

The manufacturer of this product is Sony Corporation, 1-7-1 Konan Minato-ku

Tokyo, 108-0075 Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland

GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or

guarantee matters please refer to the addresses given in separate service or guarantee

documents.

Attention

The electromagnetic field at the specific frequencies may influence the picture and

sound of this unit.

Disposal of Old Electrical & Electronic Equipment

(Applicable in the European Union and other

European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this

product shall not be treated as household waste. Instead it shall be

handed over to the applicable collection point for the recycling of

electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which

could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural

resources. For more detailed information about recycling of this

product, please contact your local Civic Office, your household

waste disposal service or the shop where you purchased the

product.

4-GB

Table of contents

Notes on using the Intelligent Pantilter .............................................................5

Compatible camera models and functions.........................................6

Enjoy with Party-shot ...........................................................................................7

Identifying parts ....................................................................................................9

Preparing the unit............................................................................................... 11

Inserting batteries ............................................................................... 11

Attaching the camera to this unit ..................................................... 13

Starting automatic shooting.............................................................................. 17

Shooting using On-demand shot function..................................................... 18

Changing the settings ........................................................................................ 19

Settings ................................................................................................. 19

Attaching the dedicated stand .......................................................................... 21

Troubleshooting.................................................................................................. 23

Specifications ...................................................................................................... 25

5-GB

Notes on using the Intelligent Pantilter

Refer to the operating instructions for your camera as well as this manual.

This unit is not dust-proof, splash-proof, or waterproof.

Precautions on use and storage locations

Do not use or keep this unit in locations subject to the following conditions.

Otherwise, this unit could malfunction.

Locations subject to extreme high temperatureˎ

Temperatures in a hot sun or closed automobiles during summer may be extremely

high, causing deformation or malfunction of this unit.

Locations under direct sunlight or near heatersˎ

This may cause deformation or a malfunction of this unit.

Locations subject to vibrationˎ

Locations subject to strong magnetismˎ

Locations subject to dust particles in a sandy place or the beachˎ

Precautions on recorded data

Please note that Sony will not be liable for recorded data such as images and audio

data if you cannot record or play back due to a malfunction of the camera, memory

cards, or this unit and its accessories.

About installation

Use this unit where:

it is stable and flat.ˎ

the camera has a clear view of people’s faces.ˎ

there are no objects nearby that may fall over.ˎ

continued

6-GB

Compatible camera models and functions

This unit can be used with the Sony digital still cameras (referred to below as

“camera”) in the following table. Compatible functions vary depending on the camera

model. For details, refer to the operating instructions of the camera.

Camera models

DSC- Attachment

Functions

On-demand shot

Still image

Intelligent

Sweep

Panorama

H70/W515PS/W560/

W570/W570D/W580 A 

HX7/HX7V/HX9/HX9V/

WX7/WX9/WX10 A 

TX100/TX100V B  

Not all of those models are available in all countries and regions.

7-GB

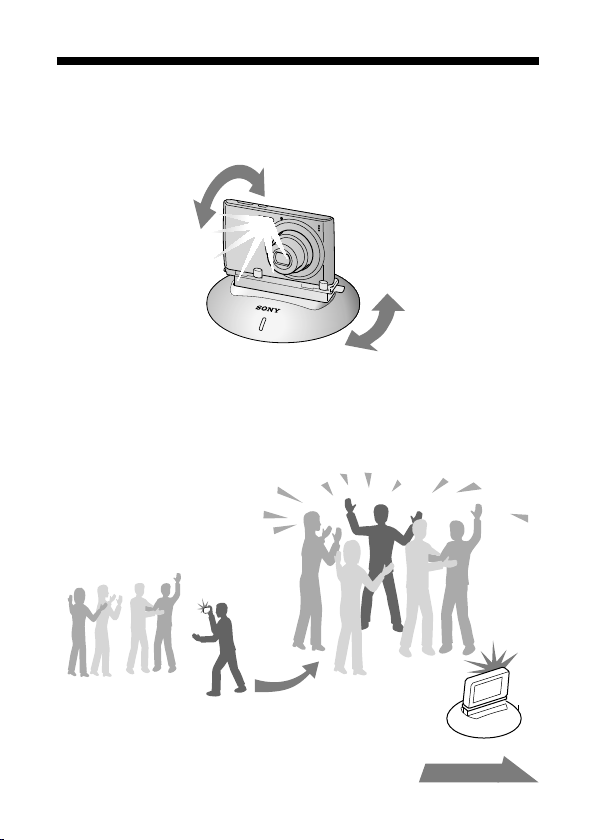

Enjoy with Party-shot

Party-shot rotates and shoots photos automatically. It detects the faces of subjects

using the function of the Cyber-shot camera and adjusts the composition

automatically.

Capture natural photos of everyone using“Automatic shooting”

function

The automatic shooting function captures everyone since no one has to be the

photographer. Because people are less aware of the camera, Party-shot makes it easier

to shoot more natural, smiling faces.

continued

8-GB

Capture photos at a time of your choice using“On-demand

shot” function

If you press the On-demand shot button during automatic shooting, the camera

shoots photos at the timing of your choice. This lets people pose for photos and lets

you be in photos, too.

9-GB

Identifying parts

Front Bottom









On-demand shot

button or MENU

(stop) button

Release button (dark

gray)

Lock button (light

gray)

Operation/battery

indicator

Multi connector

Tilt arm

Camera clips

ON/OFF (power)

switch

Battery cover

Tripod receptacle

Use a commercially

available tripod with

5.5 mm or shorter

screws.

Foot

Protective cover

On-demand shot button and MENU (stop) button

Button function assignment varies depending on your camera. You can tell which

button has which function from whether it is lit or not.

Lit: On-demand shot buttonˎ

Not lit: MENU (stop) buttonˎ

continued

10-GB

Operation/battery indicator

Indicators light up or flash depending on the status of this unit.

Color Indicator status This unit status

White On Automatic shooting

Flashes once When a shot is taken

Flashes slowly When the ON/OFF (power) switch of this

unit is used* / During setting screen display

Flashes rapidly The memory of the camera is full. / Lens

cover is closed.

Red Flashes slowly Battery level is low.

Flashes rapidly Abnormal condition / Batteries have run out.

/ Some force is being applied to this unit.

* The indicator may not flash depending on the status of this unit.
