Ver. 1.4 2008.07

M2000 MECHANISM

DIGITAL VIDEO CAMERA RECORDER

•For ADJUSTMENTS (SECTION 6), refer to SERVICE MANUAL, ADJ (9-876-781-51).

•For INSTRUCTION MANUAL, refer to SERVICE MANUAL, LEVEL1 (9-876-781-41).

•For MECHANISM ADJUSTMENTS, refer to the “8mm Video MECHANICAL ADJUSTMENT MANUAL IX

M2000 MECHANISM ” (9-929-861-11).

•Reference No. search on printed wiring boards is available.

•Table for differences of function of each model.

•TO TAKE OUT A CASSETTE WHEN NOT EJECT (FORCE EJECT)

•HELP: Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.

On the VC-345 board

This service manual provides the information that is premised

the circuit board replacement service and not intended repair

inside the VC-345 board.

Therefore, schematic diagrams, printed wiring boards, mounted

parts location and electrical parts list of the VC-345 board are

not shown.

The following pages are not shown.

Schematic diagrams ..................... Pages 4-9 to 4-44

Printed wiring boards .................... Pages 4-59 to 4-62

Waveforms .....................................

Pages 4-70 to 4-75

Mounted parts location ..................

Pages 4-77 and 4-78

Electrical parts list ......................... Pages 5-16 to 5-24

Sony EMCS Co.

2008G0500-1

Published by Kohda TEC

9-876-781-32

DCR-TRV380/TRV480/TRV480E

RMT-831

DCR-TRV480

US Model

Canadian Model

DCR-TRV480E

AEP Model

UK Model

North European Model

Australian Model

DCR-TRV380/

TRV480/

TRV480E

E Model

Revised-1

Replace the previously issued

SERVICE MANUAL 9-876-781-31

with this manual.

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-2

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

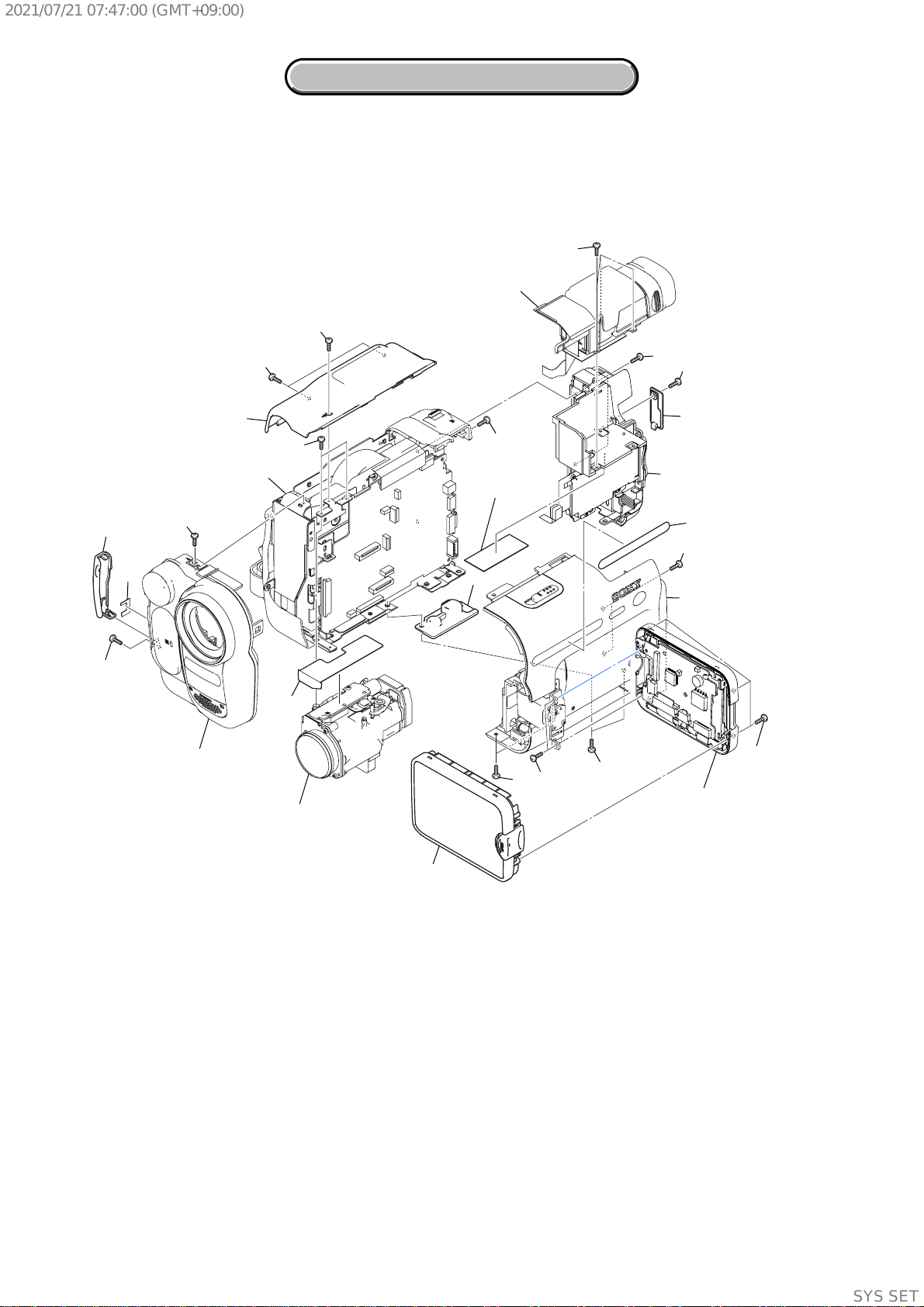

5-1-1. OVERALL ASSEMBLY

Ref. No. Part No. Description Ref. No. Part No. Description

1X-2024-897-1 CABINET (C (970)) ASSY, P

23-080-203-31 SREW (M2), LOCK ACE, P2

33-087-813-11 COVER (51), JACK

42-548-261-31 SHEET (90), JACK

53-087-811-11 CABINET (UPPER) (51)

63-078-889-11 SCREW (M1.7)

73-087-810-11 LID (51), CPC

8COUTION RETAINER (51), EVF FLEXIBLE

93-079-012-11 SCREW (30), TRIPOD

10 2-580-024-41 LABEL (90)

11 3-080-204-21 SCREW, TAPPING, P2

12 3-078-890-21 SCREW, TAPPING

13 3-080-204-31 SCREW (1.7X6), TAPPING, P2

5-1. EXPLODED VIEWS

CAUTION :

For the part of 8 : RETAINER (51), EVF FLEXIBLE

(3-088-616-01), cut WOVEN (T0.25), FABRIC NON

(3-076-631-01) into the desired length and use it.

Front panel block

(See page 5-3.)

Battery panel bloc

(See page 5-8.)

Cabinet R bloc

(See page 5-6.)

MD frame block

(See page 5-9.)

Lens block

(See page 5-4.)

LCD block

(See page 5-5.)

212

EVF block

(See page 5-7.)

(SIZE:

1.5cm X 3.5cm)

ns: not supplied

Ver. 1.4 2008.07

The changed portions from

Ver. 1.3 are shown in blue.

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-3

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

SI-041

60 61

MIC901

J752

CN752

D753

D001

D002

D003

D754

IC751

CN751

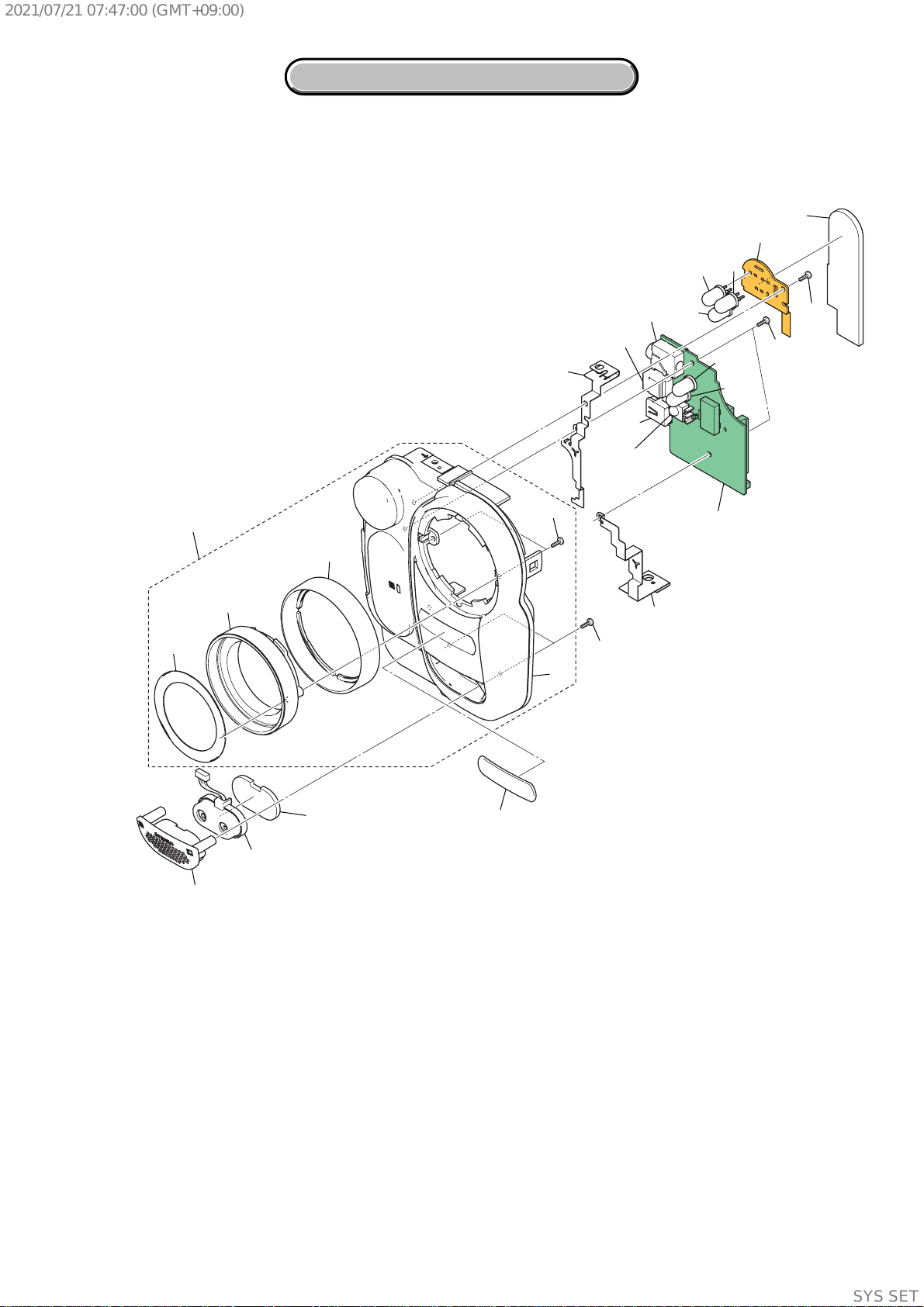

5-1-2. FRONT PANEL BLOCK

Ref. No. Part No. Description Ref. No. Part No. Description

51 3-087-738-31 RETAINER (51), MICROPHONE

52 3-087-740-31 PLATE (51), MAGNIFICATION

53 X-2024-888-1 PANEL (970) ASSY, FRONT

54 3-087-739-01 PLATE (51), NAME

55 3-087-743-01 SCREW (51), FILTER

56 3-087-742-01 RING (51), FRONT

58 3-080-204-21 SCREW, TAPPING, P2

59 A-1082-752-A SI-041 BOARD, COMPLETE (Note 1)

60 1-860-929-11 FP-792 FLEXIBLE BOARD (Note 2)

61 3-087-994-01 CUSHION (51), JACK

62 3-088-031-01 CUSHION (51), MICROPHONE

CN751 1-794-276-11 CONNECTOR, SQUARE TYPE 4P (DV) (Note 1)

CN752 1-794-962-11 CONNECTOR, SQUARE TYPE (USB 5P) (USB)

(Note 1)

D001 6-500-744-01 DIODE NSPW500BS-TL2 (VIDEO LIGHT)

(Note 2)

D002 6-500-744-01 DIODE NSPW500BS-TL2 (VIDEO LIGHT)

(Note 2)

D003 6-500-744-01 DIODE NSPW500BS-TL2 (VIDEO LIGHT)

(Note 2)

D753 8-719-078-24 DIODE DAC3825 (IR EMITTER) (Note 1)

D754 8-719-078-24 DIODE DAC3825 (IR EMITTER) (Note 1)

IC751 6-704-975-01 IC RPM7240-V4 (Note 1)

J752 1-778-040-11 JACK, SMALL TYPE (A/V OUT) (Note 1)

MIC901 1-542-513-11 MICROPHONE

ns: not supplied

Note 1: CN751, CN752, D753, D754, IC751 and J752 are not

included in SI-041 complete board.

Note 2: D001, D002 and D003 are not included in FP-792 flex-

ible board.

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-4

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

Note 2: Be sure to read “Precuations for Replacement of CCD

Imager” on page 4-5 when changing the CCD imager.

Ref. No. Part No. Description Ref. No. Part No. Description

101 8-848-765-01 DEVICE, LENS LSV-820A

102 1-758-554-11 FILTER BLOCK, OPTICAL

103 3-053-973-01 RUBBER (W), SEAL

104 A-7111-980-A CD-472 BOARD, COMPLETE

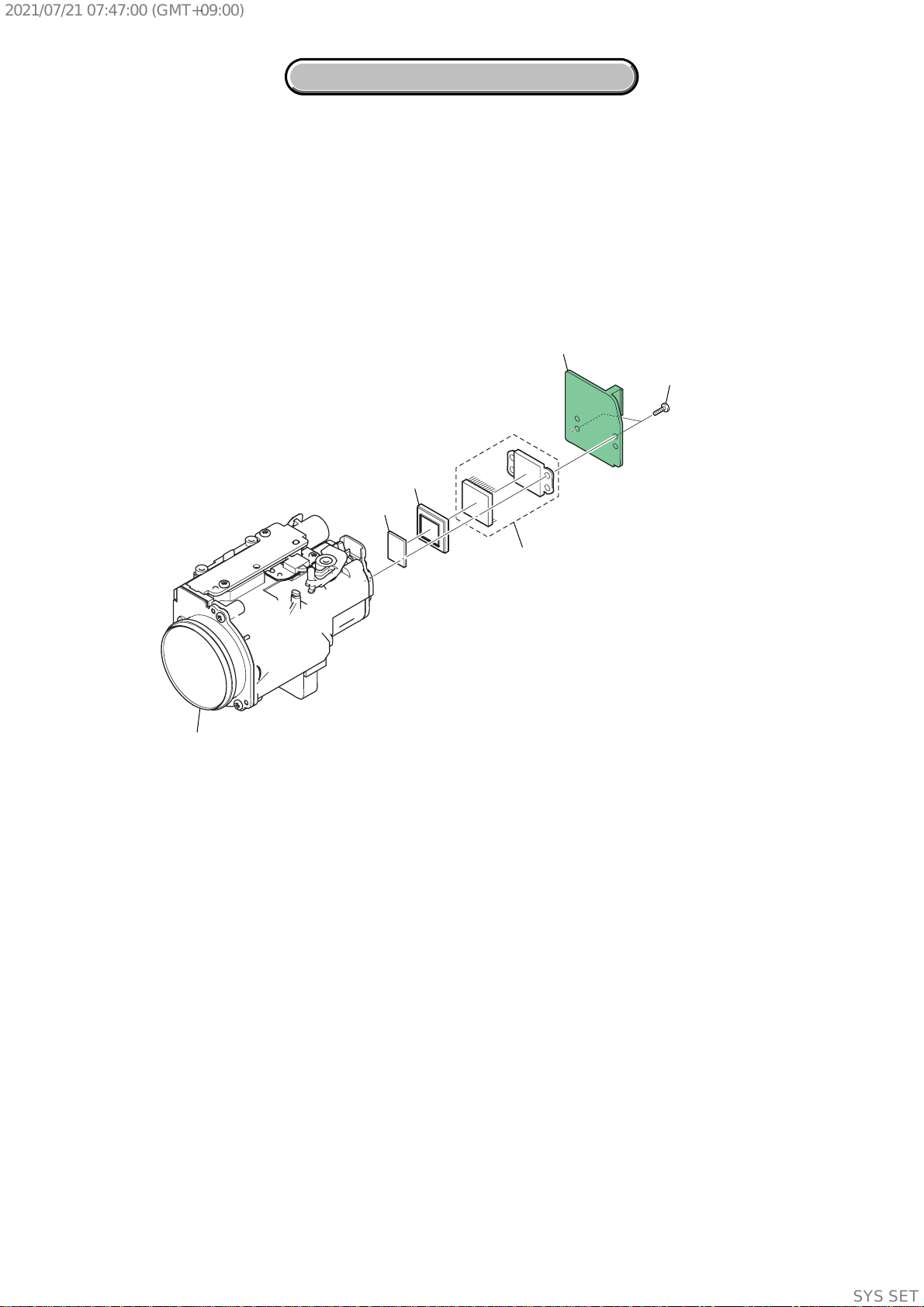

5-1-3. LENS BLOCK

105 3-080-204-21 SCREW, TAPPING, P2

IC951 A-7013-401-A CCD BLOCK ASSY (CCD IMAGER)

(TRV480E) (Note 1, 2)

IC951 A-7016-724-A CCD BLOCK ASSY (CCD IMAGER)

(TRV380/TRV480) (Note 1, 2)

CD-472

101

102

103

104

105

IC951

(Note1, 2)

Note 1: IC951 is not included in CD-472 complete board.

Ver 1.1 2004. 12

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-5

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

5-1-4. LCD BLOCK

Ref. No. Part No. Description Ref. No. Part No. Description

151 X-2024-898-1 CABINET (M (970)) ASSY, P

152 3-087-902-01 FRAME (61), PANEL

153 A-1081-090-A PD-205 BOARD, COMPLETE

154 3-078-890-21 SCREW, TAPPING

155 3-078-889-11 SCREW (M1.7)

156 3-088-536-01 CUSHION (61), LCD

157 1-479-063-11 KEY BLOCK, CONTROL (SB-9000)

LCD901 8-753-052-10 ACX307AKM-1

0ND901 1-518-951-21 TUBE, FLUORESCENT, COLD CATHODE

The components identified by

mark 0or dotted line with

mark 0are critical for safety.

Replace only with part num-

ber specified.

Les composants identifiés par une

marque 0sont critiques pour la

sécurité.

Ne les remplacer que par une pièce

portant le numéro spécifié.

PD-205

151

157

156

152

153

LCD901

ND901

155

154

Ver. 1.4 2008.07

The changed portions from

Ver. 1.3 are shown in blue.

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-6

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

Ref. No. Part No. Description Ref. No. Part No. Description

201 1-478-416-61 KEY BLOCK, CONTROL (CF-5100)

(including BT001)

202 3-080-206-11 SCREW, TAPPING, P2

203 3-080-205-21 SCREW, TAPPING, P2

204 1-962-648-11 HARNESS (PD-124)

205 3-087-826-11 COVER (M) (51), HINGE

206 3-087-825-31 COVER (C) (51), HINGE

5-1-5. CABINET R BLOCK

207 3-078-889-11 SCREW (M1.7)

208 1-478-418-11 KEY BLOCK, CONTROL (PR-5100)

209 X-3953-962-1 HINGE (51) ASSY

210 X-2024-894-1 CABINET (R (970)) ASSY

211 CAUTION TAPE (CF)

CAUTION :

For the part of 211 : TAPE (CF) (3-090-115-01), cut

WOVEN (T0.25), FABRIC NON (3-076-631-01) into

the desired length and use it.

201

(including BT001)

202

203

204 205

206

207

208

203

: BT001 (BATTERY, LITHIUM SECONDARY)

Included in the control switch block (CF-5100).

209

210

(BT001)

211

(SIZE:

0.7cm X 2.8cm)

CAUTION

Dangerofexplosionifbatteryisincorrectlyreplaced.

Replace only with the same or equivalent type.

ns: not supplied

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-7

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

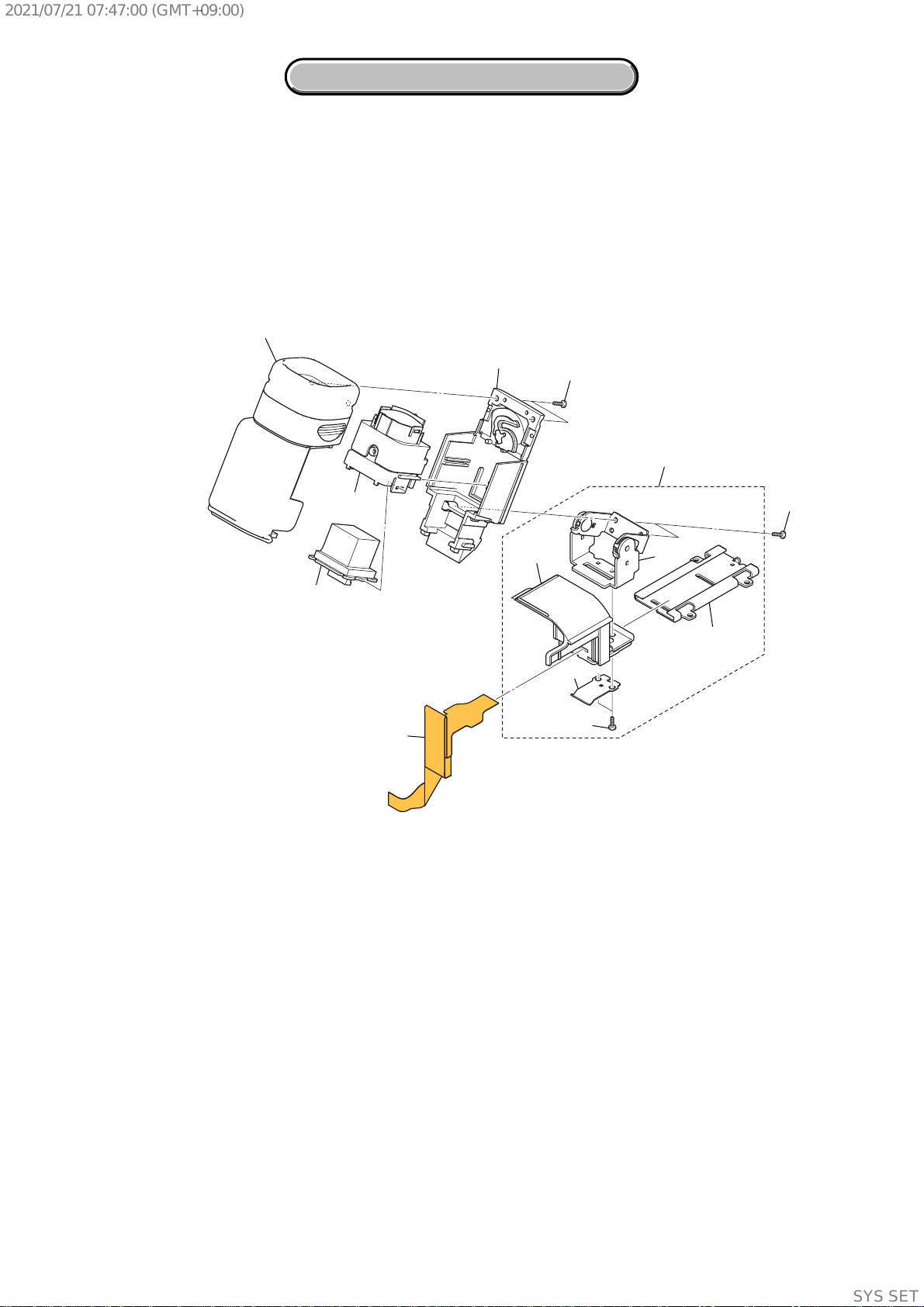

5-1-6. EVF BLOCK

Ref. No. Part No. Description Ref. No. Part No. Description

251 X-2025-532-1 CABINET (UPPER (955)) ASSY, EVF

252 X-3951-166-1 LENS (M) ASSY, VF

253 X-2025-533-1 CABINET (LOWER (905)) ASSY, EVF

254 3-080-204-21 SCREW, TAPPING, P2

255 X-2048-474-1 BASE (910) ASSY, SLIDE

257 3-080-203-31 SCREW (M2), LOCK ACE, P2

258 1-860-928-12 FP-797 FLEXIBLE BOARD

LCD902 1-805-465-61 INDICATOR MODULE LIQUID CRYSTAL

(TRV380/TRV480)

LCD902 1-805-465-81 INDICATOR MODULE LIQUID CRYSTAL

(TRV480E)

ns: not supplied

251

252

253 254

254

255

257

258

LCD902

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-8

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

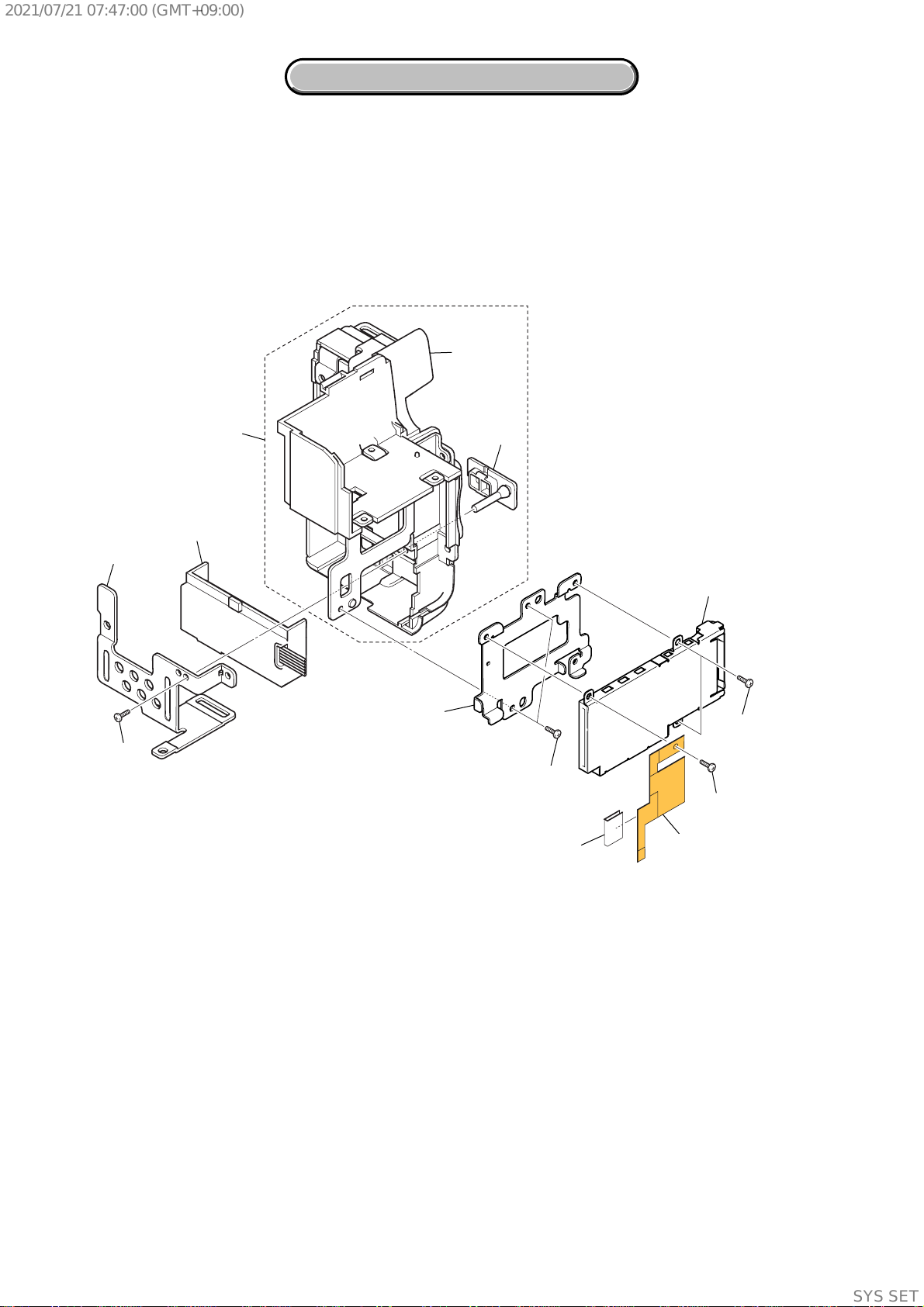

5-1-7. BATTERY PANEL BLOCK

ns: not supplied

Ref. No. Part No. Description Ref. No. Part No. Description

301 3-087-799-01 SHEET METAL (LOWER) (51), STRAP

302 3-078-889-11 SCREW (M1.7)

303 X-2024-900-1 PANEL (970) ASSY, BATTERY

304 3-072-305-11 LID (2500), JACK

305 1-816-271-21 MEMORY STICK CONNECTOR 10P

306 1-860-931-11 FP-799 FLEXIBLE BOARD

307 2-583-929-01 SHEET (970), MS SHIELD

BT901 1-694-772-11 TERMINAL BOARD, BATTERY

301

302 302

305

306

307

302

303 304

BT901

Ver 1.1 2004. 12

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-9

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

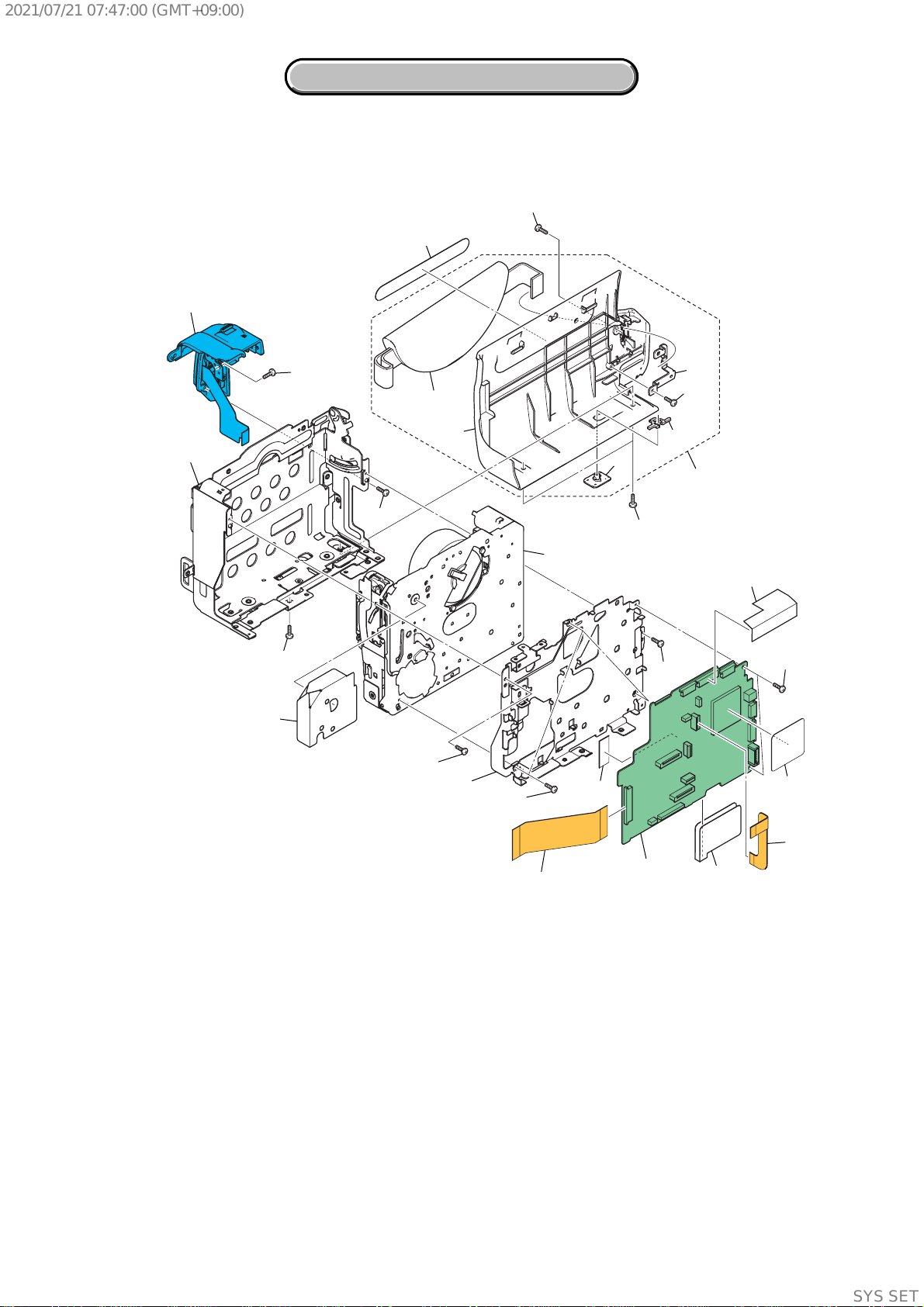

5-1-8. MD FRAME BLOCK

ns: not supplied

Ref. No. Part No. Description Ref. No. Part No. Description

351 1-478-417-81 KEY BLOCK, CONTROL (SS-5100)

352 3-080-253-01 SCREW (M1.7), LOCK ACE, P2

353 X-3953-958-2 FRAME (51) ASSY, CS

354 3-080-204-21 SCREW, TAPPING, P2

355 3-078-889-11 SCREW (M1.7)

356 3-066-169-01 SHEET (30), MD

357 3-087-809-02 FRAME (51), MD

358 1-860-927-11 FP-796 FLEXIBLE BOARD

359 A-1093-414-A VC-345 BOARD, COMPLETE (SERVICE)

(TRV380)

359 A-1093-415-A VC-345 BOARD, COMPLETE (SERVICE)

(TRV480/TRV480E)

360 1-860-930-11 FP-794 FLEXIBLE BOARD

361 3-089-368-01 LABEL, FUSE REPLACEMENT (51)

(TRV380/TRV480)

362 X-2048-472-1 CABINET (L (910)) ASSY

363 3-978-765-01 SLIDER, G LOCK

364 3-087-802-01 BELT (51), GRIP

365 3-080-203-31 SREW (M2), LOCK ACE, P2

366 2-548-267-31 LABEL (L (95)) (TRV380)

366 2-548-267-41 LABEL (L (95)) (TRV480)

366 2-548-267-51 LABEL (L (95)) (TRV480E)

367 3-080-204-11 SCREW, TAPPING, P2

368 2-583-930-01 SHEET (970), VC SHIELD

VC-345

351

352

353

354

363

367

355

356

357

355

358 359

360

355

361

362

364

365

366

365

Mechanism deck block

(See page 5-10 to 5-13.)

368

Ver 1.1 2004. 12

SYSSET

2021/07/2107:47:00(GMT+09:00)

5-10

5. REPAIR PARTS LIST

DCR-TRV380/TRV480/TRV480E

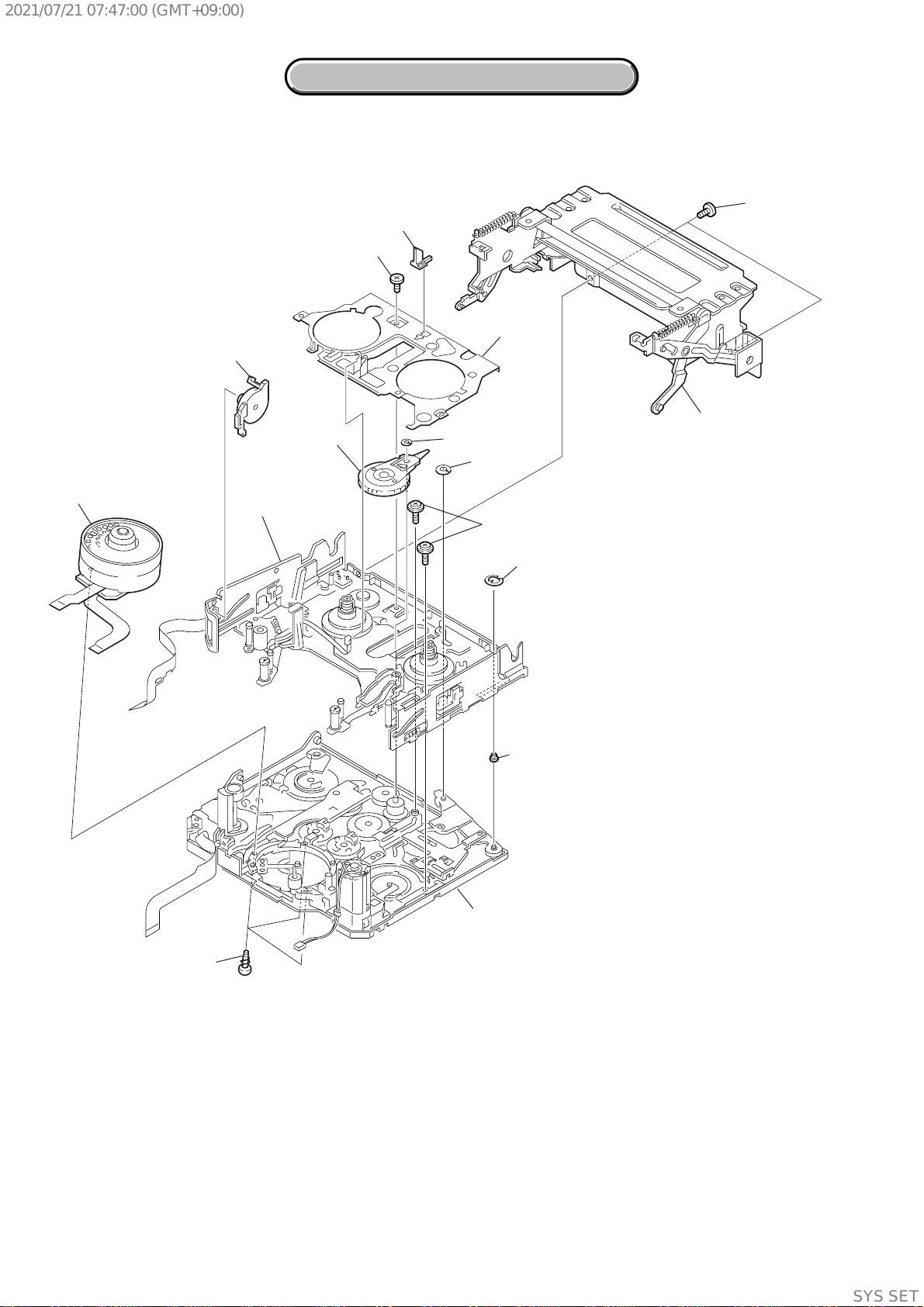

5-1-9. CASSETTE COMPARTMENT ASSEMBLY, DRUM ASSEMBLY

ns: not supplied

701

704

701

703

707708

712

709

711

706

702

705

710

M901 LS chassis block

assembly

(See page 5-11.)

Mechanical chassis block

assembly

(See page 5-12 to 5-13.)

Ref. No. Part No. Description Ref. No. Part No. Description

701 3-065-932-01 PAN (2 MAIN M1.4X1.6), CAMERA

702 3-065-895-01 LEVER, REEL RELEASE

703 3-065-896-01 PLATE, BLIND

704 X-3951-298-1 CASSETTE COMPARTMENT ASSY

705 X-3951-302-1 DAMPER ASSY

706 X-3951-297-1 GEAR ASSY, R DRIVE

707 3-065-840-01 CUT (0.98X3X0.13), LUMILER (W)

708 3-065-935-01 HLC CUT 1.8X4X0.5

709 3-947-503-01 SCREW (M1.4)

710 X-3951-299-1 SCREW ASSY, DRUM FITTING

711 3-074-309-01 ROLLER A, LS GUIDE

712 7-624-101-04 STOP RING 1.2 (E TYPE)

M901 A-7048-986-A DRUM (DKH-04B-R) (SERVICE)

SYSSET

2021/07/2107:47:00(GMT+09:00)

Autres manuels pour Handycam DCR-TRV380

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony caméscope

Sony

Sony Digital HDVS HDCAM HDW-730S Manuel utilisateur

Sony

Sony DCR-TRV720 Manuel utilisateur

Sony

Sony Handycam CCD-F34 Manuel utilisateur

Sony

Sony Handycam DCR-TRV17 Manuel utilisateur

Sony

Sony VX-1000 Manuel utilisateur

Sony

Sony Handycam DCR-DVD910 Manuel utilisateur

Sony

Sony CVX-V1 Manuel utilisateur

Sony

Sony Handycam Vision CCD-TRV107E Manuel utilisateur

Sony

Sony XDCAM EX PMW-EX3 Manuel utilisateur

Sony

Sony VJBK1T Manuel utilisateur

Sony

Sony DVW-707/707P Manuel utilisateur

Sony

Sony Handycam Vision DCR-TRV9 Manuel utilisateur

Sony

Sony CCD-Z7 Manuel utilisateur

Sony

Sony BVP-E30 series Manuel utilisateur

Sony

Sony Digital8 DCR-TRV130 Manuel utilisateur

Sony

Sony MSW-900 Manuel utilisateur

Sony

Sony Handycam CCD-TR2300 Manuel utilisateur

Sony

Sony Handycam DCR-HC37E Manuel utilisateur

Sony

Sony QUALINA 002 Manuel utilisateur

Sony

Sony XR500VE Manuel utilisateur

Sony

Sony DCR-SX21 Manuel utilisateur

Sony

Sony Handycam Video 8 CCD-TRV11 Manuel utilisateur

Sony

Sony bloggie MHS-TS10 Manuel utilisateur

Sony

Sony CCD-TRV30 - Video Camera Recorder 8mm Manuel utilisateur

Manuels caméscope populaires d'autres marques

Toshiba

Toshiba CAMILEO Z100 Manuel utilisateur

Panasonic

Panasonic NV-VS40B Manuel utilisateur

Canon

Canon RC 260 Manuel utilisateur

Brinno

Brinno TimeLapse TLC200 Manuel utilisateur

JVC

JVC GR-SXM68AC Guide de démarrage rapide

Panasonic

Panasonic AG-HMC152EN Manuel utilisateur

Insignia

Insignia NS-DCC5HB09 - Camcorder - 720p Manuel utilisateur

MYDLINK

MYDLINK DCS-6100LH Manuel utilisateur

SECURECOM

SECURECOM V-5014B Manuel utilisateur

Panasonic

Panasonic HDC-SD100 Manuel utilisateur

Sharper Image

Sharper Image U-VIDEO Manuel utilisateur

JVC

JVC AA-V15EG Manuel utilisateur

Canon

Canon LEGRIA HV40 Manuel utilisateur

RCA

RCA CC616 Manuel utilisateur

Panasonic

Panasonic NVM40 Manuel utilisateur

ATIK Cameras

ATIK Cameras Horizon Manuel utilisateur

Sharp

Sharp ViewcamZ VL-Z8H Manuel utilisateur

Philips

Philips M620/21 Manuel utilisateur
