- 1 -

As of May 8, 2012

BRU-SF10

1. Single mode fiber cable supported

The BRU-SF10 supports single mode optical fiber cable ensuring 2,000m transmission at maximum.

2. Status display on the front panel

The following various status displays are newly added on the front panel of the BRU-SF10 to increase its usability.

- 1080i/720p, 59.94/50, RS-232C/422, 9600/38400bps

- Camera ID : 1~7

3. Monitor output

By inserting the BRBK-HSD2, the HD/SD-SDI output card into optional card slot, the BRU-SF10 enables monitor

output. By terming off data mix, it enables various camera settings without displaying OSD on video out signal (main

line).

4. Uncompressed digital transmission

The BRU-SF10 features uncompressed multiple signal operation via a single cable. Video, sync, pan/tilt control,

camera control signal and audio line-in signal can be transmitted using with the CCFC-S200, single mode optical fiber

cable and the BRBK-SF1, HD optical multiplex card. The distance between the BRU-SF10 and the BRC-Z330/-H900

can be extended to a maximum 2,000m (6,560 feet). The Single cable operation makes it possible to integrate the

camera system easily.

5. Variety of video signal output

The BRU-SF10 is equipped with analog RGB or Y/Pb/Pr signal output as standard. Furthermore, 2 built-in optional

- 2 -

card slots enable to provide various signals in order to broaden the range of applications. For instance, HD-SDI signal

can be provided when installing the BRBK-HSD2 into the card slot. Two same kinds of cards can be installed into the

BRU-SF10 at the same time.

6. External sync signal input/output equipped

When multiple BRC-Z330 or BRC-H900 HD cameras or combination of BRC-Z330 and BRC-H900 HD cameras are

connected via the Optical Fiber Cable, the video signal can be synchronized by inputting the sync signal into the

external sync input connector.

7. Audio line output connectors (phono jacks, L/R) equipped

The BRU-SF10 allows output of stereo audio line signals that are transmitted from the BRBK-SF1 HD Optical

Multiplex Card inserted into the BRC-Z330/-H900 HD camera.

8. RS-232C/RS-422 serial control by VISCA™

All of camera and pan/tilt functions can be controlled via VISCA commands with a remote controller or a PC. This

unit incorporates the VISCA Mini DIN 8pin connectors for RS-232C control between BRU-SF10 and

BRC-Z330/-H900. Additionally, the dedicated 9pin connector is incorporated for RS-422 control from far location.

While the RS-232C is extended up to 15m (50feet) officially, the RS-422 is up to approximately 1.2km (4,000feet).

The data transmission speed of the RS-422 and the RS-232C can be selected either 9600bps or 38400bps.

BRBK-SA1

Analog SD output card

The BRBK-SA1 enables down convert to analog SD output signal when installed into the BRU-SF10 built-in card slot.

This can be used as an optional card for the BRC-Z330/-H900*.

*Note: Although the BRBK-SA1 can be used with the BRC-Z330/1, in case of using with previous version of the

BRC-Z330, it requires version upgrade.

- 3 -

BRBK-HSD2

HD/SD-SDI output card

The BRBK-HSD2 provides HD-SDI signal when installed into the BRU-SF10 built-in card slot. By turning off data

mix, it enables various camera settings without displaying OSD on video out signal (main line). This can be used as an

optional card for the BRC-Z330*/-H900.

Note 1: Although the BRBK-HSD2 can be used with the BRC-Z330/1, in case of using with previous version of the

BRC-Z330, it requires version upgrade.

BRBK-SF1

1. HD optical multiplex card

The BRBK-SF1 provides high quality optical multiplex HD signal and audio line-in signal when installed into the

BRC-Z330* /-H900 built-in card slot.

Note: Although the BRBK-SF1 can be used with the BRC-Z330/1, in case of using with previous version of the

BRC-Z330, it requires version upgrade.

2. Audio line input

The BRBK-SF1 is equipped with phono jack for Audio input. By installing the BRBK-SF1 into the BRC-Z330/-H900,

image signal of the BRC-Z330/-H900 and analog audio signal received by the BRBK-SF1 can be simultaneously

transferred to the BRU-SF10 via single mode optical fiber cable. This is effective when a microphone is set near

the BRC-Z330/-H900 located in distant place while the BRU-SF10 located by an operator who needs both image and

audio at the same time.

CCFC-S200

Single mode optical fiber cable

The CCFC-S200 is a single mode optical fiber cable for connecting the BRC-Z330/-H900 (with BRBK-SF1) to the

BRU-SF10. The CCFC-S200 can transmit uncompressed digital data without any deterioration. It can be extended up

to 2000m (6,560 feet) using with supplied cable extension adaptor.

- 4 -

System Configurations

(When the BRBK-HSD2 x1 is inserted into the BRU-SF10)

Note: The BRBK-HD2 for the BRC-Z330/-H900 can not be used with the BRU-SF10.

Pin Assignment and Connection

BRU-SF10

VISCARS-232C IN pin assignment

VISCARS-232C OUT pin assignment

Pin No.

Name

Signals

DTR

Data Transmission Ready (INPUT)

DSR

Data Set Ready (INPUT)

TXD

Transmit Data (INPUT)

GND

Ground

RXD

Receive Data (INPUT)

GND

Ground

N.C.

No Connection

N.C.

No Connection

Pin No.

Name

Signals

DTR

Data Transmission Ready (OUTPUT)

DSR

Data Set Ready (OUTPUT)

TXD

Transmit Data (OUTPUT)

GND

Ground

RXD

Receive Data (OUTPUT)

GND

Ground

N.C.

No Connection

N.C.

No Connection

１

BRC-Z330/-H900

- 5 -

VISCARS-422 pin assignment

D-Sub 15Ppin assignment

Pin No.

Name

Signals

RXD OUT-

Receive Data (OUT) -

RXD OUT+

Receive Data (OUT) +

TXD OUT-

Transmit Data (OUT) -

TXD OUT+

Transmit Data (OUT) +

GND

Ground

RXD IN-

Receive Data (IN) -

RXD IN+

Receive Data (IN) +

TXD IN-

Transmit Data (IN) -

TXD IN+

Transmit Data (IN) +

No.

Functions

When setting YPbPr

COMPONENT

When setting

COMPONENT

at VD

When setting RGB at

SYNC

When setting

RGB at VD

Pr-OUT

R-OUT

Y-OUT

G-OUT

Pb-OUT

B-OUT

GND

HD-OUT

3 Value SYNC-OUT

2 Value VD-OUT

3 Value SYNC-OUT

2 Value VD-OUT

- 6 -

Specifications

BRU-SF10 Brochure specifications

Optical fiber

LC Duplex Fiber Connector

Video output

D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC

External sync input

BNC

External sync output

BNC

Audio line output

Phono jack x2 (L/R)

Camera control

Mini DIN 8 pin: RS-232C (VISCA IN), Mini DIN 8 pin: RS-232C (VISCA OUT),

Connector plug 9 pin: RS-422 (VISCAIN/OUT)

Optional card slots

2 slots

Operating temperature

0 to 40 °C (32 to 104 ºF)

Storage temperature

-20 to 60 °C (-4 to 140 ºF)

Power requirements

12 V DC (10.8 V to 13.2 V DC)

Power consumption

Max. 15.6W (with optional cards)

Dimensions (WxHxD)

210 x 86 x 240 mm (8 3/8 x 3 1/2 x 9 1/2 inches)

Mass

2.0kg (4 lb 7oz)

Supplied accessories

AC adaptor (1), Power cord (1), DC-cord secure connection attachment (1), RS-422

connector plug (1), RS-232C connecting cable (3 m, Mini DIN 8 pin) (1), Operating

instructions (1)

BRU-SF10 Additional specifications

Selectable external sync

Standard Sync

RGB three-state Sync

Y three-state Sync

SD Sync

External Sync. Lock capability

Loop Trough Out

BRBK-SA1

Video output

BNC x1: VIDEO,

Mini DIN 4pin x1: S VIDEO,

D-sub 9pin x1: RGB/SYNC

Power supply

12 V DC (supplied from the camera or the Optical Multiplex Unit)

- 7 -

Power consumption

3.7 W max.

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating humidity

20% to 80% (no condensation)

Storage temperature

–20 °C to + 60 °C (–4 °F to +140 °F)

Storage humidity

20% to 95% (no condensation)

Dimensions

134 × 25.6 × 74.6 mm (w/h/d) (5 3/8 × 1 1/16 × 3 inches) (not including the

projected parts)

Mass

Approx. 125g (4.4 oz)

Supplied accessories

Operating instructions (1)

BRBK-HSD2

Video output

BNC x3, HD-SDI or SD-SDI

Power supply

12 V DC (supplied from the camera or the Optical Multiplex Unit)

Power consumption

2.9 W max.

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating humidity

20% to 80% (no condensation)

Storage temperature

–20 °C to + 60 °C (–4 °F to +140 °F)

Storage humidity

20% to 95% (no condensation)

Dimensions

134 × 25.6 × 74.6 mm (w/h/d) (5 3/8 × 1 1/16 × 3 inches) (not including the

projected parts)

Mass

Approx. 120g (4.2 oz)

Supplied accessories

Operating instructions (1)

BRBK-SF1

Optical connector

LC duplex Fiber connector (1)

Audio line input

Phono jack, right (1)/left (1)

Power supply

12 V DC (supplied from the camera)

Power consumption

2.9 W max.

Operating temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating humidity

20 % to 80 % (no condensation)

Storage temperature

–20 °C to + 60 °C (–4 °F to +140 °F)

Storage humidity

20 % to 95 % (no condensation)

Dimensions

134 × 25.6 × 74.6 mm (w/h/d) (5 3/8 × 1 1/16 ×3 inches) (not including the

projected parts)

- 8 -

Mass

Approx. 130 g (4.6 oz)

Supplied accessories

Operating instructions (1)

CCFC-S200

Type

LC duplex optical fiber cable

Length

200m (656feet)

Weight

Approx. 3.6kg (7lb 15oz)

Supplied accessories

Extension adaptor (1)

Safety approval

BRU-SF10 UC UL+cUL: UL60950-1/CSA C22.2 No.60950-1

FCC/IC: Digital Device Class A

Laser: DHHS/DNHW

BRBK-SA1 WW North America FCC/IC: Digital Device Class A

BRBK-HSD2 WW North America FCC/IC: Digital Device Class A

BRBK-SF1 WW North America FCC/IC: Digital Device Class A

Laser: DHHS/DNHW

- 9 -

External appearance

BRU-SF10

- 10 -

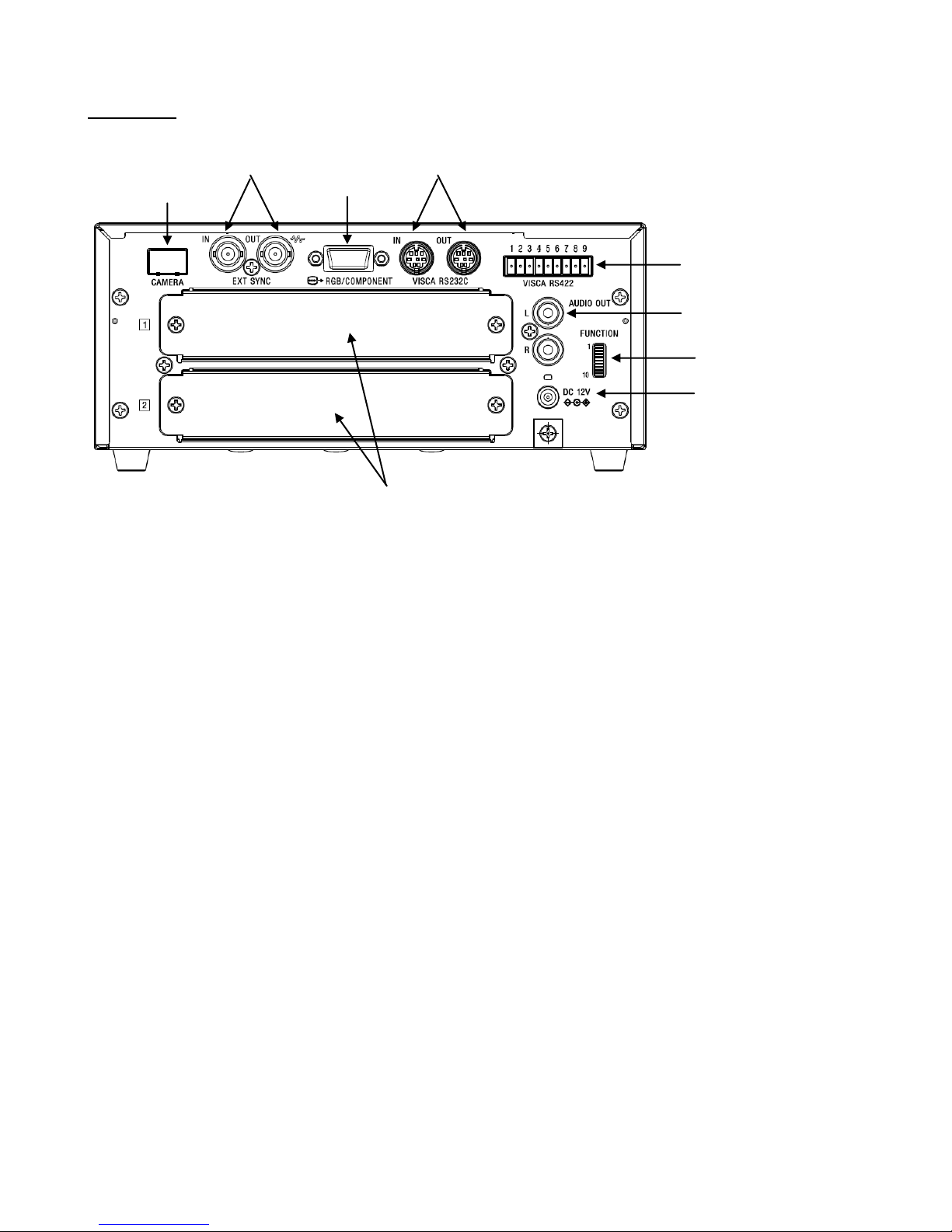

Rear Panel

Option I/F card slots

AUDIO OUT

VISCA RS-422 IN / OUT

VISCA RS-232C IN / OUT

VIDEO OUT D-SUB 15P

External Sync IN / OUT

HD Optical Fiber IN

DC 12 V

DIP SW (10BIT)
