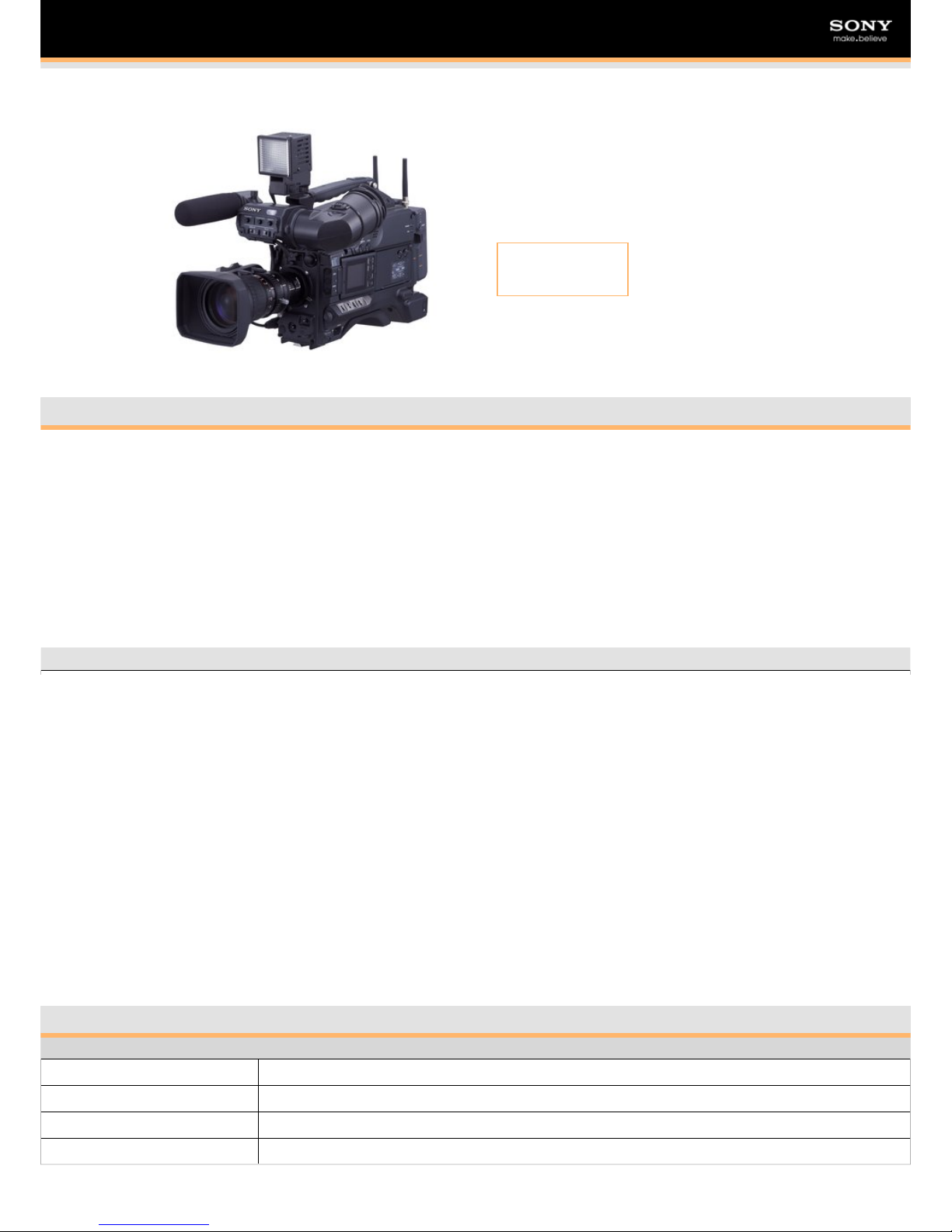

Sony DSR-450WSL Manuel utilisateur

SONY

DSR450WSL

2/3" 3 CCD DVCAM

Camcorder

$19,100.00

U.S.List Price

Overview

Sony is pleased to introduce the DSR-450WSL, the ultimate DVCAM™ Digital Camcorder. Packing the latest 2/3-inch CCD, and advanced 30-bit

digital-processing technology into a newly designed, heavy-duty chassis, the DSR-450WSL provides the creative control, picture quality,

ruggedness, functionality, and ease of use that the DVCAM format has become famous for.

The DSR-450WSL provides enhanced operational convenience with such features as a swing-out 2.5-inch color LCD monitor, (viewable area,

measured diagonally) scene file storage on Memory Stick™ slot, user assignable function buttons, a built-in 8-pin remote-control connector, and

battery-remaining display function. In addition, SDI output and analog composite input are available with the use of optional boards.

The DSR-450WSL features three native 16:9 2/3" Power HAD™ EX CCDs for shooting in 16:9 or 4:3 aspect ratios. The DSR 450WSL further

offers 24PSF and 30PsF progressive modes, selectable gamma with a film-like gamma setting, and variable shutter for greater creative control.

Highlights

* Three 2/3 inch 16:9 CCD

* 4:3 or 16:9 switch able

* 24P (with 2-3 pull down) or 30PsF progressive shooting

* Four assignable buttons

* Edit search function

* 2.5" flip out cover LCD panel

* i.LINK® (DV/DVCAM) In/Out connector for back up recording

* Electronic Color Correction filter

* High power video light connector

* InfoLithium® battery compatible -- displays the battery remaining time

in minutes on viewfinder or the LCD.

* Slow shutter up to 16 frames for low light shooting or creating an after

image effect

* Remote controller RM-B150//A or the RM-B750 remote controller

(Optional)

* 6 types of standard gamma setting, plus 5 types of film gamma

settings

* Pool feed recording CBK-SC01 Analog Composite Input Board

(Optional)

* SDI output CBK-SD01 SDI Output Board (Optional)

* Long record time DVCAM format: 184 min. (using PDV-184ME) DV

format SP mode: 270 min. (using PDV-184ME)

Features

Features Benefits

Image device: 3-chip 2/3-inch type, Power HAD EX CCD

Total picture elements: 1038 (H) x 1008 (V)

Effective picture elements: NTSC model: 980 (H) x 988 (V)

LCD Panel: Panel size (2.5-inch type)

Specifications

Audio Performance

Specifications Detail

Distortion Less than 0.12% (at 1 kHz, reference level, 48 kHz)

Dynamic Range More than 80 dB

Frequency Response 48 kHz: 20 Hz to 20 kHz +0.5/-1.0 dB, 32 kHz: 20 Hz to 14.5 kHz +0.5/-1.0 dB

Camera Performance

Specifications Detail

Aspect Ratio 16:9/4:3 switchable

Effective Pixels 980 x 988

Pickup Device 3-chip 2/3-inch type Power HAD EX CCD

Camera Performance -

Electrical

Characteristics

Specifications

Detail

A/D Conversion 12 bits

ECS 60 to 6000 Hz at 525/59.94i mode

30 to 7000 Hz at 525/29.97P mode

24 to 5000 Hz at 525/23.976P mode

Gain Selection -3, 0, 3, 6, 9, 12, 18, 24, 30, 36 dB (for GAIN LOW, GAIN MID, GAIN HIGH and GAIN TURBO positions)

Horizontal Resolution 850 TV lines (4:3 mode), 800 TV lines (16:9 mode)

Minimum Illumination 0.5 lx (F1.4 lens, +36 dB gain, shutter off)

0.03 lx (with slow shutter mode at 16 frames accumulation)

Scan format 525/59.94i, 525/29.97P, 525/23.976P

Sensitivity 0.5 lx (F1.4 lens, +36 dB gain, shutter off)

F11 (typical) (2000 lx, 89.9% reflectance)

Shutter Speed 1/100, 1/125, 1/250, 1/500, 1/1000,

1/2000 s at 525/59.94i mode

1/40, 1/60, 1/120, 1/125, 1/250, 1/500,

1/1000, 1/2000 s at 525/29.97P mode

1/32, 1/48, 1/96, 1/125, 1/250, 1/500,

1/1000, 1/2000 s at 525/23.976 mode

Signal System NTSC color system

Slow Shutter 1/30, 1/15, 1/10, 1/7.5, 1/6, 1/4.3,

1/3.8, 1/1.9 s (1 to 8, 16 frames)

Smear Level -140 dB (typical)

Sync System Internal and External with the VBS or BS signal

Vertical Resolution 450 TV lines (with EVS) and 400 TV lines

(without EVS) at 525/59.94i mode

485 TV lines at 525/29.97P

and 525/23.976P modes

Video S/N Ratio 920 TV lines

65 dB (typical)

Camera Performance -

Optical System

Specifications

Detail

Built-in Filters 1: Clear, 2: 1/4ND, 3: 1/16ND, 4: 1/64ND

Lens Mount 2/3-inch type Sony bayonet mount

Spectral System F1.4 prism (with quarts filter)

Camera Performance -

Pickup Device

Specifications

Detail

Effective Pixels 1038 x 1008

General Specifications Detail

Continuous Operating

Time 300 minutes with BP-GL95; 180 minutes with BP-GL65; 170 minutes with BP-L60S

Dimensions (W x H x D) 146 x 268 x 328mm (5 ¾ x 10 5/8 x 13 inches)

Operating Humidity 25 to 85%

Operating Temperature 0 degrees C to 40 degrees C (32 degrees F to 104 degrees F)

Power Consumption 17W (when recording with the LCD monitor off)

Power Requirements DC 12V (11 to 17V)

Storage Humidity Less than 85%

Storage Temperature -20 degrees C to 60 degrees C (-4 degrees F to 140 degrees F)

Weight Approx. 8 lb, 10 oz for main body only

Approx. 14 lb, 9 oz with VF, microphone, lens, battery pack (BP-GL95) and miniDV tape

Microphone

Specifications Detail

Microphone Electret condenser microphone (detachable)

Monitor Specifications Detail

Built-in Monitor 2.5-inch type color LCD monitor, resolution: 214,000 (964 x 222) pixels

Other Inputs/Outputs

Specifications Detail

Battery Terminal 5-pin

DC Input DC input

DC Output 4-pin (for wireless microphone receiver), DC 12 V (max. 0.2 A)

Lens 12-pin

Light 2-pin, DC 12 V, max. 50 W

Remote Control 8-pin

VF 20-pin

Wireless Microphone 7-pin

Signal Inputs/Outputs

Specifications Detail

Audio Input (CH-1/2)

XLR-3 (2) Female

-60 dBu/+4 dBu

10 k

Balanced

Audio Output (CH-1/2)

Pin-jacks (2), -10dBu, 47 k

Headphone Output Mini-jack

Microphone Input XLR-3, female, -60 dBu

Monitor Output Connector Monitor output

Time Code Input BNC

0.5 to 18 Vp-p

10 k

Time Code Output BNC, 1.0 Vp-p, 75

Signal Inputs/Outputs -

Video Inputs

Specifications

Detail

Analog composite BNC

1.0 Vp-p

75 (with the CBK-SC01)

Genlock video BNC

1.0 Vp-p

Signal Inputs/Outputs -

Video Outputs

Specifications

Detail

Analog composite BNC

1.0 Vp-p

SDI BNC

0.8 Vp-p

75 (with the CBK-SD01)

i.LINK i.LINK, 6-pin IEEE 1394-based

Video Performance

Specifications Detail

Fast Forward Time Approx. 45 s (with the PDVM-40ME), approx. 2 min 30 s (with the PDV-184ME)

Quantization 8 bits

Recommended Recording

Media PDV-184ME/124ME/94ME/64ME/34ME/184N/124N/94N/64N/34N, PDVM-

184ME/124ME/94ME/64ME/34ME/184N/124N/94N/64N/34N

Record/Playback time DVCAM: 184 min (with the PDV-184ME), DV SP: 276 min (with the PDV-184ME)

Rewind Time Approx. 45 s (with the PDVM-40ME), approx. 2 min 30 s (with the PDV-184ME)

Sampling Frequency Y: 13.5 MHz, R-Y/B-Y: 3.375 MHz

Video Performance -

Recording Format

Specifications

Detail

Audio 2 ch/16-bit/48 kHz, 2 ch/12-bit/32 kHz

Video DVCAM/DV (SP) (25 Mb/s)

Viewfinder

Specifications Detail

CRT 1.5-inch type monochrome

Horizontal Resolution 600 TV lines

Indicators REC TALLY (2), TAKE TALLY, BATT, SHUTTER, GAIN UP

Accessories

Supplied Accessories

Model: Description: U.S.List Price

VCTU14 Tripod adaptor for professional cameras and camcorders $240.00

Optional Accessories

Model: Description: U.S.List Price

ACDN10 AC Adaptor/Charger $757.00

DXFC50W 5"-type Color LCD Viewfinder $2,310.00

RMB750 Remote Control Unit Pricing available upon request

BPL60S Hard Carbon Lithium-Ion Battery $492.00

WRR855S42/44 Portable Plug-In Diversity Tuner $1,836.00

CAWR855 Camera Mounting Adapter for WRR-855S Wireless Tuner $659.00

BCL70 Portable 2 channel battery charger for lithium-ion batteries $854.00

BCL500 4CH Lithium-Ion Battery Charger $1,838.00

BPL80S Hard Carbon Lithium-Ion Battery pack (83.5Wh) $649.00

Resources

Product Brochure

Description: Release Date Type/Size

v-2270.pdf 06/21/2005 pdf / 2,131K

Product Manual

Description: Release Date Type/Size

DSR-400 / 450 Operating

Instructions pdf / 3,765K

Support & Training

Service

Model: Description: U.S.List Price

SPSCAM20RSEW3 3 Year Extended Warranty for Camcorders with list $10,001-$20,000 $359.99

DSR450W/RSDP2 2 Year Depot Service for DSR450WSL $1,224.00
