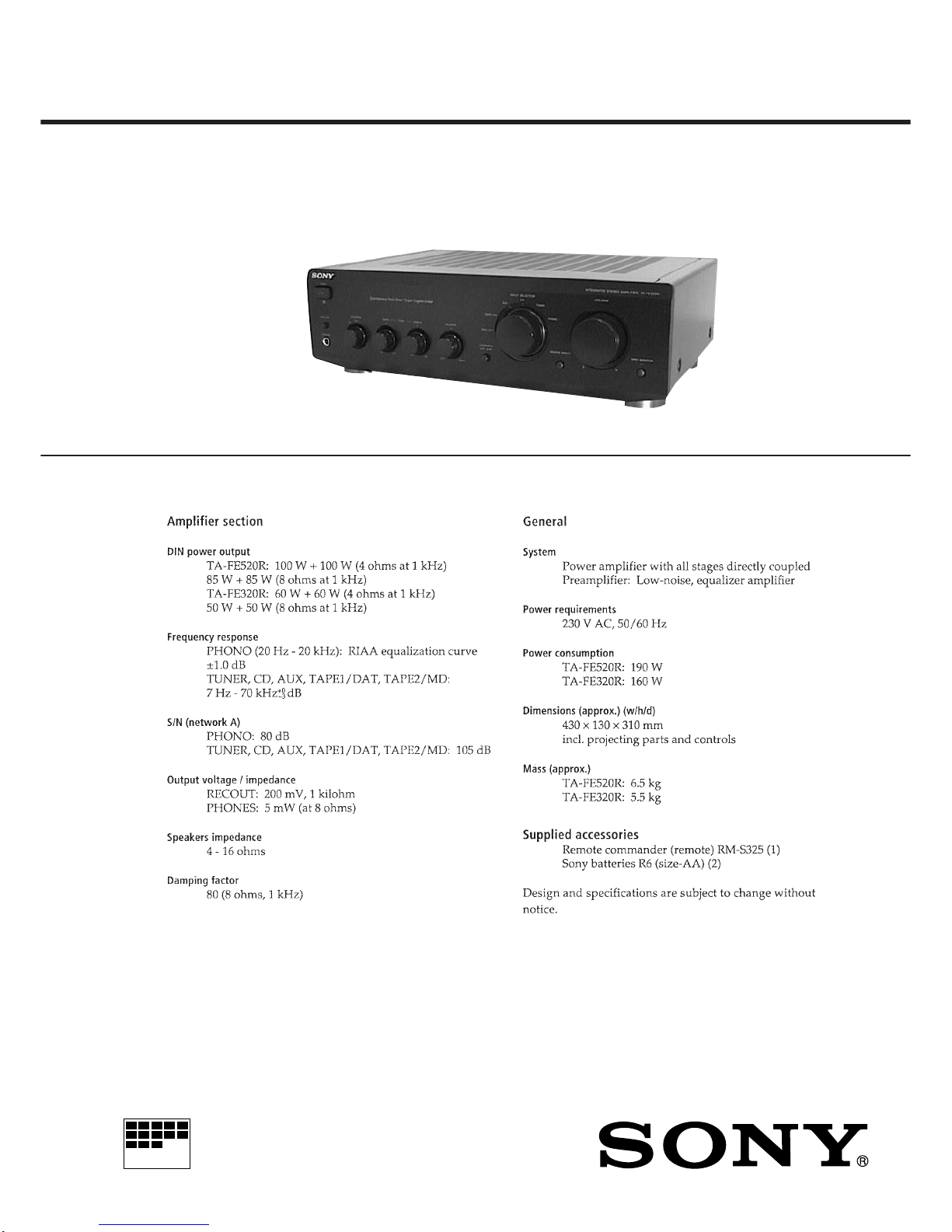

SERVICE MANUAL
INTEGRATED STEREO AMPLIFIER
AEP Model
TA-FE320R/FE520R
UK Model
TA-FE320R
SPECIFICATIONS
TA-FE320R/FE520R
Photo: TA-FE520R
– 2 –
TABLE OF CONTENTS
1. GENERAL
Location of Controls ....................................................... 3
2. DISASSEMBLY ......................................................... 4
3. DIAGRAMS
3-1. Notes for Printed Wiring Boards
and Schematic Diagrams ................................................ 6
3-2. Printed Wiring Board – MAIN Section – ...................... 7
3-3. Schematic Diagram – MAIN Section –.......................... 9
3-4. Printed Wiring Boards – PANEL Section – .................. 11
3-5. Schematic Diagram – PANEL Section –....................... 13
3-6. Printed Wiring Boards – POWER Section – ................. 15
3-7. Schematic Diagram – POWER Section – ..................... 16
3-8. IC Pin Function Description ........................................... 18
4. EXPLODED VIEWS................................................ 19
5. ELECTRICAL PARTS LIST ............................... 21
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK !OR DOTTED
LINE WITH MARK !ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
– 3 –
SECTION 1
GENERAL This section is extracted from
instruction manual.
LOCATION OF CONTROLS
Front Panel
1I/u(POWER) button
2Remote control sensor
3INPUT SELECTOR switch
4VOLUME control
5EON LINK button (TA-FE520R only)
6PHONES jack
7SPEAKERS switch
8BASS control
9TREBLE control
0BALANCE control
!¡ LOUDNESS button
!™ SOURCE DIRECT button
!£ TAPE MONITOR button (TA-FE520R only)
Rear Panel
– 4 –
FRONT PANEL SECTION
MAIN BOARD
Note: Follow the disassembly procedure in the numerical order given.
SECTION 2

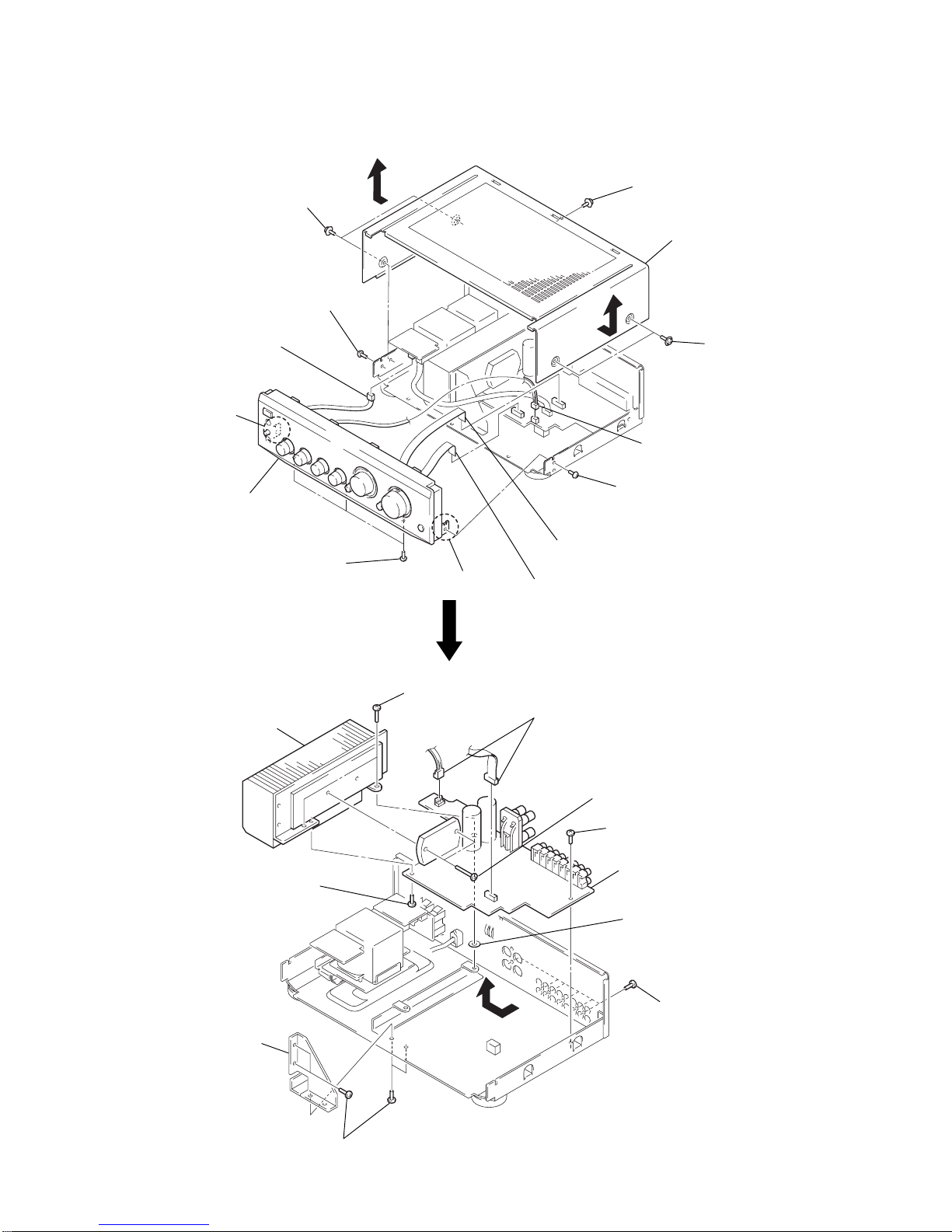

DISASSEMBLY
1
screw
(CASE)
1
two screw
s
(CASE)
5
screw
(BVTP3
×
8)
5
three screws
(BVTP3
×
8)
5
screw
(BVTP3
×
8)
4
connector
(CN812) (FE520R)
4
connector
(CN902)
6
claw
6
claw
7
front panel section
3
wire (flat type) (13 core)
(CN815)
3
wire (flat type) (13 core)
(CN811)
1
two screws
(CASE)
2
case
4
six screws
(BVTP3
×
8)
4
screw
(BVTP3
×
8)
9
screw
(BVTP3
×
10)
1
two connectors
(CN951, 952)
3
bracket
(HEAT SINK)
7
washer
(FIBER DIA.10)
5
two screws
(BVTP3
×
10)
2
four screws
(BVTP3
×
8)
!¡
MAIN board
8
two screws
(BVTP3
×
16)
0
heat sink
6
– 5 –
SECTION 3
DIAGRAMS
• Circuit Boards Location
RELAY AC board
RELAY DC board
POWER SW board
HP board
FUNCTION SW board
CONTROL board
TAPE MON board (FE520R
)
MAIN board
AC OUTLET board (AEP)
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•2: nonflammable resistor.
•5: fusible resistor.
•C: panel designation.
Note on PrintedWiring Boards:
•Y: parts extracted from the component side.
•¢: internal component.
•b: Pattern from the side which enables seeing.
•Indication of diode
•U: B+ Line.
•V: B– Line.
• Voltages are dc with respect to ground under no-signal
conditions.
no mark : TUNER
• Voltages aretakenwith aVOM(Input impedance 10MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
• Signal path.
F: TUNER
E: PB (TAPE1/DAT)
a: REC
d: PB (TAPE2/MD)
J: CD
I: PHONO
Note: The components identified by mark !or dotted line
with mark !are critical for safety.
Replace only with part number specified.
3-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
This marking side is cathode.
D
TA-FE320R/FE520R
– 9 – – 10 –
3-3. SCHEMATIC DIAGRAM – MAIN Section – • See page 17 for IC Block Diagrams.
The components identified by mark !or dotted
line with mark !are critical for safety.
Replaceonlywithpartnumberspecified.
(Page 13)
(Page 13) (Page 14)
(Page 16)
(Page 16)
TA-FE320R/FE520R
– 13 – – 14 –
3-5. SCHEMATIC DIAGRAM – PANEL Section – • See page 17 for IC Block Diagrams.
(Page 9) (Page 9)
(Page 9)
(Page 16)
– 15 –
• Semiconductor
Location
Ref. No. Location
D901 B-2
D904 A-1
D905 B-1
D906 B-1
D907 B-1
D908 B-1
D909 B-1
D910 A-2
D911 E-2
3-6. PRINTED WIRING BOARDS – POWER Section –
•See page 5 for Circuit Boards Location.
– 16 –
3-7. SCHEMATIC DIAGRAM – POWER Section –
The components identified by mark !or dotted
line with mark !are critical for safety.
Replaceonly with part numberspecified.
(Page 10)
(Page 10)
(Page 13)
