Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB

Installation Instruction, Mechanical

Applicable for W550c and W550i

Contents

General.............................................................................................................................2

Hardware.........................................................................................................................2

2.1

Setup..................................................................................................................2

2.2

Computer...........................................................................................................3

2.3

Sony Ericsson programming interface – DCU-60.............................................3

2.4

Smart Card Reader/Service Card.......................................................................3

2.5

Infrared Device..................................................................................................3

2.6

Bluetooth Device...............................................................................................3

2.7

Label Printer......................................................................................................4

2.8

Power Supply and Jumper Cables (optional) ....................................................4

Instructions for making a W550 Battery Eliminator Support (Optional).................4

Software...........................................................................................................................6

4.1

EMMA III..........................................................................................................6

4.2

Labelmake II software.......................................................................................6

Revision History..............................................................................................................7

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 2(7)

1General

This document describes the installation procedure for the Mechanical repair package.

2Hardware

All hardware necessary for this product’s setup is documented in the Mechanical Equipment List.

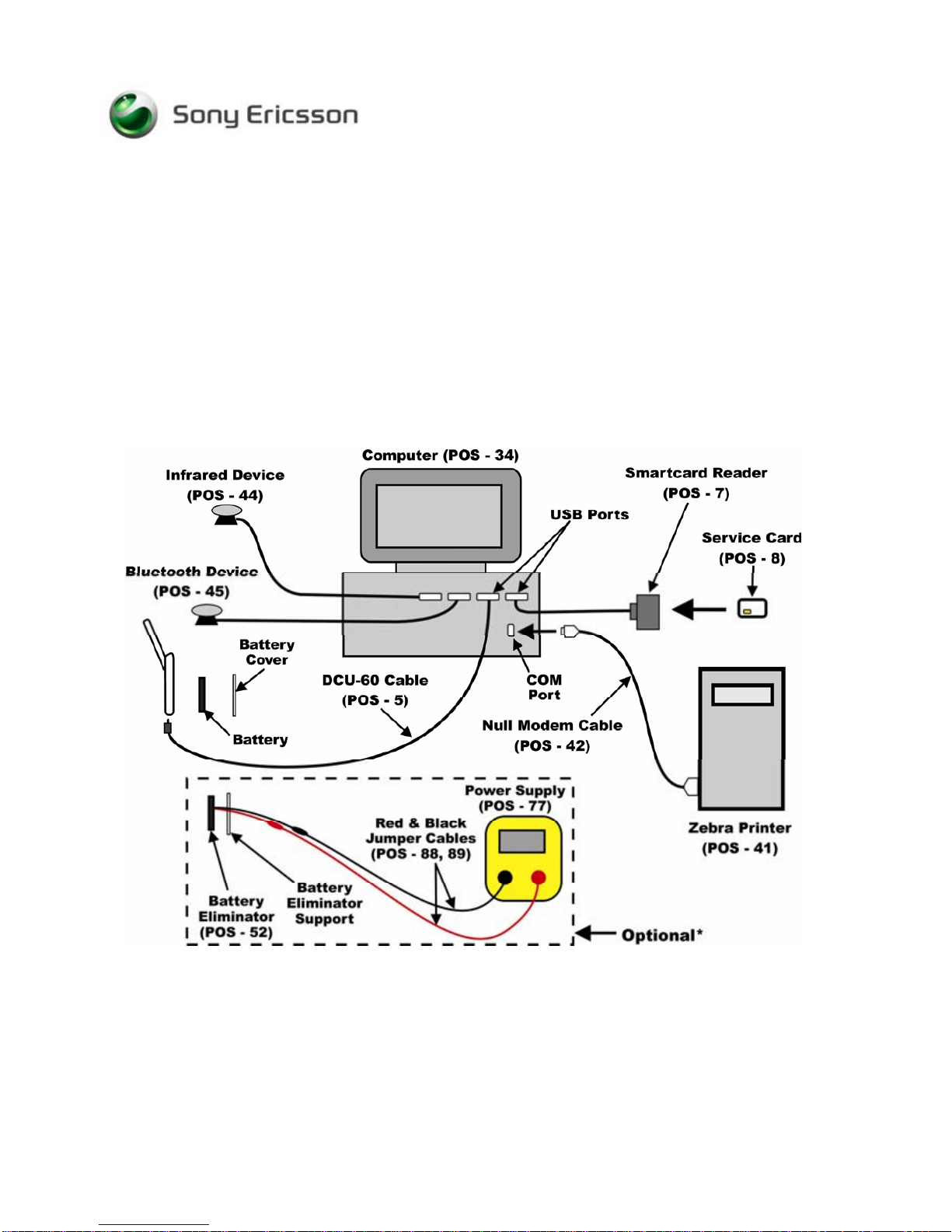

2.1 Setup

The equipment in this picture is specified in the Equipment List.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 3(7)

2.2 Computer

An IBM compatible computer (34) is required. The computer should include at least two USB-

ports. Refer to the Equipment List for minimum computer requirements.

2.3 Sony Ericsson programming interface – DCU-60

The cable is the interface between Computer and the phone. The DCU- 60 (POS-5) cable should

be connected to an USB-port on the computer.

2.4 Smart Card Reader/Service Card

NOTE! The Smart Card Reader/Service Card is only needed for the CSCA (Customer

Services Customization Activation) service and for all services when running

EMMA III off-line.

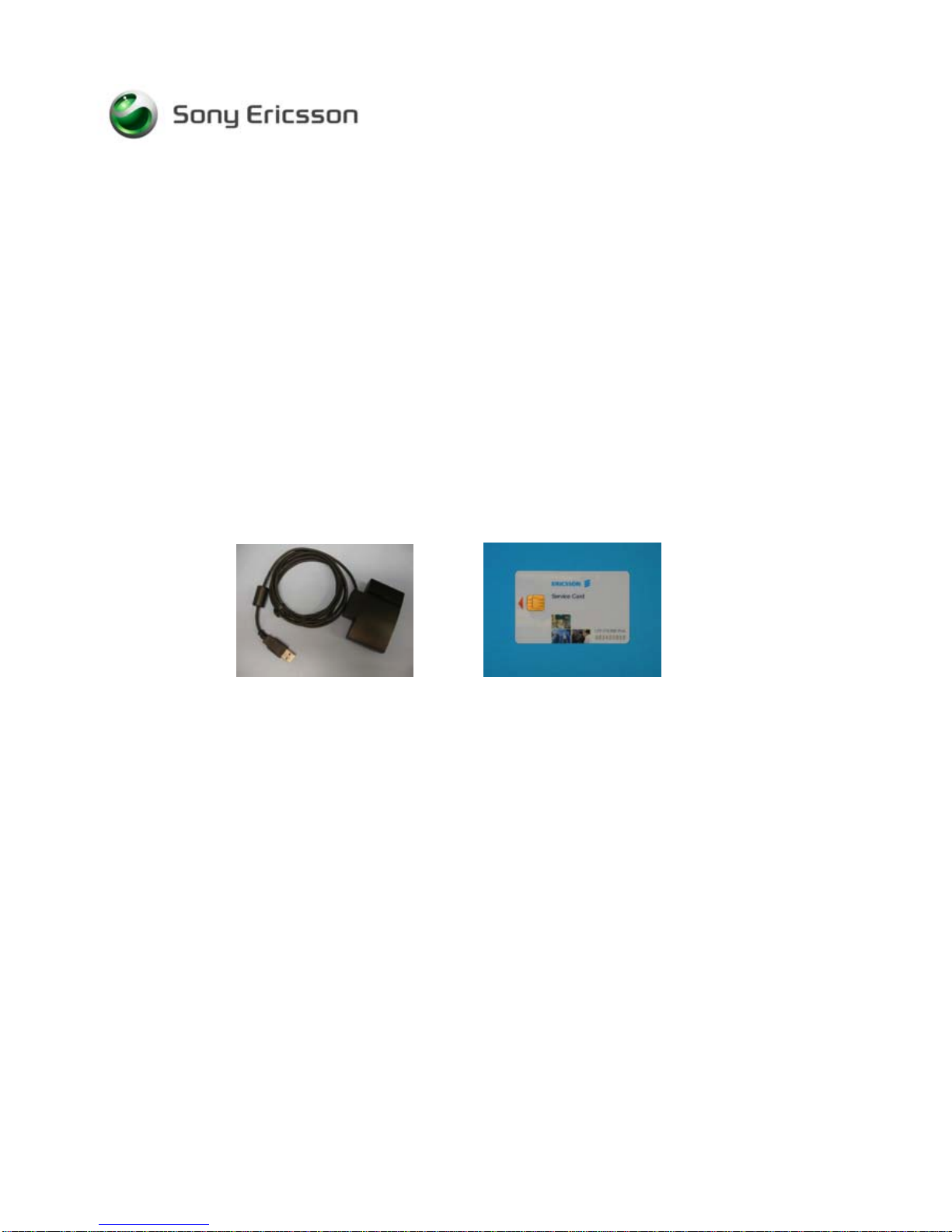

Smart Card Reader (7) Service Card (8)

The Smart Card Reader comes with the necessary software and instructions for installation.

1. Connect the Smart Card Reader (7) to one of the USB ports on the computer (34).

2. Install Service Card (8) into the Smart Card Reader (7).

2.5 Infrared Device

An RS-232 or USB type Infrared adapter (POS-44) may be used to verify the Infrared function in

the phone. Install according to the manufacturer’s instructions.

2.6 Bluetooth Device

Any Bluetooth device (POS-45) such as a headset or Bluetooth phone can be used to verify the

Bluetooth function in the phone. Set up the connection according to the chosen equipment’s

manufacturer’s instructions.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 4(7)

2.7 Label Printer

A Zebra printer (41) should be set up to print labels. Connect the printer with a Null Modem (42)

cable to the serial port on the computer (34). Read the Zebra installation manual for more

information about the installation.

2.8 Power Supply and Jumper Cables (optional)

1. Install the power supply (POS-77) according to the manufacturer’s instructions.

2. Connect the jumper cables to the power supply’s (POS-77) output terminals. Red (POS-88) to

the positive output terminal and black (POS-89) to the negative output terminal.

3. Connect the banana plugs of the red and black jumper cables to the battery eliminator’s

(POS-52) red and black connectors.

4. Set the output of the Power Supply as follows:

•Voltage: 3.8Vdc

•Current: 2.0 Amps

3Instructions for making a W550 Battery Eliminator

Support (Optional)

A device is needed to hold the battery eliminator in place when it is being used. The following is a

set of simple instructions for making a support that holds the battery eliminator in place during use.

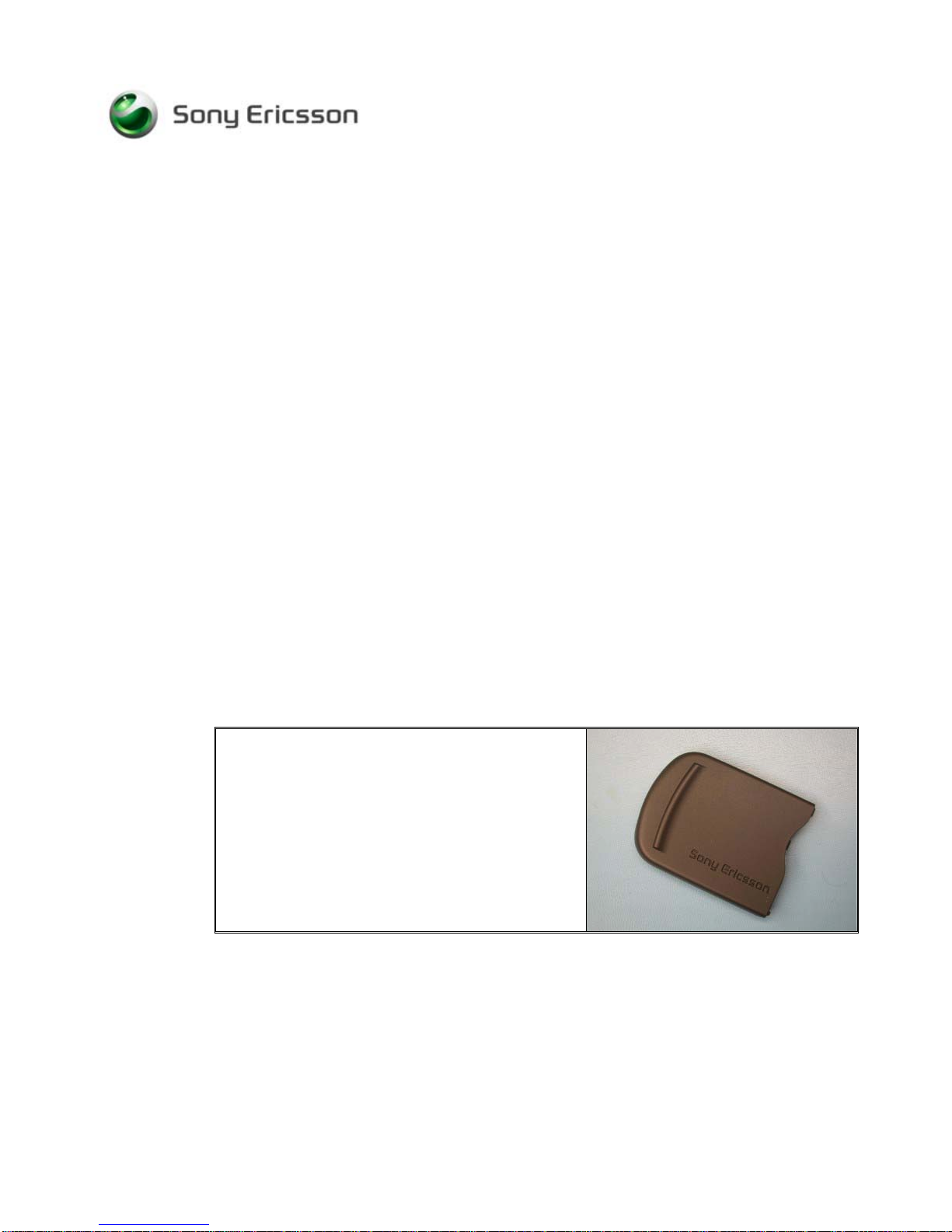

1. Obtain a battery cover.

NOTE! The battery cover is listed in the

Mechanical Part List.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 5(7)

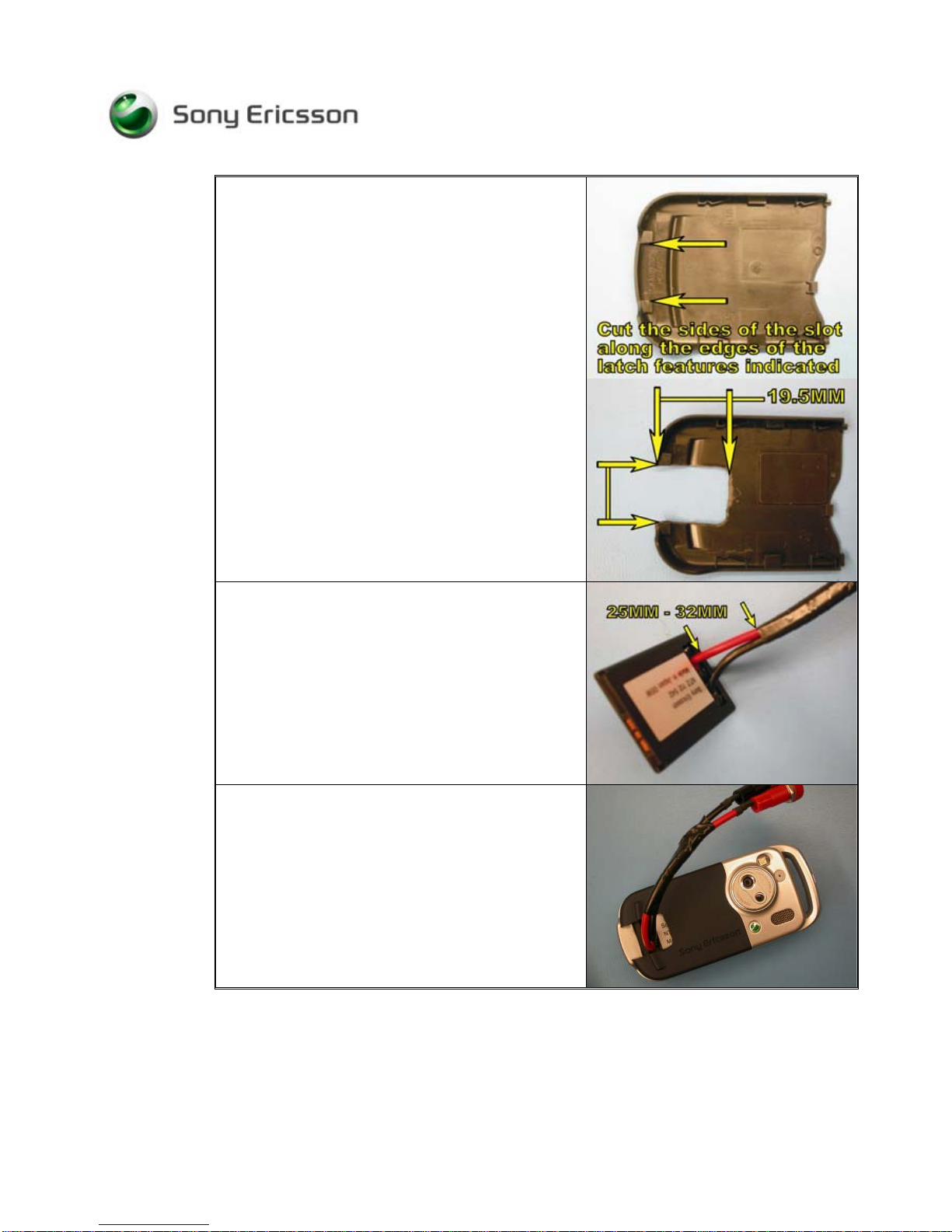

2. Cut a slot in the battery cover using the features and

the dimensions specified in the picture to the right.

Optional:

For ease of use, it is recommended that the two wires

that come out of the battery eliminator be held together

using heat shrink or electrical tape.

NOTE! Leave a 25MM to 32MM gap between the

surface of the battery and the bottom of the

tape or heat shrink.

3. Once all of the parts have been modified, evaluate

the usability of modified battery cover by mounting

the battery eliminator and the modified cover onto a

phone. Make sure that the battery eliminator and

modified battery cover both mount correctly, easily,

and that there is no interference between the slot in

the battery cover and the wires of the battery

eliminator.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 6(7)

4Software

4.1 EMMA III

EMMA III contains software upgrades and tools that are required for servicing this phone.

Installation and user manuals are accessible through CSPN.

1. Log onto CSPN. (https://cspn.extranet.sonyericsson.com)

2. Select “EMMA III” from the drop down menu.

3. Select “GO TO EMMA III HOME PAGE”.

4. Select “Installation Guide” under Documentation and follow the directions for

installation.

4.2 Labelmake II software

The LabelMake II software is an application that allows new labels to be printed with a Zebra

printer.

1. Log onto CSPN. (https://cspn.extranet.sonyericsson.com.)

2. Select “LabelMake II” from the drop down menu.

3. Press “START LabelMake II” button and you will be directed to the LABELMAKE II

client page.

4. Select “Launch LabelmakeII client” and follow the installation instructions.

Installation Instruction, Mechanical

1/00021-1/FEA 209 544/96 A

Company Internal

Sony Ericsson Mobile Communications AB 7(7)

5Revision History

Rev. Date Changes / Comments

A 2005-09-16 Initial Release
