Sony Ericsson T616 Manuel utilisateur

MobilePhoneT616

This is the Internet version of the user's guide. © Print only for private use.

Contents 1

Contents

Getting to know your phone 4

Key functions, quick keys, entering letters.

Personalizing your phone 17

Download settings or choose from the phone.

Calling 25

Use the Phonebook, voice control, call options.

Messaging 45

Multimedia messaging, chat and email.

Camera 53

Use the camera.

Setting up WAP and Email 56

All you need to know about setting up WAP and email.

Using WAP 63

WAP browser, bookmarks.

Transferring and exchanging information 66

Bluetooth wireless technology, synchronization.

More features 71

Calendar, alarm clock, stopwatch, timer, games.

Security 79

SIM card lock, phonelock.

Troubleshooting 80

Why doesn’t the phone work the way I want?

Additional information 82

Safe and efficient use, warranty, declaration of conformity.

Icons 90

What do the icons mean?

Index 96

This is the Internet version of the user's guide. © Print only for private use.

2 Contents

Sony Ericsson

First edition (May 2003)

This manual is published by Sony Ericsson Mobile

Communications AB, without any warranty.

Improvements and changes to this manual

necessitated by typographical errors, inaccuracies

of current information, or improvements to programs

and/or equipment, may be made by Sony Ericsson

Mobile Communications AB at any time and without

notice. Such changes will, however, be incorporated

into new editions of this manual.

©Sony Ericsson Mobile Communications AB, 2003

Publication number: AE/LZT 123 7545 R2

Please note:

Some of the services in this manual are not supported

by all networks. This also applies to the GSM

International Emergency Number 911 or 112.

Please contact your network operator or service

provider if you are in doubt whether you can use

a particular service or not.

Please read the Guidelines for safe and efficient use

and the Limited warranty chapters before you use

your mobile phone.

The BLUETOOTH trademarks are owned by

Bluetooth SIG, Inc.

T9™ Text Input is a trademark or a registered

trademark of Tegic Communications.

T9™ Text Input is licensed under one or more of the

following: U.S. Pat. Nos. 5,818,437, 5,953,541,

5,187,480, 5,945,928, and 6,011,554; Canadian Pat.

No. 1,331,057, United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329; Republic

of Singapore Pat. No. 51383; Euro.Pat. No. 0 842

463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE,

GB; and additional patents are pending worldwide.

Java and all Java based trademarks and logos are

trademarks or registered trademarks of Sun

Microsystems, Inc. in the U.S. and other countries.

End-user license agreement for Sun™ Java™

J2ME™.

1. Restrictions: Software is confidential copyrighted

information of Sun and title to all copies is retained by

Sun and/or its licensors. Customer shall not modify,

decompile, disassemble, decrypt, extract, or

otherwise reverse engineer Software. Software may

not be leased, assigned, or sublicensed, in whole or

in part.

This is the Internet version of the user's guide. © Print only for private use.

Contents 3

2. Export Regulations: Software, including technical

data, is subject to U.S. export control laws, including

the U.S. Export Administration Act and its associated

regulations, and may be subject to export or import

regulations in other countries. Customer agrees to

comply strictly with all such regulations and

acknowledges that it has the responsibility to obtain

licenses to export, re-export, or import Software.

Software may not be downloaded, or otherwise

exported or re-exported (i) into, or to a national or

resident of, Cuba, Iraq, Iran, North Korea, Libya,

Sudan, Syria (as such listing may be revised from

time to time) or any country to which the U.S. has

embargoed goods; or (ii) to anyone on the U.S.

Treasury Department's list of Specially Designated

Nations or the U.S. Commerce Department's Table of

Denial Orders.

3. Restricted Rights: Use, duplication or disclosure by

the United States government is subject to the

restrictions as set forth in the Rights in Technical Data

and Computer Software Clauses in DFARS 252.227-

7013(c) (1) (ii) and FAR 52.227-19(c) (2) as

applicable.

SyncML initiative Ltd. (1999-2002). All rights

reserved.

Other product and company names mentioned herein

may be the trademarks of their respective owners.

Any rights not expressly granted herein are reserved.

This is the Internet version of the user's guide. © Print only for private use.

4 Getting to know your phone

Getting to know your phone

About this user’s guide

The “Getting to know your phone” chapter gives a

quick overview of the main functions of the phone,

shortcuts and general information.

More information and downloads are available at

www.SonyEricsson.com/ or wap.SonyEricsson.com/

Available services

Some services and functions described in this user’s

guide are network or subscription-dependent, which

means that all menus may not be available in your

phone.

This symbol indicates that a service or

function is network or subscription-

dependent.

Please consult your network operator for

more information about your subscription.

Assembly

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery. See “SIM card and

battery information” on page 5.

Note: Always turn off the phone and detach the

charger before you insert or remove a SIM card.

The SIM card

When you register as a subscriber with a network

operator, you get a SIM (Subscriber Identity Module)

card. The SIM card contains a computer chip that

keeps track of your phone number, the services

included in your subscription, and your Phonebook

information, among other things.

Tip: Check if your information is saved to the SIM

card before you remove it from another phone. For

example, Phonebook entries may be saved in the

phone memory.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 5

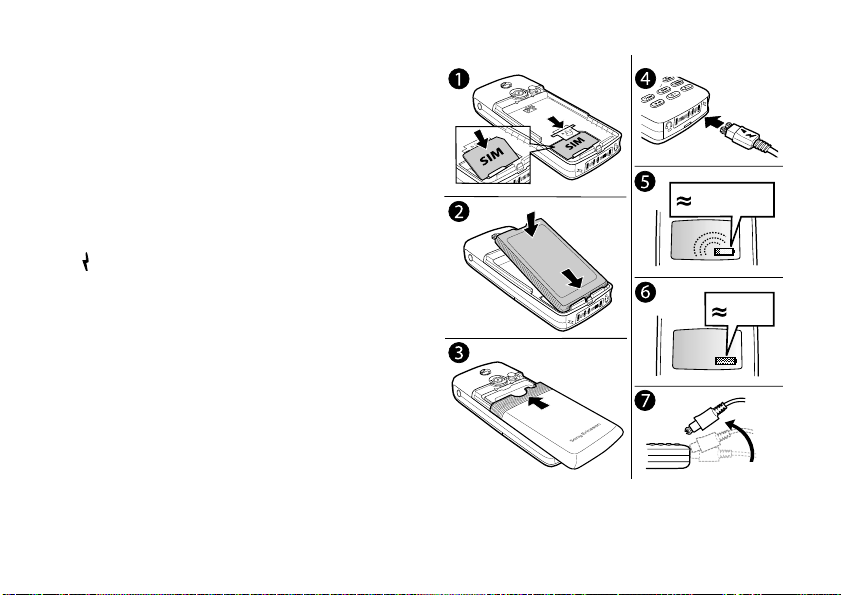

SIM card and battery information

It may take up to 30 minutes before an icon

appears when charging.

1. Insert the SIM card. Slide the metal holder over the

SIM card to lock it in place.

2. Place the battery on the back of the phone with the

label side up.

3. Place the back cover as shown in the picture and

slide it into place.

4. Connect the charger to the phone at the flash symbol

( ). The flash symbol on the charger plug must face

upwards.

5. It may take up to 30 minutes before the battery

charging icon appears in the display.

6. Wait approximately 4 hours or until the icon

indicates that the battery is fully charged. If you do

not see the battery icon after this time, press any key

or the joystick to activate the display.

7. Remove the charger by tilting the plug upwards.

Note: You have to insert the SIM card and charge

the battery before you can use the phone.

30 min.

4 h.

This is the Internet version of the user's guide. © Print only for private use.

6 Getting to know your phone

Turning the phone on

To turn on the phone

Press and briefly hold the on/off button on the top of

the phone.

Note: The first time you turn on the phone it takes

up to 40 seconds to begin operating.

• Enter your PIN (Personal Identity Number), if you

have one for your SIM card.

Your PIN is provided by your network operator.

If you make a mistake while entering your PIN,

delete the wrong number by pressing .

When you enter your pin, the digits will be masked

with an asterisk (*). Do not choose emergency

numbers for your PIN because emergency numbers

are not masked. Some number sequences may not be

hidden because they could be part of an emergency

number sequence.

Note: If you enter the wrong PIN three times in a

row, the SIM card is blocked and the message "PIN

blocked" appears. To unblock it, you need to enter

your PUK (Personal Unblocking Key). Your PUK is

provided by your network operator.

To turn off the phone

Press and hold the on/off button at the top of the phone.

on/off

Wel

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 7

Navigating the menus

The main menus are shown as icons on the desktop.

To go to the desktop, press the joystick.

Example

To set an alarm

1. Use the joystick to scroll to Organizer, and press the

left key to select it.

2. Use the joystick to scroll down to Alarms, and press

the left key to select this function. Press the

left key again to select Alarm.

3. Enter the time and press the left key to save

your entry.

Throughout this user’s guide instructions such as those

above will be given in a shorter form, as follows:

To set an alarm

1. Scroll to Organizer, Alarms, Alarm.

2. Enter the time, Save.

To make and receive calls from standby

• Enter the area code and phone number, press Call.

• Press End Call to end the call.

• When the phone rings, press Yes to answer the call.

Desktop

Press to go back one

level in the menus.

Press and hold to

return to standby.

Move up,

down, left,

right through

menus.

Press to select

highlighted

items.

Press to select the

options shown

above these keys

in the display.

This is the Internet version of the user's guide. © Print only for private use.

8 Getting to know your phone

Key functions

Press once to activate camera

function. Press again to take a

picture.

Volume keys increase/decrease

the earpiece volume during a

call. Scroll through menus, lists

and text. Enter the Status menu

in standby. Press twice to reject

an incoming call. Press once to

mute the ring tone when

receiving a call.

Press to select the options that

appear in the display

immediately above these keys.

Press once to go back one

level in the menus. Press and

hold to return to standby.

Enter *.

Shift between lower/upper

case when entering text.

Infrared port.

Press and hold to switch the

phone on or off.

Press to go directly to the

Internet.

4-way navigation and center

select allows you to move

through the menus, lists and

texts. The arrows indicate the

direction to tilt the joystick.

Press down on the joystick to

select an option.

Delete numbers, letters or an

item from a list. Press and

hold to mute the microphone

(during calls) or mute sound.

1-9, 0 Enter digits, 0–9, and letters.

Press and hold to enter

the international prefix +.

Press 7 to enter a pause. Press

9 to enter a question mark (?).

Enter # or a space.

This is the Internet version of the user's guide. © Print only for private use.

Getting to know your phone 9

Quick keys

Useful key combinations are described below.

To... When in standby:

Quickly access the main

menu items Tilt the joystick to the

right. Then, press the

digit key that

corresponds to the

location of the menu

icon.

Start the camera Press

Go directly to the internet Press

make an emergency call enter the emergency

number and press Call

enter Call Contact press

enter Call List press Calls ( )

enter Internet Services press

voice dial press and hold a volume

key or say your magic

word (when voice dial

is on)

call your voicemail press and hold

enter the +sign press and hold

mute the ring tone when

receiving a call press , or press a

volume key once

set the phone to silent press and hold

reach a contact beginning

with a specific letter press and hold any of the

keys -

reach a phone number at a

specific position. press the position

number and

speed dial press any of the number

keys - and

Call

Take a picture Press to start the

camera. Press again

to take a picture.

enter the first submenu of

the shortcut menu press

enter the main menu press or press the

center of the joystick

To... When in standby:

Table des matières

Autres manuels Sony Ericsson Téléphone portable

Sony Ericsson

Sony Ericsson Z1010 Manuel utilisateur

Sony Ericsson

Sony Ericsson Aino Manuel utilisateur

Sony Ericsson

Sony Ericsson A1404S Guide d'installation

Sony Ericsson

Sony Ericsson P800 Manuel utilisateur

Sony Ericsson

Sony Ericsson Xperia Z Ultra Manuel utilisateur

Sony Ericsson

Sony Ericsson Walkman W380 Manuel utilisateur

Sony Ericsson

Sony Ericsson W300c Manuel utilisateur

Sony Ericsson

Sony Ericsson Cyber-shot K850i Manuel utilisateur

Sony Ericsson

Sony Ericsson U10 Manuel utilisateur

Sony Ericsson

Sony Ericsson Cyber-shot C905 Manuel utilisateur

Sony Ericsson

Sony Ericsson Xperia acro SO-02C Guide de référence rapide

Sony Ericsson

Sony Ericsson P1i Manuel utilisateur

Sony Ericsson

Sony Ericsson Xperia X10i Manuel utilisateur

Sony Ericsson

Sony Ericsson J100 Guide de référence rapide

Sony Ericsson

Sony Ericsson K750i Manuel utilisateur

Sony Ericsson

Sony Ericsson Zylo Manuel de service

Sony Ericsson

Sony Ericsson K550 Manuel utilisateur

Sony Ericsson

Sony Ericsson Z550 Manuel utilisateur

Sony Ericsson

Sony Ericsson Live Sound Manuel de service

Sony Ericsson

Sony Ericsson CK13i Manuel de service

Sony Ericsson

Sony Ericsson CYBER-SHOT C902 Manuel utilisateur

Sony Ericsson

Sony Ericsson Xperia V LT25i Manuel utilisateur

Sony Ericsson

Sony Ericsson Z200 Guide de référence rapide

Sony Ericsson

Sony Ericsson IIDA G11 Guide d'installation

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Nokia

Nokia Lumia 620 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur
