Sony Ericsson J23OI Manuel utilisateur

This is the Internet version of the user’s guide © Print only for private use.

Contents

Getting to know your phone . . . . . . . . . . . . . . . . . . . 4

Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Menu overview . . . . . . . . . . . . . . . . . . . . . . . . 11

Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Personalizing your phone . . . . . . . . . . . . . . . . . . . 41

Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

More features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Additional information . . . . . . . . . . . . . . . . . . . . . . 69

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

This is the Internet version of the user’s guide © Print only for private use.

Sony Ericsson

GSM 900/1800

This user guide is published by Sony Ericsson Mobile

Communications AB, without any warranty. Improvements

and changes to this user guide necessitated by

typographical errors, inaccuracies of current information,

or improvements to programs and/or equipment, may be

made by Sony Ericsson Mobile Communications AB at

any time and without notice. Such changes will, however,

be incorporated into new editions of this user guide.

©Sony Ericsson Mobile Communications AB, 2005

Publication number: EN/LZT 108 8118 R1A

Please note:

Some of the services in this user guide are not supported

by all networks. This also applies to the GSM International

Emergency Number 112.

Please contact your network operator or service provider if

you are in doubt whether you can use a particular service

or not.

Please read the Guidelines for safe and efficient use and

the Limited warranty chapters before you use your mobile

phone.

T9™ Text Input is a trademark or a registered trademark

of Tegic Communications.

T9™ Text Input is licensed under one or more of the

following:

U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928,

and 6,011,554;

Canadian Pat. No. 1,331,057;

This is the Internet version of the user’s guide © Print only for private use.

United Kingdom Pat. No. 2238414B;

Hong Kong Standard Pat. No. HK0940329;

Republic of Singapore Pat. No. 51383;

Euro. Pat. No. 0 842 463 (96927260.8) DE/DK, FI, FR, IT,

NL, PT, ES, SE, GB; and additional patents are pending

worldwide.

Your mobile phone has the capability to download, store

and forward additional content, e.g. ringtones. The use of

such content may be restricted or prohibited by rights of

third parties, including but not limited to restriction under

applicable copyright laws. You, and not Sony Ericsson,

are entirely responsible for additional content that you

download to or forward from your mobile phone. Prior to

your use of any additional content, please verify that your

intended use is properly licensed or is otherwise authorized.

Sony Ericsson does not guarantee the accuracy, integrity

or quality of any additional content or any other third party

content. Under no circumstances will Sony Ericsson be

liable in any way for your improper use of additional content

or other third party content.

Other product and company names may be the trademarks

of their respective owners.

Sony Ericsson advises users to backup their personal data

information.

All illustrations are for illustration only and may not

accurately depict the actual phone.

Any rights not expressly granted herein are reserved.

This is the Internet version of the user’s guide © Print only for private use.

Getting to know your phone

NO key

Power on/off

Navigation

key

Clear key

Option key

YES key

This is the Internet version of the user’s guide © Print only for private use.

Assembling your phone

Before you can use your phone you need to:

• Insert the SIM card.

• Attach and charge the battery.

User guide symbols

The following symbols appear in this user guide:

SIM card and battery information

The SIM (Subscriber Identity Module) card, which you get

from your network operator, contains information about your

subscription and phonebook. Always turn off the phone and

detach the charger before you insert or remove a SIM card.

} Use the navigation key to scroll and select.

% See also page.xx

Important

Note

This symbol indicates that a service or function is

network – or subscription-dependent. Because of this,

all menus may not be available in your phone. Please

consult your network operator for more information.

If you have been using a SIM card in another phone,

make sure that your information is saved to the SIM

card before you remove it from the other phone.

%17 Phonebook.

This is the Internet version of the user’s guide © Print only for private use.

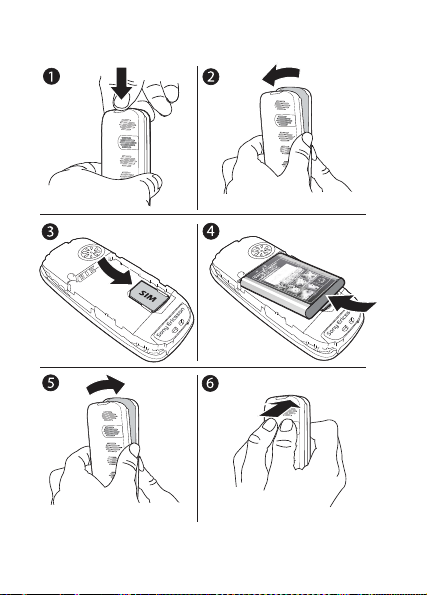

To insert the SIM card and battery

This is the Internet version of the user’s guide © Print only for private use.

1Press to release the cover as shown in the picture.

2Gently pull the cover away from the phone.

3Insert the SIM card. Make sure the SIM card is placed

under the silvery holders.

4Place the battery on the back of the phone with the label

side up and the connectors facing each other.

5Replace the cover as shown in the picture.

6Press to close the cover.

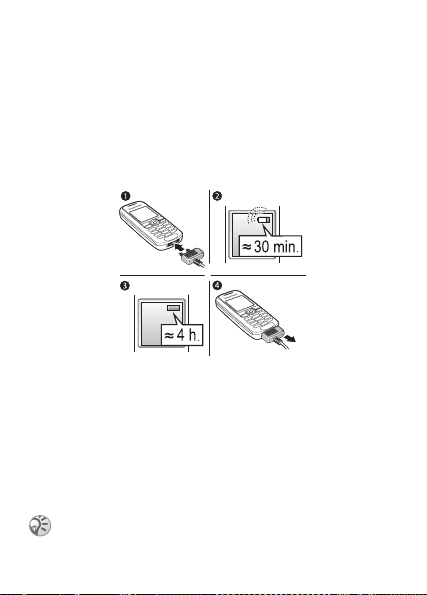

To charge the battery

1Connect the charger to the phone. The flash symbol on

the charger plug must face upwards.

2It may take up to 30 minutes before the battery icon

appears on the screen.

3Wait approximately 4 hours or until the battery icon

indicates that the battery is fully charged. If you do not

see the battery icon after this time, press any key to

activate the screen.

4Remove the charger by pulling it out.

The time and date are reset when you remove the

battery.

This is the Internet version of the user’s guide © Print only for private use.

You may need a PIN (Personal Identification Number) to

activate the services in your phone. Your PIN is provided by

your network operator.

If you make a mistake while entering your PIN, delete the

number by pressing .

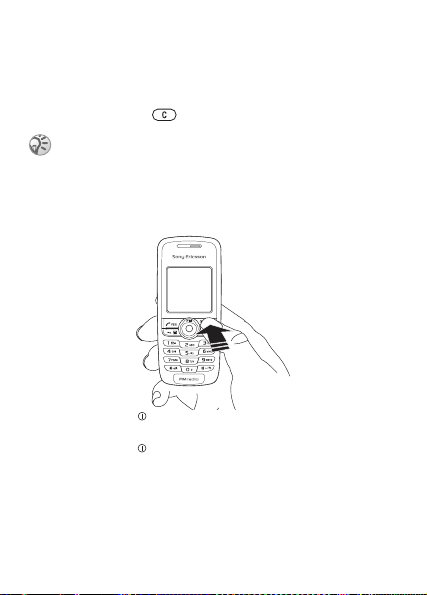

To turn the phone on and off

• Press and hold .

• Enter your PIN, if requested.

• Press and hold to turn off the phone.

To make and receive calls

• Enter the area code and phone number }YES to make

the call.

•}NO to end the call.

• When the phone rings, }YES.

If you enter the wrong PIN three times in a row, the

SIM card is blocked and the message PIN blocked

appears. To unblock it, you need to enter your PUK

(Personal Unblocking Key), %62 SIM card lock.

This is the Internet version of the user’s guide © Print only for private use.

Icons

The following icons appear on the desktop and in the status

bar.

Tells you the status of the battery.

Tells you the strength of the GSM network signal.

Calls – Handling of call time, call cost information

and ongoing calls.

Internet services – Gives you access to Internet

services.

Alarms – Alarm clock and recurrent alarm.

Fun & Games – Games and applications.

Messaging – Handling of text (SMS), picture

(MMS) and voice messages.

Radio – Listen to the radio.

Organizer – Calendar, tasks, timer and other extras.

Phonebook – Your personal phonebook.

Settings – Personal settings including profiles,

display, language, connectivity, time and locks.

This is the Internet version of the user’s guide © Print only for private use.
