Sonos SS1WMWW1 Manuel utilisateur
Sonos Mount
Quickstart Guide
Sinclair Mount.fm Page -1 Thursday, February 20, 2020 3:57 PM
THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT
NOTICE.
No part of this publication may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including but not limited to photocopying, recording, information
retrieval systems, or computer network without the written permission of Sonos, Inc.
SONOS and all other Sonos product names and slogans are trademarks or registered
trademarks of Sonos, Inc. SONOS Reg. U.S. Pat. & Tm. Off.
Sonos products may be protected by one or more patents. Our patent-to-product
information can be found here: sonos.com/legal/patents.
© 2020 by Sonos, Inc. All rights reserved.
For additional product information: www.sonos.com/guides
Sinclair Mount.fm Page 0 Thursday, February 20, 2020 3:57 PM
1
Sonos Mount
• The easy-to-install mount for Sonos One and Play:1
• Holds speaker normally, upside-down, or even horizontally

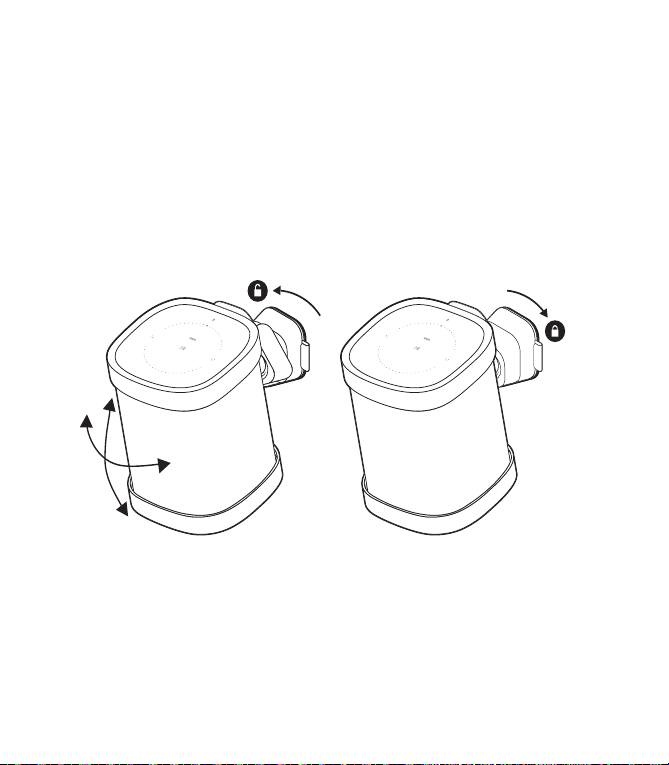

• Speaker can pivot up to 45 degrees
• Allows access to ports, buttons, and touch controls
• Cleanly routes your speaker’s cables
Important: This mount is intended for use only with Sonos One and Play:1.
What’s in the box?
•Mount
• Wall bracket
• Top cap
• Mounting kit
Note: Sonos speakers sold separately.
What you’ll need
• Pencil
•Level
• Phillips-head screwdriver
• Power drill (if needed for installation location)

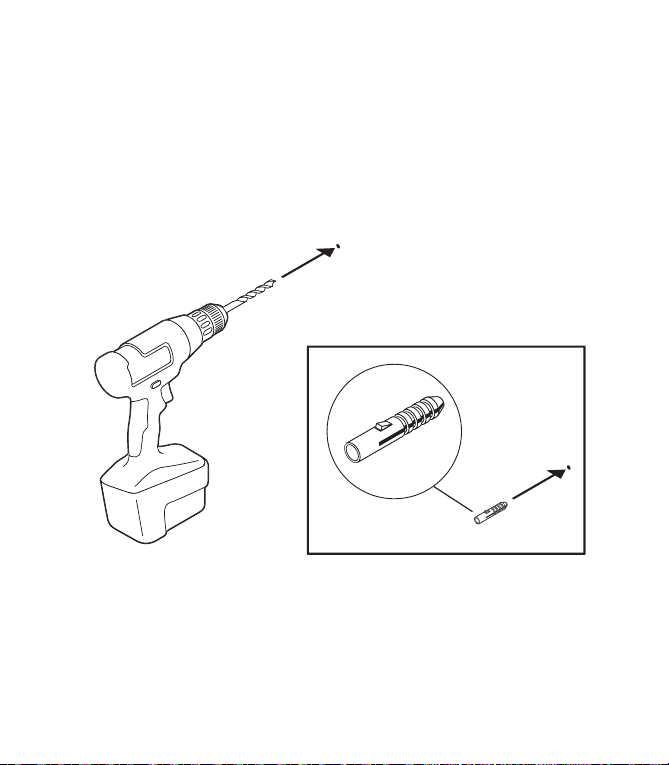

WALL MATERIAL PRE-DRILL USE WALL ANCHORS USE SCREWS
Wood stud 1/8” / 3mm bit No Yes
Drywall (no stud) 5/16” / 8mm bit Yes Yes
Hard wallboard or
double board
5/16” / 8mm bit Yes Yes
Plaster 5/16” / 8mm bit Yes Yes
Concrete or Brick 5/16” / 8mm bit Yes Yes
Sinclair Mount.fm Page 1 Thursday, February 20, 2020 3:57 PM
2

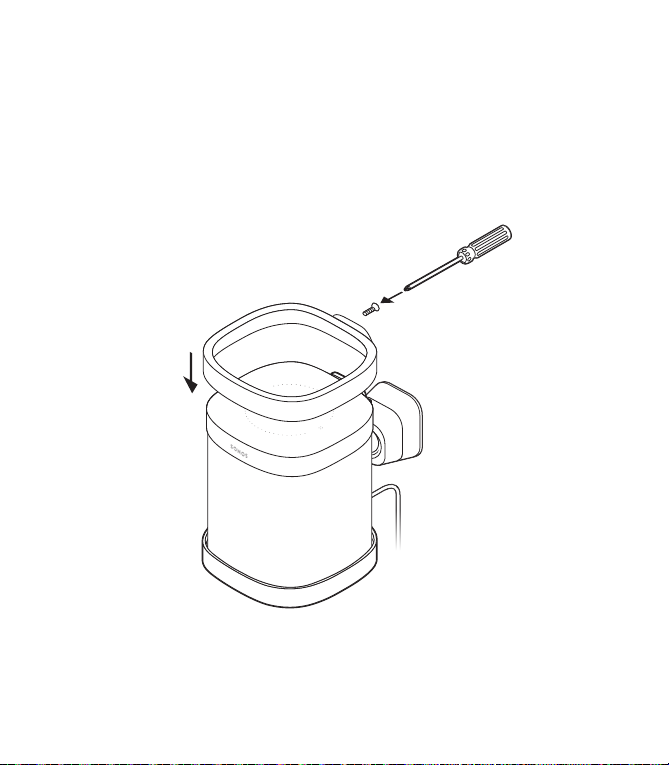

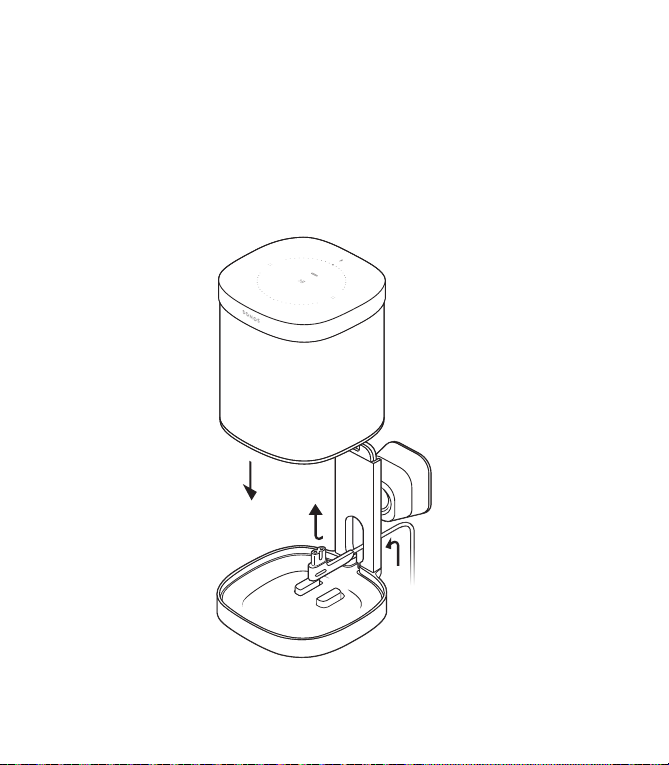

Assembling your Sonos Mount
1
1
2
3
Sinclair Mount.fm Page 2 Thursday, February 20, 2020 3:57 PM
3
2
1
2
Sinclair Mount.fm Page 3 Thursday, February 20, 2020 3:57 PM
4
3
Sinclair Mount.fm Page 4 Thursday, February 20, 2020 3:57 PM
5
4
Sinclair Mount.fm Page 5 Thursday, February 20, 2020 3:57 PM
6
5
Sinclair Mount.fm Page 6 Thursday, February 20, 2020 3:57 PM
7
6
Sinclair Mount.fm Page 7 Thursday, February 20, 2020 3:57 PM
8
7
Sinclair Mount.fm Page 8 Thursday, February 20, 2020 3:57 PM
